Transporto priemonė: LAS 1924; VIN numerio dalis: 346114

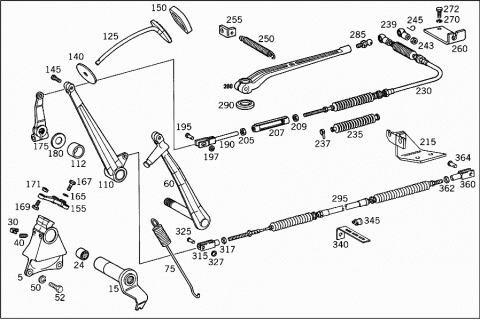

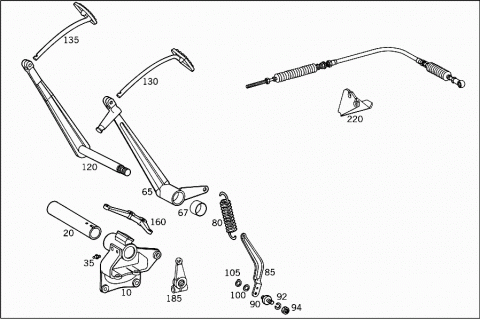

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3342940001 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 010 | A 3462945001 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 015 | A 3372900236 | BEARING TUBE |
| PEDAL ASSEMBLY | ||
| 020 | A 3372900036 | BEARING TUBE |
| PEDAL ASSEMBLY | ||
| A 3372940204 | BEARING TUBE | |
| PEDAL ASSEMBLY | ||
| 024 | A 3122941250 | BUSHING |
| Repalced by: A 3529920901 | ||
| 024 | A 3529920901 | BUSHING |
| 024 | A 3529922001 | BUSHING |
| 030 | N 071412010300 | GREASE NIPPLE |
| 035 | N 071412010100 | GREASE NIPPLE |
| BEARING TUBE | ||
| 040 | A 3529900080 | SCREW |
| BEARING TUBE TO BRACKET | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 050 | N 912004012100 | LOCK WASHER |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 052 | N 000960012036 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 060 | A 3462905016 | PEDAL |
| CLUTCH | ||
| 065 | A 3462905116 | PEDAL |
| CLUTCH | ||
| 067 | A 3122911550 | BUSHING |
| PEDAL BEARING | ||
| 075 | A 3359930510 | SPRING |
| CLUTCH OPERATION | ||
| 080 | A 3049931110 | SPRING |
| CLUTCH OPERATION | ||
| 085 | A 3372910142 | EXTENSION |
| RELEASE SPRING | ||
| 090 | A 3372940174 | PIN |
| RELEASE SPRING | ||
| 092 | N 912004012100 | LOCK WASHER |
| RELEASE SPRING | ||
| 094 | N 000934012022 | NUT |
| RELEASE SPRING | ||
| 100 | N 000988012008 | FITTED WASHER |
| 12X18X1.0 MM | ||
| 100 | N 000988012010 | FITTED WASHER |
| 12X18X1.4 MM | ||
| 100 | N 000988012011 | FITTED WASHER |
| 12X18X1.8 MM | ||
| 105 | N 000471012001 | LOCK RING |
| RELEASE SPRING | ||
| 110 | A 3612900218 | PEDAL |
| BRAKE | ||
| 112 | A 3122911250 | BUSHING |
| PEDAL BEARING | ||
| 120 | A 3372900318 | PEDAL |
| BRAKE | ||
| 125 | A 3212900024 | PEDAL PLATE |
| CLUTCH AND BRAKE | ||
| 130 | A 3222900424 | PEDAL PLATE |
| CLUTCH | ||
| 135 | A 3222900324 | PEDAL PLATE |
| BRAKE | ||
| 140 | A 3296160476 | WASHER |
| Repalced by: A 3226880024 | ||
| 140 | A 3226880024 | WASHER |
| BRAKE | ||
| 145 | N 000933010105 | SCREW |
| BRAKE | ||
| 150 | A 3202925082 | PAD |
| CLUTCH AND BRAKE | ||
| 155 | A 3372910141 | STOP |
| PEDAL TO BEARING BRACKET | ||
| 160 | A 3372910341 | STOP |
| PEDAL TO BEARING BRACKET | ||
| 165 | N 912004010102 | LOCK WASHER |
| STOP TO BEARING BRACKET | ||
| 167 | N 000933010145 | SCREW |
| STOP TO BEARING BRACKET | ||
| 169 | A 3379900001 | SCREW |
| STOP TO BEARING BRACKET | ||
| 171 | N 304032008006 | NUT |
| STOP TO BEARING BRACKET | ||
| 175 | A 3352930310 | LEVER |
| CLUTCH | ||
| 180 | A 3039910645 | RING |
| Repalced by: A 3039910345 | ||
| 180 | A 3039910345 | RING |
| PEDAL BEARING | ||
| 185 | A 3612920231 | LEVER |
| BRAKE | ||
| N 000931010093 | SCREW | |
| LEVER TO SHAFT | ||
| N 000934010014 | NUT | |
| LEVER TO SHAFT | ||
| 190 | A 3382900239 | ROD |
| CLUTCH OPERATION | ||
| 195 | N 001434010009 | PIN |
| ROD TO LEVER | ||
| 197 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 197 | N 000433010510 | WASHER |
| ROD TO LEVER | ||
| N 000094003024 | COTTER PIN | |
| ROD TO LEVER | ||
| 205 | N 000934010035 | NUT |
| TURNBUCKLE | ||
| 207 | N 001480010200 | TURNBUCKLE |
| CLUTCH OPERATION | ||
| 209 | N 000934010009 | NUT |
| Repalced by: N 304032010002 | ||
| 209 | N 304032010002 | NUT |
| TURNBUCKLE | ||
| 215 | A 3612900186 | BRACKET |
| CABLE | ||
| 220 | A 3462925040 | BRACKET |
| CABLE | ||
| N 000961012151 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 000961012151 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 000961012179 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 000961012029 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000934012023 | NUT | |
| Repalced by: N 308673012002 | ||
| N 308673012002 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 230 | A 3352930130 | CABLE |
| Repalced by: A 3352900285 | ||
| 230 | A 3352900285 | CABLE |
| CLUTCH OPERATION | ||
| 235 | A 0002930086 | BOOT |
| CABLE | ||
| 237 | A 0009950859 | SHACKLE |
| Repalced by: A 0019978390 | ||
| 237 | A 0019978390 | LOOM TIE |
| CABLE | ||
| 239 | A 0009916222 | BALL SOCKET |
| CABLE | ||
| N 071805016301 | SNAP RING | |
| CABLE | ||
| 243 | N 000934010014 | NUT |
| CABLE | ||
| 245 | N 071805016402 | SECURING CLIP |
| CABLE | ||
| 250 | A 3354210392 | SPRING |
| CLUTCH OPERATION | ||
| 255 | A 3352540040 | BRACKET |
| RELEASE SPRING | ||
| A 3432540040 | BRACKET | |
| Repalced by: A 3432540140 | ||
| A 3432540140 | BRACKET | |
| CLUTCH PEDAL RELEASE SPRING | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| TOP BRACKET TO SHOCK ABSORBER | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| TOP BRACKET TO SHOCK ABSORBER | ||
| 260 | A 3432930140 | BRACKET |
| CABLE | ||
| 260 | A 3432930240 | BRACKET |
| CABLE | ||
| 270 | N 912004012100 | LOCK WASHER |
| CABLE TO SIDE MEMBER | ||
| 272 | N 000961012052 | SCREW |
| Repalced by: N 308676012012 | ||
| 272 | N 308676012012 | SCREW |
| CABLE TO SIDE MEMBER | ||
| 280 | A 3352540825 | LEVER |
| CLUTCH OPERATION | ||
| 285 | A 3179910515 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 285 | A 3029910015 | BALL PIVOT |
| CABLE TO LEVER | ||
| 285 | A 3529910415 | BALL PIVOT |
| CABLE TO LEVER | ||
| 290 | A 3439900040 | WASHER |
| CABLE TO LEVER | ||
| N 000931010093 | SCREW | |
| LEVER TO RELEASE SHAFT | ||
| N 000934010014 | NUT | |
| LEVER TO RELEASE SHAFT | ||
| 295 | A 3462935030 | CABLE |
| BRAKE | ||
| 295 | A 3462935130 | CABLE |
| BRAKE | ||
| 305 | A 0002930086 | BOOT |
| CABLE | ||
| 307 | A 0009950859 | SHACKLE |
| Repalced by: A 0019978390 | ||
| 307 | A 0019978390 | LOOM TIE |
| CABLE | ||
| 315 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 315 | A 0009961501 | YOKE |
| CABLE TO LEVER | ||
| 317 | N 000934010014 | NUT |
| CABLE TO LEVER | ||
| 325 | N 001434010009 | PIN |
| CABLE TO LEVER | ||
| 327 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 327 | N 000433010510 | WASHER |
| CABLE TO LEVER | ||
| N 000094003024 | COTTER PIN | |
| CABLE TO LEVER | ||
| 340 | A 3612920140 | BRACKET |
| CABLE | ||
| 340 | A 3464295640 | BRACKET |
| Repalced by: A 3464296040 | ||
| 340 | A 3464296040 | BRACKET |
| CABLE | ||
| 340 | A 3375420140 | BRACKET |
| CABLE | ||
| 345 | A 0009952101 | CLAMP |
| Repalced by: N 916016012200 | ||
| 345 | N 916016012200 | CLAMP |
| CABLE | ||
| N 000084006197 | SCREW | |
| CLAMP TO BRACKET | ||
| N 000125006421 | WASHER | |
| CLAMP TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| CLAMP TO BRACKET | ||
| N 000934006007 | NUT | |
| CLAMP TO BRACKET | ||
| N 000084006197 | SCREW | |
| CLAMP TO BRACKET | ||
| N 912004006102 | LOCK WASHER | |
| CLAMP TO BRACKET | ||
| N 000934006007 | NUT | |
| CLAMP TO BRACKET | ||
| 360 | N 071752012002 | YOKE |
| CABLE TO BRAKE VALVE | ||
| 362 | N 000936012007 | NUT |
| CABLE TO BRAKE VALVE | ||
| 364 | N 001434012003 | PIN |
| Repalced by: A 3529910107 | ||
| 364 | A 3529910107 | PIN |
| CABLE TO BRAKE VALVE | ||
| N 000094004065 | COTTER PIN | |
| CABLE TO BRAKE VALVE | ||
