Transporto priemonė: LAS 1924; VIN numerio dalis: 346114

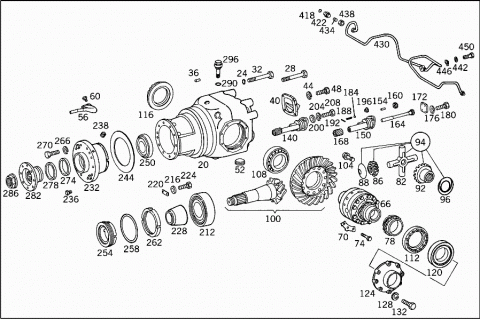

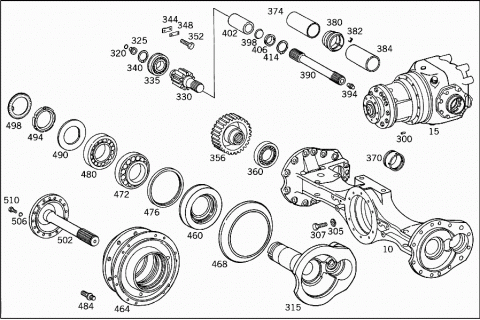

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3463505000 | REAR AXLE | |
| 010 | A 3663510201 | AXLE CASING |
| Repalced by: A 3663510901 | ||
| 010 | A 3663510901 | AXLE CASING |
| 015 | A 3663500423 | DIFFERENTIAL GEAR |
| RATIO: | ||
| 11:28 | ||
| 020 | A 3663500241 | HOUSING |
| Repalced by: A 3663500441 | ||
| 020 | A 3663500441 | HOUSING |
| 024 | N 912004016101 | LOCK WASHER |
| 028 | N 000960016172 | SCREW |
| 032 | N 000960016114 | SCREW |
| 036 | N 000007010239 | CYLINDRICAL PIN |
| Repalced by: N 000007010102 | ||
| 036 | N 000007010102 | CYLINDRICAL PIN |
| 040 | A 3663530206 | COVER |
| 044 | N 912004010102 | LOCK WASHER |
| 048 | N 000933010164 | SCREW |
| 052 | A 3039970006 | PLUG |
| 056 | A 3663500063 | OIL COLLECTOR |
| 060 | N 000933008123 | SCREW |
| Repalced by: N 304017008008 | ||
| 060 | N 304017008008 | SCREW |
| 066 | A 3663501027 | DIFFERENTIAL CASE |
| Repalced by: A 3463506923 | ||
| 066 | A 3463506923 | DIFFERENTIAL GEAR |
| 070 | A 3663530073 | LOCK |
| 074 | N 000960012219 | SCREW |
| 078 | A 3663530068 | GEAR |
| 082 | A 3663530020 | DIFFERENTIAL SPIDER |
| 082 | A 3663530220 | DIFFERENTIAL SPIDER |
| 086 | A 3663530214 | DIFFERENTIAL PINION |
| Repalced by: A 3663530414 | ||
| 086 | A 3663530414 | DIFFERENTIAL PINION |
| 088 | A 3663530362 | THRUST WASHER |
| 088 | A 3663530562 | THRUST WASHER |
| 092 | A 3663530015 | SIDE GEAR |
| 094 | A 3465860235 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 096 | A 3663530262 | THRUST WASHER |
| 096 | A 3663530462 | THRUST WASHER |
| 100 | A 3663500239 | RING GEAR AND PINION |
| Repalced by: A 3663500439 | ||
| 100 | A 3663500439 | RING GEAR AND PINION |
| RATIO: | ||
| 28:11 | ||
| 104 | A 3669900103 | SCREW |
| 108 | A 0029814905 | TAPERED ROLLER BEARING |
| 112 | A 3663530325 | SCREW COLLAR |
| 116 | A 3663530225 | SCREW COLLAR |
| 120 | A 0009810205 | TAPERED ROLLER BEARING |
| 124 | A 3663570021 | END PIECE |
| 128 | N 912004010102 | LOCK WASHER |
| 132 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 132 | N 304017010002 | SCREW |
| 140 | A 3663500069 | OIL PUMP |
| Repalced by: A 3663500169 | ||
| 140 | A 3663500169 | OIL PUMP |
| A 3433500078 | PUMP HOUSING | |
| 150 | A 3663500078 | PUMP HOUSING |
| Repalced by: A 3663500278 | ||
| 150 | A 3663500278 | PUMP HOUSING |
| 154 | A 3049910101 | PIN |
| 160 | A 3043530269 | GEAR |
| DRIVEN | ||
| 160 | A 3663530269 | GEAR |
| DRIVEN | ||
| A 3663530069 | GEAR | |
| DRIVING | ||
| 164 | A 3663530169 | GEAR |
| Repalced by: A 3663530469 | ||
| 164 | A 3663530469 | GEAR |
| DRIVING | ||
| N 006888005012 | WOODRUFF KEY | |
| 168 | A 3663530168 | GEAR |
| Repalced by: A 3633530068 | ||
| 168 | A 3633530068 | GEAR |
| DRIVEN | ||
| N 000471014000 | LOCK RING | |
| 172 | A 3043530167 | COVER |
| 176 | N 912004006102 | LOCK WASHER |
| 180 | N 000933006102 | SCREW |
| 184 | N 005401307000 | BALL |
| 188 | A 3049931001 | SPRING |
| A 3049970430 | SCREW PLUG | |
| 192 | N 007346002002 | CLAMPING SLEEVE |
| 196 | N 915042009000 | PLUG |
| 200 | N 000125010504 | WASHER |
| 204 | N 912004010102 | LOCK WASHER |
| 208 | N 000933010105 | SCREW |
| 212 | A 0019814901 | CYLINDR. ROLLER BEARING |
| 216 | A 3269940010 | LOCK |
| 220 | A 3159945030 | LOCK |
| 224 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 224 | N 304017008016 | SCREW |
| 228 | A 3663530044 | SPACER BUSHING |
| 232 | A 3663500050 | BUSHING |
| N 900083011000 | PLUG | |
| 236 | A 3469905001 | SCREW |
| 238 | N 000906016002 | SCREW PLUG |
| 244 | A 3263530152 | SPACER WASHER |
| 0.10 MM | ||
| 244 | A 3263530252 | SPACER WASHER |
| 0.25 MM | ||
| 244 | A 3263530352 | SPACER WASHER |
| Repalced by: A 3263530252 | ||
| 244 | A 3263530252 | SPACER WASHER |
| 0.50 MM | ||
| 244 | A 3263530452 | SPACER WASHER |
| 1.00 MM | ||
| 250 | A 0029814505 | TAPERED ROLLER BEARING |
| 250 | A 0019800502 | TAPERED ROLLER BEARING |
| 250 | A 0039810605 | TAPERED ROLLER BEARING |
| 250 | A 0139816205 | TAPERED ROLLER BEARING |
| 254 | A 3663500043 | SET COLLAR |
| 258 | A 3663530173 | LOCK |
| 262 | A 3663530026 | NUT |
| 266 | N 912004012100 | LOCK WASHER |
| 270 | N 000960012050 | SCREW |
| 274 | A 0049979546 | SEAL RING |
| 278 | A 0049979646 | SEAL RING |
| 282 | A 3663530045 | FLANGE |
| 286 | A 3663530072 | NUT |
| Repalced by: A 3853510672 | ||
| 286 | A 3853510672 | NUT |
| N 915042015000 | PLUG | |
| 290 | N 007603024106 | SEAL RING |
| 290 | N 915035000022 | SEAL RING |
| 296 | A 3663500090 | VALVE |
| Repalced by: A 3043500190 | ||
| 296 | A 3043500190 | VALVE |
| 296 | A 1112600058 | BREATHER |
| 300 | A 3039910060 | DOWEL PIN |
| 305 | N 912004012100 | LOCK WASHER |
| 307 | N 000960012197 | SCREW |
| Repalced by: N 000960012384 | ||
| 307 | N 000960012384 | SCREW |
| N 000960012079 | SCREW | |
| 315 | A 3663510106 | REAR AXLE TUBE |
| Repalced by: A 3663510406 | ||
| 315 | A 3663510406 | REAR AXLE TUBE |
| 320 | A 0009976446 | SEAL RING |
| 325 | A 3153510168 | SLIDE |
| 330 | A 3663542610 | SPUR GEAR |
| Repalced by: A 3663543510 | ||
| 330 | A 3663543510 | SPUR GEAR |
| DRIVING | ||
| I=15:34 | ||
| 335 | A 0019813701 | CYLINDR. ROLLER BEARING |
| 340 | N 000471055000 | LOCK RING |
| 344 | A 3663510040 | BRACKET |
| 348 | A 3159945130 | LOCK |
| 352 | N 000933008005 | SCREW |
| 356 | A 3663542512 | OUTSIDE GEAR |
| DRIVEN;34 TEETH | ||
| 360 | A 0019813601 | CYLINDR. ROLLER BEARING |
| N 000961016039 | SCREW | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 000960016171 | SCREW | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 000960016212 | SCREW | |
| Repalced by: N 000960016261 | ||
| N 000960016261 | SCREW | |
| Repalced by: N 308676016014 | ||
| N 308676016014 | SCREW | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 000960016241 | SCREW | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 912004016101 | LOCK WASHER | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 000934016002 | NUT | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 000960014172 | SCREW | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 912004014100 | LOCK WASHER | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| N 000934014020 | NUT | |
| SPUR GEAR HOUSING TO REAR AXLE CASING | ||
| 370 | A 3663570121 | END PIECE |
| 374 | A 3663570020 | REAR AXLE TUBE |
| 90 MM | ||
| A 3663570022 | BOOT | |
| 380 | A 3663570222 | BOOT |
| 382 | A 0029881078 | CLIP |
| TO 366 357 02 22 | ||
| 384 | A 3663570120 | REAR AXLE TUBE |
| INSIDE | ||
| N 900263005000 | STRAP | |
| 840 MM | ||
| N 900262005100 | LOOM TIE | |
| 390 | A 3663570102 | REAR AXLE SHAFT |
| Repalced by: A 3663570302 | ||
| 390 | A 3663570302 | REAR AXLE SHAFT |
| 394 | A 3049910010 | PIN |
| 398 | A 3663570152 | SPACER WASHER |
| 0.50 MM | ||
| 398 | A 3663570252 | SPACER WASHER |
| 0.80 MM | ||
| 398 | A 3663570352 | SPACER WASHER |
| Repalced by: A 3663570152 | ||
| 398 | A 3663570152 | SPACER WASHER |
| 1.00 MM | ||
| 398 | A 3663570452 | SPACER WASHER |
| 1.20 MM | ||
| 398 | A 3663570552 | SPACER WASHER |
| 1.50 MM | ||
| 402 | A 3663570053 | SPACER TUBE |
| 406 | A 3663570151 | SPACER RING |
| 9.50 MM | ||
| 406 | A 3663570351 | SPACER RING |
| 10.00 MM | ||
| 406 | A 3663570551 | SPACER RING |
| 10.50 MM | ||
| 414 | N 000471063000 | LOCK RING |
| 418 | N 007603014405 | SEAL RING |
| 422 | A 3049970072 | FITTING |
| 430 | A 3663500080 | LINE |
| 434 | N 003862010000 | DOUBLE TAPER RING |
| 438 | N 915017010100 | UNION NUT |
| 442 | N 007603014405 | SEAL RING |
| 446 | N 900117014001 | LOCK |
| 450 | N 900117014201 | HOLLOW SCREW |
| 460 | A 3663500167 | THRUST WASHER |
| 464 | A 3663560101 | WHEEL HUB |
| 468 | A 3663560482 | OIL COLLECTOR |
| 472 | N 000720032024 | TAPERED ROLLER BEARING |
| 476 | A 3049971747 | SEAL RING |
| 476 | A 0099970046 | SEAL RING |
| 476 | A 0109970046 | SEAL RING |
| 480 | N 000720032220 | TAPERED ROLLER BEARING |
| 484 | A 3274010471 | WHEEL MOUNTING BOLT |
| Repalced by: A 3894010071 | ||
| 484 | A 3894010071 | WHEEL MOUNTING BOLT |
| 490 | A 3043340162 | THRUST WASHER |
| 494 | A 3043340026 | NUT |
| 498 | A 3043340073 | LOCK |
| 502 | A 3663560005 | FOLLOWER |
| 506 | N 912004014100 | LOCK WASHER |
| 510 | N 000961014088 | SCREW |
| Repalced by: N 308676014008 | ||
| 510 | N 308676014008 | SCREW |
