Transporto priemonė: LAS 1924; VIN numerio dalis: 346114
Grupė: 26 TRANSMISSION

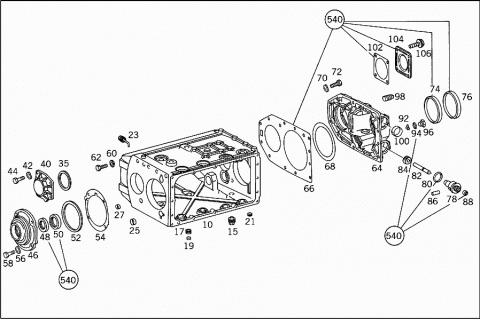

| # | Kodas | Pavadinimas |
|---|---|---|
| A 3362604901 | TRANSMISSION | |
| Repalced by: A 3462604301 | ||
| A 3362605001 | TRANSMISSION | |
| Repalced by: A 3462604601 | ||
| A 3362604701 | TRANSMISSION | |
| Repalced by: A 3462604301 | ||
| A 3462608301 | TRANSMISSION | |
| Repalced by: A 3462604301 | ||
| A 3362604801 | TRANSMISSION | |
| Repalced by: A 3462604601 | ||
| A 3462608401 | TRANSMISSION | |
| Repalced by: A 3462604601 | ||
| 010 | A 3362610101 | TRANSMISSION CASE |
| 010 | A 3362610201 | TRANSMISSION CASE |
| Repalced by: A 0002612301 | ||
| 010 | A 3362610301 | TRANSMISSION CASE |
| Repalced by: A 0002612301 | ||
| 010 | A 0002612301 | TRANSMISSION CASE |
| 015 | A 0009979730 | SCREW PLUG |
| OIL DRAIN | ||
| 017 | A 0009972035 | PLUG |
| Repalced by: A 0009973435 | ||
| 017 | A 0009973435 | PLUG |
| Repalced by: A 0009977535 | ||
| 017 | A 0009977535 | PLUG |
| Repalced by: A 3529970032 | ||
| 017 | A 3529970032 | SCREW PLUG |
| TRANSMISSION CASE | ||
| A 0019972430 | SCREW PLUG | |
| BOTTOM | ||
| 019 | A 3362640210 | COVER |
| Repalced by: A 0009977535 | ||
| 019 | A 0009977535 | PLUG |
| Repalced by: A 3529970032 | ||
| 019 | A 3529970032 | SCREW PLUG |
| BOTTOM | ||
| A 0002600358 | BREATHER | |
| Repalced by: A 3432640089 | ||
| A 3432640089 | VALVE | |
| BREATHER | ||
| 021 | A 0009973435 | PLUG |
| Repalced by: A 0009977535 | ||
| 021 | A 0009977535 | PLUG |
| Repalced by: A 3529970032 | ||
| 021 | A 3529970032 | SCREW PLUG |
| 023 | A 0009979830 | SCREW PLUG |
| Repalced by: A 0009979930 | ||
| 023 | A 0009979930 | SCREW PLUG |
| OIL FILLING | ||
| 025 | A 4039970620 | EXPANSION PLUG |
| 027 | A 0002610033 | COVER |
| 035 | A 3432610352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 035 | A 3432610452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.90 MM | ||
| 035 | A 3432610552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.80 MM | ||
| 035 | A 3432610852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.70 MM | ||
| 035 | A 3432610952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.60 MM | ||
| 035 | A 3432611052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 035 | A 3432611152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 035 | A 3432611252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.15 MM | ||
| 035 | A 3432611352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.05 MM | ||
| 035 | A 3432611452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.95 MM | ||
| 035 | A 3432611552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.85 MM | ||
| 035 | A 3432611652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.75 MM | ||
| 035 | A 3432611752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.65 MM | ||
| 035 | A 3432611852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.55 MM | ||
| 035 | A 3432611952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.45 MM | ||
| 040 | A 3432610032 | BEARING CAP |
| Repalced by: A 0002611619 | ||
| 040 | A 0002611619 | TRANSMISSION CASE COVER |
| COUNTERSHAFT,FRONT | ||
| A 0002611080 | GASKET | |
| Repalced by: A 0002613880 | ||
| A 0002613880 | GASKET | |
| BEARING COVER TO TRANSMISSION CASE | ||
| TO 000 261 16 19 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| ZN 2407/81 | ||
| 042 | N 000137010205 | SPRING WASHER |
| BEARING COVER TO TRANSMISSION CASE | ||
| 044 | N 000933010164 | SCREW |
| BEARING COVER TO TRANSMISSION CASE | ||
| M 10X22,TO 343 261 00 32 | ||
| 044 | N 000933010105 | SCREW |
| BEARING COVER TO TRANSMISSION CASE | ||
| M 10X25,TO 000 261 16 19 | ||
| 046 | A 3432620129 | COVERING |
| FRONT | ||
| 048 | A 0049970946 | SEAL RING |
| Repalced by: A 0079972347 | ||
| 048 | A 0079972347 | SEAL RING |
| FRONT | ||
| 050 | A 0049976946 | SEAL RING |
| Repalced by: A 0079972247 | ||
| 050 | A 0079972247 | SEAL RING |
| Repalced by: A 0239979447 | ||
| 050 | A 0239979447 | SEAL RING |
| FRONT | ||
| 052 | A 3432610652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 052 | A 3432610752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 054 | A 3432620279 | GASKET |
| Repalced by: A 0002620580 | ||
| 054 | A 0002620580 | GASKET |
| Repalced by: A 0002621880 | ||
| 054 | A 0002621880 | GASKET |
| Repalced by: A 0002621280 | ||
| 054 | A 0002621280 | GASKET |
| FRONT | ||
| 056 | N 000137010201 | SPRING WASHER |
| COVERING TO TRANSMISSION CASE | ||
| 058 | N 000933010105 | SCREW |
| COVERING TO TRANSMISSION CASE | ||
| 060 | N 912004018101 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 062 | N 000960018013 | SCREW |
| Repalced by: N 000960018109 | ||
| 062 | N 000960018109 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 064 | A 3432640028 | HOUSING |
| REAR | ||
| 066 | A 3432640879 | GASKET |
| Repalced by: A 0002644980 | ||
| 066 | A 0002644980 | GASKET |
| Repalced by: A 0002648780 | ||
| 066 | A 0002648780 | GASKET |
| TRANSMISSION CASE REAR COVER | ||
| 068 | A 3432610652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 068 | A 3432610752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 070 | N 000137010201 | SPRING WASHER |
| CASE COVER TO TRANSMISSION | ||
| 072 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 072 | N 304017010002 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| M10X30 | ||
| 072 | N 000933010164 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| M10X22 | ||
| 072 | N 000933010105 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| M10X25 | ||
| A 0029907440 | WASHER | |
| Repalced by: N 006902011100 | ||
| N 006902011100 | WASHER | |
| CASE COVER TO TRANSMISSION | ||
| 074 | A 0069977046 | SEAL RING |
| Repalced by: A 0089973347 | ||
| 074 | A 0049970647 | SEAL RING |
| Repalced by: A 0089973347 | ||
| 074 | A 0069978647 | SEAL RING |
| Repalced by: A 0089973347 | ||
| 074 | A 0079975947 | SEAL RING |
| Repalced by: A 0129970647 | ||
| 074 | A 0129970647 | SEAL RING |
| Repalced by: A 0089973347 | ||
| 074 | A 0089973347 | SEAL RING |
| INSIDE | ||
| 076 | A 0049970646 | SEAL RING |
| Repalced by: A 0069978847 | ||
| 076 | A 0069978847 | SEAL RING |
| Repalced by: A 0119978547 | ||
| 076 | A 0119978547 | SEAL RING |
| OUTSIDE | ||
| 078 | A 3362640033 | CONNECTOR |
| AS REQUIRED | ||
| 88.5 MM,TO 366 264 00 32 | ||
| 078 | A 3612640033 | CONNECTOR |
| AS REQUIRED | ||
| 118.5 MM,TO 361 264 00 32 | ||
| 080 | A 0109973148 | SEAL RING |
| Repalced by: A 0069970245 | ||
| 080 | A 0069970245 | SEAL RING |
| SPEEDOMETER DRIVE | ||
| 082 | A 3662640032 | SHAFT |
| SPEEDOMETER DRIVE | ||
| TO 336 264 00 33 | ||
| 082 | A 3612640032 | SHAFT |
| SPEEDOMETER DRIVE | ||
| TO 361 264 00 33 | ||
| 084 | A 3662640130 | DRIVE GEAR |
| SPEEDOMETER DRIVE; L.H. TURN | ||
| 084 | A 3662640030 | DRIVE GEAR |
| SPEEDOMETER DRIVE; R.H. TURN | ||
| 086 | N 000007005228 | CYLINDRICAL PIN |
| SPEEDOMETER DRIVE TO COVER | ||
| 088 | A 0039979846 | SEAL RING |
| SPEEDOMETER DRIVE | ||
| 088 | N 007603022102 | SEAL RING |
| SPEEDOMETER DRIVE | ||
| A 3122641034 | LOCK NUT | |
| Repalced by: A 6742640034 | ||
| A 6742640034 | LOCK NUT | |
| SPEEDOMETER DRIVE | ||
| 092 | A 3039940015 | LOCK |
| SPEEDOMETER DRIVE | ||
| 094 | N 915035000022 | SEAL RING |
| SPEEDOMETER DRIVE | ||
| 096 | A 3042610071 | SCREW |
| Repalced by: A 0009970419 | ||
| 096 | A 0009970419 | THREADED PIN |
| SPEEDOMETER DRIVE | ||
| A 0039901051 | NUT | |
| SPEEDOMETER DRIVE | ||
| 098 | A 0009975430 | SCREW PLUG |
| REAR COVER | ||
| 100 | N 000443042000 | EXPANSION PLUG |
| REAR | ||
| 102 | A 3432640379 | GASKET |
| Repalced by: A 0002642980 | ||
| 102 | A 0002642980 | GASKET |
| Repalced by: A 0002647680 | ||
| 102 | A 0002647680 | GASKET |
| REAR | ||
| 104 | A 3612640211 | COVER |
| Repalced by: A 0002642111 | ||
| 104 | A 0002642111 | COVER |
| Repalced by: A 0002612620 | ||
| 104 | A 0002612620 | TRANSMISSION CASE COVER |
| REAR | ||
| 106 | N 000933012050 | SCREW |
| Repalced by: N 304017012002 | ||
| 106 | N 304017012002 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| N 000137012203 | SPRING WASHER | |
| REAR COVER TO TRANSMISSION | ||

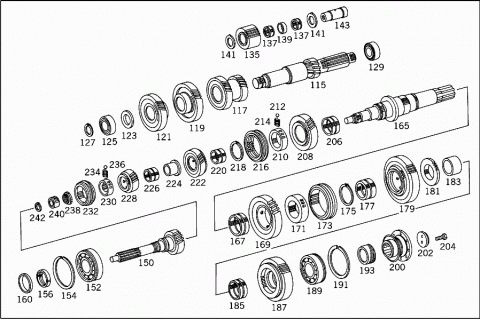

| 115 | A 3432630002 | COUNTERSHAFT |
| Repalced by: A 0002600224 | ||
| 115 | A 0002600224 | COUNTERSHAFT |
| 117 | A 3662630114 | GEAR |
| 3RD AND 4TH SPEED | ||
| 119 | A 3662630015 | GEAR |
| 5TH SPEED | ||
| 121 | A 3662630210 | GEAR |
| Repalced by: A 0002631710 | ||
| 121 | A 0002631710 | GEAR |
| CONSTANT | ||
| 123 | A 3432630152 | SPACER WASHER |
| AS REQUIRED | ||
| 5.80 MM | ||
| 123 | A 3432630252 | SPACER WASHER |
| AS REQUIRED | ||
| 5.60 MM | ||
| 123 | A 3432630352 | SPACER WASHER |
| AS REQUIRED | ||
| 5.40 MM | ||
| 123 | A 3432630452 | SPACER WASHER |
| AS REQUIRED | ||
| 5.20 MM | ||
| 123 | A 3432630552 | SPACER WASHER |
| AS REQUIRED | ||
| 5.00 MM | ||
| 123 | A 3432630652 | SPACER WASHER |
| AS REQUIRED | ||
| 4.80 MM | ||
| 125 | A 0009803502 | TAPERED ROLLER BEARING |
| Repalced by: A 0019809502 | ||
| 125 | A 0019809502 | TAPERED ROLLER BEARING |
| Repalced by: A 0099813301 | ||
| 125 | A 0099813301 | CYLINDR. ROLLER BEARING |
| FRONT | ||
| 127 | N 000471050000 | LOCK RING |
| FRONT | ||
| 129 | A 0009803402 | TAPERED ROLLER BEARING |
| Repalced by: A 0019809602 | ||
| 129 | A 0019809602 | TAPERED ROLLER BEARING |
| REAR | ||
| 135 | A 3432630031 | REVERSE IDLER GEAR |
| Repalced by: A 0002630931 | ||
| 135 | A 0002630931 | REVERSE IDLER GEAR |
| Repalced by: A 0002632631 | ||
| 135 | A 0002632631 | REVERSE IDLER GEAR |
| 137 | A 0019814210 | NEEDLE BEARING |
| Repalced by: A 0109811010 | ||
| 137 | A 0089811810 | NEEDLE BEARING |
| Repalced by: A 0109811010 | ||
| 137 | A 0089811910 | NEEDLE BEARING |
| Repalced by: A 0109811010 | ||
| 137 | A 0109811010 | NEEDLE BEARING |
| REVERSE IDLER SHAFT | ||
| 139 | A 3432630050 | BUSHING |
| Repalced by: A 0002630650 | ||
| 139 | A 0002630650 | BUSHING |
| REVERSE IDLER GEAR | ||
| 141 | A 3432630062 | THRUST WASHER |
| REVERSE IDLER GEAR | ||
| 143 | A 3432630030 | REVERSE IDLER SHAFT |
| 150 | A 3662620102 | DRIVE SHAFT |
| 152 | A 0019815301 | CYLINDR. ROLLER BEARING |
| Repalced by: N 005412770001 | ||
| 152 | N 005412770001 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0059818501 | ||
| 152 | A 0059818501 | CYLINDR. ROLLER BEARING |
| DRIVE SHAFT | ||
| 154 | N 005417150000 | SNAP RING |
| DRIVE SHAFT | ||
| 156 | A 0002646429 | RING HALF |
| Repalced by: A 0002620177 | ||
| 156 | A 0002620177 | RING |
| AS REQUIRED | ||
| 7.20 MM | ||
| 156 | A 0002646329 | RING HALF |
| Repalced by: A 0002622177 | ||
| 156 | A 0002622177 | RING |
| AS REQUIRED | ||
| 7.10 MM | ||
| 156 | A 3362641229 | RING HALF |
| Repalced by: A 0002643129 | ||
| 156 | A 3362641629 | RING HALF |
| Repalced by: A 0002643129 | ||
| 156 | A 0002643129 | RING HALF |
| Repalced by: A 0002648029 | ||
| 156 | A 0002648029 | RING HALF |
| AS REQUIRED | ||
| 7.00 MM | ||
| 156 | A 3362641329 | RING HALF |
| Repalced by: A 0002643229 | ||
| 156 | A 3362641729 | RING HALF |
| Repalced by: A 0002643229 | ||
| 156 | A 0002643229 | RING HALF |
| Repalced by: A 0012620030 | ||
| 156 | A 0012620030 | RING HALF |
| AS REQUIRED | ||
| 6.90 MM | ||
| 156 | A 3362641429 | RING HALF |
| Repalced by: A 0002643329 | ||
| 156 | A 3362641829 | RING HALF |
| Repalced by: A 0002643329 | ||
| 156 | A 0002643329 | RING HALF |
| Repalced by: A 0002620277 | ||
| 156 | A 0002620277 | RING |
| AS REQUIRED | ||
| 6.80 MM | ||
| 156 | A 3362641529 | RING HALF |
| Repalced by: A 0002643429 | ||
| 156 | A 3362641929 | RING HALF |
| Repalced by: A 0002643429 | ||
| 156 | A 0002643429 | RING HALF |
| Repalced by: A 0002620377 | ||
| 156 | A 0002620377 | RING |
| AS REQUIRED | ||
| 6.70 MM | ||
| 160 | A 3362641051 | SPACER RING |
| Repalced by: A 0002642751 | ||
| 160 | A 3362641851 | SPACER RING |
| Repalced by: A 0002642751 | ||
| 160 | A 0002642751 | SPACER RING |
| DRIVE SHAFT | ||
| A 3362640073 | LOCK | |
| 165 | A 3432620105 | MAIN SHAFT |
| Repalced by: A 0002622405 | ||
| 165 | A 0002622405 | MAIN SHAFT |
| 167 | A 0019814310 | NEEDLE BEARING |
| Repalced by: A 0139819210 | ||
| 167 | A 0139819210 | NEEDLE BEARING |
| 167 | A 0069819310 | NEEDLE BEARING |
| Repalced by: A 0139819210 | ||
| 167 | A 0069819410 | NEEDLE BEARING |
| Repalced by: A 0139819210 | ||
| 169 | A 3432620012 | GEAR |
| 2ND SPEED | ||
| 171 | A 3432620027 | SYNCHRONIZER HUB |
| Repalced by: A 0002621527 | ||
| 171 | A 0002621527 | SYNCHRONIZER HUB |
| 2ND SPEED | ||
| 173 | A 3432620023 | SLIDING COLLAR |
| 2ND SPEED | ||
| 175 | N 000471090000 | LOCK RING |
| Repalced by: A 3872624373 | ||
| 175 | A 3872624373 | LOCK |
| AS REQUIRED | ||
| 3.00 MM | ||
| 175 | A 0019940541 | LOCK |
| AS REQUIRED | ||
| 2.90 MM | ||
| 175 | A 0019940641 | LOCK |
| AS REQUIRED | ||
| 2.80 MM | ||
| 177 | A 0029811710 | NEEDLE BEARING |
| 177 | A 0079813510 | NEEDLE BEARING |
| 177 | A 0079818910 | NEEDLE BEARING |
| 179 | A 3432620011 | GEAR |
| Repalced by: A 3362620011 | ||
| 179 | A 3362620011 | GEAR |
| 1ST SPEED | ||
| 181 | A 3432620036 | FOLLOWER RING |
| REVERSE SPEED | ||
| 183 | A 3432620350 | BUSHING |
| REVERSE SPEED | ||
| 185 | A 0019817410 | NEEDLE BEARING |
| REVERSE SPEED | ||
| 187 | A 3432620211 | GEAR |
| REVERSE SPEED | ||
| 189 | A 0009819025 | BALL BEARING |
| Repalced by: N 000625536314 | ||
| 189 | N 000625536314 | GROOVED BALL BEARING |
| MAIN SHAFT,REAR | ||
| 191 | N 005417150000 | SNAP RING |
| MAIN SHAFT,REAR | ||
| 193 | A 3662640131 | DRIVE GEAR |
| SPEEDOMETER DRIVE; L.H. TURN | ||
| 193 | A 3662640031 | DRIVE GEAR |
| SPEEDOMETER DRIVE; R.H. TURN | ||
| 200 | A 3662600017 | FLANGE |
| MAIN SHAFT OUTPUT | ||
| 165 MM | ||
| 202 | A 3432620062 | SEAL RING |
| FLANGE TO SHAFT | ||
| 204 | N 000933012056 | SCREW |
| Repalced by: N 304017012020 | ||
| 204 | N 304017012020 | SCREW |
| FLANGE TO SHAFT | ||
| 206 | A 0019814610 | NEEDLE BEARING |
| Repalced by: A 0129815910 | ||
| 206 | A 0129815910 | NEEDLE BEARING |
| 206 | A 0069819610 | NEEDLE BEARING |
| Repalced by: A 0129815910 | ||
| 206 | A 0069819710 | NEEDLE BEARING |
| Repalced by: A 0129815910 | ||
| 208 | A 3432620113 | GEAR |
| 3RD SPEED | ||
| 210 | A 3432620127 | SYNCHRONIZER HUB |
| Repalced by: A 3432620527 | ||
| 210 | A 3432620527 | SYNCHRONIZER HUB |
| 3RD SPEED | ||
| 212 | A 3432640993 | SPRING |
| 3RD SPEED | ||
| 214 | N 005401306000 | BALL |
| 3RD SPEED | ||
| 216 | A 3432620123 | SLIDING COLLAR |
| Repalced by: A 3432620423 | ||
| 216 | A 3432620423 | SLIDING COLLAR |
| 3RD SPEED | ||
| 218 | N 000471080000 | LOCK RING |
| Repalced by: A 3872626373 | ||
| 218 | A 3872626373 | LOCK |
| AS REQUIRED | ||
| 2.50 MM | ||
| 218 | A 0019940741 | LOCK |
| Repalced by: A 3872626173 | ||
| 218 | A 3872626173 | LOCK |
| AS REQUIRED | ||
| 2.40 MM | ||
| 218 | A 0019940841 | LOCK |
| AS REQUIRED | ||
| 2.30 MM | ||
| 220 | A 0029811610 | NEEDLE BEARING |
| Repalced by: A 0139819110 | ||
| 220 | A 0139819110 | NEEDLE BEARING |
| 220 | A 0069819910 | NEEDLE BEARING |
| Repalced by: A 0139819110 | ||
| 220 | A 0079818810 | NEEDLE BEARING |
| Repalced by: A 0139819110 | ||
| 222 | A 3662620114 | GEAR |
| 4TH SPEED | ||
| 224 | A 3432620250 | BUSHING |
| 5TH SPEED GEAR | ||
| 226 | A 0029811510 | NEEDLE BEARING |
| Repalced by: A 0059810510 | ||
| 226 | A 0059810510 | NEEDLE BEARING |
| 5TH SPEED GEAR | ||
| 228 | A 3662620115 | GEAR |
| 5TH SPEED | ||
| 230 | A 3432620427 | SYNCHRONIZER HUB |
| 5TH AND 6TH SPEED | ||
| 232 | A 3432620323 | SLIDING COLLAR |
| 5TH AND 6TH SPEED | ||
| 234 | A 0029931801 | SPRING |
| 5TH AND 6TH SPEED | ||
| 236 | N 005401306000 | BALL |
| 5TH AND 6TH SPEED | ||
| 238 | A 3439900360 | NUT |
| TO 343 262 01 05 | ||
| A 0019948841 | LOCK | |
| Repalced by: N 900055045300 | ||
| N 900055045300 | LOCK RING | |
| AS REQUIRED | ||
| 2.50 MM,TO 000 262 24 05 | ||
| A 0039941441 | LOCK | |
| AS REQUIRED | ||
| 2.45 MM,TO 000 262 24 05 | ||
| A 0029948741 | LOCK | |
| AS REQUIRED | ||
| 2.40 MM,TO 000 262 24 05 | ||
| A 0039941541 | LOCK | |
| AS REQUIRED | ||
| 2.35 MM,TO 000 262 24 05 | ||
| A 0029948841 | LOCK | |
| AS REQUIRED | ||
| 2.30 MM,TO 000 262 24 05 | ||
| A 0039941641 | LOCK | |
| AS REQUIRED | ||
| 2.25 MM,TO 000 262 24 05 | ||
| A 0039941741 | LOCK | |
| AS REQUIRED | ||
| 2.20 MM,TO 000 262 24 05 | ||
| 240 | A 0049815801 | CYLINDR. ROLLER BEARING |
| 242 | N 000983030000 | LOCK RING |
| MAIN SHAFT | ||

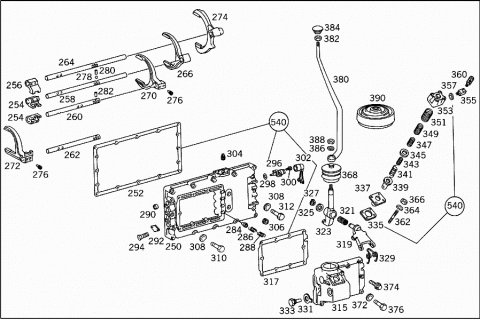

| 250 | A 3432640611 | COVER |
| SHIFTING DOME | ||
| 252 | A 0002681280 | GASKET |
| Repalced by: A 3432650679 | ||
| 252 | A 3432650679 | GASKET |
| Repalced by: A 0002650280 | ||
| 252 | A 0002650280 | GASKET |
| COVER TO SHIFT CASE | ||
| 254 | A 3432650019 | FOLLOWER |
| 1ST THRU 4TH SPEED | ||
| 256 | A 3432650119 | FOLLOWER |
| REVERSE SPEED | ||
| 258 | A 3432650005 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 258 | A 3432650105 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 260 | A 3432650205 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| 260 | A 3432650305 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| 262 | A 3432650405 | SHIFTING ROD |
| 5TH AND 6TH SPEED | ||
| 264 | A 3432650505 | SHIFTING ROD |
| REVERSE SPEED | ||
| 264 | A 3432650605 | SHIFTING ROD |
| REVERSE SPEED | ||
| 266 | A 3432650301 | SHIFTING FORK |
| 1ST AND 2ND SPEED | ||
| 266 | A 3432650201 | SHIFTING FORK |
| 1ST AND 2ND SPEED | ||
| 270 | A 3432650102 | SHIFTING FORK |
| 3RD AND 4TH SPEED | ||
| 272 | A 3662650002 | SHIFTING FORK |
| 5TH AND 6TH SPEED | ||
| 274 | A 3662650103 | SHIFTING FORK |
| REVERSE SPEED | ||
| 274 | A 3662650003 | SHIFTING FORK |
| REVERSE SPEED | ||
| 276 | A 0009901277 | SCREW |
| SHIFTING FORK TO SHIFTING ROD | ||
| 278 | N 005401309000 | BALL |
| 280 | A 0002650474 | PIN |
| SHIFTING ROD | ||
| 282 | A 3432650074 | PIN |
| SHIFTING ROD | ||
| 284 | A 3432650174 | PIN |
| (DETENT PIN) | ||
| 286 | A 0009938401 | SPRING |
| INSIDE | ||
| 288 | A 0009938501 | SPRING |
| OUTSIDE | ||
| 290 | A 0002610033 | COVER |
| SHIFTING SHAFT | ||
| 292 | A 3432650506 | COVER |
| SHIFTING SHAFT | ||
| 294 | N 000965005004 | SCREW |
| COVER TO SHIFT CASE | ||
| 296 | A 0005452806 | SWITCH |
| Repalced by: A 0005455906 | ||
| 296 | A 0005455906 | SWITCH |
| Repalced by: A 0015457614 | ||
| 296 | A 0015457614 | SWITCH |
| BACK-UP LIGHT | ||
| 298 | A 0005451480 | GASKET |
| BACK-UP LIGHT SWITCH | ||
| 300 | N 000933005059 | SCREW |
| SWITCH TO TRANSMISSION CASE | ||
| N 000137005203 | SPRING WASHER | |
| SWITCH TO TRANSMISSION CASE | ||
| 302 | A 0045453128 | PLUG |
| BACK-UP LIGHT SWITCH | ||
| TO 000 545 28 06 | ||
| 304 | N 000906016002 | SCREW PLUG |
| TOP | ||
| 306 | A 0009979930 | SCREW PLUG |
| LATERAL | ||
| A 0009972035 | PLUG | |
| Repalced by: A 0009973435 | ||
| A 0009973435 | PLUG | |
| Repalced by: A 0009977535 | ||
| A 0009977535 | PLUG | |
| Repalced by: A 3529970032 | ||
| A 3529970032 | SCREW PLUG | |
| LATERAL | ||
| A 3362640210 | COVER | |
| Repalced by: A 0009977535 | ||
| A 0009977535 | PLUG | |
| Repalced by: A 3529970032 | ||
| A 3529970032 | SCREW PLUG | |
| LATERAL REAR | ||
| 308 | N 000137010201 | SPRING WASHER |
| SHIFT CASE TO TRANSMISSION | ||
| 310 | N 000931010258 | SCREW |
| SHIFT CASE TO TRANSMISSION | ||
| M10X55 | ||
| 312 | N 000931010271 | SCREW |
| SHIFT CASE TO TRANSMISSION | ||
| M10X60 | ||
| 312 | N 304017010025 | SCREW |
| Repalced by: N 304017010051 | ||
| 312 | N 304017010051 | SCREW |
| SHIFT CASE TO TRANSMISSION | ||
| M10X60 | ||
| 315 | A 3432650806 | COVER |
| Repalced by: A 3432651006 | ||
| 315 | A 3432651006 | COVER |
| SHIFTING DOME | ||
| 315 | A 3432650906 | COVER |
| Repalced by: A 3432651106 | ||
| 315 | A 3432651106 | COVER |
| SHIFTING DOME | ||
| 317 | A 3432650579 | GASKET |
| SHIFTING DOME TO SHIFT CASE | ||
| 319 | A 3432650130 | SELECTOR LEVER |
| INSIDE | ||
| 321 | A 0019817910 | NEEDLE BEARING |
| SHIFT LEVER BEARING | ||
| 323 | A 3432650131 | LEVER |
| GEARSHIFT LEVER LOWER PART | ||
| 325 | A 3432630162 | THRUST WASHER |
| SHIFT LEVER TO BEARING BRACKET | ||
| 327 | N 000471024000 | LOCK RING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 329 | A 3432651193 | PRESSURE SPRING |
| SHIFT LEVER | ||
| 331 | N 000093025000 | LOCK PLATE |
| BEARING BRACKET TO CASE | ||
| 333 | A 3432650071 | SCREW |
| BEARING BRACKET TO CASE | ||
| 335 | A 3432650279 | GASKET |
| SHIFTING PARTS | ||
| 337 | A 3432650150 | BUSHING |
| SHIFTING PARTS | ||
| 339 | A 3432650374 | PIN |
| SHIFTING PARTS | ||
| 341 | A 3432651093 | PRESSURE SPRING |
| SHIFTING PARTS | ||
| 343 | A 3432650793 | PRESSURE SPRING |
| SHIFTING PARTS | ||
| 345 | A 3432650040 | STOP SLEEVE |
| SHIFTING PARTS | ||
| 347 | A 3432650693 | PRESSURE SPRING |
| SHIFTING PARTS | ||
| 349 | A 3432650593 | PRESSURE SPRING |
| SHIFTING PARTS | ||
| 351 | A 3432650493 | PRESSURE SPRING |
| Repalced by: A 0049930701 | ||
| 351 | A 0049930701 | SPRING |
| SHIFTING PARTS | ||
| 353 | A 3432650050 | BUSHING |
| SHIFTING PARTS | ||
| 355 | A 3439970072 | FITTING |
| BREATHER | ||
| 357 | N 915035000022 | SEAL RING |
| BREATHER | ||
| 360 | A 0002600358 | BREATHER |
| Repalced by: A 3432640089 | ||
| 360 | A 3432640089 | VALVE |
| BREATHER | ||
| N 000906010000 | SCREW PLUG | |
| 362 | N 000939008079 | STUD BOLT |
| BUSHING TO SHIFTING DOME | ||
| M8X50 | ||
| 362 | N 000939008143 | STUD BOLT |
| BUSHING TO SHIFTING DOME | ||
| M8X45 | ||
| 364 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 364 | N 000137008212 | SPRING WASHER |
| BUSHING TO SHIFTING DOME | ||
| 366 | N 304032008006 | NUT |
| BUSHING TO SHIFTING DOME | ||
| 368 | A 3432670396 | BOOT |
| GEARSHIFT LEVER LOWER PART | ||
| N 900288078001 | CLAMP | |
| BOOT TO SHIFTING DOME | ||
| A 0019975990 | LOOM TIE | |
| BOOT TO SHIFTING DOME | ||
| 372 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 372 | N 000137008212 | SPRING WASHER |
| COVER TO SHIFT CASE | ||
| 374 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 374 | N 304017008027 | SCREW |
| COVER TO SHIFT CASE | ||
| M8X30 | ||
| 374 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 374 | N 304017008043 | SCREW |
| COVER TO SHIFT CASE | ||
| M8X55 | ||
| 376 | N 000931008207 | SCREW |
| Repalced by: N 304014008007 | ||
| 376 | N 304014008007 | SCREW |
| COVER TO SHIFT CASE | ||
| M8X90 | ||
| 380 | A 3432670001 | SHIFT LEVER |
| Repalced by: A 3432602139 | ||
| 380 | A 3432602139 | SHIFT LEVER |
| GEARSHIFT LEVER UPPER PART | ||
| 380 | A 3362670501 | SHIFT LEVER |
| Repalced by: A 3362602339 | ||
| 380 | A 3362602339 | SHIFT LEVER |
| GEARSHIFT LEVER UPPER PART | ||
| 382 | N 000934010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 384 | A 3362600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 384 | A 3432600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 386 | N 912004012100 | LOCK WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 388 | N 304032012001 | NUT |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 390 | A 3432670096 | BOOT |
| GEARSHIFT LEVER UPPER PART | ||

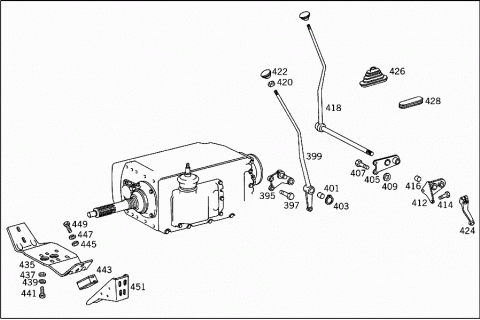

| 395 | A 3432600294 | BEARING BRACKET |
| Repalced by: A 3432601894 | ||
| 395 | A 3432601894 | BEARING BRACKET |
| TRANSFER CASE SHIFT LEVER | ||
| 397 | N 000931010331 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| N 900055020001 | SPRING WASHER | |
| BEARING BRACKET TO TRANSMISSION | ||
| 399 | A 3352840024 | SHIFT LEVER |
| TRANSFER CASE | ||
| 401 | A 3359920303 | BUSHING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 403 | N 900055020301 | LOCK RING |
| Repalced by: N 900055020303 | ||
| 403 | N 900055020303 | LOCK RING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 405 | A 3432600594 | BEARING BRACKET |
| Repalced by: A 3362601494 | ||
| 405 | A 3362601494 | BEARING BRACKET |
| RIGHT | ||
| 407 | N 000931010331 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| N 900055020001 | SPRING WASHER | |
| BEARING BRACKET TO TRANSMISSION | ||
| 409 | A 3129903540 | WASHER |
| BEARING BRACKET TO TRANSMISSION | ||
| 412 | A 3432601294 | BEARING BRACKET |
| Repalced by: A 3432600494 | ||
| 412 | A 3432600494 | BEARING BRACKET |
| LEFT | ||
| 414 | A 3439900001 | SCREW |
| Repalced by: N 304017010046 | ||
| 414 | N 304017010046 | SCREW |
| LOWER | ||
| N 000933010145 | SCREW | |
| UPPER | ||
| 416 | A 3369920203 | BUSHING |
| RIGHT BEARING BRACKET | ||
| 416 | A 3369920103 | BUSHING |
| LEFT BEARING BRACKET | ||
| 418 | A 3432800057 | SHAFT |
| TRANSFER CASE | ||
| 420 | N 000934010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 422 | A 3122802246 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| 424 | A 3273530632 | LEVER |
| TRANSFER CASE | ||
| N 000931010306 | SCREW | |
| LEVER TO SHIFTING SHAFT | ||
| N 912004010102 | LOCK WASHER | |
| LEVER TO SHIFTING SHAFT | ||
| N 000934010014 | NUT | |
| LEVER TO SHIFTING SHAFT | ||
| 426 | A 3222640096 | BOOT |
| LATERAL | ||
| 428 | A 3352640096 | BOOT |
| TRANSFER CASE | ||
| 435 | A 3352600260 | SUPPORT |
| REAR | ||
| 435 | A 3362600060 | SUPPORT |
| REAR | ||
| 437 | N 000125013008 | WASHER |
| 439 | N 912004012100 | LOCK WASHER |
| SUPPORT TO TRANSMISSION | ||
| 441 | N 000961012106 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| 443 | A 3612660084 | RUBBER MOUNTING |
| BRACKET TO CONSOLE | ||
| 443 | A 3612660184 | RUBBER MOUNTING |
| BRACKET TO CONSOLE | ||
| 445 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 445 | N 009021010209 | WASHER |
| RAIL TO SUPPORT AND TO CONSOLE,RESP. | ||
| 447 | N 912004010102 | LOCK WASHER |
| RAIL TO SUPPORT AND TO CONSOLE,RESP. | ||
| 449 | N 000933010105 | SCREW |
| RAIL TO SUPPORT AND TO CONSOLE,RESP. | ||
| M10X25 | ||
| 449 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 449 | N 304017010028 | SCREW |
| RAIL TO SUPPORT AND TO CONSOLE,RESP. | ||
| M10X18 | ||
| 451 | A 3352660501 | CONSOLE |
| LEFT | ||
| 451 | A 3352660601 | CONSOLE |
| RIGHT | ||
| N 000961012179 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M 12X38 | ||
| N 000961012179 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M 12X38 | ||
| N 000961012122 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M 12X40 | ||
| N 000961012151 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M 12X30 | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M 12X35 | ||
| N 000961014028 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M 14X40 | ||
| A 1839903140 | WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| N 912004014100 | LOCK WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| CONSOLE TO SIDE MEMBER | ||
| N 000934014019 | NUT | |
| Repalced by: N 308673014001 | ||
| N 308673014001 | NUT | |
| CONSOLE TO SIDE MEMBER | ||

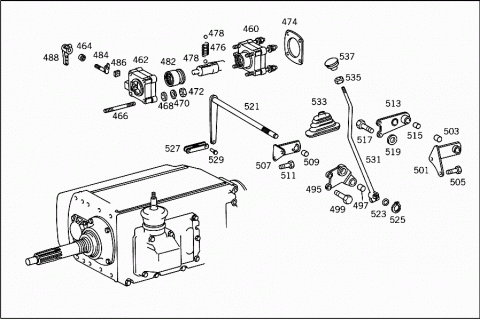

| 460 | A 3432600305 | P.T.O. |
| N 70/1 C = 0.463 X ENGINE REVOLUTIONS | ||
| 462 | A 3432640128 | HOUSING |
| Repalced by: A 0002641328 | ||
| 462 | A 0002641328 | HOUSING |
| P.T.O. | ||
| 464 | A 0019978346 | SEAL RING |
| SHIFTING SHAFT | ||
| 466 | A 3432610170 | STUD |
| P.T.O. TO TRANSMISSION | ||
| 468 | N 000125013008 | WASHER |
| 470 | A 3439900047 | LOCK WASHER |
| Repalced by: N 912006012000 | ||
| 470 | N 912006012000 | LOCK WASHER |
| P.T.O. TO TRANSMISSION | ||
| 472 | A 3439900051 | NUT |
| Repalced by: A 3859900551 | ||
| 472 | A 3859900551 | NUT |
| P.T.O. TO TRANSMISSION | ||
| 474 | A 3432640379 | GASKET |
| Repalced by: A 0002642980 | ||
| 474 | A 0002642980 | GASKET |
| Repalced by: A 0002647680 | ||
| 474 | A 0002647680 | GASKET |
| P.T.O. | ||
| 476 | A 3432640093 | SPRING |
| AT MEILLER PUMP DRIVE SHAFT | ||
| 478 | N 005401308000 | BALL |
| AT MEILLER PUMP DRIVE SHAFT | ||
| 482 | A 3432640323 | SLIDING COLLAR |
| Repalced by: A 0002641423 | ||
| 482 | A 0002641423 | SLIDING COLLAR |
| P.T.O. CONTROL | ||
| 484 | A 3432601439 | SHIFT LEVER |
| P.T.O. CONTROL | ||
| 486 | A 3432650449 | SLIDE |
| P.T.O. CONTROL | ||
| A 3432640479 | GASKET | |
| Repalced by: A 0002642980 | ||
| A 0002642980 | GASKET | |
| Repalced by: A 0002647680 | ||
| A 0002647680 | GASKET | |
| 488 | A 3432640024 | SHIFT LEVER |
| P.T.O. CONTROL | ||
| N 000931008047 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| SHIFT LEVER | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| SHIFT LEVER | ||
| N 304032008006 | NUT | |
| SHIFT LEVER | ||
| 495 | A 3432600294 | BEARING BRACKET |
| Repalced by: A 3432601894 | ||
| 495 | A 3432601894 | BEARING BRACKET |
| SHIFT LEVER | ||
| 495 | A 3432640335 | BEARING BRACKET |
| SHIFT LEVER | ||
| 497 | A 3359920103 | BUSHING |
| LEFT BEARING BRACKET | ||
| 499 | N 000931010331 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 501 | A 3432600494 | BEARING BRACKET |
| LEFT | ||
| 501 | A 3362600694 | BEARING BRACKET |
| LEFT | ||
| 503 | A 3359920203 | BUSHING |
| LEFT BEARING BRACKET | ||
| 505 | A 3439900001 | SCREW |
| Repalced by: N 304017010046 | ||
| 505 | N 304017010046 | SCREW |
| BEARING BRACKET TO CASE | ||
| 505 | N 000933010145 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 507 | A 3432600394 | BEARING BRACKET |
| Repalced by: A 3432601994 | ||
| 507 | A 3432601994 | BEARING BRACKET |
| LEFT | ||
| 509 | A 3359920203 | BUSHING |
| RIGHT BEARING BRACKET | ||
| 511 | N 000933010145 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 513 | A 3432600594 | BEARING BRACKET |
| Repalced by: A 3362601494 | ||
| 513 | A 3362601494 | BEARING BRACKET |
| SHIFT LEVER | ||
| 515 | A 3359920103 | BUSHING |
| RIGHT BEARING BRACKET | ||
| 517 | N 000931010331 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 519 | A 3129903540 | WASHER |
| BEARING BRACKET TO TRANSMISSION | ||
| 521 | A 3432600137 | LEVER |
| FROM SHIFT LEVER TO P.T.O. | ||
| 523 | N 000433017004 | WASHER |
| SHIFT LEVER TO BEARING BRACKET | ||
| 525 | N 900055016300 | LOCK RING |
| Repalced by: N 900055016301 | ||
| 525 | N 900055016301 | LOCK RING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 527 | A 3352600075 | CONNECTOR |
| P.T.O. CONTROL | ||
| 529 | N 001434008002 | PIN |
| CONNECTOR TO LEVER | ||
| N 000094002059 | COTTER PIN | |
| CONNECTOR TO LEVER | ||
| 531 | A 3352670201 | SHIFT LEVER |
| Repalced by: A 3462608939 | ||
| 531 | A 3462608939 | SHIFT LEVER |
| P.T.O. | ||
| N 000931008047 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| SHIFT LEVER TO BEARING BRACKET | ||
| N 304032008006 | NUT | |
| SHIFT LEVER TO BEARING BRACKET | ||
| 533 | A 3222640096 | BOOT |
| GEARSHIFT LEVER UPPER PART | ||
| 535 | N 000934010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 537 | A 3042600440 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 540 | A 0005860426 | REPAIR KIT |
| Repalced by: A 0002600668 | ||
| 540 | A 0002600668 | GASKET KIT |
| Repalced by: A 0002606700 | ||
| 540 | A 0002606700 | GASKET KIT |
| A 3462600201 | TRANSMISSION | |
| Repalced by: A 3462604301 | ||
| A 3462600400 | TRANSMISSION | |
| Repalced by: A 3462604301 | ||
| A 3462600301 | TRANSMISSION | |
| Repalced by: A 3462604601 | ||
| A 3462600500 | TRANSMISSION | |
| Repalced by: A 3462604601 | ||
| A 3462600001 | TRANSMISSION | |
| Repalced by: A 3462604301 | ||
| A 3462604301 | TRANSMISSION | |
| AK 6-90 | ||
| A 3462600101 | TRANSMISSION | |
| Repalced by: A 3462604601 | ||
| A 3462604601 | TRANSMISSION | |
| AK 6-90 | ||

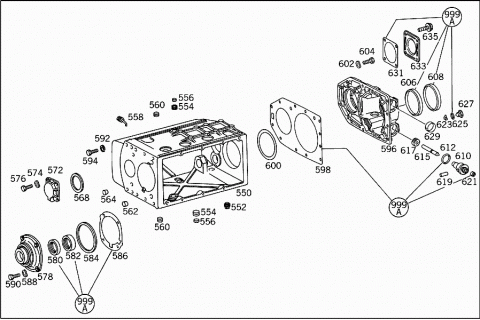

| 550 | A 0002610301 | TRANSMISSION CASE |
| Repalced by: A 0002611501 | ||
| 550 | A 0002611501 | TRANSMISSION CASE |
| 552 | A 0009979730 | SCREW PLUG |
| OIL DRAIN | ||
| 554 | A 0009972035 | PLUG |
| Repalced by: A 0009973435 | ||
| 554 | A 0009973435 | PLUG |
| Repalced by: A 0009977535 | ||
| 554 | A 0009977535 | PLUG |
| Repalced by: A 3529970032 | ||
| 554 | A 3529970032 | SCREW PLUG |
| 556 | A 3362640210 | COVER |
| Repalced by: A 0009977535 | ||
| 556 | A 0009977535 | PLUG |
| Repalced by: A 3529970032 | ||
| 556 | A 3529970032 | SCREW PLUG |
| TOP | ||
| 558 | A 0009979830 | SCREW PLUG |
| Repalced by: A 0009979930 | ||
| 558 | A 0009979930 | SCREW PLUG |
| TOP | ||
| 560 | N 000906018000 | SCREW PLUG |
| WITH OIL DIPSTICK | ||
| 562 | A 4039970620 | EXPANSION PLUG |
| BREATHER | ||
| 564 | A 0002610033 | COVER |
| TOP | ||
| A 0002635152 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.00 MM | ||
| A 0002635052 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.10 MM | ||
| A 0002634952 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.20 MM | ||
| A 0002634852 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.30 MM | ||
| A 0002634752 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.35 MM | ||
| A 0002634652 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.40 MM | ||
| A 0002634552 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.45 MM | ||
| A 0002634452 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.50 MM | ||
| A 0002634352 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.55 MM | ||
| A 0002634252 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.60 MM | ||
| A 0002634152 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.65 MM | ||
| A 0002634052 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.70 MM | ||
| A 0002633952 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.75 MM | ||
| A 0002633852 | SPACER WASHER | |
| Repalced by: A 0002632452 | ||
| A 0002632452 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.80 MM | ||
| A 0002632652 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.85 MM | ||
| A 0002632552 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.90 MM | ||
| A 0002632452 | SPACER WASHER | |
| AS REQUIRED | ||
| 1.95 MM | ||
| A 0002632352 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.00 MM | ||
| A 0002632252 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.05 MM | ||
| A 0002632152 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.10 MM | ||
| A 0002632052 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.15 MM | ||
| A 0002631952 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.20 MM | ||
| A 0002631852 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.25 MM | ||
| A 0002631752 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.30 MM | ||
| A 0002631652 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.35 MM | ||
| A 0002631552 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.40 MM | ||
| A 0002631452 | SPACER WASHER | |
| Repalced by: A 0002635152 | ||
| A 0002635152 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.45 MM | ||
| A 0002631352 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.50 MM | ||
| A 0002631252 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.55 MM | ||
| A 0002631152 | SPACER WASHER | |
| Repalced by: A 0002634652 | ||
| A 0002634652 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.60 MM | ||
| A 0002632752 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.65 MM | ||
| A 0002632852 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.70 MM | ||
| A 0002632952 | SPACER WASHER | |
| Repalced by: A 0002634252 | ||
| A 0002634252 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.75 MM | ||
| A 0002633052 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.80 MM | ||
| A 0002633152 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.85 MM | ||
| A 0002633252 | SPACER WASHER | |
| Repalced by: A 0002634652 | ||
| A 0002634652 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.90 MM | ||
| A 0002633352 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.95 MM | ||
| A 0002633452 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.00 MM | ||
| A 0002633552 | SPACER WASHER | |
| Repalced by: A 0002634252 | ||
| A 0002634252 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.05 MM | ||
| A 0002635252 | SPACER WASHER | |
| Repalced by: A 0002634252 | ||
| A 0002634252 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.10 MM | ||
| A 0002635352 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.15 MM | ||
| A 0002635452 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.20 MM | ||
| A 0002635552 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.25 MM | ||
| A 0002635652 | SPACER WASHER | |
| Repalced by: A 0002632152 | ||
| A 0002632152 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.30 MM | ||
| A 0002635752 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.35 MM | ||
| A 0002635852 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.40 MM | ||
| A 0002635952 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.45 MM | ||
| A 0002636052 | SPACER WASHER | |
| Repalced by: A 0002631752 | ||
| A 0002631752 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.50 MM | ||
| A 0002636152 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.55 MM | ||
| A 0002636252 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.60 MM | ||
| A 0002636352 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.65 MM | ||
| A 0002636452 | SPACER WASHER | |
| Repalced by: A 0002631752 | ||
| A 0002631752 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.70 MM | ||
| A 0002636552 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.75 MM | ||
| A 0002636652 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.80 MM | ||
| A 0002636752 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.85 MM | ||
| A 0002636852 | SPACER WASHER | |
| Repalced by: A 0002632452 | ||
| A 0002632452 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.90 MM | ||
| A 0002636952 | SPACER WASHER | |
| AS REQUIRED | ||
| 3.95 MM | ||
| A 0002637052 | SPACER WASHER | |
| AS REQUIRED | ||
| 4.00 MM | ||
| 568 | A 0002610780 | GASKET |
| CASE COVER | ||
| 568 | A 0002614880 | GASKET |
| CASE COVER | ||
| 572 | A 0002610218 | TRANSMISSION CASE COVER |
| Repalced by: A 0002610418 | ||
| 572 | A 0002610418 | TRANSMISSION CASE COVER |
| FRONT | ||
| 572 | A 0002610418 | TRANSMISSION CASE COVER |
| FRONT | ||
| 574 | N 000137010201 | SPRING WASHER |
| CASE COVER TO TRANSMISSION | ||
| 576 | N 000933010164 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| M10X22 | ||
| 576 | N 000933010164 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| M10X22 | ||
| N 000933010157 | SCREW | |
| CASE COVER TO TRANSMISSION | ||
| M10X28 | ||
| A 0039977240 | SEAL RING | |
| CASE COVER | ||
| 578 | A 3432620129 | COVERING |
| FRONT | ||
| 580 | A 0049970946 | SEAL RING |
| Repalced by: A 0079972347 | ||
| 580 | A 0079972347 | SEAL RING |
| FRONT | ||
| 582 | A 0049976946 | SEAL RING |
| Repalced by: A 0079972247 | ||
| 582 | A 0079972247 | SEAL RING |
| Repalced by: A 0239979447 | ||
| 582 | A 0239979447 | SEAL RING |
| FRONT | ||
| 584 | A 3432610652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 584 | A 3432610752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 584 | A 3432612652 | SPACER WASHER |
| Repalced by: A 3432610752 | ||
| 584 | A 3432610752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 584 | A 3432612752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 586 | A 3432620279 | GASKET |
| Repalced by: A 0002620580 | ||
| 586 | A 0002620580 | GASKET |
| Repalced by: A 0002621880 | ||
| 586 | A 0002621880 | GASKET |
| Repalced by: A 0002621280 | ||
| 586 | A 0002621280 | GASKET |
| COVERING TO TRANSMISSION CASE | ||
| 588 | N 000137010201 | SPRING WASHER |
| COVERING TO TRANSMISSION CASE | ||
| 590 | N 000933010105 | SCREW |
| COVERING TO TRANSMISSION CASE | ||
| 592 | N 912004018101 | LOCK WASHER |
| Repalced by: N 912004018101 | ||
| 592 | N 912004018101 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
| 594 | N 000960018013 | SCREW |
| Repalced by: N 000960018109 | ||
| 594 | N 000960018109 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 596 | A 0002610320 | TRANSMISSION CASE COVER |
| REAR | ||
| 596 | A 0002610520 | TRANSMISSION CASE COVER |
| REAR | ||
| 598 | A 0002610380 | GASKET |
| Repalced by: A 0002648880 | ||
| 598 | A 0002648880 | GASKET |
| REAR | ||
| A 3432610652 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.20 MM | ||
| A 3432610752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.30 MM | ||
| A 3432612652 | SPACER WASHER | |
| Repalced by: A 3432610752 | ||
| A 3432610752 | SPACER WASHER | |
| AS REQUIRED | ||
| 0.50 MM | ||
| A 3432612752 | SPACER WASHER | |
| AS REQUIRED | ||
| 2.00 MM | ||
| 600 | A 0002646252 | SPACER WASHER |
| Repalced by: A 0022644752 | ||
| 600 | A 0022644752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 600 | A 0002646152 | SPACER WASHER |
| Repalced by: A 0022644652 | ||
| 600 | A 0022644652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 600 | A 0002646052 | SPACER WASHER |
| Repalced by: A 0022644552 | ||
| 600 | A 0022644552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 600 | A 0002645952 | SPACER WASHER |
| Repalced by: A 0022644452 | ||
| 600 | A 0022644452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 600 | A 0002645852 | SPACER WASHER |
| Repalced by: A 0022644352 | ||
| 600 | A 0022644352 | SPACER WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 600 | A 0002645752 | SPACER WASHER |
| Repalced by: A 0022644252 | ||
| 600 | A 0022644252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 600 | A 0022644152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.60 MM | ||
| 600 | A 0022644052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.70 MM | ||
| 602 | N 000137010201 | SPRING WASHER |
| CASE COVER TO TRANSMISSION | ||
| 604 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 604 | N 304017010002 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| M10X30 | ||
| 604 | N 000933010164 | SCREW |
| CASE COVER TO TRANSMISSION | ||
| M10X22 | ||
| 606 | A 0069977046 | SEAL RING |
| Repalced by: A 0089973347 | ||
| 606 | A 0049970647 | SEAL RING |
| Repalced by: A 0089973347 | ||
| 606 | A 0069978647 | SEAL RING |
| Repalced by: A 0089973347 | ||
| 606 | A 0079975947 | SEAL RING |
| Repalced by: A 0129970647 | ||
| 606 | A 0129970647 | SEAL RING |
| Repalced by: A 0089973347 | ||
| 606 | A 0089973347 | SEAL RING |
| INSIDE | ||
| 608 | A 0049970646 | SEAL RING |
| Repalced by: A 0069978847 | ||
| 608 | A 0069978847 | SEAL RING |
| Repalced by: A 0119978547 | ||
| 608 | A 0119978547 | SEAL RING |
| OUTSIDE | ||
| 610 | A 3362640033 | CONNECTOR |
| AS REQUIRED | ||
| 88.5 MM,TO 366 264 00 32 | ||
| 610 | A 3612640033 | CONNECTOR |
| AS REQUIRED | ||
| 118.5 MM,TO 361 264 00 32 | ||
| 612 | A 0109973148 | SEAL RING |
| Repalced by: A 0069970245 | ||
| 612 | A 0069970245 | SEAL RING |
| SPEEDOMETER DRIVE | ||
| 615 | A 3662640032 | SHAFT |
| SPEEDOMETER DRIVE | ||
| TO 336 264 00 32 | ||
| 615 | A 3612640032 | SHAFT |
| SPEEDOMETER DRIVE | ||
| TO 361 264 00 32 | ||
| 617 | A 3662640130 | DRIVE GEAR |
| SPEEDOMETER DRIVE; L.H. TURN | ||
| 617 | A 3662640030 | DRIVE GEAR |
| SPEEDOMETER DRIVE; R.H. TURN | ||
| 619 | N 000007005228 | CYLINDRICAL PIN |
| OIL OVERFLOW | ||
| 621 | A 0039979846 | SEAL RING |
| SPEEDOMETER DRIVE | ||
| 621 | N 007603022102 | SEAL RING |
| SPEEDOMETER DRIVE | ||
| A 3122641034 | LOCK NUT | |
| Repalced by: A 6742640034 | ||
| A 6742640034 | LOCK NUT | |
| SPEEDOMETER DRIVE | ||
| 623 | A 3039940015 | LOCK |
| SPEEDOMETER DRIVE | ||
| 625 | N 915035000022 | SEAL RING |
| SPEEDOMETER DRIVE | ||
| 627 | A 3042610071 | SCREW |
| Repalced by: A 0009970419 | ||
| 627 | A 0009970419 | THREADED PIN |
| SPEEDOMETER DRIVE | ||
| A 0039901051 | NUT | |
| SPEEDOMETER DRIVE | ||
| 629 | N 000443042000 | EXPANSION PLUG |
| LATERAL | ||
| 631 | A 3432640379 | GASKET |
| Repalced by: A 0002642980 | ||
| 631 | A 0002642980 | GASKET |
| Repalced by: A 0002647680 | ||
| 631 | A 0002647680 | GASKET |
| REAR COVER | ||
| 633 | A 3612640211 | COVER |
| Repalced by: A 0002642111 | ||
| 633 | A 0002642111 | COVER |
| Repalced by: A 0002612620 | ||
| 633 | A 0002612620 | TRANSMISSION CASE COVER |
| REAR COVER | ||
| 635 | N 000933012050 | SCREW |
| Repalced by: N 304017012002 | ||
| 635 | N 304017012002 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| N 000137012203 | SPRING WASHER | |
| REAR COVER TO TRANSMISSION | ||
| 640 | A 0002630602 | COUNTERSHAFT |
| Repalced by: A 0002600724 | ||
| 640 | A 0002600724 | COUNTERSHAFT |
| Repalced by: A 0002600124 | ||
| 640 | A 0002600124 | COUNTERSHAFT |
| 642 | A 0002630713 | GEAR |
| 3RD AND 4TH SPEED | ||
| 644 | A 0002630815 | GEAR |
| 5TH SPEED | ||
| 646 | A 0002630810 | GEAR |
| Repalced by: A 0002631510 | ||
| 646 | A 0002631510 | GEAR |
| CONSTANT | ||
| 648 | A 0019801402 | TAPERED ROLLER BEARING |
| Repalced by: A 0019807802 | ||
| 648 | A 0019807802 | TAPERED ROLLER BEARING |
| Repalced by: A 0019808102 | ||
| 648 | A 0019808102 | TAPERED ROLLER BEARING |
| COUNTERSHAFT,FRONT | ||
| 650 | A 0002640951 | LOCK RING |
| AS REQUIRED | ||
| 2.30 MM | ||
| 650 | A 0002641051 | SPACER RING |
| AS REQUIRED | ||
| 2.40 MM | ||
| 650 | A 0002641151 | LOCK RING |
| AS REQUIRED | ||
| 2.50 MM | ||
| 650 | A 0002641251 | LOCK RING |
| Repalced by: A 3879940941 | ||
| 650 | A 3879940941 | LOCK |
| AS REQUIRED | ||
| 2.60 MM | ||
| 650 | A 0002641351 | LOCK RING |
| AS REQUIRED | ||
| 2.70 MM | ||
| 650 | A 0002641451 | LOCK RING |
| AS REQUIRED | ||
| 2.80 MM | ||
| 650 | A 0002640551 | LOCK RING |
| AS REQUIRED | ||
| 2.90 MM | ||
| 650 | A 0002640651 | LOCK RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 650 | A 0002640751 | LOCK RING |
| AS REQUIRED | ||
| 3.10 M | ||
| 650 | A 0002640851 | SPACER RING |
| AS REQUIRED | ||
| 3.20 MM | ||
| 652 | A 0049811305 | TAPERED ROLLER BEARING |
| COUNTERSHAFT,REAR | ||
| 654 | A 0002630431 | REVERSE IDLER GEAR |
| Repalced by: A 0002630831 | ||
| 654 | A 0002630831 | REVERSE IDLER GEAR |
| Repalced by: A 0002632531 | ||
| 654 | A 0002632531 | REVERSE IDLER GEAR |
| 656 | A 0019814210 | NEEDLE BEARING |
| Repalced by: A 0109811010 | ||
| 656 | A 0089811810 | NEEDLE BEARING |
| Repalced by: A 0109811010 | ||
| 656 | A 0089811910 | NEEDLE BEARING |
| Repalced by: A 0109811010 | ||
| 656 | A 0109811010 | NEEDLE BEARING |
| 658 | A 3432630050 | BUSHING |
| Repalced by: A 0002630650 | ||
| 658 | A 0002630650 | BUSHING |
| REVERSE IDLER GEAR | ||
| 660 | A 3432630062 | THRUST WASHER |
| REVERSE IDLER GEAR | ||
| 662 | A 3432630030 | REVERSE IDLER SHAFT |
| 665 | A 0002621302 | DRIVE SHAFT |
| 667 | N 005412770001 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0059818501 | ||
| 667 | A 0059818501 | CYLINDR. ROLLER BEARING |
| DRIVE SHAFT | ||
| 669 | N 005417150000 | SNAP RING |
| DRIVE SHAFT | ||
| 671 | A 0002646429 | RING HALF |
| Repalced by: A 0002620177 | ||
| 671 | A 0002620177 | RING |
| AS REQUIRED | ||
| 7.20 MM | ||
| 671 | A 0002646329 | RING HALF |
| Repalced by: A 0002622177 | ||
| 671 | A 0002622177 | RING |
| AS REQUIRED | ||
| 7.10 MM | ||
| 671 | A 3362641629 | RING HALF |
| Repalced by: A 0002643129 | ||
| 671 | A 0002643129 | RING HALF |
| Repalced by: A 0002648029 | ||
| 671 | A 0002648029 | RING HALF |
| AS REQUIRED | ||
| 7.00 MM | ||
| 671 | A 3362641729 | RING HALF |
| Repalced by: A 0002643229 | ||
| 671 | A 0002643229 | RING HALF |
| Repalced by: A 0012620030 | ||
| 671 | A 0012620030 | RING HALF |
| AS REQUIRED | ||
| 6.90 MM | ||
| 671 | A 3362641829 | RING HALF |
| Repalced by: A 0002643329 | ||
| 671 | A 0002643329 | RING HALF |
| Repalced by: A 0002620277 | ||
| 671 | A 0002620277 | RING |
| AS REQUIRED | ||
| 6.80 MM | ||
| 671 | A 3362641929 | RING HALF |
| Repalced by: A 0002643429 | ||
| 671 | A 0002643429 | RING HALF |
| Repalced by: A 0002620377 | ||
| 671 | A 0002620377 | RING |
| AS REQUIRED | ||
| 6.70 MM | ||
| 673 | A 3362641851 | SPACER RING |
| Repalced by: A 0002642751 | ||
| 673 | A 0002642751 | SPACER RING |
| DRIVE SHAFT | ||
| 675 | A 3432620105 | MAIN SHAFT |
| Repalced by: A 0002622405 | ||
| 675 | A 0002622405 | MAIN SHAFT |
| 675 | A 0002621405 | MAIN SHAFT |
| Repalced by: A 0002622305 | ||
| 675 | A 0002622305 | MAIN SHAFT |
| 677 | A 0019814310 | NEEDLE BEARING |
| Repalced by: A 0139819210 | ||
| 677 | A 0139819210 | NEEDLE BEARING |
| 677 | A 0069819310 | NEEDLE BEARING |
| Repalced by: A 0139819210 | ||
| 677 | A 0069819410 | NEEDLE BEARING |
| Repalced by: A 0139819210 | ||
| 679 | A 0002620612 | GEAR |
| Repalced by: A 0002622112 | ||
| 679 | A 0002622112 | GEAR |
| 2ND SPEED | ||
| 681 | A 0002620827 | SYNCHRONIZER HUB |
| 1ST AND 2ND SPEED | ||
| 683 | A 0002621123 | SLIDING COLLAR |
| 1ST AND 2ND SPEED | ||
| 685 | N 000471090000 | LOCK RING |
| Repalced by: A 3872624373 | ||
| 685 | A 3872624373 | LOCK |
| AS REQUIRED | ||
| 3.00 MM | ||
| 685 | A 0019940541 | LOCK |
| AS REQUIRED | ||
| 2.90 MM | ||
| 685 | A 0019940641 | LOCK |
| AS REQUIRED | ||
| 2.80 MM | ||
| 687 | A 0019814410 | NEEDLE BEARING |
| Repalced by: A 0029811710 | ||
| 687 | A 0029811710 | NEEDLE BEARING |
| 1ST SPEED GEAR | ||
| 687 | A 0079813510 | NEEDLE BEARING |
| 1ST SPEED GEAR | ||
| 687 | A 0079818910 | NEEDLE BEARING |
| 1ST SPEED GEAR | ||
| 689 | A 0002621211 | GEAR |
| Repalced by: A 0002624611 | ||
| 689 | A 0002621311 | GEAR |
| Repalced by: A 0002624611 | ||
| 689 | A 0002622011 | GEAR |
| Repalced by: A 0002624611 | ||
| 689 | A 0002623311 | GEAR |
| Repalced by: A 0002624611 | ||
| 689 | A 0002624611 | GEAR |
| 1ST SPEED | ||
| 691 | A 3432620036 | FOLLOWER RING |
| REVERSE SPEED GEAR | ||
| 693 | A 3432620350 | BUSHING |
| REVERSE SPEED GEAR | ||
| 695 | A 0019817410 | NEEDLE BEARING |
| REVERSE SPEED GEAR | ||
| 697 | A 0002621111 | GEAR |
| REVERSE SPEED | ||
| 699 | A 0009819025 | BALL BEARING |
| Repalced by: N 000625536314 | ||
| 699 | N 000625536314 | GROOVED BALL BEARING |
| MAIN SHAFT,REAR | ||
| 701 | N 005417150000 | SNAP RING |
| MAIN SHAFT,REAR | ||
| 703 | A 3662640131 | DRIVE GEAR |
| SPEEDOMETER DRIVE; L.H. TURN | ||
| 703 | A 3662640031 | DRIVE GEAR |
| SPEEDOMETER DRIVE; R.H. TURN | ||
| 705 | A 3662600017 | FLANGE |
| MAIN SHAFT OUTPUT | ||
| 705 | A 0002641445 | COUPLING FLANGE |
| MAIN SHAFT OUTPUT | ||
| 707 | A 3432620062 | SEAL RING |
| FLANGE TO MAIN SHAFT | ||
| 709 | A 0059903701 | SCREW |
| Repalced by: N 000933012130 | ||
| 709 | N 000933012130 | SCREW |
| FLANGE TO MAIN SHAFT | ||
| A 3859941032 | LOCK | |
| FLANGE TO MAIN SHAFT | ||
| 711 | A 0019814610 | NEEDLE BEARING |
| Repalced by: A 0129815910 | ||
| 711 | A 0129815910 | NEEDLE BEARING |
| 711 | A 0069819610 | NEEDLE BEARING |
| Repalced by: A 0129815910 | ||
| 711 | A 0069819710 | NEEDLE BEARING |
| Repalced by: A 0129815910 | ||
| 713 | A 0002620613 | GEAR |
| 3RD SPEED | ||
| 715 | A 3432620527 | SYNCHRONIZER HUB |
| 3RD AND 4TH SPEED | ||
| 717 | A 0002621023 | SLIDING COLLAR |
| 3RD AND 4TH SPEED | ||
| 719 | A 3432640993 | SPRING |
| 3RD AND 4TH SPEED | ||
| 721 | N 005401306000 | BALL |
| 3RD AND 4TH SPEED | ||
| 723 | N 000471080000 | LOCK RING |
| Repalced by: A 3872626373 | ||
| 723 | A 3872626373 | LOCK |
| AS REQUIRED | ||
| 2.50 MM | ||
| 723 | A 0019940741 | LOCK |
| Repalced by: A 3872626173 | ||
| 723 | A 3872626173 | LOCK |
| AS REQUIRED | ||
| 2.40 MM | ||
| 723 | A 0019940841 | LOCK |
| AS REQUIRED | ||
| 2.30 MM | ||
| 725 | A 0029811610 | NEEDLE BEARING |
| Repalced by: A 0139819110 | ||
| 725 | A 0139819110 | NEEDLE BEARING |
| 725 | A 0069819910 | NEEDLE BEARING |
| Repalced by: A 0139819110 | ||
| 727 | A 0002620714 | GEAR |
| 4TH SPEED | ||
| 729 | A 3432620250 | BUSHING |
| 5TH SPEED | ||
| 731 | A 0019811510 | NEEDLE BEARING |
| Repalced by: A 0059810510 | ||
| 731 | A 0029811510 | NEEDLE BEARING |
| Repalced by: A 0059810510 | ||
| 731 | A 0059810510 | NEEDLE BEARING |
| 5TH SPEED | ||
| 733 | A 0002620915 | GEAR |
| 5TH SPEED | ||
| 735 | A 3432620427 | SYNCHRONIZER HUB |
| 5TH AND 6TH SPEED | ||
| 737 | A 3432620323 | SLIDING COLLAR |
| 5TH AND 6TH SPEED | ||
| 737 | A 0002622323 | SLIDING COLLAR |
| 5TH AND 6TH SPEED | ||
| 739 | A 0029931801 | SPRING |
| 5TH AND 6TH SPEED | ||
| 741 | N 005401306000 | BALL |
| 5TH AND 6TH SPEED | ||
| 743 | A 3439900360 | NUT |
| 5TH AND 6TH SPEED | ||
| A 0019948841 | LOCK | |
| Repalced by: N 900055045300 | ||
| N 900055045300 | LOCK RING | |
| AS REQUIRED | ||
| 2.50 MM | ||
| A 0039941441 | LOCK | |
| AS REQUIRED | ||
| 2.45 MM | ||
| A 0029948741 | LOCK | |
| AS REQUIRED | ||
| 2.40 MM | ||
| A 0039941541 | LOCK | |
| AS REQUIRED | ||
| 2.35 MM | ||
| A 0029948841 | LOCK | |
| AS REQUIRED | ||
| 2.30 MM | ||
| A 0039941641 | LOCK | |
| AS REQUIRED | ||
| 2.25 MM | ||
| A 0039941741 | LOCK | |
| AS REQUIRED | ||
| 2.20 MM | ||
| 745 | A 0049815801 | CYLINDR. ROLLER BEARING |
| 747 | N 000983030000 | LOCK RING |
| MAIN SHAFT,FRONT | ||
| 760 | A 0002650206 | COVER |
| Repalced by: A 0002650506 | ||
| 760 | A 0002650506 | COVER |
| SHIFTING DOME | ||
| 760 | A 0002650306 | COVER |
| Repalced by: A 0002650406 | ||
| 760 | A 0002650406 | COVER |
| SHIFTING DOME | ||
| 762 | A 0002681280 | GASKET |
| Repalced by: A 3432650679 | ||
| 762 | A 3432650679 | GASKET |
| Repalced by: A 0002650280 | ||
| 762 | A 0002650280 | GASKET |
| SHIFTER COVER TO TRANSMISSION CASE | ||
| 764 | A 0002651502 | SHIFTING FORK |
| Repalced by: A 0002652602 | ||
| 764 | A 0002652602 | SHIFTING FORK |
| 5TH AND 6TH SPEED | ||
| 766 | A 0002650349 | SLIDE |
| Repalced by: A 0002650549 | ||
| 766 | A 0002650549 | SLIDE |
| 5TH AND 6TH SPEED | ||
| 766 | A 0002680149 | SLIDE |
| 5TH AND 6TH SPEED | ||
| 768 | A 0002650271 | SCREW |
| Repalced by: A 0002650871 | ||
| 768 | A 0002650871 | SCREW |
| SHIFTING YOKE BEARING | ||
| 768 | A 3362680071 | SCREW |
| Repalced by: A 0002650971 | ||
| 768 | A 0002650971 | SCREW |
| SHIFTING YOKE BEARING | ||
| 770 | A 0009902648 | WASHER |
| SHIFTING YOKE BEARING | ||
| 772 | A 0029819910 | NEEDLE BEARING |
| SHIFTING YOKE BEARING | ||
| 774 | A 3362680049 | SLIDE |
| Repalced by: A 0002680149 | ||
| 774 | A 0002680149 | SLIDE |
| 1ST THRU 4TH SPEED | ||
| 776 | A 0002651402 | SHIFTING FORK |
| Repalced by: A 0002601730 | ||
| 776 | A 0002601230 | SHIFTING FORK |
| Repalced by: A 0002601730 | ||
| 776 | A 0002601730 | SHIFTING FORK |
| 3RD AND 4TH SPEED | ||
| 778 | A 0002600330 | SHIFTING FORK |
| Repalced by: A 0002601630 | ||
| 778 | A 0002600430 | SHIFTING FORK |
| Repalced by: A 0002601630 | ||
| 778 | A 0002600830 | SHIFTING FORK |
| Repalced by: A 0002601630 | ||
| 778 | A 0002601630 | SHIFTING FORK |
| 1ST AND 2ND SPEED | ||
| 780 | A 0002650971 | SCREW |
| REVERSE SPEED | ||
| 782 | A 3362650203 | SHIFTING FORK |
| Repalced by: A 0002650403 | ||
| 782 | A 0002650403 | SHIFTING FORK |
| REVERSE SPEED | ||
| 784 | A 3362600230 | SHIFTING FORK |
| Repalced by: A 0002601030 | ||
| 784 | A 0002601030 | SHIFTING FORK |
| REVERSE SPEED | ||
| 786 | A 0002683725 | SHIFTING ROD |
| Repalced by: A 3362680325 | ||
| 786 | A 3362680325 | SHIFTING ROD |
| Repalced by: A 0002685225 | ||
| 786 | A 0002685225 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| 788 | A 0002650404 | SHIFTING ROD |
| Repalced by: A 0002683925 | ||
| 788 | A 0002683925 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 790 | A 3362600489 | PULL ROD |
| Repalced by: A 0002683825 | ||
| 790 | A 0002683825 | SHIFTING ROD |
| REVERSE SPEED | ||
| 792 | N 000137010205 | SPRING WASHER |
| COVER TO TRANSMISSION CASE | ||
| 794 | N 000931010271 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| M10X60 | ||
| 796 | N 000933010195 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| M10X25 | ||
| 798 | N 000931010379 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| M10X110 | ||
| 800 | N 000931010274 | SCREW |
| Repalced by: N 304014010004 | ||
| 800 | N 304014010004 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| M10X90 | ||
| 802 | N 000931010091 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| M10X50 | ||
| 804 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 804 | N 304017010050 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| M10X70 | ||
| 806 | N 000906012002 | SCREW PLUG |
| SHIFT CASE | ||
| 808 | A 0009979930 | SCREW PLUG |
| SHIFT CASE | ||
| 810 | A 0005452806 | SWITCH |
| Repalced by: A 0005455906 | ||
| 810 | A 0005455906 | SWITCH |
| Repalced by: A 0015457614 | ||
| 810 | A 0015457614 | SWITCH |
| BACK-UP LIGHT | ||
| 812 | A 0005451480 | GASKET |
| BACK-UP LIGHT SWITCH | ||
| N 000137005203 | SPRING WASHER | |
| SWITCH TO CASE COVER | ||
| 814 | N 000933005059 | SCREW |
| SWITCH TO CASE COVER | ||
| 816 | A 0045453128 | PLUG |
| BACK-UP LIGHT SWITCH | ||
| TO 000 545 28 06 | ||
| A 0002682180 | GASKET | |
| Repalced by: A 0002685580 | ||
| A 0002685580 | GASKET | |
| IN PLACE OF BACK-UP LIGHT SWITCH | ||
| A 0002681305 | COVER | |
| IN PLACE OF BACK-UP LIGHT SWITCH | ||
| 818 | A 0002600358 | BREATHER |
| Repalced by: A 3432640089 | ||
| 818 | A 3432640089 | VALVE |
| SHIFT CASE,TOP | ||
| N 000906010000 | SCREW PLUG | |
| 822 | A 3362680279 | GASKET |
| Repalced by: A 3362680179 | ||
| 822 | A 3362680179 | GASKET |
| Repalced by: A 0002685180 | ||
| 822 | A 0002685180 | GASKET |
| SHIFT CASE,BOTTOM | ||
| 824 | A 0002680157 | COVER |
| SHIFT CASE,BOTTOM | ||
| 826 | N 914005008010 | COMBINATION BOLT |
| Repalced by: N 304017008021 | ||
| 826 | N 304017008021 | SCREW |
| COVER TO SHIFT CASE | ||
| 828 | A 0002651274 | PIN |
| Repalced by: A 0002670474 | ||
| 828 | A 0002670474 | PIN |
| SHIFT CASE,BOTTOM | ||
| 830 | A 0039933201 | SPRING |
| SHIFT CASE,BOTTOM | ||
| 832 | A 0002650874 | PIN |
| Repalced by: A 0002681374 | ||
| 832 | A 0002651374 | PIN |
| Repalced by: A 0002681374 | ||
| 832 | A 0002681374 | PIN |
| SHIFT CASE,BOTTOM | ||
| 834 | N 000443014000 | EXPANSION PLUG |
| FRONT | ||
| 836 | A 0029936201 | SPRING |
| Repalced by: A 0049930801 | ||
| 836 | A 0049930801 | SPRING |
| SHIFTING SHAFT | ||
| 838 | N 000471020001 | LOCK RING |
| SHIFTING SHAFT | ||
| 840 | A 3362680152 | SPACER WASHER |
| Repalced by: A 0002681552 | ||
| 840 | A 0002681552 | SPACER WASHER |
| SHIFTING SHAFT | ||
| 842 | A 0029819710 | NEEDLE BEARING |
| Repalced by: A 0002682150 | ||
| 842 | A 0029819710 | NEEDLE BEARING |
| Repalced by: A 0059813110 | ||
| A 0059813110 | NEEDLE BEARING | |
| BOTTOM | ||
| A 0002682150 | BUSHING | |
| TOP | ||
| 844 | A 3362680143 | FOLLOWER |
| SHIFTING SHAFT | ||
| 846 | A 0002651919 | FOLLOWER |
| SHIFTING SHAFT | ||
| 848 | N 009045014000 | SNAP RING |
| SHIFTING SHAFT | ||
| 850 | A 0002650974 | PIN |
| SHIFTING SHAFT | ||
| 852 | A 0029936301 | SPRING |
| SHIFTING SHAFT | ||
| 854 | A 0002650076 | WASHER |
| SHIFTING SHAFT | ||
| 856 | A 0002600038 | SHAFT |
| (SHIFTING SHAFT) | ||
| 856 | A 0002600138 | SHAFT |
| (SHIFTING SHAFT) | ||
| 858 | A 3362680038 | ROLLER |
| 860 | A 0002650007 | LEVER |
| Repalced by: A 0002650207 | ||
| 860 | A 0002650207 | LEVER |
| (BEARING BRACKET) | ||
| 862 | A 0029936401 | SPRING |
| Repalced by: A 0059933101 | ||
| 862 | A 0059933101 | SPRING |
| DETENT | ||
| 864 | A 0002651074 | PIN |
| Repalced by: A 0002681474 | ||
| 864 | A 0002681474 | PIN |
| DETENT | ||
| 866 | A 0002651174 | PIN |
| Repalced by: A 0002651474 | ||
| 866 | A 0002651474 | PIN |
| BEARING BRACKET TO CASE | ||
| 868 | N 000471012001 | LOCK RING |
| BEARING BRACKET TO CASE | ||
| 870 | A 0019817910 | NEEDLE BEARING |
| SHIFT LEVER BEARING | ||
| 872 | A 0002670702 | SHIFT LEVER LOWER PART |
| Repalced by: A 0002671002 | ||
| 872 | A 0002671002 | SHIFT LEVER LOWER PART |
| GEARSHIFT LEVER LOWER PART | ||
| 874 | A 3432630162 | THRUST WASHER |
| SHIFT LEVER TO BEARING BRACKET | ||
| 876 | N 000471024000 | LOCK RING |
| SHIFT LEVER TO BEARING BRACKET | ||
| A 0029936501 | SPRING | |
| Repalced by: A 0002600296 | ||
| A 0002670006 | COVER | |
| Repalced by: A 0002600296 | ||
| A 0002670080 | GASKET | |
| Repalced by: A 0002600296 | ||
| A 0002670106 | COVER | |
| Repalced by: A 0002600296 | ||
| A 0002670496 | BOOT | |
| Repalced by: A 0002600296 | ||
| 884A | A 0005861826 | REPAIR KIT |
| Repalced by: A 0002600296 | ||
| 884A | A 0002600296 | REPAIR KIT |
| COVERING | ||
| 886 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 886 | N 304017008016 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| COVER TO TRANSMISSION CASE | ||
| 888A | A 0002670306 | COVER |
| Repalced by: A 0002684005 | ||
| 888A | A 0002684005 | COVER |
| Repalced by: A 0002685205 | ||
| 888A | A 0002685205 | COVER |
| COVERING | ||
| 888B | A 0002670014 | CAP |
| Repalced by: A 0002670214 | ||
| 888B | A 0002670214 | CAP |
| Repalced by: A 0002670514 | ||
| 888B | A 0002670514 | CAP |
| Repalced by: A 0002671714 | ||
| 888B | A 0002671714 | CAP |
| COVERING | ||
| A 0019978490 | LOOM TIE | |
| COVERING | ||
| 888C | A 0009934605 | SPRING |
| COVERING | ||
| 888D | A 0002670088 | COVERING |
| COVERING | ||
| 888E | A 0002670180 | GASKET |
| Repalced by: A 0002673780 | ||
| 888E | A 0002673780 | GASKET |
| COVERING | ||
| 888F | A 0029974290 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 888F | A 0019978490 | LOOM TIE |
| COVERING | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 888A | ||
| 895 | A 3432670001 | SHIFT LEVER |
| Repalced by: A 3432602139 | ||
| 895 | A 3432602139 | SHIFT LEVER |
| GEARSHIFT LEVER UPPER PART | ||
| 895 | A 3362670501 | SHIFT LEVER |
| Repalced by: A 3362602339 | ||
| 895 | A 3362602339 | SHIFT LEVER |
| GEARSHIFT LEVER UPPER PART | ||
| 897 | N 000934010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 899 | A 3362600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 899 | A 3432600040 | HANDLE |
| (GEARSHIFT LEVER KNOB) | ||
| 901 | N 912004012100 | LOCK WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 903 | N 304032012001 | NUT |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 905 | A 3432670096 | BOOT |
| GEARSHIFT LEVER UPPER PART | ||
| 910 | A 3432600294 | BEARING BRACKET |
| Repalced by: A 3432601894 | ||
| 910 | A 3432601894 | BEARING BRACKET |
| LEFT | ||
| 912 | N 000931010331 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 914 | A 3352840024 | SHIFT LEVER |
| P.T.O. | ||
| 916 | A 3359920303 | BUSHING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 918 | N 900055020301 | LOCK RING |
| Repalced by: N 900055020303 | ||
| 918 | N 900055020303 | LOCK RING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 920 | A 3432600594 | BEARING BRACKET |
| Repalced by: A 3362601494 | ||
| 920 | A 3362601494 | BEARING BRACKET |
| RIGHT | ||
| 922 | N 000931010331 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 924 | A 3129903540 | WASHER |
| BEARING BRACKET TO TRANSMISSION | ||
| 926 | A 3432601294 | BEARING BRACKET |
| Repalced by: A 3432600494 | ||
| 926 | A 3432600494 | BEARING BRACKET |
| LEFT | ||
| 928 | A 3439900001 | SCREW |
| Repalced by: N 304017010046 | ||
| 928 | N 304017010046 | SCREW |
| LOWER | ||
| N 000933010145 | SCREW | |
| UPPER | ||
| 930 | A 3369920203 | BUSHING |
| LEFT BEARING BRACKET | ||
| 932 | A 3369920103 | BUSHING |
| RIGHT BEARING BRACKET | ||
| 934 | A 3432800057 | SHAFT |
| TRANSFER CASE | ||
| 936 | N 000934010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 938 | A 3122802246 | KNOB |
| (GEARSHIFT LEVER KNOB) | ||
| 940 | A 3273530632 | LEVER |
| SHIFT LEVER | ||
| N 000931010306 | SCREW | |
| LEVER TO SHIFTING SHAFT | ||
| N 912004010102 | LOCK WASHER | |
| LEVER TO SHIFTING SHAFT | ||
| N 000934010014 | NUT | |
| LEVER TO SHIFTING SHAFT | ||
| 942 | A 3222640096 | BOOT |
| LATERAL | ||
| 944 | A 3352640096 | BOOT |
| TRANSFER CASE | ||
| 946 | A 3352600260 | SUPPORT |
| REAR | ||
| 946 | A 3362600060 | SUPPORT |
| REAR | ||
| 948 | N 000125013008 | WASHER |
| 949 | N 912004012100 | LOCK WASHER |
| SUPPORT TO TRANSMISSION | ||
| 950 | N 000961012106 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| M12X32 | ||
| 951 | A 3612660084 | RUBBER MOUNTING |
| TRANSMISSION SUSPENSION | ||
| 951 | A 3612660184 | RUBBER MOUNTING |
| 952 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 952 | N 009021010209 | WASHER |
| SUPPORT TO TRANSMISSION | ||
| 953 | N 912004010102 | LOCK WASHER |
| SUPPORT TO TRANSMISSION | ||
| 954 | N 000933010105 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| M10X25 | ||
| 954 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 954 | N 304017010028 | SCREW |
| SUPPORT TO TRANSMISSION | ||
| M10X18 | ||
| 955 | A 3352660501 | CONSOLE |
| LEFT | ||
| 955 | A 3352660601 | CONSOLE |
| RIGHT | ||
| N 000961012179 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M12X38 | ||
| N 000961012179 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M12X38 | ||
| N 000961012122 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M12X40 | ||
| N 000961012122 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M12X40 | ||
| N 000960014167 | SCREW | |
| Repalced by: N 000961014064 | ||
| N 000961014064 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M14X50 | ||
| N 000961012151 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M12X30 X30 | ||
| N 000961012151 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M12X30 X30 | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M12X35 | ||
| N 308676012026 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M12X35 | ||
| N 000961014028 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M14X40 | ||
| N 000961014028 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| M14X40 | ||
| A 1839903140 | WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| N 000125015013 | WASHER | |
| Repalced by: N 000125015019 | ||
| N 000125015019 | WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| N 912004014100 | LOCK WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| CONSOLE TO SIDE MEMBER | ||
| N 000934014019 | NUT | |
| Repalced by: N 308673014001 | ||
| N 308673014001 | NUT | |
| CONSOLE TO SIDE MEMBER | ||
| 960 | A 3432601105 | P.T.O. |
| Repalced by: A 3432600305 | ||
| 960 | A 3432600305 | P.T.O. |
| N 70/1 C = 0.47 X ENGINE REVOLUTIONS | ||
| 962 | A 3432640128 | HOUSING |
| Repalced by: A 0002641328 | ||
| 962 | A 0002641328 | HOUSING |
| 963 | A 0019978346 | SEAL RING |
| 964 | A 0002610070 | STUD |
| P.T.O. TO TRANSMISSION | ||
| 965 | N 000125013008 | WASHER |
| 966 | A 3439900047 | LOCK WASHER |
| Repalced by: N 912006012000 | ||
| 966 | N 912006012000 | LOCK WASHER |
| P.T.O. TO TRANSMISSION | ||
| 967 | A 3439900051 | NUT |
| Repalced by: A 3859900551 | ||
| 967 | A 3859900551 | NUT |
| P.T.O. TO TRANSMISSION | ||
| 969 | A 3432640379 | GASKET |
| Repalced by: A 0002642980 | ||
| 969 | A 0002642980 | GASKET |
| Repalced by: A 0002647680 | ||
| 969 | A 0002647680 | GASKET |
| P.T.O. | ||
| 971 | A 3432640093 | SPRING |
| DETENT | ||
| 972 | N 005401308000 | BALL |
| DETENT | ||
| 973 | A 3432640323 | SLIDING COLLAR |
| Repalced by: A 0002641423 | ||
| 973 | A 0002641423 | SLIDING COLLAR |
| P.T.O. CONTROL | ||
| 974 | A 3432601439 | SHIFT LEVER |
| P.T.O. CONTROL | ||
| 975 | A 3482650449 | SLIDE |
| Repalced by: A 3432650449 | ||
| 975 | A 3432650449 | SLIDE |
| P.T.O. CONTROL | ||
| A 3432640479 | GASKET | |
| Repalced by: A 0002642980 | ||
| A 0002642980 | GASKET | |
| Repalced by: A 0002647680 | ||
| A 0002647680 | GASKET | |
| 976 | A 3432640024 | SHIFT LEVER |
| OUTSIDE | ||
| N 000933008150 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| FROM SHIFT LEVER TO P.T.O. | ||
| N 000137008204 | SPRING WASHER | |
| Repalced by: N 000137008212 | ||
| N 000137008212 | SPRING WASHER | |
| FROM SHIFT LEVER TO P.T.O. | ||
| N 304032008006 | NUT | |
| FROM SHIFT LEVER TO P.T.O. | ||
| 978 | A 3432600294 | BEARING BRACKET |
| Repalced by: A 3432601894 | ||
| 978 | A 3432601894 | BEARING BRACKET |
| LEFT | ||
| 978 | A 3432640335 | BEARING BRACKET |
| LEFT | ||
| 979 | A 3359920103 | BUSHING |
| LEFT BEARING BRACKET | ||
| 980 | N 000931010331 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 981 | A 3432600494 | BEARING BRACKET |
| LEFT | ||
| 981 | A 3362600694 | BEARING BRACKET |
| LEFT | ||
| 982 | A 3359920203 | BUSHING |
| LEFT BEARING BRACKET | ||
| 983 | A 3439900001 | SCREW |
| Repalced by: N 304017010046 | ||
| 983 | N 304017010046 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 983 | N 000933010145 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 984 | A 3432600394 | BEARING BRACKET |
| Repalced by: A 3432601994 | ||
| 984 | A 3432601994 | BEARING BRACKET |
| RIGHT | ||
| 985 | A 3359920203 | BUSHING |
| RIGHT BEARING BRACKET | ||
| 986 | N 000933010145 | SCREW |
| BEARING BRACKET TO CASE | ||
| 987 | A 3432600594 | BEARING BRACKET |
| Repalced by: A 3362601494 | ||
| 987 | A 3362601494 | BEARING BRACKET |
| RIGHT | ||
| 988 | A 3359920103 | BUSHING |
| RIGHT BEARING BRACKET | ||
| 989 | N 000931010331 | SCREW |
| BEARING BRACKET TO TRANSMISSION | ||
| 990 | A 3129903540 | WASHER |
| BEARING BRACKET TO TRANSMISSION | ||
| 991 | A 3432600837 | LEVER |
| Repalced by: A 3432600337 | ||
| 991 | A 3432600337 | LEVER |
| FROM SHIFT LEVER TO P.T.O. | ||
| 991 | A 3432600137 | LEVER |
| FROM SHIFT LEVER TO P.T.O. | ||
| 992 | N 000443017000 | EXPANSION PLUG |
| SHIFT LEVER TO BEARING BRACKET | ||
| 993 | N 900055016300 | LOCK RING |
| Repalced by: N 900055016301 | ||
| 993 | N 900055016301 | LOCK RING |
| SHIFT LEVER TO BEARING BRACKET | ||
| 994 | A 3352600075 | CONNECTOR |
| P.T.O. CONTROL | ||
| 995 | N 001434008002 | PIN |
| CONNECTOR TO LEVER | ||
| N 000094002059 | COTTER PIN | |
| CONNECTOR TO LEVER | ||
| 996 | A 3352670201 | SHIFT LEVER |
| Repalced by: A 3462608939 | ||
| 996 | A 3462608939 | SHIFT LEVER |
| P.T.O. | ||
| N 000931008047 | SCREW | |
| Repalced by: N 304017008018 | ||
| N 304017008018 | SCREW | |
| SHIFT LEVER TO SHAFT | ||
| N 304032008006 | NUT | |
| SHIFT LEVER TO SHAFT | ||
| 997 | A 3222640096 | BOOT |
| GEARSHIFT LEVER UPPER PART | ||
| 998 | N 000934010010 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 999 | A 3042600440 | HANDLE |
| GEARSHIFT LEVER KNOB | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE FIG. NO.: | ||
| 540 | ||
| 999B | A 0002366105 | HYDRAULIC PUMP |
| MEILLER DUMPER PUMP | ||
| 999C | A 0019970630 | SCREW PLUG |
| CHECK VALVE | ||
| 999D | A 0049936501 | SPRING |
| CHECK VALVE | ||
| 999E | A 0019814085 | BALL |
| Repalced by: A 0019815085 | ||
| 999E | A 0019815085 | BALL |
| 12.70 MM | ||
| 999H | A 0002360935 | VALVE |
| CHECK VALVE | ||
| 999K | A 0002360376 | WASHER |
| CHECK VALVE | ||
| 999L | A 0049936301 | SPRING |
| PISTONS | ||
| 999M | A 0002361160 | SEAL RING |
| PISTONS | ||
| 999P | A 0002360817 | PISTON |
| Repalced by: A 0002361117 | ||
| 999P | A 0002361117 | PISTON |
| 999Q | A 0002360735 | VALVE |
| 999R | A 0002360180 | GASKET |
| CASE PART I TO CASE PART II | ||
| 999S | A 0079977146 | SEAL RING |
| DRIVE SHAFT | ||
| 999T | A 0002640479 | GASKET |
| CONNECTING FLANGE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
