Transporto priemonė: LA 2624/6X6; VIN numerio dalis: 343101

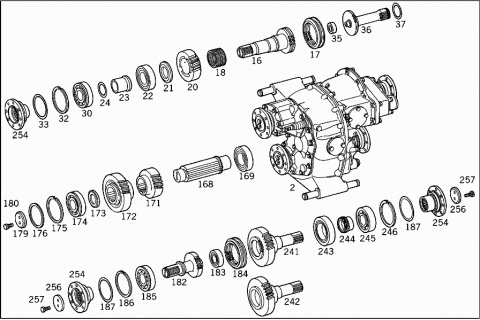

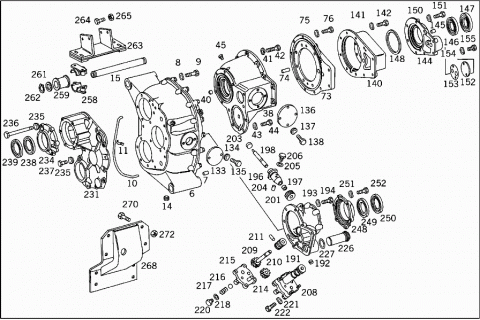

Grupė: 28 TRANSFER CASE
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 3432801301 | TRANSFER CASE |
| Repalced by: A 3432802701 | ||
| 002 | A 3432802001 | TRANSFER CASE |
| Repalced by: A 3432802701 | ||
| 002 | A 3432802401 | TRANSFER CASE |
| Repalced by: A 3432802701 | ||
| 002 | A 3432802701 | TRANSFER CASE |
| Repalced by: A 3432802201 | ||
| 002 | A 3432802201 | TRANSFER CASE |
| WITH RUBBER MOUNTING | ||
| 002 | A 3432801201 | TRANSFER CASE |
| Repalced by: A 3432802601 | ||
| 002 | A 3432802101 | TRANSFER CASE |
| Repalced by: A 3432802601 | ||
| 002 | A 3432802501 | TRANSFER CASE |
| Repalced by: A 3432802601 | ||
| 002 | A 3432802601 | TRANSFER CASE |
| Repalced by: A 3432802301 | ||
| 002 | A 3432802301 | TRANSFER CASE |
| WITH RUBBER MOUNTING | ||
| 006 | A 3432800503 | HOUSING |
| Repalced by: A 3432800203 | ||
| 006 | A 3432801003 | HOUSING |
| Repalced by: A 3432800203 | ||
| 006 | A 3432800203 | HOUSING |
| FRONT | ||
| 007 | N 000007010239 | CYLINDRICAL PIN |
| Repalced by: N 000007010102 | ||
| 007 | N 000007010102 | CYLINDRICAL PIN |
| REAR COVER TO TRANSMISSION | ||
| 008 | N 000137010201 | SPRING WASHER |
| REAR COVER TO TRANSMISSION | ||
| 009 | N 000931010264 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| M 10X45 | ||
| 010 | A 3372815167 | PIPE |
| OIL LINE | ||
| 011 | N 071434010100 | CLAMP |
| LINE MOUNTING | ||
| N 000933005075 | SCREW | |
| Repalced by: N 304017005002 | ||
| N 304017005002 | SCREW | |
| LINE MOUNTING | ||
| M 5X16 | ||
| N 007603005400 | SEAL RING | |
| LINE MOUNTING | ||
| N 000933005035 | SCREW | |
| LINE MOUNTING | ||
| M 5X25 | ||
| N 304032005005 | NUT | |
| LINE MOUNTING | ||
| 014 | A 0009972035 | PLUG |
| Repalced by: A 0009973435 | ||
| 014 | A 0009973435 | PLUG |
| Repalced by: A 0009977535 | ||
| 014 | A 0009977535 | PLUG |
| Repalced by: A 3529970032 | ||
| 014 | A 3529970032 | SCREW PLUG |
| 015 | A 3432850174 | PIN |
| TRANSFER CASE TO SUPPORT | ||
| A 3432820401 | DRIVE SHAFT | |
| Repalced by: A 3432820701 | ||
| 016 | A 3432820701 | DRIVE SHAFT |
| 017 | A 3432830123 | SHIFTING DOG |
| Repalced by: A 3432830023 | ||
| 017 | A 3432830023 | SHIFTING DOG |
| SUSPENSION | ||
| 018 | A 0029811410 | NEEDLE BEARING |
| DRIVE SHAFT BEARING | ||
| 020 | A 3432820311 | GEAR |
| SUSPENSION | ||
| 021 | A 3372825062 | THRUST WASHER |
| SUSPENSION | ||
| 022 | A 0009815801 | CYLINDR. ROLLER BEARING |
| DRIVE SHAFT BEARING | ||
| 023 | A 3432820153 | SPACER TUBE |
| DRIVE SHAFT BEARING | ||
| 024 | A 3432831152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 024 | A 3432831252 | SPACER WASHER |
| AS REQUIRED | ||
| 1.10 MM | ||
| 024 | A 3432831352 | SPACER WASHER |
| AS REQUIRED | ||
| 1.20 MM | ||
| 024 | A 3432831452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.30 MM | ||
| 024 | A 3432831552 | SPACER WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 024 | A 3432831652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 024 | A 3432831752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.60 MM | ||
| 024 | A 3432831852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.70 MM | ||
| 024 | A 3432831952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.80 MM | ||
| 024 | A 3432832052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.90 MM | ||
| 024 | A 3432832152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.00 MM | ||
| 030 | A 0049810025 | BALL BEARING |
| DRIVE SHAFT BEARING | ||
| 032 | N 005417120001 | SNAP RING |
| DRIVE SHAFT BEARING | ||
| 033 | A 3042510052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 033 | A 3432830852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 035 | N 005412400205 | CYLINDR. ROLLER BEARING |
| MAIN SHAFT IN DRIVE SHAFT | ||
| 036 | A 3432820105 | SHAFT |
| MAIN SHAFT | ||
| 037 | N 024910078000 | PISTON RING |
| MAIN SHAFT | ||
| 038 | A 3432810102 | HOUSING |
| REAR | ||
| 040 | A 0009973135 | PLUG |
| TRANSMISSION CASE | ||
| 041 | N 912004010102 | LOCK WASHER |
| INTERMEDIATE FLANGE TO HOUSING | ||
| 042 | N 000931010264 | SCREW |
| INTERMEDIATE FLANGE TO HOUSING | ||
| M 10X45 | ||
| 043 | N 000137010201 | SPRING WASHER |
| INTERMEDIATE FLANGE TO HOUSING | ||
| 044 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 044 | N 304017010002 | SCREW |
| INTERMEDIATE FLANGE TO HOUSING | ||
| M 10X30 | ||
| 045 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 045 | A 3833510065 | FITTING |
| CASE,REAR | ||
| 046 | A 3432830006 | DRIVE SHAFT |
| REAR AXLE II | ||
| 047 | A 0029811301 | CYLINDR. ROLLER BEARING |
| Repalced by: A 0009815601 | ||
| 047 | A 0009815601 | CYLINDR. ROLLER BEARING |
| REAR AXLE II DRIVE SHAFT | ||
| 048 | A 3432830010 | HOUSING |
| REAR AXLE II DRIVE SHAFT | ||
| 049 | A 3439900160 | NUT |
| REAR AXLE II DRIVE SHAFT | ||
| 050 | A 3432830020 | DIFFERENTIAL SPIDER |
| REAR AXLE II DRIVE SHAFT | ||
| 052 | A 3372835014 | DIFFERENTIAL PINION |
| REAR AXLE II DRIVE SHAFT | ||
| 053 | A 3372835150 | BUSHING |
| REAR AXLE II DRIVE SHAFT | ||
| 054 | A 3372835862 | THRUST WASHER |
| Repalced by: A 0002830062 | ||
| 054 | A 0002830062 | THRUST WASHER |
| REAR AXLE II DRIVE SHAFT | ||
| 055 | A 3432830152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 055 | A 3432830452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 055 | A 3432830252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 055 | A 3432830352 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 057 | N 900055048300 | LOCK RING |
| REAR AXLE II DRIVE SHAFT | ||
| 059 | A 3372805086 | BEARING |
| REAR AXLE II DRIVE SHAFT | ||
| 060 | N 000931010282 | SCREW |
| REAR AXLE II DRIVE SHAFT | ||
| 061 | A 3379940025 | LOCK |
| REAR AXLE II DRIVE SHAFT | ||
| 062 | A 3372835015 | SIDE GEAR |
| P.T.O. | ||
| 063 | A 3372835262 | THRUST WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 063 | A 3372835462 | THRUST WASHER |
| AS REQUIRED | ||
| 1.70 MM | ||
| 063 | A 3372835662 | THRUST WASHER |
| AS REQUIRED | ||
| 1.90 MM | ||
| 063 | A 3372836162 | THRUST WASHER |
| AS REQUIRED | ||
| 2.10 MM | ||
| 063 | A 3372836362 | THRUST WASHER |
| AS REQUIRED | ||
| 2.30 MM | ||
| 063 | A 3372836562 | THRUST WASHER |
| AS REQUIRED | ||
| 2.50 MM | ||
| 067 | A 3372835050 | BUSHING |
| 068 | A 3432830211 | HOUSING |
| REAR | ||
| 069 | N 000007010103 | CYLINDRICAL PIN |
| 071 | A 3432830073 | LOCK |
| 072 | N 000931010331 | SCREW |
| 073 | A 3372815104 | INTERMEDIATE FLANGE |
| REAR | ||
| 074 | N 000007006109 | CYLINDRICAL PIN |
| REAR TRANSMISSION CASE | ||
| 075 | N 000137010201 | SPRING WASHER |
| REAR TRANSMISSION CASE | ||
| 076 | N 000933010225 | SCREW |
| REAR TRANSMISSION CASE | ||
| 079 | A 3372835552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 079 | A 3432830652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 079 | A 3372835652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 079 | A 3372835752 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 082 | A 0029810125 | BALL BEARING |
| REAR AXLE II DRIVE SHAFT | ||
| 083 | N 000471120000 | LOCK RING |
| REAR AXLE II DRIVE SHAFT | ||
| 084 | A 3372835152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 084 | A 3372835252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 084 | A 3372835352 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 087 | A 3372835006 | DRIVE SHAFT |
| Repalced by: A 3432831306 | ||
| 087 | A 3432831306 | DRIVE SHAFT |
| REAR AXLE II | ||
| 088 | A 3432830024 | SUPPORT |
| REAR AXLE II DRIVE SHAFT | ||
| 089 | N 024910088000 | PISTON RING |
| REAR AXLE II DRIVE SHAFT | ||
| 090 | A 3372836452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 090 | A 3432830552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 090 | A 3372836552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 090 | A 3372836652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 093 | N 000471055000 | LOCK RING |
| LONGITUDINAL LOCK | ||
| 094 | A 3432830023 | SHIFTING DOG |
| LONGITUDINAL LOCK,AXLES I AND II | ||
| 095 | A 0049810025 | BALL BEARING |
| REAR AXLE I DRIVE SHAFT | ||
| 096 | N 005417120001 | SNAP RING |
| 097 | A 3372845201 | SHIFTING FORK |
| HILL GEAR | ||
| 098 | A 3432840120 | SHIFTING ROD |
| HILL GEAR | ||
| 100 | A 3372845171 | SCREW |
| SHIFTING ROD | ||
| 101 | A 3372845028 | CONNECTOR |
| SHIFTING ROD | ||
| 102 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 102 | N 308675012000 | NUT |
| SHIFTING ROD | ||
| 103 | A 3372845050 | BUSHING |
| SHIFTING ROD | ||
| 104 | N 003760020100 | RADIAL SEAL RING |
| SHIFTING ROD | ||
| 105 | A 3122841097 | BOOT |
| SHIFTING ROD | ||
| 106 | A 3129940034 | SNAP RING |
| SHIFTING ROD | ||
| 107 | A 3129940134 | SNAP RING |
| SHIFTING ROD | ||
| 108 | N 005401312000 | BALL |
| SHIFTING ROD | ||
| 109 | A 3042840093 | SPRING |
| SHIFTING ROD | ||
| 110 | N 007603014405 | SEAL RING |
| SHIFTING ROD | ||
| 113 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 113 | N 007604014110 | SCREW PLUG |
| SHIFTING ROD | ||
| 114 | A 3372845001 | SHIFTING FORK |
| DIFFERENTIAL LOCK | ||
| 115 | A 3372845120 | SHIFTING ROD |
| DIFFERENTIAL LOCK | ||
| 116 | A 3372845271 | SCREW |
| SHIFTING FORK TO SHIFTING ROD | ||
| 117 | A 3372845128 | CONNECTOR |
| SHIFTING FORK | ||
| 118 | N 007980010001 | LOCK WASHER |
| CONNECTOR TO SHIFTING TUBE | ||
| 119 | N 000912010001 | SCREW |
| CONNECTOR TO SHIFTING TUBE | ||
| 121 | A 3432840020 | SHIFTING ROD |
| DIFFERENTIAL LOCK | ||
| 122 | A 3432840027 | END PIECE |
| Repalced by: A 3432840127 | ||
| 122 | A 3432840127 | END PIECE |
| DIFFERENTIAL LOCK | ||
| 123 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 123 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 123 | N 308675014002 | NUT |
| DIFFERENTIAL LOCK | ||
| 126 | A 3372845052 | SPACER WASHER |
| DIFFERENTIAL LOCK | ||
| 127 | A 3379930001 | SPRING |
| DIFFERENTIAL LOCK | ||
| 128 | A 3372845053 | SPACER TUBE |
| DIFFERENTIAL LOCK | ||
| 129 | N 000471018000 | LOCK RING |
| DIFFERENTIAL LOCK | ||
| 131 | A 3432840074 | PIN |
| DIFFERENTIAL LOCK | ||
| 132 | N 000471012001 | LOCK RING |
| DIFFERENTIAL LOCK | ||
| 133 | A 3372815113 | COVER |
| FRONT | ||
| 134 | N 000137010201 | SPRING WASHER |
| TRANSMISSION CASE FRONT COVER | ||
| 135 | N 304017010027 | SCREW |
| TRANSMISSION CASE FRONT COVER | ||
| 136 | A 3372815013 | COVER |
| REAR | ||
| 137 | N 000137008204 | SPRING WASHER |
| AT TRANSMISSION CASE REAR COVER | ||
| 138 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 138 | N 304017008016 | SCREW |
| AT TRANSMISSION CASE REAR COVER | ||
| 140 | A 3372815102 | HOUSING |
| REAR | ||
| 141 | N 000137010201 | SPRING WASHER |
| CASE TO DIFFERENTIAL GEAR | ||
| 142 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 142 | N 304017010002 | SCREW |
| CASE TO DIFFERENTIAL GEAR | ||
| M10X30 | ||
| 142 | N 000931010092 | SCREW |
| CASE TO DIFFERENTIAL GEAR | ||
| M10X52 | ||
| 144 | A 3432810015 | COVER |
| Repalced by: A 3432810915 | ||
| 144 | A 3432810915 | COVER |
| REAR | ||
| 145 | N 001481006003 | CLAMPING SLEEVE |
| REAR COVER | ||
| 146 | A 0039978046 | SEAL RING |
| REAR AXLE II DRIVE SHAFT | ||
| 147 | N 003760068100 | RADIAL SEAL RING |
| REAR AXLE II DRIVE SHAFT | ||
| 148 | A 3042510052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 148 | A 3432830852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 150 | N 000137010201 | SPRING WASHER |
| COVER TO TRANSFER CASE HOUSING | ||
| 151 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 151 | N 304017010002 | SCREW |
| COVER TO TRANSFER CASE HOUSING | ||
| 152 | A 3432810115 | COVER |
| REAR | ||
| 153 | A 3432810079 | GASKET |
| AT TRANSMISSION CASE REAR COVER | ||
| 154 | N 000137008204 | SPRING WASHER |
| AT TRANSMISSION CASE REAR COVER | ||
| 155 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 155 | N 304017008016 | SCREW |
| AT TRANSMISSION CASE REAR COVER | ||
| 156 | A 3372845220 | SHIFTING ROD |
| FRONT WHEEL DRIVE | ||
| 157 | A 3372845024 | SHIFT LEVER |
| FRONT WHEEL DRIVE | ||
| 158 | A 3372845101 | SHIFTING FORK |
| FRONT WHEEL DRIVE | ||
| 159 | A 3379930101 | SPRING |
| SHIFTING FORK | ||
| 161 | A 3372845019 | FOLLOWER |
| SHIFTING FORK | ||
| 162 | A 3372845171 | SCREW |
| SHIFTING ROD | ||
| 163 | A 3372805074 | PIN |
| SHIFTING ROD | ||
| 164 | A 3372845057 | COVER |
| TRANSMISSION CASE | ||
| 165 | N 000137010201 | SPRING WASHER |
| TRANSMISSION CASE FRONT COVER | ||
| 166 | N 000933010105 | SCREW |
| TRANSMISSION CASE FRONT COVER | ||
| 168 | A 3432830001 | SHAFT |
| Repalced by: A 3432830301 | ||
| 168 | A 3432830301 | SHAFT |
| (INTERMEDIATE SPINDLE) | ||
| 169 | A 0009815801 | CYLINDR. ROLLER BEARING |
| INTERMEDIATE AXLE | ||
| 171 | A 3432830116 | GEAR |
| (INTERMEDIATE GEAR) | ||
| 20 Z | ||
| 172 | A 3432830516 | GEAR |
| (INTERMEDIATE GEAR) | ||
| 25 Z | ||
| 173 | A 3042820162 | THRUST WASHER |
| INTERMEDIATE AXLE | ||
| 174 | A 0049810025 | BALL BEARING |
| INTERMEDIATE AXLE | ||
| 175 | N 005417120001 | SNAP RING |
| BEARING TO TRANSMISSION CASE | ||
| 176 | A 3042510052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 176 | A 3432830852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| A 3372835852 | SPACER WASHER | |
| COUNTERSHAFT | ||
| A 3379905160 | NUT | |
| COUNTERSHAFT | ||
| 179 | A 3432620062 | SEAL RING |
| INTERMEDIATE AXLE | ||
| 180 | N 000933012069 | SCREW |
| Repalced by: N 000933012068 | ||
| 180 | N 000933012068 | SCREW |
| THRUST WASHER TO INTERMEDIATE SPINDLE | ||
| 182 | A 3432830005 | DRIVE SHAFT |
| Repalced by: A 3432830205 | ||
| 182 | A 3432830205 | DRIVE SHAFT |
| FRONT AXLE | ||
| 183 | A 0019813901 | CYLINDR. ROLLER BEARING |
| REAR DRIVE SHAFT | ||
| 184 | A 3432830123 | SHIFTING DOG |
| Repalced by: A 3432830023 | ||
| 184 | A 3432830023 | SHIFTING DOG |
| LONGITUDINAL LOCK | ||
| 185 | A 0049810025 | BALL BEARING |
| DRIVE SHAFT BEARING IN HOUSING,FRONT | ||
| 186 | N 005417120001 | SNAP RING |
| BEARING TO TRANSMISSION CASE | ||
| 187 | A 3042510052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 187 | A 3432830852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| A 3382805030 | HOUSING | |
| Repalced by: A 3432810630 | ||
| A 3382895174 | PIN | |
| OIL PUMP DRIVE SHAFT | ||
| N 000906012002 | SCREW PLUG | |
| 191 | A 3432810430 | HOUSING |
| Repalced by: A 3432810630 | ||
| 191 | A 3432810630 | HOUSING |
| SPEEDOMETER DRIVE | ||
| 192 | N 000906012002 | SCREW PLUG |
| 193 | N 000137010201 | SPRING WASHER |
| HOUSING TO TRANSFER CASE | ||
| 194 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 194 | N 304017010002 | SCREW |
| HOUSING TO TRANSFER CASE | ||
| M10X30 | ||
| 194 | N 006912010009 | SCREW |
| HOUSING TO TRANSFER CASE | ||
| M10X60 | ||
| 196 | A 3372835033 | CONNECTOR |
| SPEEDOMETER DRIVE | ||
| 196 | A 3462835033 | CONNECTOR |
| SPEEDOMETER DRIVE | ||
| 197 | A 3432640050 | BUSHING |
| SPEEDOMETER DRIVE | ||
| 198 | A 3372835032 | SHAFT |
| SPEEDOMETER DRIVE | ||
| 198 | A 3432830132 | SHAFT |
| SPEEDOMETER DRIVE | ||
| N 006888002000 | WOODRUFF KEY | |
| SPEEDOMETER DRIVE | ||
| A 3432640062 | THRUST WASHER | |
| SPEEDOMETER DRIVE | ||
| A 3432830031 | DRIVE GEAR | |
| SPEEDOMETER | ||
| 201 | A 3432830231 | DRIVE GEAR |
| SPEEDOMETER | ||
| N 000471009000 | LOCK RING | |
| SPEEDOMETER | ||
| 203 | A 1202610080 | GASKET |
| Repalced by: A 1152740060 | ||
| 203 | A 0119976647 | SEAL RING |
| Repalced by: A 1152740060 | ||
| 203 | A 1152740060 | SEAL RING |
| Repalced by: A 0119976447 | ||
| 203 | A 0119976447 | SEAL RING |
| SPEEDOMETER | ||
| 203 | A 0079972746 | SEAL RING |
| SPEEDOMETER | ||
| 204 | N 001481006003 | CLAMPING SLEEVE |
| SPEEDOMETER | ||
| 205 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 205 | N 000125008443 | WASHER |
| SPEEDOMETER | ||
| 206 | A 6159900015 | SCREW |
| SPEEDOMETER | ||
| 208 | A 3432800207 | OIL PUMP |
| Repalced by: A 3432800307 | ||
| 208 | A 3432800307 | OIL PUMP |
| OIL DISTRIBUTION | ||
| 209 | A 3372895010 | SHAFT |
| OIL PUMP DRIVE SHAFT | ||
| 209 | A 3432890010 | SHAFT |
| OIL PUMP DRIVE SHAFT | ||
| 210 | A 3432890011 | PINION |
| OIL PUMP DRIVE SHAFT | ||
| 211 | N 001481004003 | CLAMPING SLEEVE |
| OIL PUMP DRIVE SHAFT | ||
| N 006888003000 | WOODRUFF KEY | |
| A 3382895006 | GEAR | |
| DRIVING | ||
| 214 | A 3382895106 | GEAR |
| DRIVEN | ||
| 215 | A 3432800134 | COVER |
| OIL PUMP HOUSING | ||
| 216 | N 005401308000 | BALL |
| 217 | A 3049931001 | SPRING |
| 218 | N 915035000022 | SEAL RING |
| 220 | N 007604010102 | SCREW PLUG |
| 221 | N 000137006204 | SPRING WASHER |
| OIL PUMP TO TRANSMISSION CASE | ||
| 222 | N 000931006118 | SCREW |
| OIL PUMP TO TRANSMISSION CASE | ||
| A 3432800069 | SUCTION BASKET | |
| (OIL FILTER) | ||
| N 912004012100 | LOCK WASHER | |
| A 3372895050 | BUSHING | |
| 226 | A 3432800369 | SUCTION BASKET |
| Repalced by: A 3432800469 | ||
| 226 | A 3432800469 | SUCTION BASKET |
| (OIL FILTER) | ||
| 227 | A 0039975745 | SEAL RING |
| (OIL FILTER) | ||
| A 3382815079 | GASKET | |
| SPEEDOMETER DRIVE HOUSING | ||
| A 3372815215 | COVER | |
| SPEEDOMETER DRIVE HOUSING | ||
| N 000137010201 | SPRING WASHER | |
| COVER TO TRANSMISSION CASE | ||
| N 000931010357 | SCREW | |
| Repalced by: N 000933010192 | ||
| A 0019909404 | SCREW | |
| COVER TO TRANSMISSION CASE | ||
| 231 | A 3432810314 | COVER |
| Repalced by: A 3432811414 | ||
| 231 | A 3432811414 | COVER |
| HOUSING,FRONT | ||
| 231 | A 3432810414 | COVER |
| HOUSING,FRONT | ||
| 234 | A 3432810214 | COVER |
| Repalced by: A 3432811314 | ||
| 234 | A 3432811314 | COVER |
| FRONT | ||
| 235 | N 000137010201 | SPRING WASHER |
| COVER TO TRANSMISSION CASE | ||
| 236 | N 000931010336 | SCREW |
| Repalced by: N 304014010005 | ||
| 236 | N 304014010005 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| M10X130 | ||
| 237 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 237 | N 304017010002 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| M10X30 | ||
| 238 | A 0039978046 | SEAL RING |
| COVER TO TRANSMISSION CASE | ||
| 239 | N 003760068100 | RADIAL SEAL RING |
| COVER TO TRANSMISSION CASE | ||
| 241 | A 3432830206 | DRIVE SHAFT |
| Repalced by: A 3432831206 | ||
| 241 | A 3432831206 | DRIVE SHAFT |
| REAR AXLE I | ||
| 242 | A 3432830206 | DRIVE SHAFT |
| Repalced by: A 3432831406 | ||
| 242 | A 3432831406 | DRIVE SHAFT |
| REAR AXLE I | ||
| 243 | A 0009815701 | CYLINDR. ROLLER BEARING |
| FRONT DRIVE SHAFT | ||
| 244 | A 3432830030 | DRIVE GEAR |
| SPEEDOMETER | ||
| 245 | A 0049810025 | BALL BEARING |
| REAR DRIVE SHAFT | ||
| 246 | N 005417120001 | SNAP RING |
| REAR AXLE I DRIVE SHAFT | ||
| 248 | A 3432810214 | COVER |
| Repalced by: A 3432811314 | ||
| 248 | A 3432811314 | COVER |
| SPEEDOMETER DRIVE | ||
| 249 | A 0039978046 | SEAL RING |
| SPEEDOMETER DRIVE | ||
| 250 | N 003760068100 | RADIAL SEAL RING |
| SPEEDOMETER DRIVE | ||
| 251 | N 000137010201 | SPRING WASHER |
| SPEEDOMETER DRIVE COVER | ||
| 252 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 252 | N 304017010002 | SCREW |
| SPEEDOMETER DRIVE COVER | ||
| 254 | A 3432800044 | COUPLING FLANGE |
| DRIVE | ||
| 254 | A 3432820545 | COUPLING FLANGE |
| DRIVE | ||
| A 3273530172 | NUT | |
| Repalced by: A 3853510072 | ||
| A 3853510072 | NUT | |
| Repalced by: A 3853510172 | ||
| A 3853510172 | NUT | |
| FLANGE TO SHAFT | ||
| 256 | A 3432620062 | SEAL RING |
| FLANGE TO SHAFT | ||
| 257 | N 000933012069 | SCREW |
| Repalced by: N 000933012068 | ||
| 257 | N 000933012068 | SCREW |
| FLANGE TO SHAFT | ||
| A 0005860428 | REPAIR KIT | |
| Repalced by: A 0002802001 | ||
| A 0002802001 | TRANSFER CASE | |
| (GASKET KIT) | ||
| 258 | A 3122801386 | BEARING |
| TRANSFER CASE TO SUPPORT | ||
| 259 | A 3222850082 | RUBBER MOUNTING |
| TRANSFER CASE TO SUPPORT | ||
| 261 | A 3159905040 | WASHER |
| Repalced by: A 3129902840 | ||
| 261 | A 3129902840 | WASHER |
| TRANSFER CASE TO SUPPORT | ||
| 262 | A 0019947941 | LOCK |
| TRANSFER CASE TO SUPPORT | ||
| 263 | A 3432800585 | SUPPORT |
| RIGHT | ||
| 264 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 264 | A 9429901304 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 265 | N 000934014020 | NUT |
| BRACKET TO CROSS MEMBER | ||
| N 000960012332 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| N 007349013003 | WASHER | |
| Repalced by: N 007349013005 | ||
| N 007349013005 | WASHER | |
| BRACKET TO CROSS MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO CROSS MEMBER | ||
| N 000934012022 | NUT | |
| BRACKET TO CROSS MEMBER | ||
| 268 | A 3432800485 | SUPPORT |
| LEFT | ||
| 270 | N 000961014131 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M14X48 | ||
| 270 | N 000961014130 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M14X42 | ||
| 272 | N 000934014020 | NUT |
| BRACKET TO CROSS MEMBER | ||
| N 000960012184 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| M12X85 | ||
| N 007349013003 | WASHER | |
| Repalced by: N 007349013005 | ||
| N 007349013005 | WASHER | |
| BRACKET TO CROSS MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO CROSS MEMBER | ||
| N 000934012022 | NUT | |
| BRACKET TO CROSS MEMBER | ||
| 277 | A 3432801056 | SHIFTING ROD |
| 277 | A 3432800656 | SHIFTING ROD |
| 277 | A 3432801256 | SHIFTING ROD |
| 277 | A 3432802156 | SHIFTING ROD |
| 277 | A 3432800756 | SHIFTING ROD |
| 277 | A 3432801356 | SHIFTING ROD |
| Repalced by: A 3432802556 | ||
| 277 | A 3432802556 | SHIFTING ROD |
| 280 | N 001434012027 | PIN |
| SHIFTING ROD TO TRANSMISSION | ||
| N 000094004065 | COTTER PIN | |
| SHIFTING ROD TO TRANSMISSION | ||
| N 900055012001 | SPRING WASHER | |
| SHIFTING ROD TO TRANSMISSION | ||
| 283 | N 001434010127 | PIN |
| SHIFTING ROD TO TRANSMISSION | ||
| 283 | N 001434010127 | PIN |
| SHIFTING ROD TO TRANSMISSION | ||
| N 000094003226 | COTTER PIN | |
| SHIFTING ROD TO TRANSMISSION | ||
| N 000094003226 | COTTER PIN | |
| SHIFTING ROD TO TRANSMISSION | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
