Transporto priemonė: LA 911 B MBSA; VIN numerio dalis: 353102
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

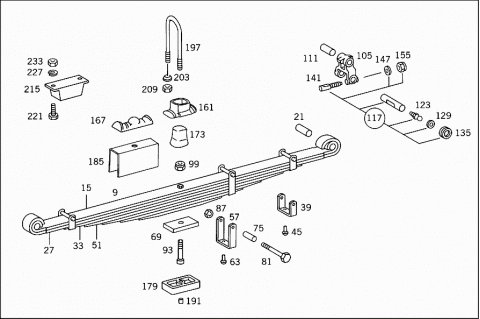

| 009 | A 3533200902 | FRONT SPRING |
| 6-LEAF | ||
| 009 | A 3533201002 | FRONT SPRING |
| 7-LEAF | ||
| 015 | A 3533200794 | SPRING LEAF |
| NO.1 | ||
| 015 | A 3533201394 | SPRING LEAF |
| NO.1 | ||
| 021 | A 3533220050 | BUSHING |
| 021 | A 3853220150 | BUSHING |
| 027 | A 3533210512 | SPRING LEAF |
| NO.2 | ||
| 027 | A 3533210612 | SPRING LEAF |
| NO.2 | ||
| 033 | A 3533200894 | SPRING LEAF |
| NO.3 | ||
| 033 | A 3533201494 | SPRING LEAF |
| NO.3 | ||
| 039 | A 3223242033 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 045 | N 000660008026 | RIVET |
| 8X20 MM | ||
| 051 | A 3533210514 | SPRING LEAF |
| NO.4 | ||
| 051 | A 3533210414 | SPRING LEAF |
| NO.4 | ||
| 057 | A 3223242033 | SPRING CLAMP |
| 063 | N 910006008022 | RIVET |
| FOR SPRING CLAMPS | ||
| 8X20 MM | ||
| 069 | A 3583220384 | SHIM |
| 075 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 075 | A 0003213253 | SPACER TUBE |
| FOR SPRING CLAMPS | ||
| 081 | N 000931008189 | SCREW |
| FOR SPRING CLAMPS | ||
| 087 | N 000934008010 | NUT |
| FOR SPRING CLAMPS | ||
| 093 | N 004626012136 | SPRING BOLT |
| 099 | N 913004012007 | NUT |
| 105 | A 3533200162 | SHACKLE |
| LEAF SPRING | ||
| 111 | A 3533220050 | BUSHING |
| 111 | A 3853220150 | BUSHING |
| 117 | A 3583200065 | SHACKLE PIN |
| PARTS KIT | ||
| 123 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 123 | N 071412010300 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 129 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 129 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 129 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 135 | A 0029973140 | SEAL RING |
| SHACKLE PIN | ||
| 141 | A 3529900337 | BOLT |
| PIN IN SHACKLE | ||
| 147 | N 000125010518 | WASHER |
| PIN IN SHACKLE | ||
| 155 | N 913002010001 | NUT |
| PIN IN SHACKLE | ||
| 161 | A 3283220024 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 167 | A 3523220131 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 173 | A 3283220144 | RUBBER BUFFER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 179 | A 3533220384 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 179 | A 3533220884 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 185 | A 3533210084 | SHIM |
| Repalced by: A 3583210084 | ||
| 185 | A 3583210084 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 191 | A 3229910060 | DOWEL PIN |
| FRONT SPRINGS TO FRONT AXLE | ||
| 197 | A 3523310725 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 200 MM | ||
| 197 | A 3523310325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 210 MM | ||
| 197 | A 3523311125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 260 MM | ||
| 203 | A 3279970026 | WASHER |
| FRONT SPRINGS TO FRONT AXLE | ||
| 209 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 215 | A 3853300075 | RUBBER MOUNTING |
| STOP BUFFER TO FRAME | ||
| 221 | N 000933010105 | SCREW |
| STOP BUFFER TO FRAME | ||
| M 10X25 | ||
| 221 | N 000933010128 | SCREW |
| STOP BUFFER TO FRONT AXLE,RIGHT | ||
| M 10X20 | ||
| 227 | N 912004010102 | LOCK WASHER |
| FRONT SPRING STOP | ||
| 233 | N 000934010014 | NUT |
| STOP BUFFER TO FRONT AXLE,LEFT | ||
| 245 | A 0043237600 | SHOCK ABSORBER |
| Repalced by: A 0043237400 | ||
| 245 | A 0043237400 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 245 | A 0043236200 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 245 | A 0043237500 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 251 | A 0003232885 | RUBBER MOUNTING |
| TO 004 323 74 00,004 323 62 00 | ||
| 251 | A 0003233044 | RUBBER BUFFER |
| TO 004 323 75 00,004 323 76 00 | ||
| 257 | A 0003233150 | BUSHING |
| TO 004 323 74 00,004 323 62 00 | ||
| 257 | A 0003235250 | BUSHING |
| TO 004 323 75 00,004 323 76 00 | ||
| 263 | A 3523232563 | BEARING BRACKET |
| SHOCK ABSORBER TO SIDE MEMBER | ||
| 269 | N 000933010145 | SCREW |
| TOP BEARING BRACKET TO FRAME | ||
| 275 | N 912004010102 | LOCK WASHER |
| TOP BEARING BRACKET TO FRAME | ||
| 281 | N 000934010014 | NUT |
| TOP BEARING BRACKET TO FRAME | ||
| 287 | A 3523230340 | BRACKET |
| SHOCK ABSORBER | ||
| 293 | A 3529903201 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 299 | N 913004020004 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 305 | A 3529903501 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 311 | N 913004016004 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 317 | A 3529901501 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 323 | N 000093017001 | LOCK PLATE |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 329 | A 3523231663 | BEARING BRACKET |
| BOTTOM LEFT | ||
| 329 | A 3523231763 | BEARING BRACKET |
| BOTTOM RIGHT | ||
| 335 | N 000961012008 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 341 | N 912004012100 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 347 | A 3529900002 | SCREW |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 353 | N 000979016006 | NUT |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 359 | N 000094004065 | COTTER PIN |
| SHOCK ABSORBER TO BOTTOM BRACKET | ||
| 365 | A 3603230663 | BEARING BRACKET |
| TORSION BAR | ||
| 371 | N 910005010020 | RIVET |
| BEARING BRACKET TO FRAME | ||
| 377 | A 3603230463 | BEARING BRACKET |
| TORSION BAR | ||
| 383 | A 3603230769 | LEVER |
| TORSION BAR | ||
| 383 | A 3603230269 | LEVER |
| TORSION BAR | ||
| 389 | A 3603200189 | ROD |
| ARTICULATED ROD | ||
| LEMFOERDER | ||
| 389 | A 3603200789 | ROD |
| ARTICULATED ROD | ||
| SKF | ||
| 389 | A 3603201089 | ROD |
| ARTICULATED ROD | ||
| INA | ||
| 395 | A 0003300185 | BOOT |
| Repalced by: A 0003300785 | ||
| 395 | A 0003300785 | BOOT |
| ARTICULATED ROD | ||
| LEMFOERDER | ||
| 407 | N 913004014002 | NUT |
| ROD TO FRAME | ||
| 413 | A 0009817231 | JOINT BEARING |
| Repalced by: A 0019814631 | ||
| 413 | A 0019814631 | JOINT BEARING |
| A 0019814831 | JOINT BEARING | |
| 419 | N 009045035001 | SNAP RING |
| ARTICULATED ROD TO LEVER | ||
| 425 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 431 | A 3603230116 | LINK |
| TORSION BAR | ||
| 437 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| 443 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 449 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 455 | N 000936020010 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 461 | N 071412010100 | GREASE NIPPLE |
| 467 | A 3603200041 | REPAIR KIT |
| TORSION BAR,FRONT | ||
| 473 | A 3533200378 | CONSOLE |
| STABILIZER | ||
| 479 | N 000961012097 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 485 | N 912004012100 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 491 | N 000934012022 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 496 | A 3523231363 | BEARING BRACKET |
| TORSION BAR | ||
| 501 | A 3523230283 | HOUSING |
| TORSION BAR | ||
| 507 | A 3523230385 | RUBBER MOUNTING |
| TORSION BAR | ||
| 513 | N 000933010094 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| M 10X40 | ||
| 513 | N 000933010105 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| M 10X25 | ||
| 519 | N 912004010102 | LOCK WASHER |
| HOUSING TO BEARING BRACKET | ||
| 525 | N 000934010014 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 531 | A 3523230365 | TORSION BAR |
| Repalced by: A 3523230565 | ||
| 531 | A 3523230565 | TORSION BAR |
| FRONT | ||
| 531 | A 3603230165 | TORSION BAR |
| Repalced by: A 3603230465 | ||
| 531 | A 3603230465 | TORSION BAR |
| FRONT | ||
| 537 | A 3523230751 | SPACER RING |
| TORSION BAR | ||
| 543 | N 000937028000 | NUT |
| LEVER TO TORSION BAR | ||
| M 28X1.5 | ||
| 543 | N 000937027004 | NUT |
| LEVER TO TORSION BAR | ||
| M 27X1.5 | ||
| 549 | N 000094005045 | COTTER PIN |
| LEVER TO TORSION BAR | ||

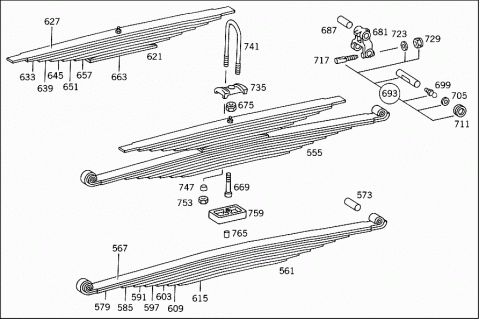

| 555 | A 3533201008 | REAR SPRING |
| 8-LEAF;WITH 6-LEAF HELPER SPRING | ||
| 561 | A 3533201306 | REAR SPRING |
| 8-LEAF | ||
| 567 | A 3533201693 | SPRING LEAF |
| NO.1 | ||
| 573 | A 3523220050 | BUSHING |
| 573 | A 3853220050 | BUSHING |
| 579 | A 3533241312 | SPRING LEAF |
| NO.2 | ||
| 585 | A 3533241313 | SPRING LEAF |
| NO.3 | ||
| 591 | A 3533241314 | SPRING LEAF |
| NO.4 | ||
| 597 | A 3533241315 | SPRING LEAF |
| NO.5 | ||
| 603 | A 3533241316 | SPRING LEAF |
| NO.6 | ||
| 609 | A 3533241217 | SPRING LEAF |
| NO.7 | ||
| 615 | A 3533240818 | SPRING LEAF |
| NO.8 | ||
| 621 | A 3533201010 | HELPER SPRING |
| 6-LEAF | ||
| 627 | A 3533241040 | SPRING LEAF |
| NO.1 | ||
| 633 | A 3533241041 | SPRING LEAF |
| NO.2 | ||
| 639 | A 3533241042 | SPRING LEAF |
| NO.3 | ||
| 645 | A 3533241043 | SPRING LEAF |
| NO.4 | ||
| 651 | A 3533241044 | SPRING LEAF |
| NO.5 | ||
| 657 | A 3533240645 | SPRING LEAF |
| NO.6 | ||
| 663 | A 3583240035 | SPACER |
| 669 | N 004626012114 | SPRING BOLT |
| M 12X190 | ||
| 675 | N 913004012007 | NUT |
| 681 | A 3533200063 | SHACKLE |
| (SPRING SHACKLE) | ||
| 687 | A 3523220050 | BUSHING |
| 687 | A 3853220050 | BUSHING |
| 693 | A 3853200165 | SHACKLE PIN |
| PARTS KIT | ||
| 699 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 705 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 705 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 705 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 711 | A 0029973140 | SEAL RING |
| SHACKLE PIN | ||
| 717 | A 3529900337 | BOLT |
| SPRING TO SHACKLE | ||
| 723 | N 000125010518 | WASHER |
| SPRING TO SHACKLE | ||
| 729 | N 913004010008 | NUT |
| SPRING TO SHACKLE | ||
| 735 | A 3833250031 | PLATE |
| 741 | A 3523510325 | U-BOLT |
| 350 MM | ||
| 741 | A 3403510025 | U-BOLT |
| 410 MM | ||
| 747 | A 3279970026 | WASHER |
| U-BOLT | ||
| 753 | N 000934018006 | NUT |
| U-BOLT | ||
| 759 | A 3523250384 | SHIM |
| REAR SPRING TO REAR AXLE | ||
| 765 | A 3289910060 | DOWEL PIN |
| SHIM TO REAR AXLE | ||
