Transporto priemonė: LA 911 B MBSA; VIN numerio dalis: 353102
Grupė: 46 STEERING

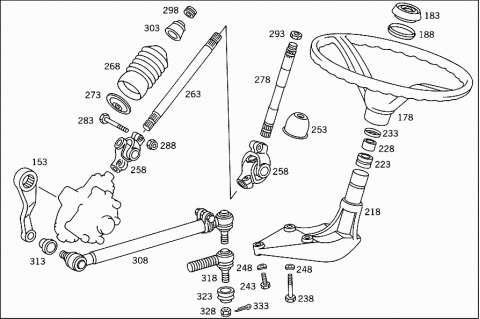

| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3094601501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3084600001 | ||
| 008 | A 3084600001 | STEERING BOX ASSEMBLY |
| 013 | A 3274600202 | STEERING BOX |
| WITH BEARING BUSHING | ||
| 018 | A 3214610350 | BUSHING |
| STANDARD | ||
| 47.1 MM | ||
| 018 | A 3214610550 | BUSHING |
| REPAIR SIZE I | ||
| 47.6 MM | ||
| 023 | A 0019970645 | SEAL RING |
| 023 | A 0049976845 | SEAL RING |
| 028 | A 3094600708 | STEERING WORM |
| Repalced by: A 3094601018 | ||
| 028 | A 3094601018 | STEERING NUT |
| WITH WORM AND INCLINED SELF-ALIGNING ROLLER BEARING | ||
| 033 | A 0009811306 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 033 | A 3459817006 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 033 | A 0009810806 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 038 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| 043 | A 3214620537 | BALL CUP |
| STEERING WORM SECTOR SHAFT | ||
| 048 | N 009045038001 | SNAP RING |
| STEERING WORM SECTOR SHAFT | ||
| 053 | N 007603030400 | SEAL RING |
| STEERING BOX | ||
| 058 | N 007604030101 | SCREW PLUG |
| STEERING BOX | ||
| 063 | A 3214600514 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 068 | A 3214620250 | BUSHING |
| A 3214610880 | GASKET | |
| Repalced by: A 3524610180 | ||
| 073 | A 3524610180 | GASKET |
| COVER TO BOX | ||
| 078 | A 0019909101 | SCREW |
| COVER TO BOX | ||
| 083 | A 3214620171 | SCREW |
| STEERING SHAFT TO BOX | ||
| 088 | A 3219932201 | SPRING |
| STEERING SHAFT TO BOX | ||
| 093 | A 3214620185 | THRUST PIECE |
| STEERING SHAFT TO BOX | ||
| 098 | A 3214610162 | THRUST WASHER |
| STEERING SHAFT TO BOX | ||
| 103 | A 0009946041 | LOCK |
| STEERING SHAFT TO BOX | ||
| 108 | A 0029900251 | NUT |
| STEERING SHAFT TO BOX | ||
| 113 | A 3224620151 | RING |
| STEERING NUT BEARING | ||
| 118 | A 0029979845 | SEAL RING |
| STEERING NUT BEARING | ||
| 123 | A 0029974346 | SEAL RING |
| STEERING NUT BEARING | ||
| N 070852060000 | NUT | |
| Repalced by: A 6743560226 | ||
| 128 | A 6743560226 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 133 | A 3229940115 | LOCK |
| STEERING NUT BEARING | ||
| 138 | A 0009902555 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 143 | N 000094006317 | COTTER PIN |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 148 | N 000906016002 | SCREW PLUG |
| OIL FILLING | ||
| 153 | A 3524631301 | PITMAN ARM |
| 153 | A 3524631501 | PITMAN ARM |
| 158 | A 3279900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 163 | A 3229900914 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 168 | A 3279900050 | NUT |
| STEERING TO STEERING BRACKET | ||
| 173 | N 000094003222 | COTTER PIN |
| STEERING TO STEERING BRACKET | ||
| 178 | A 0004641201 | STEERING WHEEL |
| 183 | A 0004642631 | CAP |
| STEERING WHEEL | ||
| 188 | A 0004640177 | PROTECTIVE RING |
| 198 | A 3224601235 | BRACKET |
| STEERING | ||
| 203 | N 910005012080 | RIVET |
| STEERING BRACKET TO FRAME | ||
| 208 | A 0029908201 | SCREW |
| STEERING BRACKET TO SIDE MEMBER | ||
| 213 | N 000934012023 | NUT |
| STEERING BRACKET TO SIDE MEMBER | ||
| A 3434600137 | BEARING | |
| Repalced by: A 3434600237 | ||
| 218 | A 3434600237 | BEARING |
| STEERING | ||
| 223 | A 3214620165 | RING |
| A 3124621150 | BUSHING | |
| Repalced by: A 0119815110 | ||
| 228 | A 0119815110 | NEEDLE BEARING |
| 233 | A 3224620023 | COVER |
| 238 | N 000931010093 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| M 10X55 MM | ||
| 243 | N 000933010129 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| M 10X30 MM | ||
| 248 | N 000137010201 | SPRING WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 253 | A 3604620596 | BOOT |
| UNIVERSAL JOINT TO STEERING | ||
| A 4214600457 | UNIVERSAL JOINT | |
| Repalced by: A 3164600057 | ||
| A 3164600057 | UNIVERSAL JOINT | |
| Repalced by: A 0004600057 | ||
| 258 | A 0004600057 | UNIVERSAL JOINT |
| A 3164600157 | UNIVERSAL JOINT | |
| Repalced by: A 0004600157 | ||
| 258 | A 0004600157 | UNIVERSAL JOINT |
| 263 | A 3604621301 | STEERING SHAFT |
| BOTTOM | ||
| 263 | A 3604622201 | STEERING SHAFT |
| BOTTOM | ||
| 268 | A 3534620096 | BOOT |
| UNIVERSAL JOINT COVERING | ||
| 273 | A 3534620075 | WASHER |
| UNIVERSAL JOINT COVERING | ||
| A 3524622601 | STEERING SHAFT | |
| Repalced by: A 3524623101 | ||
| 278 | A 3524623101 | STEERING SHAFT |
| TOP | ||
| A 3524622801 | STEERING SHAFT | |
| Repalced by: A 3524623601 | ||
| 278 | A 3524623601 | STEERING SHAFT |
| TOP | ||
| 283 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 283 | A 3819900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 288 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 293 | N 000936022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 298 | A 3214620060 | SEAL RING |
| 303 | A 3354620096 | BOOT |
| 308 | A 3524605605 | DRAG LINK |
| LEMFOERDER | ||
| 308 | A 3524604805 | DRAG LINK |
| EHRENREICH | ||
| A 0003300285 | BOOT | |
| Repalced by: A 0003300885 | ||
| 313 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| 318 | A 0013300335 | JOINT |
| ADJUSTABLE | ||
| 318 | A 0013300435 | JOINT |
| ADJUSTABLE | ||
| A 0003300385 | BOOT | |
| Repalced by: A 0003301185 | ||
| 323 | A 0003301185 | BOOT |
| 328 | N 000937018003 | NUT |
| DRAG LINK TO LEVER | ||
| 333 | N 000094004065 | COTTER PIN |
| DRAG LINK TO LEVER | ||
