Transporto priemonė: LB 2624/6X4; VIN numerio dalis: 343334

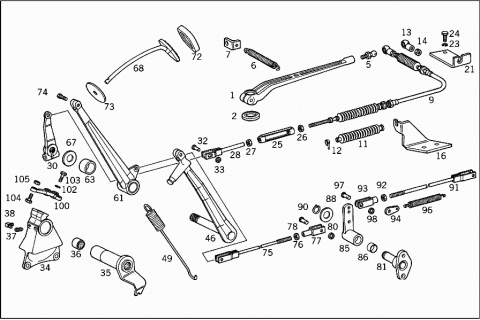

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3352540825 | LEVER |
| CLUTCH OPERATION | ||
| 002 | A 3439900040 | WASHER |
| LEVER TO RELEASE SHAFT | ||
| N 000931010258 | SCREW | |
| LEVER TO RELEASE SHAFT | ||
| N 000934010014 | NUT | |
| LEVER TO RELEASE SHAFT | ||
| 005 | A 3179910515 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 005 | A 3029910015 | BALL PIVOT |
| CABLE TO LEVER | ||
| 005 | A 3529910415 | BALL PIVOT |
| CABLE TO LEVER | ||
| 006 | A 3354210392 | SPRING |
| CLUTCH OPERATION | ||
| 007 | A 3352540040 | BRACKET |
| RELEASE SPRING | ||
| 007 | A 3432540040 | BRACKET |
| Repalced by: A 3432540140 | ||
| 007 | A 3432540140 | BRACKET |
| CLUTCH PEDAL RELEASE SPRING | ||
| N 000933006121 | SCREW | |
| Repalced by: N 304017006020 | ||
| N 304017006020 | SCREW | |
| TOP BRACKET TO SHOCK ABSORBER | ||
| N 913004006002 | NUT | |
| Repalced by: N 913004006001 | ||
| N 913004006001 | NUT | |
| TOP BRACKET TO SHOCK ABSORBER | ||
| 009 | A 3352930130 | CABLE |
| Repalced by: A 3352900285 | ||
| 009 | A 3352900285 | CABLE |
| CLUTCH OPERATION | ||
| 011 | A 0002930086 | BOOT |
| CABLE | ||
| 012 | N 900286005100 | CABLE HOLDER |
| Repalced by: A 0009950859 | ||
| 012 | A 0009950859 | SHACKLE |
| Repalced by: A 0019978390 | ||
| 012 | A 0019978390 | LOOM TIE |
| CABLE | ||
| 013 | A 0009916222 | BALL SOCKET |
| CABLE | ||
| N 071805016301 | SNAP RING | |
| CABLE | ||
| 014 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 014 | N 308673010000 | NUT |
| CABLE | ||
| 016 | A 3362930340 | BRACKET |
| CABLE | ||
| 017 | A 3362930540 | BRACKET |
| CABLE | ||
| N 000961012151 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 021 | A 3362930440 | BRACKET |
| Repalced by: A 3432930140 | ||
| 021 | A 3432930140 | BRACKET |
| CABLE | ||
| 022 | A 3362930640 | BRACKET |
| Repalced by: A 3432930240 | ||
| 022 | A 3432930240 | BRACKET |
| CABLE | ||
| 023 | N 912004012100 | LOCK WASHER |
| BRACKET TO TRANSMISSION | ||
| 024 | N 000961012165 | SCREW |
| Repalced by: N 000961012051 | ||
| 024 | N 000961012051 | SCREW |
| BRACKET TO TRANSMISSION | ||
| 025 | N 001480010200 | TURNBUCKLE |
| 026 | N 000936010008 | NUT |
| TURNBUCKLE | ||
| 027 | N 000936010023 | NUT |
| Repalced by: N 304035010002 | ||
| 027 | N 304035010002 | NUT |
| TURNBUCKLE | ||
| 028 | A 3382900239 | ROD |
| CLUTCH OPERATION | ||
| 030 | A 3352930310 | LEVER |
| CLUTCH OPERATION | ||
| N 000931010094 | SCREW | |
| Repalced by: N 000931010407 | ||
| N 000931010407 | SCREW | |
| LEVER TO SHAFT | ||
| N 000934010009 | NUT | |
| Repalced by: N 304032010002 | ||
| N 304032010002 | NUT | |
| LEVER TO SHAFT | ||
| 032 | N 001434010009 | PIN |
| ROD TO CLUTCH LEVER | ||
| 033 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 033 | N 000433010510 | WASHER |
| ROD TO CLUTCH LEVER | ||
| N 000094003219 | COTTER PIN | |
| ROD TO CLUTCH LEVER | ||
| 034 | A 3342940001 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 035 | A 3372900236 | BEARING TUBE |
| PEDAL ASSEMBLY | ||
| 036 | A 3122941250 | BUSHING |
| Repalced by: A 3529920901 | ||
| 036 | A 3529920901 | BUSHING |
| 036 | A 3529922001 | BUSHING |
| 037 | A 3529900080 | SCREW |
| PEDAL ASSEMBLY | ||
| 038 | N 071412010300 | GREASE NIPPLE |
| 040 | A 3462945001 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 041 | A 3372900036 | BEARING TUBE |
| PEDAL ASSEMBLY | ||
| A 3392940204 | BEARING TUBE | |
| Repalced by: A 3372940204 | ||
| A 3372940204 | BEARING TUBE | |
| PEDAL ASSEMBLY | ||
| A 3122941250 | BUSHING | |
| Repalced by: A 3529920901 | ||
| A 3529920901 | BUSHING | |
| A 3529922001 | BUSHING | |
| 043 | N 071412010100 | GREASE NIPPLE |
| BEARING TUBE | ||
| N 000961012179 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| M12X38 | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| M12X35 | ||
| N 000961012099 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| M12X42 | ||
| N 912004012100 | LOCK WASHER | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 000934012022 | NUT | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 046 | A 3462905016 | PEDAL |
| CLUTCH | ||
| 047 | A 3462905116 | PEDAL |
| CLUTCH | ||
| 048 | A 3122911550 | BUSHING |
| 049 | A 3359930510 | SPRING |
| CLUTCH OPERATION | ||
| 051 | A 3049931110 | SPRING |
| CLUTCH OPERATION | ||
| 052 | A 3372910142 | EXTENSION |
| RELEASE SPRING | ||
| 053 | A 3372940174 | PIN |
| 054 | N 912004012100 | LOCK WASHER |
| 055 | N 000934012022 | NUT |
| 056 | N 000988012009 | FITTED WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 056 | N 000988012010 | FITTED WASHER |
| AS REQUIRED | ||
| 1.40 MM | ||
| 056 | N 000988012020 | FITTED WASHER |
| AS REQUIRED | ||
| 1.80 MM | ||
| 060 | N 000471012001 | LOCK RING |
| 061 | A 3362900118 | PEDAL |
| BRAKE | ||
| 062 | A 3372900318 | PEDAL |
| BRAKE | ||
| 063 | A 3122911250 | BUSHING |
| 064 | A 3362920231 | LEVER |
| BRAKE | ||
| 065 | N 000931010282 | SCREW |
| BRAKE LEVER TO BEARING BRACKET | ||
| 067 | A 3039910645 | RING |
| Repalced by: A 3039910345 | ||
| 067 | A 3039910345 | RING |
| BRAKE LEVER TO BEARING BRACKET | ||
| 068 | A 3212900024 | PEDAL PLATE |
| CLUTCH AND BRAKE | ||
| 070 | A 3222900424 | PEDAL PLATE |
| CLUTCH | ||
| 071 | A 3222900324 | PEDAL PLATE |
| BRAKE | ||
| 072 | A 3202925082 | PAD |
| CLUTCH AND BRAKE | ||
| 073 | A 3296160476 | WASHER |
| Repalced by: A 3226880024 | ||
| 073 | A 3226880024 | WASHER |
| BRAKE | ||
| 074 | N 000933010105 | SCREW |
| BRAKE | ||
| 075 | A 3382900039 | ROD |
| FROM BRAKE LEVER TO INTERMEDIATE LEVER | ||
| 076 | N 000934010014 | NUT |
| YOKE TO ROD | ||
| 077 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 077 | A 0009961501 | YOKE |
| ROD TO LEVER | ||
| 078 | N 001434010090 | PIN |
| ROD TO LEVER | ||
| N 001434010009 | PIN | |
| ROD TO LEVER | ||
| 080 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 080 | N 000433010510 | WASHER |
| ROD TO LEVER | ||
| N 000094003219 | COTTER PIN | |
| ROD TO LEVER | ||
| 081 | A 3434200678 | BEARING BRACKET |
| BRAKE | ||
| N 000961014028 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| M14X40 | ||
| N 000961014054 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| M14X45 | ||
| N 912004014100 | LOCK WASHER | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 000934014019 | NUT | |
| Repalced by: N 308673014001 | ||
| N 308673014001 | NUT | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 085 | A 3364200442 | BRAKE LEVER |
| OPERATING ROD | ||
| 086 | A 3359920503 | BUSHING |
| 087 | A 3364200642 | BRAKE LEVER |
| OPERATING ROD | ||
| A 3359920503 | BUSHING | |
| 088 | A 3039910645 | RING |
| Repalced by: A 3039910345 | ||
| 088 | A 3039910345 | RING |
| ROD TO LEVER | ||
| 090 | N 000471025002 | LOCK RING |
| ROD TO LEVER | ||
| 091 | A 3362900539 | ROD |
| BRAKE VALVE | ||
| 092 | N 000934010014 | NUT |
| YOKE TO ROD | ||
| 093 | N 071752010004 | YOKE |
| Repalced by: A 0009961401 | ||
| 093 | A 0009961401 | YOKE |
| PULL ROD TO PEDAL LEVER AND TO COMPENSATING LEVER | ||
| 094 | A 3214270741 | BRACKET |
| BRAKE PEDAL RESET | ||
| 096 | A 3359930010 | SPRING |
| 097 | N 001434010009 | PIN |
| ROD TO LEVER | ||
| 098 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 098 | N 000433010510 | WASHER |
| ROD TO LEVER | ||
| N 000094003219 | COTTER PIN | |
| ROD TO LEVER | ||
| 100 | A 3372910141 | STOP |
| PEDAL TO BEARING BRACKET | ||
| 101 | A 3372910341 | STOP |
| PEDAL TO BEARING BRACKET | ||
| 102 | N 912004010102 | LOCK WASHER |
| STOP TO BEARING BRACKET | ||
| 103 | N 000933010145 | SCREW |
| STOP TO BEARING BRACKET | ||
| 104 | A 3379900001 | SCREW |
| STOP TO BEARING BRACKET | ||
| 105 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 105 | N 304035008001 | NUT |
| STOP TO BEARING BRACKET | ||
