Transporto priemonė: LB 2624/6X4; VIN numerio dalis: 343334

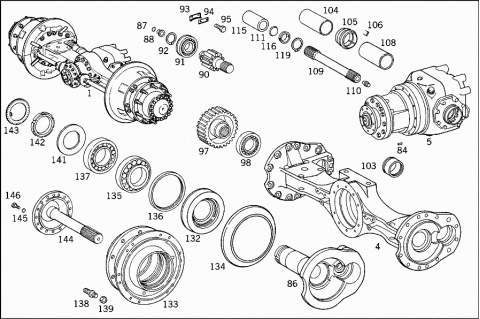

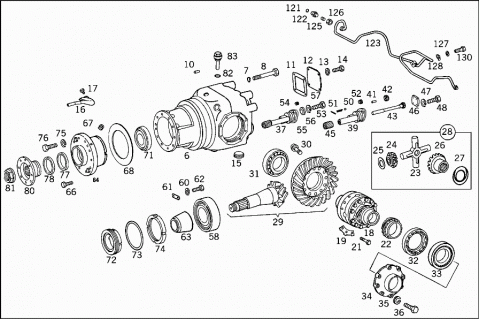

Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | A 3433503900 | REAR AXLE |
| I,WITH BRAKES | ||
| 001 | A 3433504000 | REAR AXLE |
| I,WITH BRAKES | ||
| 001 | A 3433504100 | REAR AXLE |
| REAR AXLE II | ||
| 001 | A 3433504200 | REAR AXLE |
| REAR AXLE II | ||
| 004 | A 3433510301 | AXLE CASING |
| 004 | A 3433510101 | AXLE CASING |
| Repalced by: A 3433510501 | ||
| 004 | A 3433510501 | AXLE CASING |
| 005 | A 3433500423 | DIFFERENTIAL GEAR |
| RATIO: | ||
| 9:26 | ||
| 006 | A 3353500741 | HOUSING |
| 007 | N 912004016101 | LOCK WASHER |
| 008 | N 000960016172 | SCREW |
| 010 | N 000007010239 | CYLINDRICAL PIN |
| Repalced by: N 000007010102 | ||
| 010 | N 000007010102 | CYLINDRICAL PIN |
| 011 | A 3153530080 | GASKET |
| 012 | A 3153530006 | COVER |
| 013 | N 912004010102 | LOCK WASHER |
| 014 | N 000933010238 | SCREW |
| Repalced by: N 304017010028 | ||
| 014 | N 304017010028 | SCREW |
| 015 | A 3039970006 | PLUG |
| 016 | A 3153500163 | OIL COLLECTOR |
| 017 | N 000933008123 | SCREW |
| Repalced by: N 304017008008 | ||
| 017 | N 304017008008 | SCREW |
| 018 | A 3493500923 | DIFFERENTIAL GEAR |
| 019 | A 3353530073 | LOCK |
| 021 | N 000960012296 | SCREW |
| 022 | A 3353530068 | GEAR |
| 023 | A 3043530020 | DIFFERENTIAL SPIDER |
| 023 | A 3433530020 | DIFFERENTIAL SPIDER |
| 024 | A 3263530414 | DIFFERENTIAL PINION |
| 025 | A 3043530162 | THRUST WASHER |
| 026 | A 3353530015 | SIDE GEAR |
| 027 | A 3043530362 | THRUST WASHER |
| 028 | A 3435860135 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 029 | A 3433500039 | RING GEAR AND PINION |
| RATIO: | ||
| 9:26 | ||
| 030 | A 3269900003 | SCREW |
| A 3263530124 | THRUST RING | |
| 031 | A 0009817205 | TAPERED ROLLER BEARING |
| RIGHT | ||
| 031 | A 0009819405 | TAPERED ROLLER BEARING |
| RIGHT | ||
| 031 | A 0069810605 | TAPERED ROLLER BEARING |
| RIGHT | ||
| 032 | A 3043530025 | SCREW COLLAR |
| Repalced by: A 3663530225 | ||
| 032 | A 3663530225 | SCREW COLLAR |
| LEFT | ||
| 033 | A 0009810205 | TAPERED ROLLER BEARING |
| LEFT | ||
| 034 | A 3203570121 | END PIECE |
| 035 | N 912004010102 | LOCK WASHER |
| 036 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 036 | N 304017010002 | SCREW |
| N 000933010260 | SCREW | |
| 037 | A 3263500069 | OIL PUMP |
| 039 | A 3043500578 | PUMP HOUSING |
| Repalced by: A 3433500078 | ||
| 039 | A 3433500078 | PUMP HOUSING |
| 041 | A 3049910101 | PIN |
| 042 | A 3043530269 | GEAR |
| TRANSMISSION | ||
| 043 | A 3263530069 | GEAR |
| Repalced by: A 3433530069 | ||
| 043 | A 3433530069 | GEAR |
| DRIVING | ||
| N 006888005012 | WOODRUFF KEY | |
| 045 | A 3353530168 | GEAR |
| Repalced by: A 3433530068 | ||
| 045 | A 3433530068 | GEAR |
| DRIVEN | ||
| N 000471014000 | LOCK RING | |
| 046 | A 3043530167 | COVER |
| 047 | N 912004006102 | LOCK WASHER |
| 048 | N 000933006102 | SCREW |
| 050 | N 005401307000 | BALL |
| 051 | A 3049931001 | SPRING |
| 052 | A 3049970430 | SCREW PLUG |
| 053 | N 007346002002 | CLAMPING SLEEVE |
| 054 | N 900083009000 | PLUG |
| 055 | N 000125010500 | WASHER |
| 056 | N 912004010102 | LOCK WASHER |
| 057 | N 000933010105 | SCREW |
| 058 | A 0019810701 | CYLINDR. ROLLER BEARING |
| 060 | A 3269940010 | LOCK |
| 061 | A 3159945030 | LOCK |
| 062 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 062 | N 304017008016 | SCREW |
| 063 | A 3263530144 | SPACER BUSHING |
| 064 | A 3153500250 | BUSHING |
| 066 | N 900083011000 | PLUG |
| 066 | A 3469905001 | SCREW |
| 067 | A 0009971432 | SCREW PLUG |
| Repalced by: N 000906014000 | ||
| 067 | N 000906014000 | SCREW PLUG |
| 068 | A 3263530152 | SPACER WASHER |
| 0.1 MM | ||
| 068 | A 3263530252 | SPACER WASHER |
| 0.25 MM | ||
| 068 | A 3263530352 | SPACER WASHER |
| Repalced by: A 3263530252 | ||
| 068 | A 3263530252 | SPACER WASHER |
| 0.5 MM | ||
| 068 | A 3263530452 | SPACER WASHER |
| 1.0 MM | ||
| 071 | A 0009810605 | TAPERED ROLLER BEARING |
| 072 | A 3353500043 | SET COLLAR |
| 073 | A 3263530073 | LOCK |
| 074 | A 3263530026 | NUT |
| 075 | N 912004012100 | LOCK WASHER |
| 076 | N 000960012050 | SCREW |
| 077 | A 0039973846 | SEAL RING |
| INSIDE | ||
| 078 | A 0009975646 | SEAL RING |
| Repalced by: A 0179973047 | ||
| 078 | A 0179973047 | SEAL RING |
| OUTSIDE | ||
| 080 | A 3153530045 | FLANGE |
| 081 | A 3273530172 | NUT |
| Repalced by: A 3853510072 | ||
| 081 | A 3853510072 | NUT |
| Repalced by: A 3853510172 | ||
| 081 | A 3853510172 | NUT |
| 082 | N 007603024106 | SEAL RING |
| 083 | A 3043500190 | VALVE |
| 084 | A 3039910060 | DOWEL PIN |
| DIFFERENTIAL GEAR TO REAR AXLE CASING | ||
| 086 | A 3433510206 | REAR AXLE TUBE |
| 087 | A 0009976446 | SEAL RING |
| 088 | A 3153510068 | SLIDE |
| 088 | A 3153510168 | SLIDE |
| 088 | A 3433510168 | SLIDE |
| REPAIR SIZE I | ||
| 088 | A 3433510268 | SLIDE |
| REPAIR SIZE I | ||
| 090 | A 3263541410 | SPUR GEAR |
| DRIVING,11 TEETH | ||
| 091 | A 0009814301 | CYLINDR. ROLLER BEARING |
| 092 | N 000471050000 | LOCK RING |
| 093 | A 3153510140 | BRACKET |
| 094 | A 3159945130 | LOCK |
| 095 | N 000933008005 | SCREW |
| 097 | A 3263541012 | OUTSIDE GEAR |
| DRIVEN;28 TEETH | ||
| 098 | N 005412410215 | CYLINDR. ROLLER BEARING |
| 103 | A 3203570021 | END PIECE |
| 104 | A 3203570120 | REAR AXLE TUBE |
| 80 MM | ||
| 105 | A 3203570022 | BOOT |
| STANDARD SIZE | ||
| 105 | A 3433570022 | BOOT |
| REPAIR SIZE | ||
| 106 | A 0029881078 | CLIP |
| TO 343 357 00 22 | ||
| 108 | A 3203570020 | REAR AXLE TUBE |
| 85 MM | ||
| 109 | A 3353570102 | REAR AXLE SHAFT |
| 110 | A 3049910010 | PIN |
| 111 | A 3153570752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.5 MM | ||
| 111 | A 3153570852 | SPACER WASHER |
| AS REQUIRED | ||
| 0.8 MM | ||
| 111 | A 3153570952 | SPACER WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| 111 | A 3153571052 | SPACER WASHER |
| AS REQUIRED | ||
| 1.2 MM | ||
| 111 | A 3153571152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.5 MM | ||
| 115 | A 3203570053 | SPACER TUBE |
| 116 | A 3153570251 | SPACER RING |
| AS REQUIRED | ||
| 9.5 MM | ||
| 116 | A 3153570451 | SPACER RING |
| Repalced by: A 3153570251 | ||
| 116 | A 3153570651 | SPACER RING |
| AS REQUIRED | ||
| 10.5 MM | ||
| 119 | N 000471058000 | LOCK RING |
| 121 | N 007603014405 | SEAL RING |
| 122 | A 3049970072 | FITTING |
| 123 | A 3353500280 | LINE |
| 125 | N 003862010000 | DOUBLE TAPER RING |
| 126 | N 915017010100 | UNION NUT |
| 127 | N 007603014405 | SEAL RING |
| 128 | N 900117014001 | LOCK |
| 130 | N 900117014201 | HOLLOW SCREW |
| 132 | A 3263500167 | THRUST WASHER |
| 133 | A 3043560601 | WHEEL HUB |
| 134 | A 3153560082 | OIL COLLECTOR |
| 135 | A 0009812105 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 136 | A 3049970447 | SEAL RING |
| 137 | N 000720032218 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 138 | A 3044020271 | WHEEL MOUNTING BOLT |
| 139 | N 000934020008 | NUT |
| Repalced by: N 308673020002 | ||
| 139 | N 308673020002 | NUT |
| Repalced by: N 308674020000 | ||
| 139 | N 308674020000 | NUT |
| 141 | A 3263560062 | THRUST WASHER |
| 142 | A 3033560026 | GROOVED NUT |
| 143 | A 3043560073 | LOCK PLATE |
| 144 | A 3353560205 | FOLLOWER |
| 145 | N 912004014100 | LOCK WASHER |
| 146 | N 000960014004 | SCREW |

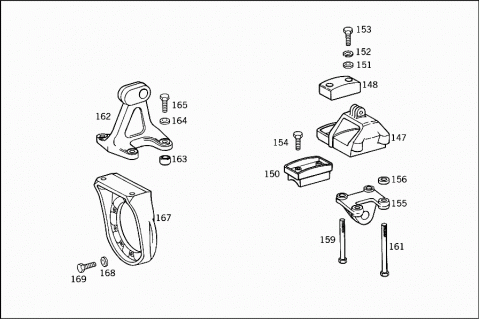

| 147 | A 3433251119 | SPRING SEAT |
| 148 | A 3433250044 | RUBBER BUFFER |
| 150 | A 3433250043 | BRACKET |
| Repalced by: A 3953250043 | ||
| 150 | A 3953250043 | BRACKET |
| 151 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 151 | N 007349010007 | WASHER |
| 152 | N 912004010102 | LOCK WASHER |
| 153 | N 304017010027 | SCREW |
| 154 | N 000931010271 | SCREW |
| 155 | A 3433250309 | BEARING BRACKET |
| 156 | A 3433250852 | SPACER WASHER |
| 6.2 MM | ||
| 156 | A 3433250952 | SPACER WASHER |
| 6.6 MM | ||
| 156 | A 3433251052 | SPACER WASHER |
| Repalced by: A 3433251252 | ||
| 156 | A 3433251252 | SPACER WASHER |
| 7.0 MM | ||
| 156 | A 3433251252 | SPACER WASHER |
| 7.8 MM | ||
| 159 | N 000960018089 | SCREW |
| 161 | N 000960018088 | SCREW |
| 162 | A 3433520941 | BEARING BODY |
| 163 | A 3433520050 | BUSHING |
| 164 | N 000127022201 | LOCK WASHER |
| Repalced by: N 912004022101 | ||
| 164 | N 912004022101 | LOCK WASHER |
| 165 | N 000961022012 | SCREW |
| 167 | A 3433520107 | SUPPORTING ARM |
| 168 | N 912004012100 | LOCK WASHER |
| 169 | N 000960012230 | SCREW |
