Transporto priemonė: LKO 1313; VIN numerio dalis: 352023
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

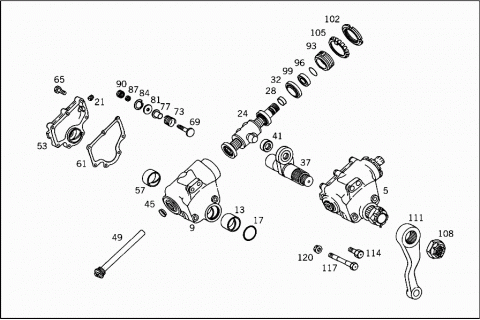

| 005 | A 3274606101 | STEERING BOX ASSEMBLY |
| Repalced by: A 3274606501 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| MERCEDES-BENZ STEERING | ||
| 005 | A 3274606501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3444601201 | ||
| 005 | A 3444601201 | STEERING BOX ASSEMBLY |
| 005 | A 3274606201 | STEERING BOX ASSEMBLY |
| Repalced by: A 3094601501 | ||
| 005 | A 3094601501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3084600001 | ||
| 005 | A 3084600001 | STEERING BOX ASSEMBLY |
| 009 | A 3214601302 | STEERING BOX |
| 009 | A 3274600202 | STEERING BOX |
| 013 | A 3214610350 | BUSHING |
| O.D.,47.1 MM;STANDARD | ||
| 013 | A 3214610550 | BUSHING |
| O.D.,47.1 MM;REPAIR SIZE I | ||
| 017 | A 0019970645 | SEAL RING |
| 017 | A 0049976845 | SEAL RING |
| 021 | A 3029970035 | PLUG |
| Repalced by: N 000906016002 | ||
| 021 | N 000906016002 | SCREW PLUG |
| BOX COVER | ||
| A 3274602208 | STEERING WORM | |
| Repalced by: A 4064600118 | ||
| 024 | A 4064600118 | STEERING NUT |
| Repalced by: A 4064600218 | ||
| 024 | A 4064600218 | STEERING NUT |
| WITH WORM AND INCLINED SELF-ALIGNING ROLLER BEARING | ||
| 024 | A 3274602308 | STEERING WORM |
| Repalced by: A 3094600708 | ||
| 024 | A 3094600708 | STEERING WORM |
| Repalced by: A 3094601018 | ||
| 024 | A 3094601018 | STEERING NUT |
| Repalced by: A 3094600708 | ||
| 024 | A 3094600708 | STEERING WORM |
| WITH WORM AND INCLINED SELF-ALIGNING ROLLER BEARING | ||
| 028 | A 3219970740 | SEAL RING |
| STEERING NUT BEARING | ||
| 032 | A 0009811306 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 032 | A 3459817006 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 032 | A 0009810806 | BARREL-TYPE BEARING |
| STEERING NUT BEARING | ||
| 037 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| 041 | A 3214620537 | BALL CUP |
| STEERING WORM SECTOR SHAFT | ||
| N 009045038001 | SNAP RING | |
| STEERING WORM SECTOR SHAFT | ||
| 045 | A 3219970640 | SEAL RING |
| STEERING BOX | ||
| 049 | A 3214600315 | OIL LEVEL CHECK PIPE |
| STEERING BOX | ||
| N 007603030400 | SEAL RING | |
| STEERING BOX | ||
| N 007604030201 | SCREW PLUG | |
| Repalced by: N 007604030206 | ||
| N 007604030206 | SCREW PLUG | |
| STEERING BOX | ||
| 053 | A 3274600214 | STEERING BOX COVER |
| Repalced by: A 3214600414 | ||
| 053 | A 3214600414 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 053 | A 3274600314 | STEERING BOX COVER |
| Repalced by: A 3214600514 | ||
| 053 | A 3214600514 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| 057 | A 3214620250 | BUSHING |
| 061 | A 3214610880 | GASKET |
| Repalced by: A 3524610180 | ||
| 061 | A 3524610180 | GASKET |
| COVER TO BOX | ||
| 065 | A 0019909101 | SCREW |
| COVER TO BOX | ||
| 069 | A 3214620171 | SCREW |
| STEERING SHAFT TO BOX | ||
| 073 | A 3219932201 | SPRING |
| STEERING SHAFT TO BOX | ||
| 077 | A 3214620185 | THRUST PIECE |
| STEERING SHAFT TO BOX | ||
| 081 | A 3214610162 | THRUST WASHER |
| STEERING SHAFT TO BOX | ||
| 084 | A 0009946041 | LOCK |
| STEERING SHAFT TO BOX | ||
| 087 | A 0019976140 | SEAL RING |
| STEERING SHAFT TO BOX | ||
| 090 | A 3219900050 | NUT |
| STEERING SHAFT TO BOX | ||
| A 0029900251 | NUT | |
| STEERING SHAFT TO BOX | ||
| 093 | A 3224620151 | RING |
| STEERING NUT BEARING | ||
| 096 | A 0029979845 | SEAL RING |
| STEERING NUT BEARING | ||
| 099 | A 0029974346 | SEAL RING |
| STEERING NUT BEARING | ||
| 102 | N 070852060000 | NUT |
| Repalced by: A 6743560226 | ||
| 102 | A 6743560226 | GROOVED NUT |
| STEERING NUT BEARING | ||
| 105 | A 3229940115 | LOCK |
| STEERING NUT BEARING | ||
| 108 | A 0009902555 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094006317 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 111 | A 3524631201 | PITMAN ARM |
| 111 | A 3524631301 | PITMAN ARM |
| 114 | A 3279900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 117 | A 3229900914 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 120 | A 3279900050 | NUT |
| STEERING TO STEERING BRACKET | ||
| N 000094003222 | COTTER PIN | |
| STEERING TO STEERING BRACKET | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |

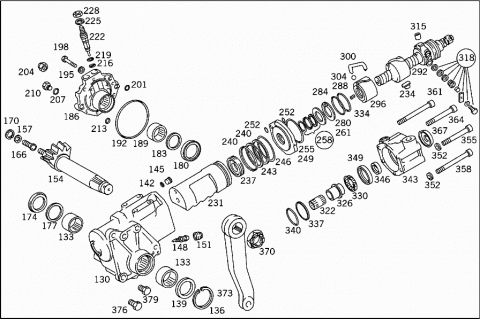

| ZF BALL-NUT-TYPE HYDRAULIC POWER STEERING | ||
| A 3604602101 | STEERING BOX ASSEMBLY | |
| A 3604602201 | STEERING BOX ASSEMBLY | |
| 130 | A 0004615701 | BOX |
| WITH BEARING BUSHING | ||
| 130 | A 0004615801 | BOX |
| WITH BEARING BUSHING | ||
| 133 | A 0019816010 | NEEDLE BEARING |
| Repalced by: A 0005865846 | ||
| 133 | A 0005865846 | REPAIR KIT |
| STEERING SHAFT BEARING | ||
| 136 | N 000472060007 | LOCK RING |
| STEERING SHAFT BEARING | ||
| 139 | A 0019970640 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 142 | A 0059970645 | SEAL RING |
| Repalced by: A 0109976245 | ||
| 142 | A 0109976245 | SEAL RING |
| STEERING BOX | ||
| 145 | A 0009970003 | PLUG |
| STEERING BOX | ||
| 148 | A 0009900215 | SCREW |
| STEERING BOX | ||
| 151 | A 0004620096 | BOOT |
| Repalced by: A 0004217187 | ||
| 151 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 151 | A 0004210887 | PROTECTIVE CAP |
| STEERING BOX | ||
| 154 | A 0004623412 | STEERG. WORM SECTOR SHAFT |
| WITH SET SCREW | ||
| 157 | A 0004612952 | SPACER WASHER |
| Repalced by: A 0034620452 | ||
| 157 | A 0034620452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 157 | A 0004613052 | SPACER WASHER |
| Repalced by: A 0034620552 | ||
| 157 | A 0034620552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.00 MM | ||
| 157 | A 0004613152 | SPACER WASHER |
| Repalced by: A 0034620652 | ||
| 157 | A 0034620652 | SPACER WASHER |
| AS REQUIRED | ||
| 3.05 MM | ||
| 157 | A 0004613252 | SPACER WASHER |
| Repalced by: A 0034620752 | ||
| 157 | A 0034620752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.10 MM | ||
| 157 | A 0004613352 | SPACER WASHER |
| Repalced by: A 0034624952 | ||
| 157 | A 0034624952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.15 MM | ||
| 157 | A 0004613452 | SPACER WASHER |
| Repalced by: A 0034625052 | ||
| 157 | A 0034625052 | SPACER WASHER |
| AS REQUIRED | ||
| 3.20 MM | ||
| 157 | A 0004613552 | SPACER WASHER |
| Repalced by: A 0034625152 | ||
| 157 | A 0034625152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.25 MM | ||
| 157 | A 0004613652 | SPACER WASHER |
| Repalced by: A 0034625252 | ||
| 157 | A 0034625252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.30 MM | ||
| 157 | A 0004613752 | SPACER WASHER |
| Repalced by: A 0034625352 | ||
| 157 | A 0034625352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.35 MM | ||
| 166 | A 0004621471 | SCREW |
| STEERING WORM SECTOR SHAFT | ||
| 170 | N 900055025310 | LOCK RING |
| STEERING SHAFT BEARING | ||
| 174 | A 0004621865 | RING |
| STEERING SHAFT BEARING | ||
| 177 | A 0004622475 | WASHER |
| STEERING SHAFT BEARING | ||
| 180 | A 0004622765 | RING |
| STEERING SHAFT BEARING | ||
| 183 | A 0004622975 | WASHER |
| STEERING SHAFT BEARING | ||
| 186 | A 0004612505 | COVER |
| STEERING WORM SECTOR SHAFT | ||
| 186 | A 0004612605 | COVER |
| STEERING WORM SECTOR SHAFT | ||
| 189 | A 0019816110 | NEEDLE BEARING |
| STEERING SHAFT BEARING IN COVER | ||
| 192 | A 0059970745 | SEAL RING |
| Repalced by: A 0099978748 | ||
| 192 | A 0099978748 | SEAL RING |
| COVER TO BOX | ||
| 195 | A 0004629952 | SPACER WASHER |
| COVER TO BOX | ||
| 198 | N 000961008012 | SCREW |
| COVER TO BOX | ||
| 8X30 MM | ||
| N 000961008013 | SCREW | |
| COVER TO BOX | ||
| 201 | A 0019870746 | SEALING CORD |
| BOX COVER | ||
| A 0009909751 | NUT | |
| Repalced by: A 0004620372 | ||
| 204 | A 0004620372 | NUT |
| STEERING SHAFT BEARING IN COVER | ||
| 207 | N 007603012405 | SEAL RING |
| BOX COVER | ||
| 210 | N 007604012101 | SCREW PLUG |
| BOX COVER | ||
| 213 | A 0019870846 | SEALING CORD |
| Repalced by: A 0049978548 | ||
| 213 | A 0049978548 | SEAL RING |
| BOX COVER | ||
| 216 | A 0079979945 | SEAL RING |
| BOX COVER | ||
| 219 | A 0089970045 | SEAL RING |
| BOX COVER | ||
| 222 | A 0004610582 | VALVE |
| BOX COVER | ||
| 225 | N 000125015013 | WASHER |
| Repalced by: N 000125015019 | ||
| 225 | N 000125015019 | WASHER |
| BOX COVER | ||
| 228 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 228 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 228 | N 308675014002 | NUT |
| BOX COVER | ||
| 231 | A 0004620883 | PISTON |
| 234 | A 0004620974 | PIN |
| STEERING NUT BEARING | ||
| 237 | A 0004620134 | SCREW COLLAR |
| STEERING NUT BEARING | ||
| 240 | A 0004621565 | RING |
| STEERING NUT BEARING | ||
| 243 | A 0004621665 | RING |
| STEERING NUT BEARING | ||
| 246 | A 0019871146 | SEALING CORD |
| STEERING NUT BEARING | ||
| 249 | A 0004610646 | COVER |
| Repalced by: A 0004610946 | ||
| 249 | A 0004610946 | COVER |
| STEERING NUT BEARING | ||
| 252 | A 0019871046 | SEALING CORD |
| STEERING NUT BEARING | ||
| 252 | A 0019871046 | SEALING CORD |
| STEERING NUT BEARING | ||
| 255 | A 0019870946 | SEALING CORD |
| STEERING NUT BEARING | ||
| 258 | A 0005860346 | REPAIR KIT |
| TO SEAL STEERING WORM IN INTERMEDIATE COVER | ||
| 261 | A 0014620552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.9 MM | ||
| 261 | A 0024625052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.910 MM | ||
| 261 | A 0024625152 | SPACER WASHER |
| Repalced by: A 0014620752 | ||
| 261 | A 0024625252 | SPACER WASHER |
| Repalced by: A 0014620752 | ||
| 261 | A 0024625352 | SPACER WASHER |
| Repalced by: A 0014620752 | ||
| 261 | A 0014620752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.950 MM | ||
| 261 | A 0024625452 | SPACER WASHER |
| Repalced by: A 0014620952 | ||
| 261 | A 0024625552 | SPACER WASHER |
| Repalced by: A 0014620952 | ||
| 261 | A 0024625652 | SPACER WASHER |
| Repalced by: A 0014620952 | ||
| 261 | A 0024625752 | SPACER WASHER |
| Repalced by: A 0014620952 | ||
| 261 | A 0014620952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.0 MM | ||
| 261 | A 0024625852 | SPACER WASHER |
| Repalced by: A 0014621152 | ||
| 261 | A 0024625952 | SPACER WASHER |
| Repalced by: A 0014621152 | ||
| 261 | A 0024626052 | SPACER WASHER |
| Repalced by: A 0014621152 | ||
| 261 | A 0024626152 | SPACER WASHER |
| Repalced by: A 0014621152 | ||
| 261 | A 0014621152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.050 MM | ||
| 261 | A 0024626252 | SPACER WASHER |
| Repalced by: A 0014621352 | ||
| 261 | A 0024626352 | SPACER WASHER |
| Repalced by: A 0014621352 | ||
| 261 | A 0024626452 | SPACER WASHER |
| Repalced by: A 0014621352 | ||
| 261 | A 0024626552 | SPACER WASHER |
| Repalced by: A 0014621352 | ||
| 261 | A 0014621352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.100 MM | ||
| 261 | A 0024626652 | SPACER WASHER |
| Repalced by: A 0014621552 | ||
| 261 | A 0014626752 | SPACER WASHER |
| Repalced by: A 0014626952 | ||
| 261 | A 0014626952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.120 MM | ||
| 261 | A 0024626852 | SPACER WASHER |
| Repalced by: A 0014621552 | ||
| 261 | A 0024626952 | SPACER WASHER |
| Repalced by: A 0014621552 | ||
| 261 | A 0024621552 | SPACER WASHER |
| Repalced by: A 0014623252 | ||
| 261 | A 0014623252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.150 MM | ||
| 261 | A 0024627052 | SPACER WASHER |
| Repalced by: A 0014621752 | ||
| 261 | A 0024627152 | SPACER WASHER |
| Repalced by: A 0014621752 | ||
| 261 | A 0024627252 | SPACER WASHER |
| Repalced by: A 0014621752 | ||
| 261 | A 0024627352 | SPACER WASHER |
| Repalced by: A 0014621752 | ||
| 261 | A 0014621752 | SPACER WASHER |
| AS REQUIRED | ||
| 3.200 MM | ||
| 261 | A 0024627452 | SPACER WASHER |
| Repalced by: A 0014621952 | ||
| 261 | A 0024627552 | SPACER WASHER |
| Repalced by: A 0014621952 | ||
| 261 | A 0024627752 | SPACER WASHER |
| Repalced by: A 0014621952 | ||
| 261 | A 0014621952 | SPACER WASHER |
| AS REQUIRED | ||
| 3.250 MM | ||
| 261 | A 0024627852 | SPACER WASHER |
| Repalced by: A 0014622152 | ||
| 261 | A 0024627952 | SPACER WASHER |
| Repalced by: A 0014622152 | ||
| 261 | A 0024628052 | SPACER WASHER |
| Repalced by: A 0014622152 | ||
| 261 | A 0024628152 | SPACER WASHER |
| Repalced by: A 0014622152 | ||
| 261 | A 0014622152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.300 MM | ||
| 261 | A 0024628252 | SPACER WASHER |
| Repalced by: A 0014622352 | ||
| 261 | A 0024628352 | SPACER WASHER |
| Repalced by: A 0014622352 | ||
| 261 | A 0024628452 | SPACER WASHER |
| Repalced by: A 0014622352 | ||
| 261 | A 0024628552 | SPACER WASHER |
| Repalced by: A 0014622352 | ||
| 261 | A 0014622352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.350 MM | ||
| 261 | A 0024628652 | SPACER WASHER |
| Repalced by: A 0014622552 | ||
| 261 | A 0024628752 | SPACER WASHER |
| Repalced by: A 0014622552 | ||
| 261 | A 0024628852 | SPACER WASHER |
| Repalced by: A 0014622552 | ||
| 261 | A 0024628952 | SPACER WASHER |
| Repalced by: A 0014622552 | ||
| 261 | A 0014622552 | SPACER WASHER |
| AS REQUIRED | ||
| 3.400 MM | ||
| 280 | A 0019812010 | NEEDLE BEARING |
| STEERING NUT BEARING | ||
| 284 | A 0019871246 | SEALING CORD |
| STEERING NUT BEARING | ||
| 288 | A 0004620865 | RING |
| AS REQUIRED | ||
| 2.2 MM | ||
| 288 | A 0004620965 | RING |
| AS REQUIRED | ||
| 2.3 MM | ||
| 292 | A 0004604708 | STEERING WORM |
| Repalced by: A 0004605608 | ||
| 292 | A 0004605608 | STEERING WORM |
| WITH STEERING NUT | ||
| A 0004604808 | STEERING WORM | |
| Repalced by: A 0004605708 | ||
| A 0004605708 | STEERING WORM | |
| WITH STEERING NUT | ||
| 296 | A 0004620106 | STEERING NUT |
| 296 | A 0004620206 | STEERING NUT |
| 300 | A 0004622027 | BALL RACE |
| 300 | A 0004622127 | BALL RACE |
| 304 | A 0009819785 | BALL |
| SET,7.985 MM; AS REQUIRED | ||
| 304 | A 0009815785 | BALL |
| SET,7.987 MM; AS REQUIRED | ||
| 304 | A 0009819885 | BALL |
| SET,7.989 MM; AS REQUIRED | ||
| 304 | A 0009815885 | BALL |
| SET,7.991 MM; AS REQUIRED | ||
| 304 | A 0009819185 | BALL |
| SET,7.993 MM; AS REQUIRED | ||
| 304 | A 0009815985 | BALL |
| SET,7.995 MM; AS REQUIRED | ||
| 304 | A 0009819285 | BALL |
| SET,7.997 MM; AS REQUIRED | ||
| 304 | A 0009816085 | BALL |
| SET,7.999 MM; AS REQUIRED | ||
| 304 | A 0009819385 | BALL |
| SET,8.001 MM; AS REQUIRED | ||
| 304 | A 0009816185 | BALL |
| SET,8.003 MM; AS REQUIRED | ||
| 304 | A 0009819485 | BALL |
| SET,8.005 MM; AS REQUIRED | ||
| 304 | A 0009816285 | BALL |
| SET,8.007 MM; AS REQUIRED | ||
| 304 | A 0009819585 | BALL |
| SET,8.009 MM; AS REQUIRED | ||
| 304 | A 0009816385 | BALL |
| SET,8.011 MM; AS REQUIRED | ||
| 304 | A 0009819685 | BALL |
| SET,8.013 MM; AS REQUIRED | ||
| 304 | A 0009816485 | BALL |
| SET,8.015 MM; AS REQUIRED | ||
| 315 | A 0004610482 | VALVE |
| A 0004622850 | BUSHING | |
| Repalced by: A 0005861846 | ||
| A 0004621183 | PISTON | |
| Repalced by: A 0005861846 | ||
| A 0004620773 | LOCK | |
| Repalced by: A 0005861846 | ||
| N 000432005304 | LOCK PLATE | |
| Repalced by: A 0005861846 | ||
| A 0005861846 | REPAIR KIT | |
| FOR 12-MM-WIDE CLAMPING PLATE | ||
| 318 | A 0005861746 | REPAIR KIT |
| FOR 16-MM-WIDE CLAMPING PLATE | ||
| 322 | A 0019811610 | NEEDLE BEARING |
| Repalced by: A 0009800110 | ||
| 322 | A 0009800110 | NEEDLE BEARING |
| DIA., | ||
| 38X26.009 | ||
| A 0019811610 | NEEDLE BEARING | |
| Repalced by: A 0009800510 | ||
| A 0009800510 | NEEDLE BEARING | |
| DIA., | ||
| 38.015X26.009 | ||
| 322 | A 0019811710 | NEEDLE BEARING |
| Repalced by: A 0009800210 | ||
| 322 | A 0009800210 | NEEDLE BEARING |
| DIA., | ||
| 38X26.012 | ||
| A 0019811710 | NEEDLE BEARING | |
| Repalced by: A 0009800610 | ||
| A 0009800610 | NEEDLE BEARING | |
| DIA., | ||
| 38.015X26.012 | ||
| 322 | A 0019811810 | NEEDLE BEARING |
| Repalced by: A 0009800310 | ||
| 322 | A 0009800310 | NEEDLE BEARING |
| DIA., | ||
| 38X26.015 | ||
| A 0019811810 | NEEDLE BEARING | |
| Repalced by: A 0009800710 | ||
| A 0009800710 | NEEDLE BEARING | |
| DIA., | ||
| 38.015X26.015 | ||
| 322 | A 0019811910 | NEEDLE BEARING |
| Repalced by: A 0009800410 | ||
| 322 | A 0009800410 | NEEDLE BEARING |
| DIA., | ||
| 38X26.018 | ||
| A 0019811910 | NEEDLE BEARING | |
| Repalced by: A 0009800810 | ||
| A 0009800810 | NEEDLE BEARING | |
| DIA., | ||
| 38.015X26.018 | ||
| 322 | A 0039814810 | NEEDLE BEARING |
| 326 | A 0009817481 | INNER RING |
| Repalced by: A 0009800510 | ||
| 326 | A 0009817581 | INNER RING |
| Repalced by: A 0009800510 | ||
| 330 | A 0004620438 | BALL CAGE |
| 334 | N 001481004025 | CLAMPING SLEEVE |
| Repalced by: N 001481004000 | ||
| 334 | N 001481004000 | CLAMPING SLEEVE |
| 337 | A 0004621165 | RING |
| Repalced by: A 0004621265 | ||
| A 0004621265 | RING | |
| AS REQUIRED | ||
| 1.6 MM | ||
| A 0004625865 | RING | |
| 340 | A 0019871346 | SEALING CORD |
| TO SEAL STEERING WORM IN INTERMEDIATE COVER | ||
| 343 | A 0004610204 | BOX |
| STEERING WORM | ||
| 346 | A 0039973946 | SEAL RING |
| Repalced by: A 0059973747 | ||
| 346 | A 0059973747 | SEAL RING |
| Repalced by: A 0089979447 | ||
| 346 | A 0089979447 | SEAL RING |
| STEERING NUT BEARING | ||
| 349 | A 0009816180 | OUTER RACE |
| STEERING NUT BEARING | ||
| 352 | A 0014622752 | SPACER WASHER |
| COVER TO BOX | ||
| 355 | N 000912012066 | SCREW |
| COVER TO BOX | ||
| 12X120 MM | ||
| 358 | N 000912012065 | SCREW |
| COVER TO BOX | ||
| 12X100 MM | ||
| 361 | A 0004620971 | SCREW |
| COVER TO BOX | ||
| 364 | A 0004621071 | SCREW |
| COVER TO BOX | ||
| 367 | A 0004620196 | BOOT |
| SEALING OF UNIVERSAL JOINT & STEERING | ||
| 370 | N 000937035000 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094006317 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 373 | A 3524631601 | PITMAN ARM |
| A 3524631701 | PITMAN ARM | |
| 376 | A 3529900402 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 379 | A 3529900502 | SCREW |
| STEERING TO STEERING BRACKET | ||
| N 000177001003 | WIRE | |
| 1.6 MM | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |

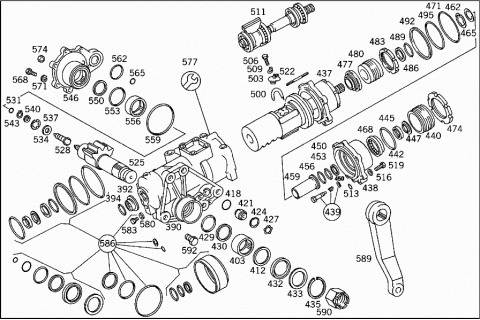

| MERCEDES-BENZ POWER STEERING | ||
| A 3604603101 | STEERING BOX ASSEMBLY | |
| A 3604603201 | STEERING BOX ASSEMBLY | |
| 390 | A 3604601602 | STEERING BOX |
| Repalced by: A 3604602802 | ||
| 390 | A 3604602802 | STEERING BOX |
| WITH SLEEVE VALVE | ||
| 390 | A 3604601702 | STEERING BOX |
| Repalced by: A 3604602902 | ||
| 390 | A 3604602902 | STEERING BOX |
| WITH SLEEVE VALVE | ||
| 392 | A 3604610005 | COVER |
| STEERING BOX | ||
| 394 | A 0059979345 | SEAL RING |
| STEERING BOX | ||
| 403 | A 0029816110 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| A 0039812110 | NEEDLE BEARING | |
| STEERING SHAFT BEARING | ||
| 412 | A 3604620162 | THRUST WASHER |
| STEERING SHAFT BEARING | ||
| 418 | A 0059979445 | SEAL RING |
| VALVE HOUSING SEALING | ||
| 421 | A 3604660105 | COVER |
| VALVE HOUSING SEALING | ||
| 421 | A 3604660305 | COVER |
| VALVE HOUSING SEALING | ||
| 421 | A 3604660405 | COVER |
| VALVE HOUSING SEALING | ||
| 424 | A 0019943741 | LOCK |
| VALVE HOUSING SEALING | ||
| 427 | A 0009945541 | LOCK |
| VALVE HOUSING SEALING | ||
| 429 | A 0069977445 | SEAL RING |
| STEERING NUT BEARING | ||
| 55X3 MM | ||
| 430 | A 3604660260 | SEAL RING |
| STEERING NUT BEARING | ||
| 55.5X3.5 MM | ||
| 432 | A 0059974246 | SEAL RING |
| Repalced by: A 0119977946 | ||
| 433 | A 0029974340 | SEAL RING |
| Repalced by: A 0119977946 | ||
| 433 | A 0119977946 | SEAL RING |
| STEERING SHAFT BEARING | ||
| 50.8-6.5-9/7 MM | ||
| 435 | A 1124660173 | LOCK |
| STEERING SHAFT BEARING | ||
| 437 | A 3604602185 | PISTON |
| WITH STEERING WORM AND STEERING NUT | ||
| 437 | A 3604602285 | PISTON |
| WITH STEERING WORM AND STEERING NUT | ||
| 438 | A 3604602014 | STEERING BOX COVER |
| PISTON | ||
| 438 | A 3604602114 | STEERING BOX COVER |
| PISTON | ||
| 439 | A 3605861646 | REPAIR KIT |
| CHECK VALVE IN BEARING COVER | ||
| 440 | A 3604620034 | SCREW COLLAR |
| 442 | A 0029974745 | SEAL RING |
| STEERING NUT BEARING | ||
| 75X3 MM | ||
| 445 | A 0059974346 | SEAL RING |
| Repalced by: A 0119977246 | ||
| 447 | A 0029974440 | SEAL RING |
| Repalced by: A 0119977246 | ||
| 447 | A 0119977246 | SEAL RING |
| Repalced by: A 0149976947 | ||
| 447 | A 0149976947 | SEAL RING |
| STEERING NUT BEARING | ||
| 28-40-8/6 MM | ||
| 450 | A 3604660460 | SEAL RING |
| STEERING NUT BEARING | ||
| 32.15X3.4 MM | ||
| 453 | A 0079973745 | SEAL RING |
| STEERING NUT BEARING | ||
| 33X3 MM | ||
| 456 | A 0009979745 | SEAL RING |
| STEERING NUT BEARING | ||
| 9X2.5 MM | ||
| 459 | A 3604610050 | BUSHING |
| STEERING NUT BEARING | ||
| 462 | N 000988037006 | FITTED WASHER |
| AS REQUIRED | ||
| 37X47X1.0 MM | ||
| 462 | N 000988037007 | FITTED WASHER |
| AS REQUIRED | ||
| 37X47X1.1 MM | ||
| 462 | N 000988037008 | FITTED WASHER |
| AS REQUIRED | ||
| 37X47X1.2 MM | ||
| 462 | N 000988037009 | FITTED WASHER |
| Repalced by: A 9012631452 | ||
| 462 | A 9012631452 | SPACER WASHER |
| AS REQUIRED | ||
| 37X47X1.3 MM | ||
| 465 | A 0019943441 | LOCK |
| 468 | A 3609810027 | ANGULAR CONTACT BEARING |
| STEERING WORM | ||
| 471 | A 0089971345 | SEAL RING |
| STEERING NUT BEARING | ||
| 108X4 MM | ||
| 474 | N 070852085000 | NUT |
| Repalced by: A 6173560026 | ||
| 474 | A 6173560026 | GROOVED NUT |
| STEERING NUT BEARING | ||
| A 3604661383 | PISTON | |
| 477 | A 3609810227 | ANGULAR CONTACT BEARING |
| STEERING NUT BEARING | ||
| 480 | A 3604660205 | COVER |
| STEERING NUT BEARING | ||
| 483 | N 070852070000 | NUT |
| STEERING NUT BEARING | ||
| 486 | A 3604660060 | SEAL RING |
| STEERING NUT BEARING | ||
| 489 | A 0059979645 | SEAL RING |
| STEERING NUT BEARING | ||
| 41X3 MM | ||
| 492 | A 3604660660 | SEAL RING |
| STEERING NUT BEARING | ||
| 117.3X4 MM | ||
| 495 | A 0079979445 | SEAL RING |
| STEERING NUT BEARING | ||
| 102X5.5 MM | ||
| 500 | A 3604620225 | BALL GUIDE |
| 500 | A 3604620325 | BALL GUIDE |
| 503 | A 3609950120 | CLAMP |
| BALL GUIDE TO PISTON | ||
| 506 | A 1209900520 | SCREW |
| BALL GUIDE TO PISTON | ||
| 509 | A 1129940005 | LOCK |
| BALL GUIDE TO PISTON | ||
| 511 | A 3605861946 | REPAIR KIT |
| STEERING WORM WITH NUT | ||
| 511 | A 3605862046 | REPAIR KIT |
| STEERING WORM WITH NUT | ||
| A 3604620225 | BALL GUIDE | |
| A 3604620325 | BALL GUIDE | |
| A 3609950120 | CLAMP | |
| A 1209900520 | SCREW | |
| A 1129940005 | LOCK | |
| A 3609810227 | ANGULAR CONTACT BEARING | |
| A 3609810027 | ANGULAR CONTACT BEARING | |
| A 3609810085 | BALL | |
| Repalced by: A 3609810185 | ||
| A 3609810185 | BALL | |
| A 3604603199 | INSTALLATION KIT | |
| CONICAL SPRING WASHER CUSHIONING | ||
| A 3604620028 | BEARING RING | |
| A 3604620128 | BEARING RING | |
| A 3604620228 | BEARING RING | |
| A 3609902140 | WASHER | |
| A 0059812510 | NEEDLE BEARING | |
| A 3859930026 | DISC SPRING | |
| A 3859930126 | DISC SPRING | |
| A 3859810018 | ROLLER BEARING | |
| 513 | A 0059979745 | SEAL RING |
| COVER TO STEERING BOX | ||
| 516 | N 912004010102 | LOCK WASHER |
| COVER TO STEERING BOX | ||
| 519 | N 000933010200 | SCREW |
| COVER TO STEERING BOX | ||
| M 10X30 | ||
| 522 | A 3604660983 | PISTON |
| STROKE LIMIT | ||
| 525 | A 3604600011 | STEERG. WORM SECTOR SHAFT |
| WITH SET SCREW | ||
| 528 | A 3604620071 | SCREW |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 531 | A 0059979845 | SEAL RING |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 10X3 MM | ||
| 534 | A 3604620152 | SPACER WASHER |
| AS REQUIRED | ||
| 3.1 MM | ||
| 534 | A 3604620252 | SPACER WASHER |
| AS REQUIRED | ||
| 3.05 MM | ||
| 534 | A 3604620352 | SPACER WASHER |
| AS REQUIRED | ||
| 3.0 MM | ||
| 534 | A 3604620452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.95 MM | ||
| 534 | A 3604620552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.9 MM | ||
| 534 | A 3604620652 | SPACER WASHER |
| AS REQUIRED | ||
| 2.85 MM | ||
| 534 | A 3604620852 | SPACER WASHER |
| AS REQUIRED | ||
| 2.8 MM | ||
| 534 | A 3604620752 | SPACER WASHER |
| AS REQUIRED | ||
| 2.75 MM | ||
| 534 | A 3604620952 | SPACER WASHER |
| AS REQUIRED | ||
| 2.70 MM | ||
| 534 | A 3604621052 | SPACER WASHER |
| AS REQUIRED | ||
| 2.65 MM | ||
| 534 | A 3604621152 | SPACER WASHER |
| AS REQUIRED | ||
| 2.60 MM | ||
| 534 | A 3604621252 | SPACER WASHER |
| AS REQUIRED | ||
| 2.55 MM | ||
| 534 | A 3604621352 | SPACER WASHER |
| AS REQUIRED | ||
| 2.50 MM | ||
| 534 | A 3604621452 | SPACER WASHER |
| AS REQUIRED | ||
| 2.45 MM | ||
| 534 | A 3604621552 | SPACER WASHER |
| AS REQUIRED | ||
| 2.40 MM | ||
| 537 | A 0019946541 | LOCK |
| Repalced by: A 0049949441 | ||
| 537 | A 0049949441 | LOCK |
| STEERING SHAFT BEARING IN COVER | ||
| 540 | A 3604620062 | THRUST WASHER |
| STEERING SHAFT BEARING IN COVER | ||
| 543 | N 000471015000 | LOCK RING |
| STEERING SHAFT BEARING IN COVER | ||
| 15X1 MM | ||
| 546 | A 3604601614 | STEERING BOX COVER |
| STEERING WORM SECTOR SHAFT | ||
| A 3604602214 | STEERING BOX COVER | |
| STEERING WORM SECTOR SHAFT | ||
| A 3604601714 | STEERING BOX COVER | |
| STEERING WORM SECTOR SHAFT | ||
| A 3604602314 | STEERING BOX COVER | |
| STEERING WORM SECTOR SHAFT | ||
| 550 | A 3604660260 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 553 | A 0069977445 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 55X3 MM | ||
| 556 | A 0029816010 | NEEDLE BEARING |
| STEERING SHAFT BEARING | ||
| A 0039812210 | NEEDLE BEARING | |
| STEERING SHAFT BEARING | ||
| 559 | A 0059979945 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 114X4 MM | ||
| 562 | A 0059979645 | SEAL RING |
| STEERING WORM SECTOR SHAFT SEALING | ||
| 41X3 MM | ||
| 565 | A 0059979745 | SEAL RING |
| BOX COVER | ||
| 9X2.5 MM | ||
| 568 | N 000933010200 | SCREW |
| COVER TO STEERING BOX | ||
| 571 | N 912004010102 | LOCK WASHER |
| COVER TO STEERING BOX | ||
| 574 | N 000936014010 | NUT |
| Repalced by: N 308675014000 | ||
| 574 | N 308675014000 | NUT |
| Repalced by: N 308675014002 | ||
| 574 | N 308675014002 | NUT |
| STEERING WORM SECTOR SHAFT TO COVER | ||
| 577 | A 3605861746 | REPAIR KIT |
| CHECK VALVE IN BOX | ||
| 580 | N 007603012405 | SEAL RING |
| OIL DRAIN | ||
| 12X15.5 MM | ||
| 583 | A 3859970030 | SCREW PLUG |
| Repalced by: N 000910012000 | ||
| 583 | N 000910012000 | SCREW PLUG |
| OIL DRAIN | ||
| 586 | A 3605861846 | REPAIR KIT |
| (GASKET KIT) | ||
| A 0009979745 | SEAL RING | |
| 9X2.5 MM | ||
| A 0029974745 | SEAL RING | |
| 75X3 MM | ||
| A 0059979445 | SEAL RING | |
| 28X3 MM | ||
| A 0059979645 | SEAL RING | |
| 41X3 MM | ||
| A 0059979745 | SEAL RING | |
| A 0059979845 | SEAL RING | |
| 20X2 MM | ||
| A 0069977445 | SEAL RING | |
| 55X3 MM | ||
| A 0059979945 | SEAL RING | |
| A 0079973745 | SEAL RING | |
| 33X3 MM | ||
| A 0079979445 | SEAL RING | |
| 102X5.5 MM | ||
| A 0089971345 | SEAL RING | |
| 108X4 MM | ||
| A 3604660260 | SEAL RING | |
| A 3604660460 | SEAL RING | |
| 32.15X3.4 MM | ||
| A 0119977246 | SEAL RING | |
| Repalced by: A 0149976947 | ||
| A 0149976947 | SEAL RING | |
| 28-40-8/6 MM | ||
| A 0119977946 | SEAL RING | |
| 50.8-65-9/7 | ||
| A 3604660060 | SEAL RING | |
| A 3604660660 | SEAL RING | |
| 117.3X4 MM | ||
| A 3604620396 | BOOT | |
| N 007603012405 | SEAL RING | |
| 12X15.5 MM | ||
| N 007603014405 | SEAL RING | |
| 14X18 MM | ||
| 589 | A 3604630001 | PITMAN ARM |
| 589 | A 3604630101 | PITMAN ARM |
| 590 | A 0009901455 | NUT |
| Repalced by: A 0019908151 | ||
| 590 | A 0019908151 | NUT |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| N 000094008014 | COTTER PIN | |
| PITMAN ARM TO STEERING BOX ASSEMBLY | ||
| 592 | A 3529900302 | SCREW |
| STEERING TO STEERING BRACKET | ||
| N 000177001003 | WIRE | |
| STEERING TO STEERING BRACKET | ||
| 1,6 MM | ||
| A 3229970076 | SEAL CONE | |
| LINE TO OIL PUMP | ||

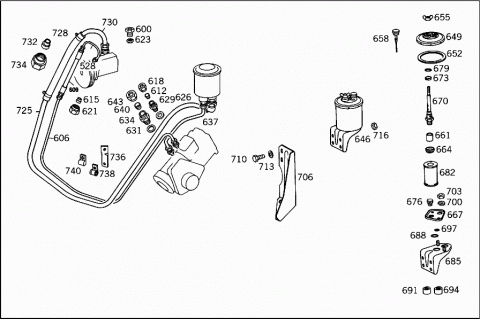

| 600 | A 1899970172 | FITTING |
| LINE TO OIL PUMP | ||
| A 0001873075 | OIL LINE | |
| AT VICKERS PUMP | ||
| A 3524662365 | LINE | |
| Repalced by: A 0002610283 | ||
| A 3524662465 | LINE | |
| Repalced by: A 0002610283 | ||
| A 3604663965 | LINE | |
| Repalced by: A 0002610283 | ||
| A 3604665165 | LINE | |
| Repalced by: A 0002610283 | ||
| 606 | A 3604664565 | LINE |
| Repalced by: A 0002610283 | ||
| A 3604664665 | LINE | |
| Repalced by: A 0002610283 | ||
| A 0002610283 | OIL PIPE | |
| FROM STEERING TO PUMP | ||
| 10 MM | ||
| 609 | A 3609970682 | HOSE |
| HIGH PRESSURE | ||
| 609 | A 3609971282 | HOSE |
| HIGH PRESSURE | ||
| 612 | N 003861010009 | GLAND |
| FOR DELIVERY LINE | ||
| 615 | N 003861010009 | GLAND |
| FOR DELIVERY LINE | ||
| 618 | N 003870010104 | UNION NUT |
| Repalced by: N 915017010104 | ||
| 618 | N 915017010104 | UNION NUT |
| FOR DELIVERY LINE | ||
| 621 | N 915017010100 | UNION NUT |
| FOR DELIVERY LINE | ||
| 623 | A 3229970076 | SEAL CONE |
| FOR DELIVERY LINE | ||
| 626 | N 007603016401 | SEAL RING |
| FROM DELIVERY LINE TO STEERING | ||
| 629 | N 003901010005 | SCREW-IN FITTING |
| Repalced by: N 003901010009 | ||
| 629 | N 003901010009 | SCREW-IN FITTING |
| FROM DELIVERY LINE TO STEERING | ||
| 631 | N 007603018101 | SEAL RING |
| RETURN LINE TO STEERING | ||
| 631 | N 007603018101 | SEAL RING |
| RETURN LINE TO STEERING | ||
| 634 | N 003901015005 | SCREW-IN FITTING |
| RETURN LINE TO STEERING | ||
| A 3604661665 | LINE | |
| FROM STEERING TO OIL TANK | ||
| A 3604661765 | LINE | |
| FROM STEERING TO OIL TANK | ||
| 637 | A 3604660065 | LINE |
| Repalced by: A 3604600024 | ||
| 637 | A 3604600024 | LINE |
| FROM STEERING TO OIL TANK | ||
| 637 | A 3604660165 | LINE |
| FROM STEERING TO OIL TANK | ||
| A 3609971182 | HOSE | |
| Repalced by: A 3439970582 | ||
| A 3439970582 | HOSE | |
| Repalced by: A 6999974082 | ||
| A 6999974082 | HOSE | |
| Repalced by: A 3859971682 | ||
| A 3859971682 | HOSE | |
| FROM STEERING TO OIL TANK | ||
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| FROM STEERING TO OIL TANK | ||
| 640 | N 003861015004 | GLAND |
| OIL LINES | ||
| 643 | N 003870015101 | UNION NUT |
| Repalced by: N 915017015100 | ||
| 643 | N 915017015100 | UNION NUT |
| OIL LINES | ||
| 646 | A 0004662002 | TANK |
| 646 | A 0004662402 | TANK |
| 649 | A 0004661305 | COVER |
| 652 | A 0004660260 | SEAL RING |
| 655 | N 000315008006 | NUT |
| 658 | A 0004660067 | OIL DIPSTICK |
| 661 | A 0009870643 | RUBBER SLEEVE |
| 664 | A 0004660675 | CENTERING RING |
| 667 | A 0004660037 | REINFORCEMENT |
| 670 | A 0014664465 | FILTER CARRIER |
| 673 | A 0004660153 | SPACER TUBE |
| 676 | A 0009976872 | FITTING |
| Repalced by: A 0004660571 | ||
| 676 | A 0029972872 | FITTING |
| Repalced by: A 0004660571 | ||
| 676 | A 0004660571 | FITTING |
| 679 | A 0004660275 | WASHER |
| Repalced by: A 9402680552 | ||
| 679 | A 9402680552 | SPACER WASHER |
| A 0004660775 | WASHER | |
| A 0001842225 | FILTER ELEMENT | |
| Repalced by: A 0004660604 | ||
| 682 | A 0004660604 | FILTER |
| 682 | A 0004662804 | FILTER |
| 685 | A 0004660040 | BRACKET |
| Repalced by: A 0004660840 | ||
| 685 | A 0004660840 | BRACKET |
| 688 | A 0009879046 | SEALING CORD |
| Repalced by: A 0059970848 | ||
| A 0029973245 | SEAL RING | |
| Repalced by: A 0059970848 | ||
| 688 | A 0059970848 | SEAL RING |
| A 0009977672 | FITTING | |
| 691 | A 0004660358 | CONNECTOR |
| A 0004660272 | CONNECTOR | |
| 694 | A 0004660458 | CONNECTOR |
| 697 | A 0029973345 | SEAL RING |
| Repalced by: A 0099970145 | ||
| 697 | A 0099970145 | SEAL RING |
| 697 | A 0099970145 | SEAL RING |
| 700 | N 912004008102 | LOCK WASHER |
| 703 | N 304032008006 | NUT |
| A 3524661240 | BRACKET | |
| OIL TANK | ||
| 706 | A 3604660240 | BRACKET |
| OIL TANK | ||
| A 3524660840 | BRACKET | |
| OIL TANK | ||
| 706 | A 3604660440 | BRACKET |
| OIL TANK | ||
| A 3604660540 | BRACKET | |
| OIL TANK | ||
| 710 | N 000933010128 | SCREW |
| OIL TANK TO BRACKET | ||
| 713 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 713 | N 000125010532 | WASHER |
| OIL TANK TO BRACKET | ||
| N 000933010128 | SCREW | |
| BRACKET TO STEERING | ||
| 716 | N 000934010014 | NUT |
| Repalced by: N 304032010003 | ||
| 716 | N 304032010003 | NUT |
| OIL TANK TO BRACKET | ||
| N 000961012056 | SCREW | |
| Repalced by: N 308676012038 | ||
| N 308676012038 | SCREW | |
| BRACKET TO STEERING | ||
| N 912004012100 | LOCK WASHER | |
| BRACKET TO STEERING | ||
| N 912004010102 | LOCK WASHER | |
| BRACKET TO STEERING | ||
| N 000933008154 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| BRACKET TO CAB | ||
| N 009021010202 | WASHER | |
| Repalced by: N 009021010209 | ||
| N 009021010209 | WASHER | |
| BRACKET TO CAB | ||
| N 912004008102 | LOCK WASHER | |
| BRACKET TO CAB | ||
| N 304032008006 | NUT | |
| BRACKET TO CAB | ||
| N 007603026104 | SEAL RING | |
| FROM OIL TANK TO PUMP | ||
| N 003901022006 | SCREW-IN FITTING | |
| FROM OIL TANK TO PUMP | ||
| A 3524662565 | LINE | |
| FROM OIL TANK TO PUMP | ||
| A 3524662665 | LINE | |
| FROM OIL TANK TO PUMP | ||
| A 3609970282 | HOSE | |
| FROM OIL TANK TO PUMP | ||
| 725 | A 3604663065 | LINE |
| Repalced by: A 3604666365 | ||
| 725 | A 3604666365 | LINE |
| Repalced by: A 3604606324 | ||
| 725 | A 3604606324 | LINE |
| FROM OIL TANK TO HOSE | ||
| A 3604663165 | LINE | |
| Repalced by: A 3604603124 | ||
| A 3604603124 | LINE | |
| FROM OIL TANK TO HOSE | ||
| 728 | A 3609970982 | HOSE |
| Repalced by: A 3859971582 | ||
| 728 | A 3859971582 | HOSE |
| FROM OIL TANK TO PUMP | ||
| N 916017025000 | CLAMP | |
| Repalced by: N 000000000668 | ||
| N 000000000668 | CLAMP | |
| FROM OIL TANK TO PUMP | ||
| 730 | A 3604663565 | LINE |
| FROM HOSE TO PUMP | ||
| A 3604605724 | LINE | |
| FROM HOSE TO PUMP | ||
| 730 | A 3604663765 | LINE |
| Repalced by: A 3604603724 | ||
| 730 | A 3604603724 | LINE |
| Repalced by: A 0004291601 | ||
| 730 | A 0004291601 | LINE |
| FROM HOSE TO PUMP | ||
| A 3604605824 | LINE | |
| FROM HOSE TO PUMP | ||
| 732 | N 003861022004 | GLAND |
| Repalced by: A 0019901267 | ||
| 732 | A 0019901267 | SEAL CONE |
| OIL LINES | ||
| N 003870022101 | UNION NUT | |
| Repalced by: N 915017022100 | ||
| 734 | N 915017022100 | UNION NUT |
| OIL LINES | ||
| N 915001020002 | UNION NUT | |
| Repalced by: N 915017022200 | ||
| N 915017022200 | UNION NUT | |
| OIL LINES | ||
| A 3529950448 | CLAMPING PIECE | |
| LINE TO FRAME | ||
| 736 | A 3604660340 | BRACKET |
| LINE TO FRAME | ||
| A 3604660740 | BRACKET | |
| DELIVERY AND SUCTION LINES | ||
| 738 | A 3609950301 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 10 MM | ||
| N 916016010201 | CLAMP | |
| Repalced by: N 916016010211 | ||
| N 916016010211 | CLAMP | |
| Repalced by: N 000000001045 | ||
| N 000000001045 | CLAMP | |
| DELIVERY AND SUCTION LINES | ||
| A 0009954901 | CLAMP | |
| Repalced by: A 3609950701 | ||
| A 3609950701 | CLAMP | |
| Repalced by: N 916016018202 | ||
| N 916016018202 | CLAMP | |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 22 MM | ||
| N 916016022206 | CLAMP | |
| DELIVERY AND SUCTION LINES | ||
| 740 | A 3609950401 | CLAMP |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| 12 MM | ||
| N 000933008212 | SCREW | |
| Repalced by: N 304017008016 | ||
| N 304017008016 | SCREW | |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| N 000933008147 | SCREW | |
| Repalced by: N 304017008021 | ||
| N 304017008021 | SCREW | |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| N 912004008102 | LOCK WASHER | |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| N 304032008006 | NUT | |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| N 000084006197 | SCREW | |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| AM 6X20 | ||
| N 912004006102 | LOCK WASHER | |
| DELIVERY AND SUCTION LINES TO BRACKET | ||
| N 000934006007 | NUT | |
| DELIVERY AND SUCTION LINES TO BRACKET | ||

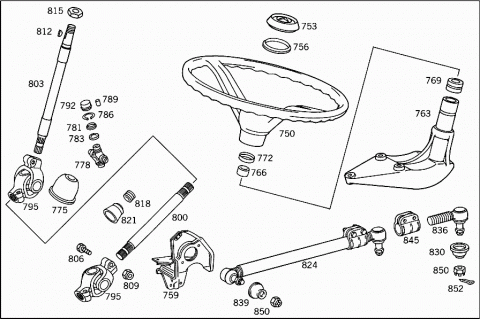

| 750 | A 0004640601 | STEERING WHEEL |
| Repalced by: A 0004641101 | ||
| 750 | A 0004641101 | STEERING WHEEL |
| A 0004641201 | STEERING WHEEL | |
| A 0004640131 | CAP | |
| Repalced by: A 0004641231 | ||
| 753 | A 0004641231 | CAP |
| Repalced by: A 0004642631 | ||
| 753 | A 0004642631 | CAP |
| 756 | A 0004640177 | PROTECTIVE RING |
| 759 | A 3224600935 | BRACKET |
| AT FRAME | ||
| 759 | A 3524600029 | STEERING BRACKET |
| AT FRAME | ||
| A 3604600029 | STEERING BRACKET | |
| AT FRAME | ||
| 759 | A 3224601235 | BRACKET |
| AT FRAME | ||
| 759 | A 3524600129 | STEERING BRACKET |
| AT FRAME | ||
| A 3604600129 | STEERING BRACKET | |
| AT FRAME | ||
| N 910005012007 | RIVET | |
| STEERING BRACKET TO FRAME | ||
| A 0029908201 | SCREW | |
| STEERING BRACKET TO SIDE MEMBER | ||
| A 3229903101 | SCREW | |
| STEERING TO FRAME | ||
| N 000934014020 | NUT | |
| STEERING TO FRAME | ||
| N 000934012023 | NUT | |
| Repalced by: N 308673012002 | ||
| N 308673012002 | NUT | |
| STEERING BRACKET TO SIDE MEMBER | ||
| 763 | A 3434600037 | BEARING |
| Repalced by: A 3434600137 | ||
| 763 | A 3434600137 | BEARING |
| Repalced by: A 3434600237 | ||
| 763 | A 3434600237 | BEARING |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 763 | A 3434600137 | BEARING |
| Repalced by: A 3434600237 | ||
| 763 | A 3434600237 | BEARING |
| 766 | A 3124621150 | BUSHING |
| Repalced by: A 0119815110 | ||
| 766 | A 0119815110 | NEEDLE BEARING |
| 769 | A 3214620165 | RING |
| 772 | A 3224620023 | COVER |
| N 000931010258 | SCREW | |
| STEERING COLUMN BRACKET TO CAB | ||
| M 10X55 | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| STEERING COLUMN BRACKET TO CAB | ||
| M 10X30 | ||
| N 000137010201 | SPRING WASHER | |
| STEERING COLUMN BRACKET TO CAB | ||
| 775 | A 3524620296 | BOOT |
| Repalced by: A 3604620596 | ||
| 775 | A 3604620596 | BOOT |
| UNIVERSAL JOINT,TOP | ||
| A 3274600157 | UNIVERSAL JOINT | |
| Repalced by: A 3524600057 | ||
| 778 | A 1884100231 | UNIVERSAL JOINT CROSS |
| 781 | A 1884110258 | SEAL HOLDER |
| 783 | A 1884110460 | RUBBER RING |
| 786 | A 1104110242 | BEARING BUSHING |
| A 1104110342 | BEARING BUSHING | |
| A 0009811487 | NEEDLE | |
| Repalced by: A 3229810087 | ||
| 789 | A 3229810087 | NEEDLE |
| SET = 192 PIECES | ||
| A 1889940134 | SNAP RING | |
| AS REQUIRED | ||
| 1.55 MM | ||
| A 1889940034 | SNAP RING | |
| AS REQUIRED | ||
| 1.50 MM | ||
| 792 | A 1889940534 | SNAP RING |
| AS REQUIRED | ||
| 1.45 MM | ||
| A 1889940234 | SNAP RING | |
| AS REQUIRED | ||
| 1.60 MM | ||
| A 1889940334 | SNAP RING | |
| AS REQUIRED | ||
| 1.65 MM | ||
| A 1889940434 | SNAP RING | |
| AS REQUIRED | ||
| 1.70 MM | ||
| 795 | A 3524600057 | UNIVERSAL JOINT |
| A 3164600057 | UNIVERSAL JOINT | |
| Repalced by: A 0004600057 | ||
| 795 | A 0004600057 | UNIVERSAL JOINT |
| A 3164600157 | UNIVERSAL JOINT | |
| Repalced by: A 0004600157 | ||
| 795 | A 0004600157 | UNIVERSAL JOINT |
| A 3819900114 | SCREW | |
| UNIVERSAL JOINT TO STEERING COLUMN TUBE | ||
| M 8X42 | ||
| A 4214600457 | UNIVERSAL JOINT | |
| Repalced by: A 3164600057 | ||
| A 3384625101 | STEERING SHAFT | |
| BOTTOM | ||
| A 3604620501 | STEERING SHAFT | |
| BOTTOM | ||
| A 3604621501 | STEERING SHAFT | |
| BOTTOM | ||
| 800 | A 3544625201 | STEERING SHAFT |
| BOTTOM | ||
| A 3604621301 | STEERING SHAFT | |
| BOTTOM | ||
| A 3604622201 | STEERING SHAFT | |
| BOTTOM | ||
| A 3604621201 | STEERING SHAFT | |
| BOTTOM | ||
| A 3604622101 | STEERING SHAFT | |
| BOTTOM | ||
| 803 | A 3354620101 | STEERING SHAFT |
| Repalced by: A 3524620001 | ||
| 803 | A 3524620001 | STEERING SHAFT |
| Repalced by: A 3524623901 | ||
| 803 | A 3524623901 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 803 | A 3524622601 | STEERING SHAFT |
| Repalced by: A 3524623101 | ||
| 803 | A 3524623101 | STEERING SHAFT |
| TOP | ||
| 803 | A 3524621801 | STEERING SHAFT |
| Repalced by: A 3524624101 | ||
| 803 | A 3524624101 | STEERING SHAFT |
| PLEASE REFER TO ADDITIONAL PARTS | ||
| 803 | A 3524622801 | STEERING SHAFT |
| Repalced by: A 3524623601 | ||
| 803 | A 3524623601 | STEERING SHAFT |
| TOP | ||
| A 3219900401 | SCREW | |
| UNIVERSAL JOINT TO STEERING | ||
| M 10X35 | ||
| 806 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING | ||
| M 8X38 | ||
| N 000463010502 | LOCK PLATE | |
| UNIVERSAL JOINT TO STEERING | ||
| 809 | N 910113008001 | NUT |
| UNIVERSAL JOINT TO STEERING | ||
| 812 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 815 | N 000936022002 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| 818 | A 3214620060 | SEAL RING |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 821 | A 3354620096 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| A 3524602105 | DRAG LINK | |
| Repalced by: A 3524602905 | ||
| A 3524602905 | DRAG LINK | |
| Repalced by: A 3524605505 | ||
| 824 | A 3524605505 | DRAG LINK |
| LEMFOERDER | ||
| 824 | A 3524604605 | DRAG LINK |
| EHRENREICH | ||
| 824 | A 3524603305 | DRAG LINK |
| Repalced by: A 3604600205 | ||
| 824 | A 3604600205 | DRAG LINK |
| Repalced by: A 3604602105 | ||
| 824 | A 3604602105 | DRAG LINK |
| LEMFOERDER | ||
| 824 | A 3604600805 | DRAG LINK |
| EHRENREICH | ||
| A 3524602205 | DRAG LINK | |
| Repalced by: A 3524603005 | ||
| A 3524603005 | DRAG LINK | |
| Repalced by: A 3524605805 | ||
| 824 | A 3524605805 | DRAG LINK |
| LEMFOERDER | ||
| 824 | A 3524604705 | DRAG LINK |
| EHRENREICH | ||
| A 3524603405 | DRAG LINK | |
| Repalced by: A 3604600305 | ||
| A 3604600305 | DRAG LINK | |
| Repalced by: A 3604602205 | ||
| 824 | A 3604602205 | DRAG LINK |
| LEMFOERDER | ||
| 824 | A 3604600905 | DRAG LINK |
| EHRENREICH | ||
| 830 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 830 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| 830 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| A 0003300385 | BOOT | |
| Repalced by: A 0003301185 | ||
| A 0003301185 | BOOT | |
| FIXED PART OF JOINT | ||
| A 0003303135 | JOINT | |
| Repalced by: A 0013300335 | ||
| 836 | A 0013300335 | JOINT |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 836 | A 0013300435 | JOINT |
| ADJUSTABLE | ||
| EHRENREICH | ||
| 836 | A 0003301435 | JOINT |
| Repalced by: A 0003309335 | ||
| 836 | A 0003309335 | JOINT |
| R.H. THREAD | ||
| LEMFOERDER | ||
| 836 | A 0003309535 | JOINT |
| R.H. THREAD | ||
| EHRENREICH | ||
| A 0003300385 | BOOT | |
| Repalced by: A 0003301185 | ||
| A 0003301185 | BOOT | |
| 839 | A 0003300285 | BOOT |
| Repalced by: A 0003300885 | ||
| 839 | A 0003300885 | BOOT |
| A 0003381445 | CLAMP | |
| Repalced by: A 0003380645 | ||
| 845 | A 0003380645 | CLAMP |
| CLAMP, TWO-HOLE | ||
| 845 | A 0003382245 | CLAMP |
| Repalced by: A 0009954944 | ||
| 845 | A 0009954944 | CLAMP |
| CLAMP, TWO-HOLE | ||
| 845 | A 0003382645 | CLAMP |
| CLAMP, ONE-HOLE | ||
| LEMFOERDER | ||
| A 0003383545 | CLAMP | |
| Repalced by: A 0003382645 | ||
| 845 | A 0003382645 | CLAMP |
| CLAMP, ONE-HOLE | ||
| EHRENREICH | ||
| N 000960012197 | SCREW | |
| Repalced by: N 000960012384 | ||
| N 000960012384 | SCREW | |
| CLAMP, TWO-HOLE | ||
| N 000960012077 | SCREW | |
| Repalced by: N 308676012017 | ||
| N 308676012017 | SCREW | |
| CLAMP, ONE-HOLE | ||
| N 000935012008 | NUT | |
| CLAMP, TWO-HOLE | ||
| N 000935012008 | NUT | |
| CLAMP, ONE-HOLE | ||
| N 000094003226 | COTTER PIN | |
| CLAMP TO DRAG LINK | ||
| 850 | N 000937018003 | NUT |
| DRAG LINK TO LEVER | ||
| 852 | N 000094004065 | COTTER PIN |
| DRAG LINK TO LEVER | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
