Transporto priemonė: LK 1218; VIN numerio dalis: 694042

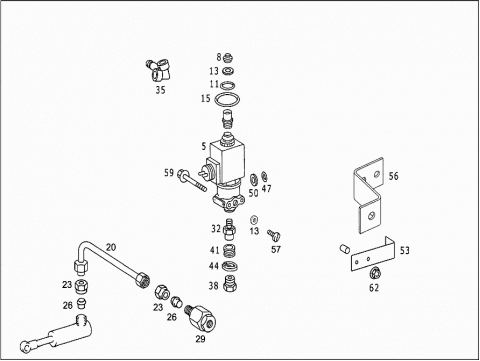

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0039975336 | VALVE |
| Repalced by: A 0049979036 | ||
| 005 | A 0049979036 | VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| "WABCO" | ||
| Repalced by: A 0009973512 | ||
| 005 | A 0009973512 | 3-2-WAY PNEUMATIC VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| "WABCO" | ||
| 005 | A 0049979036 | VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| "WABCO" | ||
| 005 | A 0009973512 | 3-2-WAY PNEUMATIC VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| "WABCO" | ||
| 005 | A 0009973512 | 3-2-WAY PNEUMATIC VALVE |
| (3/2-WAY SOLENOID VALVE) | ||
| "WABCO" | ||
| 008 | A 0014310087 | PROTECTIVE CAP |
| "WABCO" | ||
| 008 | A 0014310087 | PROTECTIVE CAP |
| "WABCO" | ||
| 011 | A 0079970248 | SEAL RING |
| "WABCO" | ||
| 011 | A 0079970248 | SEAL RING |
| "WABCO" | ||
| 013 | N 007603006106 | SEALING RING |
| "WABCO" | ||
| 013 | N 007603006106 | SEALING RING |
| "WABCO" | ||
| 015 | A 0149970048 | SEAL RING |
| "WABCO" | ||
| 015 | A 0149970048 | SEAL RING |
| "WABCO" | ||
| 020 | A 6944200726 | LINE |
| FROM SPRING LOAD ACCUMULATOR TO DOUBLE FITTING | ||
| 023 | N 915017006100 | UNION NUT |
| 026 | N 003861006007 | GLAND |
| 029 | A 4571400153 | THROTTLE HOUSING |
| EXHAUST BRAKE | ||
| 032 | A 0059978972 | FITTING |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "1,2" / M12X1,5 / M16X1,5 | ||
| 032 | A 0059978972 | FITTING |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "1,2" / M12X1,5 / M16X1,5 | ||
| 035 | A 0059979872 | FITTING |
| TO M16 / M16X1,5 / M16X1,5/ VOSS 230 | ||
| 035 | A 0059979872 | FITTING |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "2"/TO M16/ M16X1,5/ M16X1,5/ VOSS 230 | ||
| 035 | A 0059979872 | FITTING |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "2"/TO M16/ M16X1,5/ M16X1,5/ VOSS 230 | ||
| 038 | A 0009970834 | UNION SCREW |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "1,2" / M 16X1,5 / VOSS 230 | ||
| 038 | A 0009974734 | UNION SCREW |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "1,2" / M 16X1,5 / VOSS 232 | ||
| 041 | A 0009940047 | SEAL RING |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "1,2" / TO M16 / VOSS 230 | ||
| 041 | A 0009940047 | SEAL RING |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "2" / TO M16 / VOSS 230 | ||
| 044 | A 0009941248 | RETAINING CLAMP |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "1,2" / TO M 16 / VOSS 230 | ||
| 044 | A 0009941248 | RETAINING CLAMP |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "2" / TO M 16 / VOSS 230 | ||
| 047 | A 0019875046 | SEAL RING |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "1,2" | ||
| 047 | A 0019875046 | SEAL RING |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "1,2" | ||
| 050 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 050 | A 0009940103 | THRUST RING |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "1,2" | ||
| 050 | A 0009940103 | THRUST RING |
| 3/2-WAY SOLENOID VALVE,CONNECTIONS: | ||
| "1,2" | ||
| 053 | A 3864297940 | BRACKET |
| SOLENOID VALVE | ||
| 056 | A 9794290240 | BRACKET |
| SOLENOID VALVE | ||
| 056 | A 9794290240 | BRACKET |
| SOLENOID VALVE | ||
| 059 | N 910105008006 | SCREW |
| SOLENOID VALVE TO BRACKET | ||
| 059 | N 910105008045 | SCREW |
| SOLENOID VALVE TO BRACKET | ||
| 059 | N 910105008045 | HEXAGON HEAD BOLT |
| SOLENOID VALVE TO BRACKET | ||
| 059 | N 910105012007 | SCREW |
| THREE-WAY VALVE TO SIDE MEMBER | ||
| 062 | N 913023008003 | NUT |
| SOLENOID VALVE TO BRACKET | ||
| 062 | N 913023008003 | NUT |
| SOLENOID VALVE TO BRACKET | ||
| 062 | N 913023012002 | NUT |
| THREE-WAY VALVE TO SIDE MEMBER | ||
| A 0059976340 | SEAL RING | |
| TO LOCK SOLENOID VALVE | ||
| A 0059976340 | SEAL RING | |
| A 0019846329 | HEXALOBULAR BOLT | |
| TO LOCK SOLENOID VALVE | ||
| A 0019846329 | HEXALOBULAR BOLT | |
| TO LOCK SOLENOID VALVE | ||
