Transporto priemonė: LK 1218; VIN numerio dalis: 694042

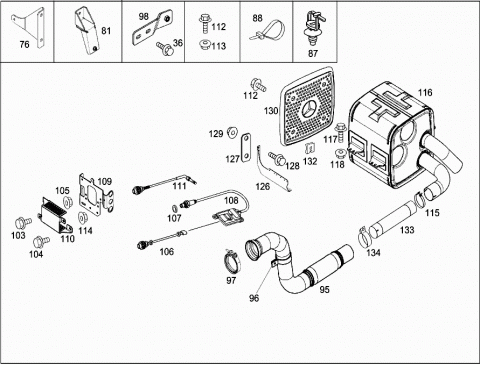

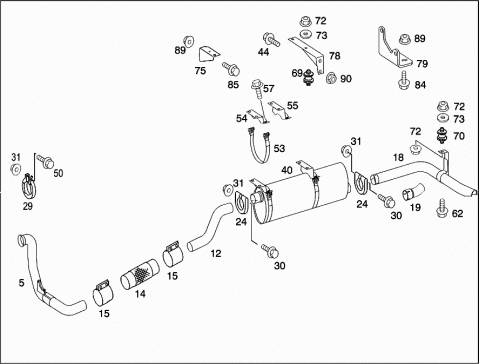

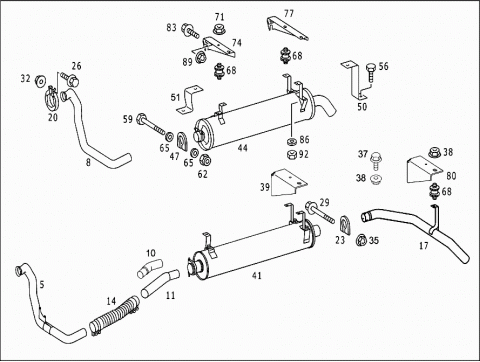

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| A 9794920039 | STOP | |
| 005 | A 6954900319 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6934900319 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6934900319 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6954900319 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 6954900719 | EXHAUST PIPE |
| FRONT | ||
| 010 | A 6934920004 | REAR EXHAUST PIPE |
| CENTRAL | ||
| 011 | A 6954920004 | REAR EXHAUST PIPE |
| CENTRAL | ||
| 012 | A 6944920004 | REAR EXHAUST PIPE |
| CENTRAL | ||
| 012 | A 6944920104 | REAR EXHAUST PIPE |
| CENTRAL | ||
| 012 | A 6954921204 | REAR EXHAUST PIPE |
| CENTRAL | ||
| 014 | A 9704900265 | FLEXIBLE METAL TUBE |
| Repalced by: A 9794900065 | ||
| 014 | A 9794900065 | FLEXIBLE METAL TUBE |
| CENTRAL EXHAUST PIPE | ||
| 014 | A 9794900065 | FLEXIBLE METAL TUBE |
| CENTRAL EXHAUST PIPE | ||
| 014 | A 9794900065 | FLEXIBLE METAL TUBE |
| CENTRAL EXHAUST PIPE | ||
| 015 | A 9704920140 | CLAMP |
| Repalced by: A 9794920540 | ||
| 015 | A 9794920540 | CLAMP |
| CENTRAL EXHAUST PIPE | ||
| 015 | A 9794920540 | CLAMP |
| CENTRAL EXHAUST PIPE | ||
| 015 | A 9794920540 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 015 | A 9794920540 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 017 | A 6954900035 | BRACKET |
| REAR | ||
| 018 | A 6954900435 | REAR EXHAUST PIPE |
| REAR EXHAUST PIPE TO BRACKET | ||
| 019 | A 6954921304 | REAR EXHAUST PIPE |
| REAR LEFT EXHAUST PIPE | ||
| 020 | A 6209970490 | LOOM TIE |
| EXHAUST PIPE TO FLANGED ELBOW | ||
| 023 | A 6734920140 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 75,5 MM | ||
| 023 | A 6734920140 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 75,5 MM | ||
| 024 | A 6744920040 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 026 | N 910105008010 | SCREW |
| EXHAUST PIPE TO FLANGED ELBOW | ||
| M 8X40 | ||
| 029 | N 910105008046 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8 X 110 | ||
| 029 | N 910105008046 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO MUFFLER | ||
| M 8 X 110 | ||
| 030 | N 910105008061 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO MUFFLER | ||
| M8X130 | ||
| 031 | N 913023008003 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| M8 | ||
| 032 | N 913023008003 | NUT |
| EXHAUST PIPE TO FLANGED ELBOW | ||
| 035 | N 913023008003 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 035 | N 913023008003 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 036 | N 910105008011 | HEXAGON HEAD BOLT |
| 037 | N 910105010011 | HEXAGON HEAD BOLT |
| EXHAUST PIPE TO BRACKET | ||
| 038 | N 910112010001 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 038 | N 913023010002 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 039 | A 6884917541 | BRACKET |
| EXHAUST PIPE TO BRACKET | ||
| 039 | A 6954920941 | BRACKET |
| EXHAUST PIPE TO BRACKET | ||
| 040 | A 6954900401 | EXHAUST MUFFLER |
| 040 | A 3844900501 | EXHAUST MUFFLER |
| 041 | A 6884908201 | EXHAUST MUFFLER |
| 044 | A 6934907101 | EXHAUST MUFFLER |
| 047 | A 6734920140 | CLAMP |
| AT MUFFLER | ||
| 75,5 MM - TO6934907101/A6884908201 | ||
| 050 | A 6884917916 | SUPPORT |
| AT MUFFLER | ||
| 051 | A 6884917816 | SUPPORT |
| AT MUFFLER | ||
| 053 | A 0004900142 | STRAP |
| AT MUFFLER | ||
| TO A 695 490 04 01 / 05 01 | ||
| 054 | A 0004910042 | BRACKET |
| AT MUFFLER | ||
| TO A 695 490 04 01 / 05 01 | ||
| 055 | A 0004910142 | BRACKET |
| AT MUFFLER | ||
| TO A 695 490 04 01 | ||
| 056 | N 000933010294 | SCREW |
| AT MUFFLER | ||
| M 10X20 | ||
| 057 | N 910105008019 | SCREW |
| AT MUFFLER | ||
| M8X50 | ||
| 059 | N 000931008390 | SCREW |
| AT MUFFLER | ||
| M8X110 | ||
| 062 | N 913004008007 | NUT |
| AT MUFFLER | ||
| 065 | A 6089900640 | WASHER |
| AT MUFFLER | ||
| 068 | A 0019873140 | RUBBER BUFFER |
| EXHAUST MUFFLER TO SUPPORT | ||
| 069 | A 3749877139 | RUBBER BUFFER |
| EXHAUST MUFFLER TO SUPPORT | ||
| TO A 695 490 04 01 | ||
| 069 | A 3749877139 | RUBBER BUFFER |
| EXHAUST MUFFLER TO SUPPORT | ||
| TO A 384 490 05 01 | ||
| 070 | A 3749877139 | RUBBER BUFFER |
| REAR EXHAUST PIPE TO BRACKET | ||
| TO A 695 490 04 35 | ||
| 071 | N 910112010001 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 072 | N 910112010001 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 072 | N 913023010002 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| M10 | ||
| 072 | N 913023010002 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| M10 | ||
| 072 | N 913023010002 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| M10 | ||
| 073 | N 009021010102 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 10,5 | ||
| 073 | N 009021010102 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 10,5 | ||
| 073 | N 009021010102 | WASHER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 10,5 | ||
| 074 | A 6934917341 | BRACKET |
| EXHAUST MUFFLER | ||
| 075 | A 6884917541 | BRACKET |
| 076 | A 6954922441 | BRACKET |
| 076 | A 6954922541 | BRACKET |
| 077 | A 6934917441 | BRACKET |
| EXHAUST MUFFLER | ||
| 077 | A 6934900540 | BRACKET |
| EXHAUST MUFFLER | ||
| 078 | A 6954900140 | BRACKET |
| 078 | A 6954900140 | BRACKET |
| 079 | A 6954920841 | BRACKET |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 080 | A 6934917841 | BRACKET |
| Repalced by: A 6884917541 | ||
| 080 | A 6884917541 | BRACKET |
| EXHAUST MUFFLER | ||
| 081 | A 6954901240 | BRACKET |
| 083 | N 910105010007 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 084 | N 910105010011 | HEXAGON HEAD BOLT |
| BRACKET TO SIDE MEMBER | ||
| M 10X40 | ||
| 085 | N 910105010001 | SCREW |
| M 10X30 | ||
| 086 | N 000125010517 | WASHER |
| EXHAUST MUFFLER TO BRACKET | ||
| 087 | A 0059976190 | CABLE TIE |
| 088 | A 3459977390 | LOOM TIE |
| 089 | N 913023010002 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 089 | N 913023010002 | NUT |
| 089 | N 913023010002 | NUT |
| 090 | N 913023012002 | NUT |
| M12X1,5 | ||
| 090 | N 913023012002 | NUT |
| M12X1,5 | ||
| 092 | N 000934010005 | NUT |
| EXHAUST MUFFLER TO BRACKET | ||
| 095 | A 6944900119 | EXHAUST GAS LINE |
| EXHAUST MUFFLER TO BRACKET | ||
| 096 | A 9794920140 | CLAMP |
| EXHAUST MUFFLER TO BRACKET | ||
| 097 | A 6959970090 | PIPE-HOSE CONNECTOR |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 098 | A 6944900040 | BRACKET |
| 103 | N 910105008041 | HEXAGON HEAD BOLT |
| M8 X 16 | ||
| 104 | N 910105008026 | HEXAGON HEAD BOLT |
| M8 X 20 | ||
| 105 | N 000000003175 | NUT |
| M8 | ||
| 106 | A 0001507133 | ELECTRIC CABLE |
| Repalced by: A 0001506933 | ||
| 106 | A 0001506933 | ELECTRIC CABLE |
| 107 | A 0005460522 | CLAMPING RING |
| 108 | A 0061537328 | CONTROL UNIT |
| Repalced by: A 0091533628 | ||
| 108 | A 0091533628 | NOX SENSOR |
| 109 | A 9584751640 | BRACKET |
| 110 | A 9584750184 | BASE |
| 111 | A 0061530528 | SENDER UNIT |
| Repalced by: A 0061530628 | ||
| 111 | A 0061530628 | SENDER UNIT |
| TEMPERATURE SENSOR,UPSTREAM OFCATALYTIC CONVERTER | ||
| 111 | A 0061530728 | SENDER UNIT |
| TEMPERATURE SENSOR,DOWNSTREAM OFCATALYTIC CONVERTER | ||
| 112 | N 910105006004 | HEXAGON HEAD BOLT |
| M6 X 16 | ||
| 112 | N 910105010011 | HEXAGON HEAD BOLT |
| CLAMP MOUNTING | ||
| 112 | N 910105010009 | HEXAGON HEAD BOLT |
| M10 X 25 | ||
| 112 | N 910105008016 | HEXAGON HEAD BOLT |
| CLAMP MOUNTING | ||
| 113 | N 000000003477 | NUT |
| M6 | ||
| 113 | N 913023010002 | NUT |
| M10 | ||
| 114 | N 000000003175 | NUT |
| M8 | ||
| 115 | A 0009956202 | CLAMP |
| MA:55+8-8 | ||
| 115 | A 0009956202 | CLAMP |
| MA:55+8-8 | ||
| 116 | A 9584900314 | REDUCT. CATALYST CONV. |
| 117 | N 910105010001 | HEXAGON HEAD BOLT |
| M10 X 30 | ||
| 118 | N 913023010002 | NUT |
| M10 | ||
| 126 | A 6954920216 | BEAM |
| AT LEFT BRACKET | ||
| 126 | A 6954920416 | BEAM |
| AT RIGHT BRACKET | ||
| 127 | A 6954910018 | BASE PLATE |
| 128 | N 000000005721 | HEXAGON HEAD BOLT |
| M14X1.5X60 | ||
| 129 | N 000000005662 | NUT |
| M14 X 1,5 | ||
| 130 | A 6964917130 | PROTECTIVE PLATE |
| HEAT SHIELD TO LEFT SIDE MEMBER | ||
| 132 | A 0049941745 | SPRING NUT |
| PROTECTIVE PLATE TO EXHAUST MUFFLER | ||
| 133 | A 6944920101 | EXHAUST GAS LINE FRONT |
| 134 | A 9584920040 | CLAMP |
