Transporto priemonė: LK 1218; VIN numerio dalis: 694042

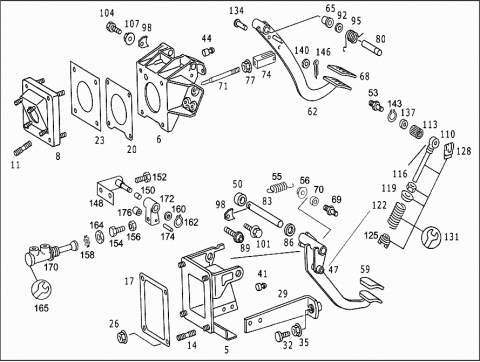

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6882940201 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 005 | A 6952940101 | PEDAL BEARING BRACKET |
| CLUTCH PEDAL | ||
| 006 | A 3842947001 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 008 | A 3844307010 | BRACKET |
| BRAKE VALVE | ||
| 008 | A 3844307210 | BRACKET |
| BRAKE VALVE | ||
| 011 | A 6732940370 | STUD |
| 011 | N 000835008086 | STUD |
| M 8X25 | ||
| 014 | A 6882920070 | STUD |
| CLUTCH PEDAL BEARING BRACKET | ||
| 014 | A 6882920170 | STUD |
| CLUTCH PEDAL BEARING BRACKET | ||
| 017 | A 6452940280 | GASKET |
| CLUTCH PEDAL BEARING BRACKET | ||
| 020 | A 3842947080 | GASKET |
| BRAKE PEDAL BEARING BRACKET TO CAB | ||
| 023 | A 6884310080 | GASKET |
| BRACKET TO BEARING BRACKET | ||
| 026 | N 910112008000 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 029 | A 3842907032 | STOP |
| CLUTCH PEDAL | ||
| 032 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| M8 | ||
| 035 | N 910112008000 | NUT |
| STOP TO BEARING BRACKET | ||
| 035 | N 000934008008 | NUT |
| STOP TO BEARING BRACKET | ||
| 041 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 041 | A 6882917186 | STOP |
| CLUTCH PEDAL | ||
| 044 | A 6882917386 | STOP |
| BRAKE PEDAL | ||
| 047 | A 6882900216 | PEDAL |
| CLUTCH | ||
| 047 | A 6952900316 | CLUTCH PEDAL |
| CLUTCH | ||
| 047 | A 6952907216 | PEDAL |
| CLUTCH | ||
| 047 | A 6952901116 | CLUTCH PEDAL |
| CLUTCH | ||
| 050 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 050 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 053 | A 6882910074 | PIN |
| CLUTCH PEDAL | ||
| 39 MM (M10) | ||
| 053 | A 3862917074 | PIN |
| CLUTCH PEDAL | ||
| 055 | A 6939930010 | SPRING |
| CLUTCH PEDAL | ||
| Repalced by: A 6939930110 | ||
| 055 | A 6939930110 | COMPENSATING SPRING |
| CLUTCH PEDAL | ||
| 056 | N 913002010001 | NUT |
| CLUTCH PEDAL | ||
| 059 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 062 | A 3842907018 | PEDAL |
| BRAKE | ||
| 065 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 068 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 069 | A 6959910015 | HEADED PIN |
| ENGINE SHUT-OFF VALVE TO INSTRUMENT PANEL | ||
| 070 | N 000000001044 | WASHER |
| ENGINE SHUT-OFF VALVE TO INSTRUMENT PANEL | ||
| 071 | A 3842927032 | ROD |
| BRAKE ACTUATION | ||
| 074 | A 3849967001 | YOKE |
| BRAKE ACTUATION | ||
| 077 | N 910112012001 | NUT |
| BRAKE ACTUATION | ||
| 080 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 083 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 086 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 089 | N 000000001146 | HEXALOBULAR BOLT |
| 092 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 095 | A 3849937020 | SPRING |
| BRAKE PEDAL | ||
| 098 | A 6732920073 | LOCK |
| PEDAL TO BEARING BRACKET | ||
| 101 | N 910105006002 | SCREW |
| LOCK TO BRAKE PEDAL BEARING BRACKET | ||
| M 6X12 | ||
| 104 | N 000000001147 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 104 | N 000000001147 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| M 6X20 | ||
| 107 | N 913023006002 | NUT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 107 | N 913023006002 | NUT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 110 | A 3822908419 | ROD |
| CLUTCH PEDAL | ||
| 113 | A 0059814410 | NEEDLE BEARING |
| 113 | A 0059813810 | NEEDLE BEARING |
| 113 | A 0089811210 | NEEDLE BEARING |
| 113 | A 0139818210 | NEEDLE BEARING |
| 116 | N 000439010221 | NUT |
| SPRING TO PUSH ROD | ||
| 119 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 119 | A 6732910291 | SPRING RETAINER |
| TOP | ||
| 122 | A 3889937001 | SPRING |
| CLUTCH PEDAL RESET | ||
| 122 | A 3869937001 | SPRING |
| CLUTCH PEDAL RESET | ||
| 122 | A 3819930601 | SPRING |
| CLUTCH PEDAL RESET | ||
| 122 | A 6882917092 | SPRING |
| CLUTCH PEDAL RESET | ||
| 125 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 128 | A 6459880178 | CLIP |
| 131 | A 3822900093 | SPRING |
| PARTS KIT | ||
| 134 | A 3529910007 | PIN |
| ROD TO BRAKE PEDAL | ||
| 137 | N 001440008002 | WASHER |
| PUSH ROD TO CLUTCH PEDAL | ||
| 140 | N 000433010504 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 143 | N 000471008001 | LOCK RING |
| PUSH ROD TO CLUTCH PEDAL | ||
| 146 | N 000094003207 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| 148 | A 3882607162 | BRACKET |
| ROD TO BRAKE PEDAL | ||
| 150 | A 3502677050 | BUSHING |
| ROD TO BRAKE PEDAL | ||
| 150 | A 3524340350 | BUSHING |
| ROD TO BRAKE PEDAL | ||
| 152 | N 910105006002 | HEXAGON HEAD BOLT |
| ROD TO BRAKE PEDAL | ||
| 154 | A 3529902101 | SCREW |
| ROD TO BRAKE PEDAL | ||
| 156 | N 910112008000 | NUT |
| ROD TO BRAKE PEDAL | ||
| 158 | N 006798028200 | SERRATED WASHER |
| ROD TO BRAKE PEDAL | ||
| 160 | N 000125010513 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 162 | N 000471010000 | RETAINING RING |
| ROD TO BRAKE PEDAL | ||
| 164 | N 080705026000 | NUT |
| ROD TO BRAKE PEDAL | ||
| 165 | A 0004304106 | REPAIR KIT |
| TO A0004342901 | ||
| 165 | A 0034301281 | REPAIR KIT |
| TO A3454347401 | ||
| 170 | A 0004342901 | VALVE |
| ROD TO BRAKE PEDAL | ||
| 170 | A 3454347401 | VALVE |
| ROD TO BRAKE PEDAL | ||
| 170 | A 0004342201 | VALVE |
| ROD TO BRAKE PEDAL | ||
| 172 | A 3454300123 | LEVER |
| OPERATING VALVE SETTING | ||
| 174 | N 007341005108 | RIVET |
| ROD TO BRAKE PEDAL | ||
| 176 | A 3604300050 | ROLLER |
| ROD TO BRAKE PEDAL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/360 | ||
