Transporto priemonė: LK 1516; VIN numerio dalis: 345332
Grupė: 49 EXHAUST SYSTEM

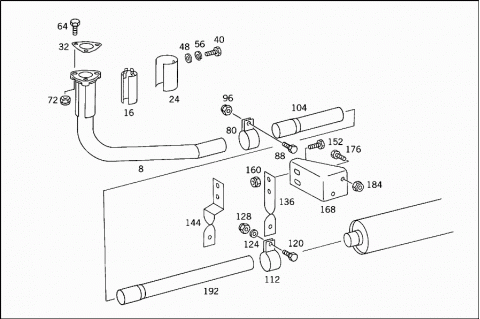

59521

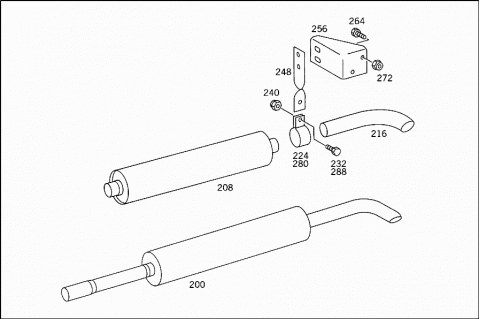

59522
# Kodas Pavadinimas
008 A 3454907719 EXHAUST PIPE
FRONT
008 A 3454908219 EXHAUST PIPE
FRONT
008 A 3454908819 EXHAUST PIPE
FRONT
008 A 3454907219 EXHAUST PIPE
FRONT
008 A 3454908319 EXHAUST PIPE
FRONT
008 A 3454909319 EXHAUST PIPE
FRONT
016 A 3454907530 PROTECTIVE PLATE
016 A 3024900030 PROTECTIVE PLATE
024 A 3224920530 PROTECTIVE PLATE
032 A 3124921080 FLANGE GASKET
Repalced by: A 4424920280
032 A 4424920280 FLANGE GASKET
FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
032 A 3214920080 FLANGE GASKET
Repalced by: A 3444920080
032 A 3444920080 FLANGE GASKET
040 N 000933006223 SCREW
HEAT SHIELD MOUNTING
048 N 000125006420 WASHER
HEAT SHIELD MOUNTING
056 N 000127006203 LOCK WASHER
HEAT SHIELD MOUNTING
064 N 000931010264 SCREW
FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
064 N 000931012253 SCREW
064 N 000931010422 SCREW
FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
072 A 3459900151 NUT
Repalced by: N 913004010000
072 N 913004010000 NUT
FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
072 A 3459900251 NUT
Repalced by: N 913004012010
072 N 913004012010 NUT
FRONT EXHAUST PIPE TO EXHAUST MANIFOLD
080 A 3274920040 CLAMP
Repalced by: N 071555063500
080 N 071555063500 CLAMP
080 N 071555075500 CLAMP
088 N 000933008288 SCREW
088 N 000933010269 SCREW
096 N 913004008001 NUT
096 N 913004010004 NUT
104 A 3454927007 CONNECTOR
FRONT
104 A 3604920107 CONNECTOR
112 N 071555065500 CLAMP
112 N 071555063500 CLAMP
112 N 071555075500 CLAMP
CLAMP TO BRACKET AND TO PIPE
120 N 000933008288 SCREW
CLAMP TO BRACKET AND TO PIPE
120 N 000933008288 SCREW
CLAMP TO BRACKET AND TO PIPE
120 N 000933008273 SCREW
CLAMP TO BRACKET AND TO PIPE
120 N 000933010129 SCREW
CLAMP TO BRACKET AND TO PIPE
124 N 000125008417 WASHER
CLAMP TO BRACKET AND TO PIPE
128 N 913004008001 NUT
128 N 913004010004 NUT
CLAMP TO BRACKET AND TO PIPE
136 A 3224921819 BRACKET
Repalced by: A 3454927341
136 A 3454927341 BRACKET
136 A 3454927341 BRACKET
144 A 3454928341 BRACKET
152 N 000933008288 SCREW
BRACKET TO SUPPORT
160 N 913004008001 NUT
BRACKET TO SUPPORT
168 A 3604910016 SUPPORT
Repalced by: A 3454920016
168 A 3454920016 SUPPORT
176 N 000933008282 SCREW
EXHAUST PIPE
176 N 000933008282 SCREW
EXHAUST PIPE
176 N 000933008282 SCREW
EXHAUST PIPE
184 N 913004008001 NUT
EXHAUST PIPE
184 N 913004008001 NUT
EXHAUST PIPE
192 A 3454929101 FRONT EXHAUST PIPE
192 A 3454927302 FRONT EXHAUST PIPE
200 H 983454900115 EXHAUST MUFFLER WITH PIPE
Repalced by: A 3454907515
200 A 3454907515 EXHAUST MUFFLER WITH PIPE
200 A 3454908415 EXHAUST MUFFLER WITH PIPE
200 A 3454908815 EXHAUST MUFFLER WITH PIPE
208 A 3224900201 EXHAUST MUFFLER
Repalced by: A 3454907101
208 A 3444907301 EXHAUST MUFFLER
Repalced by: A 3454907101
208 A 3444907501 EXHAUST MUFFLER
Repalced by: A 3454907101
208 A 3454907101 EXHAUST MUFFLER
208 A 3604900001 EXHAUST MUFFLER
208 A 3454907801 EXHAUST MUFFLER
H 983454900215 EXHAUST MUFFLER WITH PIPE
Repalced by: A 3454907601
A 3454908515 EXHAUST MUFFLER WITH PIPE
Repalced by: A 3604900001
216 A 3454927904 REAR EXHAUST PIPE
224 N 071555063500 CLAMP
232 N 000933008282 SCREW
M 8X20
240 N 913004008001 NUT
248 A 3224921819 BRACKET
Repalced by: A 3454927341
248 A 3454927341 BRACKET
256 A 3604910016 SUPPORT
Repalced by: A 3454920016
256 A 3454920016 SUPPORT
EXHAUST PIPE
256 A 3454917316 SUPPORT
EXHAUST PIPE
264 N 000933008288 SCREW
SUPPORT TO SIDE MEMBER
264 N 000933008273 SCREW
SUPPORT TO SIDE MEMBER
272 N 913004008001 NUT
SUPPORT TO SIDE MEMBER
280 N 071555060500 CLAMP
288 N 000933008282 SCREW
