Transporto priemonė: LK 1516; VIN numerio dalis: 345332

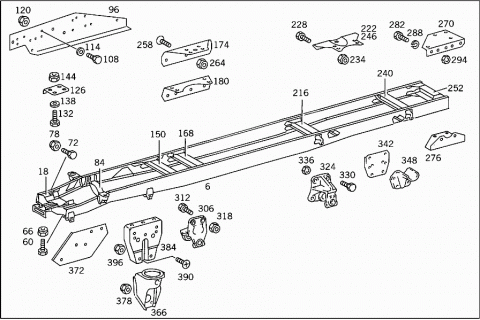

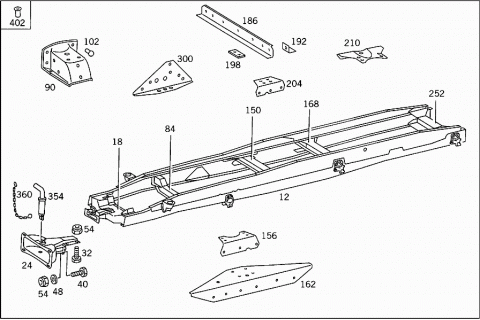

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3453108901 | FRAME |
| 006 | A 3453108000 | FRAME |
| Repalced by: A 3453109005 | ||
| 006 | A 3453109005 | FRAME |
| 006 | A 3453105102 | FRAME |
| 006 | A 3453100501 | FRAME |
| Repalced by: A 3453107203 | ||
| 006 | A 3453107203 | FRAME |
| 006 | A 3453109805 | FRAME |
| 012 | A 3453100901 | FRAME |
| 012 | A 3453107096 | FRAME |
| 012 | A 3453100301 | FRAME |
| Repalced by: A 3453107303 | ||
| 012 | A 3453107303 | FRAME |
| 012 | A 3453109605 | FRAME |
| Repalced by: A 3453109905 | ||
| 012 | A 3453109905 | FRAME |
| 012 | A 3453100401 | FRAME |
| Repalced by: A 3453107103 | ||
| 012 | A 3453107103 | FRAME |
| 012 | A 3453109705 | FRAME |
| 012 | A 3453102001 | FRAME |
| A 3453108605 | FRAME | |
| 012 | A 3453109905 | FRAME |
| 018 | A 3453100026 | ENGINE CROSS MEMBER |
| NO.1 | ||
| 018 | A 3453100226 | ENGINE CROSS MEMBER |
| NO.1 | ||
| 018 | A 3453107626 | ENGINE CROSS MEMBER |
| NO.1 | ||
| 024 | A 3523100109 | BRACKET |
| Repalced by: A 3453107109 | ||
| 024 | A 3453107109 | BRACKET |
| WITH COUPLING MOUTH | ||
| 024 | A 3453100309 | BRACKET |
| WITH COUPLING MOUTH | ||
| 024 | A 3453100209 | BRACKET |
| WITH COUPLING MOUTH | ||
| 032 | N 000933010294 | SCREW |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| M 10X20 | ||
| 040 | N 000933010174 | SCREW |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| M 10X25 | ||
| 040 | N 000961012020 | SCREW |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| M 12X30 | ||
| 048 | N 007349010001 | WASHER |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| 048 | A 3609900040 | WASHER |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| 054 | N 913004010004 | NUT |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| 054 | N 913004012003 | NUT |
| BRACKET WITH COUPLING MOUTH TO CROSS MEMBER | ||
| 060 | N 000933010174 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X25 | ||
| 060 | N 000933010129 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 10X30 | ||
| 066 | N 913004010004 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 072 | N 000961012154 | SCREW |
| CROSS MEMBER TO SIDE MEMBERS | ||
| M 12X1,5X28 | ||
| 078 | N 913004012003 | NUT |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 084 | A 3603100028 | ENGINE CROSS MEMBER |
| NO.2 | ||
| 084 | A 3453127007 | ENGINE CROSS MEMBER |
| REAR | ||
| 090 | A 3603130008 | STAY |
| (ENGINE CROSS MEMBER),REAR | ||
| 096 | A 3763111051 | TRUSS |
| LEFT SIDE MEMBER | ||
| 096 | A 3763111151 | TRUSS |
| RIGHT SIDE MEMBER | ||
| 102 | A 0009900693 | RIVET |
| 108 | N 000961012171 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 114 | N 000125013012 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 120 | N 913004012003 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 126 | A 3453127084 | SHIM |
| CROSS MEMBER TO CONSOLE | ||
| 132 | N 000961012106 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| 138 | N 000125013012 | WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 144 | N 913004012003 | NUT |
| CROSS MEMBER TO CONSOLE | ||
| 150 | A 3603120015 | CROSS MEMBER |
| Repalced by: A 3453127115 | ||
| 150 | A 3453127115 | CROSS MEMBER |
| NO.3 | ||
| 150 | A 3453127115 | CROSS MEMBER |
| NO.3 | ||
| 150 | A 3453127215 | CROSS MEMBER |
| NO.3 | ||
| 150 | A 3453120115 | CROSS MEMBER |
| A 3523120552 | ANGLE | |
| 156 | A 3453128752 | ANGLE |
| 156 | A 3453128852 | ANGLE |
| A 3453120052 | ANGLE | |
| LEFT | ||
| 162 | A 3453128452 | ANGLE |
| LEFT | ||
| A 3453120152 | ANGLE | |
| RIGHT | ||
| 162 | A 3453128552 | ANGLE |
| RIGHT | ||
| 168 | A 3603120015 | CROSS MEMBER |
| Repalced by: A 3453127115 | ||
| 168 | A 3453127115 | CROSS MEMBER |
| NO.4 | ||
| 168 | A 3453100036 | CROSS MEMBER |
| Repalced by: A 3453127115 | ||
| 168 | A 3453107336 | CROSS MEMBER |
| Repalced by: A 3453127115 | ||
| 168 | A 3453107236 | CROSS MEMBER |
| Repalced by: A 3453127115 | ||
| 168 | A 3603120017 | CROSS MEMBER |
| Repalced by: A 3453127317 | ||
| 168 | A 3453127317 | CROSS MEMBER |
| NO.4 | ||
| 174 | A 3523120052 | ANGLE |
| TOP | ||
| 174 | A 3523120452 | ANGLE |
| TOP | ||
| 180 | A 3523120552 | ANGLE |
| BOTTOM | ||
| 186 | A 3213120027 | CROSS MEMBER |
| TRANSFER CASE | ||
| 186 | A 3453127227 | CROSS MEMBER |
| TO TRANSFER CASE | ||
| 186 | A 3453127127 | CROSS MEMBER |
| TO TRANSFER CASE | ||
| 192 | A 3123122752 | ANGLE |
| TRANSFER CASE | ||
| 198 | A 3122851384 | SHIM |
| 204 | A 3453127252 | ANGLE |
| 210 | A 3523120260 | REINFORCEMENT |
| Repalced by: A 3453127360 | ||
| 210 | A 3453127360 | REINFORCEMENT |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 383 312 03 60 | ||
| A 3524000039 | BRACKET | |
| SPARE WHEEL MOUNTING | ||
| 216 | A 3603120017 | CROSS MEMBER |
| Repalced by: A 3453127317 | ||
| 216 | A 3453127317 | CROSS MEMBER |
| NO.5 | ||
| 222 | A 3523120260 | REINFORCEMENT |
| Repalced by: A 3453127360 | ||
| 222 | A 3453127360 | REINFORCEMENT |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 383 312 03 60 | ||
| 228 | N 000933010129 | SCREW |
| STAY TO CROSS MEMBER | ||
| M 10X30 | ||
| 234 | N 913004010006 | NUT |
| STAY TO CROSS MEMBER | ||
| 240 | A 3603120017 | CROSS MEMBER |
| Repalced by: A 3453127317 | ||
| 240 | A 3453127317 | CROSS MEMBER |
| NO.6 | ||
| 246 | A 3523120260 | REINFORCEMENT |
| Repalced by: A 3453127360 | ||
| 246 | A 3453127360 | REINFORCEMENT |
| REINFORCEMENTS TO CROSS MEMBER AND SIDE MEMBERS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 383 312 03 60 | ||
| 252 | H 983453120035 | CROSS MEMBER |
| Repalced by: A 3453127235 | ||
| 252 | A 3453127235 | CROSS MEMBER |
| NO.6 | ||
| 252 | A 3453127235 | CROSS MEMBER |
| NO.5 | ||
| 252 | A 3453127235 | CROSS MEMBER |
| NO.7 | ||
| 258 | N 000963010025 | SCREW |
| ANGLE TO FRAME | ||
| 264 | N 913004010004 | NUT |
| ANGLE TO FRAME | ||
| 270 | A 3213120187 | GUSSET PLATE |
| Repalced by: A 3443120187 | ||
| 270 | H 983443120187 | GUSSET PLATE |
| Repalced by: A 3443120187 | ||
| 270 | A 3443120187 | GUSSET PLATE |
| RIGHT | ||
| 270 | A 3453127887 | GUSSET PLATE |
| RIGHT | ||
| 270 | A 3213120087 | GUSSET PLATE |
| Repalced by: A 3443120087 | ||
| 270 | H 983443120087 | GUSSET PLATE |
| Repalced by: A 3443120087 | ||
| 270 | A 3443120087 | GUSSET PLATE |
| LEFT | ||
| 270 | A 3453127987 | GUSSET PLATE |
| LEFT | ||
| 276 | A 3523120187 | GUSSET PLATE |
| Repalced by: A 3453127487 | ||
| 276 | H 983453120087 | GUSSET PLATE |
| Repalced by: A 3453127487 | ||
| 276 | A 3453127487 | GUSSET PLATE |
| BOTTOM LEFT | ||
| 276 | A 3453127687 | GUSSET PLATE |
| BOTTOM LEFT | ||
| 276 | A 3523120287 | GUSSET PLATE |
| Repalced by: A 3453127587 | ||
| 276 | H 983453120187 | GUSSET PLATE |
| Repalced by: A 3453127587 | ||
| 276 | A 3453127587 | GUSSET PLATE |
| BOTTOM RIGHT | ||
| 276 | A 3453127787 | GUSSET PLATE |
| BOTTOM RIGHT | ||
| 282 | N 000961012160 | SCREW |
| REINFORCEMENTS AND CROSS MEMBER TO SIDE MEMBERS | ||
| 282 | N 000961012020 | SCREW |
| REINFORCEMENTS AND CROSS MEMBER TO SIDE MEMBERS | ||
| 282 | N 000960012041 | SCREW |
| REINFORCEMENTS AND CROSS MEMBER TO SIDE MEMBERS | ||
| 288 | N 000127012201 | LOCK WASHER |
| REINFORCEMENTS AND CROSS MEMBER TO SIDE MEMBERS | ||
| 294 | N 000934012004 | NUT |
| REINFORCEMENTS AND CROSS MEMBER TO SIDE MEMBERS | ||
| 300 | A 3453110053 | ANGLE |
| LEFT FRONT SPRING REAR BRACKET | ||
| 300 | A 3453110153 | ANGLE |
| RIGHT FRONT SPRING REAR BRACKET | ||
| 306 | A 3523220201 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 306 | A 3523220301 | FRONT SPRING BRACKET |
| FRONT AND REAR | ||
| 312 | A 3219901601 | SCREW |
| FRONT BRACKET TO SIDE MEMBER | ||
| 312 | A 3409900201 | SCREW |
| FRONT BRACKET TO SIDE MEMBER | ||
| 318 | N 000934014008 | NUT |
| FRONT BRACKET TO SIDE MEMBER | ||
| 324 | A 3523250101 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| 330 | A 3559900501 | SCREW |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 336 | N 000934014008 | NUT |
| REAR SPRING BRACKET TO SIDE MEMBER | ||
| 342 | A 3523250041 | STIFFENING |
| 348 | A 3453257017 | HELPER SPRING BRACKET |
| Repalced by: A 3523250417 | ||
| 348 | A 3523250417 | HELPER SPRING BRACKET |
| HELPER SPRING | ||
| 354 | A 3223150206 | COUPLING PIN |
| COUPLING MOUTH | ||
| 354 | A 3453157206 | COUPLING PIN |
| COUPLING MOUTH | ||
| 360 | A 0008500095 | FASTENER |
| COUPLING PIN | ||
| 366 | A 3283100367 | BODY SUPPORT |
| Repalced by: H 983453100063 | ||
| 366 | H 983453100063 | CONSOLE |
| Repalced by: A 3453107063 | ||
| 366 | A 3453107063 | CONSOLE |
| Repalced by: A 3453100167 | ||
| 366 | A 3453100167 | BODY SUPPORT |
| CAB,LEFT | ||
| 366 | A 3283100467 | BODY SUPPORT |
| Repalced by: H 983453100163 | ||
| 366 | H 983453100163 | CONSOLE |
| Repalced by: A 3453107163 | ||
| 366 | A 3453107163 | CONSOLE |
| CAB, RIGHT | ||
| 372 | A 3523170628 | REINFORCEMENT |
| CAB,LEFT | ||
| 372 | A 3523170728 | REINFORCEMENT |
| CAB, RIGHT | ||
| A 3769900014 | SCREW | |
| CAB CONSOLE TO SIDE MEMBER | ||
| A 3769900214 | SCREW | |
| CAB CONSOLE TO SIDE MEMBER | ||
| 378 | N 913004010011 | NUT |
| CAB CONSOLE TO SIDE MEMBER | ||
| 384 | A 3453230095 | REINFORCEMENT |
| TOP BEARING BRACKET TO FRAME | ||
| 390 | N 000963012030 | SCREW |
| REINFORCEMENT TO FRAME | ||
| M12X30 | ||
| 396 | N 913004012006 | NUT |
| REINFORCEMENT ANGLE TO SIDE MEMBER | ||
| 402 | A 0009901296 | RIVET |
| Repalced by: N 910005010001 | ||
| 402 | N 910005010001 | RIVET |
| 10 X 24 MM | ||
| 402 | A 0009901396 | RIVET |
| Repalced by: N 910005010002 | ||
| 402 | N 910005010002 | RIVET |
| 10 X 26 MM | ||
| 402 | A 0009901496 | RIVET |
| Repalced by: N 910005010003 | ||
| 402 | N 910005010003 | RIVET |
| 10X 28 MM | ||
| 402 | A 0009901696 | RIVET |
| Repalced by: N 910005010004 | ||
| 402 | N 910005010004 | RIVET |
| 10 X 30 MM | ||
| 402 | N 910005010005 | RIVET |
| 10X34 MM | ||
| 402 | A 0009902096 | RIVET |
| Repalced by: N 910005010006 | ||
| 402 | N 910005010006 | RIVET |
| 10 X 36 MM | ||
| 402 | A 0009903196 | RIVET |
| Repalced by: N 910005010036 | ||
| 402 | N 910005010036 | RIVET |
| 10 X 38 MM | ||
| 402 | N 910005012033 | RIVET |
| 12X22 MM | ||
| 402 | A 0009900496 | RIVET |
| Repalced by: N 910005012012 | ||
| 402 | N 910005012012 | RIVET |
| 12X26 MM | ||
| 402 | A 0009900596 | RIVET |
| Repalced by: N 910005012001 | ||
| 402 | N 910005012001 | RIVET |
| 12 X 28 MM | ||
| 402 | A 0009900696 | RIVET |
| Repalced by: N 910005012002 | ||
| 402 | N 910005012002 | RIVET |
| 12 X 30 MM | ||
| 402 | N 910005012029 | RIVET |
| 12X32 MM | ||
| 402 | A 0009900896 | RIVET |
| Repalced by: N 910005012003 | ||
| 402 | N 910005012076 | RIVET |
| 12 X 34 MM | ||
| 402 | A 0009900996 | RIVET |
| Repalced by: N 910005012017 | ||
| 402 | N 910005012017 | RIVET |
| 12 X 36 MM | ||
| 402 | A 0009902396 | RIVET |
| Repalced by: N 910005012021 | ||
| 402 | N 910005012021 | RIVET |
| 12 X 45 MM | ||
| 402 | A 0009904196 | RIVET |
| Repalced by: N 910005014032 | ||
| 402 | N 910005014032 | RIVET |
| 14 X 30 MM | ||
| 402 | N 915005014020 | LOCKING CONE |
| 14X45 MM | ||
| 402 | A 0009903796 | RIVET |
| Repalced by: N 910005014043 | ||
| 402 | N 910005014043 | RIVET |
| 14 X 48 MM | ||
| 402 | A 0009904796 | RIVET |
| Repalced by: N 910005014044 | ||
| 402 | N 910005014044 | RIVET |
| 14 X 50 MM | ||
| 408 | A 3443100367 | BODY SUPPORT |
| CAB,REAR LEFT AND RIGHT | ||
| 408 | A 3443107067 | BODY SUPPORT |
| CAB,REAR LEFT AND RIGHT | ||
| 414 | N 000933010129 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X28 | ||
| 420 | N 000125010517 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 426 | N 000127010212 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 432 | N 000934010000 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 438 | N 000961012154 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X30 | ||
| 438 | N 000961012106 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 12X35 | ||
| 444 | N 000125013012 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 450 | N 000127012201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 456 | N 000934012013 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| M12 X 1,5 MM | ||
| 462 | A 3523170240 | BRACKET |
| CAB SUSPENSION | ||
| 468 | A 3529900030 | SCREW |
| Repalced by: N 000000000011 | ||
| 468 | N 000000000011 | SCREW |
| SPRING BRACKET TO CAB CONSOLE | ||
| M10X25 | ||
| 474 | N 000125010517 | WASHER |
| SPRING BRACKET TO CAB CONSOLE | ||
| 480 | N 000127010202 | LOCK WASHER |
| SPRING BRACKET TO CAB CONSOLE | ||
| 486 | N 000934010000 | NUT |
| SPRING BRACKET TO CAB CONSOLE | ||
| 492 | A 3523130826 | BRACKET |
| LEFT | ||
| 492 | A 3523130926 | BRACKET |
| RIGHT | ||
| 498 | N 000933010174 | SCREW |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 504 | N 000934010000 | NUT |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 504 | N 913004010004 | NUT |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 510 | N 000127010212 | LOCK WASHER |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 516 | N 000125010517 | WASHER |
| BRACKET TO ENGINE FRONT CROSS MEMBER | ||
| 522 | A 3455200032 | STAY |
| LEFT | ||
| 522 | A 3455200132 | STAY |
| RIGHT | ||
| 528 | N 000933010129 | SCREW |
| STAY TO FRAME | ||
| 528 | N 000933010129 | SCREW |
| STAY TO FRAME | ||
| 534 | A 3453307203 | TIE ROD |
| "NAKATA" | ||
| 540 | A 3443107179 | SPRING |
| Repalced by: A 3223100179 | ||
| 540 | A 3223100179 | SPRING |
| CAB | ||
| 546 | A 0453100079 | SPRING |
| NO.4 | ||
| 552 | A 3223100279 | SPRING |
| NO.1 | ||
| 558 | N 004626008103 | SPRING BOLT |
| 564 | N 000934008000 | NUT |
| 570 | A 0009883610 | RUBBER MOUNTING |
| 570 | A 3443177012 | RUBBER BUFFER |
| 576 | A 3229900214 | SCREW |
| Repalced by: N 000960012082 | ||
| 576 | N 000960012385 | SCREW |
| SPRING TO CONSOLE | ||
| 582 | N 913004012003 | NUT |
| SPRING TO CONSOLE | ||
| 588 | A 3229910640 | SPACER TUBE |
| SPRING TO CONSOLE | ||
| 594 | N 000960012385 | SCREW |
| SPRING TO CONSOLE | ||
| 600 | N 000127012201 | LOCK WASHER |
| SPRING TO CONSOLE | ||
| 606 | N 913004012003 | NUT |
| SPRING TO CONSOLE | ||
| 612 | A 3358910411 | PLATE |
| SPRING TO CAB | ||
| 618 | N 000127010202 | LOCK WASHER |
| SPRING TO CAB | ||
| 624 | N 000933010273 | SCREW |
| SPRING TO CAB | ||
| 630 | A 3448910005 | SHOCK ABSORBER |
| Repalced by: A 3448907019 | ||
| 630 | A 3448907019 | SHOCK ABSORBER |
| 630 | A 0008910805 | SHOCK ABSORBER |
| 630 | A 3448907119 | SHOCK ABSORBER |
| 636 | A 0003231450 | BUSHING |
| 642 | A 0083230144 | RUBBER BUFFER |
| 648 | A 3229900114 | SCREW |
| Repalced by: N 000960012062 | ||
| 648 | N 000961012192 | SCREW |
| SHOCK ABSORBER TO CONSOLE | ||
| 654 | N 913004012003 | NUT |
| SHOCK ABSORBER TO CONSOLE | ||
| 660 | A 3229900114 | SCREW |
| Repalced by: N 000960012062 | ||
| 660 | N 000961012192 | SCREW |
| SHOCK ABSORBER TO CAB | ||
| 666 | N 000127012201 | LOCK WASHER |
| SHOCK ABSORBER TO CAB | ||
| 672 | N 000934012004 | NUT |
| SHOCK ABSORBER TO CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
