Transporto priemonė: LK 1516; VIN numerio dalis: 345332
Grupė: 33 FRONT AXLE

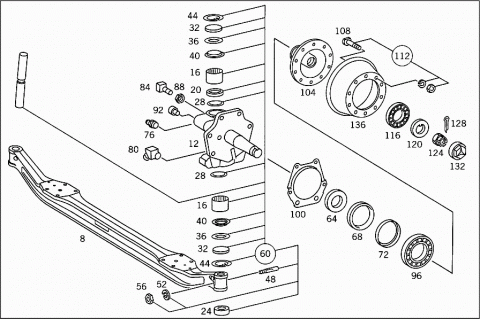

35919

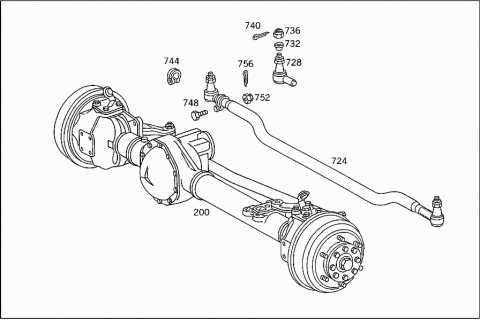

35924

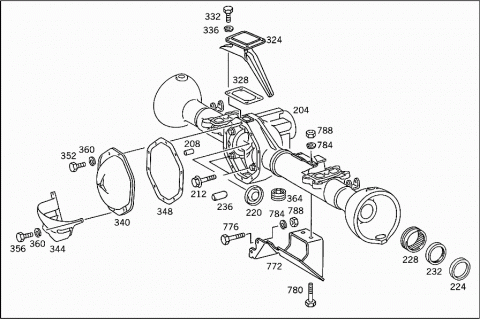

35925

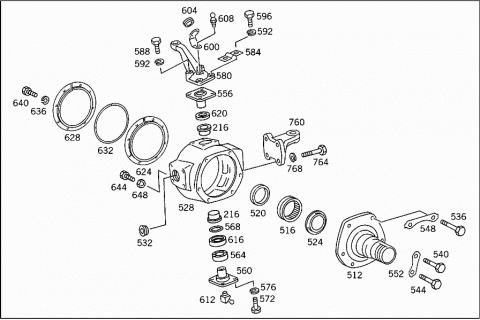

35926

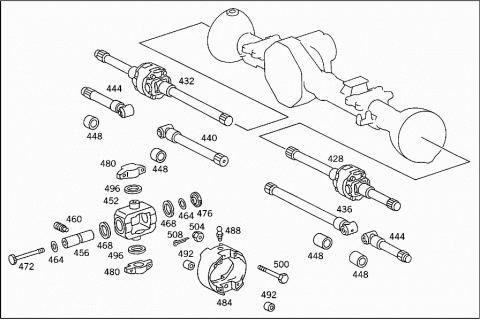

35927
35928

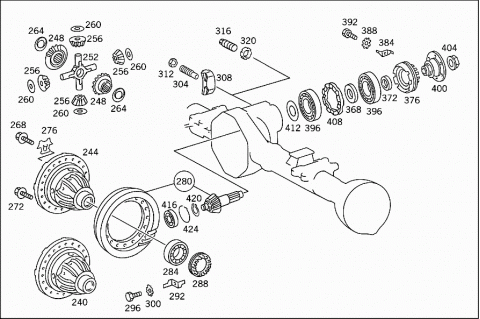

35929

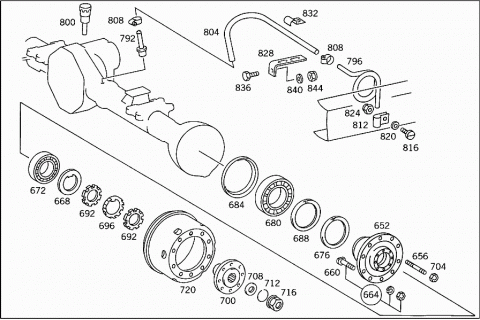

35930
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT AXLE, SEE PARTS LIST:
732.7
004 A 3453307200 FRONT AXLE
008 A 0453310101 FRONT AXLE BEAM
Repalced by: A 3453317101
008 A 3453317101 FRONT AXLE BEAM
STANDARD
A 3453317301 FRONT AXLE BEAM
REPAIR SIZE I
012 A 3443300020 STEERING KNUCKLE
Repalced by: A 3023300920
012 A 3023300920 STEERING KNUCKLE
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NOS.:
302 332 05 01,340 332 00 48
Y YYYYYYYYYYYY PART NAME MISSING
TO 008 997 76 46
016 A 3403320049 BUSHING
Repalced by: A 3403320048
016 A 3403320048 BUSHING
020 A 0089977646 SEAL RING
A 3603320306 KINGPIN
36.6 MM
A 3603320406 KINGPIN
AS REQUIRED
36.9 MM
A 3603320506 KINGPIN
AS REQUIRED
37.2 MM
024 A 0009811818 ROLLER BEARING
Repalced by: A 0009815418
024 A 0009812718 ROLLER BEARING
Repalced by: A 0009815418
024 A 0009813218 ROLLER BEARING
Repalced by: A 0009815418
024 A 0009815418 ROLLER BEARING
36.6 MM
A 0019815805 TAPERED ROLLER BEARING
37.5 MM
A 3403320152 SPACER WASHER
AS REQUIRED
1.0 MM
A 3403320252 SPACER WASHER
AS REQUIRED
1.1 MM
028 A 3403320352 SPACER WASHER
AS REQUIRED
1.2 MM
028 A 3403320452 SPACER WASHER
AS REQUIRED
1.3 MM
028 A 3403320552 SPACER WASHER
AS REQUIRED
1.4 MM
028 A 3403320652 SPACER WASHER
AS REQUIRED
1.5 MM
028 A 3403320752 SPACER WASHER
AS REQUIRED
1.6 MM
028 A 3403320852 SPACER WASHER
AS REQUIRED
1.7 MM
028 A 3403320952 SPACER WASHER
AS REQUIRED
1.8 MM
028 A 3403321052 SPACER WASHER
AS REQUIRED
1.9 MM
028 A 3403321152 SPACER WASHER
AS REQUIRED
2.0 MM
028 A 3403321252 SPACER WASHER
AS REQUIRED
2.1 MM
032 A 3603320029 SEALING CAP
OUTSIDE
036 A 3409970145 SEAL RING
040 A 3603320129 SEALING CAP
INSIDE
044 N 000472045000 LOCK RING
048 A 3279900137 BOLT
052 N 912004008100 LOCK WASHER
056 N 000934008000 NUT
060 A 0455860033 REPAIR KIT
Repalced by: A 3455867033
060 A 3455867033 REPAIR KIT
Repalced by: A 3763300019
060 A 3763300019 KING PIN
PARTS KIT,STANDARD
36.6 MM
060 A 0455860133 REPAIR KIT
Repalced by: A 3455867133
060 A 3455867133 REPAIR KIT
Repalced by: A 3763300119
060 A 3763300119 KING PIN
PARTS KIT,STANDARD SIZE I
36.9 MM
060 A 0455860233 REPAIR KIT
Repalced by: A 3455867233
060 A 3455867233 REPAIR KIT
Repalced by: A 3763300219
060 A 3763300219 KING PIN
PARTS KIT,REPAIR SIZE I
37.2 MM
A 0455860333 REPAIR KIT
37.5 MM
064 A 3603340115 RING
Repalced by: A 3453340015
064 A 3603340215 RING
Repalced by: A 3453340015
064 A 3453340015 RING
068 A 0069979846 SEAL RING
072 A 3523340051 SPACER RING
076 N 071412010100 GREASE NIPPLE
080 N 071412010200 GREASE NIPPLE
084 A 3409900601 SCREW
STEERING KNUCKLE STOP
TO 344 330 00 20
084 A 3873320071 SCREW
STEERING KNUCKLE STOP
TO 302 330 09 20
084 A 3873320071 SCREW
088 A 3403370072 NUT
STEERING KNUCKLE STOP
TO 344 330 00 20
088 N 000934016003 NUT
TO 302 330 09 20
092 N 915042011000 PLUG
STEERING KNUCKLE STOP
TO 344 330 00 20
092 N 915042015000 PLUG
STEERING KNUCKLE STOP
TO 302 330 09 20
096 A 0039816005 TAPERED ROLLER BEARING
INSIDE
096 A 0009808802 TAPERED ROLLER BEARING
INSIDE
096 A 0039816205 TAPERED ROLLER BEARING
INSIDE
100 A 3533340282 OIL COLLECTOR
104 A 3453340001 WHEEL HUB
108 A 3174010571 WHEEL MOUNTING BOLT
Repalced by: A 3174010471
108 A 3174010471 WHEEL MOUNTING BOLT
112 A 3764000074 PIN
(PARTS KIT),WHEEL MOUNTING; WHEEL OPENING:
30 MM
112 A 3764000574 PIN
(PARTS KIT),WHEEL MOUNTING; WHEEL OPENING:
27 MM
116 A 0019815605 TAPERED ROLLER BEARING
Repalced by: A 0049813805
116 A 0049813805 TAPERED ROLLER BEARING
OUTSIDE
116 A 0049813405 TAPERED ROLLER BEARING
OUTSIDE
116 A 0039816405 TAPERED ROLLER BEARING
Repalced by: A 0049813805
116 A 0009819605 TAPERED ROLLER BEARING
Repalced by: A 0049813405
120 A 3273321662 THRUST WASHER
124 N 000937032000 NUT
128 N 000094006317 COTTER PIN
132 A 0453340025 HUB CAP
Repalced by: A 3443347025
132 A 3213340225 HUB CAP
Repalced by: A 3443347025
132 A 3443347025 HUB CAP
136 A 3544210101 BRAKE DRUM
Repalced by: A 3544210301
136 A 3544210301 BRAKE DRUM
STANDARD
136 A 3454217301 BRAKE DRUM
REPAIR SIZE I
140 A 3453380107 STEERING ARM
Repalced by: A 3453380207
140 A 3453380207 STEERING ARM
LEFT
144 A 3603380006 STEERING ARM
Repalced by: A 3603380706
144 A 3603380706 STEERING ARM
RIGHT
148 A 3603320171 SCREW
152 N 000935018001 NUT
156 N 000094004026 COTTER PIN
160 A 3523300503 TIE ROD
160 A 3453307003 TIE ROD
"COFAP"
160 H 983453300203 TIE ROD
Repalced by: A 3453307203
160 A 3453307203 TIE ROD
"NAKATA"
160 A 3523300703 TIE ROD
"LEMFOERDER"
164 A 0003301535 JOINT
Repalced by: A 0003301435
164 A 0003301435 JOINT
RIGHT
TO 352 330 05 03
164 A 0003381545 CLAMP
Repalced by: A 3453387145
164 A 3453307048 TIE ROD END
Repalced by: A 0003301435
164 A 0003301435 JOINT
LEFT
TO 345 330 70 03,352 330 07 03
164 A 0003301435 JOINT
LEFT
TO 352 330 05 03
164 H 983443300935 JOINT
Repalced by: A 3443307135
164 A 3443307135 JOINT
TO 98 345 330 02 03,345 330 72 03
168 A 3443387263 CLAMPING RING
TO 345 330 72 03
168 A 3443387363 CLAMPING RING
TO 345 330 70 03
172 A 0003300285 BOOT
Repalced by: H 983443300185
172 H 983443300185 BOOT
Repalced by: A 3443307085
172 A 3443307085 BOOT
TO 352 330 07 03,345 330 70 03
H 983443380431 LOCKING CAP
TO 345 330 70 03
172 H 983443380297 BOOT
Repalced by: A 3443387056
172 A 3443387056 DUST CAP
TO 98 345 330 02 03
176 N 000937018004 NUT
JOINT TO TIE ROD
180 N 000094004026 COTTER PIN
JOINT TO TIE ROD
184 A 0003381045 CLAMP
Repalced by: A 0003381545
184 A 0003381545 CLAMP
Repalced by: A 3453387145
184 A 3453387145 CLAMP
TO 352 330 05 03
184 A 3453387145 CLAMP
TO 345 330 70 03 , 352 330 07 03
184 A 3443387045 CLAMP
Repalced by: A 3443387145
184 A 3443387145 CLAMP
TO 98 345 330 02 03 , 345 330 72 03
188 N 000960010032 SCREW
188 N 000960010032 SCREW
192 N 000935010001 NUT
192 N 000935010001 NUT
196 N 000094002008 COTTER PIN
196 N 000094002008 COTTER PIN
196 N 000094004065 COTTER PIN
200 A 3453307400 FRONT AXLE
204 A 3453307005 FRONT AXLE HOUSING
WITH REAR AXLE TUBES
208 N 000007006205 CYLINDRICAL PIN
212 A 3529900801 SCREW
Repalced by: N 914126016005
212 N 914126016005 SCREW
BEARING COVER TO AXLE HOUSING
216 A 3403310050 BUSHING
220 A 3213570082 OIL COLLECTOR
224 A 3223310351 SPACER RING
AXLE TUBE TO AXLE HOUSING
228 A 0009815312 ROLLER ASSEMBLY
Repalced by: A 0059816310
228 A 0059816310 NEEDLE BEARING
AXLE TUBE TO AXLE HOUSING
228 A 0049814410 NEEDLE BEARING
AXLE TUBE TO AXLE HOUSING
232 A 0039972546 SEAL RING
AXLE TUBE TO AXLE HOUSING
236 A 3523510074 PIN
AXLE TUBE TO AXLE HOUSING
240 A 3453501823 DIFFERENTIAL GEAR
A 3223500327 DIFFERENTIAL CASE
Repalced by: A 3443507027
244 A 3443507027 DIFFERENTIAL CASE
248 A 3443350215 SIDE GEAR
TO 322 353 03 14
248 A 3443350115 SIDE GEAR
TO 344 353 00 14
252 A 3213530220 DIFFERENTIAL SPIDER
Repalced by: A 3443537020
252 A 3213530320 DIFFERENTIAL SPIDER
Repalced by: A 3443537020
252 A 3443537020 DIFFERENTIAL SPIDER
256 A 3443530014 DIFFERENTIAL PINION
TO 344 335 01 15
256 A 3223530314 DIFFERENTIAL PINION
TO 344 355 02 15
260 A 3123531224 SPHERICAL WASHER
DIFFERENTIAL PINION
264 A 3213530162 THRUST WASHER
268 N 900170014002 SCREW
COVER TO DIFFERENTIAL CASE
272 A 3229901101 SCREW
RING GEAR AND PINION TO DIFFERENTIAL CASE
276 A 3223530273 LOCK
RING GEAR AND PINION TO DIFFERENTIAL CASE
280 A 3223501839 RING GEAR AND PINION
RATIO:
48:7,"GLEASON"
280 A 6153500039 RING GEAR AND PINION
RATIO:
48:7,"OERLIKON"
284 A 0009814605 TAPERED ROLLER BEARING
284 A 0009814105 TAPERED ROLLER BEARING
284 A 3449817105 TAPERED ROLLER BEARING
288 A 3213530025 SCREW COLLAR
292 A 3223530073 LOCK
SCREW COLLAR LOCKING
296 N 000933008228 SCREW
LOCK TO DIFFERENTIAL CASE BEARING COVER
300 N 006797008121 TOOTHED WASHER
LOCK TO DIFFERENTIAL CASE BEARING COVER
304 A 3223530376 SET SCREW
Repalced by: A 3833530376
304 A 3833530376 SET SCREW
RING GEAR CHECK
A 3223530049 SLIDE
Repalced by: A 3853530149
308 A 3853530149 SLIDE
312 A 3159900051 NUT
316 A 3223510171 SCREW
Repalced by: A 3853370171
316 A 3853370171 SCREW
BEARING COVER
320 N 080705014001 NUT
324 A 3453307056 COVER
TOP
328 A 3223310180 GASKET
332 N 000933008228 SCREW
336 N 912004008100 LOCK WASHER
340 A 3603500321 COVER
Repalced by: A 6163500021
340 A 6163500021 COVER
AXLE HOUSING
340 A 6163510208 COVER
AXLE HOUSING
A 1869970032 SCREW PLUG
Repalced by: A 0009972632
344 H 983453500183 PROTECTIVE PLATE
348 A 3023510180 GASKET
COVER AND PROTECTIVE PLATE TO AXLE HOUSING
348 A 6503510180 GASKET
COVER AND PROTECTIVE PLATE TO AXLE HOUSING
352 N 000933010294 SCREW
COVER AND PROTECTIVE PLATE TO AXLE HOUSING
M 10X20,TO 360 350 03 21
356 N 000933010174 SCREW
COVER AND PROTECTIVE PLATE TO AXLE HOUSING
M 10X25,TO 360 350 03 21
N 914112010016 SCREW
COVER TO AXLE HOUSING
M 10X20 TO 616 350 00 21,616 351 02 08
360 N 000127010202 LOCK WASHER
COVER AND PROTECTIVE PLATE TO AXLE HOUSING
TO 360 350 03 21
364 A 0009971332 SCREW PLUG
Repalced by: A 0009972632
364 A 0009972632 SCREW PLUG
OIL FILLING AND OIL DRAIN
364 A 0009973432 SCREW PLUG
OIL FILLING AND OIL DRAIN
368 A 3223530051 SPACER RING
FRONT WHEEL HUB,INSIDE,LEFT
372 A 3213530762 THRUST WASHER
376 A 3273531025 SCREW COLLAR
384 A 3223530073 LOCK
SCREW COLLAR
388 N 006797008121 TOOTHED WASHER
392 N 000933008005 SCREW
396 A 0019819805 TAPERED ROLLER BEARING
396 A 0029811105 TAPERED ROLLER BEARING
396 A 0009814005 TAPERED ROLLER BEARING
396 A 3869817505 TAPERED ROLLER BEARING
396 A 3869817605 TAPERED ROLLER BEARING
400 A 3603500045 FLANGE
404 A 3273530172 NUT
Repalced by: A 3853510072
404 A 3853510072 NUT
404 A 3853510172 NUT
408 A 3223531352 SPACER WASHER
AS REQUIRED; STEEL
10.10 MM
408 A 6163530152 SPACER WASHER
AS REQUIRED; BRASS
10.10 MM
408 A 3223531452 SPACER WASHER
AS REQUIRED; STEEL
10.12 MM
408 A 6163530252 SPACER WASHER
AS REQUIRED; BRASS
10.12 MM
408 A 3223531552 SPACER WASHER
AS REQUIRED; STEEL
10.14 MM
408 A 6163530352 SPACER WASHER
AS REQUIRED; BRASS
10.14 MM
408 A 3223531652 SPACER WASHER
AS REQUIRED; STEEL
10.16 MM
408 A 6163530452 SPACER WASHER
AS REQUIRED; BRASS
10.16 MM
408 A 3223531752 SPACER WASHER
AS REQUIRED; STEEL
10.18 MM
408 A 6163530552 SPACER WASHER
AS REQUIRED; BRASS
10.18 MM
408 A 3223531852 SPACER WASHER
AS REQUIRED; STEEL
10.20 MM
408 A 6163530652 SPACER WASHER
AS REQUIRED; BRASS
10.20 MM
408 A 3223531952 SPACER WASHER
AS REQUIRED; STEEL
10.22 MM
408 A 6163530752 SPACER WASHER
AS REQUIRED; BRASS
10.22 MM
408 A 3223532052 SPACER WASHER
AS REQUIRED; STEEL
10.24 MM
408 A 6163530852 SPACER WASHER
AS REQUIRED; BRASS
10.24 MM
408 A 3223532152 SPACER WASHER
AS REQUIRED; STEEL
10.26 MM
408 A 6163530952 SPACER WASHER
AS REQUIRED; BRASS
10.26 MM
408 A 3223530152 SPACER WASHER
AS REQUIRED; STEEL
10.28 MM
408 A 6163531052 SPACER WASHER
AS REQUIRED; BRASS
10.28 MM
408 A 3223530252 SPACER WASHER
AS REQUIRED; STEEL
10.30 MM
408 A 6163531152 SPACER WASHER
AS REQUIRED; BRASS
10.30 MM
408 A 3223530352 SPACER WASHER
AS REQUIRED; STEEL
10.32 MM
408 A 6163531252 SPACER WASHER
AS REQUIRED; BRASS
10.32 MM
408 A 3223530452 SPACER WASHER
AS REQUIRED; STEEL
10.34 MM
408 A 6163531352 SPACER WASHER
AS REQUIRED; BRASS
10.34 MM
408 A 3223530552 SPACER WASHER
AS REQUIRED; STEEL
10.36 MM
408 A 6163531452 SPACER WASHER
AS REQUIRED; BRASS
10.36 MM
408 A 3223530652 SPACER WASHER
AS REQUIRED; STEEL
10.38 MM
408 A 6163531552 SPACER WASHER
AS REQUIRED; BRASS
10.38 MM
408 A 3223530752 SPACER WASHER
AS REQUIRED; STEEL
10.40 MM
408 A 6163531352 SPACER WASHER
AS REQUIRED; BRASS
10.40 MM
408 A 3223530852 SPACER WASHER
AS REQUIRED; STEEL
10.42 MM
408 A 6163531752 SPACER WASHER
AS REQUIRED; BRASS
10.42 MM
408 A 3223530952 SPACER WASHER
AS REQUIRED; STEEL
10.44 MM
408 A 6163531852 SPACER WASHER
AS REQUIRED; BRASS
10.44 MM
408 A 3223531052 SPACER WASHER
AS REQUIRED; STEEL
10.46 MM
408 A 6163531952 SPACER WASHER
AS REQUIRED; BRASS
10.46 MM
408 A 3223531152 SPACER WASHER
AS REQUIRED; STEEL
10.48 MM
408 A 6163532052 SPACER WASHER
AS REQUIRED; BRASS
10.48 MM
408 A 3223531252 SPACER WASHER
AS REQUIRED; STEEL
10.50 MM
408 A 6163532152 SPACER WASHER
AS REQUIRED; BRASS
10.50 MM
408 A 3853530051 SPACER RING
AS REQUIRED; STEEL
10.52 MM
408 A 6163532251 SPACER RING
AS REQUIRED; BRASS
10.52 MM
412 A 3273536252 SPACER WASHER
Repalced by: A 6703530852
412 A 6703530852 SPACER WASHER
AS REQUIRED
0.10 MM
412 A 3273532262 THRUST WASHER
Repalced by: A 6703530752
412 A 6703530752 SPACER WASHER
AS REQUIRED
0.15 MM
412 A 3273536352 SPACER WASHER
Repalced by: A 6703530652
412 A 6703530652 SPACER WASHER
AS REQUIRED
0.20 MM
412 A 3273536452 SPACER WASHER
Repalced by: A 6703530552
412 A 6703530552 SPACER WASHER
AS REQUIRED
0.50 MM
412 A 3273532362 THRUST WASHER
Repalced by: A 6703533752
412 A 6703533752 SPACER WASHER
AS REQUIRED
1.50 MM
416 A 0029817901 CYLINDR. ROLLER BEARING
416 A 0029819601 CYLINDR. ROLLER BEARING
Repalced by: A 0029819501
416 A 0029819501 CYLINDR. ROLLER BEARING
416 A 0029818201 CYLINDR. ROLLER BEARING
416 A 3459817301 CYLINDR. ROLLER BEARING
420 N 000471035002 LOCK RING
424 A 3229940137 SNAP RING
428 A 3453307001 DRIVE SHAFT
LEFT
432 A 3453307101 DRIVE SHAFT
RIGHT
436 A 3453307301 DRIVE SHAFT
LEFT INSIDE
440 A 3453307401 DRIVE SHAFT
RIGHT INSIDE
444 A 3223302901 DRIVE SHAFT
Repalced by: A 3813300601
444 A 3813300601 DRIVE SHAFT
OUTSIDE LEFT AND RIGHT
448 A 3229810181 INNER RING
Repalced by: A 3819810081
448 A 3819810081 INNER RING
452 A 3223300435 JOINT
LEFT
452 A 3223300535 JOINT
RIGHT
456 A 3223370074 PIN
Repalced by: A 3813370074
456 A 3813370074 PIN
460 A 3609900077 SCREW
464 A 3223370062 THRUST WASHER
468 A 3223370380 GASKET
Repalced by: A 3819970046
468 A 3819970046 SEAL RING
472 A 3229900801 SCREW
476 A 3223370030 COVER
480 A 3223370118 BEARING BRACKET
484 A 3223370217 FOLLOWER
488 N 071412008100 GREASE NIPPLE
492 A 3223370280 GASKET
496 A 4949970246 SEAL RING
500 A 3229900102 SCREW
Repalced by: N 914125010900
500 N 914125010900 SCREW
504 N 000935010007 NUT
508 N 000094002008 COTTER PIN
512 A 3223320816 SUPPORTING SLEEVE
Repalced by: A 3223321016
512 A 3223320916 SUPPORTING SLEEVE
Repalced by: A 3223321016
512 A 3223321016 SUPPORTING SLEEVE
516 A 0009815312 ROLLER ASSEMBLY
Repalced by: A 0059816310
516 A 0059816310 NEEDLE BEARING
516 A 0049814410 NEEDLE BEARING
520 A 3223310351 SPACER RING
524 A 0039972546 SEAL RING
528 A 3223370606 HOUSING
LEFT
528 A 3223370706 HOUSING
RIGHT
532 N 000906042002 SCREW PLUG
536 N 000961012154 SCREW
BRAKE ANCHOR PLATE AND SUPPORTING SLEEVE TO JOINT HOUSING
540 N 000961012058 SCREW
BRAKE ANCHOR PLATE AND SUPPORTING SLEEVE TO JOINT HOUSING
544 N 000961016098 SCREW
BRAKE ANCHOR PLATE AND SUPPORTING SLEEVE TO JOINT HOUSING
548 A 3229940025 LOCK
BRAKE ANCHOR PLATE AND SUPPORTING SLEEVE TO JOINT HOUSING
552 A 3229940125 LOCK
BRAKE ANCHOR PLATE AND SUPPORTING SLEEVE TO JOINT HOUSING
556 A 3403321206 KINGPIN
560 H 983443320106 KINGPIN
Repalced by: A 3403321306
560 A 3403321306 KINGPIN
BOTTOM
564 A 0009810518 ROLLER BEARING
LOWER KING PIN TO HOUSING
568 A 3123320059 SEAL RING
Repalced by: A 0109979847
568 A 0109979847 SEAL RING
LOWER KING PIN TO HOUSING
572 N 000961012154 SCREW
LOWER KING PIN TO HOUSING
576 N 000127012201 LOCK WASHER
LOWER KING PIN TO HOUSING
580 A 3453380201 STEERING ARM
580 A 3453380002 STEERING ARM
584 A 3229940130 LOCK
LEFT
584 A 3229940230 LOCK
RIGHT
588 N 000961014101 SCREW
JOINT TO STEERING KNUCKLE
588 N 000960014244 SCREW
JOINT TO STEERING KNUCKLE
592 N 000127014201 LOCK WASHER
596 N 000961014105 SCREW
600 A 3404280240 BRACKET
BRAKE HOSE
604 A 3129970581 GROMMET
608 N 071412010100 GREASE NIPPLE
612 N 071412010200 GREASE NIPPLE
616 A 3403320062 THRUST WASHER
620 A 3403320262 THRUST WASHER
AS REQUIRED
3.7 MM
620 A 3403320362 THRUST WASHER
AS REQUIRED
3.8 MM
620 A 3403320462 THRUST WASHER
AS REQUIRED
3.9 MM
620 A 3403320562 THRUST WASHER
AS REQUIRED
4.0 MM
620 A 3403320662 THRUST WASHER
AS REQUIRED
4.1 MM
620 A 3403320762 THRUST WASHER
AS REQUIRED
4.2 MM
620 A 3403320862 THRUST WASHER
AS REQUIRED
4.3 MM
620 A 3403320962 THRUST WASHER
AS REQUIRED
4.4 MM
620 A 3403321062 THRUST WASHER
AS REQUIRED
4.5 MM
620 A 3403321162 THRUST WASHER
AS REQUIRED
4.6 MM
620 A 3403321262 THRUST WASHER
AS REQUIRED
4.7 MM
620 A 3403321362 THRUST WASHER
AS REQUIRED
4.8 MM
620 A 3403321462 THRUST WASHER
AS REQUIRED
4.9 MM
620 A 3403321562 THRUST WASHER
AS REQUIRED
5.0 MM
624 A 3223310009 SEAL HOLDER
INSIDE
628 A 3223310109 SEAL HOLDER
OUTSIDE
632 A 3223310080 GASKET
636 N 912004008100 LOCK WASHER
640 N 000933008228 SCREW
644 A 3403370071 SCREW
648 N 000934010000 NUT
652 A 3453347101 WHEEL HUB
656 A 3129901705 STUD
660 A 3174010571 WHEEL MOUNTING BOLT
Repalced by: A 3174010471
660 A 3174010471 WHEEL MOUNTING BOLT
664 A 3764000074 PIN
(PARTS KIT),WHEEL MOUNTING; WHEEL OPENING:
30 MM
664 A 3764000574 PIN
(PARTS KIT),WHEEL MOUNTING; WHEEL OPENING:
27 MM
668 A 3123311052 SPACER WASHER
672 A 3129810301 CYLINDR. ROLLER BEARING
672 A 0019815205 TAPERED ROLLER BEARING
676 A 3123311073 LOCK
FRONT
680 A 0019811405 TAPERED ROLLER BEARING
680 A 0019819605 TAPERED ROLLER BEARING
680 A 0009816105 TAPERED ROLLER BEARING
680 A 3849817505 TAPERED ROLLER BEARING
684 A 0029976446 SEAL RING
Repalced by: A 0039972247
684 A 0039972247 SEAL RING
688 A 3403340273 LOCK
692 A 3129900060 NUT
FRONT WHEEL HUB TO STEERING KNUCKLE
696 A 3123321073 LOCK
FRONT WHEEL HUB TO STEERING KNUCKLE
700 A 3223370417 FOLLOWER
FRONT WHEEL HUB TO STEERING KNUCKLE
704 N 913001012000 NUT
FRONT WHEEL HUB TO STEERING KNUCKLE
708 A 3223370051 SPACER RING
FRONT WHEEL HUB TO STEERING KNUCKLE
712 A 3459940134 SNAP RING
FRONT WHEEL HUB TO STEERING KNUCKLE
712 A 3229940034 SNAP RING
FRONT WHEEL HUB TO STEERING KNUCKLE
716 A 3273530272 NUT
716 A 3853510272 NUT
720 A 3454217101 BRAKE DRUM
STANDARD
720 A 3454217401 BRAKE DRUM
REPAIR SIZE I
724 A 3453300103 TIE ROD
728 A 0003301435 JOINT
LEFT
732 A 0003300285 BOOT
Repalced by: A 3443307085
732 A 3443307085 BOOT
A 0003381231 LOCKING CAP
736 N 000937018004 NUT
740 N 000094004026 COTTER PIN
744 A 0003381445 CLAMP
748 N 000960012238 SCREW
752 N 000935012003 NUT
756 N 000094003222 COTTER PIN
760 A 3223380405 STEERING ARM
LEFT
760 A 3223380106 STEERING ARM
RIGHT
764 N 000961012106 SCREW
768 N 000127012201 LOCK WASHER
772 H 983453300083 PROTECTIVE PLATE
776 N 000960014076 SCREW
780 N 000961014106 SCREW
784 N 000127014201 LOCK WASHER
788 N 000934014020 NUT
792 A 3443517069 FITTING
796 A 3443517066 PIPE
800 A 3453507090 VALVE
804 A 3449977582 HOSE
Repalced by: A 3769978182
804 A 3769978182 HOSE
808 N 916002010100 CLAMP
812 A 3129951401 CLAMP
BREATHER PIPE TO SIDE MEMBER
816 N 007985006515 SCREW
BREATHER PIPE TO SIDE MEMBER
816 N 007985006515 SCREW
BREATHER PIPE TO SIDE MEMBER
820 N 000125006420 WASHER
BREATHER PIPE TO SIDE MEMBER
824 N 913004006001 NUT
BREATHER PIPE TO SIDE MEMBER
824 N 913004006001 NUT
BREATHER PIPE TO SIDE MEMBER
828 A 3464295940 BRACKET
BREATHER PIPE TO SIDE MEMBER
832 A 1539950220 CLAMP
BREATHER PIPE TO SIDE MEMBER
836 N 000933010174 SCREW
BREATHER PIPE TO SIDE MEMBER
840 N 000125010517 WASHER
BREATHER PIPE TO SIDE MEMBER
844 N 913004010004 NUT
BREATHER PIPE TO SIDE MEMBER
A 3455847424 UNIT IDENTIFICATION PLATE
A 3449917161 DOWEL PIN
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
