Transporto priemonė: LK 1516; VIN numerio dalis: 345332

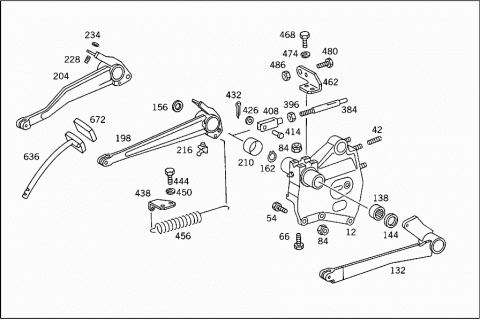

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3452900119 | BEARING BRACKET |
| 006 | A 3452900419 | BEARING BRACKET |
| 012 | A 3452907419 | BEARING BRACKET |
| Repalced by: A 3452907619 | ||
| 012 | A 3452907619 | BEARING BRACKET |
| 012 | A 3762907019 | BEARING BRACKET |
| 018 | A 0452900036 | BEARING TUBE |
| Repalced by: A 3442907036 | ||
| 018 | A 3442907036 | BEARING TUBE |
| 024 | A 0459921001 | BUSHING |
| Repalced by: A 3442940150 | ||
| 024 | A 3442940150 | BUSHING |
| 030 | N 071412010100 | GREASE NIPPLE |
| 036 | N 000417012000 | HEADLESS SETSCREW |
| Repalced by: A 3529900080 | ||
| 036 | A 3529900080 | SCREW |
| 042 | N 000835008061 | STUD |
| 048 | N 000933010269 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 054 | N 000933010258 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X40 | ||
| 054 | N 000933010261 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X45 | ||
| 054 | N 000933010261 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X45 | ||
| 054 | N 000933010273 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X50 | ||
| 060 | N 000933010129 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 066 | N 000933010269 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X35 | ||
| 066 | N 000933010129 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| M 10X28 | ||
| 072 | N 000127010202 | LOCK WASHER |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 078 | N 000934010000 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 084 | N 913004010006 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| A 3453230095 | REINFORCEMENT | |
| SEE GROUP 31,FIG.NO.: | ||
| 172 | ||
| 090 | N 000933010129 | SCREW |
| REINFORCEMENT ANGLE TO CHASSIS | ||
| 096 | N 000127010202 | LOCK WASHER |
| REINFORCEMENT ANGLE TO CHASSIS | ||
| 102 | N 000934010000 | NUT |
| REINFORCEMENT ANGLE TO CHASSIS | ||
| 108 | N 000963012002 | SCREW |
| REINFORCEMENT ANGLE TO CHASSIS | ||
| 114 | N 000127012201 | LOCK WASHER |
| REINFORCEMENT ANGLE TO CHASSIS | ||
| 120 | N 000934012010 | NUT |
| REINFORCEMENT ANGLE TO CHASSIS | ||
| 126 | A 3522902216 | PEDAL |
| Repalced by: A 3452907016 | ||
| 126 | A 3452907016 | PEDAL |
| CLUTCH PEDAL | ||
| 132 | A 3762907016 | PEDAL |
| CLUTCH PEDAL | ||
| 138 | A 3769817010 | NEEDLE BEARING |
| 144 | A 3769977047 | SEAL RING |
| 150 | A 3202940051 | SPACER RING |
| AS REQUIRED | ||
| 3.00 MM | ||
| 150 | A 3202940151 | SPACER RING |
| AS REQUIRED | ||
| 3.25 MM | ||
| 150 | A 3202940251 | SPACER RING |
| AS REQUIRED | ||
| 3.50 MM | ||
| 156 | A 3762920052 | SPACER WASHER |
| PEDAL TO BEARING BRACKET | ||
| 162 | N 000471040002 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 162 | N 000471025002 | LOCK RING |
| PEDAL TO BEARING BRACKET | ||
| 168 | A 3762920004 | BEARING BRACKET |
| 174 | A 3762920130 | STOP |
| 174 | A 3762920030 | STOP |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 180 | N 007984010035 | SCREW |
| 186 | N 007980010003 | LOCK WASHER |
| 192 | A 0452900018 | PEDAL |
| Repalced by: A 3452907018 | ||
| 192 | A 3452907018 | PEDAL |
| BRAKE PEDAL | ||
| 198 | A 3452900318 | PEDAL |
| Repalced by: A 3452907118 | ||
| 198 | A 3452907118 | PEDAL |
| BRAKE PEDAL | ||
| 204 | A 3762901118 | PEDAL |
| BRAKE PEDAL | ||
| 204 | A 3762900918 | PEDAL |
| BRAKE PEDAL | ||
| 210 | A 0459921401 | BUSHING |
| Repalced by: A 3452927050 | ||
| 210 | A 3452927050 | BUSHING |
| 210 | A 3442920150 | BUSHING |
| 216 | N 071412010200 | GREASE NIPPLE |
| 222 | A 3039910345 | RING |
| 228 | N 900190012005 | THREADED PIN |
| STOP LIGHT SWITCH | ||
| 234 | N 000936012017 | NUT |
| Repalced by: N 000936012005 | ||
| 234 | N 000936012005 | NUT |
| STOP LIGHT SWITCH | ||
| 240 | A 3442907034 | LEVER |
| Repalced by: A 3762900034 | ||
| 240 | A 3762900034 | LEVER |
| CLUTCH | ||
| 246 | A 3449917020 | BALL PIVOT |
| Repalced by: A 3529910415 | ||
| 246 | A 3529910415 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 246 | A 3029910015 | BALL PIVOT |
| 252 | N 000934012010 | NUT |
| REINFORCEMENT ANGLE TO CHASSIS | ||
| 258 | N 000931010080 | SCREW |
| CLUTCH LEVER TO CLUTCH PEDAL LEVER | ||
| 264 | N 913004010004 | NUT |
| CLUTCH LEVER TO CLUTCH PEDAL LEVER | ||
| 270 | A 3522931936 | BEARING BRACKET |
| Repalced by: A 3522932536 | ||
| 270 | A 3522932536 | BEARING BRACKET |
| OUTSIDE | ||
| 276 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 282 | N 000127010202 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 288 | N 000934010000 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 294 | A 3179910515 | BALL PIVOT |
| 294 | A 3529910815 | BALL PIVOT |
| 300 | N 000125013012 | WASHER |
| 306 | A 3522930060 | SEAL RING |
| Repalced by: A 3522930160 | ||
| 306 | A 3522930160 | SEAL RING |
| 312 | A 3522901428 | LEVER |
| Repalced by: A 3522901728 | ||
| 312 | A 3522901728 | LEVER |
| A 0452900028 | LEVER | |
| 318 | A 3179910515 | BALL PIVOT |
| 318 | A 3529910415 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 318 | A 3029910015 | BALL PIVOT |
| 324 | N 000936012010 | NUT |
| 324 | N 913004012003 | NUT |
| 324 | N 000934012010 | NUT |
| 330 | N 071412010100 | GREASE NIPPLE |
| 336 | N 071805016300 | SNAP RING |
| 342 | A 3179910515 | BALL PIVOT |
| 342 | A 3529910415 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 342 | A 3029910015 | BALL PIVOT |
| 348 | A 3522930060 | SEAL RING |
| Repalced by: A 3522930160 | ||
| 348 | A 3522930160 | SEAL RING |
| 354 | N 006797012153 | TOOTHED WASHER |
| 360 | A 3529910315 | BALL PIVOT |
| 360 | A 3529910715 | BALL PIVOT |
| Repalced by: A 3529910915 | ||
| 360 | A 3529910915 | SPACER |
| 366 | N 000463017001 | LOCK PLATE |
| 372 | N 000934016003 | NUT |
| 378 | N 900331010203 | PULL ROD |
| BRAKE LEVER | ||
| A 3452908439 | ROD | |
| 384 | A 3452908339 | ROD |
| Repalced by: A 3452957033 | ||
| 384 | A 3452957033 | ROD |
| Repalced by: A 3762950033 | ||
| 384 | A 3762950033 | ROD |
| FROM BRAKE PEDAL TO BRAKE VALVE | ||
| 390 | N 000934010000 | NUT |
| PISTON ROD TO LEVER | ||
| 396 | N 000934012009 | NUT |
| PISTON ROD TO LEVER | ||
| 402 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 402 | A 0009961501 | YOKE |
| BRAKE LEVER | ||
| 408 | A 3459967001 | YOKE |
| Repalced by: A 3769960001 | ||
| 408 | A 3769960001 | YOKE |
| PISTON ROD TO LEVER | ||
| 414 | A 3529910007 | PIN |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 414 | A 3529910007 | PIN |
| PUSH ROD TO PEDAL | ||
| 420 | N 900055010001 | SPRING WASHER |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 426 | N 000433010500 | WASHER |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 426 | N 000433010500 | WASHER |
| PUSH ROD TO PEDAL | ||
| 432 | N 000094003212 | COTTER PIN |
| PULL ROD TO BRAKE PEDAL AND TO DOUBLE LEVER | ||
| 432 | N 000094003212 | COTTER PIN |
| PUSH ROD TO PEDAL | ||
| 438 | A 3452920040 | BRACKET |
| RELEASE SPRING | ||
| 438 | A 3762910040 | BRACKET |
| RELEASE SPRING | ||
| 444 | N 000933008268 | SCREW |
| BATTERY TO LEFT CAB CONSOLE | ||
| 450 | N 912004008100 | LOCK WASHER |
| BATTERY TO LEFT CAB CONSOLE | ||
| 456 | A 3609930210 | SPRING |
| BRAKE PEDAL | ||
| 456 | A 3529931010 | SPRING |
| BRAKE PEDAL | ||
| 462 | A 3452920130 | STOP |
| BRAKE PEDAL | ||
| 468 | N 000933010294 | SCREW |
| STOP TO BEARING BRACKET | ||
| 474 | N 000127010202 | LOCK WASHER |
| STOP TO BEARING BRACKET | ||
| 480 | N 000933010174 | SCREW |
| BRAKE PEDAL CONTROL | ||
| 486 | N 000934010035 | NUT |
| BRAKE PEDAL CONTROL | ||
| 492 | N 900331010194 | PULL ROD |
| FRONT | ||
| 498 | A 3219961425 | ROD |
| FRONT | ||
| 504 | N 071805016101 | BALL SOCKET |
| CLUTCH OPERATION | ||
| 510 | N 001479010000 | TURNBUCKLE |
| 516 | N 900331010202 | PULL ROD |
| REAR | ||
| 516 | A 3219961525 | ROD |
| REAR | ||
| 522 | N 000934010000 | NUT |
| LEFT | ||
| 528 | N 000934010000 | NUT |
| CLUTCH OPERATION | ||
| 528 | N 000934010000 | NUT |
| CLUTCH OPERATION | ||
| 534 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 534 | A 0009961501 | YOKE |
| 540 | N 071752010000 | YOKE |
| Repalced by: A 0009961501 | ||
| 540 | A 0009961501 | YOKE |
| 546 | A 3529910007 | PIN |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 552 | N 900055010001 | SPRING WASHER |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 558 | N 000433010500 | WASHER |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 564 | N 000094003026 | COTTER PIN |
| OPERATING ROD TO CLUTCH LEVER AND TO DOUBLE LEVER | ||
| 570 | A 3522901039 | ROD |
| BOTTOM | ||
| 576 | N 071805016202 | BALL SOCKET |
| 582 | N 900331010201 | PULL ROD |
| 588 | N 000934010000 | NUT |
| 594 | N 071805016300 | SNAP RING |
| 600 | N 071805016402 | CIRCLIP |
| OPERATING ROD TO DOUBLE LEVER AND TO RELEASE YOKE | ||
| 606 | H 983452910032 | LEVER |
| Repalced by: A 3522910732 | ||
| 606 | A 3522910732 | LEVER |
| Repalced by: A 3762907034 | ||
| 606 | A 3762907034 | LEVER |
| RELEASE SPRING | ||
| 606 | A 3762910032 | LEVER |
| CLUTCH PEDAL | ||
| 612 | H 983452910074 | PIN |
| Repalced by: A 3522910474 | ||
| 612 | A 3522910474 | PIN |
| Repalced by: A 3452917074 | ||
| 612 | A 3452917074 | PIN |
| Repalced by: A 3509917020 | ||
| 612 | A 3509917020 | BALL PIVOT |
| RELEASE SPRING | ||
| 612 | A 3452910674 | PIN |
| LEVER TO PEDAL BEARING BRACKET | ||
| 618 | A 3529931310 | SPRING |
| CLUTCH | ||
| 618 | A 3129931510 | SPRING |
| CLUTCH PEDAL | ||
| 624 | A 3762910741 | STOP |
| PEDAL BEARING BRACKET | ||
| 630 | A 3762910240 | BRACKET |
| PEDAL BEARING BRACKET | ||
| 636 | A 3222900824 | PEDAL PLATE |
| Repalced by: A 3452907224 | ||
| 636 | A 3452907224 | PEDAL PLATE |
| BRAKE PEDAL | ||
| 636 | A 3452907524 | PEDAL PLATE |
| BRAKE PEDAL | ||
| 642 | A 0452900024 | PEDAL PLATE |
| Repalced by: A 3452907024 | ||
| 642 | A 3452907024 | PEDAL PLATE |
| CLUTCH PEDAL | ||
| 642 | A 3452907724 | PEDAL PLATE |
| CLUTCH PEDAL | ||
| 642 | A 3452907824 | PEDAL PLATE |
| CLUTCH PEDAL | ||
| 648 | A 3122911197 | SEAL WASHER |
| 654 | A 3222930077 | WASHER |
| 660 | N 000933010174 | SCREW |
| PEDAL TO PEDAL LEVER | ||
| 666 | A 3202925082 | PAD |
| TO 322 290 08 24,345 290 70 24 | ||
| 666 | A 3452917082 | PAD |
| CLUTCH PEDAL | ||
| 672 | A 3052910182 | PAD |
| BRAKE PEDAL | ||
| 678 | A 0002958206 | MASTER CYLINDER |
| CLUTCH | ||
| 678 | A 3452957006 | MASTER CYLINDER |
| CLUTCH | ||
| 684 | A 0002955483 | BOOT |
| TO 345 295 70 06 | ||
| 690 | A 0049936001 | SPRING |
| TO 000 295 82 06 | ||
| 696 | N 000472024000 | LOCK RING |
| TO 000 295 82 06 | ||
| 702 | A 0009971186 | PLUG |
| TO 000 295 82 06 | ||
| 708 | A 0002950436 | INTERMEDIATE PIECE |
| TO 000 295 82 06 | ||
| 708 | A 0029901671 | ELBOW FITTING |
| TO 345 295 70 06 | ||
| 714 | A 0009978635 | PLUG |
| TO 345 295 70 06 | ||
| 720 | A 0005863529 | REPAIR KIT |
| LESS PISTON | ||
| TO 000 295 82 06 | ||
| 726 | A 0002902667 | REPAIR KIT |
| TO 345 295 70 06 | ||
| 732 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 738 | N 913004006001 | NUT |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 744 | A 3812900739 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 750 | A 0009961045 | ARTICULATION PIECE |
| 750 | A 0009961145 | ARTICULATION PIECE |
| 756 | A 0059814410 | NEEDLE BEARING |
| 756 | A 0059813810 | NEEDLE BEARING |
| 756 | A 0089811210 | NEEDLE BEARING |
| 762 | N 000934008013 | NUT |
| 768 | A 3762910274 | PIN |
| 774 | N 913004012003 | NUT |
| GUIDE BOLT TO CLUTCH PEDAL LEVER | ||
| 780 | N 000433008403 | WASHER |
| PISTON ROD TO GUIDE BOLT | ||
| 786 | N 912002008001 | LOCK |
| 786 | A 3502937073 | LOCK |
| PISTON ROD TO GUIDE BOLT | ||
| 792 | A 3182950383 | BOOT |
| ON PISTON ROD AND PIN | ||
| 798 | N 000933010269 | SCREW |
| STOP | ||
| 804 | N 000934010005 | NUT |
| STOP | ||
| 810 | A 3762900513 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 816 | A 0004281072 | UNION SCREW |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH HOSE | ||
| 822 | A 0002951735 | HOSE |
| 828 | A 3762900613 | LINE |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 834 | A 0004281072 | UNION SCREW |
| FROM HYDRAULIC HOSE TO CLUTCH SLAVE CYLINDER | ||
| 840 | A 3504317002 | RESERVOIR |
| Repalced by: A 3504317102 | ||
| 840 | A 3504317102 | RESERVOIR |
| (RESERVOIR) | ||
| 846 | A 0084310502 | RESERVOIR |
| 852 | A 3084317033 | FILLER CAP |
| Repalced by: A 3644317033 | ||
| 852 | A 3644317033 | FILLER CAP |
| SENSOR TO COVER | ||
| 858 | A 0089970240 | SEAL RING |
| 864 | A 3084317034 | STRAINER |
| H 983084310140 | BRACKET | |
| 870 | H 983084310176 | WASHER |
| 876 | N 000934018012 | NUT |
| 882 | N 000933006220 | SCREW |
| RESERVOIR TO BRACKET | ||
| 888 | N 000125006420 | WASHER |
| RESERVOIR TO BRACKET | ||
| 894 | N 913004006001 | NUT |
| RESERVOIR TO BRACKET | ||
| 900 | A 0009978952 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 906 | A 3449977490 | CLAMP |
| Repalced by: N 916017016000 | ||
| 906 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 906 | N 000000000666 | CLAMP |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
