Transporto priemonė: LK 1516; VIN numerio dalis: 345332
Grupė: 28 TRANSFER CASE
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3522800601 | TRANSFER CASE |
| Repalced by: A 3442807001 | ||
| 008 | A 3442807001 | TRANSFER CASE |
| Repalced by: A 3442800001 | ||
| 008 | A 3442800001 | TRANSFER CASE |
| Repalced by: A 3452800501 | ||
| 008 | A 3452800501 | TRANSFER CASE |

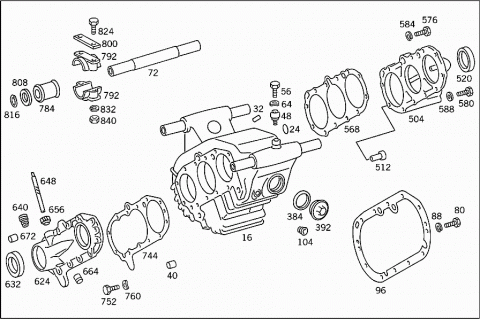

| 016 | A 3442807003 | HOUSING |
| 024 | N 000470020000 | EXPANSION PLUG |
| 032 | N 000007010103 | CYLINDRICAL PIN |
| 040 | N 000007008116 | CYLINDRICAL PIN |
| 048 | A 1112600058 | BREATHER |
| A 1112610082 | CAP | |
| 056 | N 000933006086 | SCREW |
| 064 | N 000137006203 | SPRING WASHER |
| 072 | A 3222850174 | PIN |
| 080 | N 000961012192 | SCREW |
| INTERMEDIATE FLANGE TO HOUSING | ||
| 088 | N 000125013009 | WASHER |
| INTERMEDIATE FLANGE TO HOUSING | ||
| 096 | A 3522810179 | GASKET |
| INTERMEDIATE FLANGE TO HOUSING | ||
| 104 | A 1869970032 | SCREW PLUG |
| Repalced by: A 0009972632 | ||
| 104 | A 0009971332 | SCREW PLUG |
| Repalced by: A 0009972632 | ||
| 104 | A 0009972632 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 104 | A 0009973432 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||

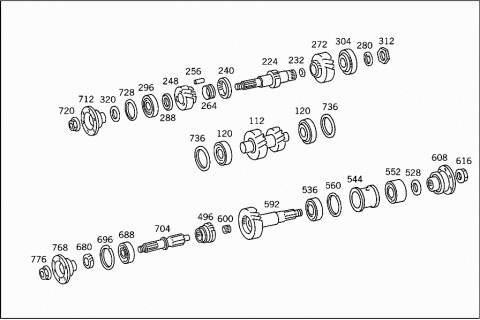

| 112 | A 3222830102 | SHAFT |
| 120 | A 0019813705 | TAPERED ROLLER BEARING |
| Repalced by: A 0019815105 | ||
| 120 | A 0019815105 | TAPERED ROLLER BEARING |

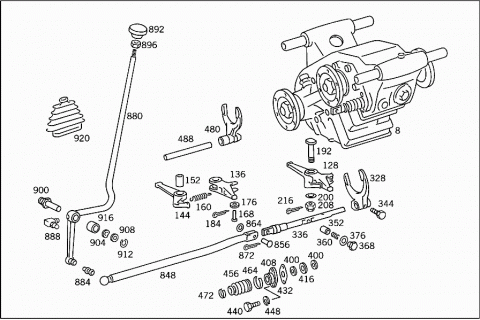

| 128 | A 3522800245 | SHIFT LEVER |
| 136 | A 3522840011 | SHIFT LEVER |
| TOP | ||
| 144 | A 3522840111 | SHIFT LEVER |
| BOTTOM | ||
| 152 | A 3122841050 | BUSHING |
| 160 | A 3129931410 | SPRING |
| 168 | A 3129911205 | PIN |
| 168 | N 001444006204 | PIN |
| 176 | N 000125006420 | WASHER |
| 184 | N 000094001609 | COTTER PIN |
| 192 | A 3522840015 | PIVOT PIN |
| SHIFT LEVER TO CASE | ||
| 200 | N 000125013012 | WASHER |
| SHIFT LEVER TO CASE | ||
| 208 | N 000935012003 | NUT |
| SHIFT LEVER TO CASE | ||
| 216 | N 000094003222 | COTTER PIN |
| SHIFT LEVER TO CASE | ||
| 224 | A 3222801121 | DRIVE SHAFT |
| 232 | A 3122831055 | OIL BAFFLE |
| 240 | A 3222820123 | SHIFTING DOG |
| 248 | A 3122822211 | GEAR |
| FRONT | ||
| 256 | N 005402004304 | CYLINDRICAL ROLLER |
| 264 | A 3122820253 | SPACER TUBE |
| 272 | A 3222820211 | GEAR |
| REAR | ||
| 280 | A 3122821962 | THRUST WASHER |
| 288 | A 3122822762 | THRUST WASHER |
| FRONT | ||
| 296 | A 0019813105 | TAPERED ROLLER BEARING |
| 296 | A 0019815005 | TAPERED ROLLER BEARING |
| 296 | A 3459817005 | TAPERED ROLLER BEARING |
| 304 | A 0019815105 | TAPERED ROLLER BEARING |
| Repalced by: A 0019815105 | ||
| 304 | A 0019815105 | TAPERED ROLLER BEARING |
| 312 | A 3122821072 | NUT |
| 320 | A 3122822062 | THRUST WASHER |
| 328 | A 3832840401 | SHIFTING FORK |
| TOP | ||
| 336 | A 3122841020 | SHIFTING ROD |
| 344 | A 3122641071 | SCREW |
| SHIFTING FORK TO SHIFTING ROD | ||
| 352 | A 3222840148 | INTERLOCK PIN |
| 360 | A 3229931701 | SPRING |
| SHIFTING ROD | ||
| 368 | A 3229970330 | SCREW PLUG |
| 376 | N 007603014103 | SEAL RING |
| 384 | N 007603052300 | SEAL RING |
| 392 | N 007604052200 | SCREW PLUG |
| 400 | A 3122841060 | SEAL RING |
| SHIFTING ROD | ||
| 408 | A 3122841038 | FLANGE |
| 416 | A 3122841151 | SPACER RING |
| 432 | A 3122841079 | GASKET |
| 440 | N 000933006221 | SCREW |
| 448 | N 000127006203 | LOCK WASHER |
| 456 | A 3122841097 | BOOT |
| SHIFTING ROD | ||
| 464 | A 3129940034 | SNAP RING |
| BOOT TO FLANGE | ||
| 472 | A 3129940134 | SNAP RING |
| BOOT TO SHIFTING ROD | ||
| 480 | A 3222840401 | SHIFTING FORK |
| BOTTOM | ||
| 488 | A 3122841021 | SHIFTING SHAFT |
| 496 | A 3222830723 | SHIFTING DOG |
| 504 | A 3522810115 | COVER |
| REAR | ||
| 512 | A 3222810063 | OIL PIPE |
| 520 | A 0039977546 | SEAL RING |
| 528 | A 3123531951 | SPACER RING |
| 536 | A 0019810801 | CYLINDR. ROLLER BEARING |
| 536 | A 0019812701 | CYLINDR. ROLLER BEARING |
| 544 | A 3122831653 | SPACER TUBE |
| 552 | A 0009810027 | ANGULAR CONTACT BEARING |
| 560 | N 005417100001 | SNAP RING |
| 568 | A 3522810480 | GASKET |
| COVER TO INTERMEDIATE FLANGE | ||
| 576 | N 000933010129 | SCREW |
| COVER TO INTERMEDIATE FLANGE | ||
| 580 | N 000931010171 | SCREW |
| COVER TO INTERMEDIATE FLANGE | ||
| 584 | N 000137010103 | SPRING WASHER |
| COVER TO INTERMEDIATE FLANGE | ||
| 588 | N 000125010517 | WASHER |
| COVER TO INTERMEDIATE FLANGE | ||
| 592 | A 3222831106 | DRIVE SHAFT |
| REAR AXLE | ||
| 600 | A 0009810512 | ROLLER ASSEMBLY |
| 608 | A 3522820245 | COUPLING FLANGE |
| Repalced by: A 3452807144 | ||
| 608 | A 3452827045 | COUPLING FLANGE |
| Repalced by: A 3452807144 | ||
| 608 | A 3452807144 | COUPLING FLANGE |
| REAR AXLE DRIVE | ||
| 616 | A 3224110072 | NUT |
| COUPLING FLANGE TO DRIVE SHAFT | ||
| 624 | A 3522810114 | COVER |
| FRONT | ||
| 624 | A 3832810314 | COVER |
| FRONT | ||
| 632 | A 0039977546 | SEAL RING |
| 640 | A 3122611131 | THREADED BUSHING |
| 648 | A 3122641232 | SHAFT |
| Repalced by: A 3142640032 | ||
| 648 | A 3142640032 | SHAFT |
| SPEEDOMETER | ||
| 656 | A 3122831131 | DRIVE GEAR |
| 664 | A 1532640055 | PLUG |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| 672 | N 001473004016 | GROOVED PIN |
| 680 | A 3122831430 | DRIVE GEAR |
| SPEEDOMETER | ||
| 688 | A 3129811325 | BALL BEARING |
| 696 | N 005417090001 | SNAP RING |
| 704 | A 3222830605 | DRIVE SHAFT |
| 712 | A 3522820145 | COUPLING FLANGE |
| Repalced by: A 3452807044 | ||
| 712 | A 3452827045 | COUPLING FLANGE |
| Repalced by: A 3452807044 | ||
| 712 | A 3452807044 | COUPLING FLANGE |
| FRONT AXLE DRIVE | ||
| 720 | A 3224110072 | NUT |
| COUPLING FLANGE TO DRIVE SHAFT | ||
| 728 | A 3122831752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 728 | A 3122831052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 728 | A 3122831152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 728 | A 3122831252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 728 | A 3122832152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.80 MM | ||
| 736 | A 3122831652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.05 MM | ||
| 736 | A 3122831352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 736 | A 3122831452 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 736 | A 3122831552 | SPACER WASHER |
| Repalced by: A 4063370352 | ||
| 736 | A 4063370352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.40 MM | ||
| 744 | A 3522810380 | GASKET |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| 752 | N 000933010269 | SCREW |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| 752 | N 000933010269 | SCREW |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| 760 | N 000137010103 | SPRING WASHER |
| FRONT COVER TO TRANSFER CASE HOUSING | ||
| 768 | A 3522820145 | COUPLING FLANGE |
| Repalced by: A 3452807044 | ||
| 768 | A 3452827045 | COUPLING FLANGE |
| Repalced by: A 3452807044 | ||
| 768 | A 3452807044 | COUPLING FLANGE |
| DRIVE SHAFT | ||
| 776 | A 3224110072 | NUT |
| COUPLING FLANGE TO DRIVE SHAFT | ||
| 784 | A 3222850082 | RUBBER MOUNTING |
| TRANSFER CASE TO FRAME | ||
| 792 | A 3122801386 | BEARING |
| TRANSFER CASE TO FRAME | ||
| 800 | A 3122851484 | SHIM |
| Repalced by: A 3452850084 | ||
| 800 | A 3452850084 | SHIM |
| TRANSFER CASE TO FRAME | ||
| 808 | A 3129902840 | WASHER |
| TRANSFER CASE TO FRAME | ||
| 816 | A 3449947041 | LOCK |
| 816 | A 0009947941 | LOCK |
| 824 | N 000960012099 | SCREW |
| TRANSFER CASE TO FRAME | ||
| 824 | N 000960012362 | SCREW |
| Repalced by: N 000960012335 | ||
| 824 | N 000960012335 | SCREW |
| TRANSFER CASE TO FRAME | ||
| 832 | N 000127012201 | LOCK WASHER |
| TRANSFER CASE TO FRAME | ||
| 840 | N 000934012004 | NUT |
| TRANSFER CASE TO FRAME | ||
| 848 | A 3442800056 | SHIFTING ROD |
| Repalced by: A 3452807156 | ||
| 848 | A 3452807156 | SHIFTING ROD |
| FROM SHIFT LEVER TO TRANSFER CASE | ||
| 848 | A 3442800156 | SHIFTING ROD |
| FROM SHIFT LEVER TO TRANSFER CASE | ||
| 848 | A 3442800256 | SHIFTING ROD |
| Repalced by: A 3452807256 | ||
| 848 | A 3452807256 | SHIFTING ROD |
| FROM SHIFT LEVER TO TRANSFER CASE | ||
| 856 | N 001434010009 | PIN |
| SHIFTING ROD TO TRANSFER CASE | ||
| 864 | N 000433010500 | WASHER |
| SHIFTING ROD TO TRANSFER CASE | ||
| 872 | N 000094003026 | COTTER PIN |
| SHIFTING ROD TO TRANSFER CASE | ||
| 880 | A 3442807045 | SHIFT LEVER |
| Repalced by: A 3442807245 | ||
| 880 | A 3442807245 | SHIFT LEVER |
| 884 | A 3449917020 | BALL PIVOT |
| 888 | N 071412008300 | GREASE NIPPLE |
| 888 | A 3459977288 | GREASE NIPPLE |
| 892 | A 3122802246 | KNOB |
| 892 | A 3442807046 | KNOB |
| 896 | N 000934010004 | NUT |
| KNOB TO SHIFT LEVER | ||
| 900 | A 3212640174 | PIN |
| SHIFT LEVER TO TRANSMISSION | ||
| 904 | A 3129900148 | WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| 908 | N 000125015012 | WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| 912 | N 000471015000 | LOCK RING |
| SHIFT LEVER TO TRANSMISSION | ||
| 916 | A 3212640153 | SPACER TUBE |
| SHIFT LEVER TO TRANSMISSION | ||
| 920 | A 3442647096 | BOOT |

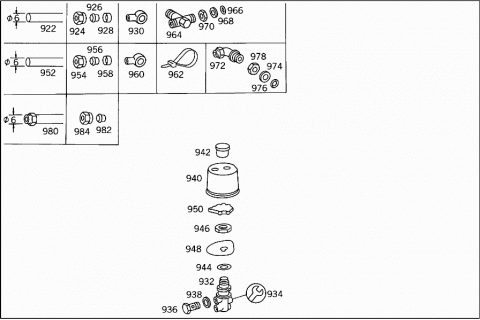

| 922 | A 0089976082 | HOSE |
| FROM T-FITTING TO TRANSMISSION SHIFT VALVE | ||
| 520 MM | ||
| 924 | N 915052004005 | BANJO UNION |
| FROM T-FITTING TO TRANSMISSION SHIFT VALVE | ||
| 926 | N 003861006007 | GLAND |
| FROM T-FITTING TO TRANSMISSION SHIFT VALVE | ||
| 928 | N 915062004000 | SLEEVE |
| FROM T-FITTING TO TRANSMISSION SHIFT VALVE | ||
| 928 | A 0009920105 | BUSHING |
| FROM T-FITTING TO TRANSMISSION SHIFT VALVE | ||
| 930 | N 915052004005 | BANJO UNION |
| FROM T-FITTING TO TRANSMISSION SHIFT VALVE | ||
| 932 | A 0019979136 | VALVE |
| 934 | A 0025860943 | REPAIR KIT |
| PNEUMATIC VALVE | ||
| 936 | N 915036006101 | HOLLOW SCREW |
| AT PRESSURE CONTROL VALVE | ||
| 938 | N 007603010101 | SEAL RING |
| AT PRESSURE CONTROL VALVE | ||
| 940 | A 3602810064 | COVERING |
| 942 | A 3819970486 | PLUG |
| 944 | N 007603028103 | SEAL RING |
| PNEUMATIC VALVE TO CONSOLE | ||
| 946 | N 000936028100 | NUT |
| PNEUMATIC VALVE TO CONSOLE | ||
| 948 | A 3855841124 | UNIT IDENTIFICATION PLATE |
| 950 | A 0009970577 | HANDLE |
| 952 | A 0089976082 | HOSE |
| FROM VALVE TO ELBOW FITTING | ||
| 954 | N 003861006007 | GLAND |
| FROM VALVE TO ELBOW FITTING | ||
| 956 | A 0009920105 | BUSHING |
| FROM VALVE TO ELBOW FITTING | ||
| 958 | N 915052004005 | BANJO UNION |
| FROM VALVE TO ELBOW FITTING | ||
| 958 | N 915052004005 | BANJO UNION |
| FROM VALVE TO ELBOW FITTING | ||
| 960 | N 915052004005 | BANJO UNION |
| FROM VALVE TO ELBOW FITTING | ||
| 962 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 962 | A 3459977390 | LOOM TIE |
| COMPRESSED AIR LINE MOUNTING | ||
| 964 | A 3444290032 | T-FITTING |
| LINE CONNECTION | ||
| "21" | ||
| 966 | A 0019875046 | SEALING CORD |
| LINE CONNECTION | ||
| "21" | ||
| 968 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 968 | A 0009940103 | THRUST RING |
| LINE CONNECTION | ||
| "21" | ||
| 970 | N 080705012003 | NUT |
| LINE CONNECTION | ||
| "21" | ||
| 972 | A 3454297438 | ELBOW FITTING |
| LINE CONNECTION | ||
| "22,23" | ||
| 974 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 974 | A 0009940103 | THRUST RING |
| LINE CONNECTION | ||
| "22,23" | ||
| 976 | A 0019875046 | SEALING CORD |
| LINE CONNECTION | ||
| "22,23" | ||
| 978 | N 080705012003 | NUT |
| LINE CONNECTION | ||
| "22,23" | ||
| 980 | A 3452807378 | LINE |
| LINE CONNECTION | ||
| "21,23" | ||
| 982 | N 003861006007 | GLAND |
| LINE CONNECTION | ||
| "21,23" | ||
| 984 | N 915017006100 | UNION NUT |
| LINE CONNECTION | ||
| "21,23" | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
