Transporto priemonė: LK 1921 IRAN; VIN numerio dalis: 349323
Grupė: 35 REAR AXLE
| # | Kodas | Pavadinimas |
|---|---|---|

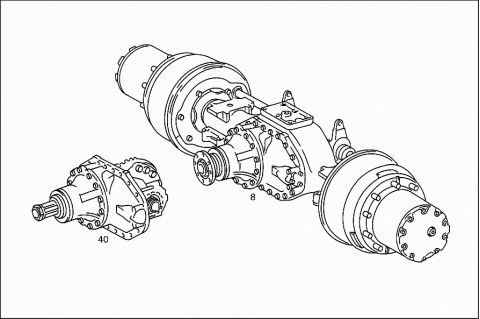

| 008 | A 3463502004 | REAR AXLE |
| Repalced by: A 3463501604 | ||
| 008 | A 3463501604 | REAR AXLE |
| AXLE RATIO 1:5.22; PLANETARY GEAR RATIO,1:3.48 | ||

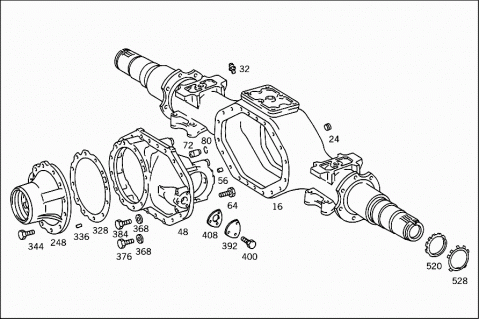

| 016 | A 3463506403 | AXLE HOUSING |
| Repalced by: A 3933509020 | ||
| 016 | A 3933509020 | AXLE HOUSING |
| (AXLE CASING) | ||
| 024 | A 3529970032 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 032 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 032 | A 3833510065 | FITTING |
| A 0089979082 | HOSE | |
| 040 | A 3463507120 | DIFFERENTIAL GEAR |
| LESS FLANGE | ||
| 040 | A 3463507220 | DIFFERENTIAL GEAR |
| LESS FLANGE | ||
| 040 | A 3933507620 | DIFFERENTIAL GEAR |
| LESS FLANGE | ||
| 048 | A 3463504803 | AXLE HOUSING |
| Repalced by: A 3953504620 | ||
| 048 | A 3953504620 | AXLE HOUSING |
| WITH BEARING CAP | ||
| 056 | N 000007008206 | CYLINDRICAL PIN |
| BEARING COVER TO AXLE HOUSING | ||
| 064 | A 9429901604 | SCREW |
| BEARING COVER TO AXLE HOUSING | ||
| 072 | A 3553500055 | PIN |
| 080 | N 912009025100 | SNAP RING |
| 25X1.2 MM | ||

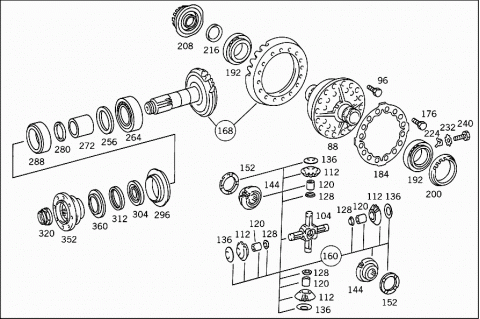

| 088 | A 3463508123 | DIFFERENTIAL GEAR |
| 088 | A 3933502023 | DIFFERENTIAL GEAR |
| 096 | A 3469902501 | SCREW |
| 096 | N 914112014312 | SCREW |
| Repalced by: A 0009906704 | ||
| 096 | A 0009906704 | SCREW |
| 104 | A 3463530420 | DIFFERENTIAL SPIDER |
| 112 | A 3463530614 | DIFFERENTIAL PINION |
| NUMBER OF TEETH: | ||
| 11 | ||
| 120 | A 3463530950 | BUSHING |
| 128 | A 3463532551 | SPACER RING |
| Repalced by: A 3463533251 | ||
| 128 | A 3463533251 | SPACER RING |
| 136 | A 3463530124 | SPHERICAL WASHER |
| 144 | A 3463530315 | SIDE GEAR |
| NUMBER OF TEETH: | ||
| 16 | ||
| 152 | A 3463530562 | THRUST WASHER |
| Repalced by: A 3463532262 | ||
| 152 | A 3463532262 | THRUST WASHER |
| DIFFERENTIAL GEAR | ||
| 160 | A 3875860035 | REPAIR KIT |
| Repalced by: A 3873500040 | ||
| 160 | A 3873500040 | REPAIR KIT |
| DIFFERENTIAL GEAR | ||
| 168 | A 3463502039 | RING GEAR AND PINION |
| Repalced by: A 3463505939 | ||
| 168 | A 3463505939 | RING GEAR AND PINION |
| RATIO: | ||
| 29:15 | ||
| 168 | A 3463504339 | RING GEAR AND PINION |
| RATIO: | ||
| 29:15 | ||
| 168 | A 3463501639 | RING GEAR AND PINION |
| RATIO: | ||
| 29:17 | ||
| 168 | A 3463503939 | RING GEAR AND PINION |
| RATIO: | ||
| 29:17 | ||
| 176 | A 3469901301 | SCREW |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 176 | A 3469903001 | SCREW |
| Repalced by: A 3469903101 | ||
| 176 | A 3469903101 | SCREW |
| Repalced by: A 3469903201 | ||
| 176 | A 3469903201 | SCREW |
| Repalced by: A 3469903101 | ||
| 176 | A 3469903101 | SCREW |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 176 | A 3469903101 | SCREW |
| Repalced by: A 3469903201 | ||
| 176 | A 3469903201 | SCREW |
| Repalced by: A 3469903101 | ||
| 176 | A 3469903101 | SCREW |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 184 | A 3463530073 | LOCK |
| RING GEAR TO DIFFERENTIAL CASE | ||
| 192 | A 0039813205 | TAPERED ROLLER BEARING |
| REAR AXLE SHAFT | ||
| 192 | A 0039813005 | TAPERED ROLLER BEARING |
| REAR AXLE SHAFT | ||
| 192 | A 0009814218 | ROLLER BEARING |
| REAR AXLE SHAFT | ||
| 192 | A 0089810305 | TAPERED ROLLER BEARING |
| REAR AXLE SHAFT | ||
| 200 | A 3463530625 | SCREW COLLAR |
| Repalced by: A 6523530025 | ||
| 200 | A 6523530025 | SCREW COLLAR |
| 208 | A 3463500443 | SET COLLAR |
| 216 | A 3463530160 | SEAL RING |
| 224 | A 3463330073 | LOCK |
| SCREW COLLAR | ||
| 232 | N 006797008120 | TOOTHED WASHER |
| 240 | N 000933008212 | SCREW |
| 248 | A 3463530407 | HOUSING |
| Repalced by: A 3463530807 | ||
| 248 | A 3463530807 | HOUSING |
| PINION HOUSING | ||
| 256 | A 3463531429 | OIL BAFFLE |
| 264 | A 0039813105 | TAPERED ROLLER BEARING |
| ON PINION END | ||
| 264 | A 0039812905 | TAPERED ROLLER BEARING |
| ON PINION END | ||
| 264 | A 0009814318 | ROLLER BEARING |
| ON PINION END | ||
| 264 | A 0089810405 | TAPERED ROLLER BEARING |
| ON PINION END | ||
| 272 | A 3463530453 | SPACER TUBE |
| 280 | A 3463532751 | SPACER RING |
| Repalced by: A 3463530951 | ||
| 280 | A 3463530951 | SPACER RING |
| AS REQUIRED | ||
| 4.35 MM | ||
| 280 | A 3463531051 | SPACER RING |
| AS REQUIRED | ||
| 4.40 MM | ||
| 280 | A 3463531151 | SPACER RING |
| AS REQUIRED | ||
| 4.45 MM | ||
| 280 | A 3463531251 | SPACER RING |
| AS REQUIRED | ||
| 4.50 MM | ||
| 280 | A 3463531351 | SPACER RING |
| AS REQUIRED | ||
| 4.55 MM | ||
| 280 | A 3463532051 | SPACER RING |
| AS REQUIRED | ||
| 4.60 MM | ||
| 280 | A 3463532151 | SPACER RING |
| AS REQUIRED | ||
| 4.65 MM | ||
| 280 | A 3463532251 | SPACER RING |
| AS REQUIRED | ||
| 4.70 MM | ||
| 280 | A 3463532351 | SPACER RING |
| AS REQUIRED | ||
| 4.75 MM | ||
| 280 | A 3463531451 | SPACER RING |
| AS REQUIRED | ||
| 4.80 MM | ||
| 280 | A 3463531551 | SPACER RING |
| AS REQUIRED | ||
| 4.85 MM | ||
| 280 | A 3463531651 | SPACER RING |
| AS REQUIRED | ||
| 4.90 MM | ||
| 280 | A 3463532451 | SPACER RING |
| AS REQUIRED | ||
| 4.95 MM | ||
| 280 | A 3463531751 | SPACER RING |
| AS REQUIRED | ||
| 5.00 MM | ||
| 280 | A 3463531851 | SPACER RING |
| AS REQUIRED | ||
| 5.05 MM | ||
| 280 | A 3463531951 | SPACER RING |
| AS REQUIRED | ||
| 5.10 MM | ||
| 288 | A 0029814505 | TAPERED ROLLER BEARING |
| ON FLANGE END | ||
| 288 | A 0039810605 | TAPERED ROLLER BEARING |
| ON FLANGE END | ||
| 288 | A 0019800502 | TAPERED ROLLER BEARING |
| ON FLANGE END | ||
| 296 | A 3463530458 | SEAL HOLDER |
| 304 | A 0109973646 | SEAL RING |
| ON BEARING END | ||
| 304 | A 0109975446 | SEAL RING |
| ON BEARING END | ||
| 312 | A 0079979946 | SEAL RING |
| ON FLANGE END | ||
| 312 | A 0099971146 | SEAL RING |
| ON FLANGE END | ||
| 320 | A 3463530072 | NUT |
| Repalced by: A 3853510572 | ||
| 320 | A 3853510572 | NUT |
| Repalced by: A 9463510072 | ||
| 320 | A 9463510072 | NUT |
| 328 | A 3463530952 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 328 | A 3463531052 | SPACER WASHER |
| AS REQUIRED | ||
| 0.15 MM | ||
| 328 | A 3463531152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 328 | A 3463531252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.35 MM | ||
| 328 | A 3463531352 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 328 | A 3463531452 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 328 | A 3463531652 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 336 | A 0029976140 | SEAL RING |
| PINION HOUSING TO REAR AXLE HOUSING | ||
| 344 | N 000961014063 | SCREW |
| Repalced by: A 9429901304 | ||
| 344 | A 9429901304 | SCREW |
| PINION HOUSING TO REAR AXLE HOUSING | ||
| 352 | A 3463500645 | FLANGE |
| 165 MM | ||
| 360 | A 3463530090 | PROTECTIVE CAP |
| 368 | A 3463340059 | SEAL RING |
| REAR AXLE HOUSING TO AXLE CASING | ||
| 376 | A 3559900604 | SCREW |
| REAR AXLE HOUSING TO AXLE CASING | ||
| 384 | A 3559900704 | HEXAGON HEAD BOLT |
| REAR AXLE HOUSING TO AXLE CASING | ||
| M12X1.5X85 | ||
| 392 | A 3553531545 | COVER |
| 400 | N 000933008147 | SCREW |
| 408 | A 3553530380 | GASKET |
| 416 | A 3463560315 | THRUST RING |
| Repalced by: A 3463561415 | ||
| 416 | A 3463561415 | THRUST RING |

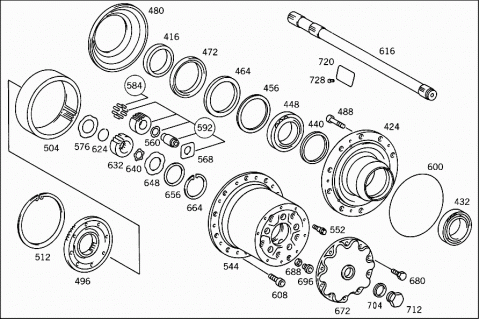

| 424 | A 3463561301 | WHEEL HUB |
| Repalced by: A 6253560001 | ||
| 424 | A 3463560301 | WHEEL HUB |
| Repalced by: A 6253560001 | ||
| 424 | A 6253560001 | WHEEL HUB |
| STEEL | ||
| 424 | A 6253560101 | WHEEL HUB |
| STEEL | ||
| 424 | A 3463561001 | WHEEL HUB |
| Repalced by: A 6253560101 | ||
| 424 | A 3463561101 | WHEEL HUB |
| Repalced by: A 6253560101 | ||
| 432 | A 0039814505 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 432 | A 0049811005 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 432 | A 0089813405 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 432 | A 0049812105 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 432 | A 0049814905 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 432 | A 0079810005 | TAPERED ROLLER BEARING |
| OUTSIDE | ||
| 440 | A 3463560082 | OIL COLLECTOR |
| 448 | A 0049810705 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 448 | A 0049810905 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 448 | A 0059812105 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 448 | A 0089813505 | TAPERED ROLLER BEARING |
| INSIDE | ||
| 456 | A 3463560027 | COVER PLATE |
| 464 | A 0119971246 | SEAL RING |
| Repalced by: A 0139975947 | ||
| 464 | A 0119970146 | SEAL RING |
| Repalced by: A 0139975947 | ||
| 464 | A 0139975947 | SEAL RING |
| AXLE SHAFT | ||
| 464 | A 0119975247 | SEAL RING |
| Repalced by: A 0139979447 | ||
| 464 | A 0139978847 | SEAL RING |
| Repalced by: A 0139979447 | ||
| 464 | A 0139979447 | SEAL RING |
| AXLE SHAFT | ||
| 472 | A 0039976647 | SEAL RING |
| Repalced by: A 0139970547 | ||
| 472 | A 0119970046 | SEAL RING |
| Repalced by: A 0139970547 | ||
| 472 | A 0139970547 | SEAL RING |
| AXLE SHAFT | ||
| 472 | A 0119975347 | SEAL RING |
| Repalced by: A 0169975647 | ||
| 472 | A 0169975647 | SEAL RING |
| AXLE SHAFT | ||
| 472 | A 0119974446 | SEAL RING |
| Repalced by: A 0169975647 | ||
| 480 | A 3463560182 | OIL COLLECTOR |
| 488 | A 3814010771 | WHEEL MOUNTING BOLT |
| Repalced by: A 0004013771 | ||
| 488 | A 0004013771 | WHEEL MOUNTING BOLT |
| 496 | A 3463541109 | SUPPORT |
| Repalced by: A 3463543009 | ||
| 496 | A 3463543009 | SUPPORT |
| OUTSIDE GEAR | ||
| 57 ZAEHNE | ||
| 496 | A 3463544209 | SUPPORT |
| OUTSIDE GEAR | ||
| 89 ZAEHNE | ||
| 504 | A 3463540412 | OUTSIDE GEAR |
| Repalced by: A 3463541412 | ||
| 504 | A 3463541412 | OUTSIDE GEAR |
| NUMBER OF TEETH: | ||
| 57 | ||
| 504 | A 3463542612 | OUTSIDE GEAR |
| NUMBER OF TEETH: | ||
| 89 | ||
| A 3469940339 | WIRE RING | |
| Repalced by: A 3469940439 | ||
| A 3469940439 | WIRE RING | |
| 512 | N 000472230000 | LOCK RING |
| 520 | A 3553560126 | GROOVED NUT |
| HUB AND SUPPORT TO AXLE CASING | ||
| 528 | A 3553560173 | LOCK PLATE |
| HUB AND SUPPORT TO AXLE CASING | ||
| A 3463500709 | PLANETARY GEARING | |
| A 3463501709 | PLANETARY GEARING | |
| 544 | A 3463501533 | BELL HUB |
| WITH PLANETARY CARRIER | ||
| 544 | A 3463504633 | BELL HUB |
| WITH PLANETARY CARRIER | ||
| 552 | A 3553540371 | SCREW |
| Repalced by: A 6243540071 | ||
| 552 | A 6243540071 | SCREW |
| 560 | A 3553540162 | THRUST WASHER |
| 568 | A 3553540462 | THRUST WASHER |
| Repalced by: A 3463541362 | ||
| 568 | A 3463541362 | THRUST WASHER |
| 576 | A 3463360062 | GUARD PLATE |
| SUN GEAR,INSIDE | ||
| 584 | A 3879810187 | NEEDLE |
| SET = 50 PIECES | ||
| 584 | A 0019815087 | NEEDLE |
| 592 | A 3463500454 | PLANET GEAR |
| Repalced by: A 3463500654 | ||
| A 3463500654 | PLANET GEAR | |
| PARTS KIT | ||
| A 6533500054 | PLANET GEAR | |
| PARTS KIT | ||
| 600 | A 0019976848 | SEAL RING |
| Repalced by: A 0169979548 | ||
| 600 | A 0169979548 | SEAL RING |
| Repalced by: A 0169974048 | ||
| 600 | A 0169974048 | SEAL RING |
| PLANETARY GEAR TRAIN TO REAR WHEEL HUB | ||
| 600 | A 0029974248 | SEAL RING |
| Repalced by: A 0169974048 | ||
| 608 | N 000912012047 | SCREW |
| PLANETARY GEAR TRAIN TO REAR WHEEL HUB | ||
| 616 | A 3463570701 | REAR AXLE SHAFT |
| LESS INTERLOCK SERRATIONS | ||
| 616 | A 3463571701 | REAR AXLE SHAFT |
| Repalced by: A 3463571801 | ||
| 616 | A 3463571801 | REAR AXLE SHAFT |
| Repalced by: A 6583570701 | ||
| 616 | A 6583570701 | REAR AXLE SHAFT |
| 616 | A 3463572901 | REAR AXLE SHAFT |
| Repalced by: A 6583570901 | ||
| 616 | A 6583570901 | REAR AXLE SHAFT |
| 624 | N 009045050001 | SNAP RING |
| 632 | A 3463540417 | SUN GEAR |
| NUMBER OF TEETH: | ||
| 23 | ||
| 632 | A 3463541717 | SUN GEAR |
| NUMBER OF TEETH: | ||
| 36 | ||
| 640 | N 900055045200 | LOCK RING |
| 648 | A 3463360062 | GUARD PLATE |
| 656 | A 3553540752 | SPACER WASHER |
| AS REQUIRED | ||
| 0.10 MM | ||
| 656 | A 3553540652 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 656 | A 3553540552 | SPACER WASHER |
| AS REQUIRED | ||
| 0.50 MM | ||
| 656 | A 3553540852 | SPACER WASHER |
| AS REQUIRED | ||
| 1.00 MM | ||
| 656 | A 4983540152 | SPACER WASHER |
| AS REQUIRED | ||
| 1.50 MM | ||
| 664 | N 000472105000 | LOCK RING |
| Repalced by: N 000472105001 | ||
| 664 | N 000472105001 | LOCK RING |
| 672 | A 3463340320 | END COVER |
| Repalced by: A 6243560020 | ||
| 672 | A 6243560020 | HUB CAP |
| BELL HUB | ||
| 680 | N 000933010164 | SCREW |
| COVER TO WHEEL HUB | ||
| M 10X22 | ||
| 680 | A 0009906404 | SCREW |
| COVER TO WHEEL HUB | ||
| M 10X18 | ||
| 688 | N 007603024106 | SEAL RING |
| 24X29 MM | ||
| 696 | A 1159970032 | SCREW PLUG |
| OIL DRAIN | ||
| 704 | N 007603045100 | SEAL RING |
| 712 | A 3559970232 | SCREW PLUG |
| OIL FILLING | ||
| 720 | A 3555840324 | UNIT IDENTIFICATION PLATE |
| 728 | N 001476003007 | GROOVED NAIL |
| UNIT IDENTIFICATION PLATE TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
