Transporto priemonė: LK 1924; VIN numerio dalis: 346323

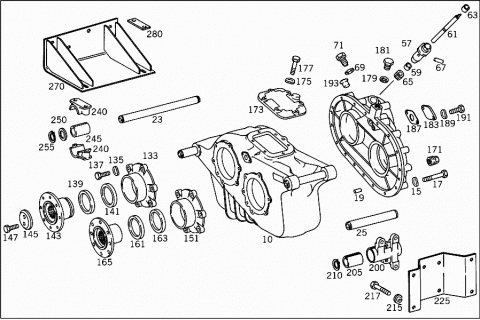

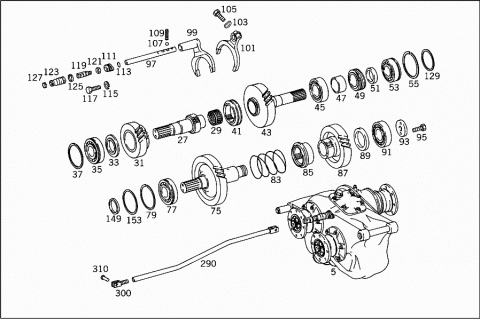

Grupė: 28 TRANSFER CASE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3462805000 | TRANSFER CASE |
| Repalced by: A 3462805100 | ||
| 005 | A 3462805100 | TRANSFER CASE |
| Repalced by: A 3462805500 | ||
| 005 | A 3462805500 | TRANSFER CASE |
| 010 | A 3462805003 | HOUSING |
| Repalced by: A 3462805103 | ||
| 010 | A 3462805103 | HOUSING |
| TRANSFER CASE | ||
| A 3462815015 | COVER | |
| 015 | N 000137010201 | SPRING WASHER |
| REAR COVER TO TRANSMISSION | ||
| 017 | N 000931010271 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| 019 | N 000007010106 | CYLINDRICAL PIN |
| REAR COVER TO TRANSMISSION | ||
| 023 | A 3462855374 | PIN |
| Repalced by: A 3462855174 | ||
| 023 | A 3462855174 | PIN |
| SUSPENSION | ||
| A 3462855053 | SPACER TUBE | |
| SUSPENSION | ||
| 025 | A 3462855274 | PIN |
| SUSPENSION | ||
| 027 | A 3462825001 | DRIVE SHAFT |
| 029 | A 0009819212 | ROLLER ASSEMBLY |
| REAR DRIVE SHAFT | ||
| 031 | A 3462825011 | GEAR |
| DRIVE SHAFT | ||
| 033 | A 3462835152 | SPACER WASHER |
| DRIVE SHAFT | ||
| 035 | A 0029811601 | CYLINDR. ROLLER BEARING |
| DRIVE SHAFT | ||
| 037 | N 005417130000 | SNAP RING |
| DRIVE SHAFT | ||
| 041 | A 3432830123 | SHIFTING DOG |
| Repalced by: A 3432830023 | ||
| 041 | A 3432830023 | SHIFTING DOG |
| DRIVE SHAFT | ||
| 043 | A 3462835006 | DRIVE SHAFT |
| REAR AXLE | ||
| 045 | A 0029811801 | CYLINDR. ROLLER BEARING |
| P.T.O. | ||
| 047 | A 3462835050 | BUSHING |
| P.T.O. | ||
| 049 | A 3462835030 | DRIVE GEAR |
| SPEEDOMETER DRIVE | ||
| 051 | A 3462835251 | SPACER RING |
| P.T.O. | ||
| 053 | N 000625536312 | GROOVED BALL BEARING |
| P.T.O. | ||
| 055 | N 005417130000 | SNAP RING |
| P.T.O. | ||
| 057 | A 3462835033 | CONNECTOR |
| SPEEDOMETER DRIVE | ||
| 059 | A 3432640050 | BUSHING |
| SPEEDOMETER DRIVE | ||
| 061 | A 3462835132 | SHAFT |
| SPEEDOMETER DRIVE | ||
| 063 | A 0079972746 | SEAL RING |
| SPEEDOMETER DRIVE | ||
| 065 | A 3462835131 | DRIVE GEAR |
| SPEEDOMETER DRIVE | ||
| 067 | N 000007006205 | CYLINDRICAL PIN |
| SPEEDOMETER DRIVE | ||
| 069 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 069 | N 000125008443 | WASHER |
| SPEEDOMETER DRIVE TO COVER | ||
| 071 | A 6159900015 | SCREW |
| SPEEDOMETER DRIVE TO COVER | ||
| 075 | A 3462835005 | DRIVE SHAFT |
| Repalced by: A 3462835205 | ||
| 075 | A 3462835205 | DRIVE SHAFT |
| FRONT AXLE | ||
| 077 | N 000625536312 | GROOVED BALL BEARING |
| FRONT DRIVE SHAFT | ||
| 079 | N 005417130000 | SNAP RING |
| FRONT DRIVE SHAFT | ||
| 083 | A 3462845093 | SPRING |
| Repalced by: A 3462845193 | ||
| 083 | A 3462845193 | SPRING |
| Repalced by: A 3462845593 | ||
| 083 | A 3462845593 | SPRING |
| 085 | A 3462825023 | SHIFTING DOG |
| Repalced by: A 3462825123 | ||
| 085 | A 3462825123 | SHIFTING DOG |
| FRONT AXLE DRIVE | ||
| 087 | A 3462835007 | GEAR |
| FRONT AXLE DRIVE | ||
| 089 | A 3462835051 | SPACER RING |
| REAR DRIVE SHAFT | ||
| 091 | A 0029811701 | CYLINDR. ROLLER BEARING |
| REAR DRIVE SHAFT | ||
| 093 | A 3462835062 | THRUST WASHER |
| REAR DRIVE SHAFT | ||
| 095 | N 000933012069 | SCREW |
| Repalced by: N 000933012068 | ||
| 095 | N 000933012068 | SCREW |
| REAR DRIVE SHAFT | ||
| 097 | A 3462845020 | SHIFTING ROD |
| TRANSFER CASE | ||
| 099 | A 3462845101 | SHIFTING FORK |
| Repalced by: A 3462845201 | ||
| 099 | A 3462845201 | SHIFTING FORK |
| TRANSFER CASE | ||
| A 3462820076 | WASHER | |
| FRONT AXLE OUTPUT SHAFT | ||
| 101 | A 3462845001 | SHIFTING FORK |
| TRANSFER CASE | ||
| 103 | N 000137010201 | SPRING WASHER |
| REAR COVER TO TRANSMISSION | ||
| 105 | N 000931010282 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| 107 | N 005401312000 | BALL |
| DETENT | ||
| 109 | A 3042840093 | SPRING |
| DETENT | ||
| 111 | A 3462845138 | FLANGE |
| SHIFTING FORK TO SHIFTING ROD | ||
| 113 | A 0099972745 | SEAL RING |
| SHIFTING FORK TO SHIFTING ROD | ||
| 115 | N 912004008102 | LOCK WASHER |
| REAR COVER TO TRANSMISSION | ||
| 117 | N 000933008145 | SCREW |
| REAR COVER TO TRANSMISSION | ||
| 119 | A 3372845028 | CONNECTOR |
| AT SHIFTING ROD | ||
| 121 | N 000936012005 | NUT |
| Repalced by: N 308675012000 | ||
| 121 | N 308675012000 | NUT |
| CONNECTOR TO SHIFTING ROD | ||
| 123 | A 3122841097 | BOOT |
| SHIFTING ROD | ||
| 125 | A 3129940034 | SNAP RING |
| SHIFTING ROD | ||
| 127 | A 3129940134 | SNAP RING |
| SHIFTING ROD | ||
| 129 | A 3432820152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 129 | A 3432820252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| 133 | A 3432810814 | COVER |
| FRONT | ||
| 135 | N 000137010201 | SPRING WASHER |
| COVER TO TRANSMISSION CASE | ||
| 137 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 137 | N 304017010002 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| 139 | A 0049979646 | SEAL RING |
| (COUPLING FLANGE) | ||
| 141 | A 0049979546 | SEAL RING |
| (COUPLING FLANGE) | ||
| 143 | A 3432820345 | COUPLING FLANGE |
| FRONT | ||
| 145 | A 3432620062 | SEAL RING |
| FLANGE TO SHAFT | ||
| 147 | N 000933012069 | SCREW |
| Repalced by: N 000933012068 | ||
| 147 | N 000933012068 | SCREW |
| FLANGE TO SHAFT | ||
| 149 | A 3462835151 | SPACER RING |
| FLANGE TO SHAFT | ||
| 151 | A 3462815014 | COVER |
| FRONT | ||
| 153 | A 3432820152 | SPACER WASHER |
| AS REQUIRED | ||
| 0.20 MM | ||
| 153 | A 3432820252 | SPACER WASHER |
| AS REQUIRED | ||
| 0.30 MM | ||
| N 000137010201 | SPRING WASHER | |
| COVER TO TRANSMISSION CASE | ||
| N 000933010129 | SCREW | |
| Repalced by: N 304017010002 | ||
| N 304017010002 | SCREW | |
| COVER TO TRANSMISSION CASE | ||
| 161 | N 003760068100 | RADIAL SEAL RING |
| (COUPLING FLANGE) | ||
| 163 | A 0039978046 | SEAL RING |
| (COUPLING FLANGE) | ||
| 165 | A 3432820245 | COUPLING FLANGE |
| FRONT | ||
| A 3432620062 | SEAL RING | |
| FLANGE TO SHAFT | ||
| N 000933012069 | SCREW | |
| Repalced by: N 000933012068 | ||
| N 000933012068 | SCREW | |
| FLANGE TO SHAFT | ||
| 171 | A 0009979930 | SCREW PLUG |
| OIL FILLING AND OIL DRAIN | ||
| 173 | A 3462815013 | COVER |
| TOP | ||
| 175 | N 000137010201 | SPRING WASHER |
| COVER TO TRANSMISSION CASE | ||
| 177 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 177 | N 304017010002 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| 179 | N 007603014405 | SEAL RING |
| DETENT | ||
| 181 | N 007604014106 | SCREW PLUG |
| Repalced by: N 007604014110 | ||
| 181 | N 007604014110 | SCREW PLUG |
| DETENT | ||
| 183 | A 3462815115 | COVER |
| REAR | ||
| 187 | A 3462815079 | GASKET |
| Repalced by: A 3462815379 | ||
| 187 | A 3462815379 | GASKET |
| Repalced by: A 3462810080 | ||
| 187 | A 3462810080 | GASKET |
| COVER TO TRANSMISSION CASE | ||
| 189 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 189 | N 000137008212 | SPRING WASHER |
| COVER TO TRANSMISSION CASE | ||
| 191 | N 000933008145 | SCREW |
| COVER TO TRANSMISSION CASE | ||
| 193 | A 3123501090 | VALVE |
| Repalced by: A 3833510065 | ||
| 193 | A 3833510065 | FITTING |
| TRANSFER CASE | ||
| 200 | A 3042800386 | BEARING |
| LEFT | ||
| 205 | A 3042850082 | RUBBER MOUNTING |
| SUSPENSION | ||
| 210 | A 0019947941 | LOCK |
| SUSPENSION | ||
| 215 | N 912004014100 | LOCK WASHER |
| SUSPENSION | ||
| 217 | N 000960014167 | SCREW |
| Repalced by: N 000961014064 | ||
| 217 | N 000961014064 | SCREW |
| SUSPENSION | ||
| 225 | A 3462855002 | SUPPORT |
| LEFT | ||
| 225 | A 3462805285 | SUPPORT |
| LEFT | ||
| 225 | A 3462855040 | BRACKET |
| LEFT | ||
| N 000961012151 | SCREW | |
| SUSPENSION | ||
| N 000961012164 | SCREW | |
| SUSPENSION | ||
| N 000961012122 | SCREW | |
| SUSPENSION | ||
| M 12X40 | ||
| N 000961012106 | SCREW | |
| SUSPENSION | ||
| M 12X32 | ||
| N 000934012022 | NUT | |
| SUSPENSION | ||
| N 000961012122 | SCREW | |
| SUSPENSION | ||
| N 000960012342 | SCREW | |
| SUSPENSION | ||
| N 912004012100 | LOCK WASHER | |
| SUSPENSION | ||
| N 000934012022 | NUT | |
| SUSPENSION | ||
| A 3462855053 | SPACER TUBE | |
| SUSPENSION | ||
| 240 | A 3122801386 | BEARING |
| SUSPENSION | ||
| 245 | A 3042850082 | RUBBER MOUNTING |
| SUSPENSION | ||
| 250 | A 3159905040 | WASHER |
| Repalced by: A 3129902840 | ||
| 250 | A 3129902840 | WASHER |
| SUSPENSION | ||
| 255 | A 0019947941 | LOCK |
| SUSPENSION | ||
| 270 | A 3462805185 | SUPPORT |
| RIGHT | ||
| 270 | A 3462805385 | SUPPORT |
| RIGHT | ||
| 270 | A 3462805085 | SUPPORT |
| RIGHT | ||
| N 000961012151 | SCREW | |
| SUSPENSION | ||
| N 000961012164 | SCREW | |
| SUSPENSION | ||
| N 000961012097 | SCREW | |
| Repalced by: N 308676012026 | ||
| N 308676012026 | SCREW | |
| SUSPENSION | ||
| A 3462855084 | SHIM | |
| SUSPENSION | ||
| N 000934012022 | NUT | |
| SUSPENSION | ||
| A 3392850784 | SHIM | |
| AS REQUIRED | ||
| 0.50 MM | ||
| A 3392850884 | SHIM | |
| AS REQUIRED | ||
| 1.00 MM | ||
| A 3392850984 | SHIM | |
| AS REQUIRED | ||
| 1.50 MM | ||
| A 3392851084 | SHIM | |
| AS REQUIRED | ||
| 2.00 MM | ||
| N 000961012164 | SCREW | |
| SUSPENSION | ||
| N 000934012022 | NUT | |
| SUSPENSION | ||
| 280 | A 3392850584 | SHIM |
| SUSPENSION | ||
| N 007989013151 | WASHER | |
| SUSPENSION | ||
| N 000960012264 | SCREW | |
| Repalced by: N 308765012003 | ||
| N 308765012003 | SCREW | |
| SUSPENSION | ||
| N 000960012221 | SCREW | |
| SUSPENSION | ||
| N 000960012307 | SCREW | |
| SUSPENSION | ||
| N 000125013008 | WASHER | |
| N 912004012100 | LOCK WASHER | |
| SUSPENSION | ||
| N 000934012022 | NUT | |
| SUSPENSION | ||
| 290 | A 3462805256 | SHIFTING ROD |
| TRANSFER CASE | ||
| 290 | A 3462805056 | SHIFTING ROD |
| TRANSFER CASE | ||
| 290 | A 3462805356 | SHIFTING ROD |
| TRANSFER CASE | ||
| 290 | A 3462805456 | SHIFTING ROD |
| TRANSFER CASE | ||
| 290 | A 3462805156 | SHIFTING ROD |
| TRANSFER CASE | ||
| 290 | A 3362800656 | SHIFTING ROD |
| TRANSFER CASE | ||
| 300 | A 3359960005 | YOKE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 300 | A 3469965005 | YOKE |
| SHIFTING ROD TO SHIFT LEVER | ||
| 310 | N 001434012027 | PIN |
| SHIFTING ROD TO SHIFT LEVER | ||
| N 001434010004 | PIN | |
| SHIFTING ROD TO SHIFT LEVER | ||
| N 001434010004 | PIN | |
| SHIFTING ROD TO SHIFT LEVER | ||
| N 000094004065 | COTTER PIN | |
| SHIFTING ROD TO SHIFT LEVER | ||
| N 000094003219 | COTTER PIN | |
| SHIFTING ROD TO SHIFT LEVER | ||
| N 900055012001 | SPRING WASHER | |
| SHIFTING ROD TO SHIFT LEVER | ||
