Transporto priemonė: LK 2325,2425; VIN numerio dalis: 386389

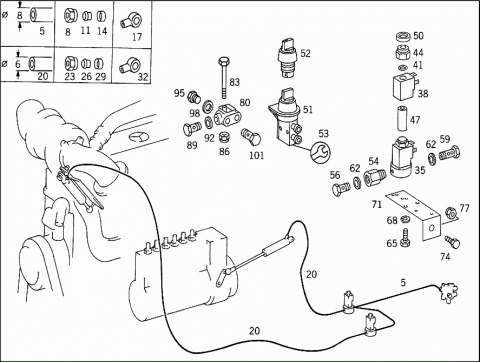

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
	X XXXXXXXXXXXX	PART NAME MISSING
		EXHAUST BRAKE VALVE LINE CONNECTION
005	A 0089979082	HOSE
	Repalced by: A 0009874927
005	A 0009874927	PLASTIC PIPE
		FROM FOUR-CIRCUIT PROTECTIVE VALVE TO SOLENOID VALVE
		6X8 MM
008	N 915017008100	UNION NUT
011	N 003861008005	GLAND
014	A 0019976672	FITTING
	Repalced by: N 915062006000
014	N 915062006000	SLEEVE
017	N 915052006013	BANJO UNION
		HOSE WIDTH, / I.D.,
		6/12 MM
017	N 915052006021	BANJO UNION
		HOSE WIDTH, / I.D.,
		6/14 MM
020	A 0089976082	HOSE
		4X6 MM
023	N 915017006100	UNION NUT
026	N 003861006007	GLAND
029	N 915062004000	SLEEVE
032	N 915052004013	BANJO UNION
		HOSE WIDTH, / I.D.,
		4/14 MM
	X XXXXXXXXXXXX	PART NAME MISSING
		ENGINE SHUT-OFF AND EXHAUST BRAKE
035	A 3459977336	VALVE
	Repalced by: A 3889978236
035	A 3889978236	VALVE
		(THREE-WAY SOLENOID VALVE)
		"PARKER"
	A 0059972336	REPAIR KIT
		TO 388 997 82 36
035	A 3649977236	VALVE
		(THREE-WAY SOLENOID VALVE)
038	A 3647630056	MAGNET
038	A 0007630956	MAGNET
041	A 0139971648	SEAL RING
044	A 0004310472	NUT
047	A 0004311868	VALVE PART
050	A 0014311687	PROTECTIVE CAP
051	A 3849977036	VALVE
051	A 3849977136	VALVE
051	A 3869977136	VALVE
		3/2-WAY VALVE
		WABCO
051	A 3459977536	VALVE
		3/2-WAY VALVE
052	A 0004312164	ACTUATING PART
		TO 384 997 70 36,71 36
053	A 0004201971	REPAIR KIT
		TO 384 997 70 36,71 36
053	A 0004305660	REPAIR KIT
		3/2-WAY VALVE
		TO 386 997 71 36
054	A 3509977472	FITTING
		FROM 3/2-WAY SOLENOID VALVE TO CYLINDER
	A 3454298136	CONNECTOR
		FROM 3/2-WAY SOLENOID VALVE TO CYLINDER
056	N 915036008202	HOLLOW SCREW
		FROM 3/2-WAY SOLENOID VALVE TO CYLINDER
059	N 915047008202	HOLLOW SCREW
		FROM 3/2-WAY SOLENOID VALVE TO CYLINDER
062	N 007603012106	SEAL RING
		FROM 3/2-WAY SOLENOID VALVE TO CYLINDER
065	N 000933005095	SCREW
		SOLENOID VALVE TO BRACKET
068	N 000127005001	LOCK WASHER
		SOLENOID VALVE TO BRACKET
071	A 6884347040	BRACKET
		SIDE MEMBER
071	A 3864297640	BRACKET
		SIDE MEMBER
	A 3453537140	BRACKET
		3/2-WAY VALVE
074	N 000933010129	SCREW
		BRACKET TO SIDE MEMBER
074	N 000933014049	SCREW
		BRACKET TO SIDE MEMBER
	N 000931008378	SCREW
		3/2-WAY VALVE TO BRACKET
	N 000933008282	SCREW
		BRACKET TO CROSS MEMBER
077	N 913004010004	NUT
		BRACKET TO SIDE MEMBER
077	N 913004014007	NUT
		BRACKET TO SIDE MEMBER
	N 913004008001	NUT
		3/2-WAY VALVE TO BRACKET
	N 913004008001	NUT
		BRACKET TO CROSS MEMBER
	N 000125015012	WASHER
		BRACKET TO SIDE MEMBER
	N 000125010517	WASHER
		BRACKET TO SIDE MEMBER
	N 000125008417	WASHER
		3/2-WAY VALVE TO BRACKET
	N 000125008417	WASHER
		BRACKET TO CROSS MEMBER
080	A 3454297237	DISTRIBUTOR
080	A 0004294037	DISTRIBUTOR
083	N 000931006192	SCREW
		BRACKET TO 3/2-WAY VALVE
086	N 913004006001	NUT
		BRACKET TO 3/2-WAY VALVE
089	N 915036008202	HOLLOW SCREW
		CONNECTIONS:
		"20,30,60,70"
092	N 007603012110	SEAL RING
		CONNECTIONS:
		"20,30,40,50,60,70"
095	N 007604012102	SCREW PLUG
		DISTRIBUTOR,CONNECTIONS:
		"40,50,60,70"
098	N 007603012110	SEAL RING
		DISTRIBUTOR,CONNECTIONS:
		"10,40,50,60,70"
101	N 915036008100	HOLLOW SCREW
		DISTRIBUTOR,CONNECTIONS:
		"60"
