Transporto priemonė: LK 2325,2425; VIN numerio dalis: 386389

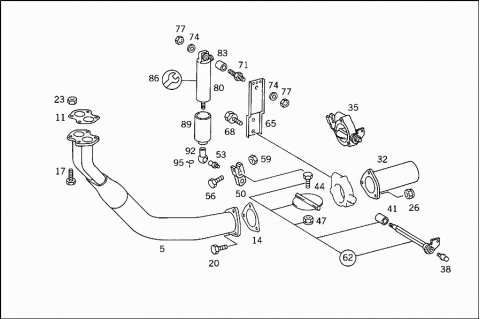

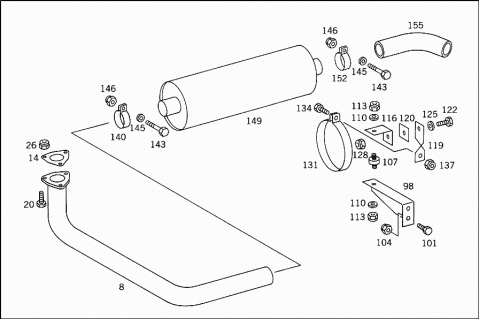

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3844908019 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 3944907019 | EXHAUST PIPE |
| Repalced by: A 3864907719 | ||
| 008 | A 3864907719 | EXHAUST PIPE |
| 008 | A 3844907719 | EXHAUST PIPE |
| 008 | A 3864907019 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 3864907419 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 3944907119 | EXHAUST PIPE |
| FRONT | ||
| 011 | A 6844927080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | A 3504920080 | FLANGE GASKET |
| Repalced by: A 6004920080 | ||
| 014 | A 6004920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | A 6004920080 | FLANGE GASKET |
| THROTTLE HOUSING | ||
| 017 | N 000931010436 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X40 | ||
| 020 | N 000931012283 | SCREW |
| FRONT EXHAUST PIPE TO THROTTLE HOUSING | ||
| M 12X50 | ||
| 020 | N 000960012346 | SCREW |
| THROTTLE HOUSING | ||
| M 12X1,5X75 | ||
| 023 | N 000934010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 026 | N 913004012016 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 026 | N 913004012018 | NUT |
| THROTTLE HOUSING | ||
| 032 | A 3924907025 | CONNECTOR |
| Repalced by: A 3824907619 | ||
| 032 | A 3824907619 | EXHAUST PIPE |
| 035 | A 3761400353 | THROTTLE HOUSING |
| 038 | A 3769910120 | BALL PIVOT |
| 041 | A 4031440550 | BUSHING |
| 044 | N 000933008337 | SCREW |
| SHAFT TO THROTTLE VALVE | ||
| 047 | N 913004008014 | NUT |
| SHAFT TO THROTTLE VALVE | ||
| 050 | A 3661400032 | LEVER |
| Repalced by: A 3661400232 | ||
| 050 | A 3661400232 | LEVER |
| EXHAUST BRAKE OPERATION | ||
| 053 | N 071803013211 | BALL PIVOT |
| 056 | N 000933006061 | SCREW |
| LEVER TO THROTTLE VALVE SHAFT | ||
| 059 | N 000934006006 | NUT |
| LEVER TO THROTTLE VALVE SHAFT | ||
| 062 | A 3761400363 | VALVE |
| PARTS KIT | ||
| 065 | A 3661440040 | BRACKET |
| Repalced by: A 3661440440 | ||
| 065 | A 3661440440 | BRACKET |
| POWER CYLINDER | ||
| 068 | N 914126008037 | SCREW |
| BRACKET TO THROTTLE HOUSING | ||
| 071 | A 4421440274 | PIN |
| POWER CYLINDER TO BRACKET | ||
| 074 | A 0039902940 | WASHER |
| POWER CYLINDER TO BRACKET | ||
| 077 | N 000934008000 | NUT |
| POWER CYLINDER TO BRACKET | ||
| 080 | A 0004304826 | CYLINDER |
| Repalced by: A 0004306026 | ||
| 080 | A 0004306026 | CYLINDER |
| EXHAUST BRAKE | ||
| "KNORR" | ||
| 080 | A 0004304926 | CYLINDER |
| Repalced by: A 0004305926 | ||
| 080 | A 0004305926 | CYLINDER |
| EXHAUST BRAKE | ||
| "SCHRADER | ||
| 083 | A 4421440050 | BUSHING |
| 086 | A 0004305426 | REPAIR KIT |
| TO 000 430 48 26 | ||
| 089 | A 3661440085 | CAP |
| EXHAUST BRAKE CYLINDER | ||
| 089 | A 3761447085 | CAP |
| EXHAUST BRAKE CYLINDER | ||
| N 000936008007 | NUT | |
| EXHAUST BRAKE CYLINDER | ||
| N 000439008201 | NUT | |
| EXHAUST BRAKE CYLINDER | ||
| 092 | A 4039910222 | BALL SOCKET |
| EXHAUST BRAKE CYLINDER | ||
| 092 | A 3769917022 | BALL SOCKET |
| EXHAUST BRAKE CYLINDER | ||
| 095 | N 071805013403 | SECURING CLIP |
| 098 | A 3864917216 | SUPPORT |
| 098 | A 3864917316 | SUPPORT |
| 101 | N 000961014106 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X35 | ||
| 101 | N 000961014101 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X45 | ||
| 101 | N 000961014116 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X50 | ||
| 104 | N 913004014005 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 107 | A 0019873140 | RUBBER BUFFER |
| 110 | N 000125010517 | WASHER |
| 113 | N 000934010005 | NUT |
| 101 | N 000961014101 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 14X1.5X45 | ||
| 116 | A 3864917041 | BRACKET |
| 119 | A 3864917116 | SUPPORT |
| 120 | A 3864757019 | BASE |
| 122 | N 000933010129 | SCREW |
| BRACKET TO BRACKET | ||
| 125 | N 000125010517 | WASHER |
| BRACKET TO BRACKET | ||
| 128 | N 913004010004 | NUT |
| BRACKET TO BRACKET | ||
| 131 | A 3844917040 | CLAMP |
| EXHAUST MUFFLER | ||
| 131 | A 3884917140 | CLAMP |
| EXHAUST MUFFLER | ||
| 134 | N 000933010269 | SCREW |
| CLAMP TO BRACKET | ||
| 137 | N 913004010004 | NUT |
| CLAMP TO BRACKET | ||
| 140 | N 071555094502 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 140 | A 3844927040 | CLAMP |
| Repalced by: A 3644927040 | ||
| 140 | A 3644927040 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 140 | A 3864927040 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 143 | N 000933010129 | SCREW |
| M 10X30 | ||
| 143 | N 000931010317 | SCREW |
| M 10X140 | ||
| 143 | N 000931010167 | SCREW |
| M 10X130 | ||
| 143 | N 000931010234 | SCREW |
| M 10X148 | ||
| 145 | N 000125010517 | WASHER |
| 146 | N 913004010004 | NUT |
| 146 | N 913004010000 | NUT |
| 149 | A 3844907001 | EXHAUST MUFFLER |
| 149 | A 3844907401 | EXHAUST MUFFLER |
| 149 | A 3924907001 | EXHAUST MUFFLER |
| 149 | A 3824907001 | EXHAUST MUFFLER |
| 149 | A 3824907201 | EXHAUST MUFFLER |
| 149 | A 3944907101 | EXHAUST MUFFLER |
| 149 | A 3504907215 | EXHAUST MUFFLER WITH PIPE |
| 149 | A 3864907001 | EXHAUST MUFFLER |
| 152 | N 071555094502 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 152 | A 3844927040 | CLAMP |
| Repalced by: A 3644927040 | ||
| 152 | A 3644927040 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 152 | N 071555104501 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 152 | A 3864927040 | CLAMP |
| TAIL PIPE TO EXHAUST MUFFLER | ||
| 155 | A 3944927004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
| 155 | A 3924927004 | REAR EXHAUST PIPE |
| (TAIL PIPE) | ||
