Transporto priemonė: LK 2325,2425; VIN numerio dalis: 386389

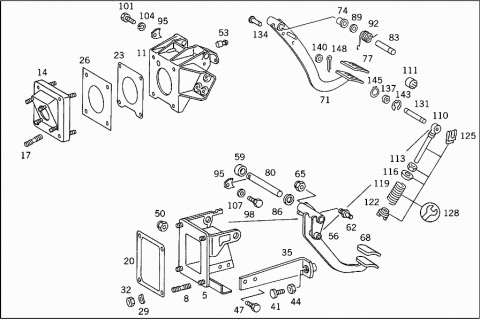

Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6882940201 | BEARING BRACKET |
| Repalced by: A 6882947001 | ||
| 005 | A 6882947001 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 008 | A 6882920070 | STUD |
| 011 | A 3842947001 | BEARING BRACKET |
| Repalced by: A 3842947201 | ||
| 011 | A 3842947201 | BEARING BRACKET |
| BRAKE PEDAL | ||
| 014 | A 3844307010 | BRACKET |
| BRAKE VALVE | ||
| 014 | A 3844307210 | BRACKET |
| BRAKE VALVE | ||
| 017 | N 000835008086 | STUD |
| M 8X25 | ||
| 017 | N 000835008096 | STUD |
| M 8X30 | ||
| 020 | A 6452940080 | GASKET |
| Repalced by: A 6452940280 | ||
| 020 | A 6452940280 | GASKET |
| PEDAL BRACKET | ||
| 023 | A 3842947080 | GASKET |
| BRAKE PEDAL BEARING BRACKET TO CAB | ||
| 026 | A 6884310080 | GASKET |
| BRACKET TO BEARING BRACKET | ||
| 029 | N 000137008202 | SPRING WASHER |
| 032 | N 000934008008 | NUT |
| 035 | A 3842907032 | STOP |
| CLUTCH PEDAL | ||
| 041 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| M8 | ||
| 044 | N 000934008000 | NUT |
| CLUTCH PEDAL | ||
| 047 | N 000000001147 | SCREW |
| STOP TO BEARING BRACKET | ||
| M 6X20 | ||
| 050 | N 913004006001 | NUT |
| STOP TO BEARING BRACKET | ||
| 053 | A 6882917386 | STOP |
| BRAKE PEDAL | ||
| 053 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 053 | A 3862917086 | STOP |
| CLUTCH PEDAL | ||
| 053 | A 3842917086 | STOP |
| CLUTCH PEDAL | ||
| 053 | A 6882917586 | STOP |
| CLUTCH PEDAL | ||
| 056 | A 6882900216 | PEDAL |
| CLUTCH | ||
| 056 | A 6882900216 | PEDAL |
| CLUTCH | ||
| 056 | A 3882907216 | PEDAL |
| 056 | A 6842907216 | PEDAL |
| 059 | A 0019816310 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 059 | A 0109818010 | NEEDLE BEARING |
| CLUTCH PEDAL | ||
| 062 | A 6882910074 | PIN |
| CLUTCH PEDAL | ||
| 062 | A 6882910074 | PIN |
| CLUTCH PEDAL | ||
| 062 | A 3882917074 | PIN |
| CLUTCH PEDAL | ||
| 065 | N 913002010001 | NUT |
| CLUTCH PEDAL | ||
| 068 | A 2012910282 | PAD |
| CLUTCH PEDAL | ||
| 071 | A 3842907018 | PEDAL |
| BRAKE | ||
| 074 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 077 | A 1102910182 | PAD |
| BRAKE PEDAL | ||
| 077 | A 1102910182 | PAD |
| CLUTCH PEDAL | ||
| 080 | A 6452940074 | PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 083 | A 3842927174 | PIN |
| Repalced by: A 6452940074 | ||
| 083 | A 6452940074 | PIN |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 086 | A 6732910076 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 089 | A 1154630152 | SPACER WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 092 | A 3849937020 | SPRING |
| BRAKE PEDAL | ||
| 095 | A 3852920073 | LOCK |
| CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS | ||
| 095 | A 6732920073 | LOCK |
| CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS | ||
| 098 | N 000933006220 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 101 | N 000933006223 | SCREW |
| LOCK TO BRAKE PEDAL BEARING BRACKET | ||
| 104 | N 000127006203 | LOCK WASHER |
| LOCK TO BRAKE PEDAL BEARING BRACKET | ||
| 107 | N 000125006420 | WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 110 | A 3812901439 | ROD |
| Repalced by: A 3822908419 | ||
| 110 | A 3822908419 | BEARING BRACKET |
| 111 | A 0059814410 | NEEDLE BEARING |
| 111 | A 0059813810 | NEEDLE BEARING |
| 111 | A 0089811210 | NEEDLE BEARING |
| 111 | A 0139818210 | NEEDLE BEARING |
| 113 | N 000439010221 | NUT |
| SPRING TO PUSH ROD | ||
| 116 | A 1112910491 | SPRING RETAINER |
| SPRING TO PUSH ROD | ||
| 119 | A 1109930501 | SPRING |
| Repalced by: A 3869937001 | ||
| 119 | A 3869937001 | SPRING |
| SPRING TO PUSH ROD | ||
| 119 | A 3869937001 | SPRING |
| SPRING TO PUSH ROD | ||
| 119 | A 3889937001 | SPRING |
| SPRING TO PUSH ROD | ||
| 122 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 122 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 122 | A 3882917091 | SPRING RETAINER |
| Repalced by: A 3092910091 | ||
| 122 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| A 3889937010 | SPRING | |
| PUSH ROD TO CLUTCH PEDAL | ||
| 125 | A 6459880178 | CLIP |
| SPRING TO PUSH ROD | ||
| 128 | A 6882900093 | REPAIR KIT |
| Repalced by: A 3862900039 | ||
| 128 | A 3862900039 | ROD |
| Repalced by: A 3822900093 | ||
| 128 | A 3822900093 | SPRING |
| PARTS KIT | ||
| 128 | A 3822900093 | SPRING |
| OVER-CENTER ACTING SPRING | ||
| 128 | A 3822900093 | SPRING |
| PARTS KIT | ||
| 128 | A 3822900193 | SPRING |
| PARTS KIT | ||
| 128 | A 3822900193 | SPRING |
| OVER-CENTER ACTING SPRING | ||
| 131 | A 6452910374 | PIN |
| Repalced by: A 3842917074 | ||
| 131 | A 3842917074 | PIN |
| PUSH ROD TO PEDAL | ||
| 134 | A 3529910007 | PIN |
| ROD TO BRAKE PEDAL | ||
| 137 | N 001440008002 | WASHER |
| PUSH ROD TO PEDAL | ||
| 137 | N 001440008002 | WASHER |
| PUSH ROD TO PEDAL | ||
| 140 | N 000433010500 | WASHER |
| ROD TO BRAKE PEDAL | ||
| 143 | N 006799006002 | LOCK PLATE |
| 145 | N 000471008001 | LOCK RING |
| PUSH ROD TO PEDAL | ||
| 145 | N 000471008001 | LOCK RING |
| PUSH ROD TO PEDAL | ||
| 148 | N 000094003027 | COTTER PIN |
| ROD TO BRAKE PEDAL | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR SERVICE BRAKE VALVE,SEE GROUP/TU: | ||
| 42/06 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR CYLINDERS & HYDRAULIC LINES, SEE GROUP / TU: | ||
| 25/02 | ||
