Transporto priemonė: LK 2420; VIN numerio dalis: 386368
Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

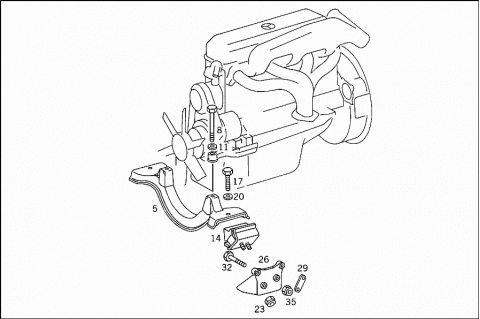

| 005 | A 3762400001 | ENGINE SUPPORT |
| FRONT | ||
| 008 | N 000960016261 | SCREW |
| ENGINE TO ENGINE FRONT SUPPORT | ||
| 011 | A 3529902440 | WASHER |
| ENGINE TO ENGINE FRONT SUPPORT | ||
| 014 | A 3842407017 | RUBBER MOUNTING |
| FRONT | ||
| 014 | A 3842407117 | RUBBER MOUNTING |
| FRONT | ||
| A 3522420509 | ENGINE STAY | |
| RUBBER MOUNTING TO FRONT CROSS MEMBER | ||
| 017 | N 000961016093 | SCREW |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 020 | A 3529902440 | WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 023 | N 913004012003 | NUT |
| RUBBER MOUNTING TO CONSOLE | ||
| 026 | A 3762430005 | CONSOLE |
| LEFT | ||
| 026 | A 3842407006 | CONSOLE |
| LEFT | ||
| 026 | A 3762430105 | CONSOLE |
| RIGHT | ||
| 026 | A 3842407106 | CONSOLE |
| RIGHT | ||
| 029 | A 3842417384 | SHIM |
| A 3842417184 | SHIM | |
| 032 | N 000961012155 | SCREW |
| LEFT CONSOLE TO FRAME | ||
| M 12X1.5X45 | ||
| 032 | N 000961012155 | SCREW |
| RIGHT CONSOLE TO FRAME | ||
| 032 | N 000961012209 | SCREW |
| RIGHT CONSOLE TO FRAME | ||
| M 12X1.5X50 | ||
| 032 | N 000961012209 | SCREW |
| LEFT AND RIGHT CONSOLES TO FRAME | ||
| M 12X1.5X50 | ||
| 032 | N 000960012357 | SCREW |
| Repalced by: N 000961012184 | ||
| 032 | N 000961012184 | SCREW |
| LEFT AND RIGHT CONSOLES TO FRAME | ||
| M 12X1.5X65 | ||
| 035 | N 913004012009 | NUT |
| LEFT AND RIGHT CONSOLES TO FRAME | ||
| 035 | N 913004012009 | NUT |
| LEFT AND RIGHT CONSOLES TO FRAME | ||

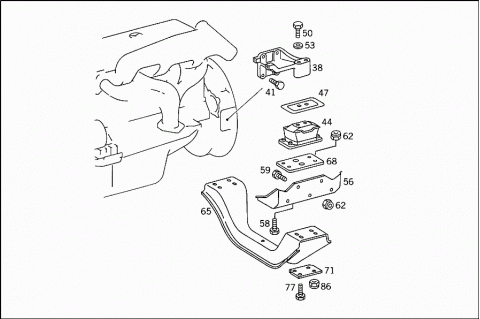

| 038 | A 3842427001 | ENGINE SUPPORT |
| REAR LEFT | ||
| 038 | A 3762420101 | ENGINE SUPPORT |
| REAR RIGHT | ||
| 041 | N 000933016080 | SCREW |
| ENGINE REAR SUPPORT TO ENGINE | ||
| 044 | A 6152400218 | RUBBER MOUNTING |
| Repalced by: A 6842407018 | ||
| 044 | A 6152400318 | RUBBER MOUNTING |
| Repalced by: A 6842407018 | ||
| 044 | A 6152400418 | RUBBER MOUNTING |
| Repalced by: A 6842407018 | ||
| 044 | A 6842407018 | RUBBER MOUNTING |
| REAR | ||
| 047 | A 3812420034 | SCREENING PLATE |
| REAR RUBBER MOUNTING | ||
| 050 | N 000960014246 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| M 14X1,5X90 | ||
| 053 | A 3609901840 | WASHER |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 056 | A 3763110163 | CONSOLE |
| REAR RUBBER MOUNTING | ||
| 058 | N 000961012154 | SCREW |
| CROSS MEMBER TO ENGINE REAR SUSPENSION CONSOLE | ||
| M 12X1,5X30 | ||
| 058 | N 000961012154 | SCREW |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 059 | N 000961014088 | SCREW |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| M 14X1.5X35 | ||
| 062 | N 913004012009 | NUT |
| CROSS MEMBER TO ENGINE REAR SUSPENSION CONSOLE | ||
| 062 | N 913004012009 | NUT |
| ENGINE SUPPORT TO SIDE MEMBERS | ||
| 065 | A 3453127107 | ENGINE CROSS MEMBER |
| REAR | ||
| 068 | A 3762420066 | WASHER |
| 071 | A 3763127460 | REINFORCEMENT |
| LEFT | ||
| 071 | A 3763127560 | REINFORCEMENT |
| RIGHT | ||
| 077 | N 000961012120 | SCREW |
| M 12X1,5X40 | ||
| 077 | N 000961012106 | SCREW |
| CROSS MEMBER TO ENGINE REAR SUSPENSION CONSOLE | ||
| M 12X1,5X35 | ||
| 086 | N 913004012003 | NUT |
| CROSS MEMBER TO ENGINE REAR SUSPENSION CONSOLE | ||
