Transporto priemonė: LK 2420; VIN numerio dalis: 386368

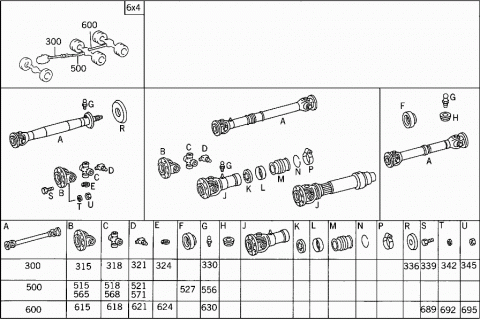

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
300	A 3764103604	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		1516 MM
315	A 3544110011	DRIVE FLANGE
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
318	A 3854100131	UNIVERSAL JOINT CROSS
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
321	N 071412008300	GREASE NIPPLE
321	A 3459977288	GREASE NIPPLE
324	A 3379945035	SNAP RING
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		2.800 MM
324	A 3379945435	SNAP RING
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		2.850 MM
324	A 3379945135	SNAP RING
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		2.900 MM
324	A 3379945235	SNAP RING
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		2.950 MM
324	A 3379945335	SNAP RING
		FROM TRANSMISSION TO INTERMEDIATE BEARING I
		3.000 MM
330	N 071412010100	GREASE NIPPLE
336	A 3354130061	PROTECTIVE CAP
339	A 3529900401	SCREW
	Repalced by: A 3529904701
339	A 3529904701	SCREW
		PROPELLER SHAFT TO COUPLING FLANGE
339	A 3609901901	SCREW
	Repalced by: A 3609903001
339	A 3609903001	SCREW
		PROPELLER SHAFT TO COUPLING FLANGE
342	N 000127010202	LOCK WASHER
		PROPELLER SHAFT TO COUPLING FLANGE
		TO 352 990 04 01
342	N 000127012201	LOCK WASHER
		PROPELLER SHAFT TO COUPLING FLANGE
		TO 360 990 19 01
345	N 000934010042	NUT
		PROPELLER SHAFT TO COUPLING FLANGE
345	N 000934012042	NUT
		PROPELLER SHAFT TO COUPLING FLANGE

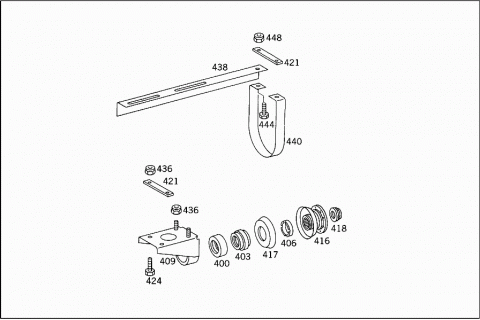

400	A 3384130012	RUBBER MOUNTING
403	A 3544100051	BALL BEARING
403	A 3844100051	BALL BEARING
406	A 3374130131	BEARING RING
409	A 3454107340	BRACKET
		INTERMEDIATE BEARING
		NO.1
416	A 3354100130	CENTERING FLANGE
416	A 3364100030	CENTERING FLANGE
417	A 3354130061	PROTECTIVE CAP
417	A 3874130061	PROTECTIVE CAP
418	A 3273530172	NUT
		FOLLOWER FLANGE TO PROPELLER SHAFT
421	A 3524130011	REINFORCEMENT
		PROPELLER SHAFT BEARING TO CROSS MEMBER
421	A 3524130011	REINFORCEMENT
		REBOUND STRAP TO FRAME
424	N 000961010039	SCREW
		PROPELLER SHAFT BEARING TO CROSS MEMBER
436	N 913002010002	NUT
		PROPELLER SHAFT BEARING TO CROSS MEMBER
438	A 3864137114	SUPPORT
	Repalced by: A 3864130314
438	A 3864130314	SUPPORT
		LEFT
438	A 3864137214	SUPPORT
	Repalced by: A 3864130414
438	A 3864130414	SUPPORT
		RIGHT
440	A 3844137046	REBOUND STRAP
444	N 000961010038	SCREW
		REBOUND STRAP TO FRAME
		M 10X1X25
448	N 913004010010	NUT
		REBOUND STRAP TO FRAME
500	A 6174101802	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE I
		1347 MM
515	A 3854111811	DRIVE FLANGE
518	A 3814100231	UNIVERSAL JOINT CROSS
521	N 071412008300	GREASE NIPPLE
521	A 3459977288	GREASE NIPPLE
527	A 0119976346	SEAL RING
556	N 071412008100	GREASE NIPPLE
565	A 3854111811	DRIVE FLANGE
568	A 3814100231	UNIVERSAL JOINT CROSS
571	N 071412008300	GREASE NIPPLE
571	A 3459977288	GREASE NIPPLE
600	A 3454107116	PROPELLER SHAFT
		FROM REAR AXLE I TO REAR AXLE II
		728 MM
600	A 3074102302	PROPELLER SHAFT
		FROM REAR AXLE I TO REAR AXLE II
		728 MM
615	A 3864100030	CENTERING FLANGE
618	A 3864100031	UNIVERSAL JOINT CROSS
621	N 071412008200	GREASE NIPPLE
624	A 0029943135	SNAP RING
		AS REQUIRED
		1.67MM
624	A 0029943235	SNAP RING
		AS REQUIRED
		1.72MM
624	A 0029943335	SNAP RING
		AS REQUIRED
		1.82MM
630	A 0009974788	GREASE NIPPLE
689	A 3609901901	SCREW
	Repalced by: A 3609903001
689	A 3609903001	SCREW
		PROPELLER SHAFT TO REAR AXLE
692	N 000127012201	LOCK WASHER
		PROPELLER SHAFT TO REAR AXLES I AND II
695	N 000934012042	NUT
		PROPELLER SHAFT TO REAR AXLES I AND II
