Transporto priemonė: LK 2420; VIN numerio dalis: 386368

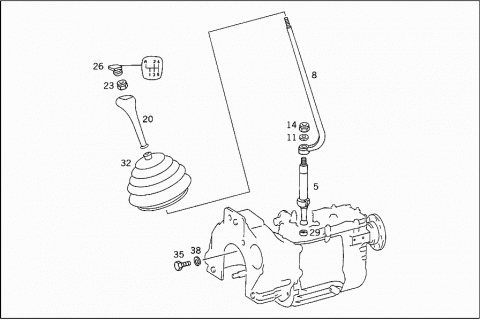

Grupė: 26 TRANSMISSION - 300 MANUAL SHIFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3452670202 | SHIFT LEVER LOWER PART |
| BOTTOM | ||
| TO 384 267 71 01/72 01 | ||
| 008 | A 3842677101 | SHIFT LEVER |
| TOP | ||
| 008 | A 3842677201 | SHIFT LEVER |
| TOP | ||
| 008 | A 3842677401 | SHIFT LEVER |
| UNDIVIDED | ||
| 008 | A 3842677501 | SHIFT LEVER |
| UNDIVIDED | ||
| 011 | N 000125013008 | WASHER |
| SHIFT LEVER TO SHIFT LEVER LOWER PART | ||
| 014 | N 913004012001 | NUT |
| SHIFT LEVER TO SHIFT LEVER LOWER PART | ||
| 020 | A 6882687142 | KNOB |
| 020 | A 3642687042 | KNOB |
| 023 | N 000934010004 | NUT |
| SHIFT LEVER HANDLE TO SHIFT LEVER | ||
| 026 | A 6882687157 | COVER |
| 026 | A 6202680557 | COVER |
| 029 | A 3102680050 | BUSHING |
| 032 | A 6882677096 | BOOT |
| 032 | A 3452677096 | BOOT |
| Repalced by: A 6882677096 | ||
| 032 | A 6882677096 | BOOT |
| 035 | N 000933014050 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 038 | N 000127014201 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||

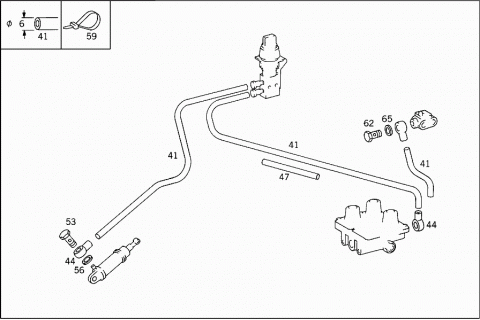

| 041 | A 0089976082 | HOSE |
| 4X6 MM | ||
| 044 | N 915052004005 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/10 MM | ||
| 044 | N 915052004015 | BANJO UNION |
| HOSE WIDTH, / I.D., | ||
| 4/12 MM | ||
| 047 | N 040621006206 | INSULATING HOSE |
| COLOR CODE GREEN | ||
| 047 | N 040621006235 | INSULATING HOSE |
| COLOR CODE BLUE | ||
| 053 | N 915036006101 | HOLLOW SCREW |
| COMPRESSED AIR LINE TO OPERATING CYLINDER | ||
| 056 | N 007603010110 | SEAL RING |
| COMPRESSED AIR LINE TO OPERATING CYLINDER | ||
| 059 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 059 | A 3459977390 | LOOM TIE |
| 062 | N 915036008200 | HOLLOW SCREW |
| AT DISTRIBUTOR | ||
| 065 | N 007603012100 | SEAL RING |
| AT DISTRIBUTOR | ||
