Transporto priemonė: LK 2638; VIN numerio dalis: 696367

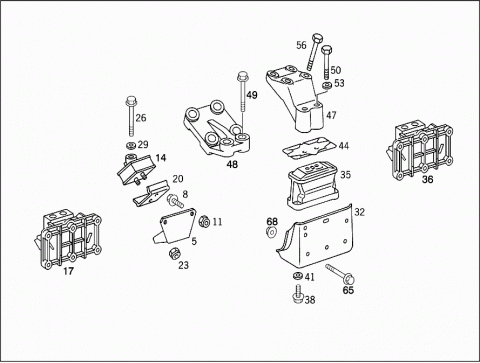

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6962407006 | CONSOLE |
| FRONT RIGHT | ||
| 008 | N 910105016012 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M16X1,5X50 | ||
| 008 | N 910105016012 | SCREW |
| CONSOLE TO RIGHT SIDE MEMBER | ||
| M16X1,5X50 | ||
| 011 | N 913004016005 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 014 | A 6952407117 | RUBBER MOUNTING |
| FRONT | ||
| 017 | A 9412417913 | RUBBER MOUNTING |
| FRONT | ||
| 017 | A 6962410013 | RUBBER MOUNTING |
| FRONT | ||
| 020 | A 3522420509 | ENGINE STAY |
| RUBBER MOUNTING TO CONSOLE | ||
| 023 | N 913004012006 | NUT |
| RUBBER MOUNTING TO CONSOLE | ||
| 026 | N 910105016006 | SCREW |
| ENGINE TO ENGINE FRONT MOUNTING | ||
| M 16X1,5X80 | ||
| 029 | A 3529902440 | WASHER |
| ENGINE TO ENGINE FRONT MOUNTING | ||
| 032 | A 3882407206 | CONSOLE |
| REAR LEFT | ||
| 005 | A 6962407206 | CONSOLE |
| FRONT LEFT | ||
| 032 | A 3882407306 | CONSOLE |
| REAR RIGHT | ||
| 035 | A 6952407018 | RUBBER MOUNTING |
| REAR | ||
| 036 | A 9582400017 | RUBBER MOUNTING |
| Repalced by: A 9582400117 | ||
| 036 | A 9582400117 | RUBBER MOUNTING |
| REAR | ||
| 036 | A 6932410013 | RUBBER MOUNTING |
| REAR | ||
| 036 | A 6932410313 | RUBBER MOUNTING |
| REAR | ||
| 038 | N 910105014005 | SCREW |
| ENGINE MOUNTING TO CONSOLE | ||
| M 14X1,5X40 | ||
| 041 | N 007349015002 | WASHER |
| ENGINE MOUNTING TO CONSOLE | ||
| 044 | A 6202420034 | SCREENING PLATE |
| REAR RUBBER MOUNTING | ||
| 047 | A 3882420001 | ENGINE SUPPORT |
| REAR LEFT | ||
| 047 | A 3882420101 | ENGINE SUPPORT |
| REAR RIGHT | ||
| 048 | A 6932420201 | ENGINE SUPPORT |
| REAR LEFT | ||
| 048 | A 6932420301 | ENGINE SUPPORT |
| REAR RIGHT | ||
| 049 | N 304017022002 | SCREW |
| ENGINE MOUNTING TO TRANSMISSION | ||
| M22X70 | ||
| 049 | N 304017022003 | SCREW |
| ENGINE MOUNTING TO TRANSMISSION | ||
| M22X80 | ||
| 050 | A 6969908201 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M18X1,5X95 | ||
| 053 | A 6209900040 | WASHER |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| 056 | N 910105018025 | SCREW |
| ENGINE SUPPORT TO RUBBER MOUNTING | ||
| M18X1.5X65 | ||
| 056 | N 000961022012 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X1.5X60 | ||
| 056 | N 000960022054 | SCREW |
| ENGINE SUPPORT TO BELL HOUSING | ||
| M 22X1.5X85 | ||
| 056 | A 6969907901 | SCREW |
| LEFT AND RIGHT CONSOLES TO FRAME | ||
| M 16X1,5X40 MM | ||
| A 3882417084 | SHIM | |
| 065 | N 910105014019 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5X60 | ||
| 065 | N 910105014005 | SCREW |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M14X1,5X40 | ||
| 065 | N 910105018023 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
| M18X1.5X55 | ||
| 065 | N 910105014010 | SCREW |
| M14X1,5X45 | ||
| 068 | N 913023014003 | NUT |
| ENGINE MOUNTING TO SIDE MEMBER | ||
