Transporto priemonė: LK 2638; VIN numerio dalis: 696367

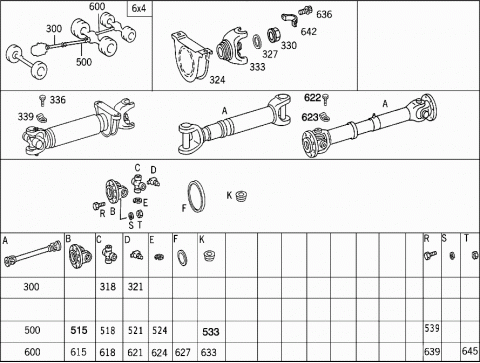

Grupė: 41 PROPELLER SHAFT

#	Kodas	Pavadinimas
300	A 6964107501	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1887 MM
300	A 6964100401	PROPELLER SHAFT
		FROM TRANSMISSION TO INTERMEDIATE BEARING
		1881 MM
318	A 0004103431	UNIVERSAL JOINT CROSS
	Repalced by: A 0004103831
318	A 0004103831	UNIVERSAL JOINT CROSS
321	A 0009976188	GREASE NIPPLE
		THREADED
321	A 0009976288	GREASE NIPPLE
324	A 0004101222	INTERMEDIATE BEARING
327	A 0004110376	WASHER
330	A 0019905550	NUT
333	A 0004101630	CENTERING FLANGE
333	A 0004110745	FLANGE
336	A 0004110071	SCREW
339	A 0004113373	LOCK

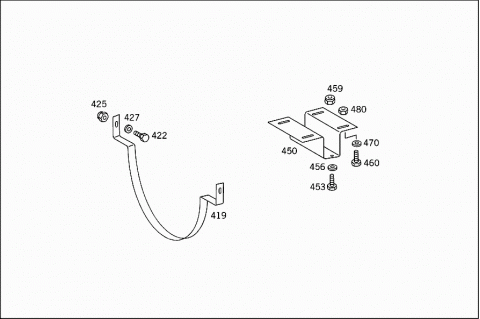

419	A 6964117082	REBOUND STRAP
	Repalced by: A 6964110082
419	A 6964110082	REBOUND STRAP
	N 000961014100	SCREW
		REBOUND STRAP TO FRAME
		M 14X1,5X30
422	N 910105014005	SCREW
		REBOUND STRAP TO FRAME
		M 14X1,5X40
425	N 913023014003	NUT
		REBOUND STRAP TO FRAME
427	N 000125015012	WASHER
		REBOUND STRAP TO FRAME
450	A 6964137442	BRACKET
		PROPELLER SHAFT BEARING
453	N 910105014013	SCREW
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
		M 14X1,5X35
456	N 000125015012	WASHER
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
459	N 913023014003	NUT
		BRACKET TO PROPELLER SHAFT BEARING HOUSING
460	N 910105012010	SCREW
		BRACKET TO CROSS MEMBER
		M 12X1,5X40
470	N 007349013002	WASHER
		BRACKET TO CROSS MEMBER
480	N 913023012002	NUT
		BRACKET TO CROSS MEMBER
500	A 6964107302	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1751 MM
500	A 6964100702	PROPELLER SHAFT
	Repalced by: A 6564106102
500	A 6564106102	PROPELLER SHAFT
	Repalced by: A 6564105407
500	A 6564105407	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1866 MM
500	A 6564102507	PROPELLER SHAFT
		FROM TRANSMISSION TO REAR AXLE
		1916 MM
500	A 6964107402	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1261 MM
500	A 6964100602	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1378 MM
500	A 6964101002	PROPELLER SHAFT
		FROM INTERMEDIATE BEARING TO REAR AXLE
		1418MM
515	A 6564110311	DRIVE FLANGE
		TO A 656 410 61 02/ 54 07/ 25 07
515	A 0004110645	FLANGE
		TO 696 410 07 02
515	A 0004110645	FLANGE
		TO 696 410 10 02
518	A 0004103431	UNIVERSAL JOINT CROSS
	Repalced by: A 0004103831
518	A 0004103431	UNIVERSAL JOINT CROSS
	Repalced by: A 0004103831
518	A 0004103831	UNIVERSAL JOINT CROSS
		TO A 696 410 07 02/ 73 02
518	A 0004103831	UNIVERSAL JOINT CROSS
518	A 6564100131	UNIVERSAL JOINT CROSS
518	A 9424100031	UNIVERSAL JOINT CROSS
		TO A 656 410 25 07/ 54 07, A6564106102
521	A 0009976188	GREASE NIPPLE
		THREADED
521	A 0009976188	GREASE NIPPLE
		THREADED
521	N 071412008300	GREASE NIPPLE
		THREADED
521	N 071412008101	GREASE NIPPLE
		THREADED
524	A 0004113373	LOCK
524	A 0004113373	LOCK
524	A 6564110673	LOCK
		AS REQUIRED
		3.12 MM - TO 6564106102/ 5407/ 2507
524	A 6564110973	LOCK
		AS REQUIRED
		3.20 MM - TO6564106102/ 5407/ 2507
524	A 6564111473	LOCK
		AS REQUIRED
		3.25 MM - TO6564106102/ 2507/ 5407
533	N 900087008000	PLUG
		TO A 656 410 61 02/ 54 07
539	A 0004110071	SCREW
539	A 0004110071	SCREW
600	A 3894102502	PROPELLER SHAFT
	Repalced by: A 6964100902
600	A 6964100102	PROPELLER SHAFT
	Repalced by: A 6964100902
600	A 6964100902	PROPELLER SHAFT
		FROM REAR AXLE I TO REAR AXLE II
		791 MM
615	A 3894110411	DRIVE FLANGE
		STAGGERED TEETH
		TO A 389 410 25 02
615	A 0004110545	FLANGE
		TO 696 410 01 02/09 02
615	A 6564110011	DRIVE FLANGE
	Repalced by: A 6564110311
615	A 6564110311	DRIVE FLANGE
		STAGGERED TEETH
		TO A 656 410 61 02
618	A 0004101628	UNIVERSAL JOINT CROSS
		WITH BUSHINGS
		TO A 389 410 25 02
618	A 0004103631	UNIVERSAL JOINT CROSS
		TO 696 410 01 02/09 02
621	N 071412008300	GREASE NIPPLE
		TO A 389 410 25 02
621	A 0009976188	GREASE NIPPLE
		THREADED
		TO 696 410 01 02/09 02
622	A 0004110071	SCREW
		TO 696 410 01 02/ 09 02
622	A 0004110071	SCREW
		TO 696 410 10 02
623	A 0004113373	LOCK
		TO 696 410 01 02/ 09 02
623	A 0004113373	LOCK
		TO 696 410 10 02
624	A 0069941941	LOCK
		AS REQUIRED
		TO A 389 410 25 02
624	A 0069942341	LOCK
		AS REQUIRED
		TO A 389 410 25 02
624	A 0069942741	LOCK
		AS REQUIRED
		TO A 389 410 25 02
627	A 3894110080	GASKET
		PROTECTIVE TUBE
		TO A 389 410 25 02
627	A 3954110059	SEAL RING
		PROTECTIVE TUBE
		TO A 656 410 61 02
633	N 000906008001	SCREW PLUG
		TO A 389 410 25 02
636	A 6969907201	SCREW
		PROPELLER SHAFT TO TRANSMISSION
636	N 000960014237	SCREW
		PROPELLER SHAFT TO TRANSMISSION
		M 14X1,5X50
636	A 6969907201	SCREW
		REAR PROPELLER SHAFT TO FRONT PROPELLER SHAFT
636	A 6969907201	SCREW
		PROPELLER SHAFT TO REAR AXLE
639	A 3609903101	SCREW
		PROPELLER SHAFT TO REAR AXLE I
639	A 3609903101	SCREW
		PROPELLER SHAFT TO REAR AXLE II
639	N 000960014237	SCREW
		PROPELLER SHAFT TO REAR AXLE
639	N 000960014237	SCREW
		PROPELLER SHAFT TO PROPELLER SHAFT
642	A 6969957010	CLAMP
		REAR PROPELLER SHAFT TO FRONT PROPELLER SHAFT
642	A 6969957010	CLAMP
		PROPELLER SHAFT TO REAR AXLE
642	A 6969957010	CLAMP
		PROPELLER SHAFT TO TRANSMISSION
645	N 000934012042	NUT
		PROPELLER SHAFT TO REAR AXLE I
645	N 000934012042	NUT
		PROPELLER SHAFT TO REAR AXLE II
645	N 000934014025	NUT
		PROPELLER SHAFT TO TRANSMISSION
		M14X1,5MM
645	N 000934014025	NUT
		PROPELLER SHAFT TO REAR AXLE
645	N 000934014025	NUT
		PROPELLER SHAFT TO PROPELLER SHAFT
