Transporto priemonė: LO 1112; VIN numerio dalis: 341031

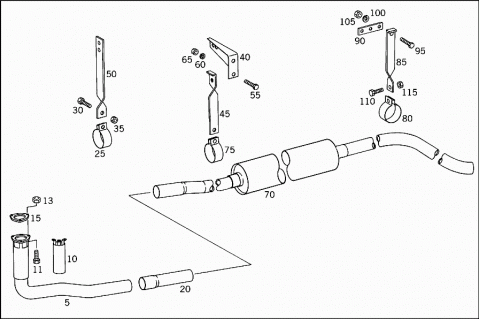

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3404900020 | EXHAUST PIPE |
| FRONT | ||
| 010 | A 3404900030 | PROTECTIVE PLATE |
| 011 | N 000931010282 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 000931010102 | SCREW | |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 013 | N 000934010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 015 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 015 | A 4424920280 | FLANGE GASKET |
| 020 | A 3224920707 | CONNECTOR |
| 025 | N 071555065502 | CLAMP |
| 65.5 MM | ||
| 030 | N 000933008153 | SCREW |
| CLAMP TO BRACKET | ||
| 035 | N 000934008000 | NUT |
| CLAMP TO BRACKET | ||
| 040 | A 3414910016 | SUPPORT |
| 045 | A 3224911341 | BRACKET |
| 050 | A 3224923319 | BRACKET |
| 055 | N 000933008036 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| N 000933008048 | SCREW | |
| SUPPORT TO SIDE MEMBER | ||
| 060 | N 912004008104 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 065 | N 000934008000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 070 | A 3224904815 | EXHAUST MUFFLER WITH PIPE |
| FRONT AND REAR | ||
| A 3224904915 | EXHAUST MUFFLER WITH PIPE | |
| FRONT AND REAR | ||
| A 3224905015 | EXHAUST MUFFLER WITH PIPE | |
| FRONT AND REAR | ||
| 075 | A 3274920040 | CLAMP |
| Repalced by: A 3414927440 | ||
| 075 | A 3414927440 | CLAMP |
| 62,5MM | ||
| 080 | N 071555060503 | CLAMP |
| 60,5MM | ||
| A 3224923419 | BRACKET | |
| REAR EXHAUST MUFFLER | ||
| 085 | A 3584920019 | BRACKET |
| REAR EXHAUST MUFFLER | ||
| 090 | A 3584920219 | BRACKET |
| SPRING BRACKET | ||
| 095 | N 000933008025 | SCREW |
| REAR EXHAUST PIPE BRACKET TO SPRINGBRACKET BRACKET | ||
| 100 | N 912004008104 | LOCK WASHER |
| REAR EXHAUST PIPE BRACKET TO SPRINGBRACKET BRACKET | ||
| 105 | N 000934008000 | NUT |
| REAR EXHAUST PIPE BRACKET TO SPRINGBRACKET BRACKET | ||
| 110 | N 000933008153 | SCREW |
| CLAMP TO BRACKET | ||
| 115 | N 000934008000 | NUT |
| CLAMP TO BRACKET | ||
