Transporto priemonė: LO 911; VIN numerio dalis: 341014
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|

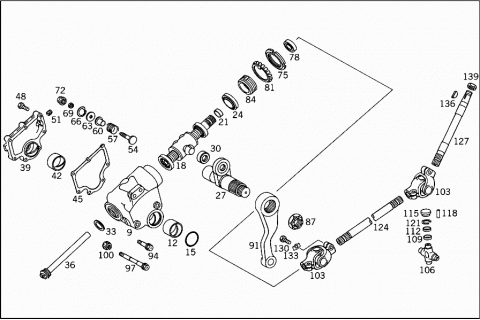

| A 3274606101 | STEERING BOX ASSEMBLY | |
| Repalced by: H 983444600501 | ||

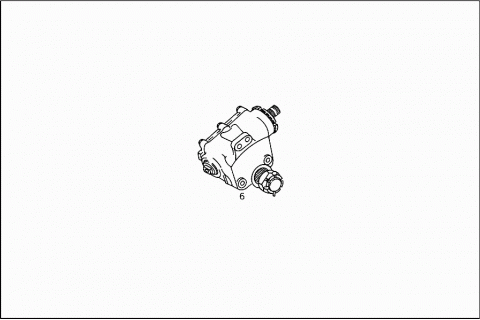

| 006 | H 983444600501 | STEERING BOX ASSEMBLY |
| Repalced by: A 3444601001 | ||
| 006 | A 3444601001 | STEERING BOX ASSEMBLY |
| 009 | A 3214601302 | STEERING BOX |
| 012 | A 3214610350 | BUSHING |
| 015 | A 0019970645 | SEAL RING |
| A 0049976845 | SEAL RING | |
| A 3274601808 | STEERING WORM | |
| Repalced by: A 3274602208 | ||
| 018 | A 3274602208 | STEERING WORM |
| Repalced by: A 3274600018 | ||
| 018 | A 3274600018 | STEERING NUT |
| 021 | A 3219970740 | SEAL RING |
| 024 | A 0009810806 | BARREL-TYPE BEARING |
| A 3214600911 | STEERG. WORM SECTOR SHAFT | |
| Repalced by: A 3214601111 | ||
| 027 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| A 3214620437 | BALL CUP | |
| Repalced by: A 3214620537 | ||
| 030 | A 3214620537 | BALL CUP |
| N 009045038001 | SNAP RING | |
| 033 | A 3219970640 | SEAL RING |
| 036 | A 3214600315 | OIL LEVEL CHECK PIPE |
| A 3274600214 | STEERING BOX COVER | |
| Repalced by: A 3214600414 | ||
| 039 | A 3214600414 | STEERING BOX COVER |
| 042 | A 3214620250 | BUSHING |
| 045 | A 3214610880 | GASKET |
| Repalced by: A 3524610180 | ||
| 045 | A 3524610180 | GASKET |
| 048 | A 0019909101 | SCREW |
| N 000909016000 | SCREW PLUG | |
| Repalced by: A 3029970035 | ||
| 051 | A 3029970035 | PLUG |
| 054 | A 3214620171 | SCREW |
| 057 | A 3219932201 | SPRING |
| 060 | A 3214620185 | THRUST PIECE |
| 063 | A 3214610162 | THRUST WASHER |
| 066 | A 0009946041 | LOCK |
| 069 | A 0019976140 | SEAL RING |
| A 3219900050 | NUT | |
| Repalced by: A 0029900251 | ||
| 072 | A 0029900251 | NUT |
| 075 | A 3224620151 | RING |
| 078 | A 0029974346 | SEAL RING |
| A 0029979845 | SEAL RING | |
| 081 | N 070852060000 | NUT |
| Repalced by: A 6743560226 | ||
| 081 | A 6743560226 | GROOVED NUT |
| 084 | A 3229940115 | LOCK |
| 087 | A 0009902555 | NUT |
| N 000094006317 | COTTER PIN | |
| A 3224633101 | PITMAN ARM | |
| Repalced by: A 3414630001 | ||
| 091 | A 3414630001 | PITMAN ARM |
| 094 | A 3279900114 | SCREW |
| Repalced by: A 3099900114 | ||
| 094 | A 3099900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 50 MM | ||
| 097 | A 3229900914 | SCREW |
| Repalced by: A 3099900214 | ||
| 097 | A 3099900214 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 128 MM | ||
| 100 | A 3279900050 | NUT |
| STEERING TO STEERING BRACKET | ||
| TO 327 990 01 14,322 990 09 14 | ||
| N 913004012003 | NUT | |
| STEERING TO STEERING BRACKET | ||
| TO 309 990 01 14,02 14 | ||
| N 000094003217 | COTTER PIN | |
| STEERING TO STEERING BRACKET | ||
| TO 327 990 01 14,322 990 09 14 | ||
| A 3274600157 | UNIVERSAL JOINT | |
| Repalced by: A 3454600057 | ||
| A 3454600057 | UNIVERSAL JOINT | |
| A 3524600057 | UNIVERSAL JOINT | |
| Repalced by: A 3454600057 | ||
| 103 | A 3454600057 | UNIVERSAL JOINT |
| 103 | A 3164600057 | UNIVERSAL JOINT |
| 103 | A 3444607057 | UNIVERSAL JOINT |
| 103 | A 3444607157 | UNIVERSAL JOINT |
| 103 | A 3444607257 | UNIVERSAL JOINT |
| A 1884100231 | UNIVERSAL JOINT CROSS | |
| A 1114110131 | UNIVERSAL JOINT CROSS | |
| Repalced by: A 3454620049 | ||
| 106 | A 3454620049 | UNIVERSAL JOINT CROSS |
| TO A 345 460 00 57 | ||
| A 1884110258 | SEAL HOLDER | |
| 109 | A 1104110158 | SEAL HOLDER |
| TO A 345 460 00 57 | ||
| A 1884110460 | RUBBER RING | |
| 112 | A 0009977541 | SEAL RING |
| TO A 345 460 00 57 | ||
| 115 | A 1104110242 | BEARING BUSHING |
| A 1104110342 | BEARING BUSHING | |
| 118 | A 0009811487 | NEEDLE |
| A 0019818910 | NEEDLE BEARING | |
| 121 | A 1889940534 | SNAP RING |
| AS REQUIRED | ||
| 1.45 MM | ||
| A 1889940034 | SNAP RING | |
| AS REQUIRED | ||
| 1.50 MM | ||
| A 1889940134 | SNAP RING | |
| AS REQUIRED | ||
| 1.55 MM | ||
| A 1889940234 | SNAP RING | |
| AS REQUIRED | ||
| 1.60 MM | ||
| A 1889940334 | SNAP RING | |
| AS REQUIRED | ||
| 1.65 MM | ||
| A 1889940434 | SNAP RING | |
| AS REQUIRED | ||
| 1.70 MM | ||
| 124 | A 3224620501 | STEERING SHAFT |
| Repalced by: A 3444620501 | ||
| 124 | A 3444620501 | STEERING SHAFT |
| 741 MM | ||
| A 3414627301 | STEERING SHAFT | |
| 127 | A 3224620401 | STEERING SHAFT |
| 343 MM | ||
| A 3604620596 | BOOT | |
| 130 | A 3219900401 | SCREW |
| Repalced by: A 3169900114 | ||
| 130 | A 3169900114 | SCREW |
| 133 | N 000463010502 | LOCK PLATE |
| 136 | N 006888005006 | WOODRUFF KEY |
| 139 | N 000936022004 | NUT |

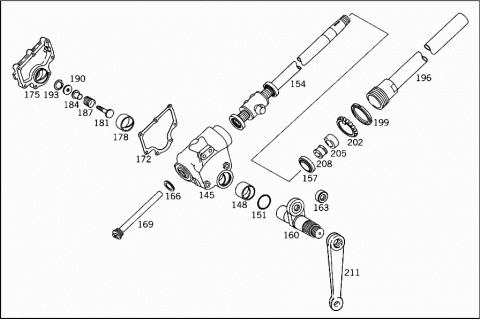

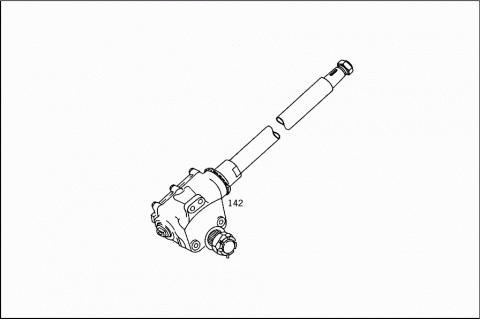

| 142 | A 3124602652 | STEERING BOX ASSEMBLY |
| 145 | A 3214601302 | STEERING BOX |
| 148 | A 3214610350 | BUSHING |
| 151 | A 0019970645 | SEAL RING |
| A 0049976845 | SEAL RING | |
| N 000909016000 | SCREW PLUG | |
| Repalced by: A 3029970035 | ||
| A 3029970035 | PLUG | |
| 154 | A 3124600509 | STEERING SHAFT |
| 157 | A 0009810806 | BARREL-TYPE BEARING |
| N 006888005006 | WOODRUFF KEY | |
| N 000936022000 | NUT | |
| A 3214600911 | STEERG. WORM SECTOR SHAFT | |
| Repalced by: A 3214601111 | ||
| 160 | A 3214601111 | STEERG. WORM SECTOR SHAFT |
| A 3214620437 | BALL CUP | |
| Repalced by: A 3214620537 | ||
| 163 | A 3214620537 | BALL CUP |
| N 009045038001 | SNAP RING | |
| 166 | A 3219970640 | SEAL RING |
| 169 | A 3214600415 | OIL LEVEL CHECK PIPE |
| 172 | A 3214610880 | GASKET |
| Repalced by: A 3524610180 | ||
| 172 | A 3524610180 | GASKET |
| A 3274600214 | STEERING BOX COVER | |
| Repalced by: A 3214600414 | ||
| 175 | A 3214600414 | STEERING BOX COVER |
| 178 | A 3214620250 | BUSHING |
| N 912004008104 | LOCK WASHER | |
| COVER TO STEERING BOX | ||
| A 0019909101 | SCREW | |
| COVER TO STEERING BOX | ||
| 181 | A 3214620171 | SCREW |
| 184 | A 3214620185 | THRUST PIECE |
| 187 | A 3219932201 | SPRING |
| 190 | A 3214610162 | THRUST WASHER |
| 193 | A 0009946041 | LOCK |
| A 0019976140 | SEAL RING | |
| A 3219900050 | NUT | |
| Repalced by: A 0029900251 | ||
| A 0029900251 | NUT | |
| 196 | A 3124601016 | STEER. COLUMN JACKET TUBE |
| 199 | N 070852060000 | NUT |
| Repalced by: A 6743560226 | ||
| 199 | A 6743560226 | GROOVED NUT |
| 202 | A 3229940115 | LOCK |
| 205 | A 3124621065 | RING |
| 208 | A 3124621050 | BUSHING |
| A 0009902555 | NUT | |
| N 000094006317 | COTTER PIN | |
| 211 | A 3124637501 | PITMAN ARM |
| N 000960012039 | SCREW | |
| STEERING TO STEERING BRACKET | ||
| A 3129900402 | SCREW | |
| STEERING TO STEERING BRACKET | ||
| N 000935012001 | NUT | |
| STEERING TO STEERING BRACKET | ||
| N 000094003217 | COTTER PIN | |
| STEERING TO STEERING BRACKET | ||

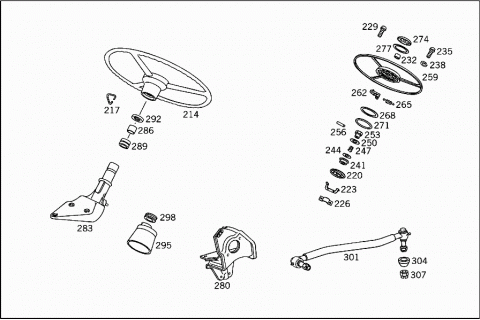

| 214 | A 3224600103 | STEERING WHEEL |
| 217 | A 3204640092 | ORNAMENTAL RING |
| 220 | A 0004640417 | CONTACT PLATE |
| 223 | A 3224640034 | BRACKET |
| N 000127004206 | LOCK WASHER | |
| BRACKET TO CONTACT PLATE | ||
| N 000084004104 | SCREW | |
| BRACKET TO CONTACT PLATE | ||
| 226 | N 072573001006 | CLAMP |
| N 000084004106 | SCREW | |
| CLAMP TO BRACKET | ||
| N 000127004206 | LOCK WASHER | |
| CLAMP TO BRACKET | ||
| N 000934004000 | NUT | |
| CLAMP TO BRACKET | ||
| 229 | A 0009903220 | SCREW |
| CONTACT PLATE TO STEERING WHEEL | ||
| 232 | A 3204640053 | SPACER TUBE |
| CONTACT PLATE TO STEERING WHEEL | ||
| 235 | A 0009903320 | SCREW |
| CONTACT PLATE TO STEERING WHEEL | ||
| 238 | N 000127004206 | LOCK WASHER |
| CONTACT PLATE TO STEERING WHEEL | ||
| 241 | A 1814640186 | CONTACT CUP |
| 244 | A 1534640023 | INSULATING PLATE |
| 247 | A 3209930201 | SPRING |
| 250 | A 1814640028 | CONTACT RING |
| 253 | A 3204640072 | NUT |
| 256 | A 3209910055 | PIN |
| 259 | A 3224600140 | SIGNAL RING |
| 262 | A 0004640139 | LEVER |
| 265 | A 0004640290 | SPRING |
| 268 | A 3214640062 | THRUST WASHER |
| 271 | A 3204640182 | RING |
| 274 | A 1874600144 | BADGE |
| 277 | A 1839970540 | SEAL RING |
| A 3224600235 | BRACKET | |
| Repalced by: A 3414600029 | ||
| 280 | A 3414600029 | STEERING BRACKET |
| A 0009900596 | RIVET | |
| Repalced by: N 910005012001 | ||
| N 910005012001 | RIVET | |
| A 0009900896 | RIVET | |
| Repalced by: N 910005012016 | ||
| N 910005012076 | RIVET | |
| N 000961012011 | SCREW | |
| BRACKET TO FRAME | ||
| N 000934012004 | NUT | |
| BRACKET TO FRAME | ||
| 283 | A 3284600030 | BRACKET |
| Repalced by: A 3414600037 | ||
| 283 | A 3414600037 | BEARING |
| 286 | A 3124621150 | BUSHING |
| 289 | A 3214620165 | RING |
| 292 | A 3224620023 | COVER |
| N 000931010080 | SCREW | |
| STEERING-WORM BRACKET TO CAB | ||
| N 000933010044 | SCREW | |
| STEERING-WORM BRACKET TO CAB | ||
| N 000127010205 | LOCK WASHER | |
| STEERING-WORM BRACKET TO CAB | ||
| 295 | A 3354620096 | BOOT |
| 298 | A 3214620060 | SEAL RING |
| 301 | A 3274600005 | DRAG LINK |
| A 3214601605 | DRAG LINK | |
| A 0003381656 | DUST CAP | |
| Repalced by: A 0003380997 | ||
| 304 | A 0003380997 | BOOT |
| Repalced by: A 0003300285 | ||
| 304 | A 0003300285 | BOOT |
| 307 | N 000937018004 | NUT |
| N 000094004060 | COTTER PIN | |
| N 071412008100 | GREASE NIPPLE | |

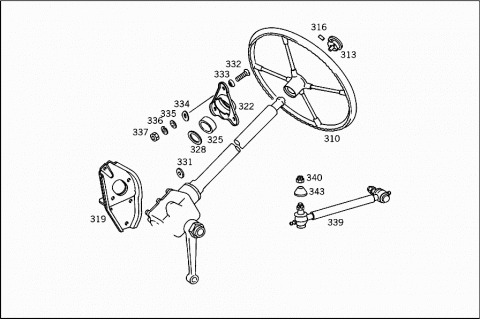

| 310 | A 9904640010 | BEARING |
| 313 | A 0004641420 | HORN PUSH BUTTON |
| 316 | N 000551004000 | HEADLESS SETSCREW |
| 319 | A 3124601435 | BRACKET |
| 322 | H 813218900110 | FIXTURE |
| 325 | H 813218940098 | SEAL |
| 328 | H 813218940099 | RING |
| 331 | H 813218940013 | WASHER |
| 332 | N 000091006131 | SCREW |
| 333 | N 900056006301 | COUNTERSUNK WASHER |
| 334 | H 513128900093 | SHIM |
| 335 | N 000125006400 | WASHER |
| Repalced by: N 000125006421 | ||
| 335 | N 000125006421 | WASHER |
| 336 | N 000127006206 | LOCK WASHER |
| 337 | N 000934006007 | NUT |
| 339 | A 3124602805 | DRAG LINK |
| A 3124602905 | DRAG LINK | |
| 340 | N 000937016005 | NUT |
| N 000094004055 | COTTER PIN | |
| 343 | A 0003300285 | BOOT |
