Transporto priemonė: LO 914; VIN numerio dalis: 341045
Grupė: 42 BRAKES
42006
42007
42008

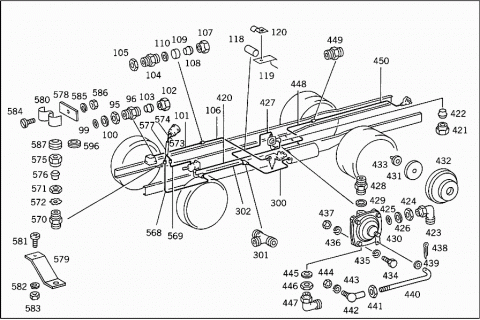

42009
42010

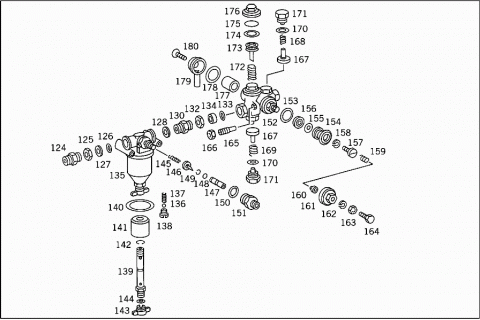

42011

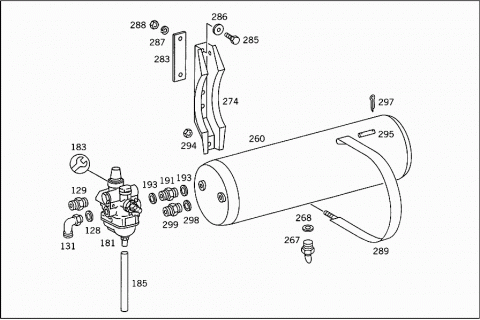

42012
42013
42014
42015
42016
42017

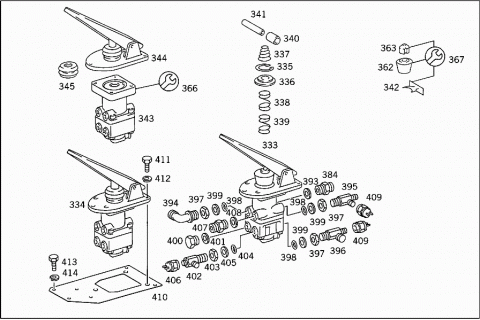

42018
42019

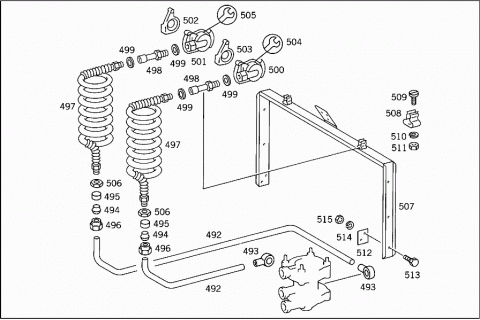

42020

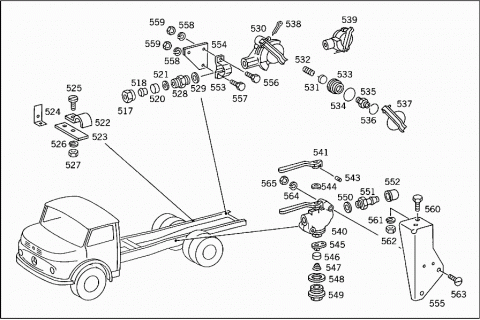

42021
42022
42023
42024
42025
42026

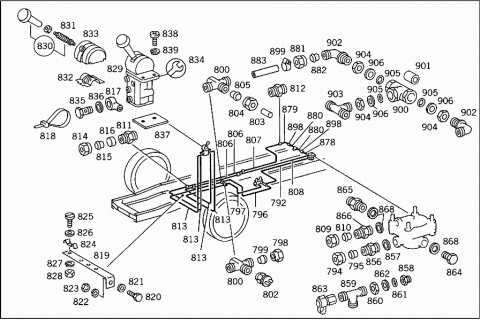

42027
42028
42029

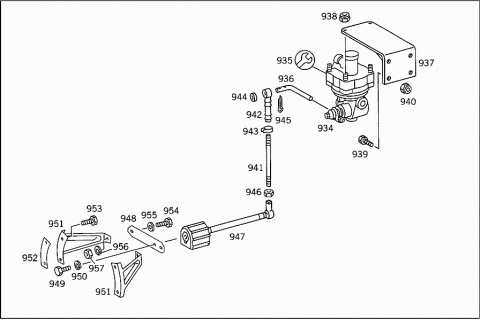

42030
42031
# Kodas Pavadinimas
Y YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST:
732.0,732.1
Y YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT PARTS LIST:
732.1
Y YYYYYYYYYYYY PART NAME MISSING
FOR REAR WHEEL BRAKE, SEE PARTS LIST:
744.1
Y YYYYYYYYYYYY PART NAME MISSING
FOR REAR WHEEL BRAKE, SEE PARTS LIST:
743.5

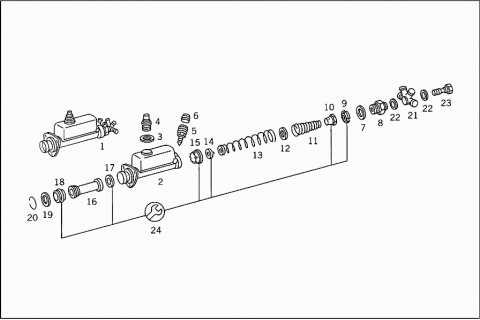

001 A 0004305501 BRAKE MASTER CYLINDER
002 A 0004310503 HOUSING
003 A 0004310260 SEAL RING
004 A 0004311356 SCREW PLUG
Repalced by: A 0004311756
004 A 0004311756 SCREW PLUG
005 A 0004310265 VALVE
Repalced by: A 3454317165
005 A 3454317165 VALVE
006 A 0004210887 PROTECTIVE CAP
Repalced by: A 3454317287
006 A 3454317287 PROTECTIVE CAP
007 N 007603035101 SEAL RING
008 A 0004310975 THREADED UNION
009 A 0004310760 SEAL RING
010 A 0004300081 VALVE
011 A 0009930605 SPRING
012 A 0004311876 WASHER
013 A 0004313793 SPRING
014 A 0004310089 SPRING RETAINER
015 A 0004310186 CUP
016 A 0004312683 PISTON
017 A 0004310685 FILLER RING
018 A 0004310086 CUP
019 A 0004311976 WASHER
Repalced by: A 0004312176
019 A 0004312176 WASHER
020 A 0009940135 SNAP RING
021 A 0004280124 DISTRIBUTOR
022 N 007603014102 SEAL RING
023 A 0004280026 HOLLOW SCREW
024 A 0415860043 REPAIR KIT
Repalced by: A 3415867242
024 A 3415867242 REPAIR KIT
025 A 0024303101 BRAKE MASTER CYLINDER
025 A 0444300201 BRAKE MASTER CYLINDER
Repalced by: A 3444307601
025 A 3444307601 BRAKE MASTER CYLINDER
026 A 3454317165 VALVE
TO 002 430 31 01,044 430 02 01
027 A 0004210887 PROTECTIVE CAP
Repalced by: A 3454317287
027 A 3454317287 PROTECTIVE CAP
TO 002 430 31 01,044 430 02 01
028 N 007603035100 SEAL RING
TO 002 430 31 01
028 N 007603035101 SEAL RING
TO 044 430 02 01
029 A 0004310975 THREADED UNION
TO 002 430 31 01
029 A 0084310022 COVER
TO 044 430 02 01
030 N 007603014102 SEAL RING
TO 002 430 31 01,044 430 02 01
031 A 0084310175 THREADED UNION
Repalced by: A 3454287024
031 A 3454287024 DISTRIBUTOR
TO 002 430 31 01,044 430 02 01
032 A 0004280026 HOLLOW SCREW
TO 002 430 31 01,044 430 02 01
033 A 0009930605 SPRING
TO 002 430 31 01
033 A 0084310893 SPRING
Repalced by: A 3454317093
033 A 3454317093 SPRING
TO 044 430 02 01
034 A 0004300081 VALVE
TO 002 430 31 01
034 A 3454307081 VALVE
TO 044 430 02 01
035 A 0004310760 SEAL RING
TO 002 430 31 01
036 A 0084310040 BRACKET
TO 002 430 02 01,044 430 02 01
037 A 0084310030 BANJO UNION
TO 002 430 31 01
037 A 3454237184 FITTING
TO 044 430 02 01
038 N 007603014102 SEAL RING
TO 002 430 31 01,044 430 02 01
039 A 0004230284 FITTING
Repalced by: A 0084230084
039 A 0084230084 FITTING
TO 002 430 31 01,044 430 02 01
040 A 0004310760 SEAL RING
TO 002 430 31 01
041 A 0004300081 VALVE
TO 002 430 31 01
041 A 3454307081 VALVE
TO 044 430 02 01
042 A 0009930605 SPRING
TO 002 430 31 01
042 A 0084310893 SPRING
Repalced by: A 3454317093
042 A 3454317093 SPRING
TO 044 430 02 01
043 A 0004311876 WASHER
TO 002 430 31 01
043 A 0084310260 SEAL RING
TO 044 430 02 01
044 A 0084310093 SPRING
TO 002 430 31 01
044 A 0084310793 SPRING
TO 044 430 02 01
045 A 0084310086 CUP
TO 002 430 31 01
046 A 0004310685 FILLER RING
TO 002 430 31 01
047 A 0084310083 PISTON
TO 002 430 31 01
047 A 3444307083 PISTON
TO 044 430 02 01
048 A 0084310186 CUP
TO 002 430 31 01
048 A 0084310085 FILLER RING
TO 044 430 02 01
049 A 0084310193 SPRING
TO 002 430 31 01
049 A 0084310693 SPRING
TO 044 430 02 01
050 A 0084310183 PISTON
TO 002 430 31 01
050 A 3444307183 PISTON
TO 044 430 02 01
051 A 0004310086 CUP
TO 002 430 31 01
051 A 0084310085 FILLER RING
TO 044 430 02 01
051 A 0084310185 FILLER RING
TO 044 430 02 01
052 A 0004311976 WASHER
Repalced by: A 0004312176
052 A 0004312176 WASHER
TO 002 430 31 01
052 A 0084310076 WASHER
TO 044 430 02 01
053 A 0009940135 SNAP RING
TO 002 430 31 01
053 A 0084310094 LOCK
TO 044 430 02 01
054 A 0084310071 SCREW
TO 002 430 31 01
055 A 0084310140 BRACKET
TO 002 430 31 01
055 A 0084310176 WASHER
TO 044 430 02 01
056 A 0084310002 RESERVOIR
TO 002 430 31 01,044 430 02 01
057 A 0084310033 FILLER CAP
TO 002 430 31 01,044 430 02 01
058 A 0084310098 CONNECTOR
TO 002 430 31 01,044 430 02 01
059 A 0084310034 STRAINER
Repalced by: A 0004310034
059 A 0004310034 STRAINER
TO 002 430 31 01,044 430 02 01
060 N 007603022102 SEAL RING
TO 002 430 31 01,044 430 02 01
A 0445860042 REPAIR KIT
Repalced by: A 3415867342
061 A 3415867342 REPAIR KIT
MINOR
A 0445860142 REPAIR KIT
Repalced by: A 3415867442
062 A 3415867442 REPAIR KIT
MAJOR
063 A 0445861042 REPAIR KIT
TO 044 430 02 01
064 A 0445861142 REPAIR KIT
TO 044 430 02 01
065 A 3444310002 RESERVOIR
N 000933010056 SCREW
FROM BRAKE MASTER CYLINDER TO TRUCKTRACTOR BRAKE VALVE
N 000933010129 SCREW
FROM BRAKE MASTER CYLINDER TO TRUCKTRACTOR BRAKE VALVE
N 000127010205 LOCK WASHER
FROM BRAKE MASTER CYLINDER TO TRUCKTRACTOR BRAKE VALVE

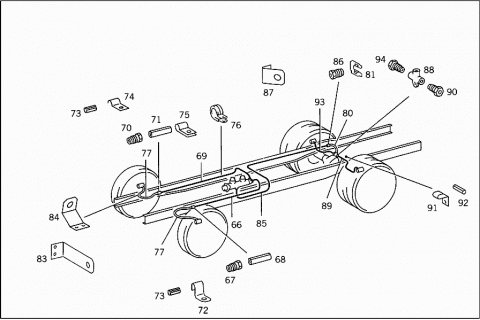

066 A 3224209728 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
066 A 3414201428 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
066 A 3414208528 LINE
FROM BRAKE MASTER CYLINDER TO LEFT FRONT WHEEL
067 A 0004280072 UNION SCREW
068 A 3129970582 HOSE
069 A 3224209928 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
069 A 3414201528 LINE
FROM BRAKE MASTER CYLINDER TO RIGHT FRONT WHEEL
069 A 3414208628 LINE
070 A 0004280072 UNION SCREW
070 A 0004280072 UNION SCREW
071 A 3129970582 HOSE
071 A 3129970582 HOSE
072 A 3129951020 CLAMP
LINE TO FRONT AXLE,LEFT
073 A 3129973482 HOSE
LEFT AND RIGHT
N 000933010128 SCREW
N 000137010201 SPRING WASHER
N 000934010040 NUT
074 A 3419957620 CLAMP
LINE TO FRONT AXLE,RIGHT
075 A 3129950935 CLAMP
N 000084004102 SCREW
N 000934004000 NUT
076 A 3129951401 CLAMP
N 000084006110 SCREW
N 000433006400 WASHER
N 000127006206 LOCK WASHER
N 000934006007 NUT
077 A 0004284735 BRAKE HOSE
FRONT
077 A 0124280335 BRAKE HOSE
Repalced by: A 0004289935
077 A 0004289935 BRAKE HOSE
FRONT
077 A 3414287335 BRAKE HOSE
FRONT
077 A 0414280135 BRAKE HOSE
FRONT
077 A 0004283435 BRAKE HOSE
FRONT
080 A 0004280235 BRAKE HOSE
REAR
080 A 0014283535 BRAKE HOSE
REAR
080 A 0004284735 BRAKE HOSE
REAR
080 A 0004289935 BRAKE HOSE
REAR
080 A 0004289835 BRAKE HOSE
REAR
080 A 0004283335 BRAKE HOSE
REAR
080 A 3414287635 BRAKE HOSE
REAR
081 A 0004280073 LOCK
Repalced by: A 0004280473
081 A 0004280473 BRACKET
A 3404280243 ANGLE
Repalced by: A 3414280040
H 993414280140 BRACKET
Repalced by: A 3414280040
A 3404280343 ANGLE
Repalced by: A 3414280040
083 A 3414280040 BRACKET
Repalced by: A 3524282040
083 A 3524282040 BRACKET
084 A 3124281143 ANGLE
N 000933008025 SCREW
N 912004008104 LOCK WASHER
N 000934008000 NUT
085 A 3414200028 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
085 A 3414200128 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
085 A 3414200228 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
085 A 3414200328 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
085 A 3414201328 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
085 A 3414200428 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
085 A 3414201728 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
085 A 3414201928 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
085 A 3414201828 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
085 A 3414201628 LINE
FROM BRAKE MASTER CYLINDER TO REAR AXLE
086 A 0004280072 UNION SCREW
087 A 3124281040 BRACKET
N 000933008025 SCREW
BRACKET TO SIDE MEMBER
N 000966008014 SCREW
BRACKET TO SIDE MEMBER
N 912004008104 LOCK WASHER
BRACKET TO SIDE MEMBER
N 000934008000 NUT
BRACKET TO SIDE MEMBER
088 A 0004290437 DISTRIBUTOR
Repalced by: A 3414297037
088 A 3414297037 DISTRIBUTOR
088 A 3454297037 DISTRIBUTOR
N 912004008104 LOCK WASHER
DISTRIBUTOR TO REAR AXLE
N 000933008071 SCREW
DISTRIBUTOR TO REAR AXLE
089 A 3124201430 LINE
REAR LEFT
089 A 3234200028 LINE
REAR LEFT
090 A 0004280072 UNION SCREW
091 A 3129951020 CLAMP
092 A 3129973482 HOSE
093 A 3124201431 LINE
REAR RIGHT
093 A 3234200128 LINE
REAR RIGHT
094 A 0004280072 UNION SCREW
N 912004008104 LOCK WASHER
BRAKE LINE TO REAR AXLE
N 000933008014 SCREW
BRAKE LINE TO REAR AXLE
X XXXXXXXXXXXX PART NAME MISSING
AIR BRAKE AND LINES
095 N 074305022202 NUT
AT AIR COMPRESSOR
096 N 074299026201 DOUBLE FITTING
AT AIR COMPRESSOR
097 A 3414297036 CONNECTOR
AT AIR COMPRESSOR
098 N 007603022102 SEAL RING
AT AIR COMPRESSOR
098 N 007603022102 SEAL RING
AT AIR COMPRESSOR
099 A 0009870446 O-RING
AT AIR COMPRESSOR
100 A 0004290227 THRUST RING
Repalced by: A 0009940203
100 A 0009940203 THRUST RING
AT AIR COMPRESSOR
101 H 993414290701 LINE
18X1.5X2640 MM
101 A 3414292101 LINE
101 H 993414290201 LINE
101 A 3414298101 LINE
Repalced by: A 3414207926
101 A 3414207926 LINE
FROM AIR COMPRESSOR TO DOUBLE FITTING
102 N 915018018000 UNION NUT
103 N 003861018003 GLAND
104 N 074313018200 FITTING
105 N 074305026202 NUT
106 A 3414298001 LINE
Repalced by: A 3414207826
106 A 3414207826 LINE
FROM DOUBLE FITTING TO PRESSURE REGULATOR
107 N 915018018000 UNION NUT
18-MM-DIA. LINE
108 N 003861018003 GLAND
18-MM-DIA. LINE
109 N 074297018302 THRUST RING
18-MM-DIA. LINE
110 N 074297014400 SLIP RING
18-MM-DIA. LINE
111 A 3414209929 LINE
FROM AIR COMPRESSOR TO DOUBLE FITTING
111 A 3414309865 LINE
FROM AIR COMPRESSOR TO DOUBLE FITTING
15 MM
112 N 915017015100 UNION NUT
112 N 915017015100 UNION NUT
113 N 003861015004 GLAND
113 N 003861015004 GLAND
114 N 003902015001 CONNECTION FITTING
114 N 003902015001 CONNECTION FITTING
115 A 3414207830 LINE
FROM DOUBLE FITTING TO PRESSURE REGULATOR
115 A 3414308764 LINE
FROM DOUBLE FITTING TO PRESSURE REGULATOR
15 MM
116 N 915017015100 UNION NUT
116 N 915017015100 UNION NUT
117 N 003861015004 GLAND
117 N 003861015004 GLAND
118 A 3129970982 HOSE
H 993414290040 BRACKET
Repalced by: A 3414290340
119 A 3414290340 BRACKET
N 000933008036 SCREW
BRACKET TO FRAME
N 912004008104 LOCK WASHER
BRACKET TO FRAME
N 000934008000 NUT
BRACKET TO FRAME
120 A 3129952320 CLAMP
Repalced by: A 3049950120
120 A 3049950120 CLAMP
N 000084006197 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
N 000125006421 WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
N 000127006203 LOCK WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
N 000934006007 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
N 000084006110 SCREW
CLAMP TO BRACKET
N 000127006206 LOCK WASHER
CLAMP TO BRACKET
N 000934006007 NUT
CLAMP TO BRACKET
121 A 3414297740 BRACKET
122 A 3129952420 CLAMP
COMPRESSED AIR LINE TO BRACKET
122 A 3129952420 CLAMP
COMPRESSED AIR LINE TO BRACKET
122 A 3129952420 CLAMP
COMPRESSED AIR LINE TO BRACKET
N 000084006422 SCREW
CLAMP TO BRACKET
N 000084006422 SCREW
CLAMP TO BRACKET
N 000084006422 SCREW
CLAMP TO BRACKET
N 000125006421 WASHER
CLAMP TO BRACKET
N 000125006421 WASHER
CLAMP TO BRACKET
N 000125006421 WASHER
CLAMP TO BRACKET
N 000127006203 LOCK WASHER
CLAMP TO BRACKET
N 000127006203 LOCK WASHER
CLAMP TO BRACKET
N 000127006203 LOCK WASHER
CLAMP TO BRACKET
N 000934006029 NUT
CLAMP TO BRACKET
N 000934006029 NUT
CLAMP TO BRACKET
N 000934006029 NUT
CLAMP TO BRACKET
123 A 3414297940 BRACKET
AT CROSS MEMBER
N 000933010254 SCREW
BRACKET TO CROSS MEMBER
N 000125010518 WASHER
BRACKET TO CROSS MEMBER
N 000127010202 LOCK WASHER
BRACKET TO CROSS MEMBER
N 000934010040 NUT
BRACKET TO CROSS MEMBER
A 3124281740 BRACKET
AT CROSS MEMBER
A 3414267140 BRACKET
AT CROSS MEMBER
A 3414267140 BRACKET
AT CROSS MEMBER
N 000084006422 SCREW
BRACKET TO CROSS MEMBER
N 000084006422 SCREW
BRACKET TO CROSS MEMBER
N 000084006422 SCREW
BRACKET TO CROSS MEMBER
N 009021006103 WASHER
BRACKET TO CROSS MEMBER
N 009021006103 WASHER
BRACKET TO CROSS MEMBER
N 009021006103 WASHER
BRACKET TO CROSS MEMBER
N 000127006203 LOCK WASHER
BRACKET TO CROSS MEMBER
N 000127006203 LOCK WASHER
BRACKET TO CROSS MEMBER
N 000127006203 LOCK WASHER
BRACKET TO CROSS MEMBER
N 000934006029 NUT
BRACKET TO CROSS MEMBER
N 000934006029 NUT
BRACKET TO CROSS MEMBER
N 000934006029 NUT
BRACKET TO CROSS MEMBER
124 N 074299026201 DOUBLE FITTING
125 N 074305022202 NUT
126 A 0009870446 O-RING
127 A 0004290227 THRUST RING
Repalced by: A 0009940203
127 A 0009940203 THRUST RING
128 N 007603022102 SEAL RING
129 N 074313018200 FITTING
129 A 0019972072 FITTING
130 N 074313018200 FITTING
131 N 074301026201 ELBOW FITTING
132 N 074305026202 NUT
133 A 0009870446 O-RING
134 A 0004290227 THRUST RING
Repalced by: A 0009940203
134 A 0009940203 THRUST RING
135 A 0005910202 TIRE INFLATOR CYLINDER
136 N 005401308000 BALL
137 A 0009938601 SPRING
138 A 0005910256 SCREW PLUG
139 A 0005910168 GUIDE SLEEVE
140 A 0005910060 SEAL RING
141 A 0005910220 FILTER ELEMENT
142 N 009045016000 SNAP RING
143 A 0005910356 SCREW PLUG
144 A 0005910360 SEAL RING
145 A 0029931601 SPRING
146 A 0005910190 VALVE DISC
147 A 0005910074 PIN
148 A 0005910260 SEAL RING
149 N 009045010000 SNAP RING
150 N 007603026300 SEAL RING
151 A 0005910456 SCREW PLUG
152 A 0004311006 PRESSURE REGULATOR
153 A 0004311060 SEAL RING
154 A 0004310212 COMPENSATOR
155 A 0004311560 SEAL RING
156 A 0004311081 VALVE DISC
157 N 000084004165 SCREW
158 N 000127004206 LOCK WASHER
159 A 0004312193 SPRING
160 A 0004311089 BUSHING
161 A 0004310856 SCREW PLUG
162 N 912004008104 LOCK WASHER
163 N 000934008000 NUT
164 N 000933008153 SCREW
165 A 0004310070 STUD
166 N 000934005000 NUT
167 A 0004310681 VALVE DISC
168 A 0004312393 SPRING
169 A 0004312293 SPRING
170 N 007603026100 SEAL RING
171 A 0004310956 SCREW PLUG
172 A 0004312493 SPRING
173 A 0004312383 PISTON
174 N 007603035100 SEAL RING
175 A 0004311476 WASHER
176 A 0004311056 SCREW PLUG
177 A 0004310934 STRAINER
178 A 0004311160 SEAL RING
179 A 0004310073 BREATHER PIPE
180 N 000063010122 SCREW
181 A 0004318906 PRESSURE REGULATOR
182 A 0014310006 PRESSURE REGULATOR
WABCO
182 A 0014310006 PRESSURE REGULATOR
WABCO
182 A 0014311206 PRESSURE REGULATOR
KNORR
182 A 0014311206 PRESSURE REGULATOR
KNORR
182 A 0014319806 PRESSURE REGULATOR
KNORR
182 A 0014319806 PRESSURE REGULATOR
KNORR
183 A 0025864143 REPAIR KIT
183 A 0025865043 REPAIR KIT
184 A 0015864343 REPAIR KIT
SEAL RING
TO 001 431 00 06
184 A 0015864343 REPAIR KIT
SEAL RING
TO 001 431 00 06
184 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06
184 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06
184 A 0025866743 REPAIR KIT
Repalced by: A 0004201371
184 A 0004201371 REPAIR KIT
TO 001 431 12 06,001 431 98 06
184 A 0004201371 REPAIR KIT
TO 001 431 12 06,001 431 98 06
N 000933008036 SCREW
N 912004008104 LOCK WASHER
N 000934008000 NUT
185 A 0059970982 HOSE
186 N 074301022302 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
186 A 3414297638 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
187 A 3414297838 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
187 A 3414297938 ELBOW FITTING
PRESSURE REGULATOR,CONNECTION "1"
188 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTION "1"
188 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTION "1"
188 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTION "1"
189 A 0004290227 THRUST RING
Repalced by: A 0009940203
189 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
189 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
189 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTION "1"
190 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
190 N 074305022202 NUT
PRESSURE REGULATOR,CONNECTION "1"
190 N 080705022001 NUT
PRESSURE REGULATOR,CONNECTION "1"
191 N 074298022201 DOUBLE FITTING
192 N 003910015001 BULKHEAD FITTING
PRESSURE REGULATOR,CONNECTION "1"
193 N 007603022102 SEAL RING
193 N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "1"
194 A 3414297036 CONNECTOR
PRESSURE REGULATOR,CONNECTION "2.1"
195 N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "2.1"
196 N 080705022001 NUT
PRESSURE REGULATOR,CONNECTION "21"
197 A 0009870446 O-RING
PRESSURE REGULATOR,CONNECTION "21"
198 A 0004290227 THRUST RING
Repalced by: A 0009940203
198 A 0009940203 THRUST RING
PRESSURE REGULATOR,CONNECTION "21"
199 A 3414207486 BRACKET
PRESSURE REGULATOR
N 000933008271 SCREW
BRACKET TO BATTERY CASE
N 912004008102 LOCK WASHER
BRACKET TO BATTERY CASE
N 000931008370 SCREW
PRESSURE REGULATOR TO BRACKET
N 912004008102 LOCK WASHER
PRESSURE REGULATOR TO BRACKET
N 000934008045 NUT
PRESSURE REGULATOR TO BRACKET
200 N 074305022202 NUT
PRESSURE REGULATOR TO FRAME
201 A 3414309965 LINE
FROM PRESSURE REGULATOR TO FOURCIRCUIT PROTECTIVE VALVE
15 MM
201 A 3414309766 LINE
FROM PRESSURE REGULATOR TO FOURCIRCUIT PROTECTIVE VALVE
15 MM
202 N 915017015100 UNION NUT
203 N 003861015004 GLAND

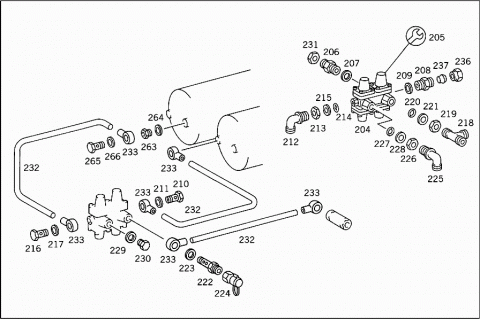

204 A 0014318906 VALVE
Repalced by: A 0024314006
204 A 0024314006 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
204 A 0024314006 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
WABCO
204 A 0014318706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR,77243
204 A 0014318706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR,77243
204 A 0024310106 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR,76633
204 A 0024310106 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR,76633
205 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06
205 A 0035860943 REPAIR KIT
TO 001 431 89 06,002 431 40 06
205 A 0035861043 REPAIR KIT
TO 001 431 87 06
205 A 0035861043 REPAIR KIT
TO 001 431 87 06
205 A 0004301068 REPAIR KIT
Repalced by: A 0004201571
205 A 0004201571 REPAIR KIT
TO 002 431 01 06
205 A 0004201571 REPAIR KIT
TO 002 431 01 06
206 N 003910015001 BULKHEAD FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
206 N 074313016402 FITTING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
207 N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
207 N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
208 N 003901012005 SCREW-IN FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
209 N 007603016105 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
210 N 915036012101 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
211 N 007603016103 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
212 N 074315012100 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
212 A 3514291038 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
212 A 3089907171 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
213 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
214 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
215 A 3084297027 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
216 N 915036012101 HOLLOW SCREW
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
217 N 007603016103 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
218 A 3419907470 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
219 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
220 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
221 A 3084297027 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
222 N 915039012200 HOLLOW SCREW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
223 N 007603016103 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
224 A 0004312031 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
224 A 0004314531 TEST CONNECTION
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
225 A 3419907771 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
226 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
227 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
228 A 3084297027 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
229 N 007603016105 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
230 N 007604016102 SCREW PLUG
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
231 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO SIDE MEMBER
232 A 0109975982 HOSE
Repalced by: A 0009872827
232 A 0009872827 PLASTIC PIPE
FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "21",TO AIR RESERVOIR I
175 MM
232 A 0009872827 PLASTIC PIPE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "22" TO AIR RESERVOIR II
335 MM
232 A 0009872827 PLASTIC PIPE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO CHECK VALVE,CONNECTION:
"1", 3800 MM
232 A 0009872827 PLASTIC PIPE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO CHECK VALVE,CONNECTION:
"1",4430 MM
233 N 915052009000 BANJO UNION
234 A 3414308964 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
12 MM
235 A 3414309064 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
12 MM
236 N 915017012100 UNION NUT
237 N 003861012007 GLAND
238 A 0089979082 HOSE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING
1320 MM
239 N 915052006002 BANJO UNION
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING
240 N 915017008100 UNION NUT
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING
241 N 003861008005 GLAND
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING
242 N 915062006000 SLEEVE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING

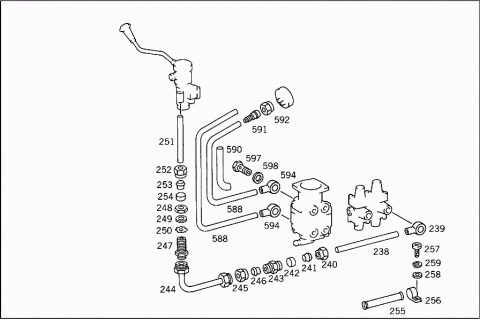

243 N 003902008001 CONNECTION FITTING
244 A 3514209226 LINE
FROM DOUBLE FITTING TO BULKHEAD FITTING
245 N 915017008100 UNION NUT
246 N 003861008005 GLAND
247 A 3509977672 FITTING
COMPRESSED AIR LINE TO FIRE WALL
248 N 080705014004 NUT
249 N 000125015012 WASHER
250 N 006797014150 TOOTHED WASHER
251 A 0089979082 HOSE
FROM BULKHEAD FITTING TO HAND BRAKE VALVE
420 MM
252 N 915017008100 UNION NUT
253 N 003861008005 GLAND
254 N 915062006000 SLEEVE
255 A 3414297086 PROTECTIVE TUBE
255 A 3414297186 PROTECTIVE TUBE
256 A 3419957201 CLAMP
257 N 007513006110 TAPPING SCREW
258 N 009021006104 WASHER
259 N 912004006102 LOCK WASHER
A 3274300005 RESERVOIR
Repalced by: A 3414307105
A 3214300205 RESERVOIR
Repalced by: A 3414307105

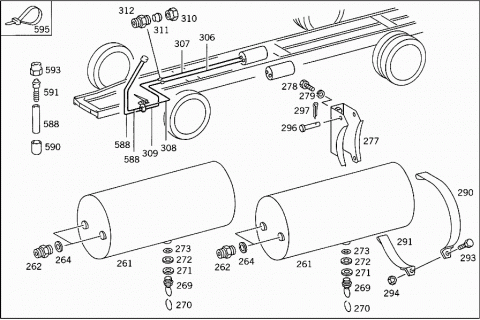

260 A 3414307105 RESERVOIR
261 A 3414307205 RESERVOIR
"1,2"
261 A 3414307205 RESERVOIR
"1,2"
261 A 3924307305 RESERVOIR
"1,2"
N 007603022102 SEAL RING
262 N 074313012100 FITTING
AIR RESERVOIRS I AND II
263 A 0009905168 FITTING
AIR RESERVOIRS I AND II
264 N 007603022102 SEAL RING
AIR RESERVOIRS I AND II
264 N 007603022102 SEAL RING
AIR RESERVOIRS I AND II
265 N 915036012101 HOLLOW SCREW
AIR RESERVOIRS I AND II
266 N 007603016103 SEAL RING
AIR RESERVOIRS I AND II
267 A 0004321107 VALVE
Repalced by: A 3514307581
267 A 3514307581 VALVE
Repalced by: A 0004322507
267 A 0004322507 VALVE
AIR RESERVOIR DRAIN
267 A 3454300181 VALVE
AIR RESERVOIR DRAIN
267 A 3454300281 VALVE
AIR RESERVOIR DRAIN
267 A 0004320607 VALVE
AIR RESERVOIR DRAIN
267 A 3454307281 VALVE
AIR RESERVOIR DRAIN
267 A 3414300071 SCREW
Repalced by: A 3454300081
267 A 3454300081 VALVE
Repalced by: A 0004322407
267 A 0004322407 VALVE
AIR RESERVOIR DRAIN
267 A 3514307781 VALVE
AIR RESERVOIR DRAIN
268 A 3459880066 RING
TO 345 430 01 81
269 A 3454307281 VALVE
AIR RESERVOIR DRAIN
269 A 3454307281 VALVE
AIR RESERVOIR DRAIN
269 A 0004320607 VALVE
269 A 3454300181 VALVE
AIR RESERVOIR DRAIN
269 A 3454300081 VALVE
Repalced by: A 0004322407
269 A 0004322407 VALVE
269 A 3454300281 VALVE
AIR RESERVOIR DRAIN
269 A 3514307781 VALVE
269 A 0004321107 VALVE
Repalced by: A 3514307581
269 A 3514307581 VALVE
Repalced by: A 0004322507
269 A 0004322507 VALVE
AIR RESERVOIR DRAIN
270 N 900397000201 RING
TO 351 430 75 81,345 430 00 81
270 N 900397000201 RING
TO 351 430 75 81,345 430 00 81
271 N 007603022102 SEAL RING
AIR RESERVOIR DRAIN
272 A 0004290227 THRUST RING
Repalced by: A 0009940203
272 A 0009940203 THRUST RING
AIR RESERVOIR DRAIN
273 A 0009870446 O-RING
AIR RESERVOIR DRAIN
A 3414320006 SCREW
A 3414320072 NUT

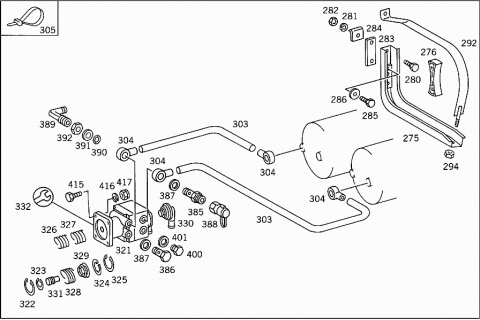

274 A 3214320015 CONSOLE
275 A 3604301311 CONSOLE
276 A 3354320218 BASE
Repalced by: A 3904327018
276 A 3904327018 BASE
277 A 3414307011 CONSOLE
FROM AIR RESERVOIR TO ANTI-FREEZE DEVICE
278 N 000961012038 SCREW
CONSOLE TO SIDE MEMBER
279 N 000127012201 LOCK WASHER
CONSOLE TO SIDE MEMBER
280 N 000961012122 SCREW
CONSOLE TO SIDE MEMBER
281 N 000127012201 LOCK WASHER
CONSOLE TO SIDE MEMBER
N 000125015012 WASHER
CONSOLE TO SIDE MEMBER
282 N 000934012039 NUT
CONSOLE TO SIDE MEMBER
283 A 3214750084 SHIM
CONSOLE TO SIDE MEMBER
284 A 3354320126 PLATE
CONSOLE TO SIDE MEMBER
284 A 3454320026 PLATE
CONSOLE TO SIDE MEMBER
285 N 000961012020 SCREW
285 N 000961012027 SCREW
285 N 000961012027 SCREW
286 A 3229901740 WASHER
286 A 3229901740 WASHER
287 N 000127012203 LOCK WASHER
288 N 000934012004 NUT
289 A 3214300240 STRAP
289 A 3414307040 STRAP
290 A 3414300040 STRAP
Repalced by: A 3414307140
290 A 3414307140 STRAP
291 A 3414300140 STRAP
292 A 3604300040 STRAP
293 N 000931010054 SCREW
294 N 000934010000 NUT
294 N 000934010000 NUT
294 N 000439010203 NUT
294 N 000934010005 NUT
295 N 001434010024 PIN
296 N 001444010208 PIN
297 N 000094003201 COTTER PIN
297 N 000094003707 COTTER PIN
298 N 007603022102 SEAL RING
299 N 074298022201 DOUBLE FITTING
300 A 0414290402 LINE
300 A 3414297901 LINE
15 MM
301 N 074302022104 T-FITTING
302 A 3224296302 LINE
15 MM
A 0414290302 LINE
Repalced by: A 3214291202
302 A 3214291202 LINE
15 MM
303 A 0109975982 HOSE
Repalced by: A 0009872827
303 A 0009872827 PLASTIC PIPE
FROM AIR RESERVOIR II TO SERVICE BRAKE VALVE,CONNECTION:
"12",1630 MM
303 A 0009872827 PLASTIC PIPE
FROM AIR RESERVOIR I TO SERVICE BRAKE VALVE,CONNECTION:
"11",1590 MM
304 N 915052009000 BANJO UNION
305 A 0029972290 LOOM TIE
306 A 3414309866 LINE
FROM AIR RESERVOIR TO DOUBLE FITTING
12 MM,"21"
306 A 3414309164 LINE
FROM AIR RESERVOIR TO DOUBLE FITTING
12 MM,"21"
307 A 3414309966 LINE
FROM AIR RESERVOIR TO DOUBLE FITTING
12 MM,"22"
307 A 3414309364 LINE
FROM AIR RESERVOIR TO DOUBLE FITTING
12 MM,"22"
308 A 3414209129 LINE
FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION:
"11",12 MM
308 A 3414207831 LINE
FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION:
"11",12 MM
309 A 3414209229 LINE
FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION:
"12",12 MM
309 A 3414207931 LINE
FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION:
"12",12 MM
310 N 915017012100 UNION NUT
311 N 003861012007 GLAND
312 N 003902012001 CONNECTION FITTING
Repalced by: A 0049971772
312 A 0049971772 FITTING
BETWEEN THE LINES
313 N 074302022304 T-FITTING
314 N 074305022202 NUT
315 N 007603022102 SEAL RING
316 N 074301022302 ELBOW FITTING
316 A 3414297638 ELBOW FITTING
317 N 074305022202 NUT
318 A 0009870446 O-RING
319 A 0004290227 THRUST RING
Repalced by: A 0009940203
319 A 0009940203 THRUST RING
320 A 0004312405 BRAKE BOOSTER
320 A 3444317014 BRAKE BOOSTER
321 A 0014318305 BRAKE VALVE
Repalced by: A 3454317105
321 A 3454317105 BRAKE VALVE
WABCO
321 A 0014319105 BRAKE VALVE
Repalced by: A 3454317005
321 A 0024312705 BRAKE VALVE
Repalced by: A 3454317005
321 A 3454317005 BRAKE VALVE
KNORR
322 A 0049949541 LOCK
TO 001 431 83 05
323 A 0049949641 LOCK
TO 001 431 83 05
323 N 000472047001 LOCK RING
TO 345 431 71 05
323 N 000472045000 LOCK RING
TO 345 431 71 05
323 N 000472060000 LOCK RING
TO 345 431 71 05
324 A 0049949741 LOCK
TO 001 431 83 05
324 N 000984038000 LOCK RING
TO 345 431 71 05
325 A 0049949841 LOCK
TO 001 431 83 05
325 A 0049949941 LOCK
TO 345 431 70 05
326 A 0014317193 SPRING
TO 002 431 27 05,345 431 70 05
327 A 0014317293 SPRING
TO 002 431 27 05,345 431 70 05
A 0014317393 SPRING
TO 001 431 83 05
328 A 0014317493 SPRING
TO 001 431 83 05,345 431 71 05
329 A 0004312185 FILLER RING
TO 001 431 83 05
330 A 0004310273 BREATHER PIPE
TO 001 431 83 05
A 0004319483 PISTON
TO 002 431 27 05, 345 431 70 05
A 0004318783 PISTON
A 0004318883 PISTON
331 A 0004318383 PISTON
TO 001 431 83 05
331 A 0004318683 PISTON
TO 345 431 71 05
332 A 0014301260 REPAIR KIT
SMALL SCOPE
TO 002 431 27 05,345 431 70 05
332 A 0014301160 REPAIR KIT
SMALL SCOPE
TO 001 431 83 05,345 431 71 05
332 A 0004307160 REPAIR KIT
Repalced by: A 0004304206
332 A 0004304206 REPAIR KIT
LARGE SCOPE
TO 002 431 27 05, 345 431 70 05
332 A 0004306260 REPAIR KIT
LARGE SCOPE
TO 001 431 83 05,345 431 71 05
332 A 0035861243 REPAIR KIT
TO 001 431 91 05
333 A 0024313905 BRAKE VALVE
SERVICE BRAKE VALVE
KNORR
333 A 0024316205 BRAKE VALVE
SERVICE BRAKE VALVE
WABCO
334 A 0024319705 BRAKE VALVE
KNORR
335 A 0049949941 LOCK
TO 002 431 39 05
336 A 0004311522 COVER
TO 002 431 39 05
336 A 0004311622 COVER
TO 002 431 39 05
337 A 0014317093 SPRING
TO 002 431 39 05
338 A 0014317193 SPRING
TO 002 431 39 05
339 A 0014317293 SPRING
TO 002 431 39 05
A 0004319483 PISTON
TO 345 431 39 05
340 A 0004310750 BUSHING
TO 002 431 39 05
341 A 0004312374 PIN
TO 002 431 39 05
342 A 0019974286 PLUG
TO 002 431 39 05
343 A 0024317805 BRAKE VALVE
TO 002 431 62 05
344 A 0004300018 BRAKE PEDAL
TO 002 431 62 05
345 A 0004314887 PROTECTIVE CAP
TO 000 430 00 18
346 A 0004312786 CUP
347 A 0004312886 SEAL RING
348 A 0004312986 CUP
349 A 0004350390 VALVE DISC
A 0004350391 VALVE DISC
350 A 0009933201 SPRING
351 N 007603030100 SEAL RING
352 N 071752012000 YOKE
353 N 001433012015 PIN
354 A 0004290176 WASHER
355 N 000094004040 COTTER PIN
356 N 000417008002 HEADLESS SETSCREW
357 A 0004310594 WASHER
358 N 000934008000 NUT
359 A 0004290695 AIR CLEANER
360 N 000094003234 COTTER PIN
361 A 0004311087 PROTECTIVE CAP
362 A 0014311386 CUP
TO 002 431 39 05
363 A 0009910845 RING
TO 002 431 39 05
364 H 983455860243 REPAIR KIT
MINOR
TO 344 431 70 14
364 A 3455867043 REPAIR KIT
MAJOR
TO 344 431 70 14
365 A 3415867043 REPAIR KIT
TO 000 431 24 05
366 A 0004306260 REPAIR KIT
LARGE SCOPE
TO 002 431 78 05
367 A 0004307360 REPAIR KIT
Repalced by: A 0004304306
367 A 0004304306 REPAIR KIT
LARGE SCOPE
TO 002 431 39 05
367 A 0014301260 REPAIR KIT
SMALL SCOPE
TO 002 431 39 05
368 N 000127010205 LOCK WASHER
TRUCK-TRACTOR BRAKE VALVE TO CONSOLE
369 N 000933010129 SCREW
TRUCK-TRACTOR BRAKE VALVE TO CONSOLE
Y YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
461B
370 A 3124294840 BRACKET
371 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
372 N 000127010205 LOCK WASHER
BRACKET TO SIDE MEMBER
373 N 000125010518 WASHER
BRACKET TO SIDE MEMBER
374 N 000934010000 NUT
BRACKET TO SIDE MEMBER
375 N 000936012006 NUT
376 A 3124312092 ROD
377 N 000936012005 NUT
378 A 3124311097 YOKE
379 A 0009870446 O-RING
380 A 0004290227 THRUST RING
Repalced by: A 0009940203
380 A 0009940203 THRUST RING
381 N 007604022100 SCREW PLUG
Repalced by: A 3469970230
381 A 3469970230 SCREW PLUG
382 N 074301022201 ELBOW FITTING
383 N 074305022202 NUT
384 N 003901012005 SCREW-IN FITTING
BRAKE VALVE,CONNECTIONS "11,12"
385 N 915047012100 HOLLOW SCREW
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
Y YYYYYYYYYYYY PART NAME MISSING
OUTSIDE
386 N 915036012101 HOLLOW SCREW
SERVICE BRAKE VALVE,CONNECTION:
"21,22"
Y YYYYYYYYYYYY PART NAME MISSING
INSIDE
386 N 915036012101 HOLLOW SCREW
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
Y YYYYYYYYYYYY PART NAME MISSING
INSIDE
387 N 007603016103 SEAL RING
388 A 0004312031 TEST CONNECTION
T-FITTING,CONNECTION:
"2"
388 A 0004314531 TEST CONNECTION
T-FITTING,CONNECTION:
"2"
389 A 3529900071 ELBOW FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
Y YYYYYYYYYYYY PART NAME MISSING
INSIDE
389 A 3419907871 ELBOW FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
Y YYYYYYYYYYYY PART NAME MISSING
INSIDE
390 A 0009971548 SEAL RING
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
391 A 3084297027 THRUST RING
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
392 N 080705016003 NUT
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
393 N 007603016105 SEAL RING
BRAKE VALVE,CONNECTIONS "11,12"
394 N 074315012100 FITTING
BRAKE VALVE,CONNECTIONS "11,12"
394 A 3514297038 ELBOW FITTING
BRAKE VALVE,CONNECTIONS "11,12"
394 A 3089907171 ELBOW FITTING
BRAKE VALVE,CONNECTIONS "11,12"
395 A 3419907970 T-FITTING
BRAKE VALVE,CONNECTION "21"
395 A 3419907970 T-FITTING
BRAKE VALVE,CONNECTION "22"
396 A 0009909470 T-FITTING
BRAKE VALVE,CONNECTION "22"
396 A 0009909470 T-FITTING
BRAKE VALVE,CONNECTION "21"
396 A 3419907670 T-FITTING
BRAKE VALVE,CONNECTION "22"
396 A 3419907670 T-FITTING
BRAKE VALVE,CONNECTION "21"
397 N 080705016003 NUT
BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
398 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
A 0004290927 THRUST RING
BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
399 A 3084297027 THRUST RING
BRAKE VALVE,CONNECTIONS:
"11,12,21,22"
400 N 007604016102 SCREW PLUG
BRAKE VALVE,CONNECTIONS "21,22"
400 N 007604016102 SCREW PLUG
BRAKE VALVE,CONNECTIONS "21,22"
401 N 007603016105 SEAL RING
BRAKE VALVE,CONNECTIONS "21,22"
401 N 007603016105 SEAL RING
BRAKE VALVE,CONNECTIONS "21,22"
402 A 3419907370 T-FITTING
BRAKE VALVE,CONNECTIONS "11,12"
402 A 3519907083 FITTING
BRAKE VALVE,CONNECTIONS "11,12"
403 N 080705016003 NUT
BRAKE VALVE,CONNECTIONS "11,12"
404 A 0009971548 SEAL RING
BRAKE VALVE,CONNECTIONS "11,12"
A 0004290927 THRUST RING
BRAKE VALVE,CONNECTIONS "11,12"
405 A 3084297027 THRUST RING
BRAKE VALVE,CONNECTIONS "11,12"
406 A 0005455414 SWITCH
BRAKE VALVE,CONNECTIONS "11,12"
406 A 0005455414 SWITCH
BRAKE VALVE,CONNECTIONS "11,12"
406 A 3445457214 SWITCH
BRAKE VALVE,CONNECTIONS "11,12"
406 A 3445457214 SWITCH
BRAKE VALVE,CONNECTIONS "11,12"
407 N 074313006101 FITTING
BRAKE VALVE,CONNECTION "21"
408 N 007603016105 SEAL RING
BRAKE VALVE,CONNECTION "21"
A 0004290927 THRUST RING
BRAKE VALVE,CONNECTION "22"
409 A 0005456009 SWITCH
BRAKE VALVE,CONNECTION "22"
"BOSCH"
409 A 3645457409 SWITCH
BRAKE VALVE,CONNECTION "22"
"PREMA"
410 A 3414307063 REINFORCEMENT
BRAKE VALVE
411 N 304017008010 SCREW
BRAKE VALVE TO BRACKET
412 N 912004008102 LOCK WASHER
BRAKE VALVE TO BRACKET
413 N 000933006223 SCREW
BRACKET TO FIRE WALL
414 N 000127006203 LOCK WASHER
BRACKET TO FIRE WALL
415 N 000933008270 SCREW
BRAKE VALVE TO PEDAL BEARING BRACKET
416 N 912004008102 LOCK WASHER
BRAKE VALVE TO PEDAL BEARING BRACKET
417 N 913004008004 NUT
BRAKE VALVE TO PEDAL BEARING BRACKET

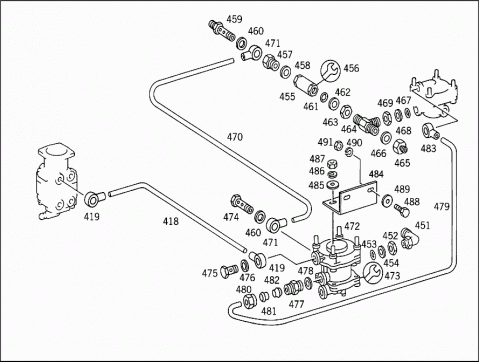

418 A 0109975982 HOSE
Repalced by: A 0009872827
418 A 0009872827 PLASTIC PIPE
FROM SERVICE BRAKE VALVE TO TRAILER CONTROL VALVE
2720 MM
419 N 915052009000 BANJO UNION
FROM SERVICE BRAKE VALVE TO TRAILER CONTROL VALVE
420 A 3214296202 LINE
421 N 915018015000 UNION NUT
422 N 003861015004 GLAND
423 N 074301022201 ELBOW FITTING
424 N 074305022202 NUT
425 A 0009870446 O-RING
426 A 0004290227 THRUST RING
Repalced by: A 0009940203
426 A 0009940203 THRUST RING
427 A 3224296402 LINE
428 N 074298022202 DOUBLE FITTING
429 N 007603022102 SEAL RING
430 A 0004312505 BRAKE VALVE
431 A 0004313086 CUP
432 A 0004313186 CUP
433 A 0004350390 VALVE DISC
A 0004350391 VALVE DISC
434 N 000931010040 SCREW
434 N 000933010069 SCREW
435 N 000127010205 LOCK WASHER
436 N 000127010205 LOCK WASHER
437 N 000934010000 NUT
438 N 000094003201 COTTER PIN
439 N 000125008413 WASHER
440 A 3219961025 ROD
441 N 000934008000 NUT
442 N 071802013105 ANGLE JOINT
443 N 912004008104 LOCK WASHER
444 N 000934008000 NUT
445 A 0009974140 SEAL RING
446 N 074305022202 NUT
447 N 074301022202 ELBOW FITTING
448 A 3214296004 LINE
15 MM
449 N 074298022202 DOUBLE FITTING
450 A 3214296204 LINE
15 MM
450 A 3214296304 LINE
15 MM
450 A 3214296404 LINE
15 MM
450 A 3224298002 LINE
15 MM
451 N 074301022201 ELBOW FITTING
452 N 074305022202 NUT
453 A 0009870446 O-RING
454 A 0004290227 THRUST RING
Repalced by: A 0009940203
454 A 0009940203 THRUST RING
455 A 0004290444 VALVE
(CHECK VALVE)
WABCO
455 A 0004290444 VALVE
(CHECK VALVE)
WABCO
455 A 0034292844 VALVE
(CHECK VALVE)
KNORR
455 A 0034292844 VALVE
(CHECK VALVE)
KNORR
456 A 0005865942 REPAIR KIT
TO 000 429 04 44
456 A 0005865942 REPAIR KIT
TO 000 429 04 44
457 A 0009905168 FITTING
CHECK VALVE,CONNECTION "1"
458 N 007603022102 SEAL RING
CHECK VALVE,CONNECTION "1"
459 N 915040012206 HOLLOW SCREW FITTING
CHECK VALVE,CONNECTION "1"
460 N 007603016103 SEAL RING
CHECK VALVE,CONNECTION "1"
461 A 3419977245 SEAL RING
Repalced by: A 0009870446
461 A 0009870446 O-RING
CHECK VALVE,CONNECTION:
"2"
462 A 0004290227 THRUST RING
Repalced by: A 0009940203
462 A 0009940203 THRUST RING
CHECK VALVE,CONNECTION:
"2"
463 N 080705022001 NUT
CHECK VALVE,CONNECTION:
"2"
464 N 074302022202 T-FITTING
CHECK VALVE,CONNECTION:
"2"
464 A 3514290132 T-FITTING
CHECK VALVE,CONNECTION:
465 A 3229970071 FITTING
AT T-FITTING
466 N 915045012100 SEAL RING
AT T-FITTING
467 A 3419977245 SEAL RING
Repalced by: A 0009870446
467 A 0009870446 O-RING
FROM T-FITTING TO RELAY VALVE, CONNECTION "1"
468 A 0004290227 THRUST RING
Repalced by: A 0009940203
468 A 0009940203 THRUST RING
FROM T-FITTING TO RELAY VALVE, CONNECTION "1"
469 N 080705022001 NUT
FROM T-FITTING TO RELAY VALVE, CONNECTION "1"
470 A 0109975982 HOSE
Repalced by: A 0009872827
470 A 0009872827 PLASTIC PIPE
FROM CHECK VALVE TO TRAILER BRAKE VALVE
720 MM
471 N 915052009000 BANJO UNION
472 A 0024311605 BRAKE VALVE
TRAILER BRAKE
KNORR
472 A 0014313705 BRAKE VALVE
TRAILER BRAKE
WABCO
473 A 0024304781 REPAIR KIT
VALVE KIT
TO 001 431 37 05
473 A 0004302960 REPAIR KIT
TO 002 431 16 05
473 A 0024306581 REPAIR KIT
TO 001 431 37 05
474 N 915047012100 HOLLOW SCREW
FROM TRAILER CONTROL VALVE,CONNECTION "1.0",TO BRAKE LINE COUPLING,CONNECT.:
N 007603016103 SEAL RING
FROM TRAILER CONTROL VALVE,CONNECTION "1.0",TO BRAKE LINE COUPLING,CONNECT.:
T YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
460
475 N 915036012101 HOLLOW SCREW
TRAILER CONTROL VALVE,CONNECTIONS:
"2,41"
476 N 007603016103 SEAL RING
TRAILER CONTROL VALVE,CONNECTIONS:
"2,41"
477 A 3519907483 FITTING
TRAILER CONTROL VALVE,CONNECTION:
"43"
478 N 007603016105 SEAL RING
TRAILER CONTROL VALVE,CONNECTION:
"43"
479 A 0089979082 HOSE
FROM TRAILER CONTROL VALVE TO RELAY VALVE
310 MM
480 N 915017008100 UNION NUT
481 N 003861008005 GLAND
482 N 915062006000 SLEEVE
483 N 915052006002 BANJO UNION
484 A 3414317540 BRACKET
TRAILER CONTROL VALVE
485 N 009021008102 WASHER
TRAILER CONTROL VALVE TO BRACKET
486 N 912004008102 LOCK WASHER
487 N 000934008045 NUT
488 N 000933008278 SCREW
TRAILER CONTROL VALVE TO SIDE MEMBER
489 N 009021008102 WASHER
490 N 912004008102 LOCK WASHER
491 N 000934008045 NUT
492 A 0109975982 HOSE
Repalced by: A 0009872827
492 A 0009872827 PLASTIC PIPE
TRAILER CONTROL VALVE,CONNECTION:
"2",1870 MM
492 A 0009872827 PLASTIC PIPE
TRAILER CONTROL VALVE,CONNECTION:
"1",2010 MM
493 N 915052009000 BANJO UNION
494 N 003861012007 GLAND
495 N 915062009000 SLEEVE
496 N 915017012100 UNION NUT
497 A 0004292901 LINE
TRAILER BRAKE
497 A 0004293101 LINE
TRAILER BRAKE
498 A 3519907683 FITTING
TRAILER BRAKE LINE
499 N 007603016103 SEAL RING
TRAILER BRAKE LINE
500 A 0004298730 BRAKE LINE COUPLING
LEFT
500 A 0004298130 BRAKE LINE COUPLING
LEFT
501 A 0004298030 BRAKE LINE COUPLING
RIGHT
501 A 0004298630 BRAKE LINE COUPLING
RIGHT
502 A 0004291290 COVER
TO 000 429 80 30
503 A 0004291690 COVER
TO 000 429 81 30
504 A 0004309660 REPAIR KIT
TO 000 429 86 30,000 429 87 30
505 A 0025863842 REPAIR KIT
TO 000 429 80 30,000 429 81 30
N 003911012100 FITTING
LINE TO CROSS MEMBER
506 N 080705018002 NUT
LINE TO CROSS MEMBER
A 3514297027 THRUST RING
LINE TO CROSS MEMBER
A 3419977345 SEAL RING
LINE TO CROSS MEMBER
A 3514287131 CONNECTOR
LINE TO CROSS MEMBER
507 A 3513107037 CROSS MEMBER
508 A 0009840261 CLIP
509 N 000084004435 SCREW
510 N 912004004100 LOCK WASHER
511 N 000934004004 NUT
512 A 3513127084 SHIM
513 N 000933010145 SCREW
CROSS MEMBER TO FRAME
514 N 000127010202 LOCK WASHER
CROSS MEMBER TO FRAME
515 N 000934010040 NUT
CROSS MEMBER TO FRAME
517 N 915018015000 UNION NUT
15-MM-DIA. LINE
518 N 003861015004 GLAND
15-MM-DIA. LINE
520 N 915065015101 THRUST RING
15-MM-DIA. LINE
520 A 0004291027 THRUST RING
15-MM-DIA. LINE
521 N 915045015100 SEAL RING
15-MM-DIA. LINE
522 A 3129952420 CLAMP
523 A 3124291640 BRACKET
A 3124281740 BRACKET
Repalced by: A 0414280040
524 A 0414280040 BRACKET
525 N 000084006110 SCREW
525 N 000084006112 SCREW
526 N 000127006206 LOCK WASHER
527 N 000934006007 NUT
528 N 074299022202 DOUBLE FITTING
529 N 007603022102 SEAL RING
530 A 0004291630 BRAKE LINE COUPLING
531 A 0004350390 VALVE DISC
A 0004350391 VALVE DISC
532 A 0009933201 SPRING
533 A 0004350236 VALVE PART
534 A 0004350780 GASKET
A 0004350172 NUT
535 A 0004350291 VALVE TAPPET
536 N 009045026000 SNAP RING
537 A 0004350014 COVER
538 N 000094005031 COTTER PIN
A 0009938901 SPRING
A 0004350053 SPRING CAPSULE
539 A 0004292130 BRAKE LINE COUPLING
540 A 0004290631 SHUT-OFF COCK
541 A 0004290278 HANDLE
543 N 001473004003 GROOVED PIN
544 A 0004290162 THRUST WASHER
545 A 0004290284 SEAL RING
546 A 0004290085 SEAL HOLDER
547 A 0004290393 SPRING
548 N 007603038100 SEAL RING
549 A 0005910156 SCREW PLUG
550 N 007603022102 SEAL RING
551 A 0004290141 FITTING
552 A 0004290181 GROMMET
553 A 0004290140 BRACKET
554 A 3213150040 BRACKET
555 A 3224290640 BRACKET
556 N 000933008036 SCREW
557 N 000933008153 SCREW
558 N 912004008104 LOCK WASHER
559 N 000934008000 NUT
560 N 000933010026 SCREW
561 N 000127010205 LOCK WASHER
562 N 000934010000 NUT
563 N 000963008022 SCREW
564 N 912004008104 LOCK WASHER
565 N 000934008000 NUT
566 N 007603012100 SEAL RING
567 N 074298012201 DOUBLE FITTING
568 A 3415420043 PIPE LINE
FROM DISTRIBUTOR TO CONNECTOR
1500 MM
569 A 3415420243 PIPE LINE
FROM TRUCK-TRACTOR BRAKE VALVE TO CONNECTOR
200 MM
569 A 3215421643 PIPE LINE
1500 MM
570 A 3379970072 FITTING
571 N 000936012002 NUT
572 N 006797012153 TOOTHED WASHER
573 A 3415420143 PIPE LINE
FROM CONNECTOR TO PRESSURE GAUGE
200 MM
574 A 3415420343 PIPE LINE
FROM CONNECTOR TO PRESSURE GAUGE
200 MM
575 N 915017006100 UNION NUT
576 N 003861006007 GLAND
577 A 3215420035 HOSE
577 A 0445421235 HOSE
578 A 3125421039 PLATE
579 A 3125424940 BRACKET
580 A 3129950332 CLAMP
581 N 007985004106 SCREW
582 N 000127004206 LOCK WASHER
583 N 000934004006 NUT
584 N 000084005104 SCREW
585 N 912004005101 LOCK WASHER
586 N 000934005000 NUT
587 A 0009972881 GROMMET
TEMPERATURE GAUGE SENDER UNIT
587 A 0009972881 GROMMET
TEMPERATURE GAUGE SENDER UNIT
588 A 0089975982 HOSE
Repalced by: A 0089976082
588 A 0089976082 HOSE
FROM SERVICE BRAKE VALVE TO INSTRUMENT CLUSTER
1135 MM
588 A 0089976082 HOSE
FROM SERVICE BRAKE VALVE TO INSTRUMENT CLUSTER
2100 MM
588 A 0089976082 HOSE
FROM SERVICE BRAKE VALVE TO INSTRUMENT CLUSTER
2100 MM
A 0089975882 HOSE
TO INSTRUMENT CLUSTER
2100 MM
590 N 040621010200 INSULATING HOSE
591 A 0019975072 FITTING
591 A 0019975072 FITTING
591 A 3514297241 FITTING
591 A 3514297241 FITTING
592 N 915017006200 UNION NUT
593 N 915017006200 UNION NUT
593 A 3514297029 UNION NUT
593 A 3514297029 UNION NUT
594 N 915052004002 BANJO UNION
595 A 0019979390 LOOM TIE
Repalced by: A 0019978390
595 A 0019978390 LOOM TIE
Repalced by: A 0019978490
595 A 0019978490 LOOM TIE
PRESSURE GAUGE LINE
595 A 3419979190 LOOM TIE
PRESSURE GAUGE LINE
596 A 0009870244 EXPANSION PLUG
TO PLUG THE HOLES
597 N 915036012101 HOLLOW SCREW
SERVICE BRAKE VALVE
598 N 007603016103 SEAL RING
SERVICE BRAKE VALVE
599 A 3124271220 HANDLE
TO 353 420 00 88
599 A 3094270020 HANDLE
TO 341 420 00 88
600 N 000964006024 SCREW
TO 353 420 00 88
600 N 007985010120 SCREW
TO 341 420 00 88
601 N 000127006206 LOCK WASHER
TO 353 420 00 88
602 N 000125006421 WASHER
TO 353 420 00 88
603 N 001587006001 CAP NUT
TO 353 420 00 88
604 A 3124271086 DAMPING RING
A 3214200974 ROD
Repalced by: A 3534200088
605 A 3534200088 RATCHET ROD
Repalced by: A 3414200088
605 A 3414200088 RATCHET ROD
606 A 3534270095 PROTECTIVE CAP
607 A 3124271151 SPACER RING
608 N 001473004021 GROOVED PIN
609 A 3124201178 BEARING BRACKET
610 N 001473004023 GROOVED PIN
611 N 912004008104 LOCK WASHER
BEARING BRACKET TO FIRE WALL
612 N 000933008025 SCREW
BEARING BRACKET TO FIRE WALL
612 N 000933008071 SCREW
BEARING BRACKET TO FIRE WALL
613 A 3224270084 SHIM
BEARING BRACKET TO FIRE WALL
614 A 3124271215 PAWL
Repalced by: A 3145860142
614 A 1539930701 SPRING
Repalced by: A 3145860142
614 A 3129900043 PLATE
Repalced by: A 3145860142
614 A 3145860142 REPAIR KIT
Repalced by: A 3144200092
614 A 3144200092 REPAIR KIT
615 N 000472015000 LOCK RING
616 N 001434008006 PIN
BRAKE LEVER TO RATCHET ROD
617 N 000433008400 WASHER
BRAKE LEVER TO RATCHET ROD
618 N 000094002058 COTTER PIN
BRAKE LEVER TO RATCHET ROD
A 3224201712 BRAKE LEVER
Repalced by: A 3414200212
619 A 3414200212 BRAKE LEVER
619 A 3224204012 BRAKE LEVER
620 A 3124271550 BUSHING
621 N 071412010300 GREASE NIPPLE
622 A 3214200778 BEARING BRACKET
623 N 000933010044 SCREW
BEARING BRACKET TO FRAME
624 N 000127010205 LOCK WASHER
BEARING BRACKET TO FRAME
625 N 000934010000 NUT
BEARING BRACKET TO FRAME
626 A 3129901540 WASHER
627 N 000471022000 LOCK RING
628 A 3214200176 END PIECE
630 N 001434010006 PIN
Repalced by: N 001434010009
630 N 001434010009 PIN
631 N 000094003201 COTTER PIN
633 N 000934010000 NUT
634 N 900331010383 PULL ROD
635 A 3224270741 BRACKET
636 A 3229970481 GROMMET
637 N 000933008048 SCREW
BRACKET TO ENGINE CROSS MEMBER
638 N 912004008104 LOCK WASHER
BRACKET TO ENGINE CROSS MEMBER
639 N 000125008413 WASHER
BRACKET TO ENGINE CROSS MEMBER
640 N 000934008000 NUT
BRACKET TO ENGINE CROSS MEMBER
A 3224203578 BEARING BRACKET
Repalced by: A 3414207078
641 A 3414207078 BEARING BRACKET
641 A 3224203678 BEARING BRACKET
642 N 000933010016 SCREW
BEARING BRACKET TO CROSS MEMBER
643 N 000127010205 LOCK WASHER
BEARING BRACKET TO CROSS MEMBER
644 N 000934010000 NUT
BEARING BRACKET TO CROSS MEMBER
645 A 3224201281 LEVER
646 A 0414270050 BUSHING
647 N 071412010300 GREASE NIPPLE
648 A 3124261574 PIN
649 N 000471022000 LOCK RING
650 A 3214200176 END PIECE
651 N 001434010006 PIN
Repalced by: N 001434010009
651 N 001434010009 PIN
652 N 000094003201 COTTER PIN
653 N 000934010000 NUT
654 N 900331010034 PULL ROD
654 N 900331010045 PULL ROD
654 N 900331010049 PULL ROD
654 N 900331010399 PULL ROD
655 A 3214200286 BRACKET
655 A 3414207286 BRACKET
655 A 3524200086 BRACKET
657 A 0009973481 GROMMET
658 N 000933008036 SCREW
659 N 000125008413 WASHER
660 N 912004008104 LOCK WASHER
661 N 000934008000 NUT
662 N 000934010000 NUT
663 N 001480010200 TURNBUCKLE
664 N 000934010035 NUT
665 A 3129962441 ROD
666 A 3214200176 END PIECE
667 N 000934010000 NUT
668 N 001434010009 PIN
669 N 000094003201 COTTER PIN
670 A 3224201480 BRAKE INTERMEDIATE SHAFT
671 A 3224200778 BEARING BRACKET
671 A 3214200578 BEARING BRACKET
672 A 3124272350 BUSHING
673 N 071412010100 GREASE NIPPLE
674 N 000933010026 SCREW
675 N 000127010205 LOCK WASHER
676 N 000934010000 NUT
A 3214200076 END PIECE
Repalced by: A 3224200347
677 A 3224200347 YOKE
N 001434010018 PIN
Repalced by: N 001434010090
678 N 001434010090 PIN
679 N 900055010003 SPRING WASHER
680 N 000433010500 WASHER
681 N 000094003201 COTTER PIN
682 A 3129961541 ROD
683 N 000934010000 NUT
683 N 000934010035 NUT
684 A 3224200076 END PIECE
685 N 001434010018 PIN
686 N 000433010500 WASHER
687 N 000094003201 COTTER PIN
688 A 0109975982 HOSE
Repalced by: A 0009872827
688 A 0009872827 PLASTIC PIPE
FROM BRAKE VALVE,CONNECTION "22",TO T-FITTING
670 MM
688 A 0009872827 PLASTIC PIPE
FROM BRAKE VALVE,CONNECTION "21",TO FITTING
3420 MM
688 A 0009872827 PLASTIC PIPE
FROM BRAKE VALVE,CONNECTION "21",TO FITTING
4050 MM
689 N 915052009000 BANJO UNION
690 N 915017012100 UNION NUT
691 N 003861012007 GLAND
692 N 915062009000 SLEEVE
693 A 3414209429 LINE
FROM BRAKE VALVE,CONNECTION "21",TO T-FITTING
12 MM
693 A 3414208031 LINE
FROM BRAKE VALVE,CONNECTION "22",TO T-FITTING
12 MM
693 A 3414207433 LINE
FROM BRAKE VALVE,CONNECTION "21",TO T-FITTING
12 MM
694 N 915017012100 UNION NUT
695 N 003861012007 GLAND
696 N 003908012000 T-FITTING
696 A 3414297432 T-FITTING
696 A 3419908170 T-FITTING
697 A 3519907170 T-FITTING
698 N 304017008007 SCREW
T-FITTING TO SIDE MEMBER
699 N 912004008102 LOCK WASHER
700 N 000934008010 NUT
701 N 915039012100 HOLLOW SCREW FITTING
AT T-FITTING
702 N 915047012100 HOLLOW SCREW
T-FITTING,CONNECTIONS:
"3"
703 N 007603016103 SEAL RING
704 A 3414307366 LINE
FROM T-FITTING TO LEFT HOSE FITTING
12 MM
704 A 3414209631 LINE
T-FITTING,CONNECTION:
"3","1"
705 A 3414307466 LINE
FROM T-FITTING TO RIGHT HOSE FITTING
12 MM
705 A 3414209831 LINE
FROM T-FITTING TO RIGHT HOSE FITTING
708 N 915017012100 UNION NUT
709 N 003861012007 GLAND
710 A 0004312031 TEST CONNECTION
AT T-FITTING
710 A 0004314531 TEST CONNECTION
AT T-FITTING
711 A 0109975982 HOSE
Repalced by: A 0009872827
711 A 0009872827 PLASTIC PIPE
FROM T-FITTING TO LEFT HOSE FITTING
1030 MM
711 A 0009872827 PLASTIC PIPE
FROM T-FITTING TO RIGHT HOSE FITTING
2350 MM
712 N 915052009000 BANJO UNION
713 N 915017012100 UNION NUT
714 N 003861012007 GLAND
715 N 915062009000 SLEEVE
716 N 003910012001 BULKHEAD FITTING
COMPRESSED AIR LINE THRU FRAME
716 N 003910012001 BULKHEAD FITTING
COMPRESSED AIR LINE THRU FRAME
717 A 3514297138 ELBOW FITTING
719 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
719 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
720 A 3414309864 LINE
FROM FITTING TO LEFT DIAPHRAGM CYLINDER
12 MM
720 A 3414209431 LINE
FROM FITTING TO LEFT DIAPHRAGM CYLINDER
721 A 3414308466 LINE
FROM FITTING TO DIAPHRAGM CYLINDER
12 MM
721 A 3414308466 LINE
FROM FITTING TO DIAPHRAGM CYLINDER
12 MM
722 A 3414309964 LINE
FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
12 MM
722 A 3414209531 LINE
FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
12 MM
723 N 915017012100 UNION NUT
723 N 915017012100 UNION NUT
724 N 003861012007 GLAND
724 N 003861012007 GLAND
725 N 916027011004 HOSE
725 N 916027011003 HOSE
BETWEEN THE LINES
480MM
725 N 916027011003 HOSE
BETWEEN THE LINES
480MM
726 N 916018016000 CLAMP
HOSE TO BRAKE LINE
726 N 916018016000 CLAMP
HOSE TO BRAKE LINE
728 A 3159955010 CLAMP
AT BRACKET
728 A 3159955010 CLAMP
AT BRACKET
729 N 000084006423 SCREW
729 N 007985006505 SCREW
AT FRONT AXLE
730 N 913004006002 NUT
AT FRONT AXLE
730 N 913004006002 NUT
AT FRONT AXLE
731 N 003901012005 SCREW-IN FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
732 A 3089907171 ELBOW FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
732 A 3514297038 ELBOW FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
732 N 074315012100 FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
734 N 007603016105 SEAL RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
735 N 080705016003 NUT
736 A 3084297027 THRUST RING
737 A 0009971548 SEAL RING
A 3414318840 BRACKET
LEFT,DIAPHRAGM CYLINDER
A 3414318740 BRACKET
RIGHT,DIAPHRAGM CYLINDER
739 A 3414209329 LINE
FROM BRAKE VALVE,CONNECTION "22",TO FITTING
12 MM
T YYYYYYYYYYYY PART NAME MISSING
ZA 002.635/01
A 3414208131 LINE
Repalced by: A 3414207233
739 A 3414207233 LINE
FROM BRAKE VALVE,CONNECTION "21",TO FITTING
12 MM
739 A 3414207333 LINE
12 MM
740 A 3414290442 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
741 A 3094760636 BRACKET
MOUNTING USED FOR COMPRESSED AIR LINES
742 A 3419957320 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
743 A 3419957032 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
744 A 3419957420 CLAMP
MOUNTING USED FOR COMPRESSED AIR LINES
745 N 000084006197 SCREW
MOUNTING USED FOR COMPRESSED AIR LINES
746 N 000125006421 WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
747 N 000127006203 LOCK WASHER
MOUNTING USED FOR COMPRESSED AIR LINES
748 N 000934006007 NUT
MOUNTING USED FOR COMPRESSED AIR LINES
749 A 3514237023 BRACKET
BRAKE HOSE BRACKET
750 N 000933008145 SCREW
BRACKET TO REAR SPRING BRACKET CROSS MEMBER
751 N 912004008102 LOCK WASHER
BRACKET TO REAR SPRING BRACKET CROSS MEMBER
752 N 000934008045 NUT
BRACKET TO REAR SPRING BRACKET CROSS MEMBER
753 N 003911012100 FITTING
AT BRACKET
754 N 080705018002 NUT
FITTING TO BRACKET
755 A 0019978590 LOOM TIE
Repalced by: A 0019978490
755 A 0019978490 LOOM TIE
756 A 3609902340 WASHER
757 A 3414307165 LINE
FROM FITTING TO FITTING
12 MM
757 A 3414207029 LINE
FROM FITTING TO FITTING
12 MM
758 N 915017012100 UNION NUT
759 N 003861012007 GLAND
760 N 003902012001 CONNECTION FITTING
Repalced by: A 0049971772
760 A 0049971772 FITTING
761 A 3414308466 LINE
LEFT COMBINATION CYLINDER;CONNECTION:
"11"
761 A 3414308466 LINE
RIGHT COMBINATION CYLINDER,CONNECTION:
"12"
762 A 3414307365 LINE
FROM CONNECTOR TO LEFT SPRING-LOADED CYLINDER
12 MM
762 A 3414207229 LINE
FROM CONNECTOR TO LEFT SPRING-LOADED CYLINDER
12 MM
763 A 3414308566 LINE
FROM CONNECTOR TO LEFT SPRING-LOADED CYLINDER
764 N 915017012100 UNION NUT
764 N 915017012100 UNION NUT
765 N 003861012007 GLAND
765 N 003861012007 GLAND
766 N 916018016000 CLAMP
766 N 916018016000 CLAMP
767 N 916027011003 HOSE
BETWEEN THE LINES
480MM
768 N 916027011003 HOSE
BETWEEN THE LINES
769 A 0019901170 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
769 A 0019901170 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"11"
769 A 0019901170 T-FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"12"
770 N 074315012100 FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
770 A 3514297038 ELBOW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
770 A 3089907171 ELBOW FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
771 A 0009904770 T-FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
773 A 0004312031 TEST CONNECTION
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
773 A 0004314531 TEST CONNECTION
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
774 A 3519907183 FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
774 A 3519907183 FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
775 A 0004312031 TEST CONNECTION
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
775 A 0004314531 TEST CONNECTION
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
776 A 0009904770 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
776 A 3414297532 T-FITTING
LEFT TRISTOP CYLINDER,CONNECTION:
"12"
776 A 3414297532 T-FITTING
RIGHT TRISTOP CYLINDER,CONNECTION:
"11"
778 A 0004312031 TEST CONNECTION
TRISTOP CYLINDER
778 A 0004314531 TEST CONNECTION
TRISTOP CYLINDER
779 N 080705016003 NUT
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
779 N 080705016003 NUT
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
780 A 0009971548 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
780 A 0009971548 SEAL RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
A 0004290927 THRUST RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
781 A 3084297027 THRUST RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
781 A 3084297027 THRUST RING
TRISTOP CYLINDER;CONNECTIONS:
"11,12"
782 A 0005455414 SWITCH
TRISTOP CYLINDER
782 A 0005455414 SWITCH
TRISTOP CYLINDER
782 A 3445457214 SWITCH
TRISTOP CYLINDER
782 A 3445457214 SWITCH
TRISTOP CYLINDER
783 A 3414308666 LINE
FROM TRISTOP CYLINDER TO TRISTOP CYLINDER
12 MM
784 A 3414308766 LINE
FROM TRISTOP CYLINDER TO TRISTOP CYLINDER
12 MM
785 N 915017012100 UNION NUT
786 N 003861012007 GLAND
787 A 0109975982 HOSE
Repalced by: A 0009872827
787 A 0009872827 PLASTIC PIPE
FROM TRISTOP CYLINDER TO TRISTOP CYLINDER
600 MM
788 N 915017012100 UNION NUT
789 N 003861012007 GLAND
790 N 915062009000 SLEEVE
791 A 0019978590 LOOM TIE
Repalced by: A 0019978490
791 A 0019978490 LOOM TIE
792 A 3414207329 LINE
FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
12 MM
792 A 3414307565 LINE
FOUR-CIRCUIT PROTECTIVE VALVE,RELAY VALVE
12 MM
794 N 915017012100 UNION NUT
795 N 003861012007 GLAND
796 A 3414207429 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO BRAKE LINE COUPLING
8 MM
796 A 3414307665 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO BRAKE LINE COUPLING
8 MM
797 A 3414207529 LINE
Repalced by: A 3414209731
797 A 3414209731 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO BRAKE LINE COUPLING
8 MM
797 A 3414307865 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO BRAKE LINE COUPLING
8 MM
798 N 915017008100 UNION NUT
799 N 003861008005 GLAND
800 A 0009901070 T-FITTING
CONNECTION TO STOP LIGHT SWITCH
800 A 0009901070 T-FITTING
ACCESSORIES
800 A 3454297132 T-FITTING
CONNECTION TO STOP LIGHT SWITCH
800 A 3454297132 T-FITTING
ACCESSORIES
802 A 0005455414 SWITCH
PARKING BRAKE
802 A 0005455414 SWITCH
PARKING BRAKE
802 A 3445457214 SWITCH
PARKING BRAKE
802 A 3445457214 SWITCH
PARKING BRAKE
803 A 3414317274 PIN
ACCESSORIES
804 N 915017006100 UNION NUT
ACCESSORIES
805 N 003861006007 GLAND
ACCESSORIES
806 A 3414207629 LINE
FROM FITTING TO FITTING
8 MM
806 A 3414308165 LINE
FROM FITTING TO FITTING
8 MM
807 A 3414207829 LINE
FROM FITTING TO FITTING
8 MM
807 A 3414308465 LINE
FROM FITTING TO FITTING
8 MM
808 A 3414207729 LINE
FROM FITTING TO RELAY VALVE
8 MM
808 A 3414308265 LINE
FROM FITTING TO RELAY VALVE
8 MM
809 N 915017008100 UNION NUT
810 N 003861008005 GLAND
811 N 003902008001 CONNECTION FITTING
BETWEEN THE LINES
812 A 3414297434 ADAPTER FITTING
813 A 0089979082 HOSE
FROM T-FITTING TO PARKING BRAKE VALVE, CONNECTION:
"11",6X8 MM
813 A 0089979082 HOSE
FROM T-FITTING TO PARKING BRAKE VALVE, CONNECTION:
"12"
813 A 0089979082 HOSE
FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING
"11",6X8 MM
813 A 0089979082 HOSE
FROM PARKING BRAKE VALVE,CONNECTION "23",TO FITTING
"11",6X8 MM
814 N 915017008100 UNION NUT
815 N 003861008005 GLAND
816 N 915062006000 SLEEVE
817 N 915052006001 BANJO UNION
818 A 0029972290 LOOM TIE
819 A 3414297940 BRACKET
820 N 000933012124 SCREW
BRACKET TO LEFT SIDE MEMBER
821 N 000125013008 WASHER
BRACKET TO LEFT SIDE MEMBER
822 N 000127012201 LOCK WASHER
BRACKET TO LEFT SIDE MEMBER
823 N 000934012040 NUT
BRACKET TO LEFT SIDE MEMBER
824 A 3199950132 CLAMP
Repalced by: A 3379950332
824 A 3379950332 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
"3"
825 N 000084006197 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
826 N 000125006421 WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
827 N 000127006203 LOCK WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
828 N 000934006007 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
829 A 0014300181 VALVE
PARKING BRAKE VALVE
WABCO
829 A 0014302881 VALVE
PARKING BRAKE VALVE
KNORR
830 A 0009972777 HANDLE
TO 001 430 01 81,WABCO
831 A 0004312139 LEVER
TO 001 430 01 81,WABCO
832 A 0014311887 PROTECTIVE CAP
TO 001 430 01 81,WABCO
833 A 0014310887 PROTECTIVE CAP
TO 001 430 01 81,WABCO
A 0004311122 COVER
TO 001 430 01 81
A 0009922905 BUSHING
TO 001 431 01 81
A 0009911501 PIN
TO 001 431 01 81
A 0009911601 PIN
TO 001 431 01 81
A 0004311064 ACTUATING PART
TO 001 431 01 81
A 0004311264 ACTUATING PART
TO 001 431 01 81
834 A 0025867243 REPAIR KIT
Repalced by: A 0034304781
834 A 0034304781 REPAIR KIT
TO 001 431 01 81
834 A 0004307260 REPAIR KIT
TO 001 430 28 81
835 N 915011010100 HOLLOW SCREW
PARKING BRAKE VALVE,CONNECTIONS:
"11,12,21,23"
836 N 007603014102 SEAL RING
PARKING BRAKE VALVE,CONNECTIONS:
"11,12,21,23"
837 A 3414277094 REINFORCEMENT
PARKING BRAKE TO VEHICLE FLOOR
838 N 007985008108 SCREW
839 N 912004008102 LOCK WASHER
840 A 0004305581 VALVE
HAND BRAKE VALVE
840 A 0004304781 VALVE
HAND BRAKE VALVE
841 A 0004305760 REPAIR KIT
TO 000 430 55 81,NR.1050
841 A 0005868043 REPAIR KIT
TO 000 430 55 81,NR.1020
841 A 0005867843 REPAIR KIT
TO 000 430 47 81
842 A 3519907383 FITTING
HAND BRAKE VALVE,CONNECTIONS:
"1,2,3"
843 N 007603014106 SEAL RING
HAND BRAKE VALVE,CONNECTIONS:
"1,2,3"
844 A 0089979082 HOSE
FROM HAND BRAKE VALVE TO CONNECTION FITTING
485 MM
844 A 0089979082 HOSE
HAND BRAKE VALVE,CONNECTION:
"3",750 MM
845 N 915017008100 UNION NUT
846 N 003861008005 GLAND
847 N 915062006000 SLEEVE
848 A 3219970081 GROMMET
849 N 003902008001 CONNECTION FITTING
850 N 000964006010 SCREW
HAND BRAKE VALVE TO SEAT BOX
851 N 000127006206 LOCK WASHER
HAND BRAKE VALVE TO SEAT BOX
852 N 000934006000 NUT
HAND BRAKE VALVE TO SEAT BOX
853 A 0014296844 VALVE
RELAY VALVE
WABCO
853 A 0014296844 VALVE
RELAY VALVE
WABCO
853 A 0034295344 VALVE
RELAY VALVE
KNORR
853 A 0034295344 VALVE
RELAY VALVE
KNORR
853 A 0034293044 VALVE
KNORR
853 A 0034293044 VALVE
KNORR
A 0004205555 REPAIR KIT
SMALL SCOPE
TO 001 429 68 44
A 0004205555 REPAIR KIT
SMALL SCOPE
TO 001 429 68 44
855 A 0005865742 REPAIR KIT
LARGE SCOPE
TO 001 429 68 44
855 A 0005865742 REPAIR KIT
LARGE SCOPE
TO 001 429 68 44
855 A 0025863542 REPAIR KIT
TO 003 429 53 44
855 A 0004305360 REPAIR KIT
Repalced by: A 0004201471
855 A 0004201471 REPAIR KIT
TO 003 429 30 44
855 A 0004201471 REPAIR KIT
TO 003 429 30 44
856 N 074313012100 FITTING
RELAY VALVE,CONNECTION "1"
857 N 007603022102 SEAL RING
RELAY VALVE,CONNECTION "1"
858 A 0009905168 FITTING
RELAY VALVE,CONNECTION "1"
859 A 3519907070 T-FITTING
RELAY VALVE,CONNECTION "1"
860 N 080705016003 NUT
RELAY VALVE,CONNECTION "1"
861 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION "1"
862 A 3084297027 THRUST RING
RELAY VALVE,CONNECTION "1"
863 A 0004312031 TEST CONNECTION
RELAY VALVE,CONNECTION "1"
863 A 0004314531 TEST CONNECTION
RELAY VALVE,CONNECTION "1"
864 N 007604016102 SCREW PLUG
RELAY VALVE,CONNECTION "2",LEFT
865 N 003901012005 SCREW-IN FITTING
RELAY VALVE,CONNECTION "2",RIGHT
866 N 074313008102 FITTING
RELAY VALVE,CONNECTION "4"
867 N 915036012101 HOLLOW SCREW
RELAY VALVE,CONNECTION "4"
868 N 007603016105 SEAL RING
RELAY VALVE;CONNECTIONS:
"2,4"
869 N 007603016103 SEAL RING
RELAY VALVE,CONNECTION "4"
870 A 3414317640 BRACKET
RELAY VALVE
870 A 3414317540 BRACKET
RELAY VALVE
871 N 000934008010 NUT
RELAY VALVE TO BRACKET
871 N 000934008045 NUT
RELAY VALVE TO BRACKET
872 N 912004008102 LOCK WASHER
RELAY VALVE TO BRACKET
872 N 912004008102 LOCK WASHER
RELAY VALVE TO BRACKET
873 N 000125008417 WASHER
RELAY VALVE TO BRACKET
873 N 009021008102 WASHER
RELAY VALVE TO BRACKET
874 N 000933010092 SCREW
BRACKET TO CROSS MEMBER
874 N 000933010254 SCREW
BRACKET TO SIDE MEMBER
875 N 000125010518 WASHER
BRACKET TO CROSS MEMBER
875 N 000125010518 WASHER
BRACKET TO SIDE MEMBER
876 N 000127010202 LOCK WASHER
BRACKET TO CROSS MEMBER
876 N 000127010202 LOCK WASHER
BRACKET TO SIDE MEMBER
877 N 000934010005 NUT
BRACKET TO CROSS MEMBER
877 N 000934010040 NUT
BRACKET TO SIDE MEMBER
878 A 3414308565 LINE
FROM RELAY VALVE TO TWO-WAY VALVE
12 MM
879 A 3414308665 LINE
FROM ELBOW FITTING TO TWO-WAY VALVE
12 MM
880 A 3414308466 LINE
FROM RELAY VALVE TO TWO-WAY VALVE
880 A 3414308466 LINE
FROM ELBOW FITTING TO TWO-WAY VALVE
881 N 915017012100 UNION NUT
882 N 003861012007 GLAND
883 N 916027011003 HOSE
BETWEEN THE LINES
480MM
884 A 0089979082 HOSE
RELAY VALVE,CONNECTION "1"
1825 MM
884 A 0089979082 HOSE
RELAY VALVE,CONNECTION "1"
490 MM
884 A 0089979082 HOSE
RELAY VALVE,CONNECTION "4"
1860 MM
884 A 0089979082 HOSE
RELAY VALVE,CONNECTION "4"
2490 MM
885 N 915017008100 UNION NUT
886 N 003861008005 GLAND
887 N 915062006000 SLEEVE
888 N 915052006002 BANJO UNION
RELAY VALVE,CONNECTION "4"
889 A 0029972290 LOOM TIE
890 A 0109975982 HOSE
Repalced by: A 0009872827
890 A 0009872827 PLASTIC PIPE
RELAY VALVE,CONNECTION "2"
1615 MM
891 N 915052009000 BANJO UNION
892 N 915017012100 UNION NUT
893 N 003861012005 GLAND
894 N 915062009000 SLEEVE
895 N 915036012101 HOLLOW SCREW
896 N 007603016103 SEAL RING
897 N 003902008001 CONNECTION FITTING
898 N 916027011004 HOSE
899 N 916018016001 CLAMP
Repalced by: N 916017016001
899 N 916017016001 CLAMP
900 A 0024299544 VALVE
TWO-WAY VALVE
901 A 0004290782 VALVE
Repalced by: A 0004291182
901 A 0004291182 VALVE BODY
902 N 074315012100 FITTING
TWO-WAY VALVE,CONNECTIONS:
"11,12"
902 A 3514297038 ELBOW FITTING
TWO-WAY VALVE,CONNECTIONS:
"11,12"
902 A 3089907171 ELBOW FITTING
TWO-WAY VALVE,CONNECTIONS:
"11,12"
903 A 3419907570 T-FITTING
TWO-WAY VALVE,CONNECTION "1"
904 N 080705016003 NUT
TWO-WAY VALVE,CONNECTIONS:
"11,12,2"
905 A 0009971548 SEAL RING
TWO-WAY VALVE,CONNECTIONS:
"11,12,2"
A 0004290927 THRUST RING
TWO-WAY VALVE,CONNECTIONS:
"11,12,2"
906 A 3084297027 THRUST RING
TWO-WAY VALVE,CONNECTIONS:
"11,12,2"
907 A 3414290042 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
NO.1
908 N 000933010085 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
NO.1,M 10X20
909 N 000127010202 LOCK WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
NO.1
910 N 000934010005 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
NO.1
911 A 3419957420 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
NO.1
912 N 000084006197 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
NO.1,M 6X16
913 N 000125006421 WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
NO.1
914 N 000127006203 LOCK WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
NO.1
915 N 000934006007 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
NO.1
916 A 3414317940 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
NO.3
916 A 3414317940 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
"4,5"
917 A 3419957032 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
NO.3
918 A 3419957420 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
NO.3
919 A 3199950132 CLAMP
Repalced by: A 3379950332
919 A 3379950332 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
NO.3
920 N 000084006197 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
NO.3
921 N 000125006421 WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
NO.3
922 N 000127006203 LOCK WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
NO.3
923 N 000934006007 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
NO.3
924 A 3414318040 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
"3,4"
925 A 3414318140 BRACKET
COMPRESSED AIR LINE TO CROSS MEMBER
"3,4"
926 A 3419957032 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
"3,4,5"
927 A 3419957420 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
"3,4,5"
928 A 3199950132 CLAMP
Repalced by: A 3379950332
928 A 3379950332 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
"3,4,5"
929 A 3609950401 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
"5"
930 N 000084006197 SCREW
931 N 000125006421 WASHER
932 N 000127006203 LOCK WASHER
933 N 000934006007 NUT
934 A 0014313212 BRAKE PRESSURE REGULATOR
LOAD-DEPENDING BRAKE
935 A 0004307560 REPAIR KIT
BRAKE POWER REGULATOR
936 A 3634310039 LEVER
Repalced by: A 3514310039
936 A 3514310039 LEVER
BRAKE POWER REGULATOR
937 A 3514300010 BRACKET
BRAKE POWER REGULATOR
938 N 913004008004 NUT
BRAKE POWER REGULATOR TO BRACKET
939 N 000933010129 SCREW
BRACKET TO FRAME SIDE MEMBER
939 N 000933010145 SCREW
940 N 913004008010 NUT
941 A 3464315492 ROD
942 A 3434310035 CONNECTOR
PULL ROD
943 N 916002016100 CLAMP
PULL ROD
944 N 000125008417 WASHER
LINK TO BRAKE PRESSURE REGULATOR
945 N 000094002064 COTTER PIN
LINK TO BRAKE PRESSURE REGULATOR
946 N 000934008010 NUT
LINK TO BRAKE PRESSURE REGULATOR
947 A 0004311018 METAL SPRING BELLOWS
948 A 3414230025 WEB
METAL SPRING BELLOWS
949 N 000933012123 SCREW
METAL SPRING BELLOWS TO WEB
950 N 000127012201 LOCK WASHER
METAL SPRING BELLOWS TO WEB
951 A 3604311740 BRACKET
METAL SPRING BELLOWS
952 A 3554310384 SHIM
BRACKET TO AXLE HOUSING
953 N 000933010267 SCREW
BRACKET TO AXLE HOUSING
954 N 000933006271 SCREW
BRACKET TO WEB
955 N 000125008417 WASHER
BRACKET TO WEB
956 N 912004008102 LOCK WASHER
BRACKET TO WEB
957 N 000934008010 NUT
BRACKET TO WEB
958 A 3454307581 VALVE
EXTENSIBLE BRAKE
"WABCO"
A 0009974977 HANDLE
A 0009911055 PIN
959 N 003901008001 SCREW-IN FITTING
EXTENSIBLE BRAKE
960 N 007603012112 SEAL RING
EXTENSIBLE BRAKE
961 A 3364311040 BRACKET
EXTENSIBLE BRAKE VALVE
962 N 000933008271 SCREW
BRACKET TO STEERING COLUMN
963 N 912004008102 LOCK WASHER
BRACKET TO STEERING COLUMN
964 N 000933008152 SCREW
EXTENSIBLE BRAKE VALVE TO BRACKET
965 N 912004008102 LOCK WASHER
EXTENSIBLE BRAKE VALVE TO BRACKET
966 N 000934008045 NUT
EXTENSIBLE BRAKE VALVE TO BRACKET
967 A 0089979082 HOSE
EXTENSIBLE BRAKE VALVE,CONNECTION:
"2",420 MM
967 A 0089979082 HOSE
EXTENSIBLE BRAKE VALVE,CONNECTION:
"3",700 MM
968 N 915017008100 UNION NUT
969 N 003861008005 GLAND
970 N 915062006000 SLEEVE
971 A 3509977672 FITTING
COMPRESSED AIR LINE TO FIRE WALL
972 N 080705014004 NUT
COMPRESSED AIR LINE TO FIRE WALL
973 N 000125015012 WASHER
COMPRESSED AIR LINE TO FIRE WALL
974 N 006797014150 TOOTHED WASHER
COMPRESSED AIR LINE TO FIRE WALL
975 A 3514209226 LINE
FROM FITTING TO DOUBLE FITTING
976 N 915017008100 UNION NUT
977 N 003861008005 GLAND
978 N 003902008001 CONNECTION FITTING
979 A 0089979082 HOSE
FROM DOUBLE FITTING TO SHUT-OFF VALVE
2330 MM
979 A 0089979082 HOSE
SHUTTLE VALVE,CONNECTION:
"11",1925 MM
980 N 915017008100 UNION NUT
981 N 003861008005 GLAND
982 N 915062006000 SLEEVE
983 N 915052006002 BANJO UNION
984 A 0029972290 LOOM TIE
985 A 0024299544 VALVE
TWO-WAY VALVE
WABCO
986 A 0004290782 VALVE
Repalced by: A 0004291182
986 A 0004291182 VALVE BODY
987 N 915036012101 HOLLOW SCREW
TWO-WAY VALVE,CONNECTIONS:
"11","12"
988 N 007603016103 SEAL RING
TWO-WAY VALVE,CONNECTIONS:
"11","12"
989 N 007603016105 SEAL RING
SHUTTLE VALVE,CONNECTION:
"2"
990 A 3519907583 FITTING
SHUTTLE VALVE,CONNECTION:
"2"
991 N 080705016003 NUT
TRAILER CONTROL VALVE,CONNECTION:
"42"
992 A 3084297027 THRUST RING
993 A 0009971548 SEAL RING
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
