Transporto priemonė: LO 914; VIN numerio dalis: 341045

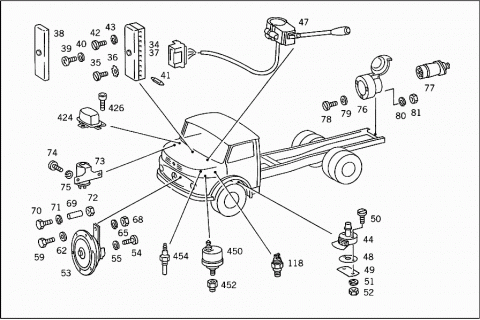

Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

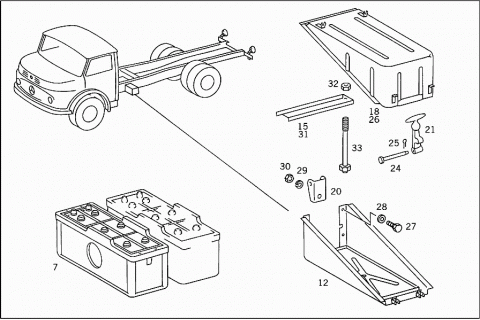

| A 0005418101 | BATTERY | |
| Repalced by: A 3415417001 | ||
| 007 | A 3415417001 | BATTERY |
| 12 V/135 AH | ||
| 012 | A 3515400014 | BATTERY CASE |
| 015 | A 3515410013 | MOUNTING RAIL |
| 018 | A 3515400082 | COVER |
| BATTERY CASE | ||
| 020 | A 3455410040 | BRACKET |
| HOOD FASTENER | ||
| 021 | A 3125271717 | HOOD FASTENER |
| 021 | A 3125271717 | HOOD FASTENER |
| 024 | A 3125271174 | PIN |
| BRACKET TO BATTERY CASE | ||
| 024 | A 3125271174 | PIN |
| BRACKET TO BATTERY CASE | ||
| 025 | N 000094001617 | COTTER PIN |
| BRACKET TO BATTERY CASE | ||
| 1,6X14MM | ||
| 025 | N 000094001617 | COTTER PIN |
| BRACKET TO BATTERY CASE | ||
| 1,6X14MM | ||
| 025 | N 000094005041 | COTTER PIN |
| 5X45 MM | ||
| 026 | A 3415407182 | COVER |
| BATTERY CASE | ||
| 027 | N 000960012041 | SCREW |
| BATTERY CASE TO SIDE MEMBER | ||
| 027 | N 000960012053 | SCREW |
| BATTERY CASE TO SIDE MEMBER | ||
| 027 | N 000961012027 | SCREW |
| BATTERY CASE TO SIDE MEMBER | ||
| 027 | N 000960012041 | SCREW |
| BATTERY CASE TO SIDE MEMBER | ||
| 027 | N 000961012029 | SCREW |
| BATTERY CASE TO SIDE MEMBER | ||
| 027 | N 000960012053 | SCREW |
| 028 | A 3209906040 | WASHER |
| BATTERY CASE TO SIDE MEMBER | ||
| 028 | A 3529900640 | WASHER |
| BATTERY CASE TO SIDE MEMBER | ||
| 029 | N 000127012203 | LOCK WASHER |
| BATTERY CASE TO SIDE MEMBER | ||
| 030 | N 000934012004 | NUT |
| BATTERY CASE TO SIDE MEMBER | ||
| 031 | A 3525410613 | MOUNTING RAIL |
| BATTERY BASE FRAME | ||
| 032 | N 000934008000 | NUT |
| 032 | N 000934008000 | NUT |
| BATTERY BASE FRAME | ||
| 033 | A 3415417071 | SCREW |
| BATTERY TO BATTERY CASE | ||
| 033 | N 000601008020 | SCREW |
| BATTERY TO BATTERY CASE | ||
| 034 | A 3215450301 | FUSE BOX |
| 10-POLE | ||
| 035 | N 000084004108 | SCREW |
| 036 | N 006798004200 | SERRATED WASHER |
| 037 | A 3355450001 | FUSE BOX |
| 12-POLE | ||
| 038 | A 0005451203 | CAP |
| FUSE BOX | ||
| 039 | N 007985004136 | SCREW |
| CABLE TO FUSE BOX | ||
| 040 | N 000127004205 | LOCK WASHER |
| CABLE TO FUSE BOX | ||
| 041 | N 072581008101 | FUSE |
| 041 | N 072581008101 | FUSE |
| 042 | N 000084005180 | SCREW |
| FUSE BOX TO BODY | ||
| 042 | N 007984004322 | SCREW |
| FUSE BOX TO BODY | ||
| 043 | N 912004005100 | LOCK WASHER |
| FUSE BOX TO BODY | ||
| 044 | A 0005451212 | SWITCH |
| 044 | A 3415457112 | SWITCH |
| 047 | A 0035458124 | SWITCH,AUTOMATIC |
| A 3125451076 | WASHER | |
| Repalced by: A 3415457076 | ||
| 048 | A 3415457076 | WASHER |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| 049 | A 3125451176 | WASHER |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| 050 | N 000084005184 | SCREW |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| 051 | N 912004005101 | LOCK WASHER |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| 052 | N 000934005000 | NUT |
| FOOT DIMMER SWITCH TO TOEBOARD | ||
| A 0015428020 | HORN | |
| Repalced by: A 0025426220 | ||
| A 0015427920 | HORN | |
| Repalced by: A 0025426220 | ||
| A 0025426220 | HORN | |
| Repalced by: A 0035423220 | ||
| 053 | A 0035423220 | HORN |
| 12 V;BOSCH | ||
| A 0015428320 | HORN | |
| Repalced by: A 0025426420 | ||
| A 0025425320 | HORN | |
| Repalced by: A 0025426420 | ||
| 053 | A 0025426420 | HORN |
| 12 V;HELLA | ||
| A 0415420020 | HORN | |
| Repalced by: A 3415420020 | ||
| A 0415420420 | HORN | |
| Repalced by: A 3415420020 | ||
| A 3415420020 | HORN | |
| Repalced by: A 3415427120 | ||
| 053 | A 3415427120 | HORN |
| 12 V;BARIFFI | ||
| A 3415427020 | HORN | |
| Repalced by: A 3415427220 | ||
| 053 | A 3415427220 | HORN |
| 12 V;KOVAL | ||
| 053 | A 0015426620 | HORN |
| 24 V; HELLA | ||
| 054 | N 000084004157 | SCREW |
| ELECTRIC CABLE THRU ENGINE CROSS MEMBER | ||
| 055 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLE THRU ENGINE CROSS MEMBER | ||
| 056 | A 0009973481 | GROMMET |
| ELECTRIC CABLE THRU ENGINE CROSS MEMBER | ||
| 057 | A 3129970481 | GROMMET |
| ELECTRIC CABLE THRU ENGINE CROSS MEMBER | ||
| 058 | A 0419950040 | CLAMP |
| Repalced by: A 3415467175 | ||
| 058 | A 3415467175 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 058 | A 3415467175 | CLAMP |
| ELECTRIC CABLE TO FRAME SIDE MEMBER | ||
| 059 | N 000933010129 | SCREW |
| HORN TO ENGINE FRONT CROSS MEMBER | ||
| 062 | N 000125010518 | WASHER |
| HORN TO ENGINE FRONT CROSS MEMBER | ||
| 065 | N 000127010202 | LOCK WASHER |
| HORN TO ENGINE FRONT CROSS MEMBER | ||
| 068 | N 000934010005 | NUT |
| HORN TO ENGINE FRONT CROSS MEMBER | ||
| 069 | A 3129912840 | SPACER TUBE |
| HORN TO ENGINE FRONT CROSS MEMBER | ||
| 070 | N 000931010110 | SCREW |
| HORN TO ENGINE FRONT CROSS MEMBER | ||
| 071 | N 000127010205 | LOCK WASHER |
| HORN TO ENGINE FRONT CROSS MEMBER | ||
| 072 | N 000934010000 | NUT |
| HORN TO ENGINE FRONT CROSS MEMBER | ||
| 073 | A 0005447232 | SENDER UNIT |
| Repalced by: A 0025441332 | ||
| 073 | A 0025441332 | SENDER UNIT |
| 12V "BOSCH" | ||
| 073 | A 0005447832 | SENDER UNIT |
| 24 V | ||
| 074 | N 000084006433 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 075 | N 000127006203 | LOCK WASHER |
| BLINKER SENDER UNIT MOUNTING | ||
| 076 | A 0005451026 | PLUG SOCKET |
| Repalced by: A 0015455826 | ||
| 076 | A 0015455826 | PLUG SOCKET |
| 7-POLE | ||
| 076 | A 3415457026 | PLUG SOCKET |
| 076 | A 3415457126 | PLUG SOCKET |
| 7-POLE | ||
| 076 | A 0005454726 | PLUG SOCKET |
| 7-POLE | ||
| 077 | N 072577007200 | PLUG |
| 7-POLE | ||
| TO 000 545 10 26,001 545 58 26 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 000 545 47 26,341 545 71 26 | ||
| 077 | A 3415457128 | PLUG |
| 7-POLE | ||
| TO 000 545 10 26,001 545 58 26 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| TO 000 545 47 26,341 545 71 26 | ||
| 078 | N 000084005156 | SCREW |
| PLUG SOCKET TO REAR CROSS MEMBER | ||
| 079 | N 000125005317 | WASHER |
| PLUG SOCKET TO REAR CROSS MEMBER | ||
| 080 | N 912004005100 | LOCK WASHER |
| PLUG SOCKET TO REAR CROSS MEMBER | ||
| 081 | N 000934005004 | NUT |
| PLUG SOCKET TO REAR CROSS MEMBER | ||

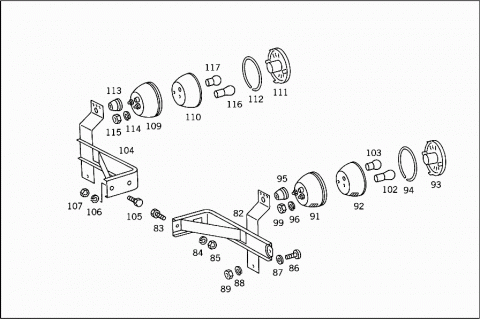

| 082 | A 3415200144 | BRACKET |
| Repalced by: A 3785207344 | ||
| 082 | A 3785207344 | BRACKET |
| LEFT | ||
| 082 | A 3415250140 | BRACKET |
| LEFT | ||
| 083 | N 000933010129 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 083 | N 000933010129 | SCREW |
| BRACKET TO LEFT SIDE MEMBER | ||
| 084 | N 000127010205 | LOCK WASHER |
| BRACKET TO LEFT SIDE MEMBER | ||
| 084 | N 000127010205 | LOCK WASHER |
| BRACKET TO LEFT SIDE MEMBER | ||
| 085 | N 000934010000 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 085 | N 000934010000 | NUT |
| BRACKET TO LEFT SIDE MEMBER | ||
| 086 | N 000084006112 | SCREW |
| LICENSE PLATE TO BRACKET | ||
| 087 | N 000125006421 | WASHER |
| LICENSE PLATE TO BRACKET | ||
| 088 | N 000127006206 | LOCK WASHER |
| LICENSE PLATE TO BRACKET | ||
| 089 | N 000934006000 | NUT |
| LICENSE PLATE TO BRACKET | ||
| 091 | A 0415440003 | TAIL LAMP |
| Repalced by: A 3415447003 | ||
| 091 | A 3415447003 | TAIL LAMP |
| BLINKER-STOP-AND-LICENSE-PLATE LAMP | ||
| 091 | A 0015444503 | TAIL LAMP |
| LEFT | ||
| R + S | ||
| 091 | A 0015444003 | TAIL LAMP |
| LEFT | ||
| HELLA | ||
| A 3415447403 | TAIL LAMP | |
| Repalced by: A 3515447103 | ||
| 091 | A 3515447103 | TAIL LAMP |
| LEFT | ||
| MAGDALUX | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE CHASSIS STANDARD VERSION NO.: | ||
| 882 GR.54 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 001 544 40 03,45 03 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 351 544 71 03 | ||
| 092 | A 0415440203 | TAIL LAMP |
| TO 74 03 | ||
| 093 | A 0415440089 | RIM |
| TO 74 03 | ||
| 094 | A 0415440080 | GASKET |
| TO 70 03 | ||
| 095 | A 0419970081 | GROMMET |
| TO 74 03 | ||
| 096 | N 912004006102 | LOCK WASHER |
| TO 74 03 | ||
| 099 | N 000934006007 | NUT |
| TO 74 03 | ||
| 102 | N 072601012190 | BULB |
| STOP AND BLINKER LIGHTS | ||
| 102 | N 072601024190 | BULB |
| STOP AND BLINKER LIGHTS | ||
| 103 | N 072601012702 | BULB |
| TAIL LAMP | ||
| 103 | A 3515447094 | BULB |
| TAIL LAMP | ||
| 103 | N 072601024701 | BULB |
| TAIL LAMP | ||
| 104 | A 3415200244 | BRACKET |
| Repalced by: A 3785207444 | ||
| 104 | A 3785207444 | BRACKET |
| RIGHT | ||
| 104 | A 3415250240 | BRACKET |
| RIGHT | ||
| 105 | N 000933010129 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 105 | N 000933010129 | SCREW |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 106 | N 000127010205 | LOCK WASHER |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 106 | N 000127010205 | LOCK WASHER |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 107 | N 000934010000 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| 107 | N 000934010000 | NUT |
| BRACKET TO RIGHT SIDE MEMBER | ||
| A 0415440103 | TAIL LAMP | |
| Repalced by: A 3415447103 | ||
| 109 | A 3415447103 | TAIL LAMP |
| STOP AND BLINKER LIGHTS | ||
| 109 | A 0015444603 | TAIL LAMP |
| RIGHT | ||
| R + S | ||
| 109 | A 0015444103 | TAIL LAMP |
| RIGHT | ||
| HELLA | ||
| 109 | A 3415447303 | TAIL LAMP |
| Repalced by: A 3515447203 | ||
| 109 | A 3515447203 | TAIL LAMP |
| RIGHT | ||
| MAGDALUX | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SEE CHASSIS STANDARD VERSION NO.: | ||
| 882 GR.54 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 001 544 41 03,46 03 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 351 544 72 03 | ||
| 110 | A 0415440303 | TAIL LAMP |
| TO 73 03 | ||
| 111 | A 0415440089 | RIM |
| TO 73 03 | ||
| 112 | A 0415440080 | GASKET |
| TO 73 03 | ||
| 113 | A 0419970081 | GROMMET |
| TO 73 03 | ||
| 114 | N 912004006102 | LOCK WASHER |
| TO 73 03 | ||
| 115 | N 000934006007 | NUT |
| TO 73 03 | ||
| 116 | N 072601012190 | BULB |
| STOP AND BLINKER LIGHTS | ||
| 116 | N 072601024190 | BULB |
| STOP AND BLINKER LIGHTS | ||
| 117 | N 072601012702 | BULB |
| TAIL LAMP | ||
| 117 | A 3515447094 | BULB |
| TAIL LAMP | ||
| 117 | N 072601024701 | BULB |
| TAIL LAMP | ||
| 118 | A 0005452209 | SWITCH |
| Repalced by: A 0005456109 | ||
| 118 | A 0005456109 | SWITCH |
| Repalced by: A 0015450809 | ||
| 118 | A 0015450809 | SWITCH |
| STOP LIGHT | ||
| 118 | A 0015450809 | SWITCH |
| STOP LIGHT | ||
| 118 | A 0015450809 | SWITCH |
| STOP LIGHT | ||
| 120 | A 3415400905 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 120 | A 3415407105 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 120 | A 3415407105 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 120 | A 3415408305 | CABLE HARNESS |
| Repalced by: A 3415407606 | ||
| 120 | A 3415407606 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 120 | A 3415407606 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 120 | A 3415409006 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 120 | A 3415409105 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||

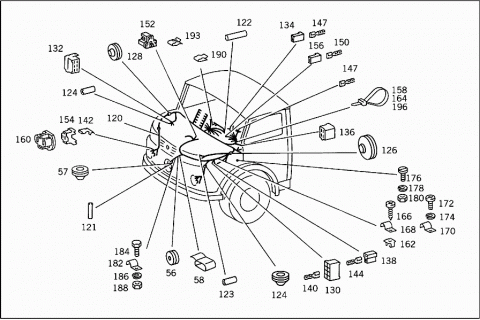

| 120 | A 3415400805 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 120 | A 3415407806 | CABLE HARNESS |
| Repalced by: A 3415408606 | ||
| 120 | A 3415408606 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 121 | A 0009970381 | GROMMET |
| PIN BUSHING | ||
| 122 | A 0009970581 | GROMMET |
| PIN BUSHING | ||
| 123 | A 0009970681 | GROMMET |
| 123 | A 0009970681 | GROMMET |
| 123 | A 0009970681 | GROMMET |
| A 3419970681 | GROMMET | |
| 124 | A 3419977081 | GROMMET |
| 126 | A 3519977081 | GROMMET |
| 128 | A 1869970481 | GROMMET |
| 128 | A 3459977581 | GROMMET |
| 130 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 132 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 134 | A 0005451745 | BOOT |
| PIN BUSHING | ||
| TO 341 540 83 05 | ||
| 136 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 138 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 138 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 140 | A 0005454026 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 4-6 MM | ||
| 142 | A 0005453626 | PIN BUSHING |
| OFFSET | ||
| 4 MM | ||
| 144 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM | ||
| 147 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 147 | A 0005453726 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2,5MM | ||
| 150 | A 0005454626 | PIN BUSHING |
| WITH DETENT | ||
| 4-6 MM | ||
| 152 | A 0025459528 | PIN BUSHING HOUSING |
| Repalced by: A 0385452528 | ||
| 152 | A 0385452528 | PLUG |
| 3-POLE | ||
| 154 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 156 | A 0005453545 | PIN BUSHING HOUSING |
| 158 | A 3789977190 | LOOM TIE |
| 160 | A 0005440986 | SOCKET |
| 162 | A 0009941845 | LOCK |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 162 | A 3449947045 | LOCK |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 164 | A 3509978490 | LOOM TIE |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 166 | N 007981004407 | SHEET METAL SCREW |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 166 | N 000084006102 | SCREW |
| 168 | A 1369950135 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 168 | A 1369950135 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 168 | A 1369950137 | CLAMP |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| A 1369950420 | CLAMP | |
| Repalced by: A 3419957520 | ||
| 170 | A 3419957520 | CLAMP |
| MAIN CABLE HARNESS | ||
| 172 | N 007985005127 | SCREW |
| M 5X12 | ||
| 174 | N 912004005102 | LOCK WASHER |
| 176 | N 000084005104 | SCREW |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 178 | N 912004005101 | LOCK WASHER |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 180 | N 000934005000 | NUT |
| MAIN CABLE HARNESS TO LEFT SIDE PART | ||
| 182 | A 3129952220 | CLAMP |
| HORN CABLE TO SIDE MEMBER | ||
| 184 | N 000933010016 | SCREW |
| HORN CABLE TO SIDE MEMBER | ||
| 186 | N 000127010206 | LOCK WASHER |
| HORN CABLE TO SIDE MEMBER | ||
| 188 | N 000934010000 | NUT |
| HORN CABLE TO SIDE MEMBER | ||
| 190 | A 0009883378 | CLIP |
| 190 | A 3449887078 | CLIP |
| 193 | A 0009883478 | CLIP |
| Repalced by: A 3089880078 | ||
| 193 | A 3089880078 | CLIP |
| MAIN CABLE HARNESS | ||
| 196 | A 3509978490 | LOOM TIE |
| MAIN CABLE HARNESS | ||

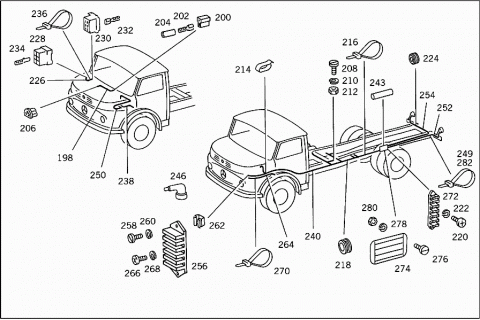

| 198 | A 3415409308 | CABLE HARNESS |
| INSTRUMENT LIGHTING | ||
| 200 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 202 | A 0005453826 | PIN BUSHING |
| 204 | A 0009970381 | GROMMET |
| 206 | A 0005440560 | PLUG SOCKET HOUSING |
| Repalced by: A 3445447060 | ||
| 206 | A 3445447060 | PLUG SOCKET HOUSING |
| 208 | N 000084006110 | SCREW |
| 210 | N 000127006206 | LOCK WASHER |
| 212 | N 000934006007 | NUT |
| 214 | A 3129951040 | CLAMP |
| Repalced by: A 3415467175 | ||
| 214 | A 3415467175 | CLAMP |
| 214 | A 3219950040 | CLAMP |
| 216 | A 0029972290 | LOOM TIE |
| 218 | A 0009972181 | GROMMET |
| Repalced by: A 0009972081 | ||
| 218 | A 0009972081 | GROMMET |
| 220 | N 007985004136 | SCREW |
| 222 | N 000127004205 | LOCK WASHER |
| 224 | A 3129970481 | GROMMET |
| 226 | A 3415409609 | CABLE HARNESS |
| FROM FRONT END MOUNTED CABLE HARNESS TO WINDSHIELD WIPER MOTOR | ||
| 228 | A 0015456028 | PLUG HOUSING |
| 230 | A 0015458128 | PIN BUSHING HOUSING |
| 232 | A 0005453726 | PIN BUSHING |
| 234 | A 0065451228 | PLUG |
| 236 | A 3789977190 | LOOM TIE |
| 238 | A 3415408008 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO HEATER BLOWER MOTOR | ||
| 238 | A 3415408008 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO HEATER BLOWER MOTOR | ||
| 240 | A 0415400037 | ELECTRIC CABLE |
| Repalced by: A 3415401127 | ||
| 240 | A 3415401127 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415409227 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 0415400237 | ELECTRIC CABLE |
| Repalced by: A 3415401237 | ||
| 240 | A 3415401227 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415409327 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415407936 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3285405527 | ELECTRIC CABLE |
| Repalced by: A 3415401027 | ||
| 240 | A 3415401027 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415409127 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415400327 | ELECTRIC CABLE |
| Repalced by: A 3415401327 | ||
| 240 | A 3415401327 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415408209 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415400427 | ELECTRIC CABLE |
| Repalced by: A 3415401427 | ||
| 240 | A 3415401427 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415401427 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415408309 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415409809 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 0415400027 | ELECTRIC CABLE |
| Repalced by: A 3415401527 | ||
| 240 | A 3285407127 | ELECTRIC CABLE |
| Repalced by: A 3415401527 | ||
| 240 | A 3415401527 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415409208 | CABLE HARNESS |
| Repalced by: A 3415408136 | ||
| 240 | A 3415408136 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415401627 | ELECTRIC CABLE |
| Repalced by: A 3415401727 | ||
| 240 | A 3415401727 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415408409 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415409909 | CABLE HARNESS |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415407836 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR | ||
| 240 | A 3415408536 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO BRAKE VALVE | ||
| 243 | A 0009970381 | GROMMET |
| 246 | A 0005400681 | PLUG SOCKET |
| 246 | A 0005400681 | PLUG SOCKET |
| 249 | A 3419979190 | LOOM TIE |
| CABLE HARNESS MOUNTING | ||
| 249 | A 0019978490 | LOOM TIE |
| CABLE HARNESS TO SIDE MEMBER | ||
| 250 | A 3415400237 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO STOP LIGHT SWITCH | ||
| 252 | A 0415400907 | CABLE HARNESS |
| Repalced by: A 3285400207 | ||
| 252 | A 3285400207 | CABLE HARNESS |
| Repalced by: A 3125404107 | ||
| 252 | A 3125404107 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 252 | A 3515407307 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 252 | A 3415400207 | CABLE HARNESS |
| Repalced by: A 0415401507 | ||
| 252 | A 0415401507 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 252 | A 3415400507 | CABLE HARNESS |
| Repalced by: A 3415400707 | ||
| 252 | A 3415400707 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO LEFT TAIL LAMP | ||
| 254 | A 0415401007 | CABLE HARNESS |
| Repalced by: A 3415400007 | ||
| 254 | A 3415400007 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 254 | A 3515407407 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 254 | A 3415400107 | CABLE HARNESS |
| Repalced by: A 0415401407 | ||
| 254 | A 0415401407 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 254 | A 3415400407 | CABLE HARNESS |
| Repalced by: A 3415400607 | ||
| 254 | A 3415400607 | CABLE HARNESS |
| FROM CABLE CONNECTOR TO RIGHT TAIL LAMP | ||
| 256 | A 0005461741 | CABLE CONNECTOR |
| 6-POLE | ||
| 258 | N 000084004422 | SCREW |
| FRONT CABLE CONNECTOR | ||
| M 4X16 | ||
| 260 | N 912004004102 | LOCK WASHER |
| FRONT CABLE CONNECTOR | ||
| 262 | A 0009902891 | NUT RETAINER |
| FRONT CABLE CONNECTOR | ||
| 264 | A 3285403727 | ELECTRIC CABLE |
| FROM FRONT CABLE CONNECTOR TO LEFT BLINKER LAMP | ||
| 266 | N 007985004125 | SCREW |
| Repalced by: N 007985004107 | ||
| 266 | N 007985004107 | SCREW |
| ELECTRIC CABLES | ||
| M4X10 | ||
| 268 | N 912004004102 | LOCK WASHER |
| ELECTRIC CABLES | ||
| 270 | A 0019978590 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 270 | A 0019978490 | LOOM TIE |
| ELECTRIC CABLE TO BRACKET | ||
| 270 | A 0019978490 | LOOM TIE |
| ELECTRIC CABLE TO BRACKET | ||
| A 0005466141 | CABLE CONNECTOR | |
| Repalced by: A 0005461741 | ||
| 272 | A 0005461741 | CABLE CONNECTOR |
| 6-POLE | ||
| 274 | A 0005460781 | COVERING |
| WITH GASKET | ||
| TO 000 546 61 41 | ||
| 276 | N 000084004422 | SCREW |
| CABLE CONNECTOR TO BRACKET | ||
| 278 | N 912004004102 | LOCK WASHER |
| CABLE CONNECTOR TO BRACKET | ||
| 280 | N 000934004006 | NUT |
| CABLE CONNECTOR TO BRACKET | ||
| 282 | A 0029972290 | LOOM TIE |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| 282 | A 0019978490 | LOOM TIE |
| TAIL LAMP CABLES THRU FRAME SIDE MEMBERS | ||
| A 3225403130 | POSITIVE CABLE | |
| Repalced by: A 3225400630 | ||

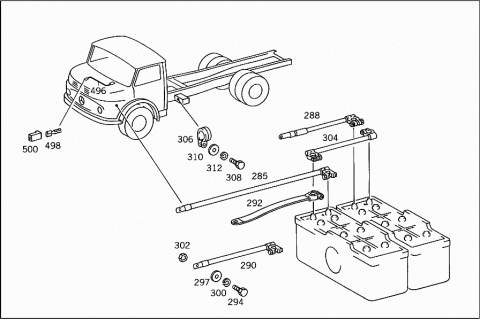

| 285 | A 3225400630 | POSITIVE CABLE |
| 285 | A 3415407030 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 285 | A 3415407330 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 285 | A 3415400130 | POSITIVE CABLE |
| FROM BATTERY I TO STARTING MOTOR | ||
| 285 | A 3225403130 | POSITIVE CABLE |
| Repalced by: A 3225400630 | ||
| 285 | A 3225400630 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 288 | A 3415400131 | NEG. CABLE |
| FROM BATTERY II TO STARTING MOTOR | ||
| 290 | A 3225401031 | NEG. CABLE |
| Repalced by: A 3185400131 | ||
| 290 | A 3185400131 | NEG. CABLE |
| 292 | A 3415407031 | NEG. CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 292 | A 0415400031 | NEG. CABLE |
| Repalced by: A 3415407131 | ||
| 292 | A 3415407131 | NEG. CABLE |
| FROM BATTERY TO GROUND AT SIDE MEMBER | ||
| 294 | N 000933010129 | SCREW |
| BATTERY NEG. CABLE TO FRAME SIDE MEMBER | ||
| 297 | N 000127010205 | LOCK WASHER |
| BATTERY NEG. CABLE TO FRAME SIDE MEMBER | ||
| 300 | N 009021010100 | WASHER |
| BATTERY NEG. CABLE TO FRAME SIDE MEMBER | ||
| 302 | N 000934010000 | NUT |
| BATTERY NEG. CABLE TO FRAME SIDE MEMBER | ||
| 304 | A 3415400230 | POSITIVE CABLE |
| 306 | A 0009959501 | CLAMP |
| Repalced by: N 916016022203 | ||
| 306 | N 916016022203 | CLAMP |
| BATTERY POS. CABLE TO BATTERY CASE | ||
| 308 | N 000933006046 | SCREW |
| BATTERY POS. CABLE TO BATTERY CASE | ||
| 310 | N 009021006100 | WASHER |
| BATTERY POS. CABLE TO BATTERY CASE | ||
| 312 | N 000127006206 | LOCK WASHER |
| BATTERY POS. CABLE TO BATTERY CASE | ||
| 314 | A 3125461020 | GROUND STRAP |
| 316 | A 3415407041 | GROUND STRAP |
| FROM CAB CROSS MEMBER TO BELL HOUSING | ||
| 316 | A 3415407041 | GROUND STRAP |
| FROM STARTING MOTOR TO SIDE MEMBER | ||
| 316 | A 3415407141 | GROUND STRAP |
| FROM STARTING MOTOR TO SIDE MEMBER | ||
| 318 | N 000125010518 | WASHER |
| GROUND STRAP TO FRAME | ||
| 318 | N 009021010100 | WASHER |
| GROUND STRAP TO FRAME | ||
| 320 | N 000933010026 | SCREW |
| GROUND STRAP TO FRAME | ||
| M 10X22 | ||
| 320 | N 000933010034 | SCREW |
| GROUND STRAP TO FRAME | ||
| M 10X25 | ||
| 320 | N 000933010129 | SCREW |
| GROUND STRAP TO FRAME | ||
| M 10X30 | ||
| 320 | N 000933010062 | SCREW |
| GROUND STRAP TO FRAME | ||
| M 10X40 | ||
| 322 | N 000127010205 | LOCK WASHER |
| GROUND STRAP TO FRAME | ||
| 324 | N 000934010000 | NUT |
| GROUND STRAP TO FRAME | ||
| A 3225460585 | PROTECTIVE TUBE | |
| Repalced by: A 3225460685 | ||
| 326 | A 3415467185 | PROTECTIVE TUBE |
| A 3225460443 | BRACKET | |
| Repalced by: A 3124292440 | ||
| 328 | A 3124292440 | BRACKET |
| CABLE CONDUIT | ||
| 328 | A 3124292440 | BRACKET |
| SEE FIG. NO.: | ||
| 207 | ||
| 328 | A 3124292440 | BRACKET |
| SEE FIG. NO.: | ||
| 209 | ||
| 328 | A 3124292440 | BRACKET |
| SEE FIG. NO.: | ||
| 211 | ||
| 336 | A 3229950301 | CLAMP |
| CABLE CONDUIT TO BRACKET | ||
| 338 | A 3229950320 | CLAMP |
| CABLE CONDUIT TO BRACKET | ||
| 340 | A 3419957001 | CLAMP |
| CABLE CONDUIT TO BRACKET | ||
| 342 | N 000933006024 | SCREW |
| CABLE CONDUIT TO BRACKET | ||
| 344 | N 009021006100 | WASHER |
| CABLE CONDUIT TO BRACKET | ||
| 346 | N 000127006206 | LOCK WASHER |
| CABLE CONDUIT TO BRACKET | ||
| 348 | N 000934006000 | NUT |
| CABLE CONDUIT TO BRACKET | ||
| 350 | A 3605460080 | CABLE GUIDE |
| 352 | N 007985005109 | SCREW |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 354 | N 912004005101 | LOCK WASHER |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 356 | N 000934005000 | NUT |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 358 | A 0019978590 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 358 | A 0019978490 | LOOM TIE |
| CONDUCTOR RAIL, CABLE HARNESS, AND FLEXIBLE SHAFT TO CAB | ||
| 358 | A 3519977190 | LOOM TIE |
| 360 | A 3225460344 | CLAMPING PIECE |
| BATTERY CABLE THRU CAB FLOOR | ||
| 362 | N 000931006050 | SCREW |
| BATTERY CABLE THRU CAB FLOOR | ||
| 364 | N 009021006100 | WASHER |
| BATTERY CABLE THRU CAB FLOOR | ||
| 366 | N 000127006206 | LOCK WASHER |
| BATTERY CABLE THRU CAB FLOOR | ||
| 368 | N 000934006007 | NUT |
| BATTERY CABLE THRU CAB FLOOR | ||
| 370 | A 3521500032 | GROUND CABLE |
| FROM ALTERNATOR TO FRAME SIDE MEMBER, LEFT | ||
| 372 | N 000933010034 | SCREW |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 374 | N 000127010205 | LOCK WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 376 | N 009021010100 | WASHER |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 378 | N 000934010000 | NUT |
| GROUND STRAP TO FRAME SIDE MEMBER | ||
| 380 | A 3199970281 | GROMMET |
| 380 | A 3199970281 | GROMMET |
| 382 | A 3129971681 | GROMMET |
| TO PLUG THE HOLE IN FIRE WALL | ||

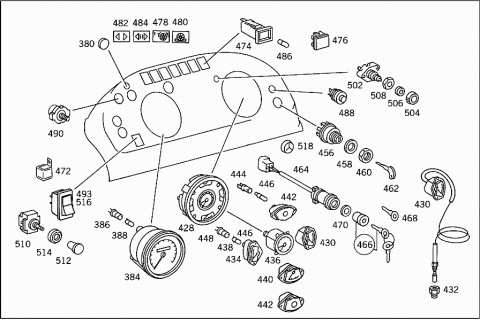

| 384 | A 0025428906 | SPEEDOMETER |
| MEASURING RANGE,90 KM/H 0R 60 MPH; W/REAR AXLE RATIO 48:7 & 9.00-20 TIRES | ||
| 384 | A 0015428306 | SPEEDOMETER |
| MEASURING RANGE,90 KM/H OR 60 MPH; W/REAR AXLE RATIO 48:7 & 8.25-20 TIRES | ||
| 384 | A 0035423906 | SPEEDOMETER |
| MEASURING RANGE,90 KM/H OR 60 MPH; W/REAR AXLE RATIO 48:7 & 10.00-20TIRES | ||
| 386 | A 0005450719 | SOCKET |
| 388 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 388 | A 3785440094 | BULB |
| 12 V | ||
| 388 | N 072601024801 | BULB |
| 24 V | ||

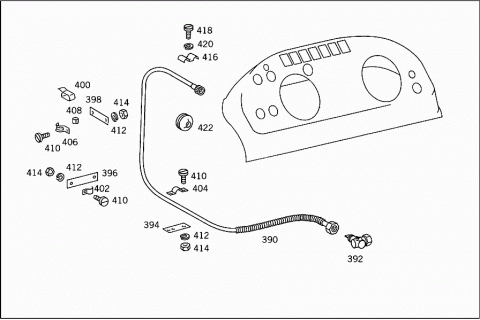

| 390 | A 0025427807 | FLEXIBLE SHAFT |
| 2190 MM | ||
| 390 | H 993415420207 | FLEXIBLE SHAFT |
| 2190 MM | ||
| 390 | A 0035423407 | FLEXIBLE SHAFT |
| 2190 MM | ||
| 390 | A 0015425907 | FLEXIBLE SHAFT |
| 3000 MM | ||
| 390 | H 993415421407 | FLEXIBLE SHAFT |
| 3000 MM | ||
| 390 | A 0025425607 | FLEXIBLE SHAFT |
| 3600 MM | ||
| 390 | H 993415420307 | FLEXIBLE SHAFT |
| 3600 MM | ||
| 392 | A 0005420630 | ANGLE DRIVE |
| 392 | A 3455420830 | ANGLE DRIVE |
| 394 | A 3124292440 | BRACKET |
| FLEXIBLE SHAFT MOUNTING | ||
| 396 | A 3225420240 | BRACKET |
| FLEXIBLE SHAFT MOUNTING | ||
| 398 | A 3225421040 | BRACKET |
| FLEXIBLE SHAFT MOUNTING | ||
| 400 | A 3219950140 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 402 | A 3199950320 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 404 | N 072573002002 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 406 | A 1819950020 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 408 | A 3129973782 | HOSE |
| FLEXIBLE SHAFT MOUNTING | ||
| 410 | N 000084005177 | SCREW |
| FLEXIBLE SHAFT MOUNTING | ||
| 412 | N 912004005101 | LOCK WASHER |
| FLEXIBLE SHAFT MOUNTING | ||
| 414 | N 000934005000 | NUT |
| FLEXIBLE SHAFT MOUNTING | ||
| 416 | A 3179950832 | CLAMP |
| FLEXIBLE SHAFT MOUNTING | ||
| 418 | N 000084006110 | SCREW |
| FLEXIBLE SHAFT MOUNTING | ||
| 420 | N 000127006206 | LOCK WASHER |
| FLEXIBLE SHAFT MOUNTING | ||
| 422 | A 3219970081 | GROMMET |
| FLEXIBLE SHAFT THRU TOEBOARD | ||
| 424 | A 3415457005 | RELAY |
| 426 | N 007984004233 | SCREW |
| 428 | A 0015406247 | INSTRUMENT CLUSTER |
| Repalced by: A 0015409047 | ||
| 428 | A 0015409047 | INSTRUMENT CLUSTER |
| 12V | ||
| 428 | A 0015409047 | INSTRUMENT CLUSTER |
| 12V | ||
| 428 | A 0025404147 | INSTRUMENT CLUSTER |
| 12 V | ||
| 428 | A 0025404147 | INSTRUMENT CLUSTER |
| 12 V | ||
| 428 | A 0025404147 | INSTRUMENT CLUSTER |
| 12 V | ||
| 428 | A 0025404847 | INSTRUMENT CLUSTER |
| 24 V | ||
| 430 | A 0025420305 | TEMPERATURE GAUGE |
| CENTIGRADE SCALE | ||
| 430 | A 0025420305 | TEMPERATURE GAUGE |
| CENTIGRADE SCALE | ||
| 430 | A 0035421805 | TEMPERATURE GAUGE |
| CENTIGRADE SCALE | ||
| 430 | A 0035421805 | TEMPERATURE GAUGE |
| CENTIGRADE SCALE | ||
| 430 | A 0035421805 | TEMPERATURE GAUGE |
| CENTIGRADE SCALE | ||
| 432 | A 0005420392 | CONNECTOR |
| 432 | A 0005420392 | CONNECTOR |
| 434 | A 0005427303 | FUEL GAUGE DASH UNIT |
| 434 | A 0005427303 | FUEL GAUGE DASH UNIT |
| 434 | A 0005427303 | FUEL GAUGE DASH UNIT |
| 436 | A 0005425308 | AIR PRESSURE GAUGE |
| Repalced by: A 0005427008 | ||
| 436 | A 0005427008 | AIR PRESSURE GAUGE |
| GRADUATION IN KG/CM2 | ||
| 438 | A 0005429802 | OIL PRESSURE GAUGE |
| TO 001 540 62 47 | ||
| 438 | A 0015425202 | OIL PRESSURE GAUGE |
| GRADUATION IN KG/CM2 | ||
| TO 001 540 90 47 | ||
| 440 | A 0005426603 | FUEL GAUGE DASH UNIT |
| TO 001 540 90 47 | ||
| 442 | A 0005420132 | TELL-TALE LAMP |
| 444 | A 0005451019 | SOCKET |
| 446 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 446 | A 3785440094 | BULB |
| 446 | N 072601024801 | BULB |
| 448 | A 0005450719 | SOCKET |
| 450 | A 0015424917 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 450 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 450 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 450 | A 0015423317 | SENDER UNIT |
| OIL PRESSURE | ||
| 450 | A 0015423317 | SENDER UNIT |
| OIL PRESSURE | ||
| 452 | A 0361870069 | FITTING |
| SENDER UNIT | ||
| 452 | A 0361870069 | FITTING |
| SENDER UNIT | ||
| 454 | A 0015422317 | SENDER UNIT |
| Repalced by: A 3455427717 | ||
| 454 | A 3455427717 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 454 | A 3455427717 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 456 | A 0005451213 | SWITCH BOX |
| Repalced by: A 0005453013 | ||
| 456 | A 0005453013 | SWITCH |
| "BOSCH" | ||
| 456 | A 0005453013 | SWITCH |
| "BOSCH" | ||
| 456 | A 3415457213 | SWITCH BOX |
| "VERINO-PAGLIERO" | ||
| 456 | A 3415457213 | SWITCH BOX |
| "VERINO-PAGLIERO" | ||
| 458 | A 0005450376 | WASHER |
| TO 000 545 30 13 | ||
| 458 | A 0005450376 | WASHER |
| TO 000 545 30 13 | ||
| 460 | A 0005451072 | NUT |
| TO 000 545 30 13 | ||
| 460 | A 0005451072 | NUT |
| TO 000 545 30 13 | ||
| A 0005450635 | KEY | |
| Repalced by: A 0005451235 | ||
| 462 | A 0005451235 | KEY |
| 462 | A 0005451235 | KEY |
| 464 | A 3455457213 | SWITCH |
| IGNITION/STARTING SWITCH | ||
| KOSTAL | ||
| 464 | A 3455457313 | SWITCH |
| IGNITION/STARTING SWITCH | ||
| "INSTRON" | ||
| 466 | A 3458937003 | OUTFIT (LOCK,KEY,HANDLE) |
| WITH KEY | ||
| 468 | A 0007668306 | KEY |
| BLANK | ||
| "HAGA" | ||
| 470 | A 3419877241 | RUBBER RING |
| IGNITION/STARTING SWITCH | ||
| 472 | A 3445427119 | RELAY |
| Repalced by: A 3455427019 | ||
| 472 | A 3455427019 | RELAY |
| STARTING MOTOR RELAY | ||
| 472 | A 3925457105 | RELAY |
| STARTING MOTOR RELAY | ||
| 474 | A 0015450615 | TELL-TALE LAMP |
| LESS LENS | ||
| 474 | A 0015450615 | TELL-TALE LAMP |
| LESS LENS | ||
| 474 | A 0015450615 | TELL-TALE LAMP |
| LESS LENS | ||
| 474 | A 0015450615 | TELL-TALE LAMP |
| LESS LENS | ||
| 476 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 476 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 476 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 476 | A 3089970035 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 476 | A 3089970035 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 476 | A 3089970035 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 478 | A 0005450890 | LENS |
| SUPPLY PRESSURE | ||
| 478 | A 0005450890 | LENS |
| SUPPLY PRESSURE | ||
| 480 | A 0005451790 | LENS |
| PARKING BRAKE | ||
| 480 | A 0005451790 | LENS |
| PARKING BRAKE | ||
| 480 | A 0005451790 | LENS |
| PARKING BRAKE | ||
| 482 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 482 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 484 | A 0005451390 | LENS |
| TRAILER BLINKER | ||
| 484 | A 0005451390 | LENS |
| TRAILER BLINKER | ||
| 486 | A 3785440094 | BULB |
| TELL-TALE LAMP | ||
| 486 | A 3785440094 | BULB |
| TELL-TALE LAMP | ||
| 486 | A 3785440094 | BULB |
| TELL-TALE LAMP | ||
| 486 | A 3785440094 | BULB |
| TELL-TALE LAMP | ||
| 488 | A 0005453914 | SWITCH |
| QUICK-RELEASE VALVE | ||
| 488 | A 3415457014 | SWITCH |
| QUICK-RELEASE VALVE | ||
| 488 | A 3215450114 | SWITCH |
| STARTING IN CAB | ||
| 488 | A 0015450214 | SWITCH |
| STARTING IN CAB | ||
| 488 | A 3785457014 | SWITCH |
| STARTING IN CAB | ||
| 488 | A 3455457314 | SWITCH |
| STARTING IN CAB | ||
| 490 | A 0005455111 | SWITCH |
| HEATING,INSTRUMENT-PANEL/CAB LIGHTING | ||
| 490 | A 0005455111 | SWITCH |
| HEATING,INSTRUMENT-PANEL/CAB LIGHTING | ||
| 493 | A 3415457611 | SWITCH |
| MAIN LIGHT | ||
| 493 | A 3415457311 | SWITCH |
| BLOWER | ||
| 493 | A 3415457311 | SWITCH |
| BLOWER | ||
| 493 | A 3415457311 | SWITCH |
| BLOWER | ||
| 493 | A 3415457411 | SWITCH |
| CAB LAMP | ||
| 493 | A 3415457411 | SWITCH |
| CAB LAMP | ||
| 493 | A 3415457411 | SWITCH |
| CAB LAMP | ||
| 493 | A 3415457411 | SWITCH |
| CAB LAMP | ||
| 493 | A 3415457711 | SWITCH |
| WIPE/WASH SYSTEM | ||
| 493 | A 3415457811 | SWITCH |
| WIPE/WASH SYSTEM | ||
| 496 | A 3415409336 | ELECTRIC CABLE |
| WIPE/WASH SYSTEM | ||
| 498 | A 0005453726 | PIN BUSHING |
| 500 | A 0005453545 | PIN BUSHING HOUSING |
| 502 | A 0005421425 | POTENTIOMETER |
| Repalced by: A 6155420125 | ||
| 502 | A 0005422125 | POTENTIOMETER |
| Repalced by: A 6155420125 | ||
| 502 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 502 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 502 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 502 | A 3415427025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| "SCRAM" | ||
| 502 | A 3415427025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| "SCRAM" | ||
| 502 | A 3415427025 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| "SCRAM" | ||
| A 0005421189 | KNOB | |
| Repalced by: A 0005421889 | ||
| 504 | A 0005421889 | KNOB |
| SYMBOL: INSTRUMENT LIGHTING | ||
| 504 | A 0005421889 | KNOB |
| SYMBOL: INSTRUMENT LIGHTING | ||
| 506 | A 0005450372 | NUT |
| INSTRUMENT LIGHTING | ||
| TO 000 542 14 25,000 542 21 25 | ||
| 508 | A 0029906251 | NUT |
| INSTRUMENT LIGHTING | ||
| TO 615 542 01 25,341 542 70 25 | ||
| 510 | A 0005451311 | SWITCH |
| PANE WIPER | ||
| 510 | A 3445457111 | SWITCH |
| PANE WIPER | ||
| 512 | A 0005450537 | BUTTON |
| Repalced by: A 0005450837 | ||
| 512 | A 0005450837 | BUTTON |
| 512 | A 0005450837 | BUTTON |
| 512 | A 0005450837 | BUTTON |
| 514 | A 0005450272 | NUT |
| TO 000 545 13 11 | ||
| 516 | A 3415457011 | SWITCH |
| Repalced by: A 3415457211 | ||
| 516 | A 3415457211 | SWITCH |
| PANE WIPER | ||
| 518 | H 513126890208 | COVERING |
| TO PLUG THE FREE HOLES IN INSTRUMENT PANEL | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
