Transporto priemonė: LO 914; VIN numerio dalis: 341045

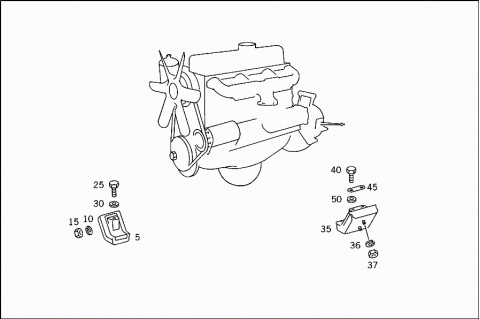

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3122201517 | RUBBER MOUNTING | |
| Repalced by: A 3412200017 | ||
| 005 | A 3412200017 | RUBBER MOUNTING |
| FRONT | ||
| 010 | N 000127010205 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 015 | N 000934010004 | NUT |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 025 | N 000960014092 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| A 3129900640 | WASHER | |
| Repalced by: A 3529901040 | ||
| 030 | A 3529901040 | WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| A 3122201317 | RUBBER MOUNTING | |
| Repalced by: A 3412200117 | ||
| 035 | A 3412200117 | RUBBER MOUNTING |
| Repalced by: A 3412207017 | ||
| 035 | A 3412207017 | RUBBER MOUNTING |
| REAR | ||
| 036 | N 000127010205 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 037 | N 000934010004 | NUT |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 040 | N 000961012029 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| M 12X40 MM | ||
| 040 | N 000961012155 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| M 12X45 MM | ||
| 045 | A 3129940132 | LOCK |
| ENGINE TO REAR RUBBER MOUNTING | ||
| A 3129900540 | WASHER | |
| Repalced by: N 007349013002 | ||
| 050 | N 007349013002 | WASHER |
| ENGINE TO REAR RUBBER MOUNTING | ||
