Transporto priemonė: LO 914; VIN numerio dalis: 341045

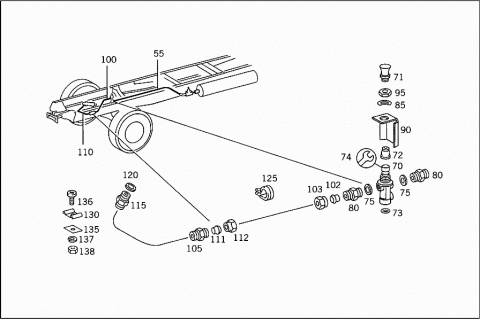

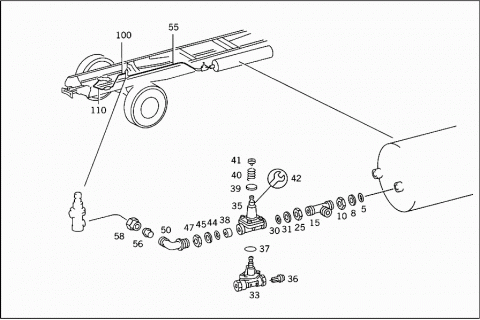

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
005	A 0009870446	O-RING
008	A 0004290227	THRUST RING
	Repalced by: A 0009940203
008	A 0009940203	THRUST RING
010	N 074305022202	NUT
015	N 074302022202	T-FITTING
015	A 3514290132	T-FITTING
025	N 074305022202	NUT
030	A 0009870446	O-RING
031	A 0004290227	THRUST RING
	Repalced by: A 0009940203
031	A 0009940203	THRUST RING
033	A 0014297944	VALVE
035	A 0004296344	VALVE
035	A 0014299844	VALVE
035	A 0004315406	VALVE
	Repalced by: A 0014295244
035	A 0014295244	VALVE
036	A 0024298844	VALVE
		TO 001 429 79 44
	A 0004290645	DIAPHRAGM
	Repalced by: A 0004290745
037	A 0004290745	DIAPHRAGM
		TO 001 429 79 44
037	A 0004290145	DIAPHRAGM
		TO 000 431 54 06
038	A 0004290088	VALVE SEAT RING
		TO 000 429 63 44
039	A 0004310328	DIAPHRAGM
		TO 000 429 63 44
040	A 0019932301	SPRING
		TO 000 429 63 44
041	A 0004290389	SPRING RETAINER
		TO 000 429 63 44
042	A 0005863642	REPAIR KIT
		TO 000 429 63 44
042	A 0015862642	REPAIR KIT
		TO 001 429 98 44
042	A 0015862042	REPAIR KIT
		TO 001 429 52 44
044	A 0009870446	O-RING
045	A 0004290227	THRUST RING
	Repalced by: A 0009940203
045	A 0009940203	THRUST RING
047	N 074305022202	NUT
050	A 3609900071	ELBOW FITTING
050	A 3459907071	ELBOW FITTING
055	A 3534294501	LINE
056	N 003861006007	GLAND
058	N 915017006100	UNION NUT
070	A 0004341101	VALVE
	Repalced by: A 0004340801
070	A 0004340801	VALVE
	Repalced by: A 0004342401
070	A 0004342401	VALVE
		EXHAUST BRAKE
		"WESTINGHOUSE"
070	A 3454347101	VALVE
		EXHAUST BRAKE
		"WABCO DO BRASIL"
071	A 0009972077	HANDLE
		TO 000 434 24 01
072	A 0004340586	CUP
		TO 000 434 24 01
072	A 0004317387	PROTECTIVE CAP
		TO 000 434 08 01,345 434 71 01
073	A 0079972548	SEAL RING
		TO 000 434 24 01
074	A 0025869843	REPAIR KIT
		TO 000 434 24 01
074	H 983455860943	REPAIR KIT
	Repalced by: A 0034301281
074	A 0034301281	REPAIR KIT
		SMALL SCOPE
		TO 345 434 71 01
074	A 0005869743	REPAIR KIT
		LARGE SCOPE
		TO 000 434 08 01, 345 434 71 01
074	A 0005866443	REPAIR KIT
		TO 000 434 11 01
075	N 007603012111	SEAL RING
080	A 3454298136	CONNECTOR
085	N 000137026200	SPRING WASHER
090	A 3604340044	PROTECTIVE PLATE
095	N 080705026000	NUT
100	A 3604294003	LINE
102	N 003861006007	GLAND
103	N 915017006100	UNION NUT
105	N 003902006001	CONNECTION FITTING
110	A 3604295003	LINE
111	N 003861006007	GLAND
112	N 915017006100	UNION NUT
115	A 3454298136	CONNECTOR
120	N 007603012111	SEAL RING
125	A 3604300143	CLAMP
	Repalced by: N 916016008200
125	N 916016008200	CLAMP
130	A 3129950332	CLAMP
135	A 3125421039	PLATE
136	N 000084005106	SCREW
137	N 912004005101	LOCK WASHER
138	N 000934005000	NUT
