Transporto priemonė: LO 914; VIN numerio dalis: 341045

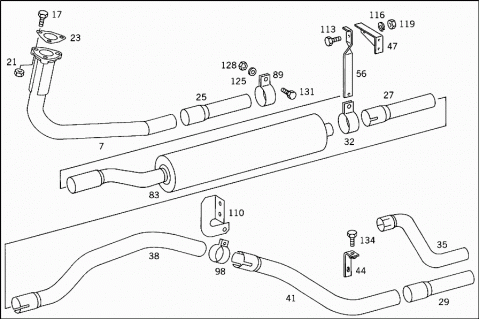

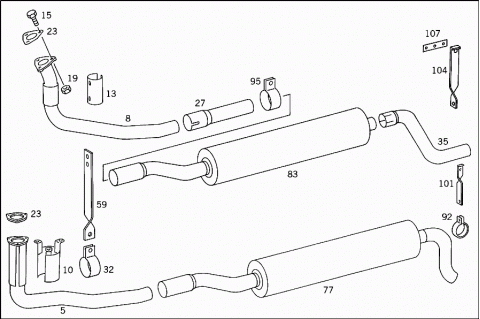

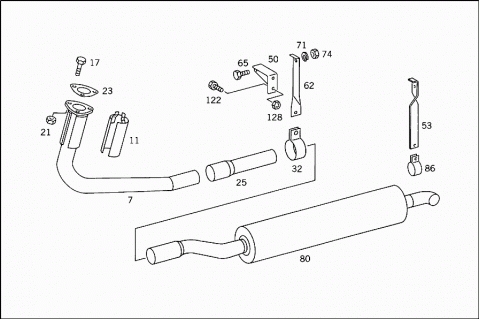

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3404900020 | EXHAUST PIPE |
| FRONT | ||
| 007 | A 3414907319 | EXHAUST PIPE |
| FRONT | ||
| 007 | A 3414907819 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 3414900019 | EXHAUST PIPE |
| 010 | A 3404900030 | PROTECTIVE PLATE |
| 011 | A 3834900130 | PROTECTIVE PLATE |
| A 3524920630 | PROTECTIVE PLATE | |
| Repalced by: A 3834900330 | ||
| 013 | A 3834900330 | PROTECTIVE PLATE |
| 015 | N 000931012041 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | N 000931010282 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | N 000931010102 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 019 | N 000934012021 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 021 | N 000934010000 | NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3124921080 | FLANGE GASKET | |
| 023 | A 3214920080 | FLANGE GASKET |
| 025 | A 3414927607 | CONNECTOR |
| 025 | A 3414929907 | CONNECTOR |
| A 3414920007 | CONNECTOR | |
| Repalced by: A 3414920107 | ||
| 027 | A 3224920707 | CONNECTOR |
| 027 | A 3414920107 | CONNECTOR |
| 027 | A 3414927807 | CONNECTOR |
| 027 | A 3414927707 | CONNECTOR |
| 027 | A 3414927008 | COLLAR |
| 027 | A 3414927907 | CONNECTOR |
| 027 | A 3414927108 | COLLAR |
| 027 | A 3414929007 | CONNECTOR |
| 029 | A 3414929004 | REAR EXHAUST PIPE |
| 032 | N 071555065502 | CLAMP |
| 65.5 | ||
| H 993414920404 | REAR EXHAUST PIPE | |
| Repalced by: A 3414920104 | ||
| 035 | A 3414920104 | REAR EXHAUST PIPE |
| 035 | A 3414928604 | REAR EXHAUST PIPE |
| 038 | A 3414928504 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 038 | A 3414929904 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 038 | A 3414929904 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 038 | A 3414928405 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 041 | A 3414927305 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 041 | A 3414927205 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 041 | A 3414927405 | REAR EXHAUST PIPE |
| TAIL PIPE | ||
| 041 | A 3414927005 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 041 | A 3414927005 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 044 | A 3414907140 | BRACKET |
| REAR EXHAUST PIPE | ||
| 044 | A 3414907140 | BRACKET |
| REAR EXHAUST PIPE | ||
| 047 | A 3414910016 | SUPPORT |
| 047 | A 3414910016 | SUPPORT |
| 047 | A 3414910116 | SUPPORT |
| 050 | A 3414927016 | SUPPORT |
| EXHAUST MUFFLER SUSPENSION | ||
| 050 | A 3414927016 | SUPPORT |
| EXHAUST MUFFLER SUSPENSION | ||
| 050 | A 3414927016 | SUPPORT |
| EXHAUST MUFFLER SUSPENSION | ||
| 050 | A 3414927016 | SUPPORT |
| EXHAUST MUFFLER SUSPENSION | ||
| 050 | A 3414927116 | SUPPORT |
| EXHAUST MUFFLER SUSPENSION | ||
| 050 | A 3414927216 | SUPPORT |
| EXHAUST MUFFLER,LEFT | ||
| 053 | A 3224911341 | BRACKET |
| 056 | A 3414927441 | BRACKET |
| 056 | A 3414910041 | BRACKET |
| 059 | A 3224923319 | BRACKET |
| 062 | A 3414927341 | BRACKET |
| 062 | A 3414927341 | BRACKET |
| 062 | A 3414927341 | BRACKET |
| 062 | A 3414927341 | BRACKET |
| 062 | A 3414928841 | BRACKET |
| 062 | A 3224925719 | BRACKET |
| 062 | A 3414928741 | BRACKET |
| 065 | N 000933008025 | SCREW |
| BRACKET TO SUPPORT | ||
| 065 | N 000933008025 | SCREW |
| BRACKET TO SUPPORT | ||
| 065 | N 000933008025 | SCREW |
| BRACKET TO SUPPORT | ||
| 071 | N 912004008104 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 071 | N 912004008104 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 071 | N 912004008104 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 074 | N 000934008000 | NUT |
| BRACKET TO SUPPORT | ||
| 074 | N 000934008000 | NUT |
| BRACKET TO SUPPORT | ||
| 074 | N 000934008000 | NUT |
| BRACKET TO SUPPORT | ||
| 077 | A 3224904815 | EXHAUST MUFFLER WITH PIPE |
| 077 | A 3604900615 | EXHAUST MUFFLER WITH PIPE |
| 077 | A 3224904915 | EXHAUST MUFFLER WITH PIPE |
| 077 | A 3224905015 | EXHAUST MUFFLER WITH PIPE |
| 077 | A 3224905115 | EXHAUST MUFFLER WITH PIPE |
| 077 | A 3414907115 | EXHAUST MUFFLER WITH PIPE |
| 077 | A 3414907315 | EXHAUST MUFFLER WITH PIPE |
| 077 | A 3414907415 | EXHAUST MUFFLER WITH PIPE |
| 077 | A 3414907515 | EXHAUST MUFFLER WITH PIPE |
| 077 | A 3414907515 | EXHAUST MUFFLER WITH PIPE |
| 077 | A 3414907615 | EXHAUST MUFFLER WITH PIPE |
| 080 | A 3414907715 | EXHAUST MUFFLER WITH PIPE |
| Repalced by: A 3414909215 | ||
| 080 | A 3414909215 | EXHAUST MUFFLER WITH PIPE |
| WITH TAIL PIPE | ||
| A 3414907815 | EXHAUST MUFFLER WITH PIPE | |
| Repalced by: A 3414908915 | ||
| 080 | A 3414908615 | EXHAUST MUFFLER WITH PIPE |
| Repalced by: A 3414909315 | ||
| 080 | A 3414909315 | EXHAUST MUFFLER WITH PIPE |
| WITH TAIL PIPE | ||
| 083 | A 3414908915 | EXHAUST MUFFLER WITH PIPE |
| LESS TAIL PIPE | ||
| 086 | A 3274920040 | CLAMP |
| Repalced by: A 3414927440 | ||
| 086 | A 3414927440 | CLAMP |
| EXHAUST MUFFLER,REAR | ||
| 62,5MM | ||
| 089 | N 071555065502 | CLAMP |
| EXHAUST MUFFLER,REAR | ||
| 65,5MM | ||
| 092 | N 071555060503 | CLAMP |
| EXHAUST MUFFLER,REAR | ||
| 60,5MM | ||
| 092 | N 071555060503 | CLAMP |
| EXHAUST MUFFLER,REAR | ||
| 60,5MM | ||
| 092 | N 071555060503 | CLAMP |
| EXHAUST MUFFLER,REAR | ||
| 60,5MM | ||
| 092 | N 071555063502 | CLAMP |
| EXHAUST MUFFLER,REAR | ||
| 63.5 MM | ||
| 092 | N 071555068502 | CLAMP |
| EXHAUST MUFFLER,REAR | ||
| 68.5 MM | ||
| 095 | N 071555075503 | CLAMP |
| 75,5MM | ||
| 095 | A 3414927340 | CLAMP |
| 095 | A 3414927340 | CLAMP |
| 098 | N 071555063502 | CLAMP |
| 63.5 MM | ||
| 101 | A 3224923419 | BRACKET |
| 104 | A 3584920019 | BRACKET |
| 107 | A 3584920219 | BRACKET |
| 110 | A 3604921319 | BRACKET |
| 113 | N 000933008036 | SCREW |
| REAR EXHAUST PIPE BRACKET TO SPRINGBRACKET BRACKET | ||
| 116 | N 912004008104 | LOCK WASHER |
| REAR EXHAUST PIPE BRACKET TO SPRINGBRACKET BRACKET | ||
| 119 | N 000934008000 | NUT |
| REAR EXHAUST PIPE BRACKET TO SPRINGBRACKET BRACKET | ||
| 122 | N 000933008153 | SCREW |
| CLAMP TO BRACKET | ||
| 125 | N 009021008100 | WASHER |
| CLAMP TO BRACKET AND TO PIPE | ||
| 128 | N 000934008000 | NUT |
| 128 | N 000934010000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 131 | N 000933008025 | SCREW |
| 134 | N 000933008057 | SCREW |
| BRACKET TO SUPPORT | ||
