Transporto priemonė: LO 914; VIN numerio dalis: 341045

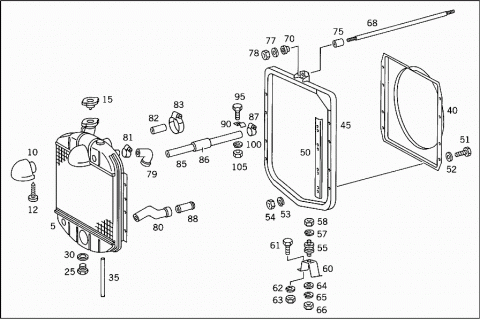

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 0415010201 | RADIATOR | |
| Repalced by: A 3415010001 | ||
| 005 | A 3415010001 | RADIATOR |
| 005 | A 3415017101 | RADIATOR |
| 005 | A 3415017801 | RADIATOR |
| 005 | H 993415010001 | RADIATOR |
| 010 | A 0005010556 | PIPE ELBOW |
| 012 | N 007981003231 | SHEET METAL SCREW |
| 015 | A 0005010215 | RADIATOR CAP |
| 015 | A 3445010315 | RADIATOR CAP |
| A 0009976436 | VALVE | |
| A 0009930225 | SPRING | |
| 025 | N 007604018102 | SCREW PLUG |
| 030 | N 007603018401 | SEAL RING |
| 035 | A 3049972582 | HOSE |
| TO 000 997 64 36 | ||
| A 3215050455 | FAN SHROUD | |
| Repalced by: A 3415050055 | ||
| 040 | A 3415050055 | FAN SHROUD |
| A 3225002027 | SUPPORT | |
| Repalced by: A 3515000027 | ||
| A 3525002227 | SUPPORT | |
| Repalced by: A 3515000027 | ||
| 045 | A 3515000027 | SUPPORT |
| 050 | A 3225050024 | COVER PLATE |
| RADIATOR BLOCK | ||
| 051 | N 000933008036 | SCREW |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 052 | N 000125008413 | WASHER |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 053 | N 912004008104 | LOCK WASHER |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| 054 | N 000934008000 | NUT |
| COVER PLATE AND BASE FRAME TO RADIATOR BLOCK | ||
| A 3225040312 | RUBBER MOUNTING | |
| Repalced by: A 3605040012 | ||
| 055 | A 3605040012 | RUBBER MOUNTING |
| 057 | N 000127010205 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 058 | N 000934010000 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| 060 | A 3225040139 | CLAMP |
| RADIATOR MOUNTING,BOTTOM | ||
| 061 | N 000933010016 | SCREW |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 062 | N 000127010205 | LOCK WASHER |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 063 | N 000934010000 | NUT |
| BRACKET TO ENGINE CROSS MEMBER | ||
| 064 | N 000125010518 | WASHER |
| 065 | N 000127010205 | LOCK WASHER |
| RADIATOR TO BRACKET | ||
| 066 | N 000934010000 | NUT |
| RADIATOR TO BRACKET | ||
| A 3225000845 | RADIATOR STRUT | |
| Repalced by: A 3225000345 | ||
| 068 | A 3225000345 | RADIATOR STRUT |
| 068 | A 3225001345 | RADIATOR STRUT |
| 070 | A 3275045082 | RUBBER RING |
| 075 | A 3199910540 | SPACER TUBE |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 077 | N 009021010100 | WASHER |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 078 | N 000934010000 | NUT |
| RADIATOR STRUT TO SUPPORT AND TO CAB | ||
| 079 | A 3405010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| A 3415010382 | HOSE | |
| Repalced by: A 3415017282 | ||
| A 3405010482 | HOSE | |
| Repalced by: A 3415017282 | ||
| 080 | A 3415017282 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 081 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 081 | N 000000000671 | CLAMP |
| 081 | A 3419978990 | LOOM TIE |
| 082 | A 3229972782 | HOSE |
| Repalced by: N 900271015037 | ||
| 082 | N 900271015037 | HOSE |
| Repalced by: A 3515007075 | ||
| 082 | A 3515007075 | HOSE |
| FROM UPPER LINE TO HEATING SHUT-OFF COCK | ||
| 15X24X380 | ||
| A 0419970290 | LOOM TIE | |
| Repalced by: H 990009970290 | ||
| H 990009970290 | LOOM TIE | |
| Repalced by: N 916017016000 | ||
| 083 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 083 | N 000000000666 | CLAMP |
| 083 | A 3419979990 | LOOM TIE |
| 083 | A 3414667177 | CLAMP |
| N 900271024006 | HOSE | |
| PROTECTION AGAINST SCORING FOR UPPER COOLING WATER HOSE | ||
| TO 351 500 70 75 | ||
| A 3359970882 | HOSE | |
| Repalced by: N 900271015037 | ||
| 085 | N 900271015037 | HOSE |
| 15X24X440 | ||
| 086 | A 0419970082 | HOSE |
| A 0419970290 | LOOM TIE | |
| Repalced by: H 990009970290 | ||
| H 990009970290 | LOOM TIE | |
| Repalced by: N 916017016000 | ||
| 087 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 087 | N 000000000666 | CLAMP |
| 087 | A 3419979990 | LOOM TIE |
| 087 | A 3414667177 | CLAMP |
| 088 | A 3225010024 | COOLING WATER PIPE |
| 090 | A 3129952420 | CLAMP |
| 095 | N 000084006110 | SCREW |
| RETURN LINE TO BRACKET | ||
| 100 | N 000127006206 | LOCK WASHER |
| RETURN LINE TO BRACKET | ||
| 105 | N 000934006000 | NUT |
| RETURN LINE TO BRACKET | ||
