Transporto priemonė: LO 914; VIN numerio dalis: 341045

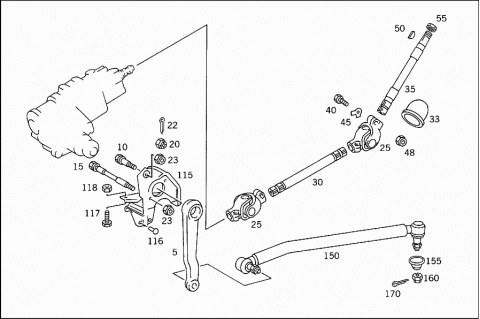

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR STEERING, SEE PARTS LIST: | ||
| 760 | ||
| A 3224633101 | PITMAN ARM | |
| Repalced by: A 3414630001 | ||
| 005 | A 3414630001 | PITMAN ARM |
| 005 | A 3284630801 | PITMAN ARM |
| 010 | A 3279900114 | SCREW |
| Repalced by: A 3099900114 | ||
| 010 | A 3099900114 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 12X1,5X50 | ||
| 015 | A 3229900914 | SCREW |
| Repalced by: A 3099900214 | ||
| 015 | A 3099900214 | SCREW |
| STEERING TO STEERING BRACKET | ||
| 12X1,5X128 | ||
| 020 | A 3279900050 | NUT |
| STEERING TO STEERING BRACKET | ||
| TO 327 990 01 14,322 990 09 14 | ||
| 022 | N 000094003217 | COTTER PIN |
| STEERING TO STEERING BRACKET | ||
| TO 327 990 01 14,322 990 09 14 | ||
| 023 | N 913004012003 | NUT |
| STEERING TO STEERING BRACKET | ||
| TO 309 990 01 14,02 14 | ||
| A 3274600157 | UNIVERSAL JOINT | |
| Repalced by: A 3454600057 | ||
| A 3524600057 | UNIVERSAL JOINT | |
| Repalced by: A 3454600057 | ||
| 025 | A 3454600057 | UNIVERSAL JOINT |
| 025 | A 3164600057 | UNIVERSAL JOINT |
| 025 | A 3444607057 | UNIVERSAL JOINT |
| 025 | A 3444607157 | UNIVERSAL JOINT |
| 025 | A 3444607257 | UNIVERSAL JOINT |
| 030 | A 3224620501 | STEERING SHAFT |
| Repalced by: A 3444620501 | ||
| 030 | A 3444620501 | STEERING SHAFT |
| BOTTOM | ||
| 680 MM | ||
| 030 | A 3414627301 | STEERING SHAFT |
| BOTTOM | ||
| 030 | A 3454620401 | STEERING SHAFT |
| BOTTOM | ||
| 030 | A 3604621301 | STEERING SHAFT |
| BOTTOM | ||
| 033 | A 3604620596 | BOOT |
| 035 | A 3224620401 | STEERING SHAFT |
| TOP | ||
| 343 MM | ||
| 035 | A 3524620001 | STEERING SHAFT |
| TOP | ||
| 035 | A 3454627301 | STEERING SHAFT |
| TOP | ||
| A 3219900401 | SCREW | |
| Repalced by: A 3169900114 | ||
| 040 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 045 | N 000463010502 | LOCK PLATE |
| UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY | ||
| TO 327 460 01 57,352 460 00 57 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 460 00 57 | ||
| 048 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY | ||
| 048 | A 3459900351 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN AND TO STEERING BOX ASSEMBLY | ||
| 050 | N 006888005006 | WOODRUFF KEY |
| 5X7,5 | ||
| 055 | N 000936022002 | NUT |
| M 22X1,5 | ||

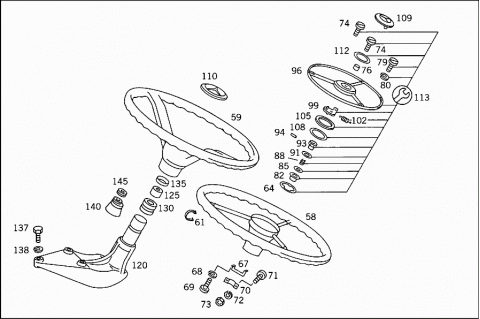

| 058 | A 3224600103 | STEERING WHEEL |
| 059 | A 3514607003 | STEERING WHEEL |
| 059 | A 3644607003 | STEERING WHEEL |
| 061 | A 3204640092 | ORNAMENTAL RING |
| 064 | A 0004640417 | CONTACT PLATE |
| 067 | A 3224640034 | BRACKET |
| ELECTRIC CABLE | ||
| 068 | N 000127004206 | LOCK WASHER |
| BRACKET TO CONTACT PLATE | ||
| 069 | N 000084004104 | SCREW |
| BRACKET TO CONTACT PLATE | ||
| M 4X8 | ||
| 070 | N 072573001006 | CLAMP |
| ELECTRIC CABLE | ||
| 071 | N 000084004106 | SCREW |
| CLAMP TO BRACKET | ||
| M 4X10 | ||
| 072 | N 000127004206 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 073 | N 000934004006 | NUT |
| CLAMP TO BRACKET | ||
| 074 | A 0009903220 | SCREW |
| CONTACT PLATE TO STEERING WHEEL HUB | ||
| 076 | A 3204640053 | SPACER TUBE |
| CONTACT PLATE TO STEERING WHEEL HUB | ||
| 079 | A 0009903320 | SCREW |
| CONTACT PLATE TO STEERING WHEEL HUB | ||
| 080 | N 000127004206 | LOCK WASHER |
| CONTACT PLATE TO STEERING WHEEL HUB | ||
| 082 | A 1814640186 | CONTACT CUP |
| SIGNAL RING TO STEERING WHEEL HUB | ||
| 085 | A 1534640023 | INSULATING PLATE |
| SIGNAL RING TO STEERING WHEEL HUB | ||
| 088 | A 3209930201 | SPRING |
| SIGNAL RING TO STEERING WHEEL HUB | ||
| 091 | A 1814640028 | CONTACT RING |
| SIGNAL RING TO STEERING WHEEL HUB | ||
| 093 | A 3204640072 | NUT |
| SIGNAL RING TO STEERING WHEEL HUB | ||
| 094 | A 3209910055 | PIN |
| 096 | A 3224600140 | SIGNAL RING |
| 099 | A 0004640139 | LEVER |
| 102 | A 0004640290 | SPRING |
| 105 | A 3214640062 | THRUST WASHER |
| 108 | A 3204640182 | RING |
| 109 | A 1874600144 | BADGE |
| 110 | A 3644647032 | BADGE |
| 110 | A 0004640432 | BADGE |
| 112 | A 1839970540 | SEAL RING |
| 113 | H 993415860046 | REPAIR KIT |
| A 3224600235 | BRACKET | |
| Repalced by: A 3414600029 | ||
| 115 | A 3414600029 | STEERING BRACKET |
| A 0009900896 | RIVET | |
| Repalced by: N 910005012016 | ||
| 116 | N 910005012076 | RIVET |
| STEERING BRACKET TO FRAME | ||
| 12X34 | ||
| 117 | N 000961012052 | SCREW |
| STEERING BRACKET TO FRAME | ||
| 118 | N 000934012004 | NUT |
| STEERING BRACKET TO FRAME | ||
| A 3284600030 | BRACKET | |
| Repalced by: A 3414600037 | ||
| 120 | A 3414600037 | BEARING |
| STEERING SHAFT | ||
| 120 | A 3434600037 | BEARING |
| STEERING SHAFT | ||
| 125 | A 3124621150 | BUSHING |
| 130 | A 3214620165 | RING |
| 135 | A 3224620023 | COVER |
| 137 | N 000931010212 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| M 10X60 | ||
| 137 | N 000933010093 | SCREW |
| STEERING COLUMN BRACKET TO CAB | ||
| M 10X32 | ||
| 138 | N 000127010202 | LOCK WASHER |
| STEERING COLUMN BRACKET TO CAB | ||
| 140 | A 3354620096 | BOOT |
| 145 | A 3214620060 | SEAL RING |
| 150 | A 3274600005 | DRAG LINK |
| 150 | A 3414600605 | DRAG LINK |
| 150 | A 3214601605 | DRAG LINK |
| 155 | A 0003300285 | BOOT |
| 155 | A 0003381656 | DUST CAP |
| 160 | N 000937018004 | NUT |
| M 18X1.5 | ||
| 160 | N 000937018004 | NUT |
| M 18X1.5 | ||
| 160 | N 000937018004 | NUT |
| M 18X1.5 | ||
| 160 | N 000937020001 | NUT |
| M 20X1.5 | ||
| 170 | N 000094004060 | COTTER PIN |
| 4X32 | ||
| 170 | N 000094004060 | COTTER PIN |
| 4X32 | ||
| 170 | N 000094004060 | COTTER PIN |
| 4X32 | ||
| 170 | N 000094004066 | COTTER PIN |
| 4X36 | ||
