Transporto priemonė: LO 914; VIN numerio dalis: 341045
Grupė: 26 TRANSMISSION

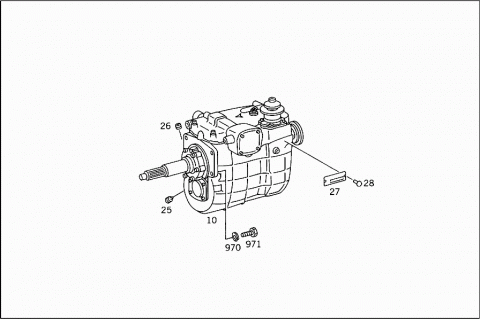

18380

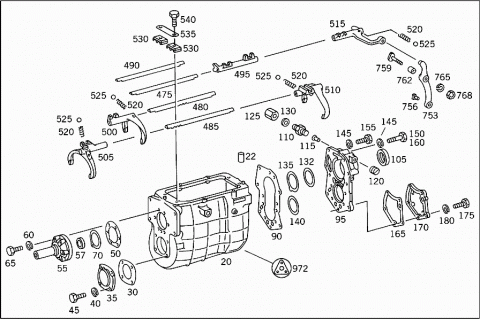

18381

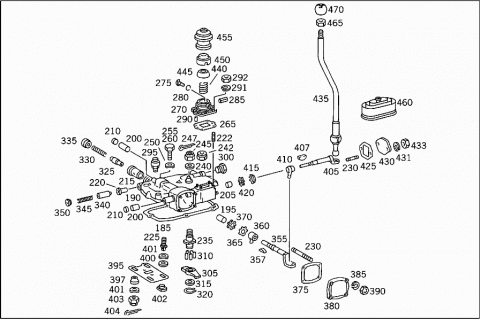

18382

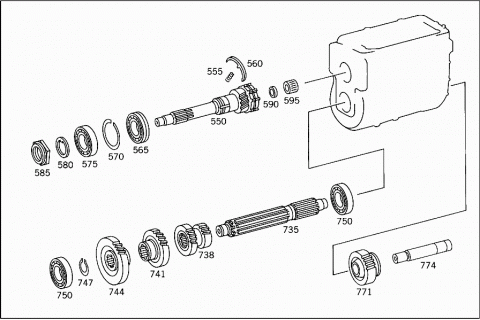

18383

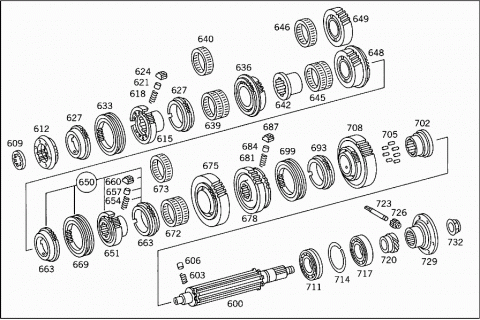

18384

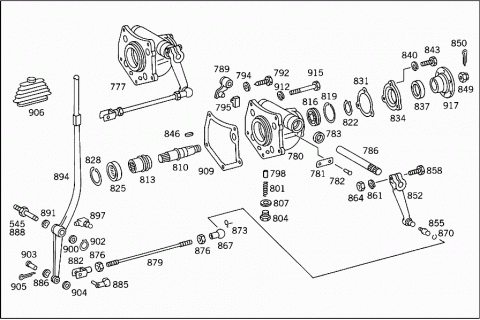

18385

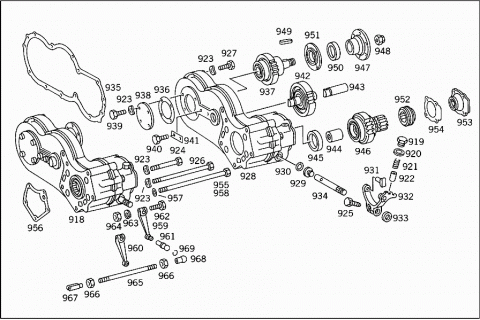

18386
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR TRANSMISSION,SEE UNIT STANDARD VERSION,MODEL:
713.0
A 3222601700 TRANSMISSION
Repalced by: A 3412600900
A 3412600900 TRANSMISSION
WITH SHIFT LEVER
A 3222606100 TRANSMISSION
Repalced by: A 3412601600
010 A 3412601600 TRANSMISSION
LESS SHIFT LEVER
A 3402601200 TRANSMISSION
Repalced by: A 3412601100
A 3412601100 TRANSMISSION
WITH SHIFT LEVER
A 3402601600 TRANSMISSION
Repalced by: A 3402604800
010 A 3402604800 TRANSMISSION
LESS SHIFT LEVER
A 3522600011 TRANSMISSION CASE
Repalced by: A 3022600611
A 3022600311 TRANSMISSION CASE
Repalced by: A 3022600611
020 A 3022600611 TRANSMISSION CASE
022 N 000007010239 CYLINDRICAL PIN
A 0009971332 SCREW PLUG
Repalced by: A 0009972632
025 A 0009972632 SCREW PLUG
025 A 0009973432 SCREW PLUG
026 A 1869970032 SCREW PLUG
027 A 0415840324 UNIT IDENTIFICATION PLATE
027 A 3785840024 UNIT IDENTIFICATION PLATE
027 A 0415840524 UNIT IDENTIFICATION PLATE
027 A 3415840724 UNIT IDENTIFICATION PLATE
028 N 001476003007 GROOVED NAIL
030 A 3212610779 GASKET
Repalced by: A 3522611280
030 A 3522610680 GASKET
Repalced by: A 3522611280
030 A 3522611280 GASKET
Repalced by: A 3412617080
030 A 3412617080 GASKET
035 A 3212610133 COVER
040 N 912004008104 LOCK WASHER
045 N 000933008036 SCREW
050 A 3122612179 GASKET
Repalced by: A 3122611180
050 A 3122611180 GASKET
055 A 3212610318 TRANSMISSION CASE COVER
A 0029971346 SEAL RING
Repalced by: A 0089970146
057 A 0089970146 SEAL RING
Repalced by: A 0159977647
057 A 0159977647 SEAL RING
057 A 0159977747 SEAL RING
057 A 0179971447 SEAL RING
060 N 912004008104 LOCK WASHER
065 N 000931008085 SCREW
070 A 3122625362 THRUST WASHER
AS REQUIRED
2.85 MM
070 A 3122625462 THRUST WASHER
AS REQUIRED
2.9 MM
070 A 3122625562 THRUST WASHER
AS REQUIRED
2.95 MM
070 A 3122623462 THRUST WASHER
AS REQUIRED
3.0 MM
070 A 3122624362 THRUST WASHER
AS REQUIRED
3.05 MM
070 A 3122624462 THRUST WASHER
AS REQUIRED
3.1 MM
070 A 3122623562 THRUST WASHER
AS REQUIRED
3.15 MM
070 A 3122623662 THRUST WASHER
AS REQUIRED
3.2 MM
070 A 3122623762 THRUST WASHER
AS REQUIRED
3.25 MM
090 A 3212611379 GASKET
095 A 3372610120 TRANSMISSION CASE COVER
Repalced by: A 3372610220
095 A 3372610220 TRANSMISSION CASE COVER
105 N 006503058200 SEAL RING
Repalced by: A 0089971146
105 A 0089971146 SEAL RING
110 A 3212600086 THREADED BUSHING
A 3212610031 THREADED BUSHING
115 A 1202610080 GASKET
120 N 915015024000 PLUG
125 A 3122641034 LOCK NUT
130 N 007603022300 SEAL RING
132 A 3122832452 SPACER WASHER
AS REQUIRED
0.15 MM
135 A 3212620862 THRUST WASHER
AS REQUIRED
2.9 MM
135 A 3212620962 THRUST WASHER
AS REQUIRED
3.0 MM
135 A 3212621062 THRUST WASHER
AS REQUIRED
3.1 MM
135 A 3212621162 THRUST WASHER
AS REQUIRED
3.2 MM
135 A 3212621262 THRUST WASHER
AS REQUIRED
3.3 MM
135 A 3212621362 THRUST WASHER
AS REQUIRED
3.4 MM
135 A 3212621462 THRUST WASHER
AS REQUIRED
3.5 MM
135 A 3212621562 THRUST WASHER
AS REQUIRED
3.6 MM
140 A 3122831752 SPACER WASHER
AS REQUIRED
0.05 MM
140 A 3122831052 SPACER WASHER
AS REQUIRED
0.1 MM
140 A 3122831152 SPACER WASHER
AS REQUIRED
0.2 MM
140 A 3122831252 SPACER WASHER
AS REQUIRED
0.4 MM
140 A 3122832152 SPACER WASHER
AS REQUIRED
0.8 MM
145 N 912004008104 LOCK WASHER
REAR COVER TO TRANSMISSION
150 N 000931008123 SCREW
REAR COVER TO TRANSMISSION
155 N 000933008071 SCREW
REAR COVER TO TRANSMISSION
160 N 000931008091 SCREW
REAR COVER TO TRANSMISSION
165 A 3212611479 GASKET
Repalced by: A 3522611180
165 A 3522611180 GASKET
Repalced by: A 3522611680
165 A 3522611680 GASKET
Repalced by: A 3522611980
165 A 3522611980 GASKET
170 A 3212610333 COVER
175 N 000931008057 SCREW
180 N 000137008203 SPRING WASHER
185 A 3212611279 GASKET
Repalced by: A 3212610680
185 A 3212610680 GASKET
A 3222601714 TRANSMISSION CASE COVER
Repalced by: A 3222605914
190 A 3222605914 TRANSMISSION CASE COVER
Repalced by: A 3412600614
190 A 3412600614 TRANSMISSION CASE COVER
195 A 3212610050 BUSHING
200 A 3212610150 BUSHING
205 A 3212610350 BUSHING
210 N 000443020000 EXPANSION PLUG
215 A 3212650250 BUSHING
220 A 3212650150 BUSHING
222 N 000835008007 STUD
225 A 1362650247 INTERLOCK PLUG
Repalced by: A 3142650044
225 A 3142650044 GUIDE PIN
Repalced by: A 3442657044
225 A 3442657044 GUIDE PIN
230 N 000835008008 STUD
235 A 3412657074 PIN
Repalced by: A 3212650474
235 A 3212650474 PIN
DETENT PLATE TO TRANSMISSION CASE TOP COVER
240 N 000125013008 WASHER
DETENT PLATE TO TRANSMISSION CASE TOP COVER
242 N 913004012003 NUT
DETENT PLATE TO TRANSMISSION CASE TOP COVER
TO 341 265 70 74
245 N 000979012001 NUT
DETENT PLATE TO TRANSMISSION CASE TOP COVER
TO 321 265 04 74
247 N 000094003217 COTTER PIN
DETENT PLATE TO TRANSMISSION CASE TOP COVER
TO 321 265 04 74
250 N 000137008203 SPRING WASHER
255 N 000931008057 SCREW
260 N 000931008085 SCREW
265 A 3212611979 GASKET
270 A 3222603214 TRANSMISSION CASE COVER
275 A 3212670025 SLIDING BLOCK
280 N 009045008002 SNAP RING
285 N 001473005012 GROOVED PIN
290 N 000007008221 CYLINDRICAL PIN
291 N 912004008104 LOCK WASHER
SHIFT LEVER TO TRANSMISSION TOP COVER
292 N 000934008000 NUT
SHIFT LEVER TO TRANSMISSION TOP COVER
295 A 1112600058 BREATHER
A 1112600093 OIL STRAINER
A 1112610082 CAP
300 A 1369970830 SCREW PLUG
305 A 3372650007 LEVER
310 N 005402302104 CYLINDRICAL ROLLER
315 N 000433017000 WASHER
320 N 900055017300 LOCK RING
325 A 3212650316 THRUST PIECE
Repalced by: A 3412657016
325 A 3212650416 THRUST PIECE
Repalced by: A 3412657016
325 A 3412657016 THRUST PIECE
330 A 3219931701 SPRING
335 A 3219970103 PLUG
340 A 3212650248 INTERLOCK PIN
Repalced by: A 3212650148
340 A 3212650148 INTERLOCK PIN
345 A 3219930601 SPRING
350 N 915015024000 PLUG
355 A 3212681329 SHIFTING ROD
357 N 006888005006 WOODRUFF KEY
360 A 3212680533 SHIFTING FINGER
Repalced by: A 3942687233
360 A 3942687233 SHIFTING FINGER
365 N 070952020101 LOCK PLATE
Repalced by: A 3229940112
365 A 3229940112 LOCK
370 A 3219900160 NUT
A 3212612179 GASKET
Repalced by: A 3222610080
375 A 3222610080 GASKET
Repalced by: A 3972610180
375 A 3972610180 GASKET
A 3212610533 COVER
Repalced by: A 3222610133
380 A 3222610133 COVER
385 N 912004008104 LOCK WASHER
390 N 000934008000 NUT
395 A 3212600846 PLATE
Repalced by: A 3852600046
395 A 3852600046 PLATE
397 A 3212650350 BUSHING
TO 321 260 08 46
400 A 1369908240 WASHER
TO 385 260 00 46
401 N 900055008003 SPRING WASHER
402 A 1362650272 NUT
TO 385 260 00 46
403 N 000979008000 NUT
404 N 000094002063 COTTER PIN
405 A 3212681229 SHIFTING ROD
405 A 3212601533 SHIFTING ROD
407 N 006888005006 WOODRUFF KEY
410 A 3212650430 SELECTOR LEVER
415 N 070952020101 LOCK PLATE
Repalced by: A 3229940112
415 A 3229940112 LOCK
420 A 3219900160 NUT
425 A 3522610380 GASKET
Repalced by: A 3212612079
425 A 3212612079 GASKET
Repalced by: A 3222610180
425 A 3222610180 GASKET
430 A 3212610433 COVER
Repalced by: A 3222610233
430 A 3222610233 COVER
431 N 912004008104 LOCK WASHER
433 N 000934008000 NUT
435 A 3222601139 SHIFT LEVER
Repalced by: A 3412600339
435 A 0412600639 SHIFT LEVER
Repalced by: A 3412600339
435 A 3412600339 SHIFT LEVER
435 A 3412607239 SHIFT LEVER
440 A 3179930501 SPRING
SHIFT LEVER
440 A 3179930501 SPRING
SHIFT LEVER
445 A 3172670108 SPHERICAL PIECE
Repalced by: A 3022670008
445 A 3022670008 SPHERICAL PIECE
SHIFT LEVER
445 A 3022670008 SPHERICAL PIECE
SHIFT LEVER
450 A 3372680005 COVER
Repalced by: A 3142680005
450 A 3142680005 COVER
Repalced by: A 3082680005
450 A 3082680005 COVER
SHIFT LEVER
450 A 3082680005 COVER
SHIFT LEVER
455 A 3372670096 BOOT
SHIFT LEVER
455 A 3372670096 BOOT
SHIFT LEVER
455 A 3522670196 BOOT
SHIFT LEVER
455 A 3522670196 BOOT
SHIFT LEVER
460 A 3222670096 BOOT
Repalced by: A 3522670396
460 A 3222670296 BOOT
Repalced by: A 3522670396
460 A 3522670396 BOOT
Repalced by: A 3522670096
460 A 3522670296 BOOT
Repalced by: A 3522670096
460 A 3522670096 BOOT
BOOT TO SHIFT CASE
460 A 3522670096 BOOT
BOOT TO SHIFT CASE
460 A 3412677096 BOOT
BOOT TO SHIFT CASE
460 A 3412677096 BOOT
BOOT TO SHIFT CASE
465 N 913021010002 NUT
470 A 3222600040 HANDLE
475 A 3212650805 SHIFTING ROD
1ST SPEED
480 A 3212651805 SHIFTING ROD
2ND AND 3RD SPEED
485 A 3212651905 SHIFTING ROD
4TH AND 5TH SPEED
490 A 3222650305 SHIFTING ROD
REVERSE SPEED
495 A 3222650123 SHIFTING DOG
1ST SPEED
500 A 3212651202 SHIFTING FORK
2ND AND 3RD SPEED
500 A 3442600130 SHIFTING FORK
2ND AND 3RD SPEED
505 A 3212650802 SHIFTING FORK
4TH AND 5TH SPEED
505 A 3212602730 SHIFTING FORK
4TH AND 5TH SPEED
510 A 3212651301 SHIFTING FORK
1ST SPEED
510 A 3442600330 SHIFTING FORK
1ST SPEED
515 A 3212650403 SHIFTING FORK
REVERSE SPEED
515 A 3452600030 SHIFTING FORK
REVERSE SPEED
520 A 3129931001 SPRING
525 N 005401311000 BALL
530 A 3122651036 BRACKET
530 A 3122651236 BRACKET
530 A 3442657036 BRACKET
535 A 3129940332 LOCK
540 N 000933008153 SCREW
545 A 3212640174 PIN
550 A 3222620102 DRIVE SHAFT
550 A 3222620802 DRIVE SHAFT
A 3402620202 DRIVE SHAFT
Repalced by: A 3402620402
550 A 3402620402 DRIVE SHAFT
555 A 3219931201 SPRING
560 A 3212620073 LOCK
A 0009816201 CYLINDR. ROLLER BEARING
Repalced by: A 0019813101
A 0009817101 CYLINDR. ROLLER BEARING
Repalced by: A 0019813101
A 0009817201 CYLINDR. ROLLER BEARING
Repalced by: A 0019813101
565 A 0019813101 CYLINDR. ROLLER BEARING
570 N 005417085001 SNAP RING
AS REQUIRED
1.7 MM
570 A 0009943435 SNAP RING
AS REQUIRED
1.8 MM
570 A 0009942835 SNAP RING
AS REQUIRED
1.9 MM
575 A 3459817327 ANGULAR CONTACT BEARING
575 A 0009812827 ANGULAR CONTACT BEARING
A 0009814327 ANGULAR CONTACT BEARING
Repalced by: A 3459817027
575 A 3459817027 ANGULAR CONTACT BEARING
580 A 3122623162 THRUST WASHER
585 A 3122621172 NUT
A 0029971346 SEAL RING
Repalced by: A 0089970146
590 A 0089970146 SEAL RING
Repalced by: A 0159977647
590 A 0159977647 SEAL RING
590 A 0159977747 SEAL RING
590 A 0179971447 SEAL RING
595 A 0009814312 ROLLER ASSEMBLY
595 A 0009814512 ROLLER ASSEMBLY
595 A 0009814612 ROLLER ASSEMBLY
595 A 3219810012 ROLLER ASSEMBLY
595 A 0009819512 ROLLER ASSEMBLY
595 A 0009819612 ROLLER ASSEMBLY
A 3222620005 MAIN SHAFT
Repalced by: A 3222620505
600 A 3222620505 MAIN SHAFT
603 A 3129931701 SPRING
A 3212620374 PIN
Repalced by: A 3852621074
606 A 3852621074 PIN
609 A 3212622162 THRUST WASHER
Repalced by: A 3212623862
609 A 3212623862 THRUST WASHER
AS REQUIRED
6.9 MM
A 3212622062 THRUST WASHER
Repalced by: A 3212623762
609 A 3212623762 THRUST WASHER
AS REQUIRED
7.0 MM
A 3212621962 THRUST WASHER
Repalced by: A 3212623662
609 A 3212623662 THRUST WASHER
AS REQUIRED
7.1 MM
A 3212621862 THRUST WASHER
Repalced by: A 3212623562
609 A 3212623562 THRUST WASHER
AS REQUIRED
7.2 MM
A 3212621762 THRUST WASHER
Repalced by: A 3212623462
609 A 3212623462 THRUST WASHER
AS REQUIRED
7.3 MM
A 3212620462 THRUST WASHER
Repalced by: A 3212623962
609 A 3212623962 THRUST WASHER
AS REQUIRED
7.4 MM
A 3212622862 THRUST WASHER
Repalced by: A 3212624662
609 A 3212624662 THRUST WASHER
AS REQUIRED
7.45 MM
A 3212620562 THRUST WASHER
Repalced by: A 3212624062
609 A 3212624062 THRUST WASHER
AS REQUIRED
7.5 MM
A 3212622962 THRUST WASHER
Repalced by: A 3212624762
609 A 3212624762 THRUST WASHER
AS REQUIRED
7.55 MM
A 3212620662 THRUST WASHER
Repalced by: A 3212624162
609 A 3212624162 THRUST WASHER
AS REQUIRED
7.6 MM
A 3212623062 THRUST WASHER
Repalced by: A 3212624862
609 A 3212624862 THRUST WASHER
AS REQUIRED
7.65 MM
A 3212620762 THRUST WASHER
Repalced by: A 3212624262
609 A 3212624262 THRUST WASHER
AS REQUIRED
7.7 MM
A 3212622562 THRUST WASHER
Repalced by: A 3212624362
609 A 3212624362 THRUST WASHER
AS REQUIRED
7.8 MM
A 3212622662 THRUST WASHER
Repalced by: A 3212624462
609 A 3212624462 THRUST WASHER
AS REQUIRED
7.9 MM
A 3212622762 THRUST WASHER
Repalced by: A 3212624562
609 A 3212624562 THRUST WASHER
AS REQUIRED
8.0 MM
612 A 3222620034 SYNCHRONIZER RING
5TH SPEED
612 A 3402620034 SYNCHRONIZER RING
5TH SPEED
A 3222600645 SYNCHRONIZER BODY
615 A 3212621835 SYNCHRONIZER BODY
4TH AND 5TH SPEED
618 A 3219930701 SPRING
621 A 3212620774 PIN
624 A 3212621040 FOLLOWER
627 A 3222620137 SYNCHRONIZER CONE
A 3212600469 SPRING
633 A 3212620823 SLIDING COLLAR
A 3222600244 GEAR
Repalced by: A 3222601744
636 A 3222601744 GEAR
4TH SPEED
A 3229810612 ROLLER ASSEMBLY
Repalced by: A 3529810012
A 3229810812 ROLLER ASSEMBLY
Repalced by: A 3529810012
639 A 3529810012 ROLLER ASSEMBLY
A 0009819112 ROLLER ASSEMBLY
Repalced by: A 3459817312
640 A 3459817312 ROLLER ASSEMBLY
642 A 3222624050 BUSHING
AS REQUIRED
44.5 MM
642 A 3222624150 BUSHING
AS REQUIRED
44.6 MM
A 3229810512 ROLLER ASSEMBLY
Repalced by: A 3529810112
A 3229810712 ROLLER ASSEMBLY
Repalced by: A 3529810112
645 A 3529810112 ROLLER ASSEMBLY
646 A 3459817212 ROLLER ASSEMBLY
646 A 0019819810 NEEDLE BEARING
2ND AND 3RD SPEED
648 A 3222600644 GEAR
Repalced by: A 3412600044
648 A 3412600044 GEAR
3RD SPEED
T YYYYYYYYYYYY PART NAME MISSING
IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
322 260 24 44
648 A 3512620013 GEAR
3RD SPEED
649 A 3412620013 GEAR
3RD SPEED
650 A 3222600545 SYNCHRONIZER BODY
2ND AND 3RD SPEED
651 A 3222620435 SYNCHRONIZER BODY
2ND AND 3RD SPEED
654 A 3219930701 SPRING
657 A 3212620774 PIN
660 A 3212621040 FOLLOWER
663 A 3222620137 SYNCHRONIZER CONE
A 3212600469 SPRING
669 A 3212620823 SLIDING COLLAR
A 3229810512 ROLLER ASSEMBLY
Repalced by: A 3529810112
A 3229810712 ROLLER ASSEMBLY
Repalced by: A 3529810112
672 A 3529810112 ROLLER ASSEMBLY
673 A 3459817212 ROLLER ASSEMBLY
675 A 3222620112 GEAR
2ND SPEED
675 A 3222620412 GEAR
2ND SPEED
A 3222600625 GEAR
MAIN SHAFT
678 A 3222630333 REVERSE IDLER GEAR
REVERSE SPEED
681 A 3219930701 SPRING
684 A 3212620674 PIN
687 A 3212620940 FOLLOWER
A 3212620376 BALL SOCKET
Repalced by: A 3142620076
A 3142620076 BALL SOCKET
693 A 3222620137 SYNCHRONIZER CONE
A 3212600469 SPRING
699 A 3212620723 SLIDING COLLAR
702 A 3222621150 BUSHING
AS REQUIRED
44.2 MM
702 A 3222625650 BUSHING
AS REQUIRED
44.2 MM
702 A 3222621250 BUSHING
AS REQUIRED
44.3 MM
702 A 3222625750 BUSHING
AS REQUIRED
44.3 MM
702 A 3222621350 BUSHING
AS REQUIRED
44.4 MM
702 A 3222625850 BUSHING
AS REQUIRED
44.4 MM
702 A 3222621450 BUSHING
AS REQUIRED
44.5 MM
702 A 3222625950 BUSHING
AS REQUIRED
44.5 MM
702 A 3222621550 BUSHING
AS REQUIRED
44.6 MM
702 A 3222626050 BUSHING
AS REQUIRED
44.6 MM
702 A 3222621650 BUSHING
AS REQUIRED
44.7 MM
702 A 3222626150 BUSHING
AS REQUIRED
44.7 MM
702 A 3222621750 BUSHING
AS REQUIRED
44.8 MM
702 A 3222626250 BUSHING
AS REQUIRED
44.8 MM
702 A 3222621850 BUSHING
AS REQUIRED
44.9 MM
702 A 3222626350 BUSHING
AS REQUIRED
44.9 MM
705 N 005402004203 CYLINDRICAL ROLLER
708 A 3222620211 GEAR
1ST SPEED
708 A 3222620511 GEAR
1ST SPEED
711 A 0009811201 CYLINDR. ROLLER BEARING
711 A 3459817001 CYLINDR. ROLLER BEARING
711 A 0049815101 CYLINDR. ROLLER BEARING
714 A 3219940040 SNAP RING
AS REQUIRED
2.68 MM
714 A 3219940140 SNAP RING
AS REQUIRED
2.73 MM
714 A 3219940240 SNAP RING
AS REQUIRED
2.78 MM
714 A 3219940340 SNAP RING
AS REQUIRED
2.85 MM
714 A 3219940440 SNAP RING
AS REQUIRED
2.88 MM
714 A 3219940540 SNAP RING
AS REQUIRED
2.93 MM
717 A 3459817227 ANGULAR CONTACT BEARING
717 A 0009812927 ANGULAR CONTACT BEARING
A 0009814227 ANGULAR CONTACT BEARING
Repalced by: A 3459817127
717 A 3459817127 ANGULAR CONTACT BEARING
A 3212640630 DRIVE GEAR
Repalced by: A 3522640130
720 A 3522640130 DRIVE GEAR
A 3212640532 SHAFT
Repalced by: A 3142640032
723 A 3142640032 SHAFT
726 A 3212640631 DRIVE GEAR
729 A 3222620045 FLANGE
732 A 3222620072 NUT
735 A 3222630202 COUNTERSHAFT
735 A 3222630302 COUNTERSHAFT
738 A 3222630313 GEAR
2ND AND 3RD SPEED
738 A 3222630513 GEAR
2ND AND 3RD SPEED
A 3222630314 GEAR
Repalced by: A 3222630514
741 A 3222630514 GEAR
4TH SPEED
744 A 3222630010 GEAR
744 A 3402630010 GEAR
747 N 900055052300 LOCK RING
750 A 0019813105 TAPERED ROLLER BEARING
750 A 0019815005 TAPERED ROLLER BEARING
750 A 0069814305 TAPERED ROLLER BEARING
750 A 0069815305 TAPERED ROLLER BEARING
753 A 3212650208 LEVER
756 A 3212650449 SLIDE
756 A 3142650349 SLIDE
A 3212650074 PIN
Repalced by: A 3022650074
759 A 3022650074 PIN
762 A 3212650050 BUSHING
765 N 000127010205 LOCK WASHER
768 N 000934010000 NUT
A 3222600325 GEAR
Repalced by: A 3222600725
771 A 3222600725 GEAR
774 A 3212630430 REVERSE IDLER SHAFT
Repalced by: A 3412637030
774 A 3412637030 REVERSE IDLER SHAFT
A 3522600605 P.T.O.
Repalced by: A 3522600705
777 A 3522600705 P.T.O.
A 3522640101 HOUSING
Repalced by: A 3522640201
780 A 3522640201 HOUSING
781 A 3525841124 UNIT IDENTIFICATION PLATE
782 N 001476003007 GROOVED NAIL
783 N 006503016100 SEAL RING
786 A 3212640125 SHIFTING ROD
789 A 3212640140 LOCK-OUT
792 A 3122641071 SCREW
794 N 000433016000 WASHER
795 A 1212630123 COLLAR
798 A 3222840148 INTERLOCK PIN
801 A 3229931701 SPRING
804 A 3229970330 SCREW PLUG
807 N 007603014103 SEAL RING
810 A 3222640106 DRIVE SHAFT
813 A 3222640023 SLIDING COLLAR
816 N 000625506007 GROOVED BALL BEARING
819 A 0009940034 SNAP RING
822 N 900055035301 LOCK RING
825 A 0019810010 NEEDLE BEARING
828 N 000472062000 LOCK RING
831 A 3222640079 GASKET
834 A 3522640011 COVER
837 N 006504035100 RADIAL SEAL RING
840 N 912004008104 LOCK WASHER
843 N 000933008153 SCREW
846 N 006885008021 KEY
849 N 000937024001 NUT
850 N 000094005036 COTTER PIN
852 A 3212600237 LEVER
855 N 071803013205 BALL PIVOT
858 N 000931008045 SCREW
861 N 912004008104 LOCK WASHER
864 N 000934008000 NUT
867 N 071805013202 BALL SOCKET
870 N 071805013302 SNAP RING
873 N 071805013403 CIRCLIP
876 N 000934008000 NUT
879 N 900331008132 PULL ROD
882 N 071752008000 YOKE
A 0009910507 PIN
Repalced by: N 918001008000
885 N 918001008000 PIN
886 N 900055008003 SPRING WASHER
888 A 3212640174 PIN
888 A 3212640074 PIN
SHIFT LEVER TO P.T.O.
891 A 3129900148 WASHER
SHIFT LEVER TO P.T.O.
894 A 3222640124 SHIFT LEVER
P.T.O.
897 N 071412008300 GREASE NIPPLE
900 N 000433015000 WASHER
SHIFT LEVER TO P.T.O.
902 N 000471015000 LOCK RING
SHIFT LEVER TO P.T.O.
903 N 001444008224 PIN
PULL ROD TO SHIFT LEVER
904 N 000433008400 WASHER
PULL ROD TO SHIFT LEVER
905 N 000094002058 COTTER PIN
PULL ROD TO SHIFT LEVER
906 A 3222640096 BOOT
906 A 0002640496 BOOT
A 3212611479 GASKET
Repalced by: A 3522611180
A 3522610580 GASKET
Repalced by: A 3522611180
909 A 3522611180 GASKET
Repalced by: A 3522611680
909 A 3522611680 GASKET
Repalced by: A 3522611980
909 A 3522611980 GASKET
912 N 912004008104 LOCK WASHER
915 N 000931008057 SCREW
917 A 3125620145 FLANGE
918 A 3222601705 P.T.O.
919 A 0002640256 SCREW PLUG
920 A 0039901740 WASHER
921 A 0049938201 SPRING
922 A 0002640216 PAWL
923 N 000137008203 SPRING WASHER
924 A 0049902701 SCREW
924 A 0049902801 SCREW
925 A 3122641071 SCREW
926 N 000931008403 SCREW
M 8X110 MM
927 N 000931008057 SCREW
M 8X40 MM
928 A 0002643401 HOUSING
TRANSMISSION CASE
929 A 0002640055 PLUG
SHIFTING SHAFT
930 A 0069979548 SEAL RING
SHIFTING SHAFT
931 A 1212630123 COLLAR
SHIFTING FORK
932 A 3222640026 SHIFTING FORK
933 N 006503016100 SEAL RING
934 A 0002643218 SHAFT
(SHIFTING SHAFT)
935 A 0002643780 GASKET
TRANSMISSION CASE
936 A 0002643880 GASKET
937 A 0002642521 GEAR
P.T.O.
938 A 0002642611 COVER
BEARING COVER TO TRANSMISSION CASE
939 N 000933008036 SCREW
BEARING COVER TO TRANSMISSION CASE
M 8X20 MM
940 N 000933008023 SCREW
COVER TO TRANSMISSION CASE
941 A 0002640473 LOCK
INTERMEDIATE SHAFT
M 8X16 MM
942 A 0002642905 INTERMEDIATE SHAFT
943 A 3212640318 SHAFT
INTERMEDIATE SHAFT
944 A 3222640033 CONNECTOR
945 A 3212640187 RING
946 A 0002642706 DRIVE SHAFT
947 A 0005620045 FLANGE
P.T.O.
948 N 000937024001 NUT
FLANGE TO SHAFT
949 N 006885008021 KEY
FLANGE TO SHAFT
950 A 0079970847 SEAL RING
951 A 0002640312 BEARING CAP
952 A 3212640123 SLIDING COLLAR
953 A 0002645210 COVER
BEARING COVER TO TRANSMISSION CASE
954 A 3212640379 GASKET
BEARING COVER TO TRANSMISSION CASE
955 N 000931008156 SCREW
M 8X155 MM
A 3522610580 GASKET
Repalced by: A 3522611180
956 A 3522611180 GASKET
Repalced by: A 3522611680
956 A 3522611680 GASKET
Repalced by: A 3522611980
956 A 3522611980 GASKET
957 A 3222610279 GASKET
958 N 000931008328 SCREW
M 8X130 MM
958 N 000931008138 SCREW
M 8X110 MM
958 N 000931008129 SCREW
M 8X95 MM
958 N 000931008156 SCREW
M 8X155 MM
959 A 3212600337 LEVER
960 A 3212640219 LEVER
961 N 071803013205 BALL PIVOT
962 N 000931008045 SCREW
963 N 912004008104 LOCK WASHER
964 N 000934008000 NUT
965 N 900331008232 PULL ROD
966 N 000934008000 NUT
967 N 071752008000 YOKE
968 N 071805013202 BALL SOCKET
969 N 071805013302 SNAP RING
970 N 000127014201 LOCK WASHER
TRANSMISSION TO BELL HOUSING
971 N 000933014050 SCREW
TRANSMISSION TO BELL HOUSING
972 H 993415860026 REPAIR KIT
Repalced by: A 3512600068
972 A 3512600068 GASKET KIT
A 3452600068 GASKET KIT
Repalced by: A 3452604040
A 3452604040 GASKET KIT
TRANSMISSION
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
