Transporto priemonė: LPKF 808,809; VIN numerio dalis: 316083
Grupė: 52 CHASSIS SHEET METAL
| # | Kodas | Pavadinimas |
|---|---|---|

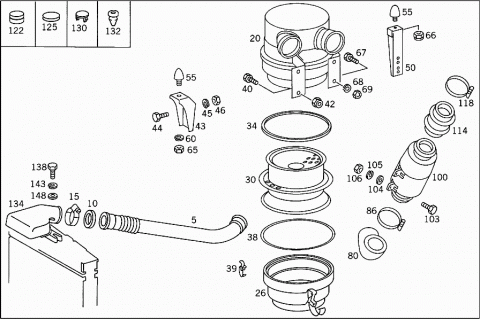

| 005 | A 0000943182 | HOSE |
| Repalced by: A 3145280508 | ||
| 005 | A 3145280508 | AIR INTAKE PIPE |
| TO OIL BATH AIR CLEANER | ||
| 010 | A 3145280060 | SEAL RING |
| TO OIL BATH AIR CLEANER | ||
| 015 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 015 | N 000000000674 | CLAMP |
| AIR INTAKE PIPE | ||
| 020 | A 0030942202 | AIR CLEANER |
| Repalced by: A 0110940402 | ||
| 020 | A 0110940402 | AIR CLEANER |
| 026 | A 0000944903 | FILTER BOWL |
| LOWER PART | ||
| 030 | A 0000949504 | FILTER ELEMENT |
| 034 | A 0000949180 | GASKET |
| INSIDE | ||
| 038 | A 0000949280 | GASKET |
| OUTSIDE | ||
| 039 | A 0000941255 | FASTENER |
| 040 | N 000933010105 | SCREW |
| OIL BATH AIR CLEANER TO FRAME | ||
| 042 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 042 | N 910113010000 | NUT |
| OIL BATH AIR CLEANER TO FRAME | ||
| 043 | A 3163130225 | CONSOLE |
| OIL BATH AIR CLEANER TO FRAME | ||
| 044 | N 000933010128 | SCREW |
| OIL BATH AIR CLEANER TO FRAME | ||
| 045 | N 912004010102 | LOCK WASHER |
| OIL BATH AIR CLEANER TO FRAME | ||
| 046 | N 000934010014 | NUT |
| OIL BATH AIR CLEANER TO FRAME | ||
| A 3140940541 | BRACKET | |
| AIR CLEANER | ||
| A 3140940941 | BRACKET | |
| AIR CLEANER | ||
| 050 | A 3143170040 | BRACKET |
| AIR CLEANER | ||
| 055 | A 3523170012 | RUBBER BUFFER |
| OIL BATH AIR CLEANER MOUNTING | ||
| 055 | A 3523170012 | RUBBER BUFFER |
| OIL BATH AIR CLEANER MOUNTING | ||
| 060 | N 912004008102 | LOCK WASHER |
| OIL BATH AIR CLEANER MOUNTING | ||
| 065 | N 304032008006 | NUT |
| OIL BATH AIR CLEANER MOUNTING | ||
| 066 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 066 | N 913004008001 | NUT |
| OIL BATH AIR CLEANER MOUNTING | ||
| 067 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 067 | N 304017008034 | SCREW |
| OIL BATH AIR CLEANER MOUNTING | ||
| 067 | N 000933010054 | SCREW |
| OIL BATH AIR CLEANER MOUNTING | ||
| 067 | N 000933010105 | SCREW |
| OIL BATH AIR CLEANER MOUNTING | ||
| 067 | N 000933010105 | SCREW |
| OIL BATH AIR CLEANER MOUNTING | ||
| 068 | N 912004008102 | LOCK WASHER |
| OIL BATH AIR CLEANER MOUNTING | ||
| 068 | N 912004010102 | LOCK WASHER |
| OIL BATH AIR CLEANER MOUNTING | ||
| 069 | N 304032008006 | NUT |
| OIL BATH AIR CLEANER MOUNTING | ||
| 069 | N 000934010014 | NUT |
| OIL BATH AIR CLEANER MOUNTING | ||
| 069 | N 913002010001 | NUT |
| OIL BATH AIR CLEANER MOUNTING | ||
| 080 | N 900272070002 | HOSE |
| OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL | ||
| 080 | A 3140940082 | HOSE |
| OIL BATH AIR CLEANER TO BRACKET AT FIRE WALL | ||
| A 3140940182 | HOSE | |
| Repalced by: A 3140940382 | ||
| A 3140940382 | HOSE | |
| Repalced by: A 3140941082 | ||
| 080 | A 3140941082 | HOSE |
| INTAKE MUFFLER TO AIR CLEANER | ||
| 086 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 086 | N 000000000674 | CLAMP |
| INTAKE MUFFLER TO AIR CLEANER | ||
| 086 | N 000000000674 | CLAMP |
| INTAKE MUFFLER | ||
| 100 | A 3140900004 | AIR CLEANER |
| Repalced by: A 3140900204 | ||
| 100 | A 3140900204 | AIR CLEANER |
| INTAKE MUFFLER | ||
| 100 | A 3095200001 | AIR INTAKE PIPE |
| Repalced by: A 3095280608 | ||
| 100 | A 3095280608 | AIR INTAKE PIPE |
| INTAKE MUFFLER | ||
| 100 | A 3095280908 | AIR INTAKE PIPE |
| INTAKE MUFFLER | ||
| 103 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 103 | N 304017008021 | SCREW |
| INTAKE MUFFLER TO BRACKET | ||
| 104 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 104 | N 000125008443 | WASHER |
| INTAKE MUFFLER TO BRACKET | ||
| 105 | N 912004008102 | LOCK WASHER |
| INTAKE MUFFLER TO BRACKET | ||
| 106 | N 304032008006 | NUT |
| INTAKE MUFFLER TO BRACKET | ||
| 114 | A 3140940091 | BOOT |
| Repalced by: A 3140940291 | ||
| 114 | A 3140940291 | BOOT |
| INTAKE PIPE TO CAB | ||
| 114 | A 3140940282 | HOSE |
| Repalced by: A 3140940882 | ||
| 114 | A 3140940882 | HOSE |
| FROM AIR INTAKE PIPE TO ENGINE | ||
| 118 | N 916017070000 | CLAMP |
| Repalced by: N 000000000674 | ||
| 118 | N 000000000674 | CLAMP |
| INTAKE MUFFLER TO AIR CLEANER | ||
| 70-90 MM | ||
| 122 | A 0009870244 | EXPANSION PLUG |
| TO PLUG THE FREE HOLES IN TOEBOARD | ||
| 122 | A 0009870444 | EXPANSION PLUG |
| TO PLUG THE FREE HOLES IN TOEBOARD | ||
| 125 | A 0009978881 | GROMMET |
| DUMPER CONTROL | ||
| 130 | A 1119871115 | PLUG |
| TO PLUG THE FREE HOLES IN TOEBOARD | ||
| 132 | A 3226890030 | CAP |
| P.T.O. | ||
| 134 | A 3145000055 | FAN SHROUD |
| AIR INTAKE | ||
| 134 | A 3145000055 | FAN SHROUD |
| AIR INTAKE | ||
| 134 | A 3145000055 | FAN SHROUD |
| AIR INTAKE | ||
| 134 | A 3145050855 | FAN SHROUD |
| AIR INTAKE | ||
| 138 | N 000933005058 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 143 | N 912004005103 | LOCK WASHER |
| AS REQUIRED | ||
| 148 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 148 | N 000433005304 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

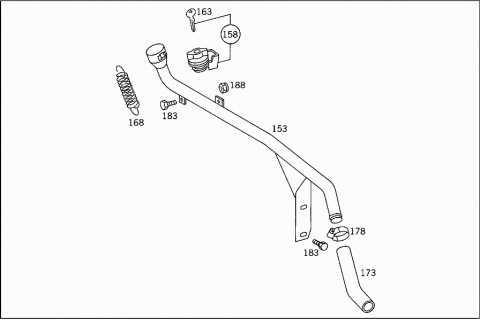

| OIL REFILLING | ||
| 153 | A 3520108964 | OIL FILLER NECK |
| 158 | A 3520100085 | PLUG |
| Repalced by: A 3520100285 | ||
| 158 | A 3520100285 | PLUG |
| 163 | A 3524710093 | KEY |
| WITHOUT LOCK UNDEFINED | ||
| TO 352 010 00 85 | ||
| 168 | A 3149931910 | SPRING |
| 173 | A 3520182482 | HOSE |
| OIL FILLING | ||
| 178 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 178 | N 000000000670 | CLAMP |
| OIL FILLING | ||
| 183 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 183 | N 304017008016 | SCREW |
| OIL DIPSTICK TO OIL FILLER PIPE | ||
| 183 | N 000933010128 | SCREW |
| OIL FILLER PIPE TO CONSOLE | ||
| 188 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 188 | N 913004008001 | NUT |
| OIL DIPSTICK TO OIL FILLER PIPE | ||
