Transporto priemonė: LPKF 808,809; VIN numerio dalis: 316083

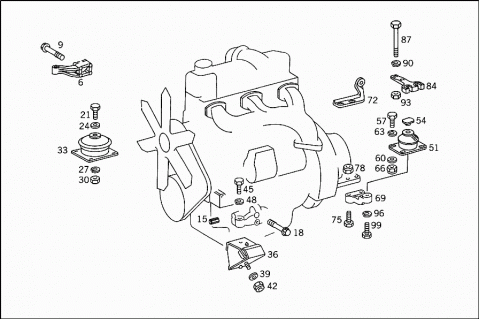

Grupė: 24 ENGINE SUSPENSION - 001 RUBBER MOUNTING TO ENGINE SUPPORT
| # | Kodas | Pavadinimas |
|---|---|---|
| 006 | A 3142231604 | ENGINE SUPPORT |
| FRONT RIGHT | ||
| 009 | A 3149900601 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| A 3142200411 | SUPPORTING ARM | |
| FRONT LEFT | ||
| 015 | A 3141550450 | BUSHING |
| 018 | A 3149900501 | SCREW |
| Repalced by: N 900170012022 | ||
| 018 | N 900170012022 | SCREW |
| Repalced by: N 914126012011 | ||
| 018 | N 914126012011 | SCREW |
| SUPPORTING ARM TO ENGINE | ||
| 021 | N 000960014180 | SCREW |
| Repalced by: N 308765014009 | ||
| 021 | N 308765014009 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 024 | A 3149900440 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 024 | N 000433015005 | WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 027 | N 912004014100 | LOCK WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 030 | N 000934014020 | NUT |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 033 | A 3142230112 | RUBBER MOUNTING |
| FRONT | ||
| 036 | A 3102410313 | RUBBER MOUNTING |
| FRONT | ||
| 039 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 039 | N 000125017016 | WASHER |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 042 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 042 | N 910113016002 | NUT |
| RUBBER MOUNTING TO ENGINE CROSS MEMBER | ||
| 045 | N 000961016105 | SCREW |
| Repalced by: N 308676016004 | ||
| 045 | N 308676016004 | SCREW |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 048 | N 912004016100 | LOCK WASHER |
| SUPPORTING ARM TO FRONT RUBBER MOUNTING | ||
| 051 | A 3142230012 | RUBBER MOUNTING |
| REAR | ||
| 054 | N 915042015000 | PLUG |
| RUBBER MOUNT | ||
| 15 MM | ||
| 057 | N 000933010105 | SCREW |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 060 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 060 | N 000125010532 | WASHER |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 063 | N 912004010102 | LOCK WASHER |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 066 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 066 | N 910113010000 | NUT |
| RUBBER MOUNTING TO ENGINE REAR SUPPORT | ||
| 069 | A 3142231004 | ENGINE SUPPORT |
| REAR | ||
| 072 | A 3142930136 | BEARING BRACKET |
| REAR | ||
| 075 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 075 | N 308676014013 | SCREW |
| BEARING BRACKET TO BELL HOUSING | ||
| 075 | N 000960014141 | SCREW |
| BEARING BRACKET TO BELL HOUSING | ||
| 078 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 078 | N 910113014000 | NUT |
| BEARING BRACKET TO BELL HOUSING | ||
| 084 | A 3182930336 | BEARING BRACKET |
| REAR | ||
| 087 | N 000960014251 | SCREW |
| BEARING BRACKET TO BELL HOUSING | ||
| M14X85 | ||
| 087 | N 308676014002 | SCREW |
| BEARING BRACKET TO BELL HOUSING | ||
| M14X80 | ||
| 087 | N 000960014244 | SCREW |
| BEARING BRACKET TO BELL HOUSING | ||
| M14X65 | ||
| 090 | N 912004014100 | LOCK WASHER |
| BEARING BRACKET TO BELL HOUSING | ||
| 093 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 093 | N 308673014001 | NUT |
| BEARING BRACKET TO BELL HOUSING | ||
| 096 | N 912004014100 | LOCK WASHER |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
| 099 | N 000961016097 | SCREW |
| Repalced by: N 308676016005 | ||
| 099 | N 308676016005 | SCREW |
| RUBBER MOUNTING TO SUPPORTING ARM | ||
