Transporto priemonė: LPKF 808,809; VIN numerio dalis: 316083

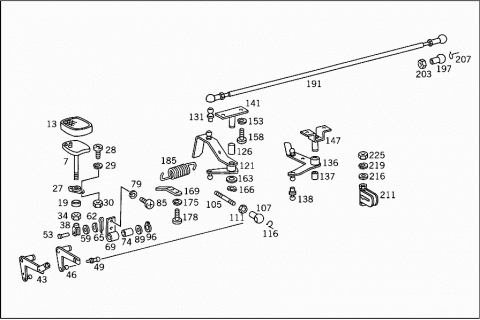

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3144300618 | BRAKE PEDAL |
| EXHAUST BRAKE | ||
| 013 | A 3203015082 | PAD |
| EXHAUST BRAKE | ||
| 019 | A 3524340123 | GUIDE |
| 027 | A 3524340140 | BRACKET |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 028 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 028 | N 000000001145 | SCREW |
| BRACKET TO CAB FLOOR | ||
| 029 | N 912004006102 | LOCK WASHER |
| BRACKET TO CAB FLOOR | ||
| 030 | N 000934006007 | NUT |
| BRACKET TO CAB FLOOR | ||
| 034 | N 304032008006 | NUT |
| BRACKET TO CAB FLOOR | ||
| 038 | N 071752008002 | YOKE |
| YOKE TO INTERMEDIATE LEVER | ||
| A 3144301023 | LEVER | |
| Repalced by: A 3104300023 | ||
| 043 | A 3104300023 | LEVER |
| EXHAUST BRAKE | ||
| 046 | A 3144300852 | LEVER |
| EXHAUST BRAKE | ||
| 049 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 049 | A 3129910120 | BALL PIVOT |
| 053 | N 001434008038 | PIN |
| YOKE TO INTERMEDIATE LEVER | ||
| 059 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 059 | N 000125008443 | WASHER |
| YOKE TO INTERMEDIATE LEVER | ||
| 062 | N 900055008002 | SPRING WASHER |
| YOKE TO INTERMEDIATE LEVER | ||
| 065 | N 000094002059 | COTTER PIN |
| 069 | A 3144300155 | GUIDE |
| INTERMEDIATE LEVER | ||
| 074 | A 3144340150 | BUSHING |
| 079 | N 912004006102 | LOCK WASHER |
| LEVER TO GUIDE TUBE | ||
| 085 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 085 | N 000000001145 | SCREW |
| LEVER TO GUIDE TUBE | ||
| 089 | N 000988012006 | FITTED WASHER |
| LEVER TO GUIDE TUBE | ||
| 096 | N 000471012001 | LOCK RING |
| LEVER TO GUIDE TUBE | ||
| A 3144301592 | ROD | |
| Repalced by: N 900331006311 | ||
| N 900331006311 | PULL ROD | |
| Repalced by: N 900331006615 | ||
| 105 | N 900331006615 | PULL ROD |
| A 3144301892 | ROD | |
| Repalced by: N 900331006315 | ||
| N 900331006315 | PULL ROD | |
| Repalced by: N 900331006619 | ||
| 105 | N 900331006619 | PULL ROD |
| EXHAUST BRAKE CONTROL | ||
| 107 | N 071805010204 | BALL SOCKET |
| EXHAUST BRAKE CONTROL | ||
| 111 | N 000934006007 | NUT |
| EXHAUST BRAKE CONTROL | ||
| 116 | N 071805010403 | SECURING CLIP |
| EXHAUST BRAKE CONTROL | ||
| 121 | A 3144300723 | LEVER |
| (DOUBLE LEVER) | ||
| 121 | A 3144301323 | LEVER |
| (DOUBLE LEVER) | ||
| 126 | A 3144340050 | BUSHING |
| 131 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 131 | A 3129910120 | BALL PIVOT |
| 136 | A 3144300252 | LEVER |
| (DOUBLE LEVER) | ||
| 136 | A 3144301052 | LEVER |
| (DOUBLE LEVER) | ||
| 137 | A 3144340150 | BUSHING |
| 138 | N 071803010209 | BALL PIVOT |
| Repalced by: A 3129910120 | ||
| 138 | A 3129910120 | BALL PIVOT |
| 141 | A 3144301038 | BEARING |
| DOUBLE LEVER | ||
| 147 | A 3143000640 | BRACKET |
| DOUBLE LEVER | ||
| 153 | N 912004008102 | LOCK WASHER |
| DOUBLE LEVER TO BRACKET | ||
| 158 | N 007985008142 | SCREW |
| DOUBLE LEVER TO BRACKET | ||
| 163 | N 000988012006 | FITTED WASHER |
| DOUBLE LEVER TO BRACKET | ||
| 163 | N 000988012009 | FITTED WASHER |
| DOUBLE LEVER TO BRACKET | ||
| 166 | N 000471012001 | LOCK RING |
| DOUBLE LEVER TO BRACKET | ||
| 169 | A 3144340940 | BRACKET |
| RELEASE SPRING | ||
| 175 | N 912004006102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 178 | N 007985006157 | SCREW |
| Repalced by: N 000000001145 | ||
| 178 | N 000000001145 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 185 | A 3149930110 | SPRING |
| (RELEASE SPRING) | ||
| 191 | A 3144301792 | ROD |
| 191 | A 3144302592 | ROD |
| Repalced by: N 900331006618 | ||
| N 900331006618 | PULL ROD | |
| 191 | A 3144302092 | ROD |
| 191 | A 3144302792 | ROD |
| 197 | N 071805010204 | BALL SOCKET |
| 203 | N 000934010014 | NUT |
| 207 | N 071805010403 | SECURING CLIP |
| 211 | A 3144300147 | STOP |
| EXHAUST BRAKE | ||
| 216 | N 000125006407 | WASHER |
| 219 | N 912004006102 | LOCK WASHER |
| 225 | N 000934006007 | NUT |
| A 3404303905 | RESERVOIR | |
