Transporto priemonė: LPKF 808,809; VIN numerio dalis: 316083

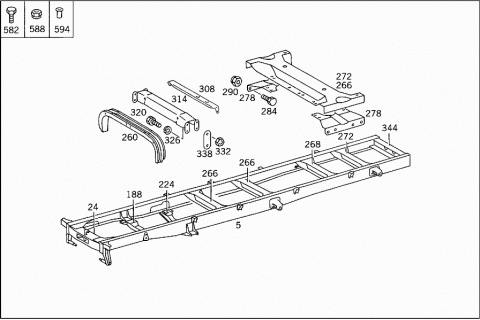

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3163100201 | FRAME | |
| Repalced by: A 3163101701 | ||
| 005 | A 3163101701 | FRAME |
| LESS SPRING BRACKET | ||
| 005 | A 3163103301 | FRAME |
| A 3163100301 | FRAME | |
| Repalced by: A 3163101801 | ||
| 005 | A 3163101801 | FRAME |
| LESS SPRING BRACKET | ||
| 005 | A 3163103401 | FRAME |
| A 3163100401 | FRAME | |
| Repalced by: A 3163101901 | ||
| 005 | A 3163101901 | FRAME |
| LESS SPRING BRACKET | ||
| 005 | A 3163103201 | FRAME |
| 005 | A 3163105001 | FRAME |
| 005 | A 3163102001 | FRAME |
| LESS SPRING BRACKET | ||
| 005 | A 3163103501 | FRAME |
| 024 | A 3163120101 | CROSS MEMBER |
| FRONT | ||
| 030 | A 3163120087 | GUSSET PLATE |
| LEFT TOP | ||
| 036 | A 3163120987 | GUSSET PLATE |
| TOP AND BOTTOM | ||
| 042 | A 3163120287 | GUSSET PLATE |
| LEFT BOTTOM | ||
| 048 | A 3163120187 | GUSSET PLATE |
| RIGHT TOP | ||
| 056 | A 3163120887 | GUSSET PLATE |
| TOP AND BOTTOM | ||
| 062 | A 3163120387 | GUSSET PLATE |
| RIGHT BOTTOM | ||
| 068 | A 3143134125 | CONSOLE |
| BUMPER AT TORSION BAR | ||
| 074 | A 3145250039 | BRACKET |
| BUMPER AT TORSION BAR | ||
| 074 | A 3145250239 | BRACKET |
| BUMPER,LEFT | ||
| 074 | A 3145250339 | BRACKET |
| BUMPER,RIGHT | ||
| 080 | N 000933010105 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 080 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 086 | N 912004010102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 092 | N 000934010014 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 092 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 092 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 098 | A 3143220201 | FRONT SPRING BRACKET |
| FRONT | ||
| 104 | N 000960012357 | SCREW |
| Repalced by: N 000961012184 | ||
| 104 | N 000961012184 | SCREW |
| Repalced by: N 308676012018 | ||
| 104 | N 308676012018 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| M12X65 | ||
| 104 | N 000961012094 | SCREW |
| Repalced by: N 308676012013 | ||
| 104 | N 308676012013 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| M12X30 | ||
| 110 | N 000934012022 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 116 | A 3183200370 | REAR SUBFRAME |
| FRONT | ||
| A 3183220140 | BRACKET | |
| 122 | N 000961012108 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 122 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 122 | N 304017010002 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| 128 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 128 | N 007349013005 | WASHER |
| SPRING BRACKET TO SIDE MEMBER | ||
| 134 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 134 | N 910113012003 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 134 | N 913002010001 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 140 | A 3143150206 | COUPLING PIN |
| Repalced by: A 3143150406 | ||
| 140 | A 3143150406 | COUPLING PIN |
| FRONT | ||
| 140 | A 3143150406 | COUPLING PIN |
| FRONT | ||
| 146 | A 3143150173 | LOCK |
| COUPLING PIN | ||
| 152 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 152 | N 304017008021 | SCREW |
| LOCK SPRING TO CROSS MEMBER | ||
| 158 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 158 | N 000125008443 | WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 164 | N 912004008102 | LOCK WASHER |
| LOCK SPRING TO CROSS MEMBER | ||
| 170 | N 304032008006 | NUT |
| LOCK SPRING TO CROSS MEMBER | ||
| 176 | A 3143110260 | REINFORCEMENT |
| AT SIDE MEMBER | ||
| 182 | A 3163120041 | ANGLE |
| AT SIDE MEMBER | ||
| 188 | A 3143101326 | ENGINE CROSS MEMBER |
| FRONT | ||
| NO.2 | ||
| 188 | A 3143101526 | ENGINE CROSS MEMBER |
| FRONT | ||
| NO.2 | ||
| 194 | A 3143120140 | BRACKET |
| ENGINE CROSS MEMBER | ||
| 200 | A 3143130306 | CONSOLE |
| ENGINE CROSS MEMBER | ||
| 206 | A 3143122160 | REINFORCEMENT |
| ENGINE CROSS MEMBER | ||
| 212 | N 000933010145 | SCREW |
| ENGINE CORSS MEMBER TO BRACKET | ||
| M10X35 | ||
| 212 | N 000933010105 | SCREW |
| ENGINE CORSS MEMBER TO BRACKET | ||
| M10X25 | ||
| 218 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 218 | N 910113010000 | NUT |
| ENGINE CORSS MEMBER TO BRACKET | ||
| 224 | A 3143101028 | ENGINE CROSS MEMBER |
| REAR | ||
| NO.3 | ||
| 230 | A 3143120140 | BRACKET |
| ENGINE CROSS MEMBER | ||
| 236 | N 000933010105 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 242 | N 000934010014 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 248 | A 3163120260 | REINFORCEMENT |
| LEFT | ||
| 254 | A 3163120360 | REINFORCEMENT |
| RIGHT | ||
| 260 | A 3143120333 | CROSS MEMBER |
| NO.4 | ||
| A 3163100038 | CROSS MEMBER | |
| Repalced by: A 3183120217 | ||
| 266 | A 3183120217 | CROSS MEMBER |
| NO.4 | ||
| 266 | A 3183120217 | CROSS MEMBER |
| NO.5 | ||
| 268 | A 3143100038 | CROSS MEMBER |
| NO.5 | ||
| 268 | A 3143100038 | CROSS MEMBER |
| NO.6 | ||
| 268 | A 3143100038 | CROSS MEMBER |
| NO.5,NO.6 | ||
| 268 | A 3143100038 | CROSS MEMBER |
| NO.6,NO.7 | ||
| 272 | A 3183120217 | CROSS MEMBER |
| NO.4,NO.5,NO.7 | ||
| 272 | A 3183120217 | CROSS MEMBER |
| NO.5,NO.6 | ||
| 272 | A 3183120217 | CROSS MEMBER |
| NO.6,NO.7 | ||
| 272 | A 3183120217 | CROSS MEMBER |
| NO.5-7 | ||
| 272 | A 3183120217 | CROSS MEMBER |
| NO.6-8 | ||
| 278 | A 3143120652 | ANGLE |
| AT CROSS MEMBER | ||
| 284 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 284 | N 304017010002 | SCREW |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| 290 | N 913002010001 | NUT |
| CROSS MEMBER AND SPRING BRACKET TO SIDE MEMBER | ||
| 296 | A 3143110260 | REINFORCEMENT |
| AT SIDE MEMBER | ||
| 302 | A 3143200077 | RUBBER SPRING |
| REAR SPRING | ||
| 308 | A 3144030201 | SUPPORT |
| SPARE WHEEL CARRIER | ||
| A 3143100240 | CROSS MEMBER | |
| Repalced by: A 3183100140 | ||
| A 3143100440 | CROSS MEMBER | |
| Repalced by: A 3183100140 | ||
| 314 | A 3183100140 | CROSS MEMBER |
| NO.6 | ||
| 314 | A 3183100140 | CROSS MEMBER |
| NO.7 | ||
| 314 | A 3183100140 | CROSS MEMBER |
| NO.8 | ||
| 314 | A 3183100140 | CROSS MEMBER |
| NO.7 | ||
| 314 | A 3183100140 | CROSS MEMBER |
| NO.8 | ||
| 314 | A 3183100140 | CROSS MEMBER |
| NO.6 | ||
| 314 | A 3183100140 | CROSS MEMBER |
| NO.9 | ||
| 320 | N 000933010105 | SCREW |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 326 | N 912004010102 | LOCK WASHER |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| 332 | N 000934010014 | NUT |
| SHIM TO SUPPORT AND TO CONSOLE | ||
| A 3143120984 | SHIM | |
| Repalced by: A 6743120184 | ||
| 338 | A 6743120184 | SHIM |
| Repalced by: A 3874751584 | ||
| 338 | A 3874751584 | SHIM |
| AT CROSS MEMBER | ||
| A 3143120835 | CROSS MEMBER | |
| Repalced by: A 3143120935 | ||
| 344 | A 3143120935 | CROSS MEMBER |
| REAR | ||
| 344 | A 3143120935 | CROSS MEMBER |
| REAR | ||
| 350 | A 3143122687 | GUSSET PLATE |
| LEFT TOP AND RIGHT BOTTOM | ||
| 356 | A 3143122787 | GUSSET PLATE |
| LEFT BOTTOM, AND RIGHT TOP | ||
| 362 | A 3143123087 | GUSSET PLATE |
| TOP RIGHT | ||
| 368 | A 3143123187 | GUSSET PLATE |
| TOP LEFT | ||
| 372 | N 000933010105 | SCREW |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 378 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 378 | N 910113010000 | NUT |
| REAR CROSS MEMBER TO SIDE MEMBERS | ||
| 384 | A 3183110055 | COVER |
| SIDE MEMBER,REAR | ||
| 390 | N 000933010105 | SCREW |
| SIDE MEMBER,REAR | ||
| 396 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 396 | N 910113010000 | NUT |
| SIDE MEMBER,REAR | ||
| 402 | A 3143220003 | FRONT SPRING BRACKET |
| REAR | ||
| 408 | N 000960012162 | SCREW |
| Repalced by: N 000961012205 | ||
| 408 | N 000961012205 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| M12X50 | ||
| 408 | N 000961012106 | SCREW |
| SPRING BRACKET TO SIDE MEMBER | ||
| M12X35 | ||
| 414 | N 000934012023 | NUT |
| Repalced by: N 308673012002 | ||
| 414 | N 308673012002 | NUT |
| SPRING BRACKET TO SIDE MEMBER | ||
| 420 | A 3183220003 | FRONT SPRING BRACKET |
| REAR | ||
| 426 | A 3163120240 | BRACKET |
| CAB SHOCK ABSORBER | ||
| 426 | A 3163120240 | BRACKET |
| CAB SHOCK ABSORBER | ||
| 432 | N 910005012080 | RIVET |
| CAB SHOCK ABSORBER | ||
| 12X42 MM | ||
| 438 | A 3143250303 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| 438 | A 3183250503 | REAR SPRING BRACKET |
| FRONT AND REAR | ||
| 438 | A 0003250001 | REAR SPRING BRACKET |
| FRONT | ||
| 438 | A 0003250003 | REAR SPRING BRACKET |
| REAR | ||
| 444 | A 3143250441 | STIFFENING |
| HELPER SPRING BRACKET TO SIDE MEMBER | ||
| A 3213250017 | HELPER SPRING BRACKET | |
| Repalced by: A 3143250117 | ||
| A 3143250017 | HELPER SPRING BRACKET | |
| Repalced by: A 3143250117 | ||
| 450 | A 3143250117 | HELPER SPRING BRACKET |
| HELPER SPRING | ||

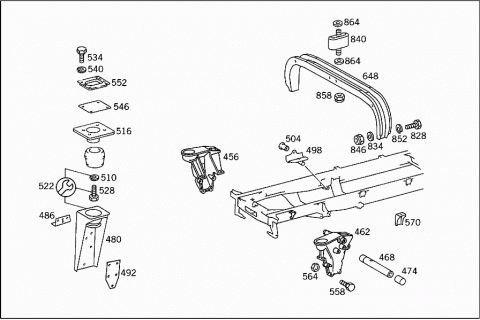

| 456 | A 3143133625 | CONSOLE |
| CAB SUSPENSION,FRONT RIGHT | ||
| 456 | A 3143133725 | CONSOLE |
| CAB SUSPENSION,FRONT LEFT | ||
| A 3163100063 | CONSOLE | |
| Repalced by: A 3143100963 | ||
| 462 | A 3143100963 | CONSOLE |
| CAB SUSPENSION,FRONT LEFT | ||
| 462 | A 3163100263 | CONSOLE |
| CAB SUSPENSION,REAR RIGHT | ||
| 468 | A 3142900426 | SHAFT |
| CAB SUSPENSION | ||
| A 3142900526 | SHAFT | |
| CAB SUSPENSION | ||
| 468 | A 3144270374 | PIN |
| CAB SUSPENSION | ||
| 474 | A 3142920150 | BUSHING |
| CAB SUSPENSION | ||
| 474 | A 3144270350 | BUSHING |
| CAB SUSPENSION | ||
| 480 | A 3143101463 | CONSOLE |
| CAB SUSPENSION | ||
| 486 | A 3143110140 | BRACKET |
| AT SIDE MEMBER | ||
| 492 | A 3143170128 | REINFORCEMENT |
| AT SIDE MEMBER | ||
| 492 | A 3143170028 | REINFORCEMENT |
| AT SIDE MEMBER | ||
| A 3183201278 | CONSOLE | |
| Repalced by: A 3183201978 | ||
| 498 | A 3183201978 | CONSOLE |
| TORSION BAR | ||
| 504 | N 910005010016 | RIVET |
| CONSOLE | ||
| 10X28 MM | ||
| A 1203330567 | RETAINER | |
| CAB MOUNTING,FRONT | ||
| 510 | N 912004012100 | LOCK WASHER |
| CAB MOUNTING,FRONT | ||
| 516 | A 3148910020 | MOUNTING |
| Repalced by: A 3148910220 | ||
| 516 | A 3148910220 | MOUNTING |
| CAB MOUNTING,FRONT | ||
| A 1803330165 | RUBBER BUFFER | |
| CAB MOUNTING,FRONT | ||
| A 3183170153 | SPACER TUBE | |
| CAB MOUNTING,FRONT | ||
| A 1203331965 | RUBBER BUFFER | |
| CAB MOUNTING,FRONT | ||
| 522 | A 3185860031 | REPAIR KIT |
| CAB MOUNTING,FRONT | ||
| 528 | N 000961012079 | SCREW |
| Repalced by: N 308676012032 | ||
| 528 | N 308676012032 | SCREW |
| CAB MOUNTING,FRONT | ||
| M 12X60 | ||
| 528 | N 000912014023 | SCREW |
| CAB MOUNTING,FRONT | ||
| M14X60 | ||
| 534 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 534 | N 304017008021 | SCREW |
| CAB MOUNTING,FRONT | ||
| M8X20 | ||
| 540 | N 912004008102 | LOCK WASHER |
| CAB MOUNTING,FRONT | ||
| 546 | A 3146110011 | PLATE |
| CAB MOUNTING,FRONT | ||
| 552 | A 3146110111 | PLATE |
| CAB MOUNTING,FRONT | ||
| 558 | N 000933010145 | SCREW |
| CAB TO FRONT CONSOLE | ||
| M10X35 | ||
| 558 | N 000933010094 | SCREW |
| CAB TO FRONT CONSOLE | ||
| M10X40 | ||
| 558 | N 000931010258 | SCREW |
| CAB TO FRONT CONSOLE | ||
| M10X55 | ||
| 564 | N 000934010014 | NUT |
| CAB TO FRONT CONSOLE | ||
| 570 | A 3143133325 | CONSOLE |
| BODY MOUNTING | ||
| 576 | A 3143232663 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| MOUNTING USED FOR FRAME CONNECTION PARTS | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| DIMENSIONS ARE INDICATED IN THE FOLLOWING ORDER: | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| THREAD X SHANK DIA. X SHANK LENGTH X TOTAL LENGTH | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 582 | N 000609010004 | FITTED SCREW |
| M 10X11X14X28 | ||
| 582 | N 000610010003 | FITTED SCREW |
| M 10X11X25X38 | ||
| 582 | N 000609010014 | FITTED SCREW |
| M 10X11X24X40 | ||
| 582 | A 3859900514 | SCREW |
| M 10X11X26.5X46 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 582 | A 3859900714 | SCREW |
| M 12X12X10X25 | ||
| 582 | A 3859901414 | SCREW |
| M 12X12X11X26 | ||
| 582 | A 0039900901 | SCREW |
| Repalced by: A 0029908201 | ||
| 582 | A 0029908201 | SCREW |
| M 12X12X12X28 | ||
| 582 | A 3859901514 | SCREW |
| M 12X12X13X28 | ||
| 582 | A 0029908201 | SCREW |
| M 12X12X14X30 | ||
| 582 | A 3859902114 | SCREW |
| M 12X12X15X30 | ||
| 582 | A 0029908301 | SCREW |
| Repalced by: N 308676012013 | ||
| 582 | N 308676012013 | SCREW |
| M 12X12X16X32 | ||
| 582 | A 3859902214 | SCREW |
| M 12X12X17X32 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 582 | A 6209900114 | SCREW |
| M 12X13X12X29 | ||
| 582 | A 3969900314 | SCREW |
| M 12X13X13X30 | ||
| 582 | A 3589901914 | SCREW |
| M 12X13X15X32 | ||
| 582 | A 3559900014 | SCREW |
| M 12X13X18X35 | ||
| 582 | A 3589900614 | SCREW |
| M 12X13X21X38 | ||
| 582 | A 6179900114 | SCREW |
| M 12X13X23X40 | ||
| 582 | A 6249900014 | SCREW |
| M 12X13X25X42 | ||
| 582 | A 3859900214 | SCREW |
| M 12X13X35X52 | ||
| 582 | A 6689900114 | SCREW |
| M 12X13X58X80 | ||
| 582 | A 6689900014 | SCREW |
| M 12X13X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 582 | A 3229903101 | SCREW |
| M 14X14X14X32 | ||
| 582 | A 3859900814 | SCREW |
| Repalced by: A 3229903101 | ||
| 582 | A 3229903101 | SCREW |
| M 14X14X16X32 | ||
| 582 | A 3859902014 | SCREW |
| M 14X14X18X34 | ||
| 582 | A 3559900114 | SCREW |
| M 12X14X13X35 | ||
| 582 | A 3219901601 | SCREW |
| M 14X14X17X35 | ||
| 582 | A 3219901901 | SCREW |
| M 14X14X22X40 | ||
| 582 | A 3559900501 | SCREW |
| M 14X14X24X42 | ||
| 582 | A 3409900201 | SCREW |
| M 14X14X27X45 | ||
| 582 | A 3609902001 | SCREW |
| M 14X14X32X50 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 582 | A 3589900114 | SCREW |
| M 14X15X15X32 | ||
| 582 | A 3589900814 | SCREW |
| M 14X15X17X34 | ||
| 582 | A 6459900014 | SCREW |
| M 14X15X18X35 | ||
| 582 | A 3589901014 | SCREW |
| M 14X15X19X36 | ||
| 582 | A 3589900214 | SCREW |
| M 14X15X21X38 | ||
| 582 | A 3589900414 | SCREW |
| M 14X15X25X42 | ||
| 582 | A 3589900714 | SCREW |
| M 14X15X27X44 | ||
| 582 | A 3589900914 | SCREW |
| M 14X15X29X46 | ||
| 582 | A 3859900414 | SCREW |
| M 14X15X31X48 | ||
| 582 | A 3859900314 | SCREW |
| M 14X15X35X52 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 582 | A 3859900914 | SCREW |
| Repalced by: N 308676016020 | ||
| 582 | N 308676016020 | SCREW |
| M 16X16X18X36 | ||
| 582 | A 3859901714 | SCREW |
| M 16X16X20X38 | ||
| 582 | A 3859901014 | SCREW |
| M 16X16X22X40 | ||
| 582 | A 3859901114 | SCREW |
| M 16X16X24X42 | ||
| 582 | A 0029909901 | SCREW |
| Repalced by: A 3959900501 | ||
| 582 | A 3959900501 | SCREW |
| M 16X16X20X45 | ||
| 582 | A 3859901814 | SCREW |
| M 16X16X30X48 | ||
| 582 | A 3859901914 | SCREW |
| M 16X16X32X50 | ||
| 582 | A 6259900301 | SCREW |
| M 16X16X38X90 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 582 | A 3589900514 | SCREW |
| M 16X17X22X42 | ||
| 582 | A 6459900714 | SCREW |
| M 16X17X24X44 | ||
| 582 | A 3609900114 | SCREW |
| M 16X17X28X48 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 582 | A 3469900014 | SCREW |
| M 16X18X18X40 | ||
| 582 | A 3859902314 | SCREW |
| M 18X18X23X45 | ||
| 582 | A 6209900014 | SCREW |
| M 16X18X26X48 | ||
| 582 | A 3469900114 | SCREW |
| M 16X18X31X50 | ||
| 582 | A 3859902414 | SCREW |
| M 18X18X33X55 | ||
| 582 | A 6229900014 | SCREW |
| M 16X18X38X60 | ||
| 582 | A 3919900014 | SCREW |
| M 16X18X63X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 582 | N 000610018004 | FITTED SCREW |
| M 18X19X25X45 | ||
| 582 | N 000610018009 | FITTED SCREW |
| M 18X19X33X55 | ||
| 582 | N 000610018006 | FITTED SCREW |
| M 18X19X38X60 | ||
| 582 | N 000609018000 | FITTED SCREW |
| M 18X19X57X85 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 588 | N 913004010011 | NUT |
| 588 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 588 | N 910113012003 | NUT |
| 588 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 588 | N 910113014000 | NUT |
| 588 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 588 | N 910113016001 | NUT |
| 588 | N 913004018004 | NUT |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 588 | N 913004018004 | NUT |
| 594 | N 910005010082 | RIVET |
| 10X22 MM | ||
| 594 | N 910005010012 | RIVET |
| 10X24 MM | ||
| A 0009901396 | RIVET | |
| Repalced by: N 910005010014 | ||
| 594 | N 910005010014 | RIVET |
| 10X26 MM | ||
| A 0009901496 | RIVET | |
| Repalced by: N 910005010016 | ||
| 594 | N 910005010016 | RIVET |
| 10X28 MM | ||
| 594 | N 910005010020 | RIVET |
| 10X32 MM | ||
| A 0009902996 | RIVET | |
| Repalced by: N 910005010027 | ||
| 594 | N 910005010027 | RIVET |
| 10X40 MM | ||
| 594 | N 910005012080 | RIVET |
| 12X42 MM | ||
| 594 | N 910005012080 | RIVET |
| 10X32 MM | ||
| 594 | N 910005014056 | RIVET |
| 14X45 MM | ||
| 594 | N 910006008024 | RIVET |
| 8X22 MM | ||

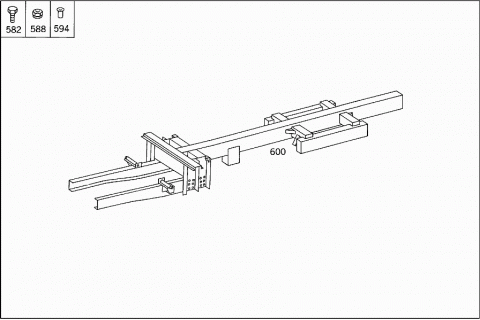

| 600 | A 0003100001 | FRAME |
| WHEELBASE: | ||
| 4200 MM | ||
| 600 | A 0003100101 | FRAME |
| WHEELBASE: | ||
| 4740 MM | ||
| 600 | A 0003100201 | FRAME |
| WHEELBASE: | ||
| 5260 MM | ||
| A 0009901614 | SCREW | |
| FRAME MOUNTING | ||
| A 0009903251 | NUT | |
| FRAME MOUNTING | ||
| 606 | A 3163130225 | CONSOLE |
| CAB SUSPENSION | ||
| 606 | A 3183170001 | CONSOLE |
| LEFT | ||
| 606 | A 3183170001 | CONSOLE |
| LEFT | ||
| 606 | A 3183170101 | CONSOLE |
| RIGHT | ||
| 606 | A 3183170101 | CONSOLE |
| RIGHT | ||
| 612 | A 3183170084 | SHIM |
| CONSOLE TO FRAME | ||
| 612 | A 3183170084 | SHIM |
| CONSOLE TO FRAME | ||
| 618 | N 910005010016 | RIVET |
| CONSOLE TO FRAME | ||
| 10X28 MM | ||
| 618 | N 910005010016 | RIVET |
| CONSOLE TO FRAME | ||
| 10X28 MM | ||
| 618 | N 910005010016 | RIVET |
| CONSOLE TO FRAME | ||
| 10X28 MM | ||
| 624 | N 000933010128 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X20 | ||
| 624 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 624 | N 304017010002 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X30 | ||
| 624 | N 304017010002 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X30 | ||
| 624 | N 304017010002 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X30 | ||
| 624 | N 304017010002 | SCREW |
| CONSOLE TO FRAME | ||
| M 10X30 | ||
| 630 | N 912004010102 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 636 | N 000934010014 | NUT |
| CONSOLE TO FRAME | ||
| 636 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 636 | N 910113010000 | NUT |
| CONSOLE TO FRAME | ||
| 642 | A 3163100137 | CROSS MEMBER |
| CAB SUSPENSION | ||
| A 3183100037 | CROSS MEMBER | |
| Repalced by: A 3183100137 | ||
| 642 | A 3183100137 | CROSS MEMBER |
| CAB SUSPENSION | ||
| 642 | A 3183100137 | CROSS MEMBER |
| CAB SUSPENSION | ||
| 648 | A 3143120433 | CROSS MEMBER |
| CAB SUSPENSION | ||
| 648 | A 3163120333 | CROSS MEMBER |
| CAB SUSPENSION | ||
| 648 | A 3163120333 | CROSS MEMBER |
| CAB SUSPENSION | ||
| 654 | N 000933010105 | SCREW |
| CROSS MEMBER TO FRAME | ||
| 654 | N 000933010105 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| 660 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 660 | N 910113010000 | NUT |
| CROSS MEMBER TO FRAME | ||
| 660 | N 910113010000 | NUT |
| CROSS MEMBER TO CONSOLE | ||
| 666 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 666 | N 000125010532 | WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 672 | A 3163100109 | BRACKET |
| CAB SUSPENSION | ||
| 672 | A 3183120040 | BRACKET |
| CAB SUSPENSION | ||
| 672 | A 3183120040 | BRACKET |
| CAB SUSPENSION | ||
| 672 | A 3183120040 | BRACKET |
| CAB SUSPENSION | ||
| 672 | A 3183120040 | BRACKET |
| CAB SUSPENSION | ||
| 672 | A 3520100740 | BRACKET |
| CAB SUSPENSION | ||
| 678 | N 000933010105 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 678 | N 000933010105 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 684 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 684 | N 000125010532 | WASHER |
| BRACKET TO CROSS MEMBER | ||
| 690 | N 912004010102 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 696 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 696 | N 910113010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 696 | N 000934010014 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 702 | A 3163170085 | SPRING LEAF |
| CAB SUSPENSION,REAR | ||
| 702 | A 3163170085 | SPRING LEAF |
| CAB SUSPENSION,REAR | ||
| 708 | A 3358910672 | MOUNTING |
| SPRING LEAF TO CROSS MEMBER | ||
| 708 | A 3358910672 | MOUNTING |
| SPRING LEAF TO CROSS MEMBER | ||
| 714 | A 3358910171 | SCREW |
| SPRING LEAF TO CROSS MEMBER | ||
| 720 | A 3358910080 | SPRING |
| SPRING LEAF TO CROSS MEMBER | ||
| 726 | N 912004018100 | LOCK WASHER |
| SPRING LEAF TO CROSS MEMBER | ||
| 732 | N 000439018204 | NUT |
| SPRING LEAF TO CROSS MEMBER | ||
| 738 | A 3183170053 | SPACER TUBE |
| SPRING LEAF TO CROSS MEMBER | ||
| 738 | A 3183170053 | SPACER TUBE |
| SPRING LEAF TO CROSS MEMBER | ||
| 744 | N 000960012264 | SCREW |
| Repalced by: N 308765012003 | ||
| 744 | N 308765012003 | SCREW |
| SPRING LEAF TO CROSS MEMBER | ||
| 744 | N 308765012003 | SCREW |
| SPRING LEAF TO CROSS MEMBER | ||
| 750 | N 910113012002 | NUT |
| SPRING LEAF TO CROSS MEMBER | ||
| 750 | N 910113012002 | NUT |
| SPRING LEAF TO CROSS MEMBER | ||
| 756 | A 3163100209 | BRACKET |
| SPRING LEAF TO CROSS MEMBER | ||
| 756 | A 3163100209 | BRACKET |
| SPRING LEAF TO CROSS MEMBER | ||
| 762 | N 000933010105 | SCREW |
| BRACKET TO CAB | ||
| 762 | N 000933010105 | SCREW |
| BRACKET TO CAB | ||
| 762 | N 000933010105 | SCREW |
| CROSS MEMBER TO CONSOLE | ||
| 762 | N 000933010105 | SCREW |
| BRACKET TO CAB | ||
| 768 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 768 | N 000125010532 | WASHER |
| CAB SUSPENSION,REAR | ||
| 774 | N 912004010102 | LOCK WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 774 | N 912004010102 | LOCK WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 780 | A 3163170084 | SHIM |
| SPRING TO CAB | ||
| 780 | A 3163170084 | SHIM |
| CROSS MEMBER TO CONSOLE | ||
| 786 | N 910113012002 | NUT |
| SPRING TO CAB | ||
| 786 | N 910113012002 | NUT |
| CROSS MEMBER TO CONSOLE | ||
| 792 | A 0008910205 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 792 | A 0008910205 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 792 | A 0008910805 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| 792 | A 0008910805 | SHOCK ABSORBER |
| CAB SUSPENSION | ||
| A 0003232644 | RUBBER BUFFER | |
| Repalced by: A 0003234385 | ||
| 798 | A 0003234385 | RUBBER MOUNTING |
| TO 000 891 02 05 | ||
| 798 | A 0003234385 | RUBBER MOUNTING |
| TO 000 891 02 05 | ||
| 798 | A 0008910001 | RUBBER MOUNTING |
| TO 000 891 08 05 | ||
| 798 | A 0008910001 | RUBBER MOUNTING |
| TO 000 891 08 05 | ||
| A 0003231450 | BUSHING | |
| Repalced by: A 0002410150 | ||
| 804 | A 0002410150 | BUSHING |
| TO 000 891 02 05 | ||
| 804 | A 0002410150 | BUSHING |
| TO 000 891 02 05 | ||
| 804 | A 0008910017 | BUSHING |
| TO 000 891 08 05 | ||
| 804 | A 0008910017 | BUSHING |
| TO 000 891 08 05 | ||
| 810 | A 3163170074 | PIN |
| CROSS MEMBER TO CONSOLE | ||
| A 3163170074 | PIN | |
| Repalced by: N 000960012224 | ||
| A 3163170176 | WASHER | |
| Repalced by: A 6739901040 | ||
| 816 | A 6739901040 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| 816 | A 6739901040 | WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 822 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 822 | N 910113012002 | NUT |
| SHOCK ABSORBER TO CAB | ||
| 828 | N 000960012224 | SCREW |
| Repalced by: N 000961012208 | ||
| 828 | N 000961012208 | SCREW |
| SHOCK ABSORBER TO CAB | ||
| M 12X75 | ||
| 834 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 834 | N 007349013005 | WASHER |
| SHOCK ABSORBER TO CAB | ||
| A 3143170052 | SPACER WASHER | |
| SHOCK ABSORBER TO CAB | ||
| 840 | A 3148900001 | MOUNTING |
| CAB,REAR | ||
| 840 | A 3148900001 | MOUNTING |
| CAB,REAR | ||
| 846 | N 000934012021 | NUT |
| CAB TO CROSS MEMBER | ||
| 852 | N 912004012100 | LOCK WASHER |
| CAB TO CROSS MEMBER | ||
| 852 | N 912004012100 | LOCK WASHER |
| CROSS MEMBER TO CONSOLE | ||
| 858 | N 913002012004 | NUT |
| CAB TO CROSS MEMBER | ||
| 864 | N 000125013008 | WASHER |
| 864 | N 000125013008 | WASHER |
| 864 | N 009021013200 | WASHER |
| CAB TO CROSS MEMBER | ||
| 864 | N 009021013200 | WASHER |
| CAB TO CROSS MEMBER | ||
| 864 | A 3859900640 | WASHER |
| CAB TO CROSS MEMBER | ||
| 870 | A 3163120240 | BRACKET |
| CAB SHOCK ABSORBER | ||
| 870 | A 3163120240 | BRACKET |
| CAB SHOCK ABSORBER | ||
| 876 | N 910005012080 | RIVET |
| CAB SHOCK ABSORBER | ||
| 12X42 MM | ||
| 876 | N 910005012080 | RIVET |
| CAB SHOCK ABSORBER | ||
| 12X42 MM | ||
| 882 | N 000960012261 | SCREW |
| BRACKET TO FRAME | ||
| M 12X55 | ||
| 882 | N 000960012058 | SCREW |
| BRACKET TO FRAME | ||
| M 12X50 | ||
| 888 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 888 | N 007349013005 | WASHER |
| BRACKET TO FRAME | ||
| 888 | N 000125013008 | WASHER |
| 894 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 894 | N 910113012003 | NUT |
| BRACKET TO FRAME | ||
| 900 | N 000960012197 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 900 | N 000960012197 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 906 | N 910113012002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 906 | N 910113012002 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
