Transporto priemonė: LPKF 808,809; VIN numerio dalis: 316083

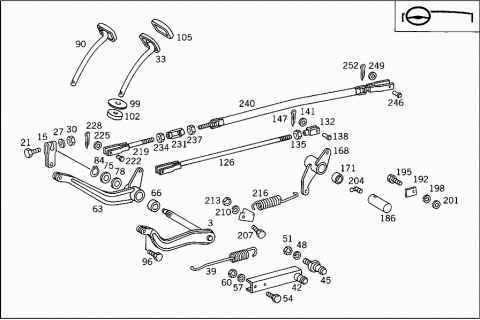

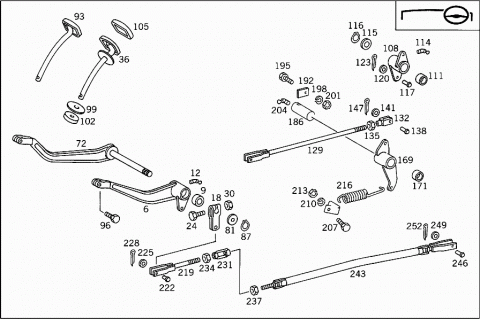

Grupė: 29 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 3142901216 | PEDAL |
| Repalced by: A 3142901516 | ||
| 003 | A 3142901516 | PEDAL |
| CLUTCH | ||
| 006 | A 3142901016 | PEDAL |
| CLUTCH | ||
| 009 | A 3142910150 | BUSHING |
| 012 | N 071412010300 | GREASE NIPPLE |
| 015 | A 3142900027 | LEVER |
| Repalced by: A 3142930610 | ||
| 015 | A 3142930610 | LEVER |
| CLUTCH LINKAGE | ||
| 018 | A 3162900027 | LEVER |
| BRAKE LINKAGE | ||
| 021 | N 000931008266 | SCREW |
| CLUTCH AND BRAKE PEDALS TO LEVER | ||
| 024 | N 000931008244 | SCREW |
| CLUTCH AND BRAKE PEDALS TO LEVER | ||
| 027 | N 000125008408 | WASHER |
| CLUTCH AND BRAKE PEDALS TO LEVER | ||
| 030 | N 304032008006 | NUT |
| CLUTCH AND BRAKE PEDALS TO LEVER | ||
| 033 | A 3142900724 | PEDAL PLATE |
| CLUTCH | ||
| 033 | A 3142901224 | PEDAL PLATE |
| CLUTCH | ||
| 036 | A 3142901024 | PEDAL PLATE |
| CLUTCH | ||
| 039 | A 3149930410 | SPRING |
| CLUTCH PEDAL RESET | ||
| 042 | A 3142900086 | BRACKET |
| Repalced by: A 3142900486 | ||
| 042 | A 3142900486 | BRACKET |
| PEDAL BEARING | ||
| 045 | A 3142910074 | PIN |
| PEDAL BEARING | ||
| 048 | N 912004014100 | LOCK WASHER |
| PEDAL BEARING | ||
| 051 | N 000934014019 | NUT |
| Repalced by: N 308673014001 | ||
| 051 | N 308673014001 | NUT |
| PEDAL BEARING | ||
| 054 | N 000931010271 | SCREW |
| PEDAL BEARING | ||
| 057 | N 912004010102 | LOCK WASHER |
| PEDAL BEARING | ||
| 060 | N 000934010014 | NUT |
| PEDAL BEARING | ||
| 063 | A 3142901118 | PEDAL |
| BRAKE | ||
| 066 | A 3142920050 | BUSHING |
| BRAKE PEDAL | ||
| 072 | A 3162900018 | PEDAL |
| BRAKE | ||
| 075 | A 3149900140 | WASHER |
| BRAKE PEDAL TO SHAFT | ||
| 078 | N 000988028005 | FITTED WASHER |
| BRAKE PEDAL TO SHAFT | ||
| 081 | N 000988035001 | FITTED WASHER |
| LEVER TO SHAFT | ||
| 084 | N 000471028000 | LOCK RING |
| BRAKE PEDAL TO SHAFT | ||
| 087 | N 000471034000 | LOCK RING |
| LEVER TO SHAFT | ||
| 090 | A 3142900824 | PEDAL PLATE |
| BRAKE | ||
| 093 | A 3162900024 | PEDAL PLATE |
| BRAKE | ||
| 096 | N 000933010105 | SCREW |
| LEVER TO PEDAL | ||
| 099 | A 3226880024 | WASHER |
| BRAKE PEDAL STOP | ||
| 102 | A 3122911197 | SEAL WASHER |
| Repalced by: A 3182910084 | ||
| 102 | A 3182910084 | SEAL RING |
| BRAKE PEDAL STOP | ||
| 105 | A 3202925082 | PAD |
| BRAKE PEDAL AND CLUTCH PEDAL | ||
| 108 | A 3162900228 | LEVER |
| BRAKE LINKAGE | ||
| 111 | A 3124271550 | BUSHING |
| 114 | N 071412010100 | GREASE NIPPLE |
| 115 | A 3129901540 | WASHER |
| BRAKE LINKAGE | ||
| 116 | N 000471022000 | LOCK RING |
| BRAKE LINKAGE | ||
| A 3162920034 | SHACKLE | |
| 117 | A 3149910107 | PIN |
| Repalced by: A 3529910007 | ||
| 117 | A 3529910007 | PIN |
| BRAKE LINKAGE | ||
| 120 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 120 | N 000433010510 | WASHER |
| BRAKE LINKAGE | ||
| 123 | N 000094003219 | COTTER PIN |
| BRAKE LINKAGE | ||
| 126 | A 3162900539 | ROD |
| BRAKE PEDAL TO SHAFT | ||
| 129 | A 3162900739 | ROD |
| BRAKE PEDAL TO SHAFT | ||
| 132 | N 071752010002 | YOKE |
| Repalced by: A 0009961501 | ||
| 132 | A 0009961501 | YOKE |
| BRAKE PEDAL TO SHAFT | ||
| 135 | N 000934010014 | NUT |
| BRAKE PEDAL TO SHAFT | ||
| 138 | A 3149910107 | PIN |
| Repalced by: A 3529910007 | ||
| 138 | A 3529910007 | PIN |
| BRAKE PEDAL TO SHAFT | ||
| 141 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 141 | N 000433010510 | WASHER |
| BRAKE PEDAL TO SHAFT | ||
| 147 | N 000094003219 | COTTER PIN |
| BRAKE PEDAL TO SHAFT | ||
| 168 | A 3162900028 | LEVER |
| BRAKE LINKAGE | ||
| 169 | A 3162900128 | LEVER |
| BRAKE LINKAGE | ||
| 171 | A 3192920150 | BUSHING |
| 174 | A 0004200010 | SHAFT |
| 177 | A 0004260009 | PIVOT PIN |
| 180 | A 0004270050 | BUSHING |
| 183 | A 0004300011 | CONSOLE |
| BRAKE BOOSTER | ||
| 186 | A 3142940007 | PIVOT PIN |
| LEVER TO CONSOLE | ||
| 192 | A 3149940101 | LOCK |
| LEVER TO CONSOLE | ||
| 195 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 195 | N 304017008021 | SCREW |
| LEVER TO CONSOLE | ||
| 198 | N 912004008102 | LOCK WASHER |
| LEVER TO CONSOLE | ||
| 201 | N 304032008006 | NUT |
| LEVER TO CONSOLE | ||
| 204 | N 071412010200 | GREASE NIPPLE |
| LEVER TO CONSOLE | ||
| A 3162920040 | BRACKET | |
| RELEASE SPRING | ||
| A 3162920140 | BRACKET | |
| RELEASE SPRING | ||
| A 3142920940 | BRACKET | |
| RELEASE SPRING | ||
| A 3142921040 | BRACKET | |
| RELEASE SPRING | ||
| 207 | N 000933010018 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 210 | N 912004010102 | LOCK WASHER |
| BRACKET TO SIDE MEMBER | ||
| 213 | N 000934010014 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 216 | A 3529930010 | SPRING |
| Repalced by: A 3529931010 | ||
| 216 | A 3529931010 | SPRING |
| BRAKE PEDAL RESET | ||
| 216 | A 3129931510 | SPRING |
| BRAKE PEDAL RESET | ||
| 219 | A 3142901639 | ROD |
| CLUTCH OPERATION | ||
| 222 | A 3149910107 | PIN |
| Repalced by: A 3529910007 | ||
| 222 | A 3529910007 | PIN |
| ROD TO CLUTCH LEVER | ||
| 225 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 225 | N 000433010510 | WASHER |
| ROD TO CLUTCH LEVER | ||
| 228 | N 000094003219 | COTTER PIN |
| ROD TO CLUTCH LEVER | ||
| 231 | N 900333012000 | TURNBUCKLE |
| CLUTCH ADJUSTMENT | ||
| 234 | N 000934012020 | NUT |
| L.H. THREAD | ||
| 237 | N 000934012021 | NUT |
| CLUTCH ADJUSTMENT | ||
| 240 | A 3142901939 | ROD |
| CLUTCH OPERATION | ||
| 243 | A 3142902339 | ROD |
| CLUTCH OPERATION | ||
| 246 | A 3149910107 | PIN |
| Repalced by: A 3529910007 | ||
| 246 | A 3529910007 | PIN |
| ROD TO DOUBLE LEVER | ||
| 249 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 249 | N 000433010510 | WASHER |
| ROD TO DOUBLE LEVER | ||
| 252 | N 000094003219 | COTTER PIN |
| ROD TO DOUBLE LEVER | ||
| A 3142901528 | LEVER | |
| Repalced by: A 3145860029 | ||
| A 3142902928 | LEVER | |
| Repalced by: A 3145860129 | ||
| 255 | A 3142901828 | LEVER |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 255 | A 3142902728 | LEVER |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 258 | N 071412010100 | GREASE NIPPLE |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 261 | N 071805016300 | SNAP RING |
| CLUTCH COMPENSATION DOUBLE LEVER | ||
| 264 | A 3099910015 | BALL PIVOT |
| CLUTCH LINKAGE | ||
| 270 | N 000934010014 | NUT |
| CLUTCH LINKAGE | ||
| 273 | A 3142930440 | BRACKET |
| CLUTCH LINKAGE COMPENSATION | ||
| 273 | A 3142930540 | BRACKET |
| CLUTCH LINKAGE COMPENSATION | ||
| 276 | A 3145860029 | REPAIR KIT |
| Repalced by: A 3142903039 | ||
| 276 | A 3142903039 | REPAIR KIT |
| CLUTCH ACTUATING PARTS | ||
| 276 | A 3145860129 | REPAIR KIT |
| Repalced by: A 3142903139 | ||
| 276 | A 3142903139 | REPAIR KIT |
| CLUTCH ACTUATING PARTS | ||
| 279 | A 3149910115 | BALL PIVOT |
| CLUTCH OPERATION | ||
| 279 | A 3149910315 | BALL PIVOT |
| CLUTCH OPERATION | ||
| 282 | A 3149900940 | WASHER |
| CLUTCH OPERATION | ||
| 285 | N 913002012002 | NUT |
| CLUTCH OPERATION | ||
| 288 | A 3522930060 | SEAL RING |
| CLUTCH OPERATION | ||
| 290 | N 000934012011 | NUT |
| CLUTCH OPERATION | ||
| 291 | N 000931010282 | SCREW |
| CLUTCH LINKAGE COMPENSATION | ||
| 291 | N 000931010111 | SCREW |
| Repalced by: N 304017010032 | ||
| 291 | N 304017010032 | SCREW |
| CLUTCH OPERATION | ||
| 294 | N 007349010003 | WASHER |
| Repalced by: N 007349010007 | ||
| 294 | N 007349010007 | WASHER |
| CLUTCH OPERATION | ||
| 297 | N 913004010011 | NUT |
| CLUTCH OPERATION | ||
| 300 | N 900331010653 | PULL ROD |
| CLUTCH OPERATION | ||
| 303 | A 0009916222 | BALL SOCKET |
| ROD TO LEVER | ||
| 306 | N 071805016300 | SNAP RING |
| ROD TO LEVER | ||
| 309 | N 000934010014 | NUT |
| ROD TO LEVER | ||
| 312 | N 071805016402 | SECURING CLIP |
| ROD TO LEVER | ||
| 315 | A 3182900233 | BRACKET |
| CLUTCH AND BRAKE | ||

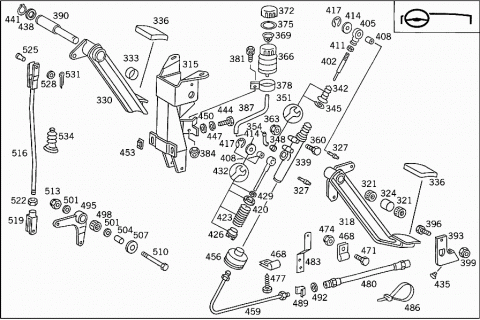

| 318 | A 3182900516 | PEDAL |
| CLUTCH | ||
| 321 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 321 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 321 | A 0119813410 | NEEDLE BEARING |
| CLUTCH | ||
| 324 | A 3182910153 | SPACER TUBE |
| CLUTCH | ||
| 327 | A 3182910274 | PIN |
| CLUTCH | ||
| 330 | A 3182900318 | PEDAL |
| BRAKE | ||
| 333 | A 3142920050 | BUSHING |
| BRAKE | ||
| 336 | A 1102910182 | PAD |
| Repalced by: A 1072910182 | ||
| 336 | A 1072910182 | PAD |
| CLUTCH AND BRAKE | ||
| 339 | A 0012951506 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 339 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 339 | A 0012958706 | MASTER CYLINDER |
| CLUTCH | ||
| 342 | A 0002951583 | BOOT |
| 345 | N 000472019000 | LOCK RING |
| 348 | A 0009974235 | PLUG |
| Repalced by: A 0009971186 | ||
| 348 | A 0009971186 | PLUG |
| 351 | A 0005862929 | REPAIR KIT |
| LESS PISTON | ||
| 351 | A 0005865229 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 77 06 | ||
| A 0002903112 | REPAIR KIT | |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 87 06 | ||
| 354 | A 3092950036 | INTERMEDIATE PIECE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 360 | N 000931006191 | SCREW |
| MASTER CYLINDER TO CONSOLE | ||
| 363 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 363 | N 913004006001 | NUT |
| MASTER CYLINDER TO CONSOLE | ||
| 366 | A 0002952015 | RESERVOIR |
| Repalced by: A 1152900115 | ||
| 366 | A 1152900115 | RESERVOIR |
| LESS WARNING DEVICE | ||
| 369 | A 0004310034 | STRAINER |
| Repalced by: A 0004313734 | ||
| 369 | A 0004313734 | STRAINER |
| Repalced by: A 0004314334 | ||
| 369 | A 0004314334 | STRAINER |
| 372 | A 0004313533 | FILLER CAP |
| Repalced by: A 0004315433 | ||
| 372 | A 0004315433 | FILLER CAP |
| BUTTRESS THREAD | ||
| 375 | A 0009972940 | SEAL RING |
| 43.7X30 MM | ||
| 378 | A 3189950235 | CLAMP |
| RESERVOIR TO BRACKET | ||
| 381 | N 000933006102 | SCREW |
| RESERVOIR TO BRACKET | ||
| 384 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 384 | N 913004006001 | NUT |
| RESERVOIR TO BRACKET | ||
| 387 | A 0099973882 | HOSE |
| REFILLING LINE TO MASTER CYLINDER | ||
| 390 | A 3182940105 | SHAFT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 393 | A 3182910440 | BRACKET |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 396 | N 000933006102 | SCREW |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 399 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 399 | N 913004006001 | NUT |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| A 3812910333 | ROD | |
| DEAD CENTER SPRING | ||
| A 3812910233 | ROD | |
| DEAD CENTER SPRING | ||
| 402 | A 3182950133 | ROD |
| CLUTCH MASTER CYLINDER | ||
| 405 | A 0009961045 | ARTICULATION PIECE |
| ROD TO PEDAL | ||
| 405 | A 0009961145 | ARTICULATION PIECE |
| ROD TO PEDAL | ||
| 408 | A 0059813810 | NEEDLE BEARING |
| ROD TO PEDAL | ||
| 408 | A 0059814410 | NEEDLE BEARING |
| ROD TO PEDAL | ||
| 408 | A 0089811210 | NEEDLE BEARING |
| ROD TO PEDAL | ||
| 408 | A 0139818210 | NEEDLE BEARING |
| ROD TO PEDAL | ||
| 411 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 411 | N 304035008001 | NUT |
| ROD TO PEDAL | ||
| 414 | N 000433008406 | WASHER |
| ROD TO PEDAL | ||
| 417 | N 006799007007 | LOCK PLATE |
| ROD TO PEDAL | ||
| 420 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 423 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 426 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 429 | N 000936010010 | NUT |
| SPRING TO PUSH ROD | ||
| 432 | A 3142900093 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 435 | A 1152910186 | STOP |
| CLUTCH MASTER CYLINDER | ||
| 438 | N 000988028007 | FITTED WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 441 | N 000471028000 | LOCK RING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 444 | N 000933010128 | SCREW |
| PEDAL TO CAB | ||
| 447 | N 912004010102 | LOCK WASHER |
| PEDAL TO CAB | ||
| 450 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 450 | N 000125010532 | WASHER |
| PEDAL TO CAB | ||
| 453 | A 1239900591 | NUT RETAINER |
| Repalced by: A 1239901291 | ||
| 453 | A 1239901291 | NUT RETAINER |
| PEDAL TO CAB | ||
| 456 | A 3182950283 | BOOT |
| Repalced by: A 3182950483 | ||
| 456 | A 3182950483 | BOOT |
| MASTER CYLINDER THRU CAB FLOOR | ||
| 459 | A 3182900113 | LINE |
| Repalced by: A 3404202629 | ||
| 459 | A 3404202629 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 459 | A 3182900213 | LINE |
| Repalced by: A 3404204129 | ||
| 459 | A 3404204129 | LINE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 468 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 468 | N 916016008200 | CLAMP |
| LINES TO FRAME | ||
| 468 | N 916016008200 | CLAMP |
| LINES TO FRAME | ||
| 471 | N 000933006102 | SCREW |
| LINES TO FRAME | ||
| 471 | N 000933006102 | SCREW |
| LINES TO FRAME | ||
| 474 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 474 | N 913004006001 | NUT |
| LINES TO FRAME | ||
| 474 | N 913004006001 | NUT |
| LINES TO FRAME | ||
| 477 | N 007981004341 | SHEET METAL SCREW |
| LINES TO FRAME | ||
| 480 | A 3092950035 | HOSE |
| FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER | ||
| 483 | A 3182930840 | BRACKET |
| BRACKET TO SIDE MEMBER | ||
| 486 | A 0019978490 | LOOM TIE |
| LINE TO BRACKET | ||
| 489 | A 3182950073 | LOCK |
| PIPE LINE TO SIDE MEMBER | ||
| 492 | N 000433017004 | WASHER |
| PIPE LINE TO SIDE MEMBER | ||
| 495 | A 3182900027 | LEVER |
| BRAKE | ||
| 498 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 498 | A 0089811110 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 498 | A 0119813410 | NEEDLE BEARING |
| 501 | A 0089978046 | SEAL RING |
| Repalced by: A 0069979147 | ||
| 501 | A 0069979147 | SEAL RING |
| 504 | A 3182920050 | BUSHING |
| Repalced by: A 3182920250 | ||
| 504 | A 3182920250 | BUSHING |
| LEVER TO CAB | ||
| A 3182920153 | SPACER TUBE | |
| LEVER TO CAB | ||
| 507 | A 1989900740 | WASHER |
| Repalced by: A 3193260076 | ||
| 507 | A 3193260076 | WASHER |
| LEVER TO CAB | ||
| 507 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 507 | N 009021010209 | WASHER |
| LEVER TO CAB | ||
| 510 | N 000960014212 | SCREW |
| Repalced by: N 000960014269 | ||
| 510 | N 000960014263 | SCREW |
| LEVER TO CAB | ||
| M 14X120 | ||
| 510 | N 000931010379 | SCREW |
| LEVER TO CAB | ||
| 513 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 513 | N 910113014001 | NUT |
| LEVER TO CAB | ||
| 513 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 513 | N 910113010000 | NUT |
| LEVER TO CAB | ||
| 516 | A 3184200374 | ROD |
| FROM BRAKE PEDAL TO REVERSING LEVER | ||
| 519 | A 0009961501 | YOKE |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| 522 | N 000934010014 | NUT |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| 525 | A 3529910007 | PIN |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| 528 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 528 | N 000433010510 | WASHER |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| 531 | N 000094003219 | COTTER PIN |
| PULL ROD TO BRAKE PEDAL AND TO REVERSING LEVER | ||
| 534 | A 3182920097 | BOOT |
| PULL ROD THRU CAB FLOOR | ||
| 534 | A 3182920297 | BOOT |
| PULL ROD THRU CAB FLOOR | ||

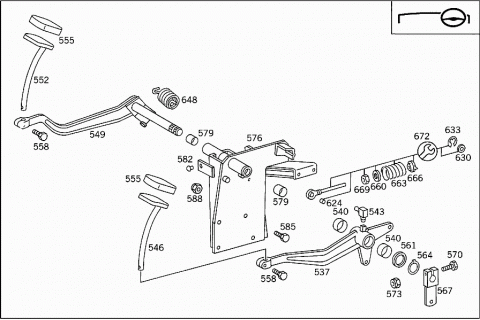

| 537 | A 3182900616 | PEDAL |
| CLUTCH | ||
| 540 | A 3142910150 | BUSHING |
| 543 | N 071412010100 | GREASE NIPPLE |
| 546 | A 3182900024 | PEDAL PLATE |
| Repalced by: A 3162900024 | ||
| 546 | A 3162900024 | PEDAL PLATE |
| CLUTCH | ||
| 549 | A 3182900818 | PEDAL |
| BRAKE | ||
| 552 | A 3162900024 | PEDAL PLATE |
| BRAKE | ||
| 555 | A 3202925082 | PAD |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 558 | N 000933010105 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| 561 | N 000988035001 | FITTED WASHER |
| LEVER TO SHAFT | ||
| 564 | N 000471034000 | LOCK RING |
| LEVER TO SHAFT | ||
| 567 | A 3182900227 | LEVER |
| BRAKE LINKAGE | ||
| 570 | N 000931008244 | SCREW |
| LEVER TO BRAKE PEDAL | ||
| 573 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 573 | N 913004008001 | NUT |
| LEVER TO BRAKE PEDAL | ||
| 576 | A 3182900019 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 579 | A 3144270350 | BUSHING |
| 582 | A 1152910186 | STOP |
| CLUTCH PEDAL AND BRAKE PEDAL | ||
| 585 | N 000933010145 | SCREW |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||
| 588 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 588 | N 910113010000 | NUT |
| PEDAL BEARING BRACKET TO SIDE MEMBER | ||

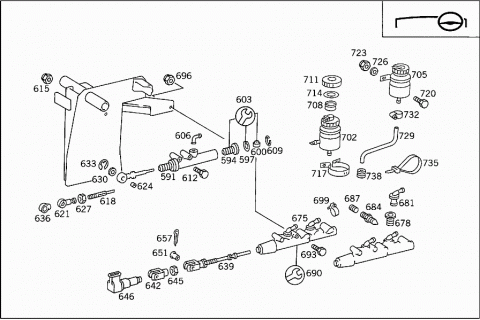

| 591 | A 0012951506 | MASTER CYLINDER |
| Repalced by: A 0002957706 | ||
| 591 | A 0002957706 | MASTER CYLINDER |
| Repalced by: A 0012958706 | ||
| 591 | A 0012958706 | MASTER CYLINDER |
| CLUTCH | ||
| 594 | A 0002951583 | BOOT |
| 597 | N 000472019000 | LOCK RING |
| 600 | A 0009974235 | PLUG |
| Repalced by: A 0009971186 | ||
| 600 | A 0009971186 | PLUG |
| 603 | A 0005862929 | REPAIR KIT |
| LESS PISTON | ||
| 603 | A 0005865229 | REPAIR KIT |
| TO MASTER CYLINDER HAVING ALUMINUM PISTON | ||
| TO 000 295 77 06 | ||
| A 0002903112 | REPAIR KIT | |
| TO MASTER CYLINDER HAVING SYNTHETIC PISTON | ||
| TO 001 295 87 06 | ||
| 606 | A 3092950036 | INTERMEDIATE PIECE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 609 | N 009045028001 | SNAP RING |
| CLUTCH MASTER CYLINDER | ||
| 612 | N 000931006134 | SCREW |
| MASTER CYLINDER TO CONSOLE | ||
| 615 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 615 | N 913004006001 | NUT |
| MASTER CYLINDER TO CONSOLE | ||
| A 3812910333 | ROD | |
| DEAD CENTER SPRING | ||
| A 3812910233 | ROD | |
| DEAD CENTER SPRING | ||
| 618 | A 3812950033 | ROD |
| CLUTCH MASTER CYLINDER | ||
| 621 | A 0009961045 | ARTICULATION PIECE |
| ROD TO PEDAL | ||
| 621 | A 0009961145 | ARTICULATION PIECE |
| ROD TO PEDAL | ||
| 624 | A 0059813810 | NEEDLE BEARING |
| ROD TO PEDAL | ||
| 624 | A 0059814410 | NEEDLE BEARING |
| ROD TO PEDAL | ||
| 624 | A 0089811210 | NEEDLE BEARING |
| ROD TO PEDAL | ||
| 624 | A 0139818210 | NEEDLE BEARING |
| ROD TO PEDAL | ||
| 627 | N 000439008211 | NUT |
| Repalced by: N 304035008001 | ||
| 627 | N 304035008001 | NUT |
| ROD TO PEDAL | ||
| 630 | N 000433008406 | WASHER |
| ROD TO PEDAL | ||
| 633 | N 006799007007 | LOCK PLATE |
| ROD TO PEDAL | ||
| 636 | A 3182950383 | BOOT |
| PISTON ROD AND PUSH ROD | ||
| 639 | A 3182901739 | ROD |
| FROM CLUTCH PEDAL TO MASTER CYLINDER | ||
| 642 | N 071752010004 | YOKE |
| Repalced by: A 0009961401 | ||
| 642 | A 0009961401 | YOKE |
| 645 | N 000934010014 | NUT |
| 646 | A 3182960083 | PROTECTIVE CAP |
| 648 | A 3859930010 | SPRING |
| BRAKE PEDAL RESET | ||
| 651 | A 3529910007 | PIN |
| ROD TO LEVER | ||
| 657 | N 000094003219 | COTTER PIN |
| ROD TO LEVER | ||
| 660 | A 1112910491 | SPRING RETAINER |
| DEAD CENTER SPRING,TOP | ||
| 663 | A 1109930501 | SPRING |
| (DEAD CENTER SPRING) | ||
| 666 | A 3092910091 | SPRING RETAINER |
| BOTTOM | ||
| 669 | N 000936010010 | NUT |
| SPRING TO PUSH ROD | ||
| 672 | A 3142900093 | REPAIR KIT |
| DEAD CENTER SPRING | ||
| 675 | A 3182950006 | MASTER CYLINDER |
| BRAKE | ||
| 678 | A 0002950050 | BUSHING |
| Repalced by: A 0004310950 | ||
| 678 | A 0004310950 | BUSHING |
| MASTER CYLINDER | ||
| 681 | A 0002950536 | INTERMEDIATE PIECE |
| 45 DEGREES | ||
| 684 | A 0004310265 | VALVE |
| Repalced by: A 3075530107 | ||
| 684 | A 3075530107 | VALVE |
| MASTER CYLINDER | ||
| 687 | A 3164210187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 687 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 0004217187 | ||
| 687 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 687 | A 0004210887 | PROTECTIVE CAP |
| MASTER CYLINDER | ||
| 690 | A 0005864729 | REPAIR KIT |
| MASTER CYLINDER | ||
| 693 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 696 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 696 | N 913004006001 | NUT |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 699 | N 900288015000 | CLAMP |
| REFILLING LINE TO MASTER CYLINDER | ||
| 702 | A 0004315802 | RESERVOIR |
| WITH WARNING DEVICE | ||
| ATE | ||
| 702 | A 0014313802 | RESERVOIR |
| WITH BRAKE SYSTEM WARNING DEVICE | ||
| FAG | ||
| 705 | A 0014310802 | RESERVOIR |
| Repalced by: A 0004318302 | ||
| 705 | A 0004318302 | RESERVOIR |
| WITH CLUCH AND BRAKE SYSTEM WARNING DEVICE | ||
| ATE | ||
| 708 | A 0004314534 | STRAINER |
| Repalced by: A 0004313134 | ||
| 708 | A 0004313134 | STRAINER |
| 711 | A 0004313733 | FILLER CAP |
| Repalced by: A 0004316533 | ||
| 711 | A 0004316533 | FILLER CAP |
| Repalced by: A 0004317633 | ||
| 711 | A 0004317633 | FILLER CAP |
| 714 | A 0009972940 | SEAL RING |
| 43.7X30 MM | ||
| 714 | A 0039976440 | SEAL RING |
| 42X21.5 MM | ||
| 717 | A 0004311040 | CLAMP |
| TO 000 431 58 02 | ||
| 717 | A 0004311040 | CLAMP |
| RESERVOIR TO SEAT BOX | ||
| 720 | N 000933006102 | SCREW |
| RESERVOIR TO SEAT BOX | ||
| 723 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 723 | N 913004006001 | NUT |
| RESERVOIR TO SEAT BOX | ||
| 726 | N 000125006421 | WASHER |
| RESERVOIR TO SEAT BOX | ||
| 729 | A 0079974282 | HOSE |
| Repalced by: A 0009978952 | ||
| 729 | A 0009978952 | HOSE |
| FROM RESERVOIR TO MASTER CYLINDER | ||
| 732 | N 900288015000 | CLAMP |
| HOSE TO RESERVOIR | ||
| 735 | A 0019978390 | LOOM TIE |
| LINE MOUNTING | ||
| 738 | A 0009972881 | GROMMET |
| HOSE THRU CAB FLOOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
