Transporto priemonė: LPKF 808,809; VIN numerio dalis: 316083
Grupė: 60 PLATFORM
| # | Kodas | Pavadinimas |
|---|---|---|
| Y YYYYYYYYYYYY | PART NAME MISSING | |

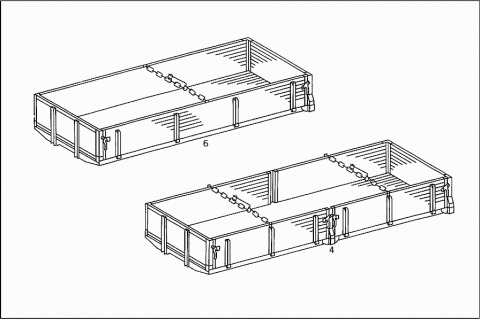

| A 3166000103 | PLATFORM | |
| Repalced by: A 3146003103 | ||
| A 3166000103 | PLATFORM | |
| Repalced by: A 3146003103 | ||
| A 3166000803 | PLATFORM | |
| Repalced by: A 3146003103 | ||
| A 3166000803 | PLATFORM | |
| Repalced by: A 3146003103 | ||
| 004 | A 3146003103 | PLATFORM |
| 4500 X 2260 X 500 MM | ||
| A 3166000203 | PLATFORM | |
| Repalced by: A 3146003203 | ||
| A 3166000203 | PLATFORM | |
| Repalced by: A 3146003203 | ||
| A 3166000903 | PLATFORM | |
| Repalced by: A 3146003203 | ||
| A 3166000903 | PLATFORM | |
| Repalced by: A 3146003203 | ||
| 004 | A 3146003203 | PLATFORM |
| 5500 X 2260 X 500 MM | ||
| 004 | A 3146003403 | PLATFORM |
| 6500 X 2260 X 500 MM | ||
| A 3166000003 | PLATFORM | |
| Repalced by: A 3146003003 | ||
| A 3166000003 | PLATFORM | |
| Repalced by: A 3146003003 | ||
| A 3166000703 | PLATFORM | |
| Repalced by: A 3146003003 | ||
| A 3166000703 | PLATFORM | |
| Repalced by: A 3146003003 | ||
| 006 | A 3146003003 | PLATFORM |
| 3800 X 2260 X 500 MM | ||

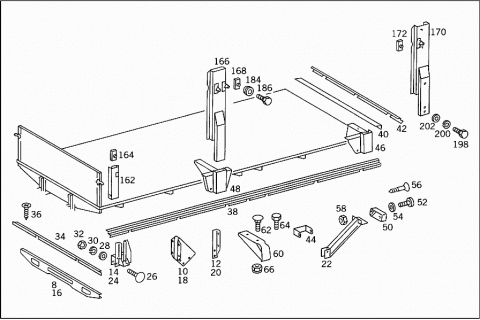

| A 3146103701 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146105001 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146107201 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146103801 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146105101 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146103601 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146104901 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146107101 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146109701 | SUBSTRUCTURE | |
| Repalced by: A 3146117720 | ||
| A 3146108101 | SUBSTRUCTURE | |
| Repalced by: A 3146117720 | ||
| A 3146117720 | SIDE MEMBER | |
| FRONT | ||
| A 3146108001 | SUBSTRUCTURE | |
| Repalced by: A 3146118820 | ||
| A 3146118820 | SIDE MEMBER | |
| FRONT | ||
| A 3146109401 | SUBSTRUCTURE | |
| Repalced by: A 3146118820 | ||
| A 3146118820 | SIDE MEMBER | |
| FRONT | ||
| A 3146117720 | SIDE MEMBER | |
| Repalced by: A 3146118820 | ||
| A 3146118820 | SIDE MEMBER | |
| FRONT | ||
| A 3146117820 | SIDE MEMBER | |
| FRONT | ||
| 008 | A 3146123014 | CROSS MEMBER |
| FRONT | ||
| 008 | A 3146100514 | CROSS MEMBER |
| FRONT | ||
| A 3146100030 | CONSOLE | |
| FRONT | ||
| 010 | A 3146140133 | CAP |
| A 3226140012 | ANGLE | |
| Repalced by: A 3406140012 | ||
| 012 | A 3406140012 | ANGLE |
| LEFT | ||
| A 3226140112 | ANGLE | |
| Repalced by: A 3406140112 | ||
| 012 | A 3406140112 | ANGLE |
| RIGHT | ||
| A 3146100536 | BRACKET | |
| A 3146100732 | CONNECTION | |
| Repalced by: A 3146100432 | ||
| A 3146100032 | CONNECTION | |
| Repalced by: A 3146100432 | ||
| 014 | A 3146100432 | CONNECTION |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 014 | A 3146100432 | CONNECTION |
| CROSS MEMBER TO SIDE MEMBERS | ||
| A 3146100132 | CONNECTION | |
| Repalced by: A 3146100532 | ||
| 014 | A 3146100532 | CONNECTION |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 014 | A 3146100532 | CONNECTION |
| CROSS MEMBER TO SIDE MEMBERS | ||
| A 3146104001 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146105301 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146107501 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146104101 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146105401 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146107601 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146103901 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146105201 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146107401 | SUBSTRUCTURE | |
| Repalced by: A 3146117820 | ||
| A 3146117820 | SIDE MEMBER | |
| REAR | ||
| 016 | A 3146123014 | CROSS MEMBER |
| REAR | ||
| 016 | A 3146100514 | CROSS MEMBER |
| REAR | ||
| A 3146108401 | SUBSTRUCTURE | |
| Repalced by: A 3146117720 | ||
| A 3146117720 | SIDE MEMBER | |
| REAR | ||
| A 3146108501 | SUBSTRUCTURE | |
| Repalced by: A 3146118820 | ||
| A 3146118820 | SIDE MEMBER | |
| REAR | ||
| A 3146108301 | SUBSTRUCTURE | |
| Repalced by: A 3146117720 | ||
| A 3146117720 | SIDE MEMBER | |
| REAR | ||
| A 3146109501 | SUBSTRUCTURE | |
| Repalced by: A 3146118820 | ||
| A 3146118820 | SIDE MEMBER | |
| REAR | ||
| 018 | A 3146140133 | CAP |
| 020 | A 3406140012 | ANGLE |
| LEFT | ||
| 020 | A 3406140112 | ANGLE |
| RIGHT | ||
| A 3226140112 | ANGLE | |
| Repalced by: A 3406140112 | ||
| A 3226140012 | ANGLE | |
| Repalced by: A 3406140012 | ||
| A 3146100536 | BRACKET | |
| A 3146100134 | SUPPORT | |
| 022 | A 3146100334 | SUPPORT |
| REAR | ||
| 022 | A 3146100434 | SUPPORT |
| REAR | ||
| A 3146100032 | CONNECTION | |
| Repalced by: A 3146100432 | ||
| A 3146100132 | CONNECTION | |
| Repalced by: A 3146100532 | ||
| 024 | A 3146100532 | CONNECTION |
| CROSS MEMBER TO SIDE MEMBERS | ||
| A 3146100332 | CONNECTION | |
| Repalced by: A 3146101132 | ||
| A 3146100232 | CONNECTION | |
| Repalced by: A 3146101132 | ||
| A 3146101132 | CONNECTION | |
| Repalced by: A 3146100432 | ||
| 024 | A 3146100432 | CONNECTION |
| CROSS MEMBER TO SIDE MEMBERS | ||
| 026 | N 000603008051 | SCREW |
| STRUT TO SIDE MEMBER | ||
| 028 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 028 | N 000125008443 | WASHER |
| STRUT TO SIDE MEMBER | ||
| 030 | N 912004008102 | LOCK WASHER |
| STRUT TO SIDE MEMBER | ||
| 032 | N 304032008006 | NUT |
| STRUT TO SIDE MEMBER | ||
| A 3146162885 | EDGING | |
| Repalced by: A 3146163885 | ||
| 034 | A 3146163885 | EDGING |
| FRONT | ||
| 036 | N 000097005025 | WOOD SCREW |
| EDGING TO FLOOR | ||
| A 3146101785 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3146102985 | EDGING | |
| Repalced by: A 0009853547 | ||
| 038 | A 3146103785 | EDGING |
| LEFT | ||
| A 3146101985 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3146103185 | EDGING | |
| Repalced by: A 0009853547 | ||
| 038 | A 3146103985 | EDGING |
| LEFT | ||
| A 3146102185 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3146102785 | EDGING | |
| Repalced by: A 0009853547 | ||
| 038 | A 3146103585 | EDGING |
| LEFT | ||
| 038 | A 3146104285 | EDGING |
| LEFT | ||
| A 3146101885 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3146103085 | EDGING | |
| Repalced by: A 0009853547 | ||
| 038 | A 3146103885 | EDGING |
| RIGHT | ||
| A 3146102085 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3146103285 | EDGING | |
| Repalced by: A 0009853547 | ||
| 038 | A 3146104085 | EDGING |
| RIGHT | ||
| A 3146102285 | EDGING | |
| Repalced by: A 0009853547 | ||
| A 3146102885 | EDGING | |
| Repalced by: A 0009853547 | ||
| 038 | A 3146103685 | EDGING |
| RIGHT | ||
| 038 | A 3146104385 | EDGING |
| RIGHT | ||
| A 3146102685 | EDGING | |
| Repalced by: A 0009853547 | ||
| 040 | A 0009853547 | METAL SECTION |
| LEFT AND RIGHT | ||
| 5314 MM | ||
| 040 | A 0009853547 | METAL SECTION |
| REAR | ||
| 5314 MM | ||
| 042 | A 3146104185 | EDGING |
| REAR | ||
| 044 | A 3526160030 | HINGE MOUNTING |
| FOR SIDE PANELS | ||
| 044 | A 3526160030 | HINGE MOUNTING |
| FOR REAR PANEL | ||
| 044 | A 3826160030 | HINGE MOUNTING |
| FOR SIDE PANELS | ||
| 044 | A 3826160030 | HINGE MOUNTING |
| FOR REAR PANEL | ||
| 046 | A 3826100152 | TAKE-UP DEVICE |
| LEFT REAR | ||
| 046 | A 3826100452 | TAKE-UP DEVICE |
| LEFT REAR | ||
| 046 | A 3826100252 | TAKE-UP DEVICE |
| RIGHT REAR | ||
| 046 | A 3826100552 | TAKE-UP DEVICE |
| RIGHT REAR | ||
| A 3826100052 | TAKE-UP DEVICE | |
| Repalced by: A 3526100052 | ||
| 048 | A 3526100052 | TAKE-UP DEVICE |
| CENTRAL | ||
| A 3128510145 | PANELLING | |
| 050 | A 3129870040 | RUBBER BUFFER |
| REAR PANEL FLAP STOP | ||
| 050 | A 0008770265 | RUBBER BUFFER |
| REAR PANEL FLAP STOP | ||
| 052 | N 007985005146 | SCREW |
| RUBBER BUFFER TO PLATFORM | ||
| 052 | N 007985005151 | SCREW |
| Repalced by: N 007985005532 | ||
| 052 | N 007985005532 | SCREW |
| RUBBER BUFFER TO PLATFORM | ||
| 054 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 054 | N 000433005304 | WASHER |
| RUBBER BUFFER TO PLATFORM | ||
| 054 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 054 | N 009021005205 | WASHER |
| RUBBER BUFFER TO PLATFORM | ||
| 056 | N 000096005027 | WOOD SCREW |
| RUBBER BUFFER TO PLATFORM | ||
| 058 | N 304032005005 | NUT |
| RUBBER BUFFER TO PLATFORM | ||
| A 3406160088 | FLOOR | |
| Repalced by: A 3826160286 | ||
| 060 | A 3826160286 | STOP |
| SIDE PANELS | ||
| A 3826160186 | STOP | |
| Repalced by: A 3526160686 | ||
| 060 | A 3526160686 | STOP |
| FOR REAR PANEL | ||
| A 3128530043 | ANGLE | |
| FRONT PANEL TO SUBSTRUCTURE | ||
| A 3146270012 | ANGLE | |
| FRONT PANEL TO SUBSTRUCTURE | ||
| 062 | N 000603008049 | SCREW |
| FRONT PANEL TO SUBSTRUCTURE | ||
| 064 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 064 | N 304017008016 | SCREW |
| FRONT PANEL TO SUBSTRUCTURE | ||
| 066 | N 304032008006 | NUT |
| FRONT PANEL TO SUBSTRUCTURE | ||
| 066 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 066 | N 913004008001 | NUT |
| FRONT PANEL TO SUBSTRUCTURE | ||

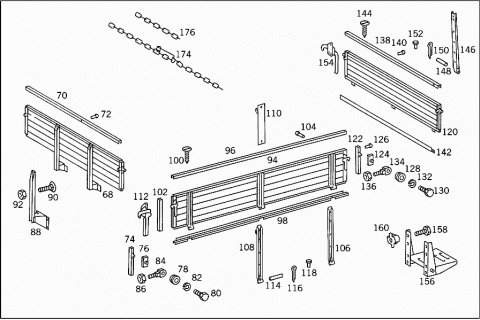

| A 3166200002 | FRONT PANEL | |
| A 3166200302 | FRONT PANEL | |
| 068 | A 3146201602 | FRONT PANEL |
| A 3146270970 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| A 3146271170 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| 070 | A 3146371470 | BINDING RAIL |
| TOP | ||
| 072 | A 3529900196 | RIVET |
| BINDING RAIL TO PLATFORM FRONT PANEL | ||
| 072 | A 3529900296 | RIVET |
| BINDING RAIL TO PLATFORM FRONT PANEL | ||
| 072 | A 3529900296 | RIVET |
| BINDING RAIL TO PLATFORM FRONT PANEL | ||
| 074 | A 3526400054 | BINDING RAIL |
| FRONT PANEL,LEFT | ||
| 074 | A 3526400154 | BINDING RAIL |
| FRONT PANEL,RIGHT | ||
| 076 | A 3526370011 | PLATE |
| THREADED | ||
| 078 | A 3526370013 | WASHER |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| 080 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 080 | N 304017010002 | SCREW |
| FASTENER DETENT | ||
| 082 | N 912004010102 | LOCK WASHER |
| FASTENER DETENT | ||
| 084 | A 3526250015 | RING |
| 086 | N 000934010014 | NUT |
| A 3166270021 | BRACING | |
| Repalced by: A 3826270021 | ||
| A 3826270021 | BRACING | |
| Repalced by: A 3826200028 | ||
| 088 | A 3826200028 | BRACING |
| FRONT PANEL TO SUBSTRUCTURE | ||
| 088 | A 3146200028 | BRACING |
| FRONT PANEL TO SUBSTRUCTURE | ||
| 088 | A 3166200028 | BRACING |
| FRONT PANEL | ||
| 090 | N 000603008027 | SCREW |
| BRACING TO FRONT PANEL | ||
| M 8X35 | ||
| 090 | N 000603008027 | SCREW |
| BRACING TO FRONT PANEL | ||
| M 8X35 | ||
| 090 | N 000603008049 | SCREW |
| BRACING TO FRONT PANEL | ||
| M 8X40 | ||
| 092 | N 304032008006 | NUT |
| BRACING TO FRONT PANEL | ||
| A 3526300801 | SIDE PANEL | |
| A 3606301101 | SIDE PANEL | |
| A 3166300701 | SIDE PANEL | |
| 094 | A 3146303101 | SIDE PANEL |
| 094 | A 3146303201 | SIDE PANEL |
| 094 | A 3146303301 | SIDE PANEL |
| 094 | A 3146304001 | SIDE PANEL |
| A 3526370070 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| A 3146372570 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| A 3146371570 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| A 3146372370 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| A 3146372770 | BINDING RAIL | |
| Repalced by: A 3146371470 | ||
| 096 | A 3146371470 | BINDING RAIL |
| TOP | ||
| 096 | A 3146372970 | BINDING RAIL |
| LEFT AND RIGHT TOP | ||
| 098 | A 3526370370 | BINDING RAIL |
| BOTTOM LEFT | ||
| 098 | A 3526370470 | BINDING RAIL |
| BOTTOM RIGHT | ||
| A 3146371770 | BINDING RAIL | |
| Repalced by: A 3146371970 | ||
| 098 | A 3146371970 | BINDING RAIL |
| BOTTOM LEFT | ||
| A 3146372670 | BINDING RAIL | |
| Repalced by: A 3146371970 | ||
| A 3146371870 | BINDING RAIL | |
| Repalced by: A 3146371970 | ||
| A 3146372870 | BINDING RAIL | |
| Repalced by: A 3146371970 | ||
| A 3146372470 | BINDING RAIL | |
| Repalced by: A 3146371970 | ||
| 098 | A 3146371970 | BINDING RAIL |
| LEFT AND RIGHT BOTTOM | ||
| 098 | A 3146373070 | BINDING RAIL |
| LEFT AND RIGHT BOTTOM | ||
| 100 | N 000097005025 | WOOD SCREW |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| 102 | A 3526370970 | BINDING RAIL |
| LEFT | ||
| 102 | A 3526370970 | BINDING RAIL |
| LEFT | ||
| 102 | A 3526371070 | BINDING RAIL |
| RIGHT | ||
| 102 | A 3526371070 | BINDING RAIL |
| RIGHT | ||
| 104 | A 3529900196 | RIVET |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| 104 | A 3529900296 | RIVET |
| BINDING RAIL TO PLATFORM SIDE PANEL | ||
| 106 | A 3526370054 | HINGE |
| SIDE PANELS | ||
| 106 | A 3826370054 | HINGE |
| SIDE PANELS | ||
| 108 | A 3526300082 | HINGE |
| WITH CHAIN FASTENER | ||
| 108 | A 3826300082 | HINGE |
| WITH CHAIN FASTENER | ||
| 110 | A 3146300036 | BRACKET |
| TENSION CHAIN | ||
| 112 | A 3526370063 | HOOK |
| LEFT FRONT AND RIGHT REAR | ||
| 112 | A 3526370063 | HOOK |
| LEFT FRONT AND RIGHT REAR | ||
| 112 | A 3526370163 | HOOK |
| RIGHT FRONT,LEFT REAR | ||
| 112 | A 3526370163 | HOOK |
| RIGHT FRONT,LEFT REAR | ||
| 114 | N 001434012052 | PIN |
| SIDE PANELS TO SUBSTRUCTURE | ||
| 114 | N 001433012031 | PIN |
| SIDE PANELS TO SUBSTRUCTURE | ||
| 116 | N 000094004065 | COTTER PIN |
| SIDE PANELS TO SUBSTRUCTURE | ||
| 118 | N 001476004014 | GROOVED NAIL |
| SIDE PANELS TO SUBSTRUCTURE | ||
| 120 | A 3146402202 | REAR PANEL |
| 122 | A 3526400054 | BINDING RAIL |
| LEFT | ||
| A 3826470270 | RAIL | |
| Repalced by: A 0029854451 | ||
| 122 | A 3526400154 | BINDING RAIL |
| RIGHT | ||
| A 3826470370 | RAIL | |
| Repalced by: A 0029854451 | ||
| 122 | A 0029854451 | METAL SECTION |
| LEFT AND RIGHT | ||
| 124 | A 3526370011 | PLATE |
| THREADED | ||
| 126 | A 3529900296 | RIVET |
| BINDING RAIL TO PLATFORM REAR PANEL | ||
| 128 | A 3526370013 | WASHER |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| 130 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 130 | N 304017010002 | SCREW |
| FASTENER DETENT | ||
| 132 | N 912004010102 | LOCK WASHER |
| FASTENER DETENT | ||
| 134 | A 3526250015 | RING |
| FASTENER DETENT | ||
| 136 | N 000934010014 | NUT |
| FASTENER DETENT | ||
| A 3146470470 | RAIL | |
| Repalced by: A 3146371470 | ||
| 138 | A 3146371470 | BINDING RAIL |
| TOP | ||
| A 3146470870 | RAIL | |
| Repalced by: A 3146371470 | ||
| 138 | A 3146371470 | BINDING RAIL |
| TOP | ||
| 140 | A 3529900196 | RIVET |
| BINDING RAIL TO PLATFORM REAR PANEL | ||
| 142 | A 3146470570 | RAIL |
| BOTTOM | ||
| A 3146470970 | RAIL | |
| Repalced by: A 3146371970 | ||
| 142 | A 3146371970 | BINDING RAIL |
| BOTTOM | ||
| 144 | N 000097005025 | WOOD SCREW |
| BINDING RAIL TO PLATFORM REAR PANEL | ||
| 146 | A 3526370054 | HINGE |
| REAR PANEL | ||
| 146 | A 3826370054 | HINGE |
| REAR PANEL | ||
| 148 | N 001434012052 | PIN |
| REAR PANEL TO SUBSTRUCTURE | ||
| 148 | N 001433012031 | PIN |
| REAR PANEL TO SUBSTRUCTURE | ||
| 150 | N 000094004065 | COTTER PIN |
| REAR PANEL TO SUBSTRUCTURE | ||
| 152 | N 001476004014 | GROOVED NAIL |
| REAR PANEL TO SUBSTRUCTURE | ||
| 154 | A 3526370063 | HOOK |
| LEFT | ||
| 154 | A 3526370163 | HOOK |
| RIGHT | ||
| 156 | A 0008700008 | FOLDING STEP |
| REAR PANEL | ||
| 158 | N 000966008020 | SCREW |
| Repalced by: N 000965008007 | ||
| 158 | N 000965008007 | SCREW |
| FOLDING STEP TO REAR PANEL | ||
| M 8X30 | ||
| 160 | A 0009842425 | THREADED CHUCK |
| FOLDING STEP TO REAR PANEL | ||
| 162 | A 3826600975 | INSERT RAIL |
| FRONT LEFT | ||
| 162 | A 3826601075 | INSERT RAIL |
| FRONT RIGHT | ||
| 164 | A 3526370011 | PLATE |
| 166 | A 3826601175 | INSERT RAIL |
| CENTRAL | ||
| 168 | A 3526370011 | PLATE |
| 170 | A 3826601275 | INSERT RAIL |
| REAR LEFT | ||
| 170 | A 3826602175 | INSERT RAIL |
| REAR LEFT | ||
| 170 | A 3826601375 | INSERT RAIL |
| REAR RIGHT | ||
| 170 | A 3826602275 | INSERT RAIL |
| REAR RIGHT | ||
| 172 | A 3526370011 | PLATE |
| A 3038500393 | TENSION CHAIN | |
| Repalced by: A 3406600093 | ||
| A 3018500194 | FASTENER | |
| Repalced by: A 3406600093 | ||
| 174 | A 3406600093 | CHAIN |
| WITH CHAIN LOCK | ||
| 174 | A 3406600093 | CHAIN |
| WITH CHAIN LOCK | ||
| 176 | N 000763006004 | CHAIN |
| 176 | N 000763006004 | CHAIN |
| 178 | A 0008261741 | SIDE REFLECTOR |
| Repalced by: A 0008262440 | ||
| 178 | A 0008262440 | REFLECTOR |
| AMBER | ||
| 180 | A 0005443505 | REFLECTOR |
| AMBER | ||
| 180 | A 0005443605 | REFLECTOR |
| AMBER | ||
| 180 | A 0005443905 | REFLECTOR |
| AMBER | ||
| 182 | N 007996004021 | WOOD SCREW |
| REFLECTOR TO PLATFORM | ||
| 4X25 MM | ||
| 182 | N 007996005012 | WOOD SCREW |
| REFLECTOR TO PLATFORM | ||
| 5X25 MM | ||
| 184 | A 3526370013 | WASHER |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| 186 | A 3609902101 | SCREW |
| (ECCENTRIC PLATE) PLATFORM PANEL FASTENER | ||
| 188 | N 000603008027 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 8X35 MM | ||
| 188 | N 000603008049 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 8X40 MM | ||
| 188 | N 000603008050 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 8X45 MM | ||
| 188 | N 000603008047 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 8X50 MM | ||
| 188 | N 000603008054 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 8X60 MM | ||
| 188 | N 000603008051 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 8X55 MM | ||
| 188 | N 000603008052 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 8X80 MM | ||
| 188 | N 000603008053 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 8X100 MM | ||
| 190 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 190 | N 304017008053 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 8X60 MM | ||
| 190 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 190 | N 304017008021 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 8X20 MM | ||
| 190 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 190 | N 304017008016 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 8X16 MM | ||
| 192 | N 912004008102 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 194 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 194 | N 000125008443 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 194 | N 000440009103 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 196 | N 304032008006 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 196 | N 000936008015 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 196 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 196 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 198 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 198 | N 304017008021 | SCREW |
| INSERT RAIL TO INSERT POCKET | ||
| 200 | N 912004008102 | LOCK WASHER |
| INSERT RAIL TO INSERT POCKET | ||
| 202 | N 009021008205 | WASHER |
| Repalced by: N 009021008213 | ||
| 202 | N 009021008213 | WASHER |
| INSERT RAIL TO INSERT POCKET | ||
| 204 | A 3148910013 | PLATE |
| PLATFORM TO CHASSIS | ||
| 206 | N 000603008047 | SCREW |
| PLATFORM TO CHASSIS | ||
| 208 | N 912004008102 | LOCK WASHER |
| PLATFORM TO CHASSIS | ||
| 210 | N 304032008006 | NUT |
| PLATFORM TO CHASSIS | ||
| 212 | A 3148910111 | PLATE |
| PLATFORM TO CHASSIS | ||
| 214 | N 000960012197 | SCREW |
| PLATFORM TO CHASSIS | ||
| M 12X1.5X55 | ||
| 216 | N 913002012202 | NUT |
| PLATFORM TO CHASSIS | ||
| 218 | A 3148910113 | PLATE |
| PLATFORM TO CHASSIS | ||
| 220 | N 000960012216 | SCREW |
| Repalced by: N 308765012007 | ||
| 220 | N 308765012007 | SCREW |
| PLATFORM TO CHASSIS | ||
| M 12X1.5X120 | ||
| 220 | N 000961012122 | SCREW |
| PLATFORM TO CHASSIS | ||
| M 12X1.5X40 | ||
| 222 | N 000125013006 | WASHER |
| PLATFORM TO CHASSIS | ||
| 224 | N 913002012002 | NUT |
| PLATFORM TO CHASSIS | ||
| A 3148910087 | RING | |
| 226 | N 000961012107 | SCREW |
| Repalced by: N 308676012011 | ||
| 226 | N 308676012011 | SCREW |
| 226 | N 000961012122 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| M 12X1.5X40 | ||
| 228 | N 000125013008 | WASHER |
| 230 | N 912004012100 | LOCK WASHER |
| AUXILIARY FRAME TO CHASSIS | ||
| N 000436014002 | WASHER | |
| AUXILIARY FRAME TO CHASSIS | ||
| 232 | N 000934012022 | NUT |
| AUXILIARY FRAME TO CHASSIS | ||
| A 3148800321 | REAR FENDER | |
| Repalced by: A 3168800021 | ||
| 234 | A 3168800021 | REAR FENDER |
| REAR | ||
| 234 | A 3148800521 | REAR FENDER |
| REAR | ||
| 236 | N 000603008047 | SCREW |
| REAR FENDER TO PLATFORM | ||
| M 8X50 | ||
| 236 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 236 | N 304017008016 | SCREW |
| REAR FENDER TO PLATFORM | ||
| M 8X16 | ||
| 236 | N 000603008049 | SCREW |
| REAR FENDER TO PLATFORM | ||
| M 8X40 | ||
| 238 | N 912004008102 | LOCK WASHER |
| REAR FENDER TO PLATFORM | ||
| 240 | N 000440009103 | WASHER |
| REAR FENDER TO PLATFORM | ||
| 242 | N 304032008006 | NUT |
| REAR FENDER TO PLATFORM | ||
| A 3528900010 | FIXTURE | |
| Repalced by: A 3528900110 | ||
| 244 | A 3528900110 | FIXTURE |
| CHOCK | ||
| 246 | A 3528990035 | SPRING |
| CHOCK FIXTURE | ||
| 248 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 248 | N 304017008021 | SCREW |
| CHOCK FIXTURE | ||
| M 8X20 | ||
| 248 | N 000603008049 | SCREW |
| CHOCK FIXTURE | ||
| M 8X40 | ||
| 250 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 250 | N 913004008001 | NUT |
| CHOCK FIXTURE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PLATFORM USED FOR MEILLER THREE-SIDE DUMP TRUCK | ||
| A 3166000300 | PLATFORM | |
| 3500X2100X400 MM | ||
| A 3166000600 | PLATFORM | |
| 3500X2200X400 MM | ||
| A 3166100801 | SUBSTRUCTURE | |
| (AUXILIARY FRAME) | ||
| A 3166101401 | SUBSTRUCTURE | |
| (AUXILIARY FRAME) | ||
| A 3146107701 | SUBSTRUCTURE | |
| (AUXILIARY FRAME) | ||
| 262 | A 0019971872 | FITTING |
| FROM OIL TANK TO PUMP | ||
| 264 | A 0019971672 | FITTING |
| FROM OIL TANK TO PUMP | ||
| 264 | A 0029973772 | FITTING |
| Repalced by: N 003901016002 | ||
| 264 | N 003901016002 | SCREW-IN FITTING |
| FROM OIL TANK TO PUMP | ||
| 266 | A 0089971882 | HOSE |
| FROM OIL TANK TO PUMP | ||
| A 3166190065 | LINE | |
| FROM OIL TANK TO PUMP | ||
| 268 | A 3166190165 | LINE |
| FROM OIL TANK TO PUMP | ||
| 268 | A 3166190265 | LINE |
| FROM OIL TANK TO PUMP | ||
| 270 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 270 | N 000000000668 | CLAMP |
| LINES TO PUMP AND TO OIL TANK, RESP. | ||
| 272 | A 0019971372 | FITTING |
| FROM OIL TANK TO PUMP | ||
| 274 | N 007603030107 | SEAL RING |
| LINES TO PUMP AND TO OIL TANK, RESP. | ||
| 276 | A 0089972682 | HOSE |
| FROM OIL TANK TO PUMP | ||
| 278 | N 001433016011 | PIN |
| PLATFORM | ||
| 278 | N 001433016011 | PIN |
| PLATFORM | ||
| 280 | N 000094004021 | COTTER PIN |
| PLATFORM | ||
| 280 | N 000094004021 | COTTER PIN |
| PLATFORM | ||
| A 0009881775 | WIRE CABLE | |
| A 0009881875 | WIRE CABLE | |
| 282 | A 0003150606 | COUPLING PIN |
| WITH CHAIN | ||
| 282 | A 0003150806 | COUPLING PIN |
| WITH CHAIN | ||
| 284 | N 001433016007 | PIN |
| AUXILIARY FRAME | ||
| 284 | N 001433016007 | PIN |
| AUXILIARY FRAME | ||
| 286 | N 000094004021 | COTTER PIN |
| AUXILIARY FRAME | ||
| 286 | N 000094004021 | COTTER PIN |
| AUXILIARY FRAME | ||
| 288 | N 000960016171 | SCREW |
| SPARE WHEEL TO AUXILIARY FRAME | ||
| M 16X1.5X60 | ||
| 288 | N 308676016022 | SCREW |
| SPARE WHEEL TO AUXILIARY FRAME | ||
| M 16X1.5X40 | ||
| 288 | N 000961012184 | SCREW |
| Repalced by: N 308676012018 | ||
| 288 | N 308676012018 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| M 12X1.5X85 | ||
| 288 | N 000961012029 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| M 12X1.5X40 | ||
| 288 | N 000961012122 | SCREW |
| AUXILIARY FRAME TO CHASSIS | ||
| M 12X1.5X40 | ||
| 290 | N 912004012100 | LOCK WASHER |
| AUXILIARY FRAME TO CHASSIS | ||
| 292 | N 000125013008 | WASHER |
| N 000436014002 | WASHER | |
| AUXILIARY FRAME TO CHASSIS | ||
| 294 | N 074361016351 | NUT |
| SPARE WHEEL TO AUXILIARY FRAME | ||
| 294 | N 913002012002 | NUT |
| AUXILIARY FRAME TO CHASSIS | ||
| 294 | N 000934012022 | NUT |
| AUXILIARY FRAME TO CHASSIS | ||
| 294 | N 000934012022 | NUT |
| AUXILIARY FRAME TO CHASSIS | ||
| A 3528900010 | FIXTURE | |
| Repalced by: A 3528900110 | ||
| 296 | A 3528900110 | FIXTURE |
| DUMPING PLATFORM | ||
| 297 | A 3528990035 | SPRING |
| 298 | N 000603008049 | SCREW |
| DUMPING PLATFORM | ||
| M 8X40 | ||
| 298 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 298 | N 304017008021 | SCREW |
| DUMPING PLATFORM | ||
| M 8X20 | ||
| 300 | N 304032008006 | NUT |
| DUMPING PLATFORM | ||
| 300 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 300 | N 913004008001 | NUT |
| DUMPING PLATFORM | ||
| 301 | A 3142930740 | BRACKET |
| FROM OIL TANK TO PUMP | ||
| A 3142360740 | BRACKET | |
| DUMPER VALVE THRU CAB REAR PANEL | ||
| A 3142360840 | BRACKET | |
| DUMPER VALVE THRU CAB REAR PANEL | ||
| A 3142301240 | BRACKET | |
| Repalced by: A 3142362540 | ||
| 302 | A 3142362540 | BRACKET |
| DUMPER VALVE THRU CAB REAR PANEL | ||
| A 3436190085 | PIPE CLAMP | |
| SUCTION LINE | ||
| 304 | N 000933010105 | SCREW |
| SUCTION LINE | ||
| 306 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 306 | N 910113010000 | NUT |
| SUCTION LINE | ||
| 308 | A 3142362540 | BRACKET |
| DUMPER VALVE THRU CAB REAR PANEL | ||
| 310 | N 000933010128 | SCREW |
| DUMPER VALVE THRU CAB REAR PANEL | ||
| 312 | N 912004010102 | LOCK WASHER |
| DUMPER VALVE THRU CAB REAR PANEL | ||
| 314 | N 000934010014 | NUT |
| DUMPER VALVE THRU CAB REAR PANEL | ||
| A 3166190052 | VALVE | |
| DUMPER VALVE OPERATION | ||
| 316 | A 0006190352 | VALVE |
| DUMPER VALVE OPERATION | ||
| 318 | A 0006190015 | SHAFT |
| DUMPER VALVE | ||
| 320 | N 001481005026 | CLAMPING SLEEVE |
| DUMPER VALVE SHAFT TO DUMPER VALVE | ||
| 322 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 322 | N 304017008053 | SCREW |
| VALVE TO BRACKET | ||
| M 8X60 | ||
| 324 | N 912004008102 | LOCK WASHER |
| VALVE TO BRACKET | ||
| A 1009970881 | GROMMET | |
| Repalced by: A 3189970381 | ||
| 326 | A 3189970381 | GROMMET |
| DUMPER VALVE THRU CAB REAR PANEL | ||
| 328 | N 000603008032 | SCREW |
| DUMPING PLATFORM | ||
| 330 | N 912004012100 | LOCK WASHER |
| DUMPING PLATFORM | ||
| 332 | N 000934012022 | NUT |
| DUMPING PLATFORM | ||
| 340 | A 3538800208 | MUD APRON |
| LEFT | ||
| 340 | A 3538800308 | MUD APRON |
| RIGHT | ||
| 342 | A 0008820404 | SPLASH GUARD |
| 450X300 MM | ||
| 344 | A 0008820314 | BRACKET |
| MUD APRON TO AUXILIARY FRAME | ||
| 346 | N 000085005128 | SCREW |
| MUD APRON TO AUXILIARY FRAME | ||
| M 5X15 | ||
| 348 | N 912004005103 | LOCK WASHER |
| MUD APRON TO AUXILIARY FRAME | ||
| 350 | N 304032005005 | NUT |
| MUD APRON TO AUXILIARY FRAME | ||
| 352 | N 000961012056 | SCREW |
| Repalced by: N 308676012038 | ||
| 352 | N 308676012038 | SCREW |
| MUD APRON TO AUXILIARY FRAME | ||
| 354 | N 912004012101 | LOCK WASHER |
| MUD APRON TO AUXILIARY FRAME | ||
| N 000436014002 | WASHER | |
| MUD APRON TO AUXILIARY FRAME | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
