Transporto priemonė: LPKF 808,809; VIN numerio dalis: 316083

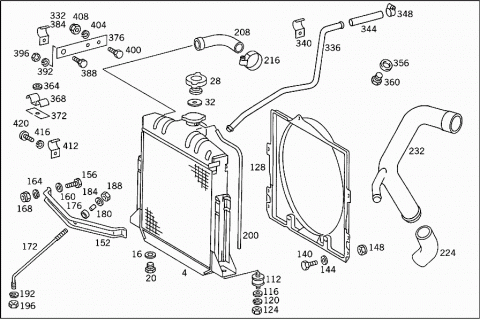

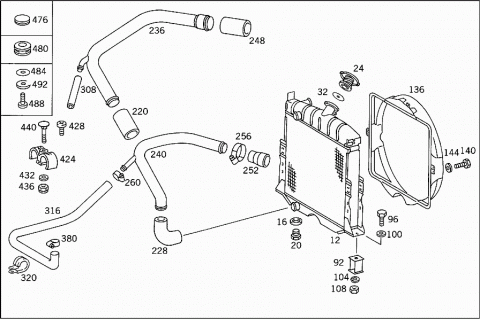

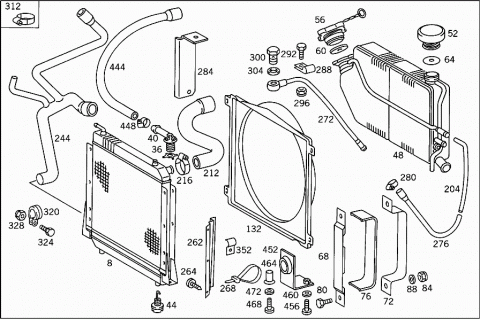

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| A 3145000602 | RADIATOR | |
| Repalced by: A 3145004702 | ||
| A 3145002802 | RADIATOR | |
| Repalced by: A 3145004702 | ||
| A 3145003002 | RADIATOR | |
| Repalced by: A 3145004702 | ||
| 004 | A 3145004702 | RADIATOR |
| BEHR | ||
| 004 | A 3145004702 | RADIATOR |
| BEHR | ||
| 004 | A 3145004802 | RADIATOR |
| BEHR | ||
| 008 | A 3145005302 | RADIATOR |
| BEHR | ||
| A 3145000902 | RADIATOR | |
| Repalced by: A 3145005202 | ||
| 012 | A 3145005202 | RADIATOR |
| BEHR | ||
| 016 | N 007603014405 | SEAL RING |
| A 0019973230 | SCREW PLUG | |
| Repalced by: N 007604014101 | ||
| 020 | N 007604014101 | SCREW PLUG |
| A 0005012815 | RADIATOR CAP | |
| Repalced by: A 0005015715 | ||
| 024 | A 0005015715 | RADIATOR CAP |
| TO 314 500 52 02 | ||
| A 0005010215 | RADIATOR CAP | |
| Repalced by: A 0005012915 | ||
| 028 | A 0005012915 | RADIATOR CAP |
| A 0005012115 | RADIATOR CAP | |
| Repalced by: A 0005013515 | ||
| 028 | A 0005013515 | RADIATOR CAP |
| 028 | A 0005013515 | RADIATOR CAP |
| 032 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 036 | A 0009940013 | LOCK |
| 040 | A 0005010025 | BREATHER PIPE |
| 044 | A 0005010171 | SCREW |
| 048 | A 3815000849 | TANK |
| CAB | ||
| 052 | A 0005014515 | RADIATOR CAP |
| CAB | ||
| 056 | A 0005014615 | RADIATOR CAP |
| CAB | ||
| 056 | A 0005017215 | RADIATOR CAP |
| CAB | ||
| 060 | A 0005010480 | GASKET |
| O.D., | ||
| 52 MM, TO 000 501 46 15 | ||
| 064 | A 0005010880 | GASKET |
| O.D., | ||
| 37 MM | ||
| 068 | A 3185010195 | SHIM |
| CAB | ||
| 072 | A 3185010120 | BRACKET |
| CAB | ||
| A 3815010295 | SHIM | |
| Repalced by: A 3815010495 | ||
| 076 | A 3815010495 | SHIM |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 080 | N 000933010105 | SCREW |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 084 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 084 | N 910113010000 | NUT |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 088 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 088 | N 000125010532 | WASHER |
| EXPANSION TANK TO CAB REAR PANEL | ||
| 092 | A 3145000071 | INTERMEDIATE PIECE |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 096 | N 000933010105 | SCREW |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 100 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 100 | N 000125010532 | WASHER |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 104 | N 912004010102 | LOCK WASHER |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 108 | N 000934010014 | NUT |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 112 | A 3225040112 | RUBBER MOUNTING |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 116 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 116 | N 000125010532 | WASHER |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 120 | N 912004010101 | LOCK WASHER |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 124 | N 000934010014 | NUT |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 124 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 124 | N 910113010000 | NUT |
| RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER | ||
| 128 | A 3145050555 | FAN SHROUD |
| 128 | A 3145050555 | FAN SHROUD |
| 132 | A 3145050955 | FAN SHROUD |
| 136 | A 3145000460 | FAN HOUSING |
| 140 | N 000933006102 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 140 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 140 | N 304017006020 | SCREW |
| FAN SHROUD TO RADIATOR | ||
| 144 | N 000125006421 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 144 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 144 | N 009021006208 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 144 | N 009021006208 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 144 | N 009021006208 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 148 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 148 | N 913004006001 | NUT |
| FAN SHROUD TO RADIATOR | ||
| 148 | N 913004006001 | NUT |
| FAN SHROUD TO RADIATOR | ||
| 148 | N 913004006001 | NUT |
| FAN SHROUD TO RADIATOR | ||
| 152 | A 3145040840 | BRACKET |
| RADIATOR | ||
| 156 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 156 | N 304017008021 | SCREW |
| BRACKET TO RADIATOR | ||
| 160 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 160 | N 000125008443 | WASHER |
| BRACKET TO RADIATOR | ||
| 164 | N 912004008102 | LOCK WASHER |
| BRACKET TO RADIATOR | ||
| 168 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 168 | N 913004008001 | NUT |
| BRACKET TO RADIATOR | ||
| 172 | A 3145040330 | RADIATOR STRUT |
| BRACKET TO RADIATOR | ||
| 172 | A 3145040430 | RADIATOR STRUT |
| BRACKET TO RADIATOR | ||
| 176 | A 3275045082 | RUBBER RING |
| RADIATOR TO SUPPORT | ||
| 180 | A 3199910540 | SPACER TUBE |
| RADIATOR TO SUPPORT | ||
| 184 | N 009021010202 | WASHER |
| Repalced by: N 009021010209 | ||
| 184 | N 009021010209 | WASHER |
| RADIATOR TO SUPPORT | ||
| 188 | N 000934010014 | NUT |
| RADIATOR TO SUPPORT | ||
| 192 | N 912004010102 | LOCK WASHER |
| RADIATOR TO SUPPORT | ||
| 196 | N 000934010014 | NUT |
| RADIATOR STRUT TO FRONT CROSS MEMBER | ||
| 200 | A 0009977752 | HOSE |
| Repalced by: A 0189972882 | ||
| 200 | A 0189972882 | HOSE |
| OVERFLOW | ||
| 200 | A 0189972882 | HOSE |
| OVERFLOW | ||
| A 3185010382 | HOSE | |
| Repalced by: N 073379006203 | ||
| 204 | N 073379006203 | HOSE |
| OVERFLOW | ||
| A 3145010382 | HOSE | |
| Repalced by: A 3145010582 | ||
| 208 | A 3145010582 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 208 | A 3145010582 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 212 | A 3145011282 | HOSE |
| FROM RADIATOR TO THERMOSTAT | ||
| 216 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 216 | N 000000000671 | CLAMP |
| FROM RADIATOR TO THERMOSTAT | ||
| 220 | N 900271038026 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 224 | A 3145010682 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 228 | A 3145010782 | HOSE |
| Repalced by: A 3745010082 | ||
| 228 | A 3745010082 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| A 3145000272 | LINE | |
| Repalced by: A 3145000872 | ||
| A 3145000672 | LINE | |
| Repalced by: A 3145000872 | ||
| 232 | A 3145000872 | LINE |
| FROM RADIATOR TO WATER PUMP | ||
| 236 | A 3145001372 | LINE |
| FROM RADIATOR TO WATER PUMP | ||
| 236 | A 3145000972 | LINE |
| 240 | A 3145001672 | LINE |
| HEATING WATER LINE | ||
| A 3145001772 | LINE | |
| Repalced by: A 3145010982 | ||
| A 3145010982 | HOSE | |
| Repalced by: A 3145011482 | ||
| 244 | A 3145011482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 244 | A 3145011482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 244 | A 3145011582 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 244 | A 3145011082 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 244 | A 3145011682 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 244 | A 3145011482 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 244 | A 3145011582 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 248 | N 900271042004 | HOSE |
| HEATING WATER LINE | ||
| 252 | A 3185010182 | HOSE |
| FROM RADIATOR TO WATER PUMP | ||
| 256 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 256 | N 000000000671 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 260 | N 916017025000 | CLAMP |
| Repalced by: N 000000000668 | ||
| 260 | N 000000000668 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 260 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 260 | N 000000000667 | CLAMP |
| FROM RADIATOR TO WATER PUMP | ||
| 262 | A 3185010220 | BRACKET |
| FROM RADIATOR TO WATER PUMP | ||
| 264 | N 007981004322 | SHEET METAL SCREW |
| Repalced by: N 007981004233 | ||
| 264 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 264 | N 000000000460 | SHEET METAL SCREW |
| BRACKET | ||
| 4.8X13 | ||
| 268 | A 0019978390 | LOOM TIE |
| COOLING WATER HOSE TO ENGINE | ||
| 272 | A 3145000024 | BREATHER PIPE |
| COOLING WATER HOSE TO ENGINE | ||
| 276 | A 3145011924 | COOLING WATER PIPE |
| COOLING WATER HOSE TO ENGINE | ||
| 280 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 280 | N 000000000666 | CLAMP |
| COOLING WATER HOSE TO ENGINE | ||
| A 3185060240 | BRACKET | |
| Repalced by: A 3185060640 | ||
| 284 | A 3185060640 | BRACKET |
| COOLING WATER HOSE TO ENGINE | ||
| 288 | A 3609950401 | CLAMP |
| 292 | N 000933006102 | SCREW |
| COOLING WATER HOSE TO ENGINE | ||
| 296 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 296 | N 913004006001 | NUT |
| COOLING WATER HOSE TO ENGINE | ||
| 300 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 300 | N 915036010108 | HOLLOW SCREW |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 304 | N 007603014106 | SEAL RING |
| DE-AERATION LINE TO ENGINE AND TO EXPANSION TANK | ||
| 308 | N 900271015037 | HOSE |
| HEATING LINE AND BREATHER LINE TO ENGINE | ||
| 312 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 312 | N 000000000671 | CLAMP |
| LINE MOUNTING | ||
| 40-60 MM | ||
| 312 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 312 | N 000000000666 | CLAMP |
| LINE MOUNTING | ||
| 16-25 MM | ||
| 312 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 312 | N 000000000667 | CLAMP |
| LINE MOUNTING | ||
| 20-32 MM | ||
| 316 | A 3185060260 | PIPE |
| FROM PIPE TO HEATER UNIT | ||
| 316 | A 3185060035 | HOSE |
| FROM PIPE TO HEATER UNIT | ||
| 320 | N 916016025201 | CLAMP |
| FROM PIPE TO HEATER UNIT | ||
| 320 | N 916016028204 | CLAMP |
| FROM PIPE TO HEATER UNIT | ||
| 324 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 324 | N 304017006020 | SCREW |
| FROM PIPE TO HEATER UNIT | ||
| 328 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 328 | N 913004006001 | NUT |
| FROM PIPE TO HEATER UNIT | ||
| 332 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 332 | A 6739950001 | CLAMP |
| FROM PIPE TO HEATER UNIT | ||
| 332 | A 3609950601 | CLAMP |
| FROM PIPE TO HEATER UNIT | ||
| A 3145000472 | LINE | |
| Repalced by: A 3145001072 | ||
| 336 | A 3145001072 | LINE |
| HEATING WATER LINE | ||
| A 3145001272 | LINE | |
| Repalced by: A 3145001872 | ||
| 336 | A 3145001872 | LINE |
| HEATING WATER LINE | ||
| 336 | A 3145001872 | LINE |
| HEATING WATER LINE | ||
| 336 | A 3145060560 | PIPE |
| HEATING WATER LINE | ||
| 336 | A 3145001972 | LINE |
| A 3049950220 | CLAMP | |
| Repalced by: A 3129952420 | ||
| 340 | A 3129952420 | CLAMP |
| Repalced by: A 1109950401 | ||
| 340 | A 1109950401 | CLAMP |
| HEATING WATER LINE | ||
| 340 | A 1109950401 | CLAMP |
| HEATING WATER LINE | ||
| 344 | N 900271015037 | HOSE |
| HEATING WATER PIPE TO ENGINE | ||
| 344 | N 900271018038 | HOSE |
| HEATING PIPE TO ENGINE | ||
| 348 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 348 | N 000000000667 | CLAMP |
| HEATING WATER PIPE TO ENGINE | ||
| 352 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 352 | A 6739950001 | CLAMP |
| FAN SHROUD | ||
| 352 | A 3609950601 | CLAMP |
| FAN SHROUD | ||
| 356 | N 007603008112 | SEAL RING |
| HEATING WATER LINE | ||
| 360 | N 007604008101 | SCREW PLUG |
| HEATING WATER LINE | ||
| 364 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 364 | N 000125008443 | WASHER |
| HEATING WATER LINE | ||
| 368 | A 3219950332 | CLAMP |
| HEATING PIPE TO ENGINE | ||
| 372 | A 3142030084 | SHIM |
| HEATING PIPE TO ENGINE | ||
| A 3144290240 | BRACKET | |
| Repalced by: A 3812950440 | ||
| A 3124292440 | BRACKET | |
| Repalced by: A 3124761535 | ||
| 376 | A 3124761535 | BRACKET |
| ENGINE-TO-HEAT-EXCHANGER HEATING WATER LINE | ||
| N 916017020000 | CLAMP | |
| Repalced by: N 000000000667 | ||
| N 000000000667 | CLAMP | |
| A 3609950501 | CLAMP | |
| Repalced by: A 3609952001 | ||
| 384 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 384 | A 6739950001 | CLAMP |
| HEATING PIPE TO RADIATOR | ||
| 388 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 388 | N 304017008016 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 392 | N 912004008102 | LOCK WASHER |
| HEATING PIPE TO RADIATOR | ||
| 396 | N 304032008006 | NUT |
| HEATING PIPE TO RADIATOR | ||
| 400 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 400 | N 304017006020 | SCREW |
| HEATING PIPE TO RADIATOR | ||
| 404 | N 912004006102 | LOCK WASHER |
| HEATING PIPE TO RADIATOR | ||
| 408 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 408 | N 913004006001 | NUT |
| HEATING PIPE TO RADIATOR | ||
| A 0679950032 | CLAMP | |
| Repalced by: A 3609952001 | ||
| 412 | A 3609952001 | CLAMP |
| Repalced by: A 6739950001 | ||
| 412 | A 6739950001 | CLAMP |
| ENGINE-TO-HEAT-EXCHANGER HEATING WATER LINE | ||
| 416 | N 912004006102 | LOCK WASHER |
| ENGINE-TO-HEAT-EXCHANGER HEATING WATER LINE | ||
| 420 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 420 | N 000000001146 | SCREW |
| ENGINE-TO-HEAT-EXCHANGER HEATING WATER LINE | ||
| 424 | A 3185060140 | BRACKET |
| COOLING-WATER/HEATING LINES | ||
| 424 | A 3185060540 | BRACKET |
| COOLING-WATER/HEATING LINES | ||
| 428 | N 007985006160 | SCREW |
| Repalced by: N 007985006590 | ||
| 428 | N 007985006590 | SCREW |
| Repalced by: N 000000001481 | ||
| 428 | N 000000001481 | SCREW |
| BRACKET TO CAB | ||
| 432 | N 000125006421 | WASHER |
| BRACKET TO CAB | ||
| 436 | N 913004006002 | NUT |
| Repalced by: N 913004006001 | ||
| 436 | N 913004006001 | NUT |
| BRACKET TO CAB | ||
| 440 | N 000603006040 | SCREW |
| BRACKET TO CAB | ||
| 444 | A 3145012024 | COOLING WATER PIPE |
| DE-AERATION | ||
| 448 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 448 | N 000000000666 | CLAMP |
| DE-AERATION | ||
| A 3146160514 | BRACKET | |
| Repalced by: A 3185000331 | ||
| 452 | A 3185000331 | BRACKET |
| 456 | N 007985006161 | SCREW |
| Repalced by: N 007985006580 | ||
| 456 | N 007985006580 | SCREW |
| BRACKET TO SIDE PANEL | ||
| 460 | N 000125006421 | WASHER |
| BRACKET TO SIDE PANEL | ||
| 464 | N 913010006107 | RIVETED NUT |
| SEAT FRAMEWORK TO FLOOR | ||
| 468 | N 007985006193 | SCREW |
| Repalced by: N 000000001146 | ||
| 468 | N 000000001146 | SCREW |
| SEAT FRAMEWORK TO FLOOR | ||
| 472 | N 000125006421 | WASHER |
| SEAT FRAMEWORK TO FLOOR | ||
| 476 | A 3099870444 | EXPANSION PLUG |
| CAB | ||
| 480 | A 0009973781 | GROMMET |
| CAB | ||
| 480 | A 0009970181 | GROMMET |
| CAB | ||
| 480 | A 3229971381 | GROMMET |
| Repalced by: A 4429970081 | ||
| 480 | A 4429970081 | GROMMET |
| CAB | ||
| 484 | A 1109870441 | RUBBER RING |
| CAB | ||
| 488 | N 007985010126 | SCREW |
| CAB | ||
| 492 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 492 | N 000125010532 | WASHER |
| CAB | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
