Transporto priemonė: LPKF 808,809; VIN numerio dalis: 316083

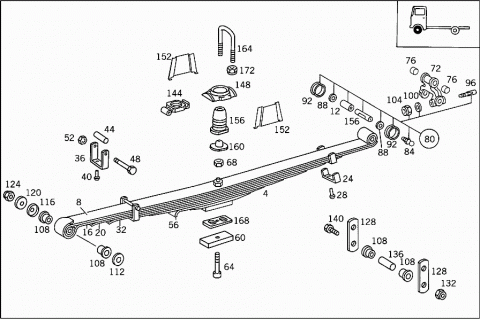

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3163200202 | FRONT SPRING |
| Repalced by: A 3163200402 | ||
| 004 | A 3163200402 | FRONT SPRING |
| 8-LEAF | ||
| 004 | A 3163200802 | FRONT SPRING |
| Repalced by: A 3163200902 | ||
| 004 | A 3163200902 | FRONT SPRING |
| 8-LEAF | ||
| 004 | A 3163201002 | FRONT SPRING |
| 8-LEAF | ||
| 004 | A 3163200302 | FRONT SPRING |
| Repalced by: A 3163200502 | ||
| 004 | A 3163200502 | FRONT SPRING |
| 8-LEAF | ||
| 004 | A 3163200702 | FRONT SPRING |
| 8-LEAF | ||
| 004 | A 3163201102 | FRONT SPRING |
| 8-LEAF | ||
| 008 | A 3163201094 | SPRING LEAF |
| Repalced by: A 3163200094 | ||
| 008 | A 3163201294 | SPRING LEAF |
| Repalced by: A 3163200094 | ||
| 008 | A 3163200094 | SPRING LEAF |
| NO.1 | ||
| 008 | A 3163201694 | SPRING LEAF |
| Repalced by: A 3143203094 | ||
| 008 | A 3143203094 | SPRING LEAF |
| NO.1 | ||
| 008 | A 3163200294 | SPRING LEAF |
| Repalced by: A 3163200794 | ||
| 008 | A 3163200494 | SPRING LEAF |
| Repalced by: A 3163200794 | ||
| 008 | A 3163200794 | SPRING LEAF |
| NO.1 | ||
| 008 | A 3163201994 | SPRING LEAF |
| Repalced by: A 3183201394 | ||
| 008 | A 3183201394 | SPRING LEAF |
| NO.1 | ||
| 012 | A 3143210050 | BUSHING |
| 012 | A 3183220150 | BUSHING |
| 016 | A 3163210412 | SPRING LEAF |
| Repalced by: A 3163210212 | ||
| 016 | A 3163210712 | SPRING LEAF |
| Repalced by: A 3163210212 | ||
| 016 | A 3163210212 | SPRING LEAF |
| NO.2 | ||
| 016 | A 3163210812 | SPRING LEAF |
| Repalced by: A 3143212312 | ||
| 016 | A 3143212312 | SPRING LEAF |
| NO.2 | ||
| 016 | A 3163210312 | SPRING LEAF |
| Repalced by: A 3163210612 | ||
| 016 | A 3163210512 | SPRING LEAF |
| Repalced by: A 3163210612 | ||
| 016 | A 3163210612 | SPRING LEAF |
| NO.2 | ||
| 016 | A 3163210912 | SPRING LEAF |
| Repalced by: A 3183211212 | ||
| 016 | A 3183211212 | SPRING LEAF |
| NO.2 | ||
| 020 | A 3163201194 | SPRING LEAF |
| Repalced by: A 3163200194 | ||
| 020 | A 3163201394 | SPRING LEAF |
| Repalced by: A 3163200194 | ||
| 020 | A 3163200194 | SPRING LEAF |
| NO.3 | ||
| 020 | A 3163201794 | SPRING LEAF |
| NO.3 | ||
| 020 | A 3163200394 | SPRING LEAF |
| Repalced by: A 3183200394 | ||
| 020 | A 3163200594 | SPRING LEAF |
| Repalced by: A 3183200394 | ||
| 020 | A 3163200894 | SPRING LEAF |
| Repalced by: A 3183200394 | ||
| 020 | A 3163202094 | SPRING LEAF |
| Repalced by: A 3183200394 | ||
| 020 | A 3183200394 | SPRING LEAF |
| NO.3 | ||
| 024 | A 3143210233 | SPRING CLAMP |
| Repalced by: A 0013219633 | ||
| 024 | A 0013219633 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 024 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 028 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.3 | ||
| 032 | A 3163210414 | SPRING LEAF |
| Repalced by: A 3163210214 | ||
| 032 | A 3163210714 | SPRING LEAF |
| Repalced by: A 3163200214 | ||
| 032 | A 3163210214 | SPRING LEAF |
| NO.4 | ||
| 032 | A 3163210214 | SPRING LEAF |
| NO.4,TO 316 320 08 02 | ||
| 032 | A 3163201594 | SPRING LEAF |
| NO.4,TO 316 320 09 02 | ||
| 032 | A 3163201894 | SPRING LEAF |
| NO.4 | ||
| 032 | A 3163210314 | SPRING LEAF |
| Repalced by: A 3163200994 | ||
| 032 | A 3163210514 | SPRING LEAF |
| Repalced by: A 3163200994 | ||
| 032 | A 3163202194 | SPRING LEAF |
| Repalced by: A 3163200994 | ||
| 032 | A 3163200994 | SPRING LEAF |
| NO.4 | ||
| 036 | A 0013211733 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 036 | A 0033213033 | SPRING CLAMP |
| Repalced by: A 3123213333 | ||
| 036 | A 3123213333 | SPRING CLAMP |
| Repalced by: A 3123240633 | ||
| 036 | A 3123240633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 040 | N 000660008026 | RIVET |
| SPRING CLAMP TO SPRING LEAF NO.4 | ||
| 044 | A 0003212353 | SPACER TUBE |
| Repalced by: A 0003213253 | ||
| 044 | A 0003213253 | SPACER TUBE |
| SPRING CLAMP | ||
| 048 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 048 | N 304014008009 | SCREW |
| SPRING CLAMP | ||
| 052 | N 304032008006 | NUT |
| SPRING CLAMP | ||
| 056 | A 3163210717 | SPRING LEAF |
| Repalced by: A 3163210214 | ||
| 056 | A 3163210917 | SPRING LEAF |
| Repalced by: A 3163210817 | ||
| 056 | A 3163210817 | SPRING LEAF |
| NO.7 | ||
| 060 | A 3183240035 | SPACER |
| 060 | A 3183240035 | SPACER |
| 060 | A 3143221284 | SHIM |
| 064 | N 004626012142 | SPRING BOLT |
| M 12X80 | ||
| 064 | N 004626012151 | SPRING BOLT |
| M 12X90 | ||
| 064 | N 004626012128 | SPRING BOLT |
| M 12X85 | ||
| 064 | N 004626012144 | SPRING BOLT |
| M 12X95 | ||
| 064 | N 004626012106 | SPRING BOLT |
| M12X100 | ||
| 068 | N 000934012010 | NUT |
| 072 | A 3143200062 | SHACKLE |
| FRONT SPRING | ||
| 076 | A 3123221050 | BUSHING |
| Repalced by: A 3183220050 | ||
| 076 | A 3183220050 | BUSHING |
| 080 | A 3143220230 | SHACKLE PIN |
| Repalced by: A 3145860432 | ||
| 080 | A 3145860132 | REPAIR KIT |
| Repalced by: A 3145860432 | ||
| 080 | A 3145860432 | REPAIR KIT |
| Repalced by: A 3143200365 | ||
| 080 | A 3143200365 | SHACKLE PIN |
| PARTS KIT | ||
| 084 | N 071412010100 | GREASE NIPPLE |
| SHACKLE PIN | ||
| 088 | A 3143220176 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 088 | A 3143220276 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 088 | A 3143220376 | WASHER |

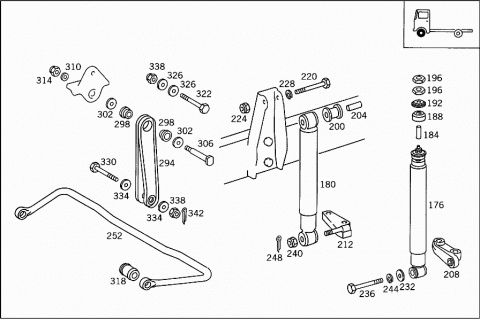

| AS REQUIRED | ||
| 4.30 MM | ||
| 092 | A 0029972940 | SEAL RING |
| FRONT SPRING TO SPRING BRACKET | ||
| 096 | A 3529900337 | BOLT |
| FRONT SPRING TO SPRING BRACKET | ||
| 100 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 100 | N 000433010510 | WASHER |
| FRONT SPRING TO SPRING BRACKET | ||
| 104 | N 913002010001 | NUT |
| FRONT SPRING TO SPRING BRACKET | ||
| 108 | A 3183220250 | BUSHING |
| Repalced by: A 6673220350 | ||
| 108 | A 6673220350 | BUSHING |
| FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS | ||
| 112 | A 3093250042 | SUPPORTING SHELL |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 116 | A 3093250142 | SUPPORTING SHELL |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 120 | A 3183250162 | THRUST WASHER |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 124 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 124 | N 910113016002 | NUT |
| FRONT SPRING TO FRONT SPRING FRONT BRACKET | ||
| 128 | A 3183220120 | SHACKLE |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 132 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 132 | N 910113016002 | NUT |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 136 | A 3183220130 | SHACKLE PIN |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 140 | N 000960016134 | SCREW |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 144 | A 3163310027 | SPACER |
| Repalced by: A 3143310727 | ||
| 144 | A 3143310727 | SPACER |
| LEFT | ||
| 144 | A 3163310127 | SPACER |
| Repalced by: A 3143310827 | ||
| 144 | A 3143310827 | SPACER |
| RIGHT | ||
| 148 | A 3183310227 | SPACER |
| LEFT AND RIGHT | ||
| 152 | A 3183250331 | PLATE |
| LEFT AND RIGHT | ||
| 156 | A 3163240008 | HELPER SPRING |
| Repalced by: A 3183240008 | ||
| 156 | A 3183240008 | HELPER SPRING |
| RUBBER BUFFER | ||
| 160 | A 3163240035 | SPACER |
| FRONT SPRING | ||
| 164 | A 3123513025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 130 MM | ||
| 164 | A 3143510425 | U-BOLT |
| Repalced by: A 6703510125 | ||
| 164 | A 6703510125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 160 MM | ||
| 168 | A 3163220084 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 172 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 172 | N 910113016002 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 176 | A 0023230000 | SHOCK ABSORBER |
| Repalced by: A 3143230600 | ||
| 176 | A 3143230300 | SHOCK ABSORBER |
| Repalced by: A 3143230600 | ||
| 176 | A 3143230600 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 176 | A 3143230500 | SHOCK ABSORBER |
| Repalced by: A 3143230700 | ||
| 176 | A 3143230700 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 180 | A 3143230800 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 180 | A 3143230900 | SHOCK ABSORBER |
| FRONT AXLE | ||
| 184 | A 0003261050 | BUSHING |
| Repalced by: A 0003231253 | ||
| 184 | A 0003231253 | SPACER TUBE |
| TO 002 323 00 00,314 323 03 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 314 323 06 00 | ||
| 184 | A 0003232950 | BUSHING |
| TO 314 323 05 00,314 323 07 00 | ||
| 188 | A 0003232785 | RUBBER MOUNTING |
| TO 002 323 00 00,314 323 03 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 314 323 06 00 | ||
| 188 | A 0003232744 | RUBBER BUFFER |
| TO 314 323 05 00,314 323 07 00 | ||
| 192 | A 0003230267 | RETAINER |
| TO 002 323 00 00,314 323 03 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 314 323 06 00 | ||
| 192 | A 0003230667 | RETAINER |
| TO 314 323 05 00,314 323 07 00 | ||
| 196 | A 0003260372 | NUT |
| Repalced by: N 000936010010 | ||
| 196 | N 000936010010 | NUT |
| TO 002 323 00 00,314 323 03 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 314 323 05 00,314 323 07 00 | ||
| 196 | N 000936010010 | NUT |
| TO 314 323 06 00 | ||
| 196 | A 0003260472 | NUT |
| Repalced by: N 000934010015 | ||
| 196 | N 000934010015 | NUT |
| Repalced by: N 308673010000 | ||
| 196 | N 308673010000 | NUT |
| TO 314 323 06 00 | ||
| 200 | A 0003232544 | RUBBER BUFFER |
| Repalced by: A 0003230185 | ||
| 200 | A 0003230185 | RUBBER MOUNTING |
| TO 002 323 00 00,314 323 03 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 314 323 07 00,314 323 09 00 | ||
| 200 | A 0003231585 | RUBBER MOUNTING |
| TO 314 323 08 00 | ||
| 200 | A 0003231585 | RUBBER MOUNTING |
| TO 314 323 06 00 | ||
| 204 | A 0003230353 | SPACER TUBE |
| Repalced by: A 0003232750 | ||
| 204 | A 0003233350 | BUSHING |
| Repalced by: A 0003232750 | ||
| 204 | A 0003232750 | BUSHING |
| TO 002 323 00 00,314 323 03 00, | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 314 323 05 00,314 323 07 00 | ||
| 204 | A 0003232750 | BUSHING |
| TO 314 323 08 00,314 323 09 00 | ||
| 204 | A 0003232750 | BUSHING |
| TO 314 323 06 00 | ||
| 208 | A 3143232263 | BEARING BRACKET |
| TORSION BAR AND SHOCK ABSORBER,LEFT | ||
| 208 | A 3143232363 | BEARING BRACKET |
| TORSION BAR AND SHOCK ABSORBER,RIGHT | ||
| 212 | A 3143200678 | CONSOLE |
| TORSION BAR AND SHOCK ABSORBER,LEFT | ||
| 212 | A 3143200778 | CONSOLE |
| TORSION BAR AND SHOCK ABSORBER,RIGHT | ||
| 216 | A 3183230263 | BEARING BRACKET |
| TORSION BAR AND SHOCK ABSORBER,LEFT | ||
| 216 | A 3183230363 | BEARING BRACKET |
| TORSION BAR AND SHOCK ABSORBER,RIGHT | ||
| 220 | N 000960014247 | SCREW |
| Repalced by: N 308676014013 | ||
| 220 | N 308676014013 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 14X65 | ||
| 220 | N 308676014013 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M 14X65 | ||
| 220 | A 3143230074 | PIN |
| Repalced by: N 000960014205 | ||
| 220 | N 000960014205 | SCREW |
| Repalced by: N 308765014006 | ||
| 220 | N 308765014006 | SCREW |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| M14X90 | ||
| 224 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 224 | N 910113014000 | NUT |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 228 | N 912004014100 | LOCK WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 232 | A 1989900740 | WASHER |
| Repalced by: A 3193260076 | ||
| 232 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 232 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 232 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO UPPER BEARING BRACKET | ||
| 236 | N 308676014002 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 240 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 240 | N 910113014000 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 244 | N 912004014100 | LOCK WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 248 | N 000094003226 | COTTER PIN |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||

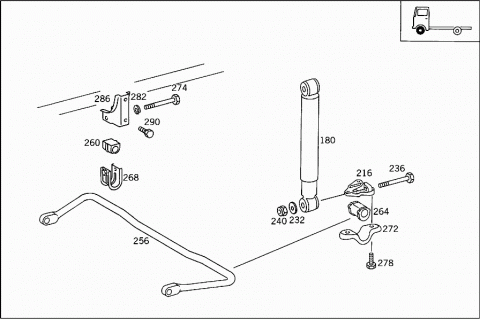

| 252 | A 3163230065 | TORSION BAR |
| Repalced by: A 3163230165 | ||
| 252 | A 3163230165 | TORSION BAR |
| FRONT SPRING | ||
| 256 | A 3183230265 | TORSION BAR |
| FRONT SPRING | ||
| 260 | A 3163230085 | RUBBER MOUNTING |
| Repalced by: A 3163230185 | ||
| 260 | A 3163230185 | RUBBER MOUNTING |
| TORSION BAR TO CONSOLE | ||
| 264 | A 3183210085 | RUBBER MOUNTING |
| TORSION BAR TO BEARING BRACKET | ||
| 268 | A 3143200145 | STRAP |
| TORSION BAR TO CONSOLE | ||
| 272 | A 3183210040 | BRACKET |
| TORSION BAR TO BEARING BRACKET | ||
| 274 | N 000931010220 | SCREW |
| TORSION BAR TO CONSOLE | ||
| M 10X58 | ||
| 274 | N 000931010271 | SCREW |
| TORSION BAR TO CONSOLE | ||
| M 10X60 | ||
| 278 | N 000933010128 | SCREW |
| TORSION BAR TO CONSOLE | ||
| M10X20 | ||
| 282 | N 912004010102 | LOCK WASHER |
| TORSION BAR TO CONSOLE | ||
| 286 | A 3143200378 | CONSOLE |
| TORSION BAR,FRONT | ||
| 290 | N 000933010128 | SCREW |
| CONSOLE TO FRAME | ||
| 290 | N 000961012056 | SCREW |
| Repalced by: N 308676012038 | ||
| 290 | N 308676012038 | SCREW |
| CONSOLE TO FRAME | ||
| A 3149940032 | LOCK | |
| CONSOLE TO FRAME | ||
| 294 | A 3163200063 | SHACKLE |
| TORSION BAR TO FRONT AXLE | ||
| 294 | A 3183200062 | SHACKLE |
| TORSION BAR TO FRONT AXLE | ||
| 298 | A 3143260181 | RUBBER MOUNTING |
| SHACKLE TO CONSOLE | ||
| 302 | N 009021017201 | WASHER |
| SHACKLE TO CONSOLE | ||
| 306 | A 3183230274 | PIN |
| SHACKLE TO CONSOLE | ||
| 310 | N 000125013008 | WASHER |
| 314 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 314 | N 910113012003 | NUT |
| SHACKLE TO CONSOLE | ||
| 318 | A 3143260181 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 318 | A 3143260053 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 318 | A 3143260481 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 318 | A 3143260153 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 318 | A 3093200073 | BEARING |
| SHACKLE TO GUIDE PLATE | ||
| 318 | A 3093200073 | BEARING |
| SHACKLE TO TORSION BAR | ||
| 322 | N 000960012118 | SCREW |
| SHACKLE TO GUIDE PLATE | ||
| M12X170 | ||
| 322 | N 000960012145 | SCREW |
| SHACKLE TO GUIDE PLATE | ||
| M12X120 | ||
| 326 | N 009021013202 | WASHER |
| SHACKLE TO GUIDE PLATE | ||
| 330 | N 000960012296 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M12X60 | ||
| 330 | N 000960012261 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M12X55 | ||
| 334 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 334 | N 000433013010 | WASHER |
| SHACKLE TO TORSION BAR | ||
| 338 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 338 | N 910113012003 | NUT |
| SHACKLE TO GUIDE PLATE | ||
| 338 | N 910113012003 | NUT |
| SHACKLE TO TORSION BAR | ||
| 342 | N 000094003219 | COTTER PIN |
| SHACKLE TO TORSION BAR | ||
| 346 | A 3143200077 | RUBBER SPRING |
| REAR SPRING | ||
| 350 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 350 | N 304017010002 | SCREW |
| RUBBER SPRING TO SUBSTRUCTURE | ||
| 354 | N 912004010102 | LOCK WASHER |
| RUBBER SPRING TO SUBSTRUCTURE | ||
| 358 | N 000934010014 | NUT |
| RUBBER SPRING TO SUBSTRUCTURE | ||

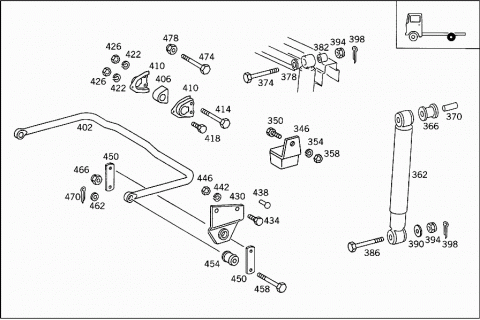

| 362 | A 3143260100 | SHOCK ABSORBER |
| Repalced by: A 0013268800 | ||
| 362 | A 0013265700 | SHOCK ABSORBER |
| Repalced by: A 0013268800 | ||
| 362 | A 0013268800 | SHOCK ABSORBER |
| REAR AXLE | ||
| 366 | A 0003231585 | RUBBER MOUNTING |
| 370 | A 0003230353 | SPACER TUBE |
| Repalced by: A 0003232750 | ||
| 370 | A 0003232750 | BUSHING |
| 374 | A 3129901314 | SCREW |
| Repalced by: N 000960014077 | ||
| 374 | N 000960014263 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 374 | N 000960014219 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 378 | A 1989900740 | WASHER |
| Repalced by: A 3193260076 | ||
| 378 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 382 | A 3143120150 | BUSHING |
| Repalced by: A 6673210153 | ||
| 382 | A 6673210153 | SPACER TUBE |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 386 | A 3143260071 | SCREW |
| Repalced by: N 000960014071 | ||
| 386 | N 000960014248 | SCREW |
| Repalced by: N 308765014008 | ||
| 386 | N 308765014008 | SCREW |
| SHOCK ABSORBER TO REAR AXLE | ||
| 390 | A 1989900740 | WASHER |
| Repalced by: A 3193260076 | ||
| 390 | A 3193260076 | WASHER |
| SHOCK ABSORBER TO REAR AXLE | ||
| 394 | N 913001014005 | NUT |
| SHOCK ABSORBER TO REAR AXLE | ||
| 398 | N 000094003226 | COTTER PIN |
| SHOCK ABSORBER TO REAR AXLE | ||
| 402 | A 3163260065 | TORSION BAR |
| REAR | ||
| 406 | A 3163260081 | RUBBER MOUNTING |
| TORSION BAR,REAR | ||
| 410 | A 3163260040 | BRACKET |
| TORSION BAR,REAR | ||
| 414 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 414 | N 304017008053 | SCREW |
| BRACKET TO CONSOLE | ||
| M8X60 | ||
| 418 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 418 | N 304017008021 | SCREW |
| BRACKET TO CONSOLE | ||
| M8X20 | ||
| 422 | N 912004008102 | LOCK WASHER |
| BRACKET TO CONSOLE | ||
| 426 | N 304032008006 | NUT |
| BRACKET TO CONSOLE | ||
| 430 | A 3143200478 | CONSOLE |
| TORSION BAR,LEFT | ||
| 430 | A 3183201078 | CONSOLE |
| TORSION BAR,LEFT | ||
| 430 | A 3143200578 | CONSOLE |
| TORSION BAR,RIGHT | ||
| 430 | A 3183201178 | CONSOLE |
| TORSION BAR,RIGHT | ||
| 434 | N 000933010129 | SCREW |
| Repalced by: N 304017010002 | ||
| 434 | N 304017010002 | SCREW |
| CONSOLE TO FRAME | ||
| 434 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 434 | N 308676014020 | SCREW |
| CONSOLE TO FRAME | ||
| 438 | N 910005014056 | RIVET |
| CONSOLE TO FRAME | ||
| 14X45 MM | ||
| 442 | N 912004010102 | LOCK WASHER |
| CONSOLE TO FRAME | ||
| 446 | N 000934010014 | NUT |
| CONSOLE TO FRAME | ||
| 446 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 446 | N 910113014001 | NUT |
| CONSOLE TO FRAME | ||
| 450 | A 3143200063 | SHACKLE |
| Repalced by: A 3143260247 | ||
| 450 | A 3143260247 | SHACKLE |
| TORSION BAR,REAR | ||
| 454 | A 3143260181 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 454 | A 3143260053 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 454 | A 3143260481 | RUBBER MOUNTING |
| Repalced by: A 3093200073 | ||
| 454 | A 3143260153 | SPACER TUBE |
| Repalced by: A 3093200073 | ||
| 454 | A 3093200073 | BEARING |
| TORSION BAR,REAR | ||
| 454 | A 3093200073 | BEARING |
| TORSION BAR,REAR | ||
| 458 | N 000960012357 | SCREW |
| Repalced by: N 000961012184 | ||
| 458 | N 000961012184 | SCREW |
| Repalced by: N 308676012018 | ||
| 458 | N 308676012018 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M12X65 | ||
| 458 | N 000960012296 | SCREW |
| SHACKLE TO TORSION BAR | ||
| M12X60 | ||
| 462 | N 000433013005 | WASHER |
| Repalced by: N 000433013010 | ||
| 462 | N 000433013010 | WASHER |
| SHACKLE TO TORSION BAR | ||
| 466 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 466 | N 910113012003 | NUT |
| SHACKLE TO TORSION BAR | ||
| 470 | N 000094003219 | COTTER PIN |
| SHACKLE TO TORSION BAR | ||
| 474 | N 000931010271 | SCREW |
| TORSION BAR TO REAR AXLE | ||
| 478 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 478 | N 910113010000 | NUT |
| TORSION BAR TO REAR AXLE | ||

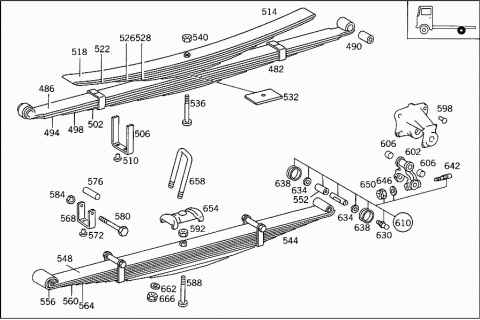

| 482 | A 3163200306 | REAR SPRING |
| Repalced by: A 3163200606 | ||
| 482 | A 3163200606 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 482 | A 3183200108 | REAR SPRING |
| 7-LEAF,WITH 7-LEAF HELPER SPRING | ||
| 482 | A 3163200406 | REAR SPRING |
| 7-LEAF | ||
| 482 | A 3163200806 | REAR SPRING |
| 7-LEAF | ||
| 482 | A 3183200006 | REAR SPRING |
| Repalced by: A 3183200108 | ||
| 482 | A 3183200108 | REAR SPRING |
| 7-LEAF | ||
| 486 | A 3163200093 | SPRING LEAF |
| NO.1 | ||
| 486 | A 3163200493 | SPRING LEAF |
| Repalced by: A 3183200093 | ||
| 486 | A 3183200093 | SPRING LEAF |
| NO.1 | ||
| 490 | A 3163240050 | BUSHING |
| Repalced by: A 3163240350 | ||
| 490 | A 3163240250 | BUSHING |
| Repalced by: A 3163240350 | ||
| 490 | A 3163240350 | BUSHING |
| 490 | A 3163240450 | BUSHING |
| 494 | A 3163240312 | SPRING LEAF |
| NO.2 | ||
| 494 | A 3163240512 | SPRING LEAF |
| Repalced by: A 3183240112 | ||
| 494 | A 3183240112 | SPRING LEAF |
| NO.2 | ||
| 498 | A 3163240313 | SPRING LEAF |
| NO.3 | ||
| 498 | A 3163240513 | SPRING LEAF |
| Repalced by: A 3183240113 | ||
| 498 | A 3183240113 | SPRING LEAF |
| NO.3 | ||
| 502 | A 3163200193 | SPRING LEAF |
| NO.4 | ||
| 502 | A 3163200593 | SPRING LEAF |
| NO.4 | ||
| 506 | A 3183200193 | SPRING LEAF |
| Repalced by: A 3163200593 | ||
| 506 | A 3403240333 | SPRING CLAMP |
| Repalced by: A 3223240233 | ||
| 506 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 506 | A 6173210333 | SPRING CLAMP |
| NO.4 | ||
| 510 | N 000660008031 | RIVET |
| 514 | A 3163200010 | HELPER SPRING |
| 7-LEAF | ||
| 514 | A 3163200110 | HELPER SPRING |
| 7-LEAF | ||
| 514 | A 3183200010 | HELPER SPRING |
| 7-LEAF | ||
| 518 | A 3163240240 | SPRING LEAF |
| NO.1 | ||
| 518 | A 3163240340 | SPRING LEAF |
| Repalced by: A 3143241940 | ||
| 518 | A 3183240140 | SPRING LEAF |
| Repalced by: A 3143241940 | ||
| 518 | A 3143241940 | SPRING LEAF |
| NO.1 | ||
| 522 | A 3163240241 | SPRING LEAF |
| NO.2 | ||
| 522 | A 3163240341 | SPRING LEAF |
| Repalced by: A 3143241941 | ||
| 522 | A 3183240141 | SPRING LEAF |
| Repalced by: A 3143241941 | ||
| 522 | A 3143241941 | SPRING LEAF |
| NO.2 | ||
| 526 | A 3163240242 | SPRING LEAF |
| NO.3 | ||
| 526 | A 3163240342 | SPRING LEAF |
| Repalced by: A 3143241942 | ||
| 526 | A 3143241942 | SPRING LEAF |
| NO.3 | ||
| 526 | A 3183240142 | SPRING LEAF |
| Repalced by: A 3143240542 | ||
| 526 | A 3143240542 | SPRING LEAF |
| NO.3 | ||
| 528 | A 3163240243 | SPRING LEAF |
| NO.4 | ||
| 528 | A 3163240343 | SPRING LEAF |
| Repalced by: A 3143241943 | ||
| 528 | A 3143241943 | SPRING LEAF |
| NO.4 | ||
| 528 | A 3183240143 | SPRING LEAF |
| Repalced by: A 3143240543 | ||
| 528 | A 3143240543 | SPRING LEAF |
| NO.4 | ||
| 532 | A 3213240035 | SPACER |
| 536 | N 004626012167 | SPRING BOLT |
| M 12X165 | ||
| 536 | N 004626012111 | SPRING BOLT |
| M 12X155 | ||
| 540 | N 000934012010 | NUT |
| 544 | A 3163200506 | REAR SPRING |
| 10-LEAF | ||
| 548 | A 3163200293 | SPRING LEAF |
| NO.1 | ||
| 552 | A 3163240050 | BUSHING |
| Repalced by: A 3163240350 | ||
| 552 | A 3163240250 | BUSHING |
| Repalced by: A 3163240350 | ||
| 552 | A 3163240350 | BUSHING |
| 552 | A 3163240450 | BUSHING |
| 556 | A 3163240412 | SPRING LEAF |
| NO.2 | ||
| 560 | A 3163240413 | SPRING LEAF |
| NO.3 | ||
| 564 | A 3163240414 | SPRING LEAF |
| NO.4 | ||
| 568 | A 0013216933 | SPRING CLAMP |
| Repalced by: A 3223240233 | ||
| 568 | A 3223240233 | SPRING CLAMP |
| Repalced by: A 6173210333 | ||
| 568 | A 6173210333 | SPRING CLAMP |
| 572 | N 000660008026 | RIVET |
| 576 | A 0003213053 | SPACER TUBE |
| Repalced by: A 3140720253 | ||
| 576 | A 3140720253 | SPACER TUBE |
| 580 | N 000601010027 | SCREW |
| 584 | N 000934010014 | NUT |
| 588 | N 004626012169 | SPRING BOLT |
| 592 | N 000934012021 | NUT |
| 594 | A 0003200006 | REAR SPRING |
| 598 | A 0009903596 | RIVET |
| Repalced by: N 910005014020 | ||
| 598 | N 910005014056 | RIVET |
| 602 | A 3143200563 | SHACKLE |
| REAR SPRING | ||
| 606 | A 3123251050 | BUSHING |
| Repalced by: A 3183250050 | ||
| 606 | A 3183250050 | BUSHING |
| 610 | A 3143250030 | SHACKLE PIN |
| Repalced by: A 3145860532 | ||
| 610 | A 3145860232 | REPAIR KIT |
| Repalced by: A 3145860532 | ||
| 610 | A 3145860532 | REPAIR KIT |
| Repalced by: A 3143200065 | ||
| 610 | A 3143200065 | SHACKLE PIN |
| PARTS KIT | ||
| 614 | A 0003250030 | SHACKLE PIN |
| 618 | A 0003200077 | RUBBER SPRING |
| 622 | N 000931016077 | SCREW |
| 626 | N 913002016003 | NUT |
| 630 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING TO SPRING BRACKET | ||
| 634 | A 3523230376 | WASHER |
| AS REQUIRED | ||
| 4.00 MM | ||
| 634 | A 3523230476 | WASHER |
| AS REQUIRED | ||
| 4.20 MM | ||
| 634 | A 3523230576 | WASHER |
| AS REQUIRED | ||
| 4.30 MM | ||
| 638 | A 0029973140 | SEAL RING |
| REAR SPRING TO SPRING BRACKET | ||
| 642 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING BRACKET | ||
| 646 | N 000433010505 | WASHER |
| Repalced by: N 000433010510 | ||
| 646 | N 000433010510 | WASHER |
| REAR SPRING TO SPRING BRACKET | ||
| 650 | N 913002010001 | NUT |
| REAR SPRING TO SPRING BRACKET | ||
| 654 | A 3213250931 | PLATE |
| Repalced by: A 3183250931 | ||
| 654 | A 3183250931 | PLATE |
| REAR SPRING TO REAR AXLE | ||
| 658 | A 3143510325 | U-BOLT |
| Repalced by: A 3163510025 | ||
| 658 | A 3163510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 240 MM | ||
| 658 | A 3163510025 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 240 MM | ||
| 658 | A 3143510825 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 200 MM | ||
| 658 | A 3143510425 | U-BOLT |
| Repalced by: A 6703510125 | ||
| 658 | A 6703510125 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 160 MM | ||
| 662 | A 3123251070 | SPHERICAL WASHER |
| REAR SPRING TO REAR AXLE | ||
| 666 | N 913002016002 | NUT |
| REAR SPRING TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
