Transporto priemonė: LPKF 808,809; VIN numerio dalis: 316083
Grupė: 26 TRANSMISSION
18977
18978
18979
18980
18981
18982
18983
18984
18985
# Kodas Pavadinimas

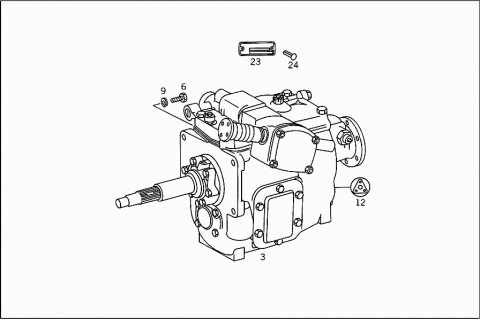

003 A 3142600300 TRANSMISSION
G 20
006 N 000933014014 SCREW
TRANSMISSION TO BELL HOUSING
M 14X40
009 N 912004014100 LOCK WASHER
TRANSMISSION TO BELL HOUSING
012 A 0005861026 REPAIR KIT
Repalced by: A 0002603000
012 A 0002603000 GASKET KIT
(GASKET KIT)
015 A 3142600311 TRANSMISSION CASE
018 N 000007010239 CYLINDRICAL PIN
Repalced by: N 000007010102
018 N 000007010102 CYLINDRICAL PIN
021 A 1869970032 SCREW PLUG
Repalced by: A 3529970032
021 A 3529970032 SCREW PLUG
OIL FILLING
A 0009971332 SCREW PLUG
Repalced by: A 0009972632
022 A 0009973432 SCREW PLUG
OIL DRAIN
022 A 0009972632 SCREW PLUG
OIL DRAIN
023 A 3145840424 UNIT IDENTIFICATION PLATE
A 3215841024 UNIT IDENTIFICATION PLATE
Repalced by: A 3855845824
A 3855841824 UNIT IDENTIFICATION PLATE
Repalced by: A 3855845824
A 3855845824 UNIT IDENTIFICATION PLATE
Repalced by: A 6755840024
023 A 6755840024 UNIT IDENTIFICATION PLATE
024 N 001476003007 GROOVED NAIL
UNIT IDENTIFICATION PLATE TO TRANSMISSION CASE
A 3122611079 GASKET
Repalced by: A 3142610580

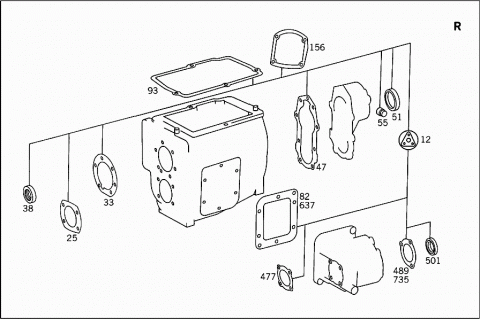

025 A 3142610580 GASKET
Repalced by: A 3142611680
025 A 3142611680 GASKET
FRONT BOTTOM
027 A 3142610233 COVER
Repalced by: A 3142610433
027 A 3142610433 COVER
FRONT BOTTOM
029 N 912004008102 LOCK WASHER
END COVER TO TRANSMISSION CASE
031 N 000933008147 SCREW
Repalced by: N 304017008021
031 N 304017008021 SCREW
END COVER TO TRANSMISSION CASE
M8X20
031 N 000933008153 SCREW
Repalced by: N 304017008034
031 N 304017008034 SCREW
END COVER TO TRANSMISSION CASE
M8X25
033 A 3122612179 GASKET
Repalced by: A 3122611180
033 A 3122611180 GASKET
FRONT TOP
A 3142600221 TRANSMISSION CASE COVER
Repalced by: A 3142610618
A 3142610318 TRANSMISSION CASE COVER
Repalced by: A 3142610618
035 A 3142610618 TRANSMISSION CASE COVER
FRONT TOP
A 0059976946 SEAL RING
Repalced by: A 0089971346
038 A 0089971346 SEAL RING
CASE COVER
038 A 0119978346 SEAL RING
CASE COVER
040 N 000137008204 SPRING WASHER
CASE COVER TO TRANSMISSION
042 N 000931008246 SCREW
Repalced by: N 304017008028
042 N 304017008028 SCREW
CASE COVER TO TRANSMISSION
044 A 3242620462 SEAL RING
AS REQUIRED
2.36 MM
044 A 3242620562 SEAL RING
AS REQUIRED
2.44 MM
044 A 3242620662 SEAL RING
AS REQUIRED
2.52 MM
044 A 3242620762 SEAL RING
AS REQUIRED
2.60MM
044 A 3242620862 SEAL RING
AS REQUIRED
2.68 MM
044 A 3242620962 SEAL RING
AS REQUIRED
2.76 MM
044 A 3242621062 SEAL RING
AS REQUIRED
2.84 MM
044 A 3142621462 SEAL RING
AS REQUIRED
2.92 MM
044 A 3142621562 SEAL RING
AS REQUIRED
3.00MM
044 A 3142621662 SEAL RING
AS REQUIRED
3.08 MM
A 3142610179 GASKET
Repalced by: A 3142610480
047 A 3142610480 GASKET
Repalced by: A 3142611580
047 A 3142611580 GASKET
TRANSMISSION CASE REAR COVER TO TRANSMISSION CASE
A 3142610120 TRANSMISSION CASE COVER
Repalced by: A 3142610920
049 A 3142610920 TRANSMISSION CASE COVER
REAR
A 3142610120 TRANSMISSION CASE COVER
Repalced by: A 3142610820
049 A 3142610820 TRANSMISSION CASE COVER
REAR
N 006503048201 SEAL RING
Repalced by: A 0089971246
051 A 0089971246 SEAL RING
TRANSMISSION CASE REAR COVER
051 A 0119978246 SEAL RING
TRANSMISSION CASE REAR COVER
053 A 3212610031 THREADED BUSHING
SPEEDOMETER DRIVE
A 1202610080 GASKET
Repalced by: A 1152740060
A 0119976647 SEAL RING
Repalced by: A 1152740060
A 1152740060 SEAL RING
Repalced by: A 0119976447
055 A 0119976447 SEAL RING
SPEEDOMETER DRIVE
A 3142640032 SHAFT
Repalced by: A 6732640032
058 A 6732640032 SHAFT
SPEEDOMETER DRIVE
A 3122641331 DRIVE GEAR
Repalced by: A 6732640031
061 A 6732640031 DRIVE GEAR
SPEEDOMETER DRIVE
064 A 1532640055 PLUG
LATERAL
067 A 3242620462 SEAL RING
AS REQUIRED
2.36 MM
067 A 3242620562 SEAL RING
AS REQUIRED
2.44 MM
067 A 3242620662 SEAL RING
AS REQUIRED
2.52 MM
067 A 3242620762 SEAL RING
AS REQUIRED
2.60MM
067 A 3242620862 SEAL RING
AS REQUIRED
2.68 MM
067 A 3242620962 SEAL RING
AS REQUIRED
2.76 MM
067 A 3242621062 SEAL RING
AS REQUIRED
2.84 MM
067 A 3142621462 SEAL RING
AS REQUIRED
2.92 MM
067 A 3142621562 SEAL RING
AS REQUIRED
3.00MM
067 A 3142621662 SEAL RING
AS REQUIRED
3.08 MM
070 A 3122632152 SPACER WASHER
AS REQUIRED
0.05 MM
070 A 3122631452 SPACER WASHER
AS REQUIRED
0.125 MM
070 A 3122631552 SPACER WASHER
AS REQUIRED
0.24 MM
070 A 3122631652 SPACER WASHER
AS REQUIRED
0.50MM
073 N 000137008204 SPRING WASHER
CASE COVER TO TRANSMISSION
076 N 304014008004 SCREW
Repalced by: N 304014008001
076 N 304014008001 SCREW
CASE COVER TO TRANSMISSION
M8X70
080 N 000931008255 SCREW
CASE COVER TO TRANSMISSION
M8X70
080 N 000933008116 SCREW
Repalced by: N 000933008337
080 N 000933008337 SCREW
Repalced by: A 0099900101
080 A 0099900101 SCREW
CASE COVER TO TRANSMISSION
M8X28
082 A 3122611080 GASKET
LATERAL
A 3122611019 TRANSMISSION CASE COVER
Repalced by: A 3162710005
A 3142610019 TRANSMISSION CASE COVER
Repalced by: A 3162710005
085 A 3162710005 COVER
LATERAL
088 N 007603010401 SEAL RING
CASE COVER TO TRANSMISSION
091 N 000933010238 SCREW
Repalced by: N 304017010028
091 N 304017010028 SCREW
CASE COVER TO TRANSMISSION
A 3142610279 GASKET
Repalced by: A 3142610280
093 A 3142610280 GASKET
Repalced by: A 3142611480
093 A 3142611480 GASKET
Repalced by: A 3142611780
093 A 3142611780 GASKET
TOP

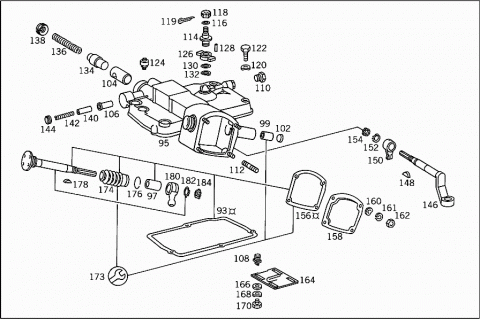

095 A 3142600914 TRANSMISSION CASE COVER
SHIFT CASE
097 A 3142610150 BUSHING
SHIFTING ROD
22X30 MM
097 A 3142610250 BUSHING
SHIFTING ROD
24X30 MM
099 A 3142610050 BUSHING
SHIFTING ROD
16X25 MM
102 N 000443016000 EXPANSION PLUG
104 A 3212650250 BUSHING
LATERAL RIGHT
106 A 3212650150 BUSHING
FRONT
108 A 1362650247 INTERLOCK PLUG
Repalced by: A 3142650044
108 A 3142650044 GUIDE PIN
SHIFT CASE
110 A 1369970830 SCREW PLUG
SHIFT CASE
112 N 000835008008 STUD
SHIFT CASE
114 A 3142650074 PIN
TOP AND LATERAL RIGHT
116 N 000125013008 WASHER
118 N 000937012001 NUT
TOP AND LATERAL RIGHT
119 N 000094003219 COTTER PIN
TOP AND LATERAL RIGHT
120 N 000137008204 SPRING WASHER
SHIFT CASE TO TRANSMISSION
122 N 000931008246 SCREW
Repalced by: N 304017008028
122 N 304017008028 SCREW
SHIFT CASE TO TRANSMISSION
124 A 1112600058 BREATHER
TRANSMISSION CASE TOP COVER
126 A 3242650007 LEVER
SHIFTING DOG
128 N 005402302104 CYLINDRICAL ROLLER
TRANSMISSION CASE TOP COVER
130 N 000433015005 WASHER
TRANSMISSION CASE TOP COVER
132 N 000471015000 LOCK RING
TRANSMISSION CASE TOP COVER
A 3472650016 THRUST PIECE
Repalced by: A 3212650416
A 3212650416 THRUST PIECE
Repalced by: A 3802650016
134 A 3802650016 THRUST PIECE
TRANSMISSION CASE TOP COVER
136 A 3219931701 SPRING
TRANSMISSION CASE TOP COVER
138 A 3219970103 PLUG
TRANSMISSION CASE TOP COVER
140 A 3212650248 INTERLOCK PIN
TRANSMISSION CASE TOP COVER
142 A 3219930601 SPRING
TRANSMISSION CASE TOP COVER
144 N 071022024000 SLOTTED PLUG
TRANSMISSION CASE TOP COVER
A 3142680529 SHIFTING ROD
Repalced by: A 3142602933
146 A 3142602933 SHIFTING ROD
WITH LEVER
148 N 006888005012 WOODRUFF KEY
SHIFTING ROD
150 A 3142680233 SHIFTING FINGER
SHIFTING ROD
152 A 3219940112 LOCK
SHIFTING FINGER TO SHIFTING ROD
154 N 070852016000 NUT
SHIFTING FINGER TO SHIFTING ROD
156 A 3142610079 GASKET
GEARSHIFT COVER
156 A 3142610180 GASKET
GEARSHIFT COVER
A 3142610033 COVER
Repalced by: A 3142610333
158 A 3142610333 COVER
GEARSHIFT COVER
160 N 000137008204 SPRING WASHER
COVER TO TRANSMISSION CASE TOP COVER
161 N 912004008102 LOCK WASHER
COVER TO TRANSMISSION CASE TOP COVER
162 N 304032008006 NUT
COVER TO TRANSMISSION CASE TOP COVER
164 A 3142600146 PLATE
SHIFT CASE
166 A 1369908240 WASHER
DETENT PLATE TO COVER
168 N 900055008002 SPRING WASHER
DETENT PLATE TO COVER
170 A 1362650272 NUT
DETENT PLATE TO COVER
A 3142680129 SHIFTING ROD
Repalced by: A 3145860026
A 3142603033 SHIFTING ROD
Repalced by: A 3145860026
173 A 3145860026 REPAIR KIT
Repalced by: A 3142604533
173 A 3142604533 SHIFTING ROD
SHIFTING ROD
174 A 0002680497 BOOT
SHIFTING ROD
176 N 009045038001 SNAP RING
SHIFTING ROD
178 N 006888005012 WOODRUFF KEY
SHIFTING ROD
180 A 3142650030 SELECTOR LEVER
SHIFTING ROD
182 A 3219940112 LOCK
SHIFTING ROD
184 N 070852016000 NUT
SHIFTING ROD
186 A 3142650605 SHIFTING ROD
1ST SPEED
188 A 3142650505 SHIFTING ROD
2ND AND 3RD SPEED
190 A 3142650405 SHIFTING ROD
4TH AND 5TH SPEED
192 A 3142650805 SHIFTING ROD
REVERSE SPEED
A 3142650301 SHIFTING FORK
Repalced by: A 3142650501
194 A 3142650501 SHIFTING FORK
1ST SPEED
A 3142650402 SHIFTING FORK
Repalced by: A 3142651302
A 3142650602 SHIFTING FORK
Repalced by: A 3142651302
196 A 3142651302 SHIFTING FORK
2ND AND 3RD SPEED
196 A 3142651602 SHIFTING FORK
2ND AND 3RD SPEED
A 3142650502 SHIFTING FORK
Repalced by: A 3142650702
198 A 3142650702 SHIFTING FORK
4TH AND 5TH SPEED
198 A 3142651702 SHIFTING FORK
4TH AND 5TH SPEED
A 3142650223 SHIFTING DOG
Repalced by: A 3142650623
200 A 3142650623 SHIFTING DOG
1ST SPEED
A 3142650323 SHIFTING DOG
Repalced by: A 3142650523
A 3142650423 SHIFTING DOG
Repalced by: A 3142650523
202 A 3142650523 SHIFTING DOG
REVERSE SPEED
A 3129931001 SPRING
Repalced by: A 3149930801
204 A 3149930801 SPRING
REVERSE SPEED
206 N 005401311000 BALL
REVERSE SPEED
208 A 3122651236 BRACKET
SHIFTING FORK TO SHIFTING ROD
210 N 900055016300 LOCK RING
Repalced by: N 900055016301
210 N 900055016301 LOCK RING
SHIFTING FORK TO SHIFTING ROD
212 A 3129940332 LOCK
SHIFTING FORK TO SHIFTING ROD
214 N 000933008153 SCREW
Repalced by: N 304017008034
214 N 304017008034 SCREW
SHIFTING FORK TO SHIFTING ROD
A 3142602839 SHIFT LEVER
Repalced by: A 3142600939

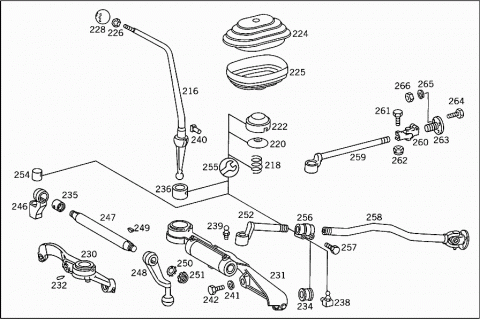

216 A 3142600939 SHIFT LEVER
216 A 3142601439 SHIFT LEVER
216 A 3142601939 SHIFT LEVER
216 A 3142603839 SHIFT LEVER
218 A 1109930401 SPRING
SHIFT LEVER TO BEARING BRACKET
220 A 3022670008 SPHERICAL PIECE
SHIFT LEVER TO BEARING BRACKET
222 A 3142680005 COVER
SHIFT LEVER TO BEARING BRACKET
224 A 3142680496 BOOT
SHIFT LEVER
224 A 3142680896 BOOT
SHIFT LEVER UPPER PART
225 A 3182680596 BOOT
SHIFT LEVER LOWER PART
226 N 000936010010 NUT
GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
228 A 3222600040 HANDLE
(GEARSHIFT LEVER KNOB)
228 A 3222600040 HANDLE
SHIFT LEVER
230 A 3142600994 BEARING BRACKET
SHIFT LEVER
A 3142601994 BEARING BRACKET
Repalced by: A 3142602194
231 A 3142602194 BEARING BRACKET
SHIFT LEVER
232 N 001473005010 GROOVED PIN
234 A 3142680250 BUSHING
235 A 3142680450 BUSHING
235 A 3142680650 BUSHING
A 3142680435 BEARING
Repalced by: A 3102680035
236 A 3102680035 BEARING
SHIFT LEVER
238 N 071412008302 GREASE NIPPLE
239 N 071412008101 GREASE NIPPLE
Repalced by: N 071412008102
239 N 071412008102 GREASE NIPPLE
240 A 3142680249 SLIDE
240 A 3142680249 SLIDE
241 N 000125010518 WASHER
Repalced by: N 000125010532
241 N 000125010532 WASHER
BEARING BRACKET TO CASE
242 N 914112010014 SCREW
BEARING BRACKET TO CASE
M10X28
242 N 914112010004 SCREW
BEARING BRACKET TO CASE
M10X35
242 N 914112010004 SCREW
BEARING BRACKET TO CASE
M10X35
246 A 3142681127 END PIECE
BEARING BRACKET
247 A 3142680829 SHIFTING ROD
BEARING BRACKET
248 A 3142680827 END PIECE
BEARING BRACKET
248 A 3142681227 END PIECE
BEARING BRACKET
249 N 006888005006 WOODRUFF KEY
BEARING BRACKET
250 N 070952020101 LOCK PLATE
BEARING BRACKET
251 A 3219900160 NUT
BEARING BRACKET
252 A 3142600433 SHIFTING ROD
FRONT
252 A 3142601433 SHIFTING ROD
FRONT
252 A 3142681129 SHIFTING ROD
FRONT
254 A 3142680243 FOLLOWER
(BUSHING),FRONT SHIFTING ROD
254 A 3142680343 FOLLOWER
(BUSHING),FRONT SHIFTING ROD
255 A 3142600695 REPAIR KIT
SHIFTING PARTS
256 A 3142680388 CLAMPING PIECE
FRONT SHIFTING ROD TO REAR SHIFTING ROD
257 N 000933010202 SCREW
Repalced by: N 304017010047
257 N 304017010047 SCREW
CLAMPING PIECE TO SHIFTING ROD
A 3142601533 SHIFTING ROD
Repalced by: A 3142602033
258 A 3142602033 SHIFTING ROD
REAR
259 A 3142603433 SHIFTING ROD
FROM SHIFT CASE TO TRANSMISSION
259 A 3142603333 SHIFTING ROD
FROM SHIFT CASE TO TRANSMISSION
259 A 3142603833 SHIFTING ROD
FROM SHIFT CASE TO TRANSMISSION
260 A 3142680289 JOINT
REAR
261 N 000931010306 SCREW
JOINT TO SHIFTING TUBE
262 N 913004010011 NUT
JOINT TO SHIFTING TUBE
263 A 3142603533 SHIFTING ROD
(CONNECTOR)
264 N 914146007100 SCREW
SHIFTING ROD TO TRANSMISSION
265 N 000127007203 LOCK WASHER
SHIFTING ROD TO TRANSMISSION
266 N 000934007000 NUT
SHIFTING ROD TO TRANSMISSION
A 3142620502 DRIVE SHAFT
Repalced by: A 3142620902

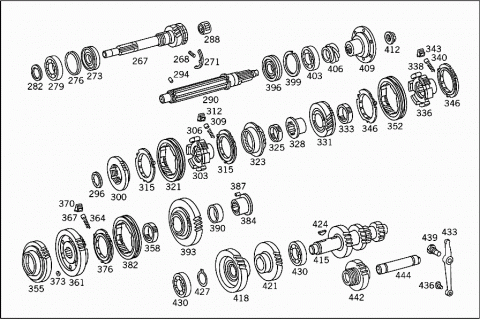

267 A 3142620902 DRIVE SHAFT
268 A 3249930001 SPRING
DRIVE SHAFT
271 A 3142620073 LOCK
DRIVE SHAFT
A 0009817301 CYLINDR. ROLLER BEARING
Repalced by: A 0019816101
273 A 0019816101 CYLINDR. ROLLER BEARING
DRIVE SHAFT
276 A 3249940040 SNAP RING
AS REQUIRED
1.88 MM
276 A 3249940140 SNAP RING
AS REQUIRED
1.93MM
276 A 3249940440 SNAP RING
AS REQUIRED
2.08MM
276 A 3249940540 SNAP RING
AS REQUIRED
2.13MM
A 3249940640 SNAP RING
AS REQUIRED
2.18MM
279 A 0009813727 ANGULAR CONTACT BEARING
DRIVE SHAFT
279 A 0009813427 ANGULAR CONTACT BEARING
DRIVE SHAFT
279 A 0019811427 ANGULAR CONTACT BEARING
DRIVE SHAFT
282 A 3142621762 SEAL RING
FRONT DRIVE SHAFT
A 0009817012 ROLLER ASSEMBLY
Repalced by: A 0049817110
288 A 0049817110 NEEDLE BEARING
MAIN SHAFT IN DRIVE SHAFT
290 A 3142620405 MAIN SHAFT
294 A 3142620674 PIN
MAIN SHAFT
296 A 3142620262 SEAL RING
AS REQUIRED
5.55MM
296 A 3142620562 SEAL RING
AS REQUIRED
5.85MM
296 A 3142620662 SEAL RING
AS REQUIRED
5.95MM
296 A 3142620962 SEAL RING
AS REQUIRED
6.25MM
296 A 3142621062 SEAL RING
AS REQUIRED
6.35MM
296 A 3142621262 SEAL RING
AS REQUIRED
6.55 MM
300 A 3142621534 SYNCHRONIZER RING
4TH AND 5TH SPEED
A 3142600845 SYNCHRONIZER BODY
4TH AND 5TH SPEED
A 3142601045 SYNCHRONIZER BODY
4TH AND 5TH SPEED
A 3142620735 SYNCHRONIZER BODY
Repalced by: A 3142621535
303 A 3142621535 SYNCHRONIZER BODY
4TH AND 5TH SPEED
306 A 3149930001 SPRING
SYNCHRONIZER BODY
309 A 3142620574 PIN
SYNCHRONIZER BODY
312 A 3142620140 FOLLOWER
SYNCHRONIZER BODY
A 3142620237 SYNCHRONIZER CONE
Repalced by: A 3142620437
315 A 3142620437 SYNCHRONIZER CONE
4TH AND 5TH SPEED
A 3242600169 SPRING
A 3142620423 SLIDING COLLAR
Repalced by: A 3142620923
A 3142620923 SLIDING COLLAR
Repalced by: A 3142621123
A 3142621123 SLIDING COLLAR
Repalced by: A 3142621223
321 A 3142621223 SLIDING COLLAR
4TH AND 5TH SPEED
A 3142601744 GEAR
Repalced by: A 3142602444
A 3142602344 GEAR
Repalced by: A 3142602444
A 3142603244 GEAR
Repalced by: A 3142602444
323 A 3142602444 GEAR
4TH SPEED
325 A 3149810010 NEEDLE BEARING
4TH SPEED
325 A 3149810110 NEEDLE BEARING
4TH SPEED
A 3142621750 BUSHING
Repalced by: A 3142623750
328 A 3142623750 BUSHING
AS REQUIRED
39.70 MM
A 3142621550 BUSHING
Repalced by: A 3142623550
328 A 3142623550 BUSHING
AS REQUIRED
39.50 MM
A 3142621950 BUSHING
Repalced by: A 3142623950
328 A 3142623950 BUSHING
AS REQUIRED
39.90 MM
328 A 3142622250 BUSHING
AS REQUIRED
40.20 MM
A 3142601644 GEAR
Repalced by: A 3142603644
A 3142603044 GEAR
Repalced by: A 3142603644
331 A 3142603644 GEAR
3RD SPEED
A 3149810012 ROLLER ASSEMBLY
Repalced by: A 0019817012
A 3149810112 ROLLER ASSEMBLY
Repalced by: A 0019817012
333 A 0019817012 ROLLER ASSEMBLY
3RD SPEED
333 A 3149810612 ROLLER ASSEMBLY
3RD SPEED
333 A 0029810212 ROLLER ASSEMBLY
3RD SPEED
A 3142600745 SYNCHRONIZER BODY
2ND AND 3RD SPEED
A 3142601145 SYNCHRONIZER BODY
2ND AND 3RD SPEED
A 3142620935 SYNCHRONIZER BODY
Repalced by: A 3142621735
336 A 3142621735 SYNCHRONIZER BODY
2ND AND 3RD SPEED
338 A 3149930001 SPRING
2ND AND 3RD SPEED
340 A 3142620574 PIN
2ND AND 3RD SPEED
343 A 3142620140 FOLLOWER
2ND AND 3RD SPEED
A 3142620237 SYNCHRONIZER CONE
Repalced by: A 3142620437
346 A 3142620437 SYNCHRONIZER CONE
2ND AND 3RD SPEED
A 3242600169 SPRING
A 3142620423 SLIDING COLLAR
Repalced by: A 3142620923
A 3142620923 SLIDING COLLAR
Repalced by: A 3142621123
A 3142621123 SLIDING COLLAR
Repalced by: A 3142621223
352 A 3142621223 SLIDING COLLAR
2ND AND 3RD SPEED
A 3142620212 GEAR
Repalced by: A 3142620512
355 A 3142620512 GEAR
2ND SPEED
A 3149810012 ROLLER ASSEMBLY
Repalced by: A 0019817012
A 3149810112 ROLLER ASSEMBLY
Repalced by: A 0019817012
358 A 0019817012 ROLLER ASSEMBLY
REVERSE SPEED
358 A 3149810612 ROLLER ASSEMBLY
REVERSE SPEED
358 A 0029810212 ROLLER ASSEMBLY
REVERSE SPEED
A 3142600525 GEAR
REVERSE SPEED
A 3142600625 GEAR
REVERSE SPEED
A 3142600825 GEAR
REVERSE SPEED
361 A 3142630433 REVERSE IDLER GEAR
MAIN SHAFT
364 A 3149930001 SPRING
MAIN SHAFT
367 A 3142620374 PIN
MAIN SHAFT
370 A 3142620040 FOLLOWER
MAIN SHAFT
A 3212620376 BALL SOCKET
Repalced by: A 3142620076
373 A 3142620076 BALL SOCKET
A 3142620237 SYNCHRONIZER CONE
Repalced by: A 3142620437
376 A 3142620437 SYNCHRONIZER CONE
MAIN SHAFT
A 3242600069 SPRING
A 3142620323 SLIDING COLLAR
Repalced by: A 3142620823
A 3142620823 SLIDING COLLAR
Repalced by: A 3142621023
382 A 3142621023 SLIDING COLLAR
REVERSE SPEED
A 3142621550 BUSHING
Repalced by: A 3142623550
384 A 3142623550 BUSHING
AS REQUIRED
39.50 MM
A 3142621750 BUSHING
Repalced by: A 3142623750
384 A 3142623750 BUSHING
AS REQUIRED
39.70 MM
A 3142621950 BUSHING
Repalced by: A 3142623950
384 A 3142623950 BUSHING
AS REQUIRED
39.90 MM
387 N 005402004203 CYLINDRICAL ROLLER
1ST SPEED
390 A 3142620053 SPACER TUBE
1ST SPEED
A 3142620211 GEAR
Repalced by: A 3142620711
393 A 3142620711 GEAR
1ST SPEED
A 0009817301 CYLINDR. ROLLER BEARING
Repalced by: A 0019816101
396 A 0019816101 CYLINDR. ROLLER BEARING
1ST SPEED
399 A 3249940040 SNAP RING
AS REQUIRED
1.88 MM
399 A 3249940140 SNAP RING
AS REQUIRED
1.93 MM
403 A 0009813727 ANGULAR CONTACT BEARING
DRIVE GEAR
403 A 0019811427 ANGULAR CONTACT BEARING
DRIVE GEAR
406 A 3142640230 DRIVE GEAR
SPEEDOMETER
409 A 3142620145 FLANGE
(COUPLING FLANGE)
412 A 3142620072 NUT
FLANGE TO MAIN SHAFT
A 3142630402 COUNTERSHAFT
Repalced by: A 3142631002
415 A 3142631002 COUNTERSHAFT
A 3142630314 GEAR
Repalced by: A 3142630810
A 3142630110 GEAR
Repalced by: A 3142630810
A 3142630510 GEAR
Repalced by: A 3142630810
A 3142630810 GEAR
Repalced by: A 3142631010
418 A 3142631010 GEAR
CONSTANT
A 3142630614 GEAR
Repalced by: A 3142631414
A 3142630514 GEAR
Repalced by: A 3142631414
A 3142631214 GEAR
Repalced by: A 3142631414
421 A 3142631414 GEAR
4TH SPEED
424 A 3149910267 WOODRUFF KEY
COUNTERSHAFT
427 N 900055042301 LOCK RING
COUNTERSHAFT
430 A 0019815705 TAPERED ROLLER BEARING
COUNTERSHAFT
430 A 0019817105 TAPERED ROLLER BEARING
COUNTERSHAFT
430 A 0019819105 TAPERED ROLLER BEARING
COUNTERSHAFT
430 A 0059819705 TAPERED ROLLER BEARING
COUNTERSHAFT
433 A 3142650108 LEVER
REVERSE SPEED
A 3212650449 SLIDE
Repalced by: A 3142650349
436 A 3142650349 SLIDE
INTERMEDIATE LEVER
439 A 3142650274 PIN
LEVER TO TRANSMISSION CASE
A 3142600425 GEAR
Repalced by: A 3142600725
442 A 3142600725 GEAR
REVERSE SPEED
444 A 3142630230 REVERSE IDLER SHAFT

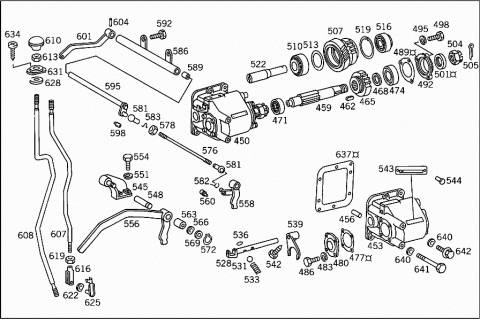

450 A 3142600010 P.T.O.
MEILLER DUMPER PUMP
NA 2/24-4C
453 A 3122601112 TRANSMISSION CASE
456 N 000007010103 CYLINDRICAL PIN
A 3122641106 DRIVE SHAFT
Repalced by: A 3142640206
459 A 3142640206 DRIVE SHAFT
MEILLER DUMPER PUMP
462 N 006885008021 KEY
REAR DRIVE SHAFT
465 A 3122641022 GEAR
Repalced by: A 3142640122
465 A 3142640122 GEAR
MEILLER DUMPER PUMP
468 A 3122643452 SPACER WASHER
AS REQUIRED
7.00 MM
468 A 3122643552 SPACER WASHER
AS REQUIRED
7.15 MM
468 A 3122643652 SPACER WASHER
AS REQUIRED
7.30 MM
468 A 3122643752 SPACER WASHER
AS REQUIRED
7.45 MM
471 N 005412500304 CYLINDR. ROLLER BEARING
FRONT DRIVE SHAFT
471 A 0059817201 CYLINDR. ROLLER BEARING
FRONT DRIVE SHAFT
471 A 0059813501 CYLINDR. ROLLER BEARING
FRONT DRIVE SHAFT
474 N 005412402206 CYLINDR. ROLLER BEARING
REAR DRIVE SHAFT
477 A 3122641179 GASKET
FRONT
480 A 3122641410 COVER
FRONT
483 N 912004008102 LOCK WASHER
CASE COVER TO TRANSMISSION
486 N 000933008147 SCREW
Repalced by: N 304017008021
486 N 304017008021 SCREW
CASE COVER TO TRANSMISSION
489 A 3122641279 GASKET
REAR
492 A 3122641311 COVER
REAR
495 N 912004008102 LOCK WASHER
CASE COVER TO TRANSMISSION
498 N 000933008153 SCREW
Repalced by: N 304017008034
498 N 304017008034 SCREW
CASE COVER TO TRANSMISSION
501 A 0039977746 SEAL RING
REAR DRIVE SHAFT
504 N 000937024002 NUT
REAR DRIVE SHAFT
505 N 000094005016 COTTER PIN
REAR DRIVE SHAFT
A 3142640121 GEAR
Repalced by: A 3142640321
507 A 3142640321 GEAR
TWIN GEAR
510 A 0019818305 TAPERED ROLLER BEARING
TWIN GEAR
510 A 0019818705 TAPERED ROLLER BEARING
TWIN GEAR
510 A 0009819505 TAPERED ROLLER BEARING
TWIN GEAR
513 A 3122642652 SPACER WASHER
AS REQUIRED
0.20MM
516 N 000720032305 TAPERED ROLLER BEARING
DRIVE SHAFT
519 N 900055062310 LOCK RING
DRIVE SHAFT
522 A 3122641118 SHAFT
DRIVE SHAFT
528 A 3122641025 SHIFTING ROD
TRANSMISSION CASE
531 N 005401311000 BALL
P.T.O. CONTROL
533 A 3129931001 SPRING
P.T.O. CONTROL
536 N 000470014000 EXPANSION PLUG
P.T.O. CONTROL
539 A 3122641326 SHIFTING FORK
P.T.O. CONTROL
542 A 3122641071 SCREW
SHIFTING FORK TO SHIFTING ROD
543 A 3145840924 UNIT IDENTIFICATION PLATE
P.T.O.
544 N 001476003007 GROOVED NAIL
UNIT IDENTIFICATION PLATE TO TRANSMISSION CASE
545 A 3142600894 BEARING BRACKET
P.T.O. CONTROL
548 A 3142680074 PIN
551 N 912004008102 LOCK WASHER
BEARING BRACKET TO FRAME
554 N 000933008153 SCREW
Repalced by: N 304017008034
554 N 304017008034 SCREW
BEARING BRACKET TO FRAME
A 3142600237 LEVER
Repalced by: A 3142603537
556 A 3142603537 LEVER
(INTERMEDIATE LEVER)
558 A 3142600637 LEVER
(INTERMEDIATE LEVER)
560 N 071803013207 BALL PIVOT
563 A 0019920101 BUSHING
566 A 3129900148 WASHER
LEVER TO PIN
569 N 000433015005 WASHER
LEVER TO PIN
572 N 000471015000 LOCK RING
LEVER TO PIN
A 3142600289 PULL ROD
FROM SHAFT TO INTERMEDIATE LEVER
576 N 900331008419 PULL ROD
FROM SHAFT TO INTERMEDIATE LEVER
578 N 304032008006 NUT
581 N 071805013203 BALL SOCKET
582 N 071805013302 SNAP RING
583 N 071805013402 SECURING CLIP
586 A 3142600395 BEARING
FROM SHAFT TO INTERMEDIATE LEVER
589 A 0019920101 BUSHING
592 N 000931012093 SCREW
SHIFTING SHAFT BEARING
595 A 3142600138 SHAFT
Repalced by: A 3142600338
595 A 3142600338 SHAFT
SHIFTING SHAFT,TOP
598 N 071803013207 BALL PIVOT
601 A 3142602237 LEVER
SHIFTING SHAFT,TOP
604 N 001473006013 GROOVED PIN
SHIFTING SHAFT,TOP
A 3142601133 SHIFTING ROD
Repalced by: A 3142602533
607 A 3142602533 SHIFTING ROD
SHIFT LEVER
A 3142602133 SHIFTING ROD
Repalced by: A 3142602433
608 A 3142602433 SHIFTING ROD
SHIFT LEVER
610 A 3372600040 HANDLE
(GEARSHIFT LEVER KNOB)
613 N 000936010010 NUT
GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER
616 N 071752008001 YOKE
SHIFTING ROD TO INTERMEDIATE LEVER
616 N 071752008002 YOKE
SHIFTING ROD TO INTERMEDIATE LEVER
619 N 000934006007 NUT
YOKE TO INTERMEDIATE LEVER
622 N 900055008002 SPRING WASHER
YOKE TO INTERMEDIATE LEVER
625 N 918001008001 PIN
YOKE TO INTERMEDIATE LEVER
625 N 918001008000 PIN
YOKE TO INTERMEDIATE LEVER
628 A 3142680276 WASHER
SHIFT LEVER UPPER PART
631 A 3372640057 LOCKING CAP
SHIFT LEVER UPPER PART
634 N 007981004243 SHEET METAL SCREW
Repalced by: N 000000002062
634 N 000000002062 SCREW
SHIFT LEVER UPPER PART
A 3122641079 GASKET
Repalced by: A 3142640080
A 3142640080 GASKET
Repalced by: A 3142640180
637 A 3142640180 GASKET
Repalced by: A 3122611080
637 A 3122611080 GASKET
LATERAL
640 N 000137010201 SPRING WASHER
P.T.O. TO TRANSMISSION
641 N 914141010113 SCREW
P.T.O. TO TRANSMISSION
M10X175
642 N 900170010006 SCREW
P.T.O. TO TRANSMISSION
M10X30

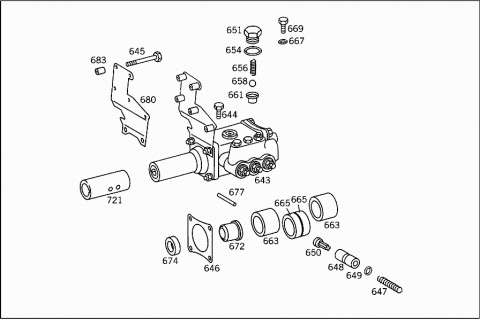

643 A 0002362305 HYDRAULIC PUMP
SERVICE WITH DUMPING PLATFORM
644 N 000933006122 SCREW
Repalced by: N 304017006034
644 N 304017006034 SCREW
DUMPER PUMP
645 N 000933012063 SCREW
DUMPER PUMP
646 A 0002640479 GASKET
DUMPER PUMP
647 A 0049936801 SPRING
LATERAL
648 A 0002360917 PISTON
LATERAL
649 A 0002361260 SEAL RING
LATERAL
650 A 0002361235 VALVE
LATERAL
651 A 0002360371 SCREW
HOUSING,TOP
654 A 0029977040 SEAL RING
HOUSING,TOP
656 A 0049936401 SPRING
HOUSING,TOP
658 A 0019814085 BALL
Repalced by: A 0019815085
658 A 0019815085 BALL
HOUSING,TOP
12.70 MM
661 A 0002361335 VALVE
HOUSING,TOP
663 A 0002360450 BUSHING
DRIVE SHAFT
665 A 0002360550 BUSHING
DRIVE SHAFT
667 N 007603010103 SEAL RING
Repalced by: N 007603010110
667 N 007603010110 SEAL RING
CASE,REAR
669 N 000961010016 SCREW
CASE,REAR
672 A 0002360350 BUSHING
FRONT AND REAR
674 A 0059978547 SEAL RING
FRONT
677 N 001481008018 CLAMPING SLEEVE
FRONT
680 A 0002640041 BRACKET
HOUSING,TOP
683 A 0002640550 BUSHING
HOUSING,TOP
A 0002363405 HYDRAULIC PUMP
Repalced by: A 0002364705
A 0002364705 HYDRAULIC PUMP
Repalced by: A 0002367505
A 0002367005 HYDRAULIC PUMP
Repalced by: A 0002367505

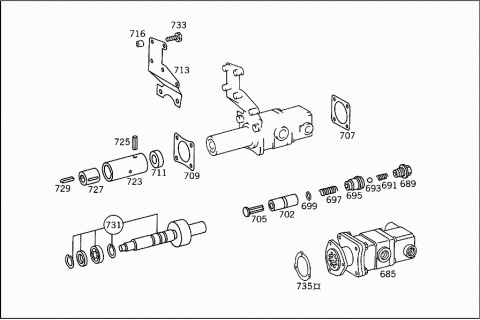

685 A 0002367505 HYDRAULIC PUMP
SERVICE WITH DUMPING PLATFORM
A 0009974430 SCREW PLUG
Repalced by: A 0019974430
689 A 0019974430 SCREW PLUG
LATERAL
691 A 0049936101 SPRING
LATERAL
693 N 005401310000 BALL
LATERAL
10 MM
695 A 0002360835 VALVE
LATERAL
697 A 0049936201 SPRING
LATERAL
699 A 0002361060 SEAL RING
LATERAL
699 A 0002361060 SEAL RING
LATERAL
702 A 0002360717 PISTON
LATERAL
705 A 0002360635 VALVE
LATERAL
707 A 0002360380 GASKET
709 A 0002640479 GASKET
A 0059974147 SEAL RING
Repalced by: A 0079977446
711 A 0079977446 SEAL RING
DRIVE SHAFT
713 A 0002640041 BRACKET
DUMPER PUMP
713 A 0002640741 BRACKET
DUMPER PUMP
716 A 0002640550 BUSHING
DUMPER PUMP
721 A 0002640323 SLIDING COLLAR
CLUTCH
723 A 0002640923 SLIDING COLLAR
CLUTCH
725 N 001481008016 CLAMPING SLEEVE
CLUTCH
727 A 0002640750 BUSHING
CLUTCH
729 N 006885008022 KEY
CLUTCH
731 A 0002360615 SHAFT
DRIVE SHAFT
TO 000 236 75 05
733 N 000931008246 SCREW
Repalced by: N 304017008028
733 N 304017008028 SCREW
BRACKET TO CHASSIS
735 A 3122641279 GASKET
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
