Mercedes-benz | iAUTO.lt

Transporto priemonė: LPLS 608,709; VIN numerio dalis: 314263

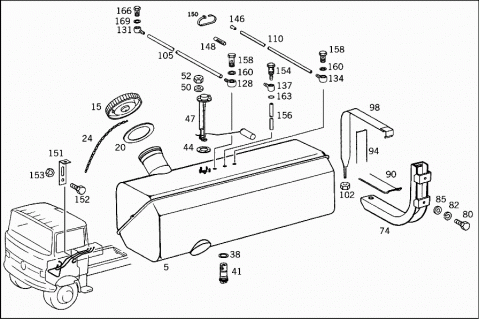

Grupė: 47 FUEL SYSTEM

#	Kodas	Pavadinimas
005	A 3144702601	FUEL TANK
	Repalced by: A 3144704101
	A 3144704101	FUEL TANK
		80 L .
015	A 3094700005	FILLER CAP
015	A 0004710530	FILLER CAP
	Repalced by: A 0004717930
015	A 0004717930	FILLER CAP
	Repalced by: A 0004700305
015	A 0004718030	FILLER CAP
	Repalced by: A 0004700305
015	A 0004700305	FILLER CAP
015	A 0004700105	FILLER CAP
	Repalced by: A 0004700305
020	A 3049970340	SEAL RING
024	A 3034700031	CHAIN
		COVER TO TANK
038	A 0029977245	SEAL RING
		FUEL STRAINER SCREEN TO FUEL TANK
	N 007604014106	SCREW PLUG
	Repalced by: N 007604014110
	N 007604014110	SCREW PLUG
		AT TANK
	N 007603014403	SEAL RING
		AT TANK
041	A 3604700006	FUEL STRAINER
	Repalced by: A 3074700106
041	A 3074700106	FUEL STRAINER
041	A 3094700006	FUEL STRAINER
044	A 3524710080	GASKET
	Repalced by: A 4044710080
044	A 4044710080	GASKET
		FUEL GAUGE SENDER UNIT TO FUEL TANK
047	A 0015429717	SENDER UNIT
		FUEL GAUGE
047	A 0045425117	SENDER UNIT
	Repalced by: A 0075424117
047	A 0075424117	SENDER UNIT
		FUEL GAUGE
050	A 0669970640	SEAL RING
		FUEL GAUGE SENDER UNIT TO FUEL TANK
052	N 304032005002	NUT
	Repalced by: N 304032005005
052	N 304032005005	NUT
		FUEL GAUGE SENDER UNIT TO FUEL TANK
074	A 3144700342	SUPPORT
		FUEL TANK
080	N 000961012151	SCREW
		SUPPORT TO SIDE MEMBER
080	N 000961012097	SCREW
	Repalced by: N 308676012026
080	N 308676012026	SCREW
		SUPPORT TO SIDE MEMBER
082	N 912004012100	LOCK WASHER
		SUPPORT TO SIDE MEMBER
085	N 007349013003	WASHER
	Repalced by: N 007349013005
085	N 007349013005	WASHER
		SUPPORT TO SIDE MEMBER
	A 3144750084	SHIM
		SUPPORT TO SIDE MEMBER
090	A 3144750020	PAD
		FUEL TANK TO CONSOLE
		475 MM
094	A 3604750020	PAD
		FUEL TANK TO CONSOLE
		170 MM
098	A 3144700240	STRAP
		FUEL TANK TO CONSOLE
102	N 000934010014	NUT
		FUEL TANK TO CONSOLE
105	A 0089975482	HOSE
		FEED LINE AND RETURN LINE
		8X11 MM
105	A 0089979082	HOSE
		FEED LINE AND RETURN LINE
		6X8 MM
110	A 0109977082	HOSE
		LEAK LINE
		6X4 MM
128	A 0009904188	BANJO UNION
	Repalced by: N 915052008001
128	N 915052008019	BANJO UNION
		FROM RETURN LINE TO FUEL TANK
		16/28 MM
131	N 915052008016	BANJO UNION
		FUEL LINE TO FEED PUMP
		14/24 MM
134	A 0009904288	BANJO UNION
	Repalced by: N 915052004002
134	N 915052004019	BANJO UNION
		LEAK LINE TO TANK
		16/28 MM
137	A 0009905088	BANJO UNION
	Repalced by: N 915052008019
137	N 915052008019	BANJO UNION
		RISING PIPE TO FUEL TANK
		16/24 MM
137	A 0009909688	BANJO UNION
		FEED LINE
137	A 0009909688	BANJO UNION
		LEAK LINE
146	A 0009920105	BUSHING
	Repalced by: N 915062004000
146	N 915062004000	SLEEVE
		LEAK LINE
	A 0019977672	FITTING
		RETURN LINE
	N 915017008201	UNION NUT
		RETURN LINE
148	N 073379006203	HOSE
		LEAK LINE
	N 073379008200	HOSE
		FEED LINE AND RETURN LINE
	N 000000000665	CLAMP
		FUEL LINE TO SENDER UNIT
150	A 0019978490	LOOM TIE
		FUEL LINE
		376 MM
150	A 0019978390	LOOM TIE
		FUEL LINE
		280 MM
	N 900288010001	CLAMP
		LEAK LINE TO CONNECTOR AT ENGINE
151	A 3524282140	BRACKET
	Repalced by: A 3524281740
151	A 3524281740	BRACKET
	Repalced by: A 3184280240
151	A 3184280240	BRACKET
		FUEL LINE TO SIDE MEMBER
152	N 000933008152	SCREW
	Repalced by: N 304017008027
152	N 304017008027	SCREW
		BRACKET TO SIDE MEMBER
153	N 913004008004	NUT
	Repalced by: N 913004008001
153	N 913004008001	NUT
		BRACKET TO SIDE MEMBER
154	A 3609900263	HOLLOW SCREW
		RISING PIPE
156	A 0089975482	HOSE
		RISING PIPE
		335 MM
158	N 915036012203	HOLLOW SCREW
		FUEL LINE TO FUEL TANK
160	N 915035000014	SEAL RING
		FUEL LINE TO FUEL TANK
	A 0029971640	SEAL RING
	Repalced by: A 0009971548
163	A 0009971548	SEAL RING
		FUEL LINE TO FUEL TANK
166	N 915036010204	HOLLOW SCREW
	Repalced by: N 915036010108
166	N 915036010108	HOLLOW SCREW
		CONNECTION OF FUEL LINES
169	N 007603014106	SEAL RING
		CONNECTION OF FUEL LINES
