Transporto priemonė: LPLS 608,709; VIN numerio dalis: 314263
Grupė: 60 PLATFORM

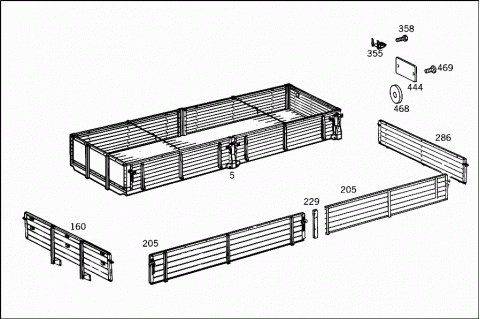

83409

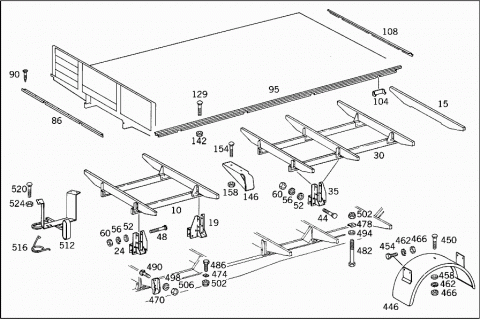

83410

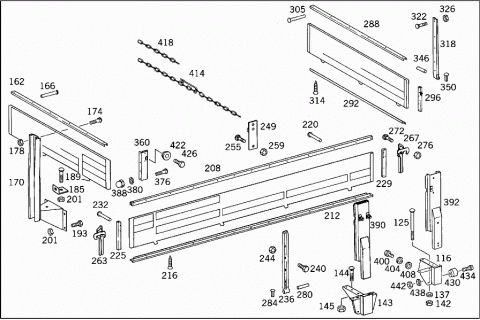

83411
# Kodas Pavadinimas
A 3146002803 PLATFORM
Repalced by: A 3146003103
005 A 3146003103 PLATFORM
4500X2260X500 MM
005 A 3146002903 PLATFORM
Repalced by: A 3146003203
005 A 3146003203 PLATFORM
5500X2260X500 MM
005 A 3146002703 PLATFORM
Repalced by: A 3146003003
005 A 3146003003 PLATFORM
3800X2260X500 MM
010 A 3146109701 SUBSTRUCTURE
Repalced by: A 3146117720
010 A 3146108001 SUBSTRUCTURE
Repalced by: A 3146118820
A 3146117720 SIDE MEMBER
Repalced by: A 3146118820
A 3146118820 SIDE MEMBER
FRONT
015 A 3146100514 CROSS MEMBER
FRONT
019 A 3146100532 CONNECTION
FRONT
024 A 3146100732 CONNECTION
Repalced by: A 3146100432
024 A 3146100432 CONNECTION
FRONT
030 A 3146108401 SUBSTRUCTURE
Repalced by: A 3146117720
030 A 3146108301 SUBSTRUCTURE
Repalced by: A 3146117720
030 A 3146108501 SUBSTRUCTURE
Repalced by: A 3146118820
030 A 3146118820 SIDE MEMBER
REAR
A 3146100514 CROSS MEMBER
REAR
035 A 3146100432 CONNECTION
REAR
035 A 3146100532 CONNECTION
REAR
044 N 000603008054 SCREW
CONNECTION TO SIDE AND CROSS MEMBERS
M8X60M
048 N 000603008051 SCREW
CONNECTION TO SIDE AND CROSS MEMBERS
M8X55
052 N 000125008418 WASHER
Repalced by: N 000125008443
052 N 000125008443 WASHER
CONNECTION TO SIDE AND CROSS MEMBERS
056 N 912004008102 LOCK WASHER
CONNECTION TO SIDE AND CROSS MEMBERS
060 N 304032008006 NUT
CONNECTION TO SIDE AND CROSS MEMBERS
086 A 3146163885 EDGING
FRONT
090 N 000097005025 WOOD SCREW
EDGING TO FLOOR
095 A 3146103785 EDGING
LEFT
095 A 3146103985 EDGING
LEFT
095 A 3146103585 EDGING
LEFT
095 A 3146103885 EDGING
RIGHT
095 A 3146104085 EDGING
RIGHT
095 A 3146103685 EDGING
RIGHT
104 A 3826160030 HINGE MOUNTING
LATERAL AND REAR
108 A 3146104185 EDGING
REAR
116 A 3826100452 TAKE-UP DEVICE
LEFT REAR
116 A 3826100552 TAKE-UP DEVICE
RIGHT REAR
125 N 000603008053 SCREW
EDGING TO FLOOR
M 8X100
129 N 000603008050 SCREW
EDGING TO FLOOR
M 8X45
129 N 000603008049 SCREW
EDGING TO FLOOR
M 8X40
137 N 000440009103 WASHER
EDGING TO FLOOR
142 N 913004008004 NUT
Repalced by: N 913004008001
142 N 913004008001 NUT
EDGING TO FLOOR
143 A 3526100052 TAKE-UP DEVICE
LEFT AND RIGHT CENTRAL
144 N 000603008049 SCREW
EDGING AND TAKE-UP DEVICE TO FLOOR
145 N 913004008004 NUT
Repalced by: N 913004008001
145 N 913004008001 NUT
EDGING AND TAKE-UP DEVICE TO FLOOR
146 A 3826160286 STOP
SIDE PANELS
154 N 000603008051 SCREW
STOP TO FLOOR
M 8X55
154 N 000603008049 SCREW
STOP TO FLOOR
M 8X40
158 N 913004008004 NUT
Repalced by: N 913004008001
158 N 913004008001 NUT
STOP TO FLOOR
160 A 3146201602 FRONT PANEL
162 A 3146371470 BINDING RAIL
FRONT PANEL
166 A 3529900196 RIVET
BINDING RAIL TO PLATFORM FRONT PANEL
A 3529900296 RIVET
BINDING RAIL TO PLATFORM FRONT PANEL
170 A 3166200028 BRACING
FRONT PANEL
174 N 000603008027 SCREW
SUPPORTING RAIL AND REINFORCEMENT RAIL TO FRONT PANEL
M 8X35
174 N 000603008027 SCREW
SUPPORTING RAIL AND REINFORCEMENT RAIL TO FRONT PANEL
M 8X35
174 N 000603008049 SCREW
SUPPORTING RAIL AND REINFORCEMENT RAIL TO FRONT PANEL
M 8X40
178 N 304032008006 NUT
SUPPORTING RAIL AND REINFORCEMENT RAIL TO FRONT PANEL
185 A 3146270012 ANGLE
FRONT PANEL TO SUBSTRUCTURE
189 N 000603008049 SCREW
FRONT PANEL TO SUBSTRUCTURE
M 8X40
193 N 000933008212 SCREW
Repalced by: N 304017008016
193 N 304017008016 SCREW
FRONT PANEL TO SUBSTRUCTURE
M 8X16
201 N 913004008004 NUT
Repalced by: N 913004008001
201 N 913004008001 NUT
FRONT PANEL TO SUBSTRUCTURE
205 A 3146302901 SIDE PANEL
TO 314 600 28 03
205 A 3146303201 SIDE PANEL
TO 314 600 31 03
205 A 3146303001 SIDE PANEL
TO 314 600 29 03
205 A 3146303301 SIDE PANEL
TO 314 600 32 03
205 A 3146302801 SIDE PANEL
TO 314 600 27 03
205 A 3146303101 SIDE PANEL
TO 314 600 30 03
208 A 3146372770 BINDING RAIL
Repalced by: A 3146371470
208 A 3146371470 BINDING RAIL
TOP
212 A 3146372870 BINDING RAIL
Repalced by: A 3146371970
212 A 3146371970 BINDING RAIL
BOTTOM
216 N 000097005025 WOOD SCREW
BINDING RAIL TO PLATFORM SIDE PANEL
5X25 MM
220 A 3529900196 RIVET
BINDING RAIL TO PLATFORM SIDE PANEL
225 A 3526370970 BINDING RAIL
LEFT
229 A 3526371070 BINDING RAIL
RIGHT
232 A 3529900296 RIVET
BINDING RAIL TO PLATFORM SIDE PANEL
236 A 3826370054 HINGE
SIDE PANELS
236 A 3826300082 HINGE
WITH CHAIN FASTENER
240 N 000603008027 SCREW
HINGE TO PLATFORM SIDE PANEL
244 N 304032008006 NUT
HINGE TO PLATFORM SIDE PANEL
249 A 3146300036 BRACKET
TENSION CHAIN
255 N 000603008027 SCREW
BRACKET TO SIDE PANEL
259 N 304032008006 NUT
BRACKET TO SIDE PANEL
263 A 3526370063 HOOK
LEFT
267 A 3526370163 HOOK
RIGHT
272 N 000603008049 SCREW
FASTENER TO PLATFORM SIDE PANEL
276 N 304032008006 NUT
FASTENER TO PLATFORM SIDE PANEL
280 N 001433012031 PIN
PLATFORM SIDE PANEL TO SUBSTRUCTURE
284 N 001476004014 GROOVED NAIL
PLATFORM SIDE PANEL TO SUBSTRUCTURE
286 A 3146402202 REAR PANEL
288 A 3146470870 RAIL
Repalced by: A 3146371470
288 A 3146371470 BINDING RAIL
TOP
292 A 3146470970 RAIL
Repalced by: A 3146371970
292 A 3146371970 BINDING RAIL
BOTTOM
296 A 3146471070 RAIL
Repalced by: A 0029854451
296 A 3146471170 RAIL
Repalced by: A 0029854451
296 A 0029854451 METAL SECTION
LEFT AND RIGHT
305 A 3529900196 RIVET
BINDING RAIL TO PLATFORM REAR PANEL
305 A 3529900296 RIVET
BINDING RAIL TO PLATFORM REAR PANEL
314 N 000097005025 WOOD SCREW
BINDING RAIL TO PLATFORM REAR PANEL
318 A 3826370054 HINGE
REAR PANEL
322 N 000603008027 SCREW
HINGE TO REAR PANEL
326 N 304032008006 NUT
HINGE TO REAR PANEL
A 3526370063 HOOK
LEFT
A 3526370163 HOOK
RIGHT
N 000603008049 SCREW
FASTENER TO PLATFORM REAR END PANEL
N 304032008006 NUT
FASTENER TO PLATFORM REAR END PANEL
346 N 001433012031 PIN
REAR PANEL TO SUBSTRUCTURE
350 N 001476004014 GROOVED NAIL
REAR PANEL TO SUBSTRUCTURE
355 A 0008700008 FOLDING STEP
REAR PANEL
358 N 000966008020 SCREW
Repalced by: N 000965008007
358 N 000965008007 SCREW
FOLDING STEP TO REAR PANEL
A 0009842425 THREADED CHUCK
FOLDING STEP TO REAR PANEL
360 A 3146600375 INSERT RAIL
FRONT LEFT
360 A 3826600975 INSERT RAIL
FRONT LEFT
Y YYYYYYYYYYYY PART NAME MISSING
TO 314 600 30 03,314 600 31 03,
Y YYYYYYYYYYYY PART NAME MISSING
314 600 32 03
360 A 3146600475 INSERT RAIL
FRONT RIGHT
Y YYYYYYYYYYYY PART NAME MISSING
TO 314 600 27 03,314 600 28 03,
Y YYYYYYYYYYYY PART NAME MISSING
314 600 29 03
360 A 3826601075 INSERT RAIL
FRONT RIGHT
Y YYYYYYYYYYYY PART NAME MISSING
TO 314 600 30 03,314 600 31 03,
Y YYYYYYYYYYYY PART NAME MISSING
314 600 32 03
376 N 000603008047 SCREW
INSERT RAIL TO FLOOR
M 8X50
376 N 000603008049 SCREW
INSERT RAIL TO PLATFORM FRONT PANEL
M 8X40
380 N 912004008102 LOCK WASHER
388 N 913004008004 NUT
Repalced by: N 913004008001
388 N 913004008001 NUT
INSERT RAIL TO PLATFORM FRONT PANEL
390 A 3146600575 INSERT RAIL
CENTRAL
TO 314 600 28 03,314 600 29 03
390 A 3826601175 INSERT RAIL
CENTRAL
TO 314 600 31 03,314 600 32 03
A 3526370011 PLATE
THREADED
392 A 3146600875 INSERT RAIL
REAR LEFT
Y YYYYYYYYYYYY PART NAME MISSING
TO 314 600 27 03,314 600 28 03,
Y YYYYYYYYYYYY PART NAME MISSING
314 600 29 03
392 A 3826602175 INSERT RAIL
REAR LEFT
Y YYYYYYYYYYYY PART NAME MISSING
TO 314 600 30 03,314 600 31 03,
Y YYYYYYYYYYYY PART NAME MISSING
314 600 32 03
392 A 3146600975 INSERT RAIL
REAR RIGHT
Y YYYYYYYYYYYY PART NAME MISSING
TO 314 600 27 03,314 600 28 03,
Y YYYYYYYYYYYY PART NAME MISSING
314 600 29 03
392 A 3826602275 INSERT RAIL
REAR RIGHT
Y YYYYYYYYYYYY PART NAME MISSING
TO 314 600 30 03,314 600 31 03,
Y YYYYYYYYYYYY PART NAME MISSING
314 600 32 03
400 N 000933008147 SCREW
Repalced by: N 304017008021
400 N 304017008021 SCREW
INSERT RAIL TO INSERT POCKET
404 N 912004008102 LOCK WASHER
INSERT RAIL TO INSERT POCKET
408 N 009021008205 WASHER
Repalced by: N 009021008213
408 N 009021008213 WASHER
INSERT RAIL TO INSERT POCKET
414 A 3406600093 CHAIN
WITH CHAIN LOCK
418 N 000763006004 CHAIN
422 A 3526370013 WASHER
(ECCENTRIC PLATE) PLATFORM PANEL FASTENER
426 A 3609902101 SCREW
WASHER TO INSERT RAIL
430 A 0008770265 RUBBER BUFFER
REAR PANEL FLAP STOP
434 N 007985005151 SCREW
Repalced by: N 007985005532
434 N 007985005532 SCREW
RUBBER BUFFER TO PLATFORM
438 N 009021005202 WASHER
Repalced by: N 009021005205
438 N 009021005205 WASHER
RUBBER BUFFER TO PLATFORM
442 N 304032005002 NUT
Repalced by: N 304032005005
442 N 304032005005 NUT
RUBBER BUFFER TO PLATFORM
444 A 0008261741 SIDE REFLECTOR
Repalced by: A 0008262440
444 A 0008262440 REFLECTOR
AMBER
468 A 0005443505 REFLECTOR
AMBER
468 A 0005443605 REFLECTOR
AMBER
468 A 0005443905 REFLECTOR
AMBER
469 N 007996004021 WOOD SCREW
REFLECTOR TO PLATFORM
4X25 MM
469 N 007996005012 WOOD SCREW
REFLECTOR TO PLATFORM
5X25 MM
446 A 3148800521 REAR FENDER
REAR
450 N 000603008049 SCREW
FENDER TO PLATFORM FLOOR
M 8X40
454 N 000933008212 SCREW
Repalced by: N 304017008016
454 N 304017008016 SCREW
FENDER TO PLATFORM FLOOR
M 8X16
458 N 000440009103 WASHER
FENDER TO PLATFORM FLOOR
462 N 912004008102 LOCK WASHER
FENDER TO PLATFORM FLOOR
466 N 304032008006 NUT
FENDER TO PLATFORM FLOOR
470 A 3148910013 PLATE
PLATFORM TO CHASSIS
474 A 3148910111 PLATE
PLATFORM TO CHASSIS
478 A 3148910113 PLATE
PLATFORM TO CHASSIS
482 N 000960012216 SCREW
Repalced by: N 308765012007
482 N 308765012007 SCREW
PLATFORM TO CHASSIS
M 12X20
486 N 000961012122 SCREW
PLATFORM TO CHASSIS
M 12X40
490 N 000603008047 SCREW
PLATFORM TO CHASSIS
M 8X50
494 N 000125013008 WASHER
498 N 912004008102 LOCK WASHER
PLATE TO SUBSTRUCTURE
502 N 913002012002 NUT
PLATFORM TO CHASSIS
506 N 304032008006 NUT
PLATE TO SUBSTRUCTURE
512 A 3528900110 FIXTURE
CHOCK
516 A 3528990035 SPRING
520 N 000603008049 SCREW
BRACKET TO BODY
524 N 913004008004 NUT
Repalced by: N 913004008001
524 N 913004008001 NUT
BRACKET TO BODY
