Transporto priemonė: LPL 1013; VIN numerio dalis: 318552

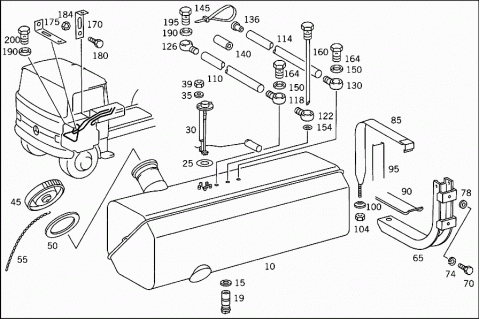

Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 3524701001 | FUEL TANK |
| Repalced by: A 3184700201 | ||
| A 3184700201 | FUEL TANK | |
| 105 L | ||
| 015 | A 0029977245 | SEAL RING |
| FUEL STRAINER SCREEN TO FUEL TANK | ||
| 019 | A 3604700006 | FUEL STRAINER |
| Repalced by: A 3074700106 | ||
| 019 | A 3074700106 | FUEL STRAINER |
| FUEL TANK | ||
| A 3094700006 | FUEL STRAINER | |
| FUEL TANK | ||
| N 007604014106 | SCREW PLUG | |
| Repalced by: N 007604014110 | ||
| N 007604014110 | SCREW PLUG | |
| AT TANK | ||
| N 007603014405 | SEAL RING | |
| AT TANK | ||
| 025 | A 3524710080 | GASKET |
| Repalced by: A 4044710080 | ||
| 025 | A 4044710080 | GASKET |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 030 | A 0015422017 | SENDER UNIT |
| FUEL GAUGE | ||
| A 0045427917 | SENDER UNIT | |
| FUEL GAUGE | ||
| 035 | A 0669970640 | SEAL RING |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 039 | N 304032005002 | NUT |
| Repalced by: N 304032005005 | ||
| 039 | N 304032005005 | NUT |
| FUEL GAUGE SENDER UNIT TO FUEL TANK | ||
| 045 | A 3094700005 | FILLER CAP |
| A 0004718030 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| A 0004710530 | FILLER CAP | |
| Repalced by: A 0004717930 | ||
| A 0004717930 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| A 0004700305 | FILLER CAP | |
| A 0004700105 | FILLER CAP | |
| Repalced by: A 0004700305 | ||
| 050 | A 3049970340 | SEAL RING |
| TO FILLER CAP | ||
| 055 | A 3034700031 | CHAIN |
| TO FILLER CAP | ||
| 065 | A 3524700042 | SUPPORT |
| FUEL TANK | ||
| 070 | N 000961012097 | SCREW |
| Repalced by: N 308676012026 | ||
| 070 | N 308676012026 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 12X35 | ||
| 074 | N 912004012100 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 078 | N 007349013003 | WASHER |
| Repalced by: N 007349013005 | ||
| 078 | N 007349013005 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 085 | A 3524700040 | STRAP |
| FUEL TANK | ||
| 090 | A 3634750220 | PAD |
| FUEL TANK TO SUPPORT | ||
| 095 | A 3144750020 | PAD |
| FUEL TANK TO SUPPORT | ||
| 100 | A 3609970126 | WASHER |
| FUEL TANK TO SUPPORT | ||
| 104 | N 000934012022 | NUT |
| FUEL TANK TO SUPPORT | ||
| 110 | A 0089975482 | HOSE |
| FEED LINE AND RETURN LINE | ||
| 8X11 MM | ||
| A 0089979082 | HOSE | |
| FEED LINE AND RETURN LINE | ||
| 6X8 MM | ||
| 114 | A 0109977082 | HOSE |
| LEAK LINE TO TANK | ||
| 4X6 MM | ||
| 118 | A 0009904188 | BANJO UNION |
| Repalced by: N 915052008001 | ||
| 118 | N 915052008019 | BANJO UNION |
| FROM RETURN LINE TO FUEL TANK | ||
| 8/16 MM | ||
| 122 | A 0009905088 | BANJO UNION |
| Repalced by: N 915052008019 | ||
| 122 | N 915052008019 | BANJO UNION |
| RISING PIPE TO FUEL TANK | ||
| 16/24 MM | ||
| 126 | N 915052008016 | BANJO UNION |
| FUEL LINE TO FEED PUMP | ||
| 8/14 MM | ||
| 126 | N 915052008016 | BANJO UNION |
| FUEL LINE TO FEED PUMP | ||
| 8/14 MM | ||
| 130 | A 0009904288 | BANJO UNION |
| Repalced by: N 915052004002 | ||
| 130 | N 915052004019 | BANJO UNION |
| LEAK LINE TO TANK | ||
| 4/16 MM | ||
| A 0009909688 | BANJO UNION | |
| FEED LINE | ||
| A 0009909688 | BANJO UNION | |
| LEAK LINE | ||
| A 0019977672 | FITTING | |
| RETURN | ||
| N 915017008201 | UNION NUT | |
| RETURN | ||
| 136 | A 0009920105 | BUSHING |
| Repalced by: N 915062004000 | ||
| 136 | N 915062004000 | SLEEVE |
| LEAK RETURN | ||
| 140 | N 073379006203 | HOSE |
| FROM RETURN LINE TO FUEL TANK | ||
| N 073379008200 | HOSE | |
| FEED LINE AND RETURN LINE | ||
| N 000000000665 | CLAMP | |
| FUEL LINE TO SENDER UNIT | ||
| 145 | A 0019978490 | LOOM TIE |
| FUEL LINE | ||
| 376 MM | ||
| A 0019978390 | LOOM TIE | |
| FUEL LINE | ||
| 280 MM | ||
| N 900288010001 | CLAMP | |
| LEAK LINE | ||
| 150 | N 915035000014 | SEAL RING |
| AT TANK | ||
| 154 | A 0029971640 | SEAL RING |
| Repalced by: A 0009971548 | ||
| 154 | A 0009971548 | SEAL RING |
| RISING PIPE TO FUEL TANK | ||
| 160 | A 3604700526 | RISING PIPE |
| Repalced by: A 3609900263 | ||
| 160 | A 3609900263 | HOLLOW SCREW |
| AT TANK | ||
| A 0089975482 | HOSE | |
| RISING PIPE | ||
| 8X11X342 MM | ||
| 164 | N 915036012203 | HOLLOW SCREW |
| RISING PIPE TO FUEL TANK | ||
| 170 | A 3524282140 | BRACKET |
| Repalced by: A 3524281740 | ||
| 170 | A 3524281740 | BRACKET |
| Repalced by: A 3184280240 | ||
| 170 | A 3184280240 | BRACKET |
| FUEL LINE TO FRAME | ||
| 175 | A 3184280240 | BRACKET |
| FUEL LINE TO SIDE MEMBER | ||
| 180 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 180 | N 304017008021 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 8X20 | ||
| N 000933008152 | SCREW | |
| Repalced by: N 304017008027 | ||
| N 304017008027 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| M 8X30 | ||
| 184 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 184 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 190 | N 007603014405 | SEAL RING |
| FUEL LINE TO FUEL FILTER | ||
| 14X18 MM | ||
| N 007603014106 | SEAL RING | |
| CONNECTION OF FUEL LINES | ||
| 14X20 MM | ||
| 195 | N 915036010204 | HOLLOW SCREW |
| Repalced by: N 915036010108 | ||
| 195 | N 915036010108 | HOLLOW SCREW |
| CONNECTION OF FUEL LINES | ||
| 200 | A 3049900163 | HOLLOW SCREW |
| Repalced by: N 915047010100 | ||
| 200 | N 915047010202 | HOLLOW SCREW |
| FUEL LINE TO FUEL FILTER | ||
