Transporto priemonė: LPL 1113; VIN numerio dalis: 318556
Grupė: 50 RADIATOR

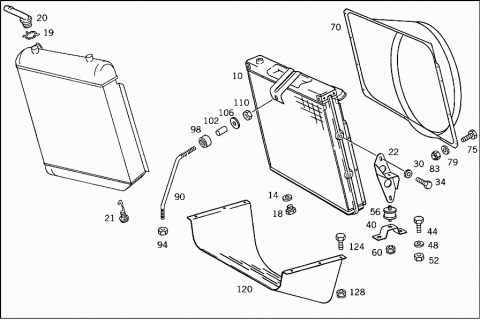

62744

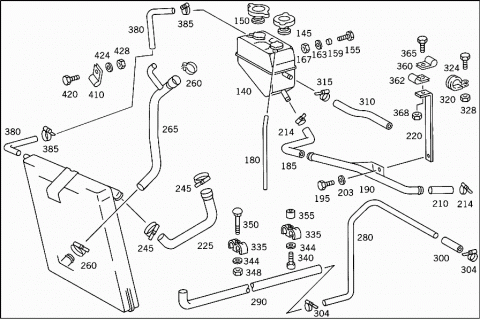

62745
# Kodas Pavadinimas
010 A 3185000802 RADIATOR
BEHR
A 3185001902 RADIATOR
BEHR
A 3185001902 RADIATOR
BEHR
014 N 007603014405 SEAL RING
TO 318 500 08 02
018 N 007604014106 SCREW PLUG
Repalced by: N 007604014110
018 N 007604014110 SCREW PLUG
TO 318 500 08 02
019 A 0009940013 LOCK
TO 318 500 19 02
020 A 0005010025 BREATHER PIPE
TO 318 500 19 02
021 A 0005010171 SCREW
TO 318 500 19 02
022 A 3185000127 SUPPORT
LEFT
A 3185001227 SUPPORT
LEFT
A 3185001227 SUPPORT
LEFT
A 3185000227 SUPPORT
RIGHT
A 3185001327 SUPPORT
RIGHT
A 3185001327 SUPPORT
RIGHT
030 N 000125010518 WASHER
Repalced by: N 000125010532
030 N 000125010532 WASHER
RADIATOR TO SUPPORT
N 009021010202 WASHER
Repalced by: N 009021010209
N 009021010209 WASHER
RADIATOR TO SUPPORT
034 N 000933010238 SCREW
Repalced by: N 304017010028
034 N 304017010028 SCREW
RADIATOR TO SUPPORT
10X18 MM
N 000931010282 SCREW
RADIATOR TO SUPPORT
10X40 MM
040 A 3185040040 BRACKET
RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER
044 N 000933010145 SCREW
RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER
10X35 MM
048 N 000125010518 WASHER
Repalced by: N 000125010532
048 N 000125010532 WASHER
RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER
052 N 000934010014 NUT
RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER
056 A 3225040112 RUBBER MOUNTING
RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER
A 0019873140 RUBBER BUFFER
Repalced by: A 0019875340
A 0019875340 RUBBER BUFFER
RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER
060 N 913004010008 NUT
Repalced by: N 910113010000
060 N 910113010000 NUT
RADIATOR TO CONSOLE AT ENGINE FRONT CROSS MEMBER
070 A 3185000455 FAN SHROUD
Repalced by: A 3185051155
A 3185051155 FAN SHROUD
075 N 000933006121 SCREW
Repalced by: N 304017006020
075 N 304017006020 SCREW
FAN SHROUD TO RADIATOR
079 N 009021006205 WASHER
Repalced by: N 009021006208
079 N 009021006208 WASHER
FAN SHROUD TO RADIATOR
083 N 913004006002 NUT
Repalced by: N 913004006001
083 N 913004006001 NUT
FAN SHROUD TO RADIATOR
A 3149870044 EXPANSION PLUG
090 A 3185040230 RADIATOR STRUT
094 N 000934010014 NUT
RADIATOR STRUT TO FRONT CROSS MEMBER
098 A 3275045082 RUBBER RING
RADIATOR TO SUPPORT
102 A 3199910540 SPACER TUBE
RADIATOR TO SUPPORT
106 N 009021010202 WASHER
Repalced by: N 009021010209
106 N 009021010209 WASHER
RADIATOR TO SUPPORT
110 N 000934010014 NUT
RADIATOR TO SUPPORT
120 A 3185030001 PROTECTIVE GRILL
124 N 000933010129 SCREW
Repalced by: N 304017010002
124 N 304017010002 SCREW
RADIATOR PROTECTIVE GRILLE TO GUSSET PLATE
10X30 MM
N 000933010128 SCREW
RADIATOR PROTECTIVE GRILLE TO GUSSET PLATE
10X20 MM
128 N 913004010008 NUT
Repalced by: N 910113010000
128 N 910113010000 NUT
RADIATOR PROTECTIVE GRILLE TO GUSSET PLATE
N 000934010014 NUT
RADIATOR PROTECTIVE GRILLE TO GUSSET PLATE
140 A 3185000449 TANK
EXPANSION TANK TO SEAT BOX
140 A 3185000449 TANK
EXPANSION TANK TO SEAT BOX
140 A 3185000449 TANK
EXPANSION TANK TO SEAT BOX
A 3815000249 TANK
Repalced by: A 3815001649
A 3815001649 TANK
EXPANSION TANK TO CAB REAR PANEL
A 3815000849 TANK
EXPANSION TANK TO CAB REAR PANEL
145 A 0005013515 RADIATOR CAP
TO 318 500 04 49
150 A 0005013115 RADIATOR CAP
Repalced by: A 0005014215
150 A 0005014215 RADIATOR CAP
TO 318 500 04 49
150 A 0005014215 RADIATOR CAP
TO 381 500 02 49,381 500 16 49
A 0005014515 RADIATOR CAP
TO 381 500 08 49
A 0005014615 RADIATOR CAP
TO 381 500 08 49
A 0005017215 RADIATOR CAP
TO 381 500 08 49
A 0005010480 GASKET
O.D.,
52 MM,TO 000 501 42 15,000 501 46 15
A 0005010880 GASKET
O.D.,
37 MM
155 N 000933008147 SCREW
Repalced by: N 304017008021
155 N 304017008021 SCREW
EXPANSION TANK TO SEAT BOX
8X20 MM
155 N 304017008021 SCREW
EXPANSION TANK TO SEAT BOX
8X20 MM
155 N 304017008021 SCREW
EXPANSION TANK TO SEAT BOX
8X20 MM
159 A 3185010053 SPACER TUBE
EXPANSION TANK TO SEAT BOX
159 A 3185010053 SPACER TUBE
EXPANSION TANK TO SEAT BOX
159 A 3185010053 SPACER TUBE
EXPANSION TANK TO SEAT BOX
163 N 009021008205 WASHER
Repalced by: N 009021008213
163 N 009021008213 WASHER
EXPANSION TANK TO SEAT BOX
163 N 009021008213 WASHER
EXPANSION TANK TO SEAT BOX
163 N 009021008213 WASHER
EXPANSION TANK TO SEAT BOX
167 N 913004008004 NUT
Repalced by: N 913004008001
167 N 913004008001 NUT
EXPANSION TANK TO SEAT BOX
167 N 913004008001 NUT
EXPANSION TANK TO SEAT BOX
167 N 913004008001 NUT
EXPANSION TANK TO SEAT BOX
A 3185010195 SHIM
EXPANSION TANK TO CAB REAR PANEL
A 3185000231 BRACKET
EXPANSION TANK TO CAB REAR PANEL
A 3815010295 SHIM
Repalced by: A 3815010495
A 3815010495 SHIM
EXPANSION TANK TO CAB REAR PANEL
N 000938010024 STUD
EXPANSION TANK TO CAB REAR PANEL
N 913004010008 NUT
Repalced by: N 910113010000
N 910113010000 NUT
EXPANSION TANK TO CAB REAR PANEL
A 1109870441 RUBBER RING
A 1109870441 RUBBER RING
N 007985010126 SCREW
10X20 MM
N 007985010126 SCREW
10X20 MM
N 000125010518 WASHER
Repalced by: N 000125010532
N 000125010532 WASHER
TO PLUG THE BORES
N 000125010532 WASHER
TO PLUG THE BORES
A 3819900192 RIVET
PLUG
180 A 3185010382 HOSE
Repalced by: N 073379006203
180 N 073379006203 HOSE
OVERFLOW
180 N 073379006203 HOSE
OVERFLOW
185 A 3185011282 HOSE
FROM EXPANSION TANK TO ENGINE
185 A 3185011282 HOSE
FROM EXPANSION TANK TO ENGINE
A 3185011182 HOSE
FROM EXPANSION TANK TO ENGINE
A 3185011182 HOSE
FROM EXPANSION TANK TO ENGINE
190 A 3185000572 LINE
FROM EXPANSION TANK TO ENGINE
N 000933010105 SCREW
COOLING WATER PIPE TO WATER PUMP SUPPORT
195 N 000933010128 SCREW
COOLING WATER PIPE TO WATER PUMP SUPPORT
10X20 MM
203 N 000125010518 WASHER
Repalced by: N 000125010532
203 N 000125010532 WASHER
COOLING WATER PIPE TO WATER PUMP SUPPORT
210 N 900271020028 HOSE
FROM EXPANSION TANK TO ENGINE
210 N 900271020028 HOSE
FROM EXPANSION TANK TO ENGINE
214 N 916017025000 CLAMP
Repalced by: N 000000000668
214 N 000000000668 CLAMP
HOSE TO RADIATOR AND TO EXPANSION TANK
214 N 000000000668 CLAMP
HOSE TO RADIATOR AND TO EXPANSION TANK
214 N 000000000668 CLAMP
HOSE TO RADIATOR AND TO EXPANSION TANK
220 A 3185060240 BRACKET
Repalced by: A 3185060640
A 3185060640 BRACKET
COOLING WATER LINE
A 3185010220 BRACKET
FILLING LINE
N 007981004322 SHEET METAL SCREW
Repalced by: N 007981004233
N 007981004233 SHEET METAL SCREW
Repalced by: N 000000000460
N 000000000460 SHEET METAL SCREW
4.8X13
225 A 3185011682 HOSE
FROM RADIATOR TO THERMOSTAT
A 3185011882 HOSE
FROM RADIATOR TO THERMOSTAT
A 3185011882 HOSE
FROM RADIATOR TO THERMOSTAT
N 916017020000 CLAMP
Repalced by: N 000000000667
N 000000000667 CLAMP
FROM RADIATOR TO WATER PUMP
245 N 916017040000 CLAMP
Repalced by: N 000000000671
245 N 000000000671 CLAMP
FROM RADIATOR TO WATER PUMP
260 N 916017025000 CLAMP
Repalced by: N 000000000668
260 N 000000000668 CLAMP
FROM RADIATOR TO WATER PUMP
265 A 3185011582 HOSE
Repalced by: A 3185011982
A 3185011982 HOSE
FROM RADIATOR TO WATER PUMP
A 3185011982 HOSE
FROM RADIATOR TO WATER PUMP
A 3185011982 HOSE
FROM RADIATOR TO WATER PUMP
A 3185062682 EXTENSION
FROM RADIATOR TO WATER PUMP
A 3185012282 HOSE
FROM RADIATOR TO WATER PUMP
A 3185012582 HOSE
FROM RADIATOR TO WATER PUMP
A 0019978390 LOOM TIE
COOLING WATER HOSE TO RADIATOR
N 009021006103 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
COOLING WATER HOSE TO RADIATOR
A 3185000672 LINE
Repalced by: A 3185060360
280 A 3185060360 PIPE
HEATING PIPE
A 3185060660 PIPE
HEATING PIPE
290 A 3185060260 PIPE
HOSE TO HEAT EXCHANGER
A 3185060035 HOSE
HOSE TO HEAT EXCHANGER
300 N 900271015037 HOSE
HEATING WATER PIPE TO ENGINE
300 N 900271018038 HOSE
HEATING WATER PIPE TO ENGINE
304 N 916017020000 CLAMP
Repalced by: N 000000000667
304 N 000000000667 CLAMP
HEATING WATER LINE TO HEATING
310 N 900271012018 HOSE
FROM THERMOSTAT HOUSING TO EXPANSION TANK
310 N 900271012018 HOSE
FROM THERMOSTAT HOUSING TO EXPANSION TANK
315 N 916017016000 CLAMP
Repalced by: N 000000000666
315 N 000000000666 CLAMP
FROM THERMOSTAT HOUSING TO EXPANSION TANK
A 3189970081 GROMMET
320 N 916016025201 CLAMP
COOLING WATER LINE TO BODY
324 N 000933006102 SCREW
COOLING WATER LINE TO BODY
6X16 MM
328 N 913004006002 NUT
Repalced by: N 913004006001
328 N 913004006001 NUT
COOLING WATER LINE TO BODY
335 A 3185060140 BRACKET
COOLING WATER LINE TO BODY
A 3185060540 BRACKET
COOLING WATER LINE TO BODY
340 N 007985006160 SCREW
Repalced by: N 007985006590
340 N 007985006590 SCREW
Repalced by: N 000000001481
340 N 000000001481 SCREW
BRACKET TO CAB
6X40 MM
344 N 000125006421 WASHER
BRACKET TO CAB
348 N 913004006002 NUT
Repalced by: N 913004006001
348 N 913004006001 NUT
BRACKET TO CAB
350 N 000603006060 SCREW
BRACKET TO CAB
6X80 MM
N 000603006063 SCREW
BRACKET TO CAB
355 A 3609902440 WASHER
Repalced by: A 3609902340
355 A 3609902340 WASHER
BRACKET TO CAB
A 0019978490 LOOM TIE
DE-AERATION
A 1149970490 LOOM TIE
Repalced by: A 1149970290
A 1149970290 LOOM TIE
Repalced by: A 1149970590
A 1149970590 LOOM TIE
DE-AERATION
A 3146160514 BRACKET
Repalced by: A 3185000331
A 3185000331 BRACKET
A 3185000331 BRACKET
A 3185000331 BRACKET
N 007985006161 SCREW
Repalced by: N 007985006580
N 007985006580 SCREW
BRACKET TO SIDE PANEL
N 007985006580 SCREW
BRACKET TO SIDE PANEL
N 000125006421 WASHER
BRACKET TO SIDE PANEL
N 000125006421 WASHER
BRACKET TO SIDE PANEL
360 A 3609950801 CLAMP
Repalced by: N 916016016201
360 N 916016016201 CLAMP
DE-AERATION
N 913010006107 RIVETED NUT
SEAT FRAMEWORK TO FLOOR
N 007985006193 SCREW
Repalced by: N 000000001146
N 000000001146 SCREW
SEAT FRAMEWORK TO FLOOR
M 6X16
N 000125006421 WASHER
SEAT FRAMEWORK TO FLOOR
362 A 3609952001 CLAMP
Repalced by: A 6739950001
362 A 6739950001 CLAMP
DE-AERATION
362 A 3609950601 CLAMP
DE-AERATION
365 N 000933006102 SCREW
DE-AERATION
6X16 MM
368 N 913004006002 NUT
Repalced by: N 913004006001
368 N 913004006001 NUT
DE-AERATION
M 6
A 3185010824 COOLING WATER PIPE
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
A 3185010824 COOLING WATER PIPE
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
A 3185010924 COOLING WATER PIPE
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
380 N 900271008043 HOSE
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
380 N 900271008043 HOSE
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
380 N 900271008043 HOSE
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
380 N 900271008043 HOSE
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
385 N 916017011000 CLAMP
Repalced by: N 916017011001
385 N 000000000665 CLAMP
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
11-20
410 A 3609950201 CLAMP
Repalced by: A 3604300143
410 A 3604300143 CLAMP
Repalced by: N 916016008200
410 N 916016008200 CLAMP
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
410 N 916016008200 CLAMP
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
420 N 000933006102 SCREW
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
6X15 MM
420 N 000933006102 SCREW
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
6X15 MM
420 N 000933006102 SCREW
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
6X15 MM
424 N 009021006205 WASHER
Repalced by: N 009021006208
424 N 009021006208 WASHER
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
A 6.4
424 N 009021006208 WASHER
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
A 6.4
424 N 009021006208 WASHER
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
A 6.4
428 N 913004006002 NUT
Repalced by: N 913004006001
428 N 913004006001 NUT
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
M 6
428 N 913004006001 NUT
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
M 6
428 N 913004006001 NUT
(DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
M 6
N 007981004245 SHEET METAL SCREW
Repalced by: N 007981004339
N 007981004339 SHEET METAL SCREW
Repalced by: N 000000000459
N 000000000459 SHEET METAL SCREW
VENTILATION, FROM RADIATOR TO EXPANSION TANK
M 48 X 9.5
A 3185011124 COOLING WATER PIPE
DE-AERATION
A 3185011424 COOLING WATER PIPE
DE-AERATION
A 3185011224 COOLING WATER PIPE
DE-AERATION
N 916017016000 CLAMP
Repalced by: N 000000000666
N 000000000666 CLAMP
A 0019978390 LOOM TIE
DE-AERATION LINE TO SIDE PANEL
N 009021006205 WASHER
Repalced by: N 009021006208
N 009021006208 WASHER
A 0009973781 GROMMET
DE-AERATION LINE THRU CAB REAR PANEL
A 1169970181 GROMMET
DE-AERATION LINE THRU CAB REAR PANEL
A 3229971381 GROMMET
Repalced by: A 4429970081
A 4429970081 GROMMET
DE-AERATION LINE THRU CAB REAR PANEL
A 3819900192 RIVET
A 3819900192 RIVET
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
